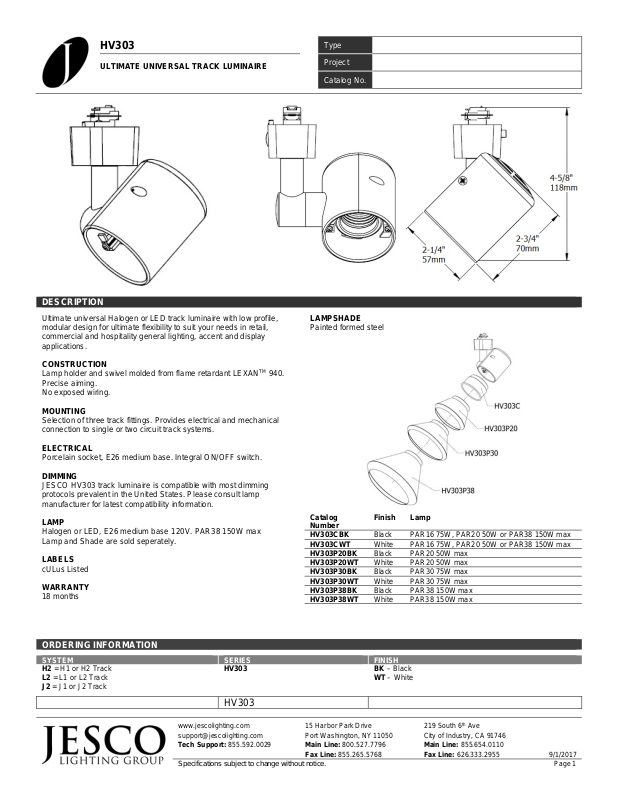

HV303
ULTIMATE UNIVERSAL TRACK LUMINAIRE
Project
Catalog No.
DESCRIPTION
Ultimate universal Halogen or LED track luminaire with low profile,
modular design for ultimate flexibility to suit your needs in retail,
commercial and hospitality general lighting, accent and display
applications.
CONSTRUCTION
Lamp holder and swivel molded from flame retardant LEXAN
TM
940.
Precise aiming.
No exposed wiring.
MOUNTING
Selection of three track fittings. Provides electrical and mechanical
connection to single or two circuit track systems.
ELECTRICAL
Porcelain socket, E26 medium base. Integral ON/OFF switch.
DIMMING
JESCO HV303 track luminaire is compatible with most dimming
protocols prevalent in the United States. Please consult lamp
manufacturer for latest compatibility information.
LAMP
Halogen or LED, E26 medium base 120V. PAR38 150W max
Lamp and Shade are sold seperately.
LABELS
cULus Listed
WARRANTY
18 months
LAMPSHADE
Painted formed steel
Catalog
Number
HV303CB
HV303CWT White PAR16 75W, PAR20 50W or PAR38 150W ma
HV303P20B
HV303P20WT White PAR20 50W max
HV303P30B
HV303P30WT White PAR30 75W max
HV303P38B
HV303P38WT White PAR38 150W max
Finish Lamp
Blac
Blac
Blac
Blac
PAR16 75W, PAR20 50W or PAR38 150W ma
PAR20 50W max
PAR30 75W max
PAR38 150W max
ORDERING INFORMATION
SYSTEM SERIES FINISH
H2 = H1 or H2 Track HV303 B
L2 = L1 or L2 Track WT–White
J2 = J1 o
HV303
J2 Track
www.jescolighting.com 15 Harbor Park Drive 219 South 6
[email protected] Port Washington, NY 11050 City of Industry, CA 91746
Tech Support: 855.592.0029 Main Line: 800.527.7796 Main Line: 855.654.0110
Fax Line: 855.265.5768 Fax Line: 626.333.2955 9/1/2017
Specifications subject to change without notice. Page 1
Blac
th
Ave
Page 2
HV303
V
ULTIMATE UNIVERSAL TRACK LUMINAIRE
DESCRIPTION – cont.
LINE VOLTAGE FIXTURE EXTENSION
Suspend fixtures where needed without lowering the track.
Ordered separately.
BK, WT
For H1 or H2 Track
H2HVFE12 12” nominal, 14.5” overall
H2HVFE18 18” nominal, 20.5” overall
H2HVFE24 24” nominal, 26.5” overall
H2HVFE36 36” nominal, 38.5” overall
H2HVFE48 48” nominal, 50.5” overall
For J1 or J2 Track (on/off switch standard)
J2HVFE12 12” nominal, 14.5” overall
J2HVFE18 18” nominal, 20.5” overall
J2HVFE24 24” nominal, 26.5” overall
J2HVFE36 36” nominal, 38.5” overall
FE48 48” nominal, 50.5” overall
J2H
