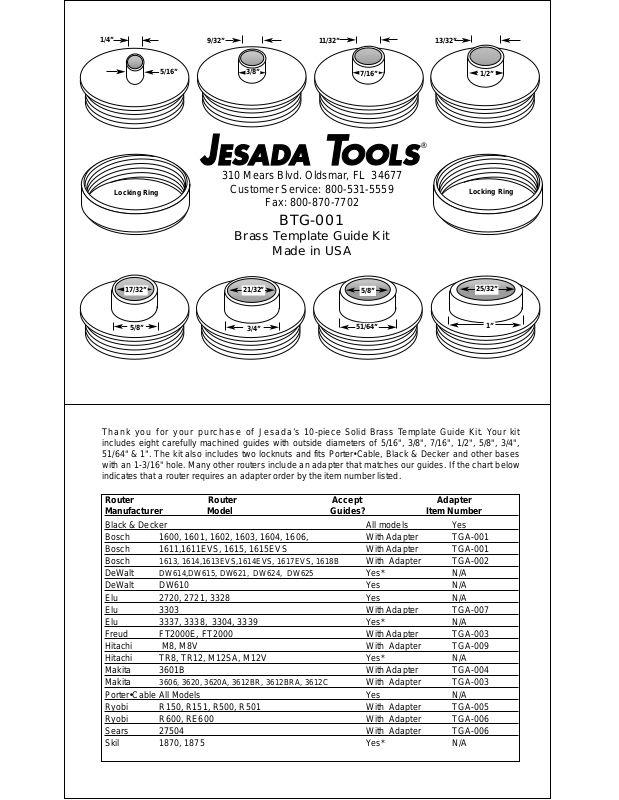

Jesada Tools BTG-001 User guide

®

1/4”

9/32” 11/32” 13/32”

Locking Ring

17/32”

5/8”

3/8”5/16”

7/16”

310 Mears Blvd. Oldsmar, FL 34677

Customer Service: 800-531-5559

Fax: [phone]

BTG-001

Brass Template Guide Kit

Made in USA

21/32”

3/4”

5/8”

51/64”

1/2”

Locking Ring

25/32”

1”

Thank you for your purchase of Jesada’s 10-piece Solid Brass Template Guide Kit. Your kit
includes eight carefully machined guides with outside diameters of 5/16", 3/8", 7/16", 1/2", 5/8", 3/4",
51/64" & 1". The kit also includes two locknuts and fits Porter•Cable, Black & Decker and other bases
with an 1-3/16" hole. Many other routers include an adapter that matches our guides. If the chart below
indicates that a router requires an adapter order by the item number listed.

Router Router Accept Adapter
Manufacturer Model Guides? Item Number

Black & Decker All models Yes
Bosch 1600, 1601, 1602, 1603, 1604, 1606, With Adapter TGA-001
Bosch 1611,1611EVS, 1615, 1615EVS With Adapter TGA-001
Bosch 1613, 1614,1613EVS,1614EVS, 1617EVS, 1618B With Adapter TGA-002
DeWalt DW614,DW615, DW621, DW624, DW625 Yes* N/A
DeWalt DW610 Yes N/A
Elu 2720, 2721, 3328 Yes N/A
Elu 3303 With Adapter TGA-007
Elu 3337, 3338, 3304, 3339 Yes* N/A
Freud FT2000E, FT2000 With Adapter TGA-003
Hitachi M8, M8V With Adapter TGA-009
Hitachi TR8, TR12, M12SA, M12V Yes* N/A
Makita 3601B With Adapter TGA-004
Makita 3606, 3620, 3620A, 3612BR, 3612BRA, 3612C With Adapter TGA-003
Porter•Cable All Models Yes N/A
Ryobi R150, R151, R500, R501 With Adapter TGA-005
Ryobi R600, RE600 With Adapter TGA-006
Sears 27504 With Adapter TGA-006
Skil 1870, 1875 Yes* N/A
