INSTALLATION GUIDE

For questions about features, operation/performance, parts, accessories, or service, call:

1-800-JENNAIR (1-800-536-6247) or visit our website at www.jennair.com.

In Canada, call: 1-800-807-6777, or visit our website at www.jennair.ca.

GUIÍA DE INSTALACIÓN

Si tiene preguntas respecto a las características, funcionamiento, rendimiento, partes, accesorios o servicio técnico, llame al:

1-800-JENNAIR (1-800-536-6247) o visite nuestro sitio de internet: www.jennair.com.

En Canadá, llame al: 1-800-807-6777, o visite nuestro sitio de internet: www.jennair.ca.

GUIDE D’INSTALLATION

Au Canada, pour assistance, installation ou service, composez le 1-800-807-6777 ou visitez notre site web à www.jennair.ca.

Table of Contents/Índice/Table des matières ......................................................................................2

TABLE OF CONTENTS

REFRIGERATOR SAFETY .............................................................3

MODELS..........................................................................................4

Accessories..................................................................................5

INSTALLATION REQUIREMENTS................................................5

Tools and Parts ............................................................................5

Location Requirements................................................................7

Electrical Requirements ...............................................................8

Water Supply Requirements........................................................8

Product Dimensions.....................................................................9

Tipping Radius .............................................................................9

Door Swing Dimensions...............................................................9

Cabinet and Panel Installation Options .....................................10

Fully Integrated Grille Installation Requirements.......................11

Standard Integrated Grille Installation Requirements................12

Panel Kit Installation Requirements...........................................12

ÍNDICE

SEGURIDAD DEL REFRIGERADOR...........................................25

MODELOS.....................................................................................26

Accesorios..................................................................................27

REQUISITOS DE INSTALACIÓN.................................................27

Piezas y herramientas................................................................27

Requisitos de ubicación.............................................................29

Requisitos eléctricos..................................................................30

Requisitos del suministro de agua.............................................30

Medidas del producto................................................................31

Arco de vuelco ...........................................................................32

Medidas de oscilación de las puertas .......................................32

Opciones para la instalación del armario y los paneles............32

Requisitos para la instalación de la rejilla

completamente incorporada......................................................33

Requisitos para la instalación de la rejilla

incorporada estándar.................................................................35

Custom Wood Overlay Panels...................................................13

Custom Wood Overlay Panel Dimensions.................................13

INSTALLATION INSTRUCTIONS ................................................14

Unpack the Refrigerator.............................................................14

Move the Refrigerator into House..............................................14

Install Anti-Tip Boards................................................................15

Connect the Water Supply.........................................................15

Plug in Refrigerator.....................................................................17

Install Side Trims ........................................................................17

Move Refrigerator to Final Location...........................................17

Level and Align Refrigerator.......................................................18

Install Refrigerator and Panels ...................................................19

Install Handles............................................................................23

Install Base Grille........................................................................24

Complete Installation..................................................................24

Requisitos de instalación del juego de paneles ........................35

Paneles de madera recubiertos a la medida .............................36

Dimensiones del panel de madera recubierto...........................36

INSTRUCCIONES DE INSTALACIÓN.........................................37

Desempaque el refrigerador ......................................................37

Cómo introducir el refrigerador en la casa ................................37

Cómo instalar los tableros antivuelco........................................38

Conexión del suministro de agua ..............................................38

Cómo enchufar el refrigerador ...................................................40

Instalación de las molduras laterales.........................................40

Cómo mover el refrigerador a su ubicación final.......................41

Nivelación y alineamiento del refrigerador.................................41

Instalación del refrigerador y los paneles ..................................42

Instalación de las manijas ..........................................................47

Instalación de la rejilla de la base ..............................................47

Cómo terminar la instalación .....................................................48

TABLE DES MATIÈRES

SÉCURITÉ DU RÉFRIGÉRATEUR ..............................................49

MODÈLES .....................................................................................50

Accessoires................................................................................51

EXIGENCES D’INSTALLATION...................................................51

Outillage et pièces......................................................................51

Exigences d’emplacement.........................................................53

Spécifications électriques .........................................................54

Spécifications de l’alimentation en eau.....................................54

Dimensions du produit...............................................................55

Rayon de basculement ..............................................................56

Dimensions pour le pivotement des portes...............................56

Options d’installation du placard et du panneau ......................56

Spécifications d’une installation grille totalement intégrée.......57

Critères d’une installation grille intégrée standard ....................59

Spécifications pour l’installation

de l’ensemble de panneaux.......................................................59

Panneaux de bois décoratifs personnalisés..............................60

Dimensions des panneaux de bois

décoratifs personnalisés ............................................................60

INSTRUCTIONS D’INSTALLATION.............................................61

Déballage du réfrigérateur..........................................................61

Faire entrer le réfrigérateur dans le domicile .............................61

Installation de planches antibasculement..................................62

Raccordement à l’alimentation en eau ......................................62

Branchement du le réfrigérateur ................................................64

Installation des garnitures latérales............................................64

Déplacement du réfrigérateur à son emplacement définitif ......65

Réglage de l’aplomb et alignement du réfrigérateur .................65

Installation du réfrigérateur et des panneaux ............................66

Installation des poignées............................................................71

Installation de la grille de la base...............................................72

Achever l’installation ..................................................................72

REFRIGERATOR SAFETY

You can be killed or seriously injured if you don't immediately

You

can be killed or seriously injured if you don't

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”

These words mean:

follow instructions.

instructions.

DANGER

WARNING

Tip Over Hazard

Refrigerator is top heavy and tips easily when not completely installed.

Keep doors taped closed until refrigerator is completely installed.

Use two or more people to move and install refrigerator.

Failure to do so can result in death or serious injury.

MODELS

Custom-Made Panel Design

Features custom-made panels and custom hardware provided by the cabinetmaker for a seamless appearance designed to blend with existing kitchen cabinetry.

Base Model Numbers: JS42NXFXDW, JS48NXFXDW

Pro-Style® Stainless Design

Features stainless steel wrapped doors and Pro-Style with diamond-etched grip.

Base Model Numbers: JS42NXFXDW, JS48NXFXDW Kit Model Numbers: JPK42SNXWPS, JPK48SNXWPS

handles

Euro-Style Stainless Design

Features stainless steel wrapped doors with new Euro-style handles designed to compliment the Jenn-Air Euro kitchen suite or enhance any kitchen decor.

Base Model Numbers: JS42NXFXDW, JS48NXFXDW Kit Model Numbers: JPK42SNXWSS, JPK48SNXWSS

Oiled-Bronze Design

Features intricate copper strokes that integrate seamlessly into your kitchen while slightly curved matching handles add to the refrigerator’s expressive form.

Base Model Numbers: JS42NXFXDW, JS48NXFXDW Kit Model Numbers: JPKSNXWSR, JPK48SNXWSR

Floating Glass Design

Classic black or white glass panels that seemingly float in place with slightly curved, color coordinating handles that will compliment your contemporary kitchen.

Base Model Numbers: JS42NXFXDW, JS48NXFXDW Kit Model Numbers: Black Glass - JPK42SNXWSY, JPK48SNXWSY White Glass - JPK42SNXWSF, JPK48SNXWSF

Accessories

All factory parts are available through your Jenn-Air dealer or by calling Jenn-Air at 1-800-JENNAIR (1-800-536-6247). In Canada, call 1-800-807-6777.

Door Handle Kits

These handle kits can be ordered to use on custom wood overlay panels. Follow the kit instructions for installing the door handles.

Pro-Style

Stainless Steel - W10250643 Euro-Style Stainless Steel - W10250640 Classic Euro-Style - W10250637

INSTALLATION REQUIREMENTS

Tools and Parts

IMPORTANT:

■ Installer: Leave Installation Instructions with the homeowner.

■ Homeowner: Keep Installation Instructions for future

reference. Save these Installation Instructions for the local electrical inspector’s use.

Tools Needed:

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Armoire-Style Door Panel Kit

Follow the kit instructions for installation.

42" Model - W10292393 48" Model - W10292394

■ Cordless drill

■ Drill bits

■ Adjustable wrenches (2)

■ Phillips screwdriver

■ Small level

■ ³⁄₃₂" hex key

(panel kits only)

■ ¹¹⁄₃₂" nut driver

■ ³⁄₈" and ¹⁄₂" open-end wrenches

■ ⁵⁄₃₂" and ³⁄₁₆" hex key

■ ¹⁄₄" and ⁵⁄₁₆" socket drivers

■ Tape measure

■ Utility knife

■ Tape (painters)

■ Appliance dolly

Parts Needed:

■ #8 x 3" (7.6 cm) wood screws (longer screws may be needed) (6)

■ 2" x 4" x 32" (5 cm x 10 cm x 81 cm) wood board(s) (1 or 2)

■ Custom wood overlay panels—consult a qualified

cabinetmaker or carpenter to make the custom wood panels. See “Custom Wood Overlay Panels” for more information.

Panel kits—See “36" Models or 42" French Door Models” for panel kit information.

■ Flexible, codes approved water supply tubing, a ferrule, a

union and a ¹⁄₄" (6.35 mm) compression fitting.

Parts Provided:

Fully Integrated Grille Bracket

W10260890—Left (1) W10260891—Right (1)

Filler Board “L” Bracket

W10234199 (2)

Slotted hex-head screw

W10141645 (21)

Hex-head blunt screw

W10142233 (4)

Phillips-head flat screw

8281251 (28)

Door Adjustment Pin

Hex-head pointed screw

W10141189 (4)

Round-head screw

1163283 (24)

Door panel stud

W10129563 (4)

Door Stop Pin

Panel top bracket

W10192849 (2)

RC Hinge Cover Trim

W10199873—42" SxS W10199875—48" SxS W10202875—36" BM (Right) W10202510—42" FDBM (Right)

Panel templates

W10222281—SxS W10222279—BM W10222283—Grille

Top Grille Lower Trim

W10250961—36" BM (1) W10250962—42" BM, SxS (1) W10250963—48" SxS (1)

FC Hinge Cover Trim

W10199886—42" SxS W10199888—48" SxS W10202877—36" BM (Left) W10202511—42" FDBM (Left)

Handle Side Door Trim

W10167367—SxS W10188556—BM (Left) W10202604—BM (Right) W10202478—FDBM (Right) W10202480—FDBM (Left)

W10234194 (2)

Drawer Panel Bracket

W10203457 (2)

W10234202 (2)

Installation block

W10234156

Standard Integrated Grille Bracket

W10182743—Left (1) W10182741—Right (1)

Location Requirements

WARNING

Explosion Hazard

Keep flammable materials and vapors, such as gasoline, away from refrigerator.

Failure to do so can result in death, explosion, or fire.

C Depth

Dimension

IMPORTANT:

■ Observe all governing codes and ordinances.

■ It is recommended that you do not install the refrigerator near

an oven, radiator, or other heat source.

■ Do not install in a location where the temperature will fall

below 55°F (13°C).

■ Floor must support the refrigerator weight, more than 600 lbs

(272 kg), door panels and contents of the refrigerator. Flooring under refrigerator must be at same level as the room. Face of cabinetry must be plumb.

■ Ceiling height must allow for side tipping radius. See “Tipping

Radius.”

■ Location should permit door to open fully. See “Door Swing

Dimensions.”

■ Location must permit top grille removal. See “Opening

Dimensions.”

84" (213.4 cm) to bottom of solid soffit

Width

(see chart following)

77" (196 cm)

Opening Dimensions

IMPORTANT:

■ The width of the opening (Width A), from side to side, must be

as specified for your model, for at least 2" (5.08 cm) back from the face of the cabinet.

NOTE: If your opening does not meet this requirement, you will need to make modifications.

■ A solid soffit or wall cabinet must be installed 84" (213.4 cm)

above the floor. If the solid soffit is higher than 84" (213.4 cm) or one is not available, then the refrigerator must be braced.

If the anti-tip boards are needed, they must be attached to the rear wall studs so that there is 84" (213.4 cm) from the bottom of the anti-tip board to the floor. See “Install Anti-Tip Boards” for more information.

■ For a fully integrated installation, a minimum of 6" (15.24 cm)

of open space above the refrigerator is required. See “Fully Integrated Installation.” Anti-tip boards are required. See “Install Anti-Tip Boards” for more information.

■ A grounded 3 prong electrical outlet should be located within

a specified number of inches from the right-hand side cabinets or end panel. See the chart following the graphic for the number of inches required for your model. For more information, see “Electrical Requirements.”

■ The water shutoff should be located in the base cabinet on

either side of the refrigerator or some other easily accessible area. If the water shutoff valve is not in the cabinets, the plumbing for the water line can come through the floor. See “Water Supply Requirements” for more information.

Model

42 48

Width A (as shown above)

42" (106.7 cm) 48" (121.9 cm)

Dimension B (as shown above)

10" (25.4 cm) 16" (40.6 cm)

Installation Type Depth C (as shown above)

Standard Flush (new installation)

Retrofit Installations 24" (60.9 cm) minimum

25" (63.5 cm) minimum

Electrical Requirements

Electrical Shock Hazard

Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death,

fire, or electrical shock.

WARNING

(2.54 cm)

(15.2 cm)

Before you move your refrigerator into its final location, it is important to make sure you have the proper electrical connection.

Recommended Grounding Method

A 115 volt, 60 Hz., AC only, 15- or 20-amp fused, grounded electrical supply is required. It is recommended that a separate circuit serving only your refrigerator be provided. Use an outlet that cannot be turned off by a switch. Do not use an extension cord.

IMPORTANT: If this product is connected to a GFCI (Ground Fault Circuit Interrupter) protected outlet, nuisance tripping of the power supply may occur, resulting in loss of cooling. Food quality and flavor may be affected. If nuisance tripping has occurred, and if the condition of the food appears poor, dispose of it.

NOTE: Before performing any type of installation, cleaning, or removing a light bulb, remove the top grille and turn the master power switch to OFF or disconnect power at the circuit breaker box.

When you are finished, turn ON the master power switch or reconnect power at the circuit breaker box. Then reset the control to the desired setting.

Water Supply Requirements

■ All installations must meet local plumbing code requirements.

■ The water shutoff should be located in the base cabinet on

either side of the refrigerator or some other easily accessible area. The water supply line, however, must come up through the floor in the gray shaded area shown.

NOTE: There is not enough clearance to achieve a flush installation if a water shutoff valve is located in the wall behind the refrigerator.

■ A ½" (12.7 mm) hole for plumbing should be drilled on the

floor at least 6" (15.2 cm) from the right or left hand side cabinet and should be no more than 1" (2.54 cm) away from the back wall. See “Connect the Water Supply.

■ The water supply connection is made at the front of the

refrigerator.

■ If additional tubing is needed, use copper tubing and check

for leaks. Install the copper tubing only in areas where the household temperatures will remain above freezing.

■ Do not use a piercing-type or ³⁄₁₆" (4.76 mm) saddle valve

which reduces water flow and clogs more easily. NOTE: Your refrigerator dealer has a kit available with a ¹⁄₄"

(6.35 mm) saddle-type shutoff valve, a union, and copper tubing. Before purchasing, make sure a saddle-type valve complies with your local plumbing codes.

Water Pressure

A cold water supply with water pressure between 30 and 120 psi (207 and 827 kPa) is required to operate the water dispenser and ice maker. If you have questions about your water pressure, call a licensed, qualified plumber.

Reverse Osmosis Water Supply

IMPORTANT: The pressure of the water supply coming out of a

reverse osmosis system going to the water inlet valve of the refrigerator needs to be between 30 and 120 psi (207 and 827 kPa).

If a reverse osmosis water filtration system is connected to your cold water supply, the water pressure to the reverse osmosis system needs to be a minimum of 40 to 60 psi (276 to 414 kPa).

If the water pressure to the reverse osmosis system is less than 40 to 60 psi (276 to 414 kPa):

■ Check to see whether the sediment filter in the reverse

osmosis system is blocked. Replace the filter if necessary.

■ Allow the storage tank on the reverse osmosis system to refill

after heavy usage.

■ If your refrigerator has a water filter, it may further reduce the

water pressure when used in conjunction with a reverse osmosis system. Remove the water filter cartridge.

If you have questions about your water pressure, call a licensed, qualified plumber.

Product Dimensions

24"

(61.0 cm)

*83³⁄₈" (211.8 cm)

(see chart following)

90˚

110˚

90˚

BA C D

IMPORTANT:

■ The depth from the front face of the doors to the back of the

refrigerator cabinet is 24" (60.96 cm) without panels.

■ The power cord is 84" (213 cm) long.

■ The water supply connection is made at the bottom front of

the refrigerator.

Tipping Radius

Be sure there is adequate ceiling height to stand the refrigerator upright when it is moved into place.

■ The dolly wheel height must be added to the tipping radius

when a dolly is used.

Side Tipping Radius

Top Vi e w

Model A

42 41³⁄₄" (106 cm) 48 47³⁄₄" (121.3 cm)

Front View

■ Width dimensions were measured from hinge to hinge.

■ When leveling legs are fully extended to 1¹⁄₄" (3.2 cm) below

rollers, add 1¹⁄₄" (3.2 cm) to the height dimensions.

The side tipping radius varies depending upon the width of the model. Use the chart provided to determine the side tipping radius.

NOTE: Tip on side only.

Model Tipping Radius A

42 48

91³⁄₈" (232.1 cm) 94³⁄₈" (239.7 cm)

Door Swing Dimensions

The location must permit both doors to open to a minimum of 90°. Allow 4¹⁄₂" (11.4 cm) minimum space between the side of the refrigerator and a corner wall.

NOTE: More clearance may be required if you are using wood overlay panels, custom handles, or extended handles.

Model Width A (hinge edge to hinge edge)

42 41³⁄₄" (106 cm) 48 47³⁄₄" (121.3 cm)

Model A B C D

42 40³⁄₄"

(103.5 cm)

48 43¹⁄₄"

(109.9 cm)

39³⁄₄" (101.0 cm)

42" (106.7 cm)

45³⁄₈" (115.3 cm)

48⁵⁄₈" (123.5 cm)

46³⁄₄" (118.8 cm)

50¹⁄₄" (127.6 cm)

Cabinet and Panel Installation Options

A B

E D C

A B

E D C

A B

E D C

E D

A B

E D C

A B

NOTE: Graphics shown below illustrate installation configuration options given the specified cabinet depths. All possible configurations are not shown.

Cabinet Depth—25" (63.5 cm)

Framed Cabinetry

Top View

A. Refrigerator door B. Door panel C. Side trim

Inset

Top View

D. Adjacent cabinet

E. Grille bracket F. 25" (63.5 cm)

Cabinet Depth—24" (60.9 cm)

NOTE: A flush installation is not possible with a 24" (60.9 cm)

deep opening.

Framed Cabinetry

Top View

A. Refrigerator door B. Door panel C. Side trim

D. Adjacent cabinet

E. Grille bracket F. 24" (60.9 cm)

Frameless Cabinetry

Top View

A. Refrigerator door B. Door panel C. Side trim

Frameless Cabinetry

Top View

A. Refrigerator door B. Door panel

C. Side trim

D. Adjacent cabinet

E. Grille bracket F. 25" (63.5 cm)

D. Adjacent cabinet E. Grille bracket

F. 25" (63.5 cm)

A. Refrigerator door B. Door panel C.Side trim

D. Adjacent cabinet

E. Grille bracket F. 24" (60.9 cm)

Fully Integrated Grille Installation Requirements

6" (15.24 cm)

min.

84"

(213.4 cm)

6" (15.24 cm) min.

84"

(213.4 cm)

The refrigerator can be installed fully integrated if the adjacent cabinetry meets the airflow venting requirements critical to refrigerator performance. A Fully Integrated Grille installation has no visible air gap because the grille extends upward to the soffit or upper cabinet.

IMPORTANT:

■ A Fully Integrated Grille installation requires a minimum of 6"

(15.24 cm) of open space above the refrigerator. This space must not be blocked in any way, including by soffits.

■ Both Standard and Fully Integrated Grille installations can be

achieved with either a 24" (60.9 cm) or 25" (63.5 cm) deep opening.

■ A full height grille is used to achieve a Fully Integrated Grille

installation. Use the integrated bracket (provided with refrigerator) to attach the full height grille.

NOTE: A top grille filler is not required with a full height grille.

Integrated Grille Bracket

Fully Integrated Grille Installation—Side View

Fully Integrated Grille Installation Options

Option 1—Open to Ceiling

A. False front (optional) B. Airflow

Option 2—False Front (cabinet face only)

C. Full height grille D. Door panel

Standard Integrated Grille Installation

Requirements

IMPORTANT:

■ A Standard Integrated Grille installation can be achieved with

either a 24" (60.9 cm) or 25" (63.5 cm) deep opening.

■ Use the standard grille bracket (provided with refrigerator) to

attach the standard grille.

■ The grille panel height, shown in the “Standard Integrated

Grille Installation—Side View” graphic, allows for an air gap critical to refrigerator performance.

Standard Grille Bracket

Standard Integrated Grille Installation—Side View

Standard Integrated Grille Installation—Full Product View

C. Airflow

Panel Kit Installation Requirements

See the “Models” section to see the panel kit options available for your model.

IMPORTANT:

■ A panel kit installation can be achieved with either a 24"

(60.9 cm) or 25" (63.5 cm) deep opening.

■ A standard grille is used to achieve a panel kit installation.

Use the standard grille bracket (provided with refrigerator) to

A. Top grille filler B. Soffit C. Airflow

D. Grille panel

E. Door panel

attach the standard grille.

■ The grille panel height, shown in the “Panel Kit Installation—

Side View” graphic, allows for an air gap critical to refrigerator performance.

Standard Grille Bracket

Panel Kit Installation—Side View

Freezer

Door Panel

Refrigerator

Door Panel

74¹⁄₄"

(188.6 cm)

Pinch Hazard

Installation of door panels with less than a ³⁄₈" (0.95 cm) gap between the door panel and the adjacent cabinet increases the risk of potential pinching.

CAUTION

⁵⁄₈"

(16.83 cm)

Top Grille Panel

■ The weight of the top grille wood overlay panel cannot

exceed 8 lbs (3.6 kg) for 48" models or 7 lbs (3.2 kg) for 42" models.

■ The required thickness for all panels is ³⁄₄" (1.91 cm).

■ This installation does not require filler or backer panels.

Custom Wood Overlay Panel Dimensions

Door Panels

A. Soffit B. Airflow

C. Grille panel D. Door panel

Panel Kit Installation—Full Product View

Custom Wood Overlay Panels

Custom wood overlay panels allow you to blend the exterior of your refrigerator into the overall kitchen décor, and to use custom handles for additional design flexibility.

In some cases, your cabinet manufacturer may choose to work with one panel routed for the different dimensions. Follow these panel dimension and placement instructions to be sure that the custom wood overlay panels will fit properly.

IMPORTANT:

■ The weight of the refrigerator door wood overlay panel

cannot exceed 66 lbs (29.9 kg) for 48" models or 65 lbs (29.5 kg) for 42" models.

■ The weight of the freezer door wood overlay panel cannot

exceed 50 lbs (23 kg) for 48" models or 49 lbs (22.2 kg) for 42" models.

Model 42 48 Reveal ³⁄₈" ¹⁄₈" ³⁄₈" ¹⁄₈"

A 17⁹⁄₁₆"

(44.61 cm)

B 23⁹⁄₁₆"

(59.85 cm)

17¹³⁄₁₆" (45.24 cm)

23¹³⁄₁₆" (60.48 cm)

20¹⁄₁₆" (50.96 cm)

27¹⁄₁₆" (68.74 cm)

20⁵⁄₁₆" (51.59 cm)

27⁵⁄₁₆" (69.37 cm)

Grille Panel

Fully Integrated Grille Installation—Full Height Grille— Open Soffit

Model 42 48 Reveal ³⁄₈" ¹⁄₈" ³⁄₈" ¹⁄₈"

C 41¹⁄₄"

(104.78 cm)

41³⁄₄" (106.05 cm)

47¹⁄₄" (120.02 cm)

47³⁄₄" (121.29 cm)

Standard Grille Installation—Flush Grille—Open or Closed

³⁄₄"

(14.55 cm)

Top Grille Panel

1" (2.54 cm)

Top Grille Filler

WARNING

Tip Over Hazard

Refrigerator is top heavy and tips easily when not completely installed.

Keep doors taped closed until refrigerator is completely installed.

Use two or more people to move and install refrigerator.

Failure to do so can result in death or serious injury.

WARNING

Tip Over Hazard

Refrigerator is top heavy and tips easily when not completely installed.

Keep doors taped closed until refrigerator is completely installed.

Use two or more people to move and install refrigerator.

Failure to do so can result in death or serious injury.

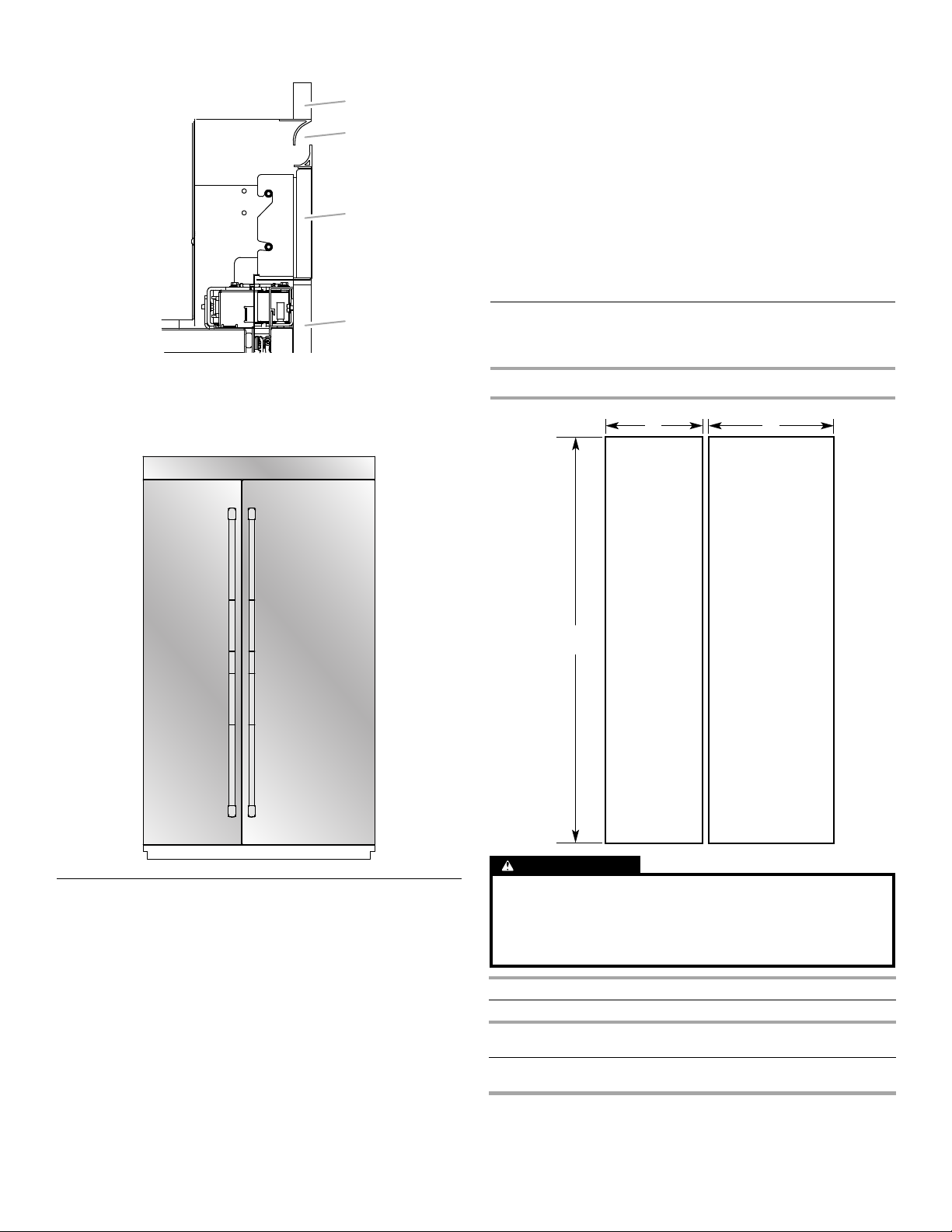

Soffit

INSTALLATION INSTRUCTIONS

Model 42 48 Reveal ³⁄₈" ¹⁄₈" ³⁄₈" ¹⁄₈"

D 41¹⁄₄"

(104.78 cm)

E 41¹⁄₄"

(104.78 cm)

IMPORTANT: The grille panel height, shown in the “Standard Integrated Grille Installation—Side View” graphic, allows for an air gap critical to refrigerator performance.

41³⁄₄" (106.05 cm)

47¹⁄₄" (120.02 cm)

47³⁄₄" (121.29 cm)

Unpack the Refrigerator

IMPORTANT:

■ Do not remove the film covering until the refrigerator is in its

operating location.

■ All four leveling legs must contact the floor to support and

stabilize the full weight of the refrigerator.

■ Keep the cardboard shipping piece or plywood under the

refrigerator until it is installed in the operating location.

1. Remove and save the literature package and hardware kit

located inside the refrigerator. Remove and save the literature, grille, and trim taped to the outside of the refrigerator.

NOTE: Do not remove tape and door bracing until the refrigerator is in its final location.

Move the Refrigerator into House

1. Place an appliance dolly under the left side of the refrigerator

as shown. Place the corner posts from the packing materials over the trims as appropriate. Slowly tighten the strap.

2. Place pieces of the shipping carton on the floor when rolling

the dolly and refrigerator into the house. Move the refrigerator close to the built-in opening.

3. Place top of cardboard carton or plywood under refrigerator.

4. Stand the refrigerator up. First, place the left bottom edge of

the refrigerator on the floor, stand the refrigerator upright and then lower the right-hand side of the refrigerator to the floor.

5. Reassemble the trim and top grille after the dolly has been

removed from the refrigerator.

Install Anti-Tip Boards

2" (5 cm)

¹⁄₄" (6 mm)

max.

84"

(213.4 cm)

A B

IMPORTANT:

■ If a solid soffit is not available, an anti-tip board must be

installed.

■ It is recommended that board(s) be installed before the

refrigerator is installed.

■ Board(s) must be long enough to fully cover the width of the

compressor cover.

■ Locate the board(s) so the bottom surface(s) of the board(s)

is(are) 84" (213 cm) from the floor.

■ During installation, raise the refrigerator up until the top of the

refrigerator is making contact with the bottom of the anti-tip board(s). Do not crush the compressor cover when raising the rear leveling legs.

To Install Anti-tip Boards

1. Mark the stud locations on rear wall 80" to 90" (203 cm to

229 cm) above floor.

2. Securely attach one or two 2" x 4" x 32" (5 cm x 10 cm x

81 cm) boards to wall studs behind refrigerator. Use six #8 x 3" (7.6 cm) (or longer) wood screws. The wood screws must be screwed into the studs at least 1½" (3.8 cm). The board(s) must overlap the compressor cover.

Connect the Water Supply

Read all directions before you begin. IMPORTANT: If you turn the refrigerator on before the water line

is connected, turn the ice maker OFF.

Connect to Water Line

Parts Needed:

■ Minimum 7 ft (2.13 m) flexible, codes approved water

supply line

Style 1—Shutoff Valve Connection

NOTE: If your water line connection does not look like Style 1,

see “Style 2—Copper Line Connection.”

1. Unplug refrigerator or disconnect power supply. IMPORTANT: Before attaching the tubing to shutoff valve, flush

the main water supply line to remove particles and air in the water line. Allow enough flow so that water becomes clear. Flushing the water line may help avoid filters and/or water valves from becoming clogged.

2. Connect the flexible, codes approved water supply line to the

water shutoff valve by threading the provided nut onto the shutoff valve as shown.

A. Center board B. Two 2" x 4" x 32" (5 cm x 10 cm x 81 cm) boards C. Attach to studs with six #8 x 3" (7.6 cm) screws D. Compressor cover E. Distance from bottom of anti-tip board to floor

¹⁄₄

" (6.35 mm) max. above refrigerator

A. Bulb B. Nut C. Water tubing

3. Place the end of the tubing into a bucket, and turn shutoff

valve ON.

4. Check for leaks. Tighten any nuts or connections (including

connections at the valve) that leak.

Style 2—Copper Line Connection

A B

DEF

(2.54 cm)

7" (17.78 cm)

(15.2 cm)

NOTE: If there is a water supply line that meets the specifications in “Water Supply Requirements,” proceed to “Connecting to Refrigerator.” If not, use the following instructions to connect to the household cold water supply.

1. Unplug refrigerator or disconnect power.

2. Turn OFF main water supply. Turn ON nearest faucet long

enough to clear line of water.

3. Locate a ½" to 1¹⁄₄" (1.25 cm to 3.18 cm) vertical cold water

pipe near the refrigerator.

IMPORTANT:

■ Make sure it is a cold water pipe.

■ Horizontal pipe will work, but drill on the top side of the

pipe, not the bottom. This will help keep water away from the drill and keep normal sediment from collecting in the valve.

4. Determine the length of copper tubing you need. Measure

from the connection on the refrigerator to the water pipe. Add 7 ft (2.1 m) to allow for cleaning. Use ¹⁄₄" (6.35 mm) O.D. (outside diameter) copper tubing. Be sure both ends of copper tubing are cut square.

5. Using a cordless drill, drill a ¹⁄₄" (6.35 mm) hole in the cold

water pipe you have selected.

A. Cold water pipe B. Pipe clamp C. Copper tubing D. Compression nut

E. Compression sleeve F. Shutoff valve

G. Packing nut

6. Fasten the shutoff valve to the cold water pipe with the pipe

clamp. Be sure the outlet end is solidly in the ¹⁄₄" (6.35 mm) drilled hole in the water pipe and that the washer is under the pipe clamp. Tighten the packing nut. Tighten the pipe clamp screws slowly and evenly so washer makes a watertight seal. Do not overtighten.

IMPORTANT: Before attaching the tubing to shutoff valve, flush the main water supply line to remove particles and air in the water line. Allow enough flow so that water becomes clear. Flushing the water line may help avoid filters and/or water valves from becoming clogged.

7. Slip the compression sleeve and compression nut on the

copper tubing as shown. Insert the end of the tubing into the outlet end squarely as far as it will go. Screw compression nut onto outlet end with adjustable wrench. Do not overtighten the clamp or the sleeve. This will crush the copper tubing.

8. Turn off the shutoff valve on the water pipe. Coil the copper

tubing.

9. Connect the flexible, codes approved water supply line to the

water shutoff valve by threading the provided nut onto the shutoff valve.

10. Place the end of the tubing into a bucket, and turn shutoff

valve ON.

11. Check for leaks around the saddle valve. Tighten any nuts or

connections (including connections at the valve) that leak.

Connect to Refrigerator

Parts Supplied:

■ ¹⁄₄" to ¹⁄₄" (6.35 mm to 6.35 mm) male-to-male coupling

NOTE: The flexible, codes approved water supply line should connect to the supply valve through the floor.

1. Unplug the refrigerator or disconnect power.

2. Connect the 7 ft (2.13 m) flexible codes approved water tube

to the water supply valve.

Flush the main water supply line to remove particles and air in the water line. Allow enough flow so that water becomes clear.

4. Tape the 7 ft (2.13 m) flexible codes approved water supply

line to the floor, 7" (17.78 cm) from the left side of the refrigerator. Tape along the length of the tubing, which will allow it to pass beneath the refrigerator without interference.

NOTE: Allow a minimum of 26" (66.04 cm) of flexible codes approved water supply line to be loose at the front of the refrigerator for connecting to the refrigerator.

5. Connect the 7 ft (2.13 m) flexible codes approved water

supply line to the refrigerator. NOTE: If the main water shutoff valve is behind the

refrigerator, a secondary water shutoff valve may be installed in line with the water supply line at the front of the product.

A. Household water line B. Nut (purchased) C. Ferrule (purchased) D. Coupling

6. Turn on the water supply valve and check all connections for

leaks.

E. Bulb F. N u t

G. Refrigerator water tubing

Plug in Refrigerator

Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death,

fire, or electrical shock.

WARNING

A B

WARNING

Tip Over Hazard

Refrigerator is top heavy and tips easily when not completely installed.

Keep doors taped closed until refrigerator is completely installed.

Use two or more people to move and install refrigerator.

Failure to do so can result in death or serious injury.

3. Using the original holes and the screws removed in Step 2,

fasten the side trim to the refrigerator cabinet. NOTE: Make sure to fasten each trim piece to the side of the

refrigerator cabinet from which it was removed. The bulbshaped section should be forward with the notch at the top, as shown.

Top Vi e w

1. Set control switch at top of cabinet to the OFF position.

2. Plug into a grounded 3 prong outlet.

Install Side Trims

The side trims cover the space between the refrigerator and the adjacent cabinets. There is a trim piece taped to each side of the refrigerator. Install each trim piece to the side of the refrigerator to which it is taped.

1. Remove the tape attaching the trim pieces to the sides of the

refrigerator. Set the trim pieces aside. IMPORTANT: For installations using custom wood panels

with ¹⁄₈" gap, the bulb-shaped section of the trim piece will interfere with the panels. Score each trim piece at the base of the bulb-shaped section, then remove and discard this section. See the “Top View” graphic later in this section.

2. Remove the 4 screws from the side of the refrigerator cabinet.

A. Side trim B. Adjacent cabinet

C. Door D. Bulb-shaped section

Move Refrigerator to Final Location

IMPORTANT:

■ To avoid floor damage, make sure levelers are raised (not

touching floor) and refrigerator is on rollers before moving.

■ Use the installation block, attached to the door hinge, as a

reference to make sure the refrigerator is pushed back far enough into the opening, so that when the panels are installed they will be flush with the adjacent cabinets.

NOTE: A flush installation is not possible with a 24" (60.9 cm) deep opening.

A. Side trim screws

■ After the refrigerator is leveled and aligned, remove the

¹⁄₈"

(3.18 mm)

³⁄₈"

(9.53 mm)

³⁄₄"

(1.9 cm)

³⁄₄" (1.9 cm)

WARNING

Tip Over Hazard

Refrigerator is top heavy and tips easily when not completely installed.

Keep doors taped closed until refrigerator is completely installed.

Use two or more people to move and install refrigerator.

Failure to do so can result in death or serious injury.

A B

2" (5 cm)

¹⁄₄" (6 mm)

max.

84"

(213.4 cm)

installation block from the door hinge and use it to check the spacing between the panels and adjacent cabinets.

NOTE: The installation block is designed to provide accurate spacing for ³⁄₄" (1.9 cm), ³⁄₈" (9.53 mm) and ¹⁄₈" (3.18 mm).

1. Place top of cardboard carton or plywood under refrigerator.

Remove dolly.

2. Move the refrigerator straight back and evenly into the

opening. Be sure that the water tubing is not kinked and the power supply cord is on top of the refrigerator.

NOTE: If the power supply cord is behind the refrigerator, it will not install properly.

3. Make sure the installation block is flush with the adjacent

cabinets. NOTE: To achieve a flush installation, it is critical to verify a

³⁄₄" (1.9 cm) depth from the front face of the adjacent cabinetry to the refrigerator.

After moving the refrigerator to its final location:

1. Use a ⁵⁄₁₆" socket driver to turn the leveling bolts clockwise to

extend the legs to the floor as shown. The rollers should be off the floor.

A. Rear leveling bolt B. Front leveling bolt

2. Adjust the leveling legs to level and align the refrigerator from

left to right and front to back so that the refrigerator is level and aligned with the cabinets.

3. Continue adjusting all of the leveling legs to raise the

refrigerator until the top is within at least ¹⁄₄" (6.35 mm) of the top soffit as shown.

NOTE: If an anti-tip board has been used, adjust the leveling legs until the top of the refrigerator is making contact with the bottom of the anti-tip board(s). Do not crush the compressor cover.

A. Adjacent cabinet or wall B. Installation block C. Face of refrigerator

Level and Align Refrigerator

IMPORTANT: All four leveling legs must contact the floor to support and stabilize the full weight of refrigerator. Rollers are for moving the refrigerator, not for permanent support.

A. Center board

B. Two 2" x 4" x 32" (5 cm x 10 cm x 81 cm) boards C. Attach to studs with six #8 x 3" (7.6 cm) screws D. Compressor cover

E. Distance from bottom of anti-tip board to floor

¹⁄₄

" (6.35 mm) max. above refrigerator

IMPORTANT: Adjust in small increments to keep from damaging the cabinet trim and causing problems with the door alignment or top grille fit. To avoid damage to the cabinet or leveling legs, do not apply more than 50 inchpounds (5.65 Nm) of torque to the leveling bolts. The leveling legs can be extended to a maximum of 1¹⁄₄" (3.18 cm) below the rollers.

4. After leveling the refrigerator, again use a straight edge or 4-ft

level across the front of the refrigerator installation blocks to the cabinets to check that the refrigerator is still flush.

Install Refrigerator and Panels

WARNING

Excessive Weight Hazard Use two or more people to move and install panels. Failure to do so can result in back or other injury.

WARNING

Broken Glass Hazard Do not hit refrigerator glass doors. Protect glass surface and edges during installation or

removal of doors. Failure to do so can result in serious eye injury or

minor cuts.

IMPORTANT: Jenn-Air is not responsible for the removal or addition of molding or wood overlay panels that would not allow access to the refrigerator for service.

Install Top Grille Filler (standard installation only)

IMPORTANT: The grille panel height allows the necessary airflow

for refrigerator performance. The top grille filler hides the upper compartment cover behind the top grille. If you choose to modify the recommended grille panel dimensions, performance will be compromised.

Custom Wood Panel Models

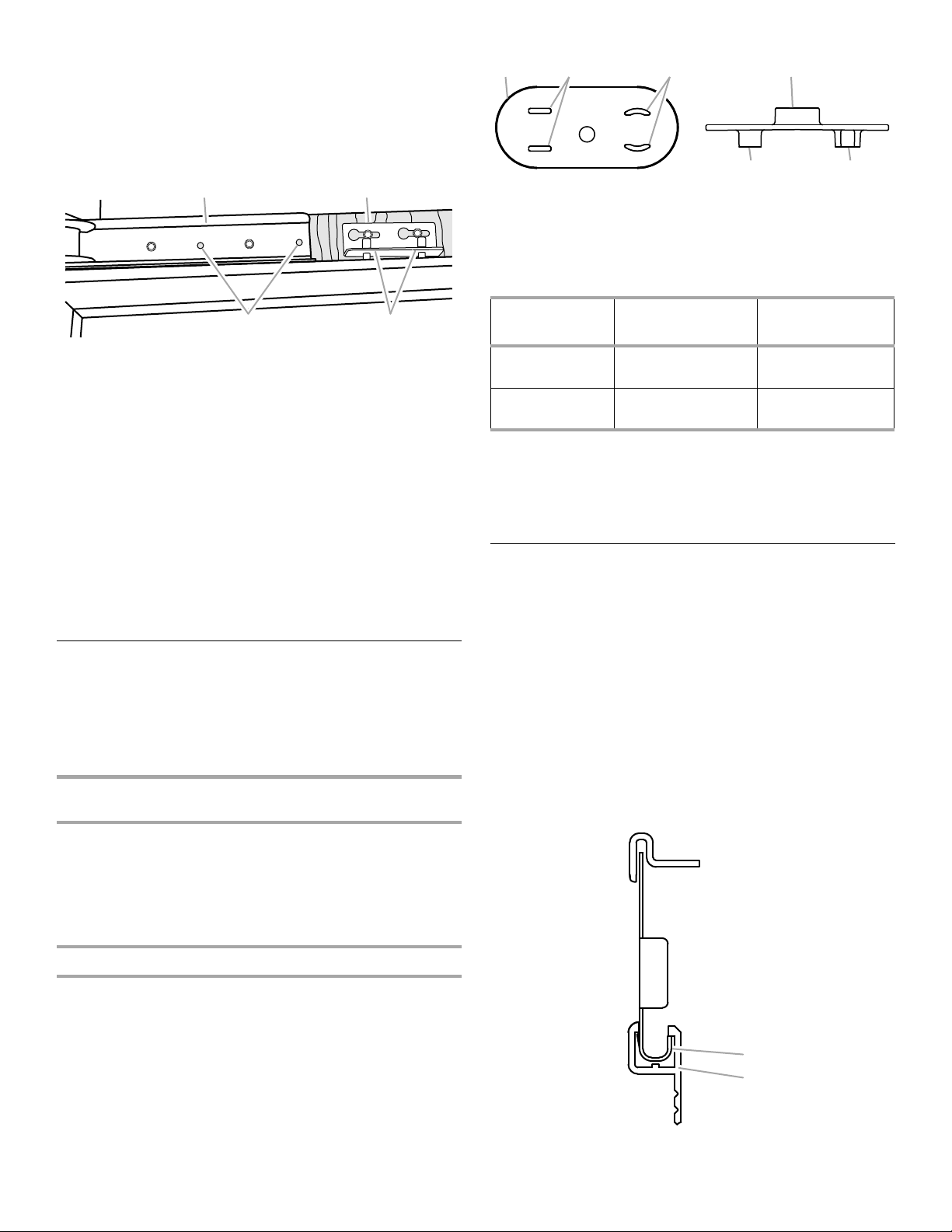

1. In the custom made (1" x width of grille panel) wood filler

piece, drill a hole NOTE: Make sure the hole is centered in the 1" thickness of

the wood piece.

2. Using slotted hex-head screws (provided with refrigerator),

fasten an “L” bracket to each end of the wood filler piece.

3. Using hex-head blunt screws (provided with refrigerator),

attach the “L” brackets to the top grille mounting plates.

4. Adjust the “L” brackets, so that the wood filler piece is flush

with the bottom of the soffit. Completely tighten the screws.

¹¹⁄₁₆" from each edge.

Panel Kit Models

Side View

A. Custom wood filler B. “L” bracket C. Grille mounting plate

1. Align top grille vent (provided in the door kit) with the bottom

edge of the soffit. Use as a template, and mark where to drill the holes.

2. Using the slotted hex-head screws (provided with

refrigerator), attach the top grille vent to the soffit.

A. Top grille vent B. Slotted hex-head screw

Side View

A. Top grille filler B. Soffit C. Airflow

D. Grille panel E. Door panel

A. Soffit B. Airflow

C. Grille panel D. Door panel

Predrill Panels (custom wood panels only)

IMPORTANT: The custom panel template shipped with the refrigerator can be used for either a ³⁄₈" (0.95 cm) or a ¹⁄₈" (0.32 cm) reveal installation.

■ The drilling templates are used only for custom wood overlay

panels.

■ The drilling templates are double-sided.

■ The drilling holes are precut into the template.

1. On the template, locate the diagram of your refrigerator.

Then, follow the letters and colored arrows to correctly place the drilling template on the back side panels.

NOTE: Check the direction of the arrows to determine which holes to mark when the template is aligned at the top of the panel and which holes to mark when the template is aligned at the bottom of the panel.

2. Predrill ¹⁄₈" (0.32 cm) deep pilot holes into the wood rails

bordering the doors and top grille panels.

Predrill Panels (panel kits only)

4. For the mounting bracket, insert the hex-head pointed

screws (provided with refrigerator) into the wood at the top of the door panels where they were predrilled.

NOTES:

■ It is critical to use the ⁵⁄₈" screw, the longest length

provided, to attach the bracket to the top of the door panel. These hex-head pointed screws are used only to attach this mounting bracket.

■ Panel Kits—Insert the hex-head pointed screws into the

slots in the door panel, not the U-shaped holes.

IMPORTANT: The panels included in the panel kits are marked for the location of the mounting brackets only.

1. Predrill holes where marked. See “Complete Installation” later

in this section, for instructions on drilling additional holes in the door panels.

2. Peel back the film cover on the door panel in the area of the

brackets and handle studs. Do not fully remove the film covering until the installation is complete.

Prepare Panels (custom wood and panel kits)

IMPORTANT: The process for installing panels on the refrigerator

is the same for both custom panels and panel kits.

Door Panels

1. Place panels on a firm, covered, flat surface with the front

facing down.

2. Locate the 2 predrilled holes in the handle side edge of the

door panel.

3. Using the installation block as a guide for depth, screw the

door studs (provided with refrigerator) into the predrilled door panel (2 door studs per door).

A. U-shapped hole B. Slot

5. Attach a mounting bracket to the top edge of each door panel

by placing the large end of the keyhole slot over the screws and sliding the bracket so that the screws are centered in the slots.

NOTE: Start with the screws in the center of the slots as shown, then move the door panel, as necessary, to align.

A. Door panel B. Mounting bracket

Top Grille Panel

1. Using the slotted hex-head screws (provided with

refrigerator), attach a mounting bracket to each side of the top grille panel.

IMPORTANT: See the “Parts Provided” section to select the brackets designated for your installation.

■ Use the Integrated Grille brackets for a Fully Integrated

Grille installation with a full height grille.

A. Door stud B. Installation block

■ Use the Standard Grille brackets for a Standard

A B

Integrated Grille Installation with a closed or open soffit.

A. Top grille brackets

B. Grille trim piece

2. Using round-head screws (provided with refrigerator), attach

the grille trim piece to the bottom of the grill panel.

NOTE: The grille trim is preinstalled on the panel kits.

Remove Trim Pieces

1. Remove all tape and door bracing from the refrigerator and

freezer doors.

2. Open the refrigerator and freezer doors.

3. Remove the hinge cover pieces from the top and bottom of

the door to expose the holes in the hinges. NOTE: It is not necessary to remove the hinge side trims as

they will not interfere with the installation.

4. Remove the handle side trims. See the following graphic.

Install Door Panels

NOTE: First open the door opposite from the one to which you

are installing the door panel.

1. Lower the panel mounting bracket onto the adjustment pins

at the top of the door.

A. Door panel B. Mounting bracket C. Adjustment pins

2. Locate the studs on the back of the door panel. Slide the

studs, top stud first followed by the bottom stud, into the “J” pockets in the front of the door.

NOTE: It is the washer in the stud, not the head of the stud, that is inserted in the “J” pocket.

3. Slide the door panel down, into the “J” pocket in the front of

the door.

A. Washer in stud B. “J” pocket

C. Stud

4. Repeat steps 1 through 3 to install the second door panel.

5. Using slotted hex-head screws (provided with refrigerator),

attach the mounting bracket (factory installed), located at the bottom of the refrigerator and freezer doors, to the respective door panels. Do not fully tighten the screw.

A. Hinge cover pieces B. Handle-side door trim

A. Bottom hinge B. Mounting bracket

Install Top Grille Panel

B BA

A. Top grille panel B. Cabinet sides

3. Using a ⁵⁄₃₂" hex key, tighten the door stop pin.

Standard Integrated Grille Installation—Flush Grille

1. Hook the panel brackets onto the mounting bolts extending

from the top of the refrigerator.

A. Panel brackets B. Grill trim piece

2. Pull the grille panel down slightly to lock into place.

Fully Integrated Grille Installation—Full Height Grille

1. Align the bracket on each side of the top grille panel with the

mounting bolts.

A. Door stop pin hole

Complete Installation

1. Use the installation block to measure the gaps between the

panels and adjacent cabinets.

■ Custom wood overlay panels may be made with a ³⁄₈"

(0.95 cm) or ¹⁄₈" (0.32 cm) gap between the panel and cabinets and a ¹⁄₈" (0.32 cm) gap between the freezer and refrigerator door(s) and the door(s) and top grille.

■ All purchased panel kits require a ³⁄₈" (0.95 cm) gap

between the panel and the cabinets and a ¹⁄₈" (0.32 cm) gap between the freezer and refrigerator door(s), and the door(s) and top grille.

2. Push the grille panel forward until the bracket snaps into

place.

A. Adjacent cabinet B. Installation block C. Panel on door

Door Swing Adjustment

2. Adjust the panel to achieve the required spacing, or to align.

It may be necessary to adjust the swing of the door. Make sure the refrigerator door(s) can open freely. If the door(s) opens too wide, install the door stop pin (provided with refrigerator).

1. Hold the door open to a position that is less than 90°.

2. Insert the door stop pin into the top hinge in the hole shown.

IMPORTANT: If adjustments are needed, adjust the panel not the door. Adjust left to right in the mounting bracket before using the pins to adjust the panel up and down or at an angle.

■ Slide the panel from side to side in the keyhole slot.

+ 50 hidden pages
