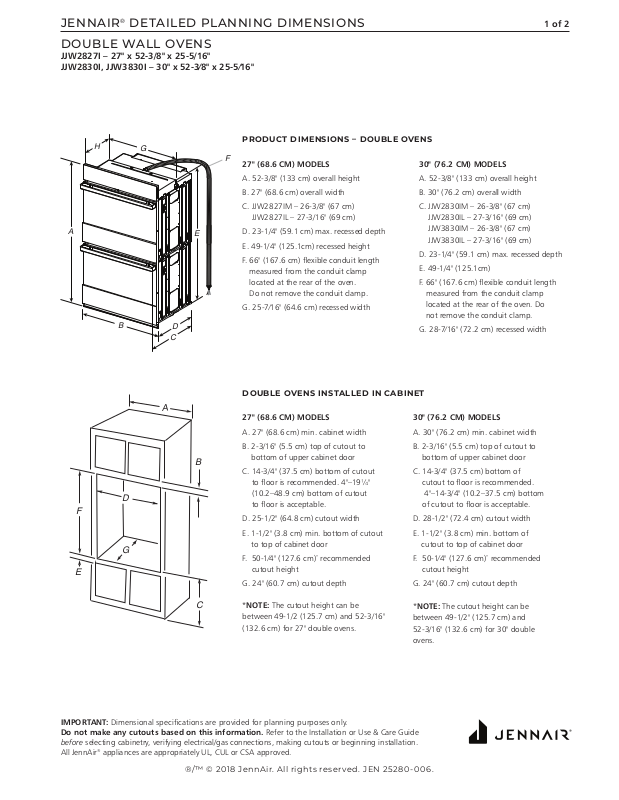

JENNAIR® DETAILED PLANNING DIMENSIONS

DOUBLE WALL OVENS

JJW2827I – 27" x 52-3/8" x 25-5/16" JJW2830I, JJW3830I – 30" x 52-3⁄8" x 25-5⁄16"

1 of 2

PRODUCT DIMENSIONS – DOUBLE OVENS

27" (68.6 CM) MODELS

A. 52-3/8" (133 cm) overall height

B. 27" (68.6 cm) overall width

C. JJW2827IM – 26-3/8" (67 cm)

JJW2827IL – 27-3/16" (69 cm)

D. 23-1/4" (59.1 cm) max. recessed depth

E. 49-1/4" (125.1cm) recessed height

F. 66" (167.6 cm) ﬂexible conduit length

measured from the conduit clamp located at the rear of the oven. Do not remove the conduit clamp.

G. 25-7⁄16" (64.6 cm) recessed width

DOUBLE OVENS INSTALLED IN CABINET

30" (76.2 CM) MODELS

A. 52-3/8" (133 cm) overall height

B. 30" (76.2 cm) overall width

C. JJW2830IM – 26-3/8" (67 cm)

D. 23-1/4" (59.1 cm) max. recessed depth

E. 49-1/4" (125.1cm)

F. 66" (167.6 cm) ﬂexible conduit length

G. 28-7⁄16" (72.2 cm) recessed width

JJW2830IL – 27-3/16" (69 cm) JJW3830IM – 26-3/8" (67 cm) JJW3830IL – 27-3/16" (69 cm)

measured from the conduit clamp located at the rear of the oven. Do not remove the conduit clamp.

27" (68.6 CM) MODELS

A. 27" (68.6 cm) min. cabinet width

B. 2-3/16" (5.5 cm) top of cutout to

bottom of upper cabinet door

C. 14-3/4" (37.5 cm) bottom of cutout

to ﬂoor is recommended. 4"–19¼" (10.2–48.9 cm) bottom of cutout to ﬂoor is acceptable.

D. 25-1/2" (64.8 cm) cutout width

E. 1-1/2" (3.8 cm) min. bottom of cutout

to top of cabinet door

F. 50-1⁄4" (127.6 cm)* recommended

cutout height

G. 24" (60.7 cm) cutout depth

*NOTE: The cutout height can be between 49-1/2 (125.7 cm) and 52-3/16" (132.6 cm) for 27" double ovens.

30" (76.2 CM) MODELS

A. 30" (76.2 cm) min. cabinet width

B. 2-3/16" (5.5 cm) top of cutout to

bottom of upper cabinet door

C. 14-3/4" (37.5 cm) bottom of

cutout to ﬂoor is recommended. 4"–14-3/4" (10.2–37.5 cm) bottom of cutout to ﬂoor is acceptable.

D. 28-1/2" (72.4 cm) cutout width

E. 1-1/2" (3.8 cm) min. bottom of

cutout to top of cabinet door

F. 50-1⁄4" (127.6 cm)* recommended

cutout height

G. 24" (60.7 cm) cutout depth

*NOTE: The cutout height can be between 49-1/2" (125.7 cm) and 52-3/16" (132.6 cm) for 30" double ovens.

IMPORTANT: Dimensional speciﬁcations are provided for planning purposes only. Do not make any cutouts based on this information. Refer to the Installation or Use & Care Guide

before selecting cabinetry, verifying electrical/gas connections, making cutouts or beginning installation. All JennAir® appliances are appropriately UL, CUL or CSA approved.

JENNAIR® DETAILED PLANNING DIMENSIONS

DOUBLE WALL OVENS

JJW2827I – 27" x 52-3/8" x 25-5/16" JJW2830I, JJW3830I – 30" x 52-3⁄8" x 25-5⁄16"

ELECTRICAL REQUIREMENTS

2 of 2

If codes permit and a separate ground wire is used, it is recommended that a qualiﬁed electrical installer determine that the ground path and the wire gauge are in accordance with local codes.

Check with a qualiﬁed electrical installer if you are not sure the oven is properly grounded.

This oven must be connected to a grounded metal, permanent wiring system.

Be sure that the electrical connection and wire size are adequate and in conformance with the National Electrical Code, ANSI/NFPA 70-latest edition or CSA Standards C22.1-94, Canadian Electrical Code, Part 1 and C22.2 No. O-M91-latest edition, and all local codes and ordinances.

A copy of the above code standards can be obtained from:

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

CSA International

8501 East Pleasant Valley Road

Cleveland, OH 44131-5575

ELECTRICAL CONNECTION

To properly install your oven, you must determine the type of electrical connection you will be using and follow the instructions provided for it here.

• Oven must be connected to the proper electrical voltage and frequency as speciﬁed on the model/serial/rating plate. The model/serial/rating plate is located under the control panel on the upper oven cavity on double ovens. See the following illustration.

• Models rated from 7.3 to 9.6 kW at 240 V (5.4 to 7.4 kW at 208 V) require a separate 40 A circuit. Models rated at 4.8 kW and below at 240 V (3.6 kW and below at 208 V) require a separate 20 A circuit.

• A circuit breaker is recommended.

• Connect directly to the circuit breaker box (or fused disconnect) through ﬂexible, armored, or nonmetallic sheathed, copper cable (with grounding wire).

• Flexible conduit from the oven should be connected directly to the junction box.

• Fuse both sides of the line.

• Do not cut the conduit. The length of conduit provided is for serviceability of the oven.

• A UL listed or CSA approved conduit connector must be provided.

• If the house has aluminum wiring, follow the procedure below:

Connect the aluminum wiring using special connectors and/or tools designed and UL listed for joining copper to aluminum.

Follow the electrical connector manufacturer’s recommended procedure. Aluminum/copper connection must conform with local codes and industry accepted wiring practices.

For power requirements for models JJW2827I, JJW2830I and JJW3830I, refer to the following table.

240 VAC 208 VAC

Model kW kW

JJW2827I

JJW2830I

JJW3830I

8.7

9.2

6.5

6.9

Double Oven

A. Model/Serial/Rating Plate

IMPORTANT: Dimensional speciﬁcations are provided for planning purposes only. Do not make any cutouts based on this information. Refer to the Installation or Use & Care Guide

before selecting cabinetry, verifying electrical/gas connections, making cutouts or beginning installation. All JennAir® appliances are appropriately UL, CUL or CSA approved.
