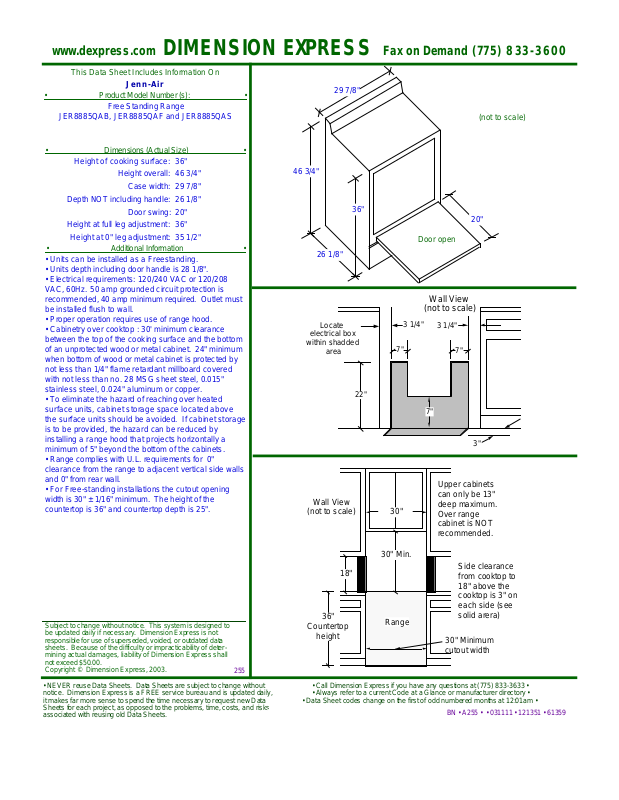

JENN-AIR JER8885QAB, JER8885QAF, JER8885QAS Dimension Guide

www.dexpress.com DIMENSION EXPRESS Fax on Demand [phone]

This Data Sheet Includes Information On

Jenn-Air

• Product Model Number (s): •

Free Standing Range

JER8885QAB, JER8885QAF and JER8885QAS

• Dimensions (Actual Size) •

Height of cooking surface: 36"

Height overall:

Case width:

Depth NOT including handle:

Door swing:

46 3/4"
29 7/8"
26 1/8"
20"
36"Height at full leg adjustment:

Height at 0" leg adjustment:

35 1/2"

• Additional Information •

• Units can be installed as a Freestanding.

• Units depth including door handle is 28 1/8".

• Electrical requirements: 120/240 VAC or 120/208

VAC, 60Hz. 50 amp grounded circuit protection is
recommended, 40 amp minimum required. Outlet must
be installed flush to wall.

• Proper operation requires use of range hood.

• Cabinetry over cooktop : 30' minimum clearance

between the top of the cooking surface and the bottom
of an unprotected wood or metal cabinet. 24" minimum
when bottom of wood or metal cabinet is protected by
not less than 1/4" flame retardant millboard covered
with not less than no. 28 MSG sheet steel, 0.015"
stainless steel, 0.024" aluminum or copper.

• To eliminate the hazard of reaching over heated

surface units, cabinet storage space located above
the surface units should be avoided. If cabinet storage
is to be provided, the hazard can be reduced by
installing a range hood that projects horizontally a
minimum of 5" beyond the bottom of the cabinets.

• Range complies with U.L. requirements for 0"

clearance from the range to adjacent vertical side walls
and 0" from rear wall.

• For Free-standing installations the cutout opening

width is 30" ± 1/16" minimum. The height of the
countertop is 36" and countertop depth is 25".

46 3/4"

26 1/8"

Locate

electrical box

within shadded

area

Wall View

(not to scale)

29 7/8"

36"

22"

30"

3 1/4"

7"

(not to scale)

20"

Door open

Wall View

(not to scale)

3 1/4"

7"

7"

3"

Upper cabinets
can only be 13"
deep maximum.
Over range
cabinet is NOT
recommended.

30" Min.

18"

Side clearance
from cooktop to
18" above the
cooktop is 3" on
each side (see

Subject to change without notice. This system is designed to
be updated daily if necessary. Dimension Express is not
responsible for use of superseded, voided, or outdated data
sheets. Because of the difficulty or impracticability of deter­mining actual damages, liability of Dimension Express shall
not exceed $50.00.
Copyright © Dimension Express, 2003.

• NEVER reuse Data Sheets. Data Sheets are subject to change without • Call Dimension Express if you have any questions at [phone] •
notice. Dimension Express is a FREE service bureau and is updated daily, • Always refer to a current Code at a Glance or manufacturer directory •
it makes far more sense to spend the time necessary to request new Data • Data Sheet codes change on the first of odd numbered months at 12:01am •
Sheets for each project, as opposed to the problems, time, costs, and risks
associated with reusing old Data Sheets.

255

Countertop

height

36"

Range

solid arera)

30" Minimum
cutout width

BN • A255 • • 031111 • 121351 • 61359
