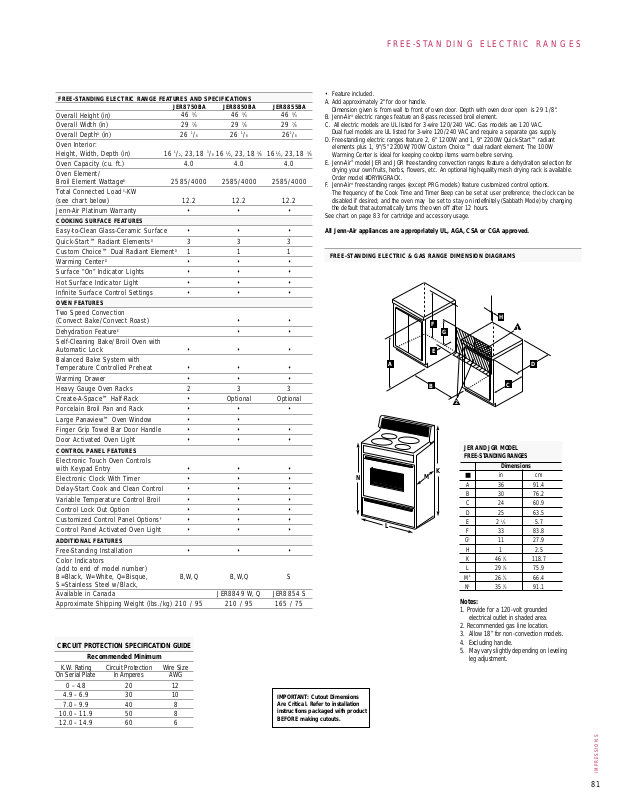

F R E E - S TA N D I N G E L E C T R I C R A N G E S
FREE-STANDING ELECTRIC RANGE FEATURES AND SPECIFICATIONS
|
|
|
|
JER8750BA |
JER8850BA |
JER8855BA |
|
|
Overall Height (in) |
|
46 3⁄4 |
46 3⁄4 |
46 3⁄4 |
||
|
Overall Width (in) |
|
29 7⁄8 |
29 7⁄8 |
29 7⁄8 |
||
|
Overall DepthA |
(in) |
|
26 1/8 |
26 1/8 |
261/8 |
|
|
Oven Interior: |
|
|
|
|
|
|
|
Height, Width, Depth (in) |
16 1/2, 23, 18 3/8 |
16 1⁄2, 23, 18 3⁄8 |
16 1⁄2, 23, 18 3⁄8 |
|||
|
Oven Capacity (cu. ft.) |
|
4.0 |
4.0 |
4.0 |
||
|
Oven Element/ |
|
|
|
|
|
|
|
Broil Element WattageB |
|
2585/4000 |
2585/4000 |
2585/4000 |
||
|
Total Connected Load C-KW |
|
|
|
|
|
|
|
(see chart below) |
|
12.2 |
12.2 |
12.2 |
||
|
Jenn-Air Platinum Warranty |
|
• |
• |
• |
||
|
|
|
|
|
|
|
|
|
COOKING SURFACE FEATURES |
|
|
|
|
|
|
|
Easy-to-Clean Glass-Ceramic Surface |
• |
• |
• |
|||
|
Quick-Start™ Radiant ElementsD |
|
3 |
|
3 |
3 |
|
|
Custom Choice™ Dual Radiant ElementD 1 |
1 |
1 |
||||
|
Warming CenterD |
|
• |
• |
• |
||
|
Surface “On” Indicator Lights |
|
• |
• |
• |
||
|
Hot Surface Indicator Light |
|
• |
• |
• |
||
|
Infinite Surface Control Settings |
|
• |
• |
• |
||
|
|
|
|
|
|
|
|
|
OVEN FEATURES |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Two Speed Convection |
|
|
|
|
|
|
|
(Convect Bake/Convect Roast) |
|
|
|
• |
• |
|
|
Dehydration Feature E |
|
|
|
• |
• |
|
|
Self-Cleaning Bake/Broil Oven with |
|
|
|
|
|
|
|
Automatic Lock |
|
• |
• |
• |
||
|
Balanced Bake System with |
|
|
|
|
|
|
|
Temperature Controlled Preheat |
|
• |
• |
• |
||
|
Warming Drawer |
|
• |
• |
• |
||
|
Heavy Gauge Oven Racks |
|
2 |
|
3 |
3 |
|
|
Create-A-Space™ Half-Rack |
|
• |
Optional |
Optional |
||
|
Porcelain Broil Pan and Rack |
|
• |
• |
• |
||
|
Large Panaview™ Oven Window |
|
• |
• |
|
||
|
Finger Grip Towel Bar Door Handle |
|
• |
• |
• |
||
|
Door Activated Oven Light |
|
• |
• |
• |
||
|
|
|
|
|
|
|
|
|
CONTROL PANEL FEATURES |
|
|
|
|
|
|
|
Electronic Touch Oven Controls |
|
|
|
|
|
|
|
with Keypad Entry |
|
• |
• |
• |
||
|
Electronic Clock With Timer |
|
• |
• |
• |
||
|
Delay-Start Cook and Clean Control |
• |
• |
• |
|||
|
Variable Temperature Control Broil |
|
• |
• |
• |
||
|
Control Lock Out Option |
|
• |
• |
• |
||
|
Customized Control Panel Options F |
|
• |
• |
• |
||
|
Control Panel Activated Oven Light |
|
• |
• |
• |
||
|
|
|
|
|
|
|
|
|
ADDITIONAL FEATURES |
|
|
|
|
|
|
|
Free-Standing Installation |
|
• |
• |
• |
||
|
Color Indicators |
|
|
|
|
|
|
|
(add to end of model number) |
|
|
|
|
|
|
|
B=Black, W=White, Q=Bisque, |
|
B,W,Q |
B,W,Q |
S |
||
|
S=Stainless Steel w/Black, |
|
|
|
|
|
|
|
Available in Canada |
|
|
|
JER8849 W, Q |
JER8854 S |
|
|
Approximate Shipping Weight (lbs./kg) 210 / 95 |
210 / 95 |
165 / 75 |
||||
|
|
|
|
||||
|
CIRCUIT PROTECTION SPECIFICATION GUIDE |
|
|
|
|||
|
Recommended Minimum |
|
|
|
|
|
|
|
K.W. Rating |
Circuit Protection |
Wire Size |
|
|
||
|
On Serial Plate |
In Amperes |
|
AWG |
|
|
|
• Feature included.
A.Add approximately 2" for door handle.
Dimension given is from wall to front of oven door. Depth with oven door open is 29 1/8".
B.Jenn-Air® electric ranges feature an 8-pass recessed broil element.
C.All electric models are UL listed for 3-wire 120/240 VAC. Gas models are 120 VAC.
Dual fuel models are UL listed for 3-wire 120/240 VAC and require a separate gas supply.
D.Free-standing electric ranges feature 2, 6" 1200W and 1, 9" 2200W Quick-Start™ radiant elements plus 1, 9"/5" 2200W/700W Custom Choice™ dual radiant element. The 100W Warming Center is ideal for keeping cooktop items warm before serving.
E.Jenn-Air® model JER and JGR free-standing convection ranges feature a dehydration selection for drying your own fruits, herbs, flowers, etc. An optional high-quality mesh drying rack is available. Order model #DRYINGRACK.
F.Jenn-Air® free-standing ranges (except PRG models) feature customized control options.
The frequency of the Cook Time and Timer Beep can be set at user preference; the clock can be disabled if desired; and the oven may be set to stay on indefinitely (Sabbath Mode) by changing the default that automatically turns the oven off after 12 hours.
See chart on page 83 for cartridge and accessory usage.
All Jenn-Air appliances are appropriately UL, AGA, CSA or CGA approved.
FREE-STANDING ELECTRIC & GAS RANGE DIMENSION DIAGRAMS
F |
H |
|
1 |
||
|
||
|
G |
|
E |
|
|
A |
D |
|
B |
C |
|
|
2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
JER AND JGR MODEL |
|
||
|
|
|
|
|
|
|||
|
|
|
|
|
FREE-STANDING RANGES |
|
||
|
|
|
|
|
|
Dimensions |
|
|
|
|
|
K |
|
|
|||
N |
M |
|
|
■ |
in |
|
cm |
|
|
|
|||||||
|
|
|
A |
36 |
|
91.4 |
||
|
|
|
|
|
|
|||
|
|
|
|
|
B |
30 |
|
76.2 |
|
|
|
|
|
C |
24 |
|
60.9 |
|
|
|
|
|
D |
25 |
|
63.5 |
|
|
L |
|
|
E |
2 1⁄4 |
|
5.7 |
|
|
|
|
F |
33 |
|
83.8 |
|
|
|
|
|
|
|
|||
|
|
|
|
|
G3 |
11 |
|
27.9 |
|
|
|
|
|
H |
1 |
|
2.5 |
|
|
|
|
|
K |
46 3⁄4 |
|
118.7 |
|
|
|
|
|
L |
29 7⁄8 |
|
75.9 |
|
|
|
|
|
M4 |
26 1⁄8 |
|
66.4 |
|
|
|
|
|
N5 |
35 7⁄8 |
|
91.1 |
Notes:
1. Provide for a 120-volt grounded electrical outlet in shaded area.
2. Recommended gas line location.
3. Allow 18” for non-convection models.
4. Excluding handle.
5. May vary slightly depending on leveling leg adjustment.
0 – 4.8 |
20 |
12 |
|
4.9 |
– 6.9 |
30 |
10 |
7.0 |
– 9.9 |
40 |
8 |
10.0 |
– 11.9 |
50 |
8 |
12.0 |
– 14.9 |
60 |
6 |
IMPORTANT: Cutout Dimensions Are Critical. Refer to installation instructions packaged with product BEFORE making cutouts.
