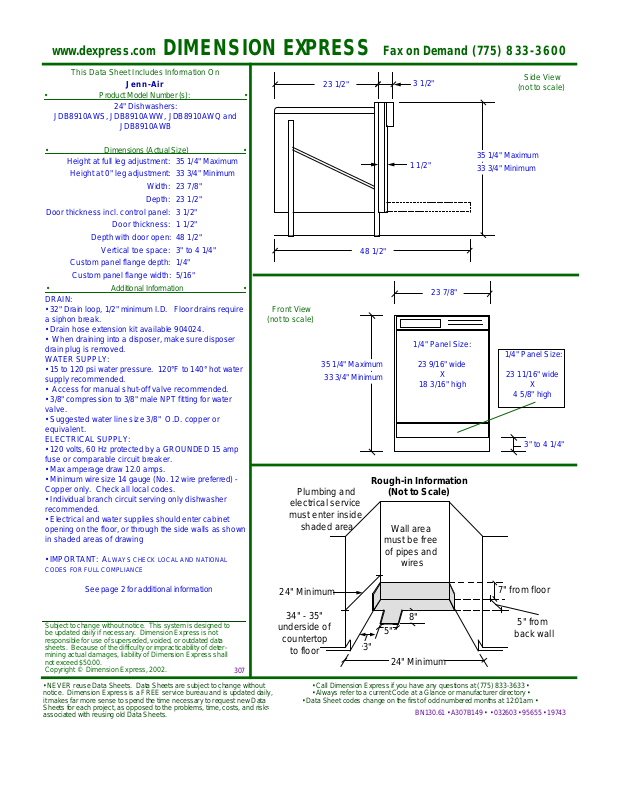

Jenn-Air JDB8910AWS, JDB8910AWW, JDB8910AWQ, JDB8910AWB Dimension Guide
www.dexpress.com DIMENSION EXPRESS Fax on Demand (775) 833-3600
This Data Sheet Includes Information On
Jenn-Air
• Product Model Number (s): •
24" Dishwashers:
JDB8910AWS, JDB8910AWW, JDB8910AWQ and
JDB8910AWB
23 1/2"
3 1/2"
Side View
(not to scale)
• Dimensions (Actual Size) •
Depth:
35 1/4" Maximum
33 3/4" MinimumHeight at 0" leg adjustment:
23 7/8"Width:
23 1/2"
3 1/2"
1 1/2"
48 1/2"
3" to 4 1/4"
1/4"
5/16"
Height at full leg adjustment:
Door thickness incl. control panel:
Door thickness:
Depth with door open:
Vertical toe space:
Custom panel flange depth:
Custom panel flange width:
• Additional Information •
DRAIN:
• 32" Drain loop, 1/2" minimum I.D. Floor drains require
a siphon break.
• Drain hose extension kit available 904024.
• When draining into a disposer, make sure disposer
drain plug is removed.
WATER SUPPLY:
• 15 to 120 psi water pressure. 120°F to 140° hot water
supply recommended.
• Access for manual shut-off valve recommended.
• 3/8" compression to 3/8" male NPT fitting for water
valve.
• Suggested water line size 3/8" O.D. copper or
equivalent.
ELECTRICAL SUPPLY:
• 120 volts, 60 Hz protected by a GROUNDED 15 amp
fuse or comparable circuit breaker.
• Max amperage draw 12.0 amps.
• Minimum wire size 14 gauge (No. 12 wire preferred) Copper only. Check all local codes.
• Individual branch circuit serving only dishwasher
recommended.
• Electrical and water supplies should enter cabinet
opening on the floor, or through the side walls as shown
in shaded areas of drawing
• IMPORTANT: ALWAYS CHECK LOCAL AND NATIONAL
CODES FOR FULL COMPLIANCE
Front View
(not to scale)
Plumbing and
electrical service
must enter inside
shaded area
48 1/2"
35 1/4" Maximum
33 3/4" Minimum
Rough-in Information
1 1/2"
23 7/8"
1/4" Panel Size:
23 9/16" wide
18 3/16" high
(Not to Scale)
Wall area
must be free
of pipes and
wires
35 1/4" Maximum
33 3/4" Minimum
1/4" Panel Size:
X
23 11/16" wide
X
4 5/8" high
3" to 4 1/4"
See page 2 for additional information
Subject to change without notice. This system is designed to
be updated daily if necessary. Dimension Express is not
responsible for use of superseded, voided, or outdated data
sheets. Because of the difficulty or impracticability of determining actual damages, liability of Dimension Express shall
not exceed $50.00.
Copyright © Dimension Express, 2002.
• NEVER reuse Data Sheets. Data Sheets are subject to change without • Call Dimension Express if you have any questions at (775) 833-3633 •
notice. Dimension Express is a FREE service bureau and is updated daily, • Always refer to a current Code at a Glance or manufacturer directory •
it makes far more sense to spend the time necessary to request new Data • Data Sheet codes change on the first of odd numbered months at 12:01am •
Sheets for each project, as opposed to the problems, time, costs, and risks
associated with reusing old Data Sheets.
307
24" Minimum
34" - 35"
underside of
countertop
to floor
8"
5"
3"
24" Minimum
BN130.61 • A307B149 • • 032603 • 95655 • 19743
7" from floor
5" from
back wall
DAX1000AXX).
Shaded area
can only be 3/8"
thick max.!!
1/8"
www.dexpress.com
DIMENSION EXPRESS
Fax on Demand (775) 833-3600
Additional Information:
TIPS:
• Keep back free of drain, water and electrical supply.
• Connections preferably located toward left side of dishwasher. Care
should be taken to route pluming and electrical away from motor and
blower.
• When installing the dishwasher in or near a corner, allow enough room
for the door to open without interfacing with any cabinet drawers of
hardware.
• Dishwasher side panel kits are available: 904025 White, 904025L
Almond and 904025P Primer.
• IMPORTANT: ALWAYS CHECK LOCAL AND NATIONAL CODES FOR FULL
COMPLIANCE
Page 2
This Data Sheet Includes Information On
Jenn-Air
• Product Model Number (s): •
24" Dishwashers:
JDB8910AWS, JDB8910AWW, JDB8910AWQ and
JDB8910AWB
Custom Raised Panel Sizes
1/8"
1/8"
(not to scale)
Trim Kit DAX1000AXX is required for the
1/4"
Upper Panel
18 3/16"
procedure.
Raised door panels, typically Wood, have a
maximum thickness of 3/8" along the lower 1"
of door panel as shown in the shaded portion
1"
of drawing. This is done to prevent the panel
from contacting with the access panel when
dishwasher door is opened.
23 9/16"
Thick wood panels should be 1/4" thick. For
panels more than 1/4" thick, the outer edge will
need to be routered as shown in drawing.
3/16"
23 11/16"
When applying a 3/4" raised panel to 1/4"
backing, there must be a 5/16" clearance on
side of 1/4" backing. This clearance allows the
panel to slide into the flange.
Wood panels need a waterproof protective
finish applied to all sides and edges of panels.
3/16"
Lower Panel
3/16" 3/16"
4 5/8"
Maximum panel weight is 11 1/2 pounds with
booster spring (Provided with the
