Jenile DBC13, CBM14, CoV15 Instruction Manual

!

!

Flash cube CBM14

INSTRUCTION MANUAL

Specially designed for deaf and hearing impaired people.

PACK HOME EMIRATES

INSTRUCTION MANUAL

INSTRUCTION MANUAL

Rouge : urgences

GREEN: Bells

-Door bells

-Video bells

-Video Gate

-Acoustic transmitter

-Call button, …

PACK MATERNITY

INSTRUCTION MANUAL

INSTRUCTION MANUAL

!

Flash cube CBM14

INSTRUCTION MANUAL

Specially designed for deaf and hearing impaired people.

PACK HOME EMIRATES

INSTRUCTION MANUAL

INSTRUCTION MANUAL

Rouge : urgences

Vert : sonnettes

GREEN: Bells

-Door bells

-Video bells

-Video Gate

-Acoustic transmitter

-Call button, …

RED: Emergencies

-Smoke detector

-Gas detector,

-water flood detector, ..

!

All your products sent

together are already

connected to each other.

2

2

!

Summary :

4 :

5-10 :

The contents of your package
Baby cry detector DBC13

4 - 9 :

10 - 14 :

15 - 19 :

Flash Cube CBM14
Baby Cry Detector DBC13
Vibrating Cushion CoV15

3

!

BA

C D E F G

A

- Flashlight duration 30 / 60 / 90 second

B

- Micro USB charger port

C

- Vibrator connection port (optional)

E

- Light / off / Light+Sound

F

- USB connection port

G

- Micro USB connection port

D

- Connection plug

Technical Specifications

Wireless
Rechargeable battery

Weight: 171,5g
Distance: 200 meter maximum in free fields
Quantity of connected products: 20 units max.
Power supply: 3,7V 2200mAh Lithium battery.
Charge voltage must be limited to 4,2V
Standby current: <4,5 mA
Operating current: <800 mA
Radio frequency: 433 Mhz
Decoding format: MCU
Dimensions (height x width x depth): 9,2 x 8,8 x 4,3 cm
Autonomy: 1 month (depending of the use)
2 years guarantee (battery 1 year)

Flash Cube CBM14

5

4

Technical Specifications

Wireless
Rechargeable battery

Weight: 171,5g
Distance: 200 meters maximum in free field
Quantity of connected products: maximum 20 units.
Power supply: 3,7V 2200mAh Lithium battery

Charge voltage must be limited to 4,2V

Standby current: <4.5 mA
Operating current: <800 mA
Radio Frequency: 433Mhz
Decoding format: MCU
Dimensions (W x H x D): 9.2 x 8.8 x 4,3 cm
Autonomy: 1 month (depending of the use)

2 years guarantee (battery 1 year)

4

!

!

Red LED: low battery, you need

to recharge the cube

Green LED: battery is in charge

No LED lightened up:

the charge is complete

Warning: it is also possible that no LED is lightened up because

the battery is completely empty. Therefore, you need to charge it.

Use

Thanks to the cube, you receive the signal from the Jenile doorbell and also all the
other calls, safety signals and technology Jenile.The CBM14 Jenile Flash cube

includes a rechargeable battery. A LED at the bottom right of each device indicates

the charge status of the battery:

6

WARNING : it is also possible that no LED is lightened up because
the battery is completely empty. Therefore, you need to charge it.

5

!

!

B

F

G

B

Test

The cube is easy to test. If the cube does not work in accordance with the

instruction below, we invite you to contact your seller. To test your cube press on
your Jenile doorbell.

If the cube does not light up, please check that the battery is not empty by putting
your cube in charge:

Insert the G port of your cable on a USB support
Insert the F port of your cable in the B plug of your device

If the green LED at the bottom right of your device does not light up, it means that

your device is fully charged.

7

The cube is easy to test. If the cube does not work in accordance with the
instruction below, we invite you to contact you seller. To test your cube press
on your Jenile doorbell.

B

F

B

B

F

B

6

!

!

1. Press the plug button (D) on the cube.

D

Settings

if you want to complete this pack with other Jenile transmitters, then make adjust­ments to connect your devices between each other.

To connect all your products, please follow the instructions carefully.

2. Release it as soon as the cube lights up in
red (WARNING: do not hold down the button
after the color lights up, you are at risk of

deleting all previous connections).

3. Immediately actuate one transmitter while

the red light is on (ring the bell, press on the
remote control, shout on the baby crying
detector, …) or refer to the instruction manual

of your transmitter.

2. Release it as soon as the cube lights up
in red (WARNING : do not hold down the
button after the color lights up, you are at
risk of deleting all previous connections).

3. Immediately actuate one transmitter
while the red light is on (ring the bell, press
on tge remote control, shout on the baby
crying detector, …) or refer to the

instruction manual of your transmitter

7

!

!

D

To stop the flashes, press on the D button.

3 possibilities:

- Your cube flashes in all colors: congratulations! The connection is
successful ! You can use all your Jenile products.

- Your cube does not flash: the connection has failed, please try again the

instructions above.

- Your cube flashes 2 time in red, it doesn’t flash when you put the button.

The connection has failed because you pressed too long on the plug
button. You erased the memory and have to restart all the connections.

The (A) button allows you to choose how long your cube flashes: 30 secondes, 1

minute or 1 minute 30.

8

!

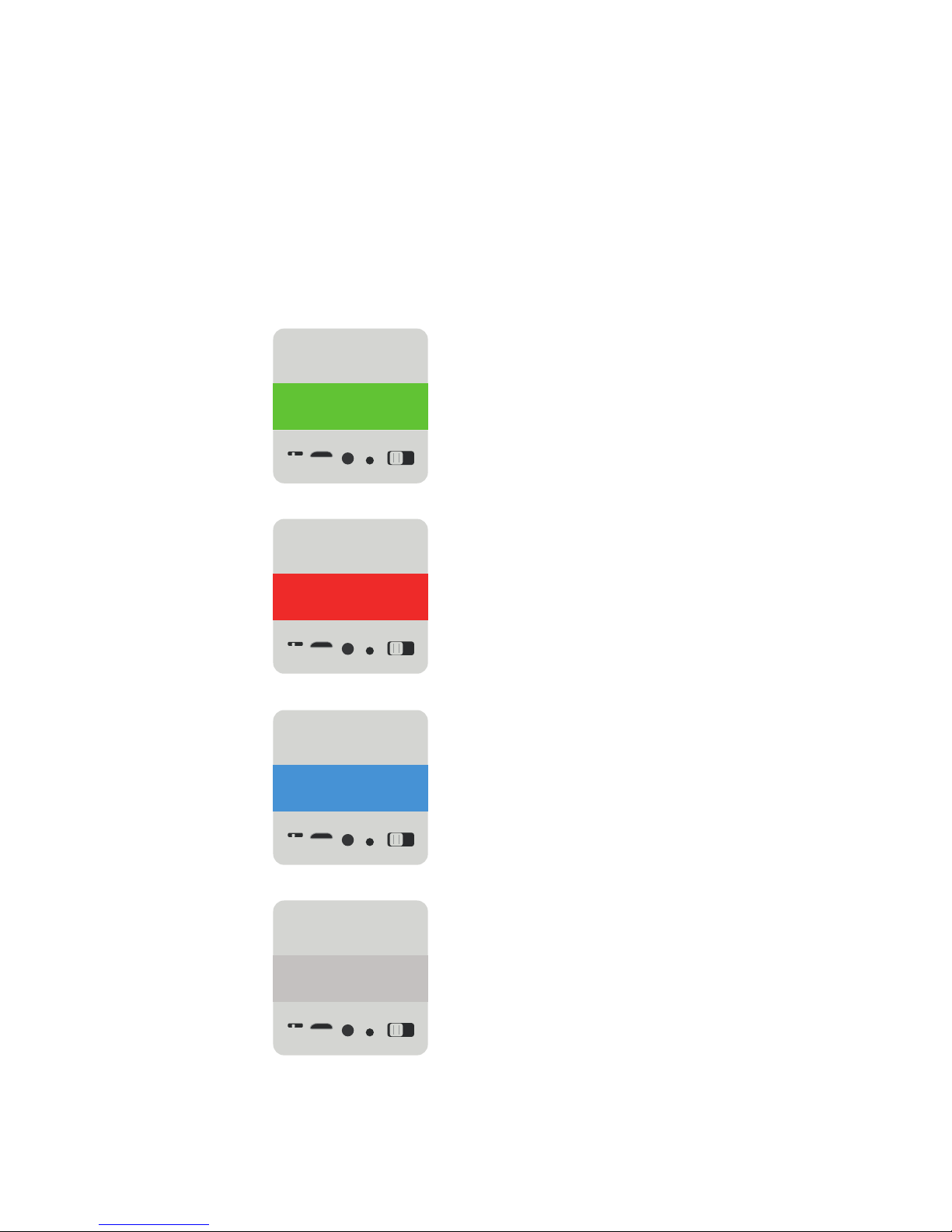

Signals and colors

The CBM14 Jenile cube can be used with all the transmitters from the Jenile range.

For all alerts, the top of the cube will flash in all colors. The color at the bottom of
the cube will indicate the alert type. For the doorbell, the cube turns green.

GREEN: Bells

-Door bells

-Video bells

-Video Gate

-Acoustic transmitter

-Call button, …

RED: Emergencies

-Smoke detector

-Gas detector,

-water flood detector, ..

BLUE: Calls

Text messages
Computer call (skype, oovoo, ..)
Phone, fax, …

WITHOUT COLOR: Presence alerts

Door/window opening detector
Motion detector

10

9

- Text messages

- Computer call (skype, oovoo, …)
Phone, fax, …

- Baby cry detector

!

Baby cry detector

A

- Set button

B

- Audio sensor

C

- Battery cover

Technical Specifications

Batteries : 2 x AAA (not included)
Dimensions (height x width x depth) : 95 x 73 x 35 mm
Color : white and decorative paterns
Weight : 64 g
Transmission frequency : 433,33 Mhz
2 years guarantee

C

B

20

1

A

10

!

Product features

• Device with microphone included

• The transmitter (the Baby Cry Detector) captures baby’s crying and sends a
sequence of flashes or vibrations on the receivers ( Jenile light or vibrating receiver
)

• The transmitter (the Baby Cry Detector) is equipped with an on/off power switch
to conserve battery power

• 2 settings to adjust the hearing sensitivity

Complementary products

• Fixed flash receiver : Centrale de gestion 8 diodes - FF8I14 / Flash Plug - FP14

• Wireless flash receiver: Flash Cube - CBM14

• Vibrating receiver: Pocket vibrator - VP15

Setting

Setting up is very easy.

Insert 2 AAA batteries (not included) by pushing the battery cover (C).
The test button remains to the “ON” position.
Position of the set button (A) :

• 0 : OFF - the Baby Cry Detector is switched off

• 1 : the Baby Cry Detector is switched on with a light sensitivity (recommended in
case the Baby Cry Detector is located very close to the baby)

• 2 : the Baby Cry Detector is switched on with a strong sensitivity ( recommended
in case the Baby Cry Detector is located far from the baby)

11

!

12

Use

1) To synchronize with the Flash Cube :

2 ) Press on the connection

plug of your cube

4) The Flash Cube lights up. Perfect !
Your Baby Cry Detector is

connected to your Flash Cube !

Even if you change the batteries, the connexion is memorized.

You can relax now: you will be alerted

as soon as your baby wakes up !

1 ) Switch on the Baby Cry Detector

and take your Flash Cube

3 ) As soon as the red light is on,

release the plug button and

shout in the Baby Cry Detector

!

13

2) To synchronize with the pocket vibrator :

2) Take your pocket vibrator

and press on the plug button

4 ) The pocket vibrator lights up

• Perfect! Your Baby Crying Detector is connected to your pocket vibrator!
You can relax now: you will be alerted as soon as your baby wakes up!

1 ) Switch on the Baby Cry Detector

3 ) As soon as the red light is on,

release the plug button and

shout in the Baby Cry Detector

!

14

Signals and colors

The Baby Cry Detector DBC14 can be used with all the receivers from the Jenile
range.

If you need to be alerted by

the baby cry detector,

the cube and the flash plug,

will flash in blue.

For the Baby Cry Detector,

the pocket vibrator has one

vibration with 4 repetitions.

If you choose to equip yourself

with several Baby Cry Detectors,

the fixed flash 8 diodes will

help you differentiate these alerts.

Nina

Jules

!

15

!

Coussin Vibrant CoV15

5

C

A

Caractéristiques Techniques

Dimensions (haut. x larg. x prof) : 53 x 34 x 20 mm.
Poids : 158g
Couleurs : Bleu / Vert / Violet / Noir
Alimentation électrique : Piles AAA (non fournies)
Câble de raccordement : 1m40 (prise jack)
Garantie 2 ans

A

- Bouton test

B

- Led de fonctionnement

C

- Prise Jack

D

- Trappe pile

D

E

E

- Piles AAA

B

Vibratinng Cushion CoV15

Technical Specifications

Dimensions (L x H x P) : 53 x 34 x 20 mm.
Weight : 158g.
Colors : Blue / Green / Violet / Black
Power Supply : AAA Batteries (not included)
Connection Cable : 1m40 (Jack Plug).
Warranty : 2 years.

Test button

Jack Plug
AAA battery

!

16

!

Principe de fonctionnement

Le coussin vibrant CoV15 permet d’être alerté pendant son sommeil des urgences
et de tout ce qui peut se passer dans la maison. Lorsque le cube lumineux CBM14
ou la prise flash FP16 s’allument, ils transmettent un signal au coussin qui s'
enclenche à son tour, en vibrant.

Function

The vibrating cushion CoV15 allows to be warned when you are asleep of any
emergencies and everything that can happen in the house. When the Flash Cube
CBM14 or the Flash Plug FP16 light up, they transmit a signal to the cushion and
start to vibrate.

!

Principe de fonctionnement

Le coussin vibrant CoV15 permet d’être alerté pendant son sommeil des urgences
et de tout ce qui peut se passer dans la maison. Lorsque le cube lumineux CBM14
ou la prise flash FP16 s’allument, ils transmettent un signal au coussin qui s'
enclenche à son tour, en vibrant.

En vous réveillant vous pourrez voir,

grâce au cube, la provenance de l’alerte :

Ou

Function

The vibrating cushion CoV15 allows to be warned when you are asleep of any
emergencies and everything that can happen in the house. When the Flash Cube
CBM14 or the Flash Plug FP16 light up, they transmit a signal to the cushion and
start to vibrate.

or

When you wake, you will be able to see, thanks to the color of your
luminous system, the origin of the alert.

!

17

!

Utilisation

Après avoir branché votre coussin vibrant CoV15 au cube lumineux CBM14 ou à la
prise flash FP16, le coussin s’enclenchera à chaque fois que le récepteur recevra
un signal des émetteurs de la maison.
Si vous souhaitez ne pas être alerté de certains émetteurs Jenile, il vous suffit de
déconnecter l’émetteur non désiré du récepteur (cube lumineux CBM14 ou prise
flash FP16). Pour cela, référez vous directement au mode d’emploi de votre
récepteur.

1 ) Appuyez sur la touche test de votre coussin :

S’il vibre et que vous voyez le voyant du haut
s’allumé en bleu, votre coussin fonctionne et
peut être connecté à un récepteur Jenile.

S’il vibre et que vous voyez le voyant bleu en
haut et le voyant rouge en bas avec une faible
vibration, c’est que vos piles sont bientôt
épuisés. Il faut changer de piles.

A

Settings

After connecting your vibrating cushion CoV15 to the Flash Cube CBM14 or the
Flash Plug FP16, the cushion will vibrate each time the Jenile receiver receives a
signal from the home transmitters.
If you do not want to be alerted by some transmitters, you just need to disconnect
the unwanted transmitter from the receiver (CBM14 or FP16). For this, refer directly
to the instruction manual of your receiver.

Press on the test button of your cushion.

If it vibrates and you see the upper LED
illuminated in blue, your cushion is working
and can be connected to a Jenile receiver.

If it vibrates and you see the blue light at the
top and the red light at the bottom with a weak
vibration, it is because your batteries are soon
exhausted. You have to change batteries.

!

18

!

S’il ne vibre pas du tout, c’est que vos piles sont épuisés. Il faut changer de piles.

2 ) Connectez ensuite votre coussin vibrant CoV15 à votre récepteur.
Appuyez sur un émetteur connecté à votre cube lumineux CBM14 ou à votre prise
flash FP16.

E

a ) Votre récepteur se déclenche et le coussin vibrant CoV15 vibre. Votre coussin
vibrant CoV15 est opérationnel.

If it does not vibrate at all, it's because your batteries are exhausted. You have to

change batteries.

2 ) Then connect your CoV15 vibrating cushion to your receiver.
Press a transmitter connected to your Flash Cube CBM14 light cube or your
Flash Plug FP16.

a ) Your receiver goes off and the vibrating cushion CoV15 vibrates. Your
CoV15 vibrating cushion is operational.

!

19

!

b ) You notice that the cushion does not vibrate while your receiver has
activated.
Press the test button on your cushion

-

If it still does not vibrate and there is no
light, it is because your batteries are
exhausted.

- If it vibrates, the vibrating cushion CoV15

does not receive the signal from the
receiver. Contact our after-sales service
(Skype : jenile-international or mail:
[e-mail]).

c ) You notice that your receiver does not turn on.
The connection between the transmitter and the receiver has been lost.

To reactivate it, please refer to the instruction manual of the receiver.

A

E

Maintenance and care

The Jenile vibrating cushion does not require any special maintenance. If it is dirty,
clean the surfaces with a soft, lint-free cloth. Never use cleaning agents or solvents.

www.jenile.com

www.jenile.com
