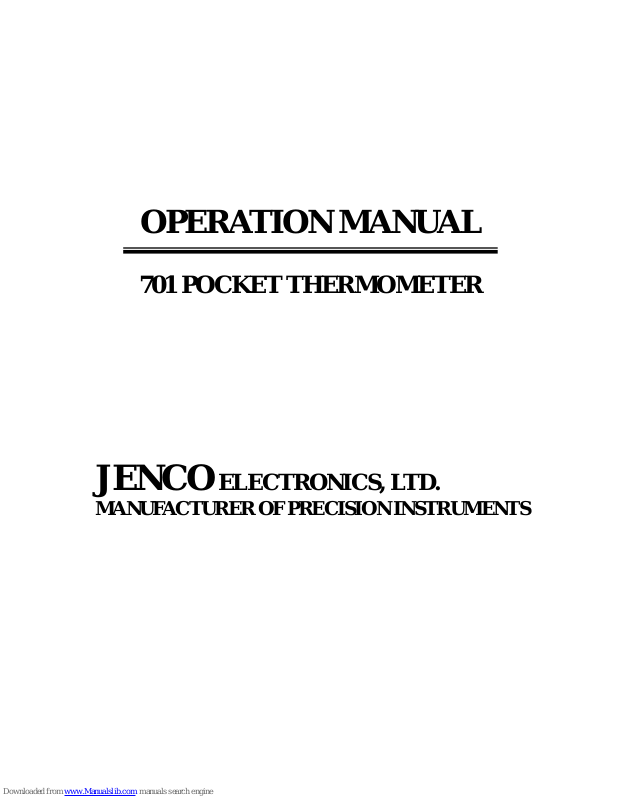

OPERATION MANUAL

701 POCKET THERMOMETER

JENCO ELECTRONICS, LTD.

MANUFACTURER OF PRECISION INSTRUMENTS

1

Model 701 is a battery operated thermocouple type digital thermometer
that measures approximately 3x2.25x1.13 inches (77x60x30mm). It is
available in 6 different configurations of thermocouple calibration with
Celsius or Fahrenheit reading displayed below.

701MODELS RANGE T/C SOCKET
KC -50 to +800 ℃ YELLOW

KF -50 to +1000℉ YELLOW
JC -50 to +700

℃ BLACK

JF -50 to +1200℉ BLACK
TC -50 to +400

℃ BLUE

TF -100 to 700 ℉ BLUE

FEATURES:

*All solid state design *High stability
*Wide temperature range *cold junction compensation
*Easy to read LCD display *One conventional 9V battery
*Long battery life *Interchangeable TC sensor

2

ACCURACY ±0.25%,±1 Digit
RESOLUTION 1℃ or 1℉

DISPLAY 31/2 digit LCD with low battery
indicator and minus sign(+implied)
OPEN T/C INDICAATION Display B-1
MOUNTING Handheld with magnetic back
THERMOCOUPLE CONNECTOR Standard T/C female mini Connector
BATTERY Standard 9V type 006P. Remove screws
and back cover to replace battery
OPERATION Attach appropriate thermocouple. Slide
switch to “ON”
CALIBRATION Consult factory

BATTERY LOW Display B

3

WARRANTY

Jenco Instruments, Ltd. Warrants this product to be free from significant
deviations in material and workmanship for a period of 1 year from date of
purchase. If repair or adjustment is necessary and has not been the result of abuse
or misuse, within the year period, please return-freight-prepaid and the
correction of the defect will be made without charge. If you purchased the item
from our Jenco distributors and it is under warranty, please contact them to notify
us of the situation. Jenco Service Department alone will determine if the product
problem is due to deviations or customer misuse.

Out-of –warranty products will be repaired on a charge basis.

RETURN OF ITEMS

Authorization must be obtained from one of our representatives before returning
items for any reason. When applying for authorization, please have the model
and seria l nu mb er ha ndy, incl udi n g da ta re gar d ing t he re aso n fo r re tur n. Fo r yo ur
protection, items must be carefully packed to prevent damage in shipment and
insured against possible damage or loss. Jenco will not be responsible for
damage resulting from careless or insufficient packing. A fee will be charged on
all unauthorized returns.

4

NOTE: Jenco Instruments, Inc reserves the right to make improvements in design,
construction, and appearance of our products without notice.
