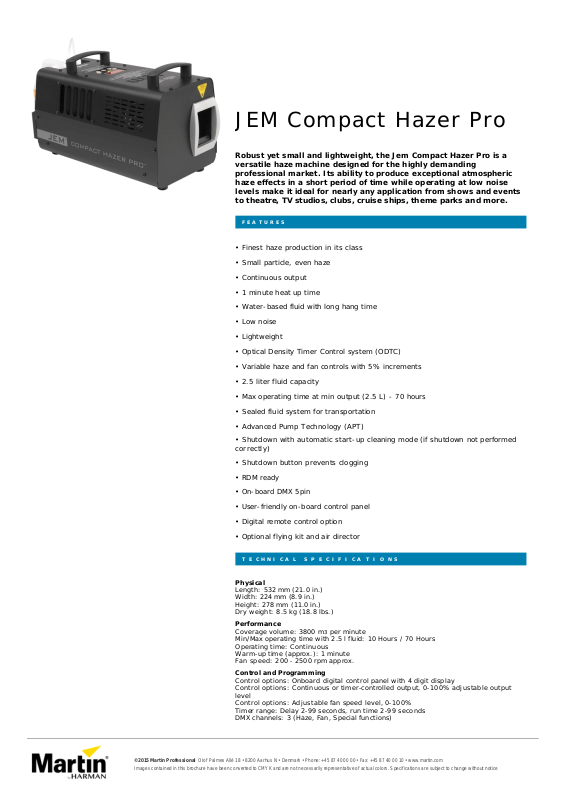

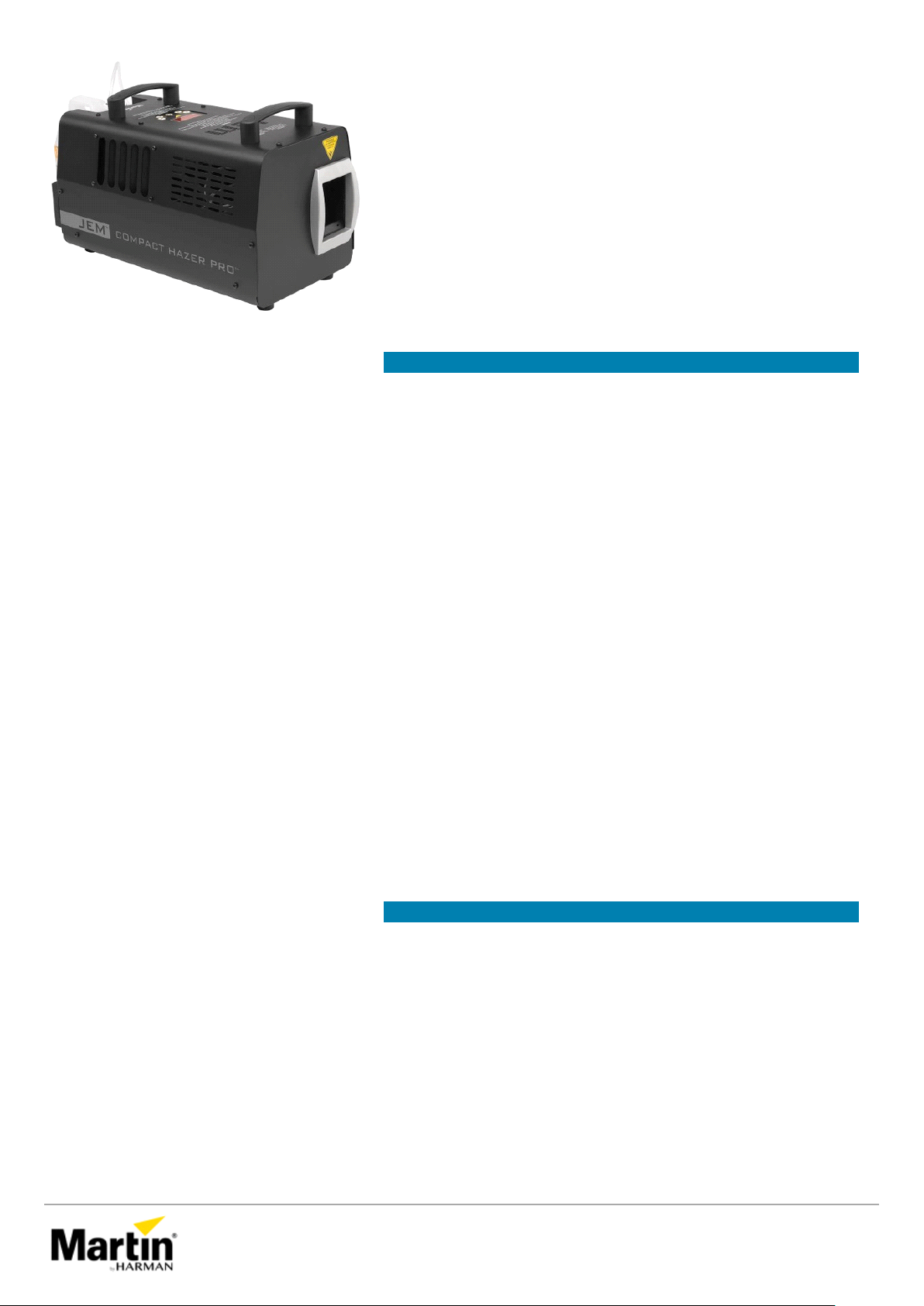

JEM Compact Hazer Pro
Robust yet small and lightweight, the Jem Compact Hazer Pro is a
versatile haze machine designed for the highly demanding
professional market. Its ability to produce exceptional atmospheric
haze effects in a short period of time while operating at low noise
levels make it ideal for nearly any application from shows and events
to theatre, TV studios, clubs, cruise ships, theme parks and more.
F E A T U R E S
T E CHNI CA L S P E CI F I CA T I O NS
Physical
Performance
Control and Programming
• Finest haze production in its class
• Small particle, even haze
• Continuous output
• 1 minute heat up time
• Water-based fluid with long hang time
• Low noise
• Lightweight
• Optical Density Timer Control system (ODTC)
• Variable haze and fan controls with 5% increments
• 2.5 liter fluid capacity
• Max operating time at min output (2.5 L) -
70 hours
• Sealed fluid system for transportation
• Advanced Pump Technology (APT)
• Shutdown with automatic start-up cleaning mode (if shutdown not performed
correctly)
• Shutdown button prevents clogging
•
RDM ready
• On-
board DMX 5pin
• User-friendly on-board control panel
• Digital remote control option
• Optional flying kit and air director
Length: 532 mm (21.0 in.)
Width: 224 mm (8.9 in.)
Height: 278 mm (11.0 in.)
Dry weight: 8.5 kg (18.8 lbs.)
Coverage volume: 3800 m3 per minute
Min/Max operating time with 2.5 l fluid: 10 Hours / 70 Hours
Operating time: Continuous
Warm-up time (approx.): 1 minute
Fan speed: 200 - 2500 rpm approx.
Control options: Onboard digital control panel with 4 digit display
Control options: Continuous or timer-controlled output, 0-100% adjustable output
level
Control options: Adjustable fan speed level, 0-100%
Timer range: Delay 2-99 seconds, run time 2-99 seconds
DMX channels: 3 (Haze, Fan, Special functions)
©
2015 Martin Professional
Olof Palmes Allé 18 • 8200 Aarhus N • Denmark • Phone: +45 87 40 00 00 • Fax: +45 87 40 00 10 • www.martin.com
Images contained in this brochure have been converted to CMYK and
are not necessarily representative of actual colors. Specifications are subject to change without notice
Page 2
Construction
Fluid System
Installation
Connections
Electrical
Thermal
Approvals
Included Items
Accessories
Ordering Information
A CCE S S O R I E S
DMX compliance: USITT DMX512-A
RDM:
RDM Ready
Self Cleaning Cycle: Manually Engaged or DMX Macro
Housing: Steel & aluminum
Heat exchanger: 900 W, Thermally Protected
Fluid pump: Oscillating piston, high pressure
Onboard fluid capacity: 2.5 l
Approved fluids: Jem C-Plus Haze Fluid™ only
Orientation: Floor or optional flying kit
Ensure safety cable is used when flying
Power connection: Neutrik PowerCon
DMX data: 5-pin locking XLR
Remote control: 3-pin locking XLR
Firmware Upgrade: AVR socket
AC power (EU models): 220-240 V nominal, 50 Hz
AC power (US models): 110-120 V nominal, 60 Hz
Main fuse (220-240 V power): 6.3 AT
Main fuse (110-120 V power): 10 AT
Maximum ambient temperature (Ta max.): 40° C
Exterior surface temperature, steady state: 30° C
Max. nozzle temperature: 290° C
EU safety: EN 60 335-1 :2002
EU EMC: EN 61000-6-3:2001
Immunity: EN 50 366: 2003 Electromagnetic fields, EN 61000-6-1: 2001
US safety: Pending
Calibration factors have been developed and approved by the Actors’ Equity Association
and the Broadway League for use in measuring theatrical haze with the JEM Compact
Hazer Pro™ and JEM C-Plus Haze Fluid™:
User Manual: Hard Copy
Power Cable, PowerCon 2.5m, stripped ends: P/N 11501041
Fluid Container, 2.5 l empty: P/N 34300521
C-Plus Haze Fluid™, 4 x 2.5 l: P/N 97120413
C-Plus Haze Fluid™, 2.5 gal./9.5 ltr.: P/N 97120414
JEM Compact Hazer Pro™ Digital Remote Control: P/N 92765040
JEM Compact Hazer Pro™ Air Director: P/N 92625011
JEM Compact Hazer Pro™ Flying Kit: P/N 92610003
Optional digital remote control: P/N 92765040
JEM Compact Hazer Pro™, 110 V: P/N 92225960
JEM Compact Hazer Pro™, 240 V: P/N 92225950

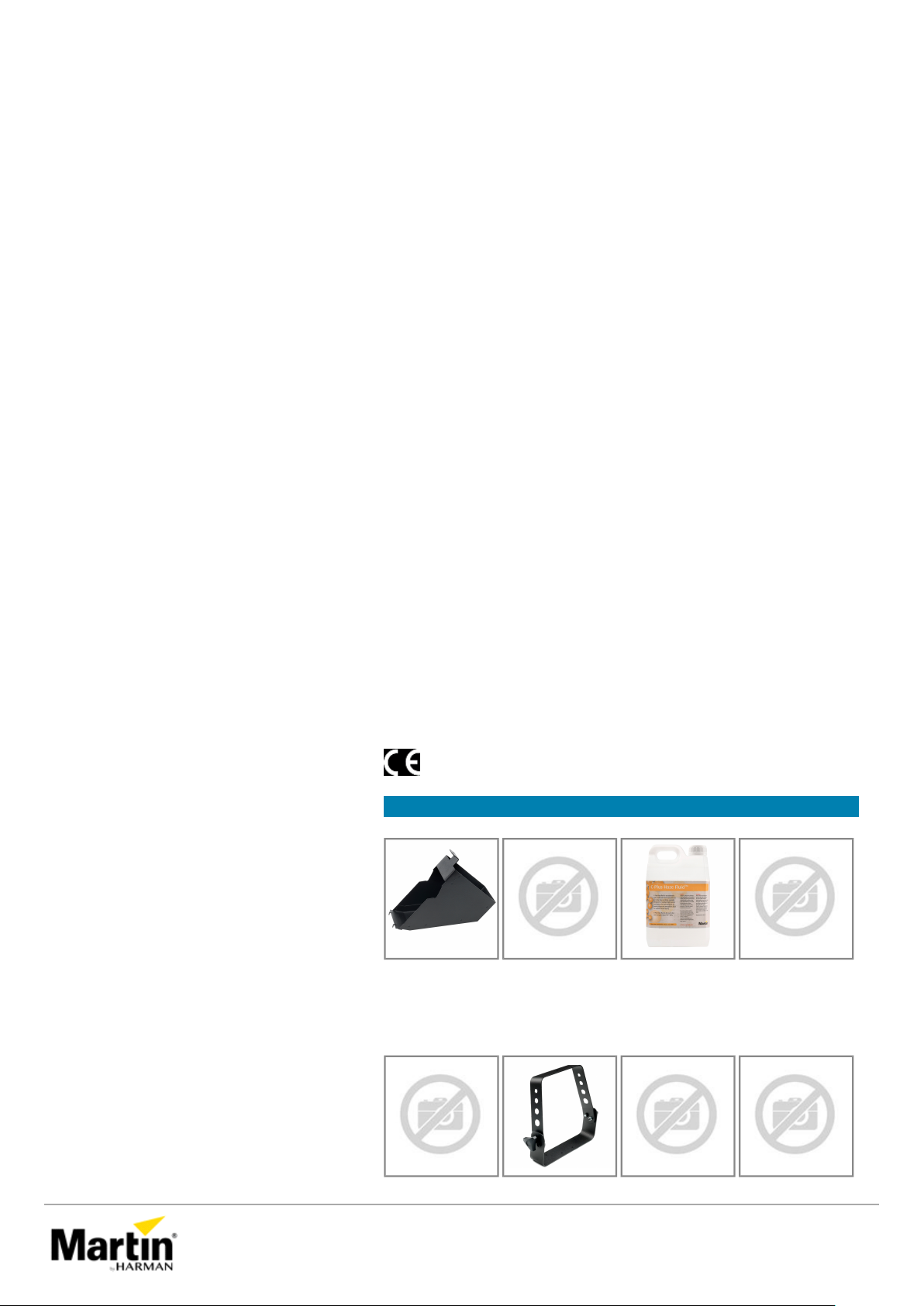

Air Director, JEM
Compact Hazer Pro
P/N: 92625011
C-Plus Fluid 2.5
gal/9.5L
P/N: 97120414
C-
Plus Fluid 25L
P/N: 97120423
C-
Plus Fluid 4x2.5L
P/N: 97120413
©
2015 Martin Professional
Olof Palmes Allé 18 • 8200 Aarhus N • Denmark • Phone: +45 87 40 00 00 • Fax: +45 87 40 00 10 • www.martin.com
Images contained in this brochure have been converted to CMYK and
are not necessarily representative of actual colors. Specifications are subject to change without notice
Page 3
C-
Plus Fluid 4x5L
P/N: 97120421
Flying Kit, JEM
Compact Hazer Pro
P/N: 92610003
POWER CABLE
H07RN
-F
POWCON-POWCON
1,20M
P/N: 91611798
POWER CABLE
H07RN
-F
POWCON-POWCON
2,50M
P/N: 91611799

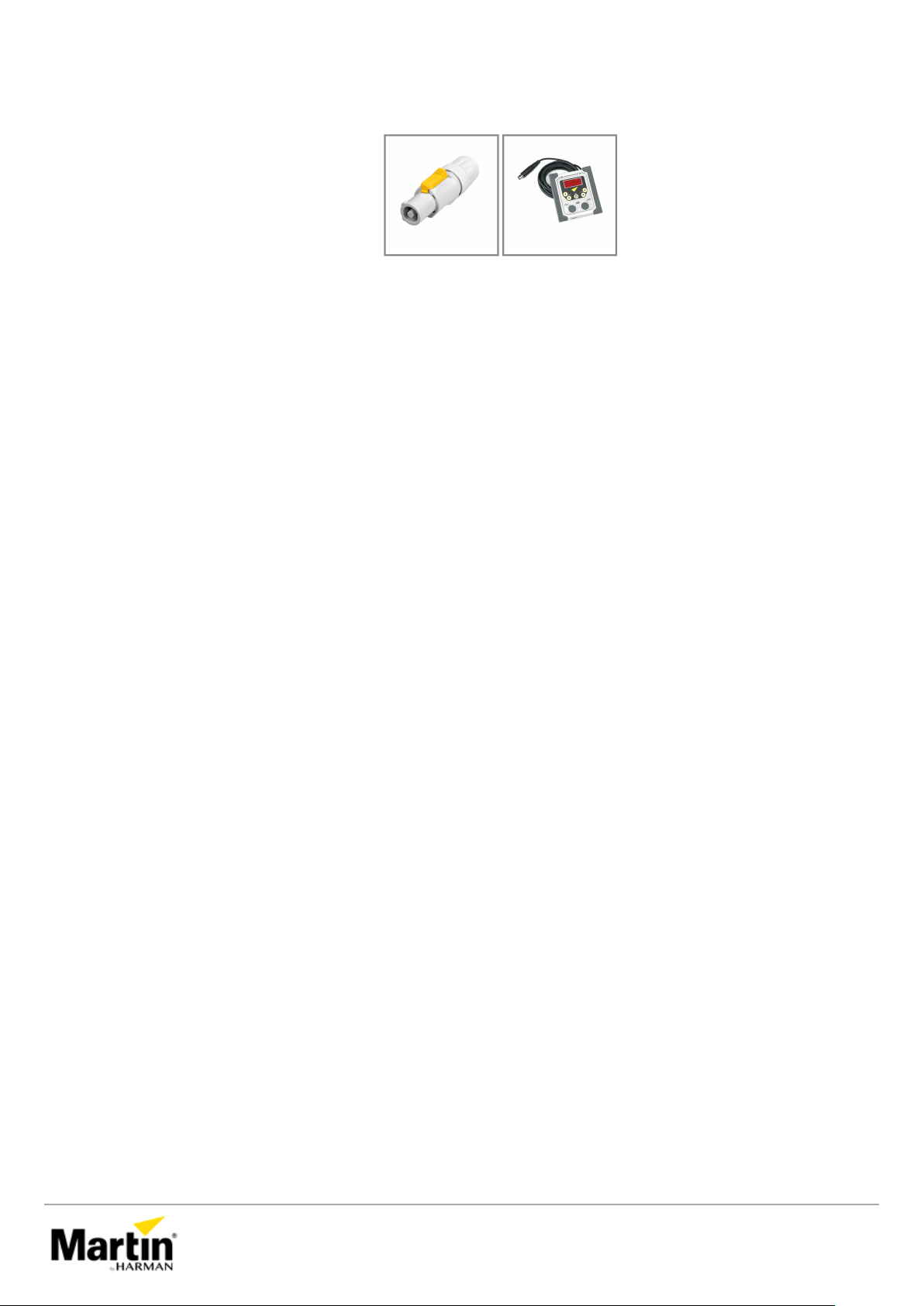

POWER
CONNECTOR
POWERCON MALE
P/N: 91611795
Remote Control,
JEM Compact
Hazer Pro
P/N: 92765040
©
2015 Martin Professional
