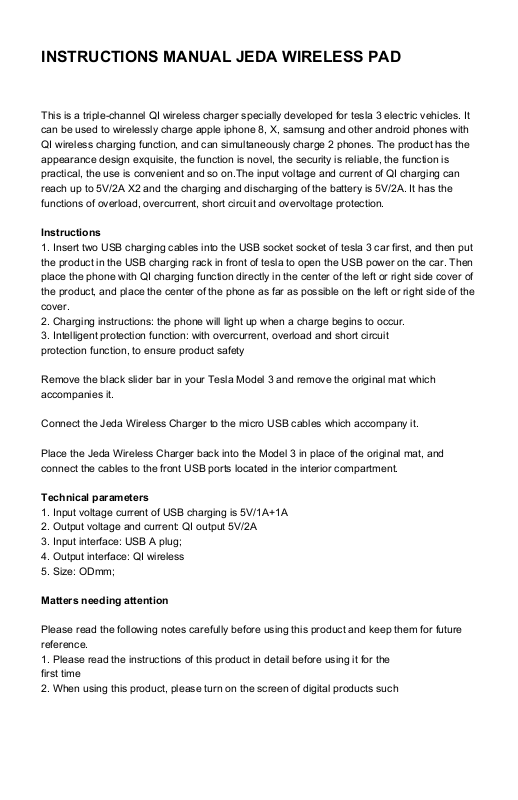

Page 1
INSTRUCTIONS MANUAL JEDA WIRELESS PAD
This is a triple-channel QI wireless charger specially developed for tesla 3 electric vehicles. It
can be used to wirelessly charge apple iphone 8, X, samsung and other android phones with
QI wireless charging function, and can simultaneously charge 2 phones. The product has the
appearance design exquisite, the function is novel, the security is reliable, the function is
practical, the use is convenient and so on.The input voltage and current of QI charging can
reach up to 5V/2A X2 and the charging and discharging of the battery is 5V/2A. It has the
functions of overload, overcurrent, short circuit and overvoltage protection.
Instructions
1. Insert two USB charging cables into the USB socket socket of tesla 3 car first, and then put
the product in the USB charging rack in front of tesla to open the USB power on the car. Then
place the phone with QI charging function directly in the center of the left or right side cover of
the product, and place the center of the phone as far as possible on the left or right side of the
cover.
2. Charging instructions: the phone will light up when a charge begins to occur.
3. Intelligent protection function: with overcurrent, overload and short circuit
protection function, to ensure product safety
Remove the black slider bar in your Tesla Model 3 and remove the original mat which
accompanies it.
Connect the Jeda Wireless Charger to the micro USB cables which accompany it.
Place the Jeda Wireless Charger back into the Model 3 in place of the original mat, and
connect the cables to the front USB ports located in the interior compartment.
Technical parameters
1. Input voltage current of USB charging is 5V/1A+1A
2. Output voltage and current: QI output 5V/2A
3. Input interface: USB A plug;
4. Output interface: QI wireless
5. Size: ODmm;
Matters needing attention
Please read the following notes carefully before using this product and keep them for future
reference.
1. Please read the instructions of this product in detail before using it for the
first time
2. When using this product, please turn on the screen of digital products such
Page 2
INSTRUCTIONS MANUAL JEDA WIRELESS PAD
as mobile phones to confirm that the charging connection sign has been
displayed correctly, so as to ensure the product has been working normally.
FCC ID:
FCC Warning:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the Equipment. This equipment has been tested and
found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to which
● the receiver is connected.
● Consult the dealer or an experienced radio/TV technician for help.
To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be
installed and operated with minimum distance between 20cm the radiator your body: Use
only the supplied antenna.
Hereby, Jeda Products Inc, declares that the radio equipment type
1505465-00-A Model 3 Wireless Phone Charger (Jeda Wireless
Pad) is in compliance with EMC Directive 2014/53/EU.
FCC ID:
Jeda Products, Inc
Jeda Wireless Pad (Wireless Phone Charger for Model 3)
.
2AUDR-PAD
