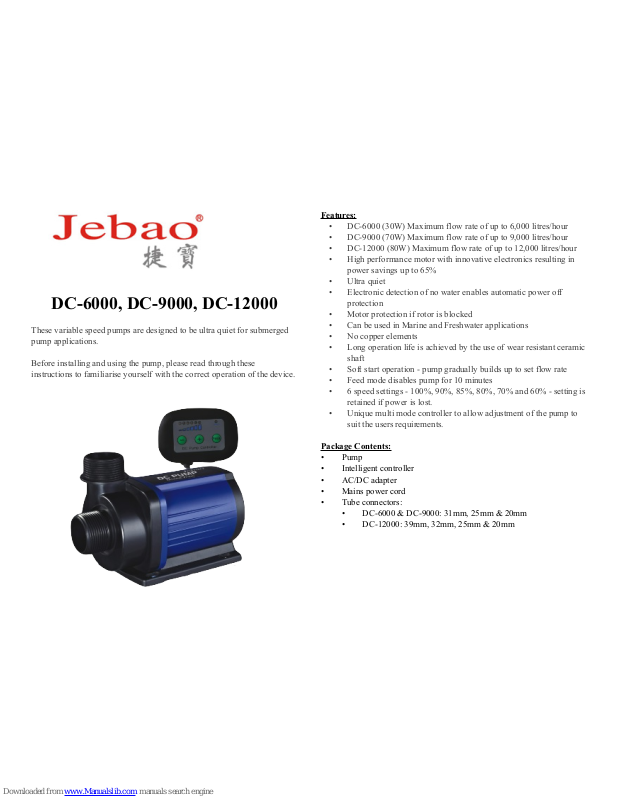

Jebao DC-6000, DC-9000, DC-12000 User Manual

DC-6000, DC-9000, DC-12000

These variable speed pumps are designed to be ultra quiet for submerged
pump applications.

Before installing and using the pump, please read through these
instructions to familiarise yourself with the correct operation of the device.

Features:

• DC-6000 (30W) Maximum flow rate of up to 6,000 litres/hour

• DC-9000 (70W) Maximum flow rate of up to 9,000 litres/hour

• DC-12000 (80W) Maximum flow rate of up to 12,000 litres/hour

• High performance motor with innovative electronics resulting in
power savings up to 65%

• Ultra quiet

• Electronic detection of no water enables automatic power off
protection

• Motor protection if rotor is blocked

• Can be used in Marine and Freshwater applications

• No copper elements

• Long operation life is achieved by the use of wear resistant ceramic
shaft

• Soft start operation - pump gradually builds up to set flow rate

• Feed mode disables pump for 10 minutes

• 6 speed settings - 100%, 90%, 85%, 80%, 70% and 60% - setting is
retained if power is lost.

• Unique multi mode controller to allow adjustment of the pump to
suit the users requirements.

Package Contents:

• Pump

• Intelligent controller

• AC/DC adapter

• Mains power cord

• Tube connectors:

• DC-6000 & DC-9000: 31mm, 25mm & 20mm

• DC-12000: 39mm, 32mm, 25mm & 20mm

IMPORTANT INFORMATION:

• In order to ensure product performance, please only operate the
pump in water.

• The controller is NOT waterproof – please position the controller to
avoid water splashes.

• If the Controller or AC/DC adapter are opened, the warranty will be
voided.

• The pump is suitable for indoor use in water only.

Installation Instructions:

Every user’s tank is unique, so the pump should be installed based on your
tank’s style and your requirements.

• Connect the pump to your desired input & output tubing

• Remove the backing on one side of the double-sided adhesive paper
and stick to the rear of the controller in the middle. Remove the other
side of the double-sided adhesive protective paper and affix the
controller in a suitable location.

• BEFORE ATTACHING THE MAINS CABLE, attach the 3-pin
waterproof connector from the pump to the controller. Connect AC/
DC power adapter to controller.

Once all connection are made, the mains power can be connected with the
provided mains power cord.

Controller Operation:

The controller has six speeds that can be set. In addition, the controller has
a “feed” function” that will disable the pump for 10 minutes.

Below are details of the 6 speed settings available:

• Feed Mode: Press the 'FEED' button for 5 seconds, the blue '10min'
light will illuminate indicating that the pump has been stopped for 10
minutes. When the time has elapsed, the light will go off and the

pump will be turned back on. Alternatively, press the 'FEED' button
again for 5 seconds to start the pump.

Specifications:
Dimensions: L x W x H (cm)
DC-6000 = 16 x 9 x 12
DC-9000/12000 = 18 x 9 x 12

Jebao Co., Ltd.
Tongmao Industrical Park, Dongsheng, Zhongshan, Guangdong. China.
Email:[e-mail]
Website: www.jebao.com
Tel: [phone] Fax:[phone]
