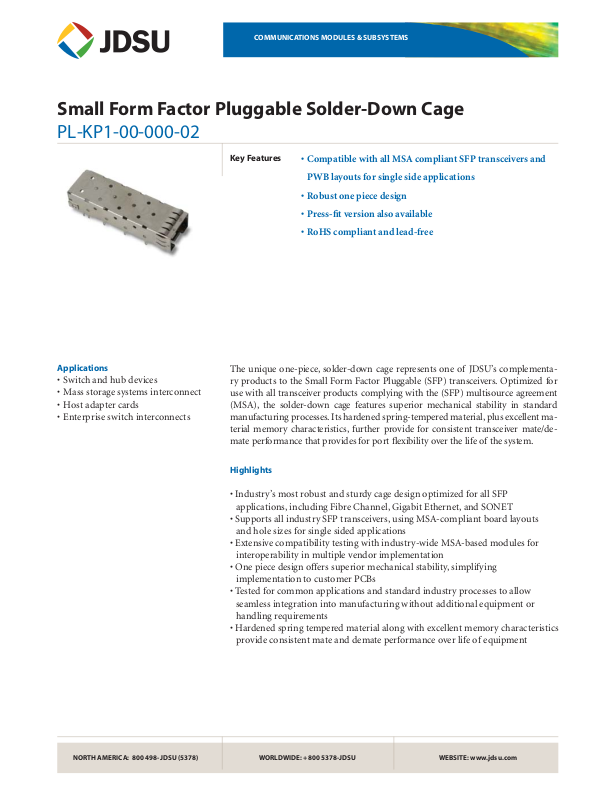

Page 1
COMMUNICATIONS MODULES & SUBSYSTEMS
Small Form Factor Pluggable Solder-Down Cage
PL-KP1-00-000-02
Applications
• Switch and hub devices
• Mass storage systems interconnect
• Host adapter cards
• Enterprise switch interconnects
Key Features
The unique one-piece, solder-down cage represents one of JDSU’s complementary products to the Small Form Factor Pluggable (SFP) transceivers. Optimized for
use with all transceiver products complying with the (SFP) multisource agreement
(MSA), the solder-down cage features superior mechanical stability in standard
manufacturing processes. Its hardened spring-tempered material, plus excellent material memory characteristics, further provide for consistent transceiver mate/demate performance that provides for port fl exibility over the life of the system.
• Compatible with all MSA compliant SFP transceivers and
PWB layouts for single side applications
• Robust one piece design
• Press-fi t version also available
• RoHS compliant and lead-free
NORTH AMERICA: 800 498-JDSU (5378)
Highlights
• Industry’s most robust and sturdy cage design optimized for all SFP
applications, including Fibre Channel, Gigabit Ethernet, and SONET
• Supports all industry SFP transceivers, using MSA-compliant board layouts
and hole sizes for single sided applications
• Extensive compatibility testing with industry-wide MSA-based modules for
interoperability in multiple vendor implementation
• One piece design offers superior mechanical stability, simplifying
implementation to customer PCBs
• Tested for common applications and standard industry processes to allow
seamless integration into manufacturing without additional equipment or
handling requirements
• Hardened spring tempered material along with excellent memory characteristics
provide consistent mate and demate performance over life of equipment
WORLDWIDE: +800 5378-JDSU
WEBSITE: www.jdsu.com
Page 2
2
PL-KP1-00-000-02 Features
SMALL FORM FACTOR PLUGGABLE SOLDER-DOWN CAGE
• RoHS compliant and lead-free
• Supports MSA compliant board
layout and hole sizes
• Interoperable with all MSA
compliant transceivers
• Tested for insertion force and retention
• Robust manufacturing process
• Sturdy construction
• Hardened spring tempered alloy
• Excellent memory characteristics
• Utilizes common manufacturing
solder processes
• FCC Class B compliant
• 360 degree EMI fi nger contacts
14.61
.575
48.67
1.916
9.68
.381
The PL-KP1-00-000-02 solder-down cage accommodates all MSA-compliant SFP
transceivers, and is ideally suited for application on printed wiring board (PWB) with a
minimum thickness of 0.062 inches.
Page 3
3
SMALL FORM FACTOR PLUGGABLE SOLDER-DOWN CAGE
Section 1 Functional Description
The solder-down cage is designed in compliance with the Small Form Factor Pluggable (SFP) Transceiver Multisource Agreement (MSA) See Figure 1. PL-KP1-00000-02 may be used with the single-sided PWB layout.
48.671.916
14.61.575
9.42.371
PLKP10000002
10.01.394
2.36.093
PATENT PENDING
NOTE: UNLESS SPECIFIED, TOLERANCES ARE .005
9.68.381
3.66.144
2.13.084
Figure 1 Solder-down cage mechanical drawing (PL-KP1-00-000-02)
Page 4
4
SMALL FORM FACTOR PLUGGABLE SOLDER-DOWN CAGE
Section 2 Recommended OEM PCB
Layouts
11.9
16.25
CROSS-HATCHED AREA
DENOTES COMPONENT
AND TRACE KEEPOUT
(EXCEPT CHASSIS GROUND)
1
B
1
11.08
14.25
TYP
2
8.58
2
10X 1.05
0.1 A C
NOTES:
DATUM AND BASIC DIMENSIONS1.
ESTABLISHED BY CUSTOMER.
2. PADS AND VIAS ARE CHASSIS
GROUND 11 PLACES
3. THRU HOLES, PLATING OPTIONAL
4. HOLES DENOTED WITH 'A' ARE
NOT REQUIRED WITH PICOLIGHT
CAGES (6 PLACES)
2
5. ALL DIMENSIONS ARE IN
MILLIMETERS
B
11.93
9.60
TYP
A
5.68
34.50
30 2X
20
10
3X
2X
7.20
2X 2.50
D
A
A
A
A
A
3X 7.10
0.85±0.05
3.68
(MARKED "S")
1.70
1.70
0.1 A
C
8.48
4.80
2X 2.50
A
B
2
±0.05
L
26.80
41.30
42.30
5
10
3 PLACES
9X
(MARKED "G")
L
0.1
THIS AREA DENOTES
COMPONENT KEEP-OUT
(TRACES ALLOWED)
CA
3
0.95±0.05
Figure 2 Board layout
9.60
9X 0.8
10X 5
10X 3.20
G
G
2X 1.55±0.05
LL
G
G
ALL DIMENSIONS ARE IN MILLIMETERS
G
S
2X 0.90
G
10.53 10.93
G
G
G
2±0.05 TYP
9X 0.8
20X 0.50±0.03
0.06 C D
DC60.0DC1.0
11.93
Figure 3 Detail layout
Page 5
SMALL FORM FACTOR PLUGGABLE SOLDER-DOWN CAGE
Section 3 Package and Handling
Instructions
The PL-KP1-00-000-02 cages are packaged in card board boxes. Each box has 10
layers of 35 cages in plastic trays. There are 350 cages per box.
Flammability
The PL-KP1-00-000-02 solder-down cage and EMI cage plug are made from
C77000 sheet metal.
Order Information
For more information on this or other products and their availability, please contact your local JDSU account manager or
JDSU directly at 1-800-498-JDSU (5378) in North America and +800-5378-JDSU worldwide or via e-mail at
customer.service@jdsu.com.
Sample: PL-KP1-00-000-02
Part Number Description
PL-KP1-00-000-02 Solder-down cage
NORTH AMERICA: 800 498-JDSU (5378)
Product specifi cations and descriptions in this document subject to change without notice. © 2007 JDS Uniphase Corporation 30149204 Rev. 000 11/07 PL-KP1-00-000-02.DS.CMS.AE November 2007
