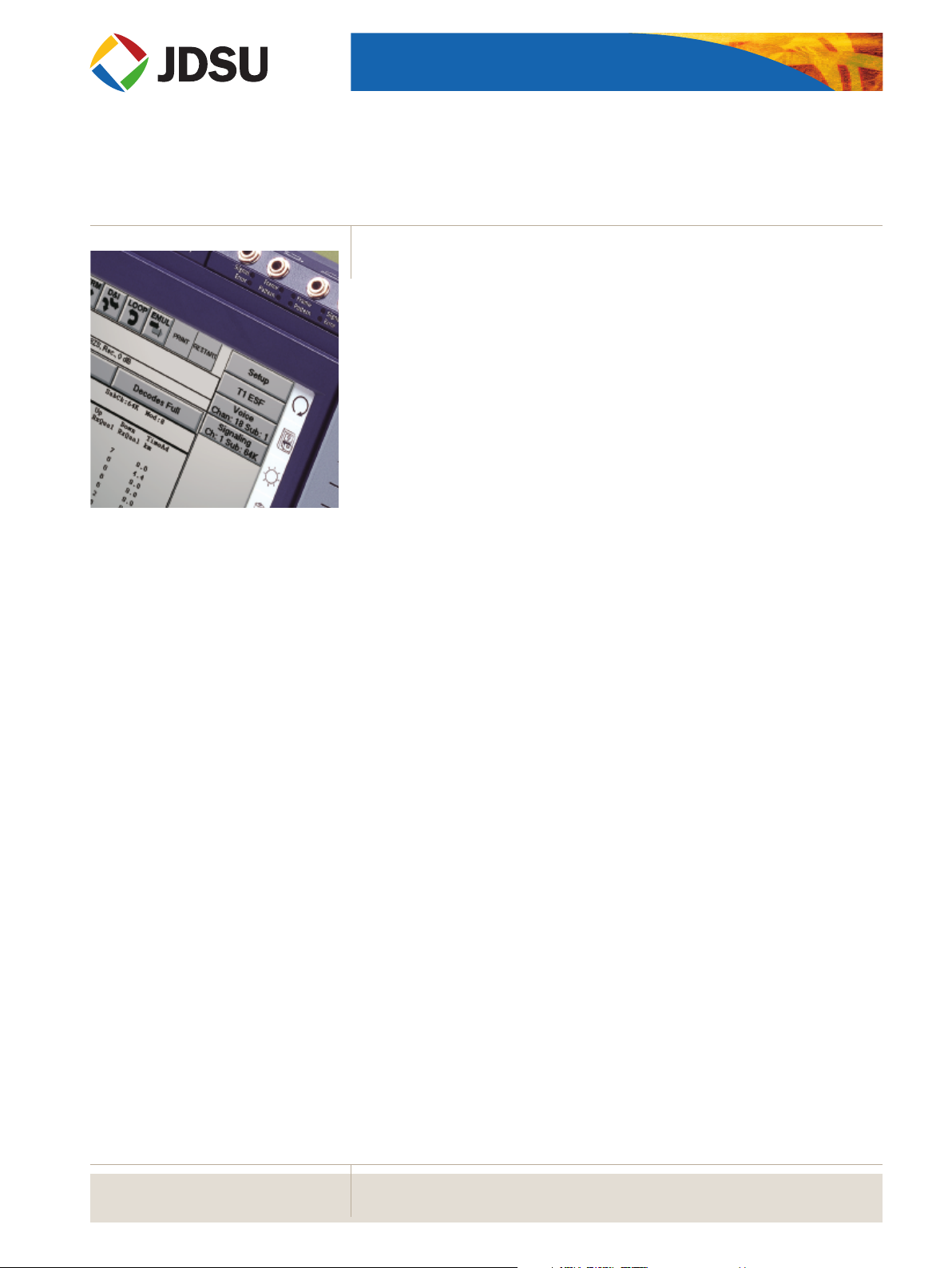

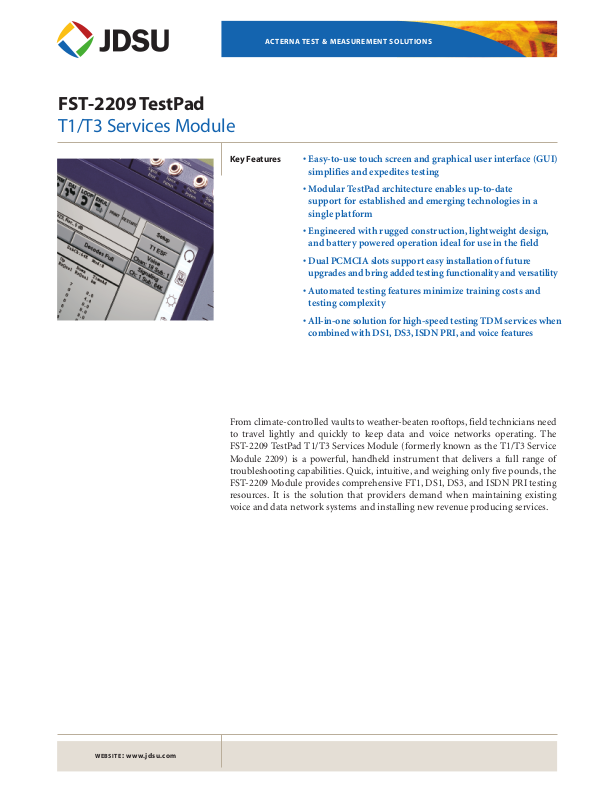

FST-2209 TestPad
T1/T3 Services Module
ACTERNA TEST & MEASUREMENT SOLUTIONS
Key Features
From climate-controlled vaults to weather-beaten rooftops, field technicians need
to travel lightly and quickly to keep data and voice networks operating. The
FST-2209 TestPad T1/T3 Services Module (formerly known as the T1/T3 Service
Module 2209) is a powerful, handheld instrument that delivers a full range of
troubleshooting capabilities. Quick, intuitive, and weighing only five pounds, the
FST-2209 Module provides comprehensive FT1, DS1, DS3, and ISDN PRI testing
resources. It is the solution that providers demand when maintaining existing
voice and data network systems and installing new revenue producing services.
• Easy-to-use touch screen and graphical user interface (GUI)
simplifies and expedites testing
• Modular TestPad architecture enables up-to-date
support for established and emerging technologies in a
single platform
• Engineered with rugged construction, lightweight design,
and battery powered operation ideal for use in the field
• Dual PCMCIA slots support easy installation of future
upgrades and bring added testing functionality and versatility
• Automated testing features minimize training costs and
testing complexity
• All-in-one solution for high-speed testing TDM services when
combined with DS1, DS3, ISDN PRI,and voice features
WEBSITE: www.jdsu.com
Page 2
2
FST-2209
Switch
T1
DSX-1
T1 T1 T1
NIU/
Smart
Jack
NIU/
Smart
Jack
CSU/
DSU
Network
FST-2209
FST-2209 TESTPAD
The FST-2209 Module provides a full range of signal, alarm, and timing test
functions to ensure proper performance at the physical level of T1 and T3
network connections. It also offers the ability to place, receive and monitor voice
calls on PCM-based and ISDN PRI trunks. With the automated T1 BER testing in
the new TestMATE option of the FST-2209, both experienced and novice
technicians can install and maintain T1 networks quickly and accurately.
The functions of the FST-2209 include:
– DS1 signal analysis and BER testing with standard and advanced stress patterns
including 55 octet and T1-DALY
– Dual DS1 receivers for in-service monitoring and drop-and-insert testing
– DS3 BER testing analysis with patterns for both M13 and C-bit framing
– DS1 channel drop from a DS3 signal for testing or monitoring
– Monitoring, placement, or receipt of calls over T1 voice trunks and analysis
signaling bits
– Transmission and measurement of tones on individual PCM channels
– ISDN PRI call placement and receipt, backup D-Channel and NFAS testing,
and layer 3 (Q.931) results
– VT100 emulation for equipment configuration and results monitoring
The FST-2209 is designed to simplify testing of today’s complex networks.
Programmed with highly integrated applications for in-service and out-of-service
testing, the instrument tests at both the pipeline and service levels to ensure that
the network is performing as advertised.
Simultaneously monitor and test in both directions on a circuit
Page 3
3
FST-2209 TESTPAD
Applications
– Isolate and troubleshoot physical layer problems associated with data or other
advanced services without taking channels out of service
– Verify proper network routings and signal delays to ensure all fractional T1
channel signals are terminated properly and with the correct timing
– Monitor network voice quality and signaling
– Test the ability of a PBX/switch to handle incoming calls
– Verify or troubleshoot ISDN PRI service by placing and receiving calls and
analyzing decodes
– Qualify DS3 circuits with an array of BER testing patterns
– Analyze DS1 tributaries at DS3 access points
– Sectionalize repeated T1 and HDSL circuits with embedded 16-bit smart
repeater and HDSL loopcodes

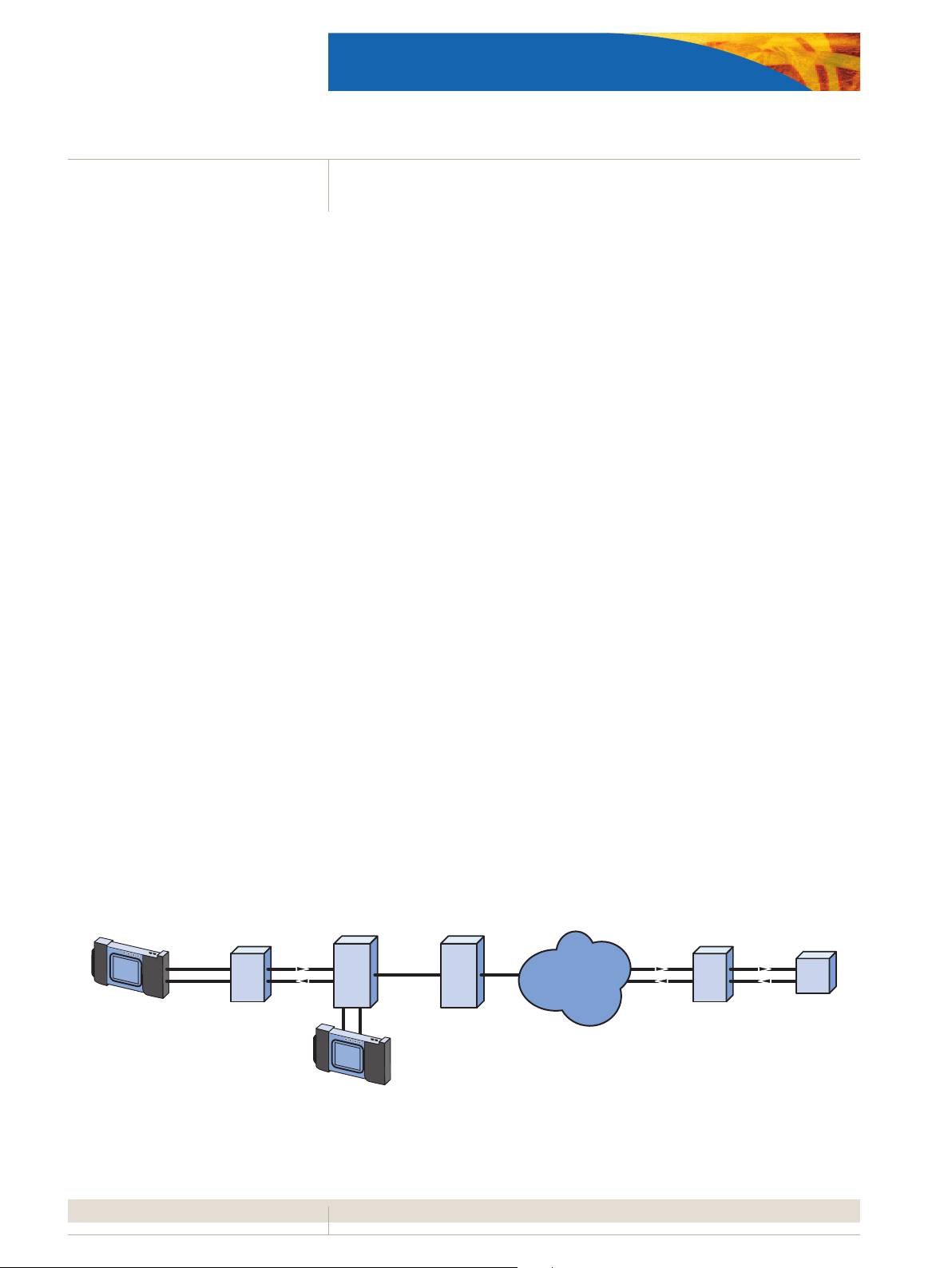

DS1 physical layer testing
Whether provisioning or troubleshooting T1 service, the first step is to verify
proper circuit operation throughout the network by testing the physical layer.
Typical requirements include BER testing and signal, alarm, and timing tests to
ensure proper performance of T1 network connections.
BER testing is typically conducted from the customer premises at an NIU or
HTU-R. To identify and sectionalize circuit problems from network equipment
faults, the FST-2209 monitors and performs BER testing in both directions of a
circuit simultaneously. The use of standard or user-programmable loop codes to
loopback network equipment allows technicians to further sectionalize network
troubles. In addition to commonly used BER patterns such as QRSS, the test
instrument also offers several industry-recommended, advanced stress patterns,
including 55 octet and T1-DALY to ensure network performance.
Page 4
4
NIU/
Smart
Jack
PBX
DSX-1
Switch
FST-2209 FST-2209
FST-2209 TESTPAD
With its advanced timing analysis, technicians using the FST-2209 can pinpoint
signal delays, timing slips, and mismatches between the switch and remote
equipment.

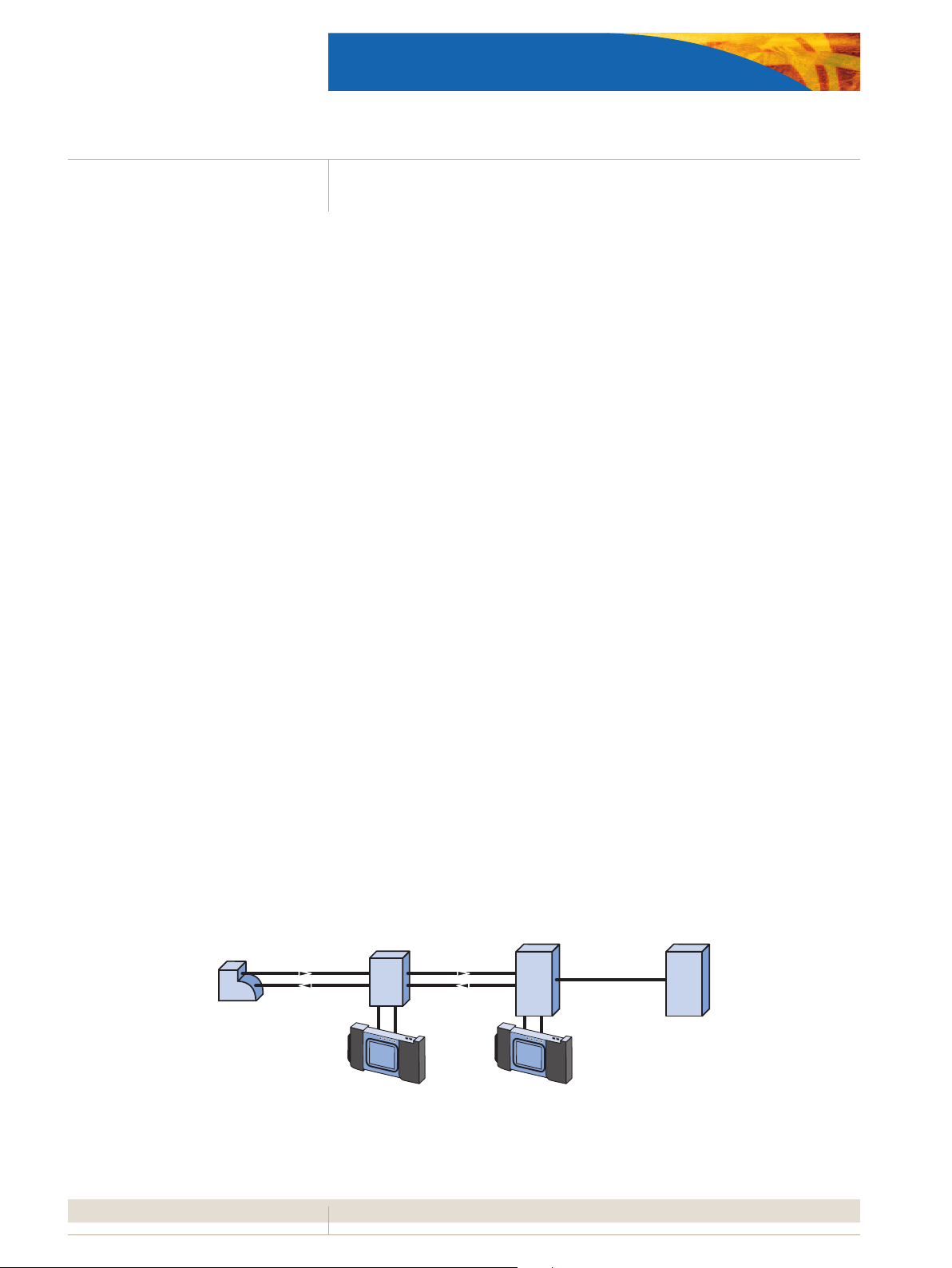

Fractional T1 channel testing
Qualification of fractional T1 service requires the verification of network routings
and signal delays to ensure that all channel signals are terminated properly and
with the correct timing. In rural locations or on the outer reaches of the service
area, it is often critical to isolate single-circuit faults without disrupting the entire
line.
VF channel access and PCM TIMS
When problems with voice service arise, the ability to measure the quality of voice
transmissions on the network circuit quickly and effectively is essential. By
monitoring data or signaling bits, the FST-2209 can check and verify individual
channels without disrupting network traffic. Transmitting and measuring tones
on an individual PCM channel utilizing the test instrument’s in-service channel
access affects only the channel under test – providing a further level of
performance analysis without impacting other revenue generating channels. The
FST-2209 provides TIMS measurements that include:
–Level
– Frequency
– Signal-to-noise ratio
– Noise (C-message and C-notch filters)
The FST-2209 quickly and effectively measures the quality of voice transmission on the network circuit
Page 5
NIU/
Smart
Jack
PBX
DSX-1
Switch
Network
PBX
NIU/
Smart
Jack
FST-2209 FST-2209
5
FST-2209 TESTPAD

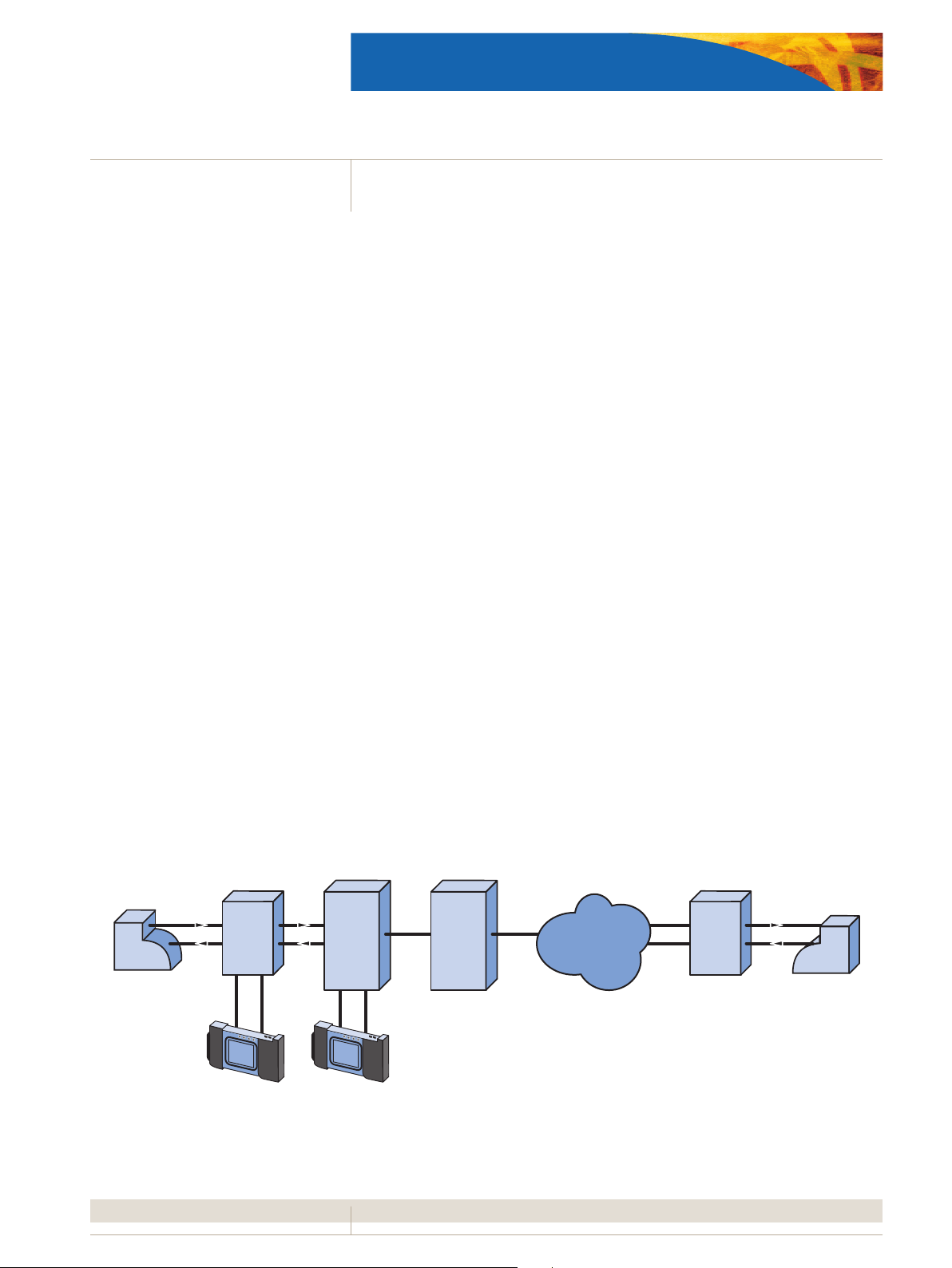

Signaling testing
After the physical layer has been tested when provisioning or troubleshooting T1
voice trunks, it is also necessary to test the transmission and signaling
performance of the circuit. This testing verifies the ability of a switch or PBX
to handle incoming calls and ensures switch-to-switch communications. By
placing, receiving, or monitoring voice calls, connectivity can be verified. The
FST-2209 captures and displays digits, signaling events, and signaling bits to
provide a more detailed level of analysis.
The test instrument also displays physical layer results simultaneously, so
comprehensive testing of the voice trunk can be completed in a matter of minutes.
It provides signaling and voice results such as:
– DP, DTMF, MF digit recognition
– Interevent/digit delay measurements
– Event/digit duration measurements
– Speaker/microphone or handset functionality for checking voice integrity
– Signaling (ABCD) bits
Monitor network voice quality and signaling
Page 6
6
FST-2209
High-Order
Transmission System
DSX-3
DSX-3
DSX-3
MON
OUT
IN
Mux Span
DSX-3
MON
OUT
IN
MuxSpan
FST-2209 TESTPAD
DS3 testing

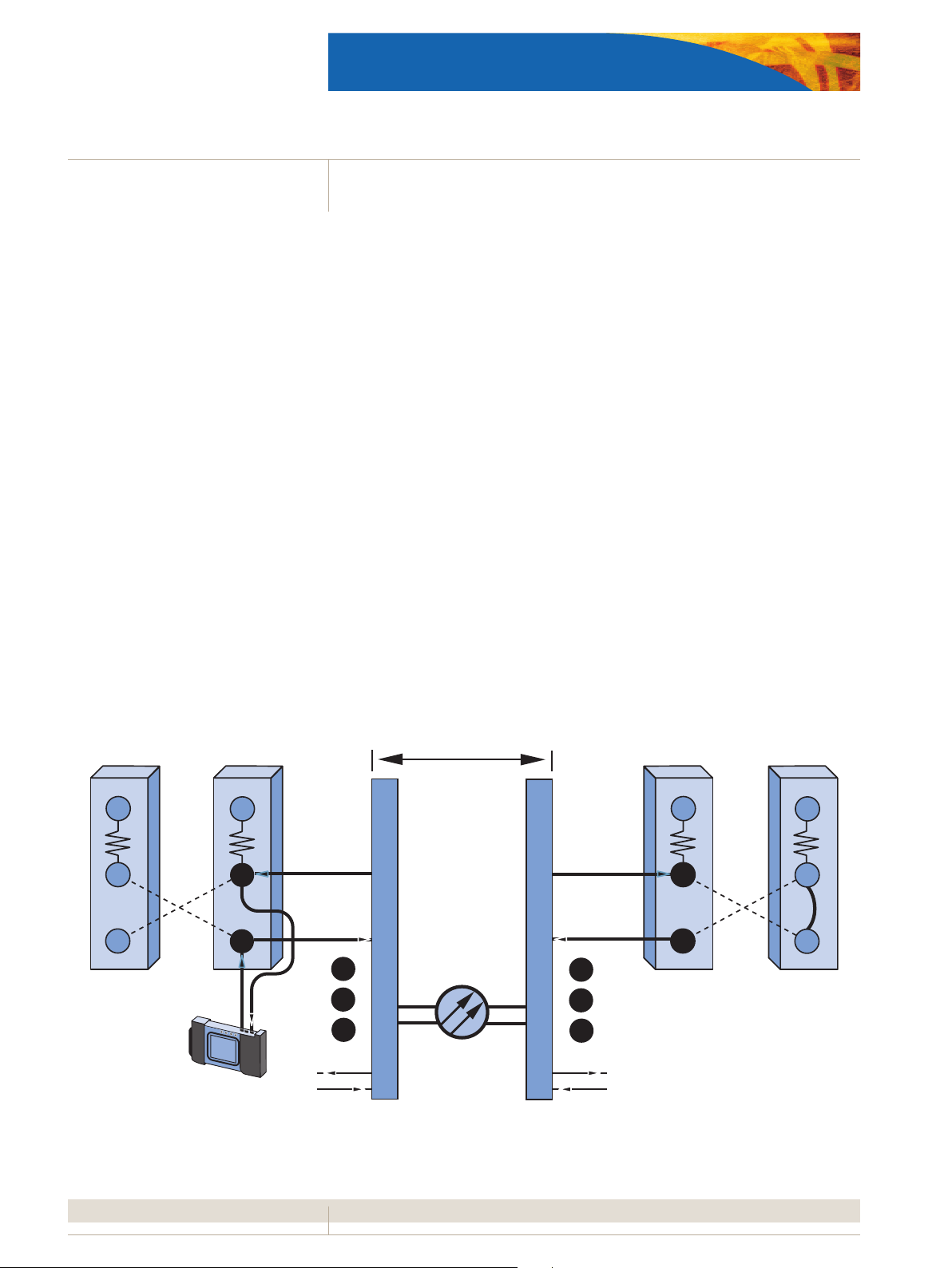

The first step in provisioning DS3 circuits is qualifying the physical layer. The
FST-2209 gives technicians the ability to qualify DS3 circuits with an array of BER
testing patterns for both M13 and C-bit framing and supports the verification of
frame synchronization on the circuit.
For more comprehensive and flexible testing, it is often also necessary to insert test
patterns or tones on single, multiple, or all DS1 channels within the DS3 circuit.
The FST-2209 DS3 BER testing measurements include:
– DS3 FEAC loopback codes
– Advanced stress patterns
– Signal level and frequency
– Insertion of logic and frame errors
A final level of analysis is provided by dropping DS1 channels from the DS3 signal
for testing or monitoring of the individual channels.
With the FST-2209 module, you can qualify DS3 circuits with a host of BER testing patterns
Page 7
7

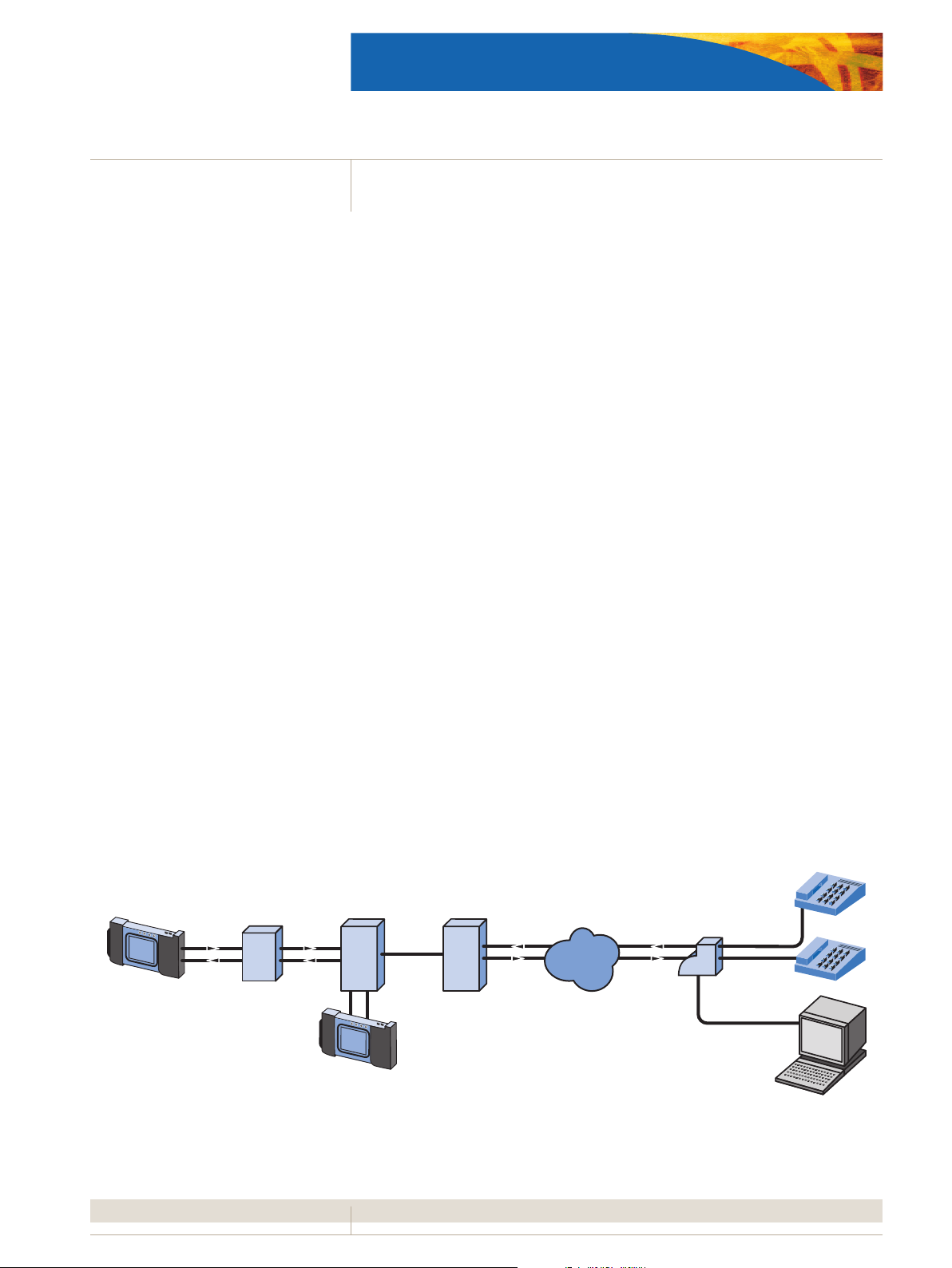

FST-2209
NIU/
Smart
Jack
PBX
DSX-1
ISDN
Switch
ISDN
Network
FST-2209
FST-2209 TESTPAD
ISDN PRI testing
After verifying the physical layer, testing during the provisioning of ISDN service
is typically performed at the customer premises by emulating a TE device, such as
a PBX, to place and receive voice and data calls. Call status results and progress
reports provide an additional level of detail to ensure calls are successfully
established.
The reports are also useful for troubleshooting calls that are not established. When
multiple PRI lines are in use at the same location, it is often necessary to perform
backup D-channel and NFAS testing. By providing the user with simultaneous
results for physical layer (T1), layer 2 (LAPD), and layer 3 (Q.931) as well as plain
text decodes, the FST-2209 provides an efficient means to verify or troubleshoot
the ISDN PRI service. It can:
– Test multiple call types including voice, 56 K, 64 K, Nx56 K, Nx64 K, and H0 to
verify correct switch translations for both inbound and outbound calls
– Test data services (calls) using BER testing patterns
– Place and receive calls
– Receive call status results that provide a summary of calls
– Receive English decodes of layer 3 cause codes
– Receive full layer 3 (Q.931) decodes, with the ability to print
– Place and receive calls on either T1 (secondary or primary) for NFAS
configurations
– Switch from standby D-channel to in-service D-channel for verification of
D-channel backup operation in NFAS configurations
Verify or troubleshoot your customer’s ISDN PRI service using the FST-2209 module’s ISDN testing capabilities
Page 8
8
FST-2207 TESTPAD T1/T3 WIRELESS MODULE
Technical specifications
Physical characteristics
Overall dimensions 7.5 x 11.5 x 2.25 in
(19 x 29.2 x 5.7 cm)
Weight 4.25 lb (1.93 kg), with battery
Environment
Temperature range
Operating temperature 32 to 122°F (0 to 50°C)
Storage temperature –40 to 167°F (–40 to 75°C)
Humidity 10 to 90% relative humidity,
noncondensing
Power requirements
AC adapter 100-220 at 60 Hz or
200-240 at 50 Hz
VAC to 19 VDC, 2.37 amps
Charging time Maximum of 2 hours
from full discharge
Battery type 10.8 V NiMH
Operating time Typically 3 hours on a full
charge (DS1 operation only)
Typically 2 hours on a full
charge (DS3 operation only)
Display
6-in diagonal graphic LCD color display
Input and output connectors
Bantam (4) and RS-232 (printer operation)
Input impedance
Bridged 1000
Term 100 _±5%
DSX-monitor 100 _ ±5%
Receive level
Bridg or term +6 to –35 dBdsx
DSX-monitor +6 to –24 dBdsx
(of resistive loss)
Transmit
Output Isolated T1 pulse is 3.0 V peak ±0.6 V at
0 dBdsx (conforms with ANSI T1.102-1993
and ITU-T G.703-1998)
LBO level Line build out (LBO)
of 7.5, 15.0 and 22.5 dB
measured in a 3 kHz ±1 kHz
band centered at 772 kHz
LBO tolerance ±2 dB at 7.5, 15.0,and 22.5 dB
Transmit timing sources
Internal clock, recovered clock
Line codes
AMI, B8ZS
Impedance
75 ohms nominal, unbalanced to ground
Receiver (single frequency)
44.736 Mbps ±300 ppm
Level (from output or monitor jack)
High Accepts nominal 1.2 Vp,
0 ft of cable from high source
DSX Accepts nominal 0.6 Vp,
450 ft of cable from high source
Low Accepts nominal 0.3 Vp, 900 ft of cable from high
source
Transmitter (single frequency)
44.736 Mbps ±20 ppm
Line build out (LBO)
High Nominal 1.2 Vp signal meets ANSI specification
T1.102-1993 and ITU-T G.703
when subjected to 450 ft of cable loss
DSX Nominal 0.61 Vp signal meets ANSI specification
T1.102-1993 and ITU-T G.703
Low Nominal 0.31 Vp
Line code
B3ZS
Ordering information
User interface module
Part number description
2000V-3 FST-2000 with color display
(includes kickstand,AC adapter/changer,
hanging trap,and printer cable)
All statements, technical information and recommendations related to the products herein are based upon information believed to be reliable or accurate. However, the accuracy or completeness thereof is not guaranteed, and no
responsibility is assumed for any inaccuracies. The user assumes all risks and liability whatsoever in connection with
the use of a product or its application. JDSU reserves the right to change at any time without notice the design,
specifications, function, fit or form of its products described herein, including withdrawal at any time of a product
offered for sale herein. JDSU makes no representations that the products herein are free from any intellectual
property claims of others. Please contact JDSU for more information. JDSU and the JDSU logo are trademarks of
JDS Uniphase Corporation. Other trademarks are the property of their respective holders. ©2005 JDS Uniphase
Corporation. All rights reserved. 10143210 500 1005 2209T1.DS.ACC.TM.AE
Application modules
TB2209-DS1 DS1 Communications Analyzer
TB2209-DS3 DS1/DS3 Communications Analyzer
Additional application modules available
FST-2109 Copper Analyzer Module
FST-2207 T1/T3 Wireless Module
FST-2357 DSL Broadband Services Module
FST-2230 E1 Data Communications Module
FST-2310 SONET Services Module
FST-2416 SDH Services Module
FST-2510A High Speed Optical Analyzer
BAT-2700 Base Station and Air Interface Test Module
FST-2802 Gigabit Ethernet Services Module
Analyzer options
TB2209-ASP Advanced Stress Patterns
TB2209-FT1 Fractional T1
TB2209-TIM VF PCM TIMS
TB2209-SIG Signaling
TB2209-PRI Primary Rate ISDN
TB2209-ILE Intelligent Line Equipment
TB2209-VT100 VT100 Emulation
TB2209-EXPERT TestMATE
TB2209-HDLC Fractional HDLC Option
Optional accessories
AC-31705 External battery charger
AC-31905 Cigarette lighter adapter/charger
BA-014081 Replacement battery
CC-44581 Carrying case/tilt stand (includes adjustable strap)
CC-44605 Carrying case, large soft
CC-45158 Carrying case, multimode (soft)
Package descriptions
2209-P1 Field Service Package (Includes 2209 DS3, ASP,
FT1,TIM, SIG, PRI, and VT100 options)
2209-P2 DS3/DS1 Package (Includes 2209 DS3,ASP,
FT1,TIM, and SIG options)
2209-P3 DS1 Package (Includes 2209,DS1, ASP,
FT1,TIM, and SIG options)
Test & Measurement Regional Sales
NORTH AMERICA
TEL: 1 866 228 3762
FAX : +1 301 353 9216
LATIN AMERICA
TEL: +55 11 5503 3800
FAX : +55 11 5505 1598
ASIA PACIFIC
TEL: +852 2892 0990
FAX : +852 2892 0770
EMEA
TEL: +49 7121 86 2222
FAX : +49 7121 86 1222
WEBSITE: www.jdsu.com
Loading...
