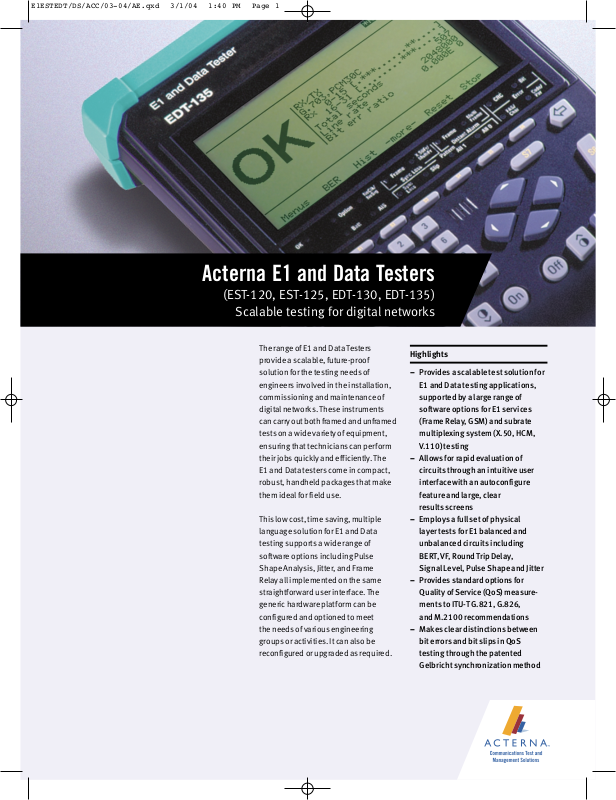

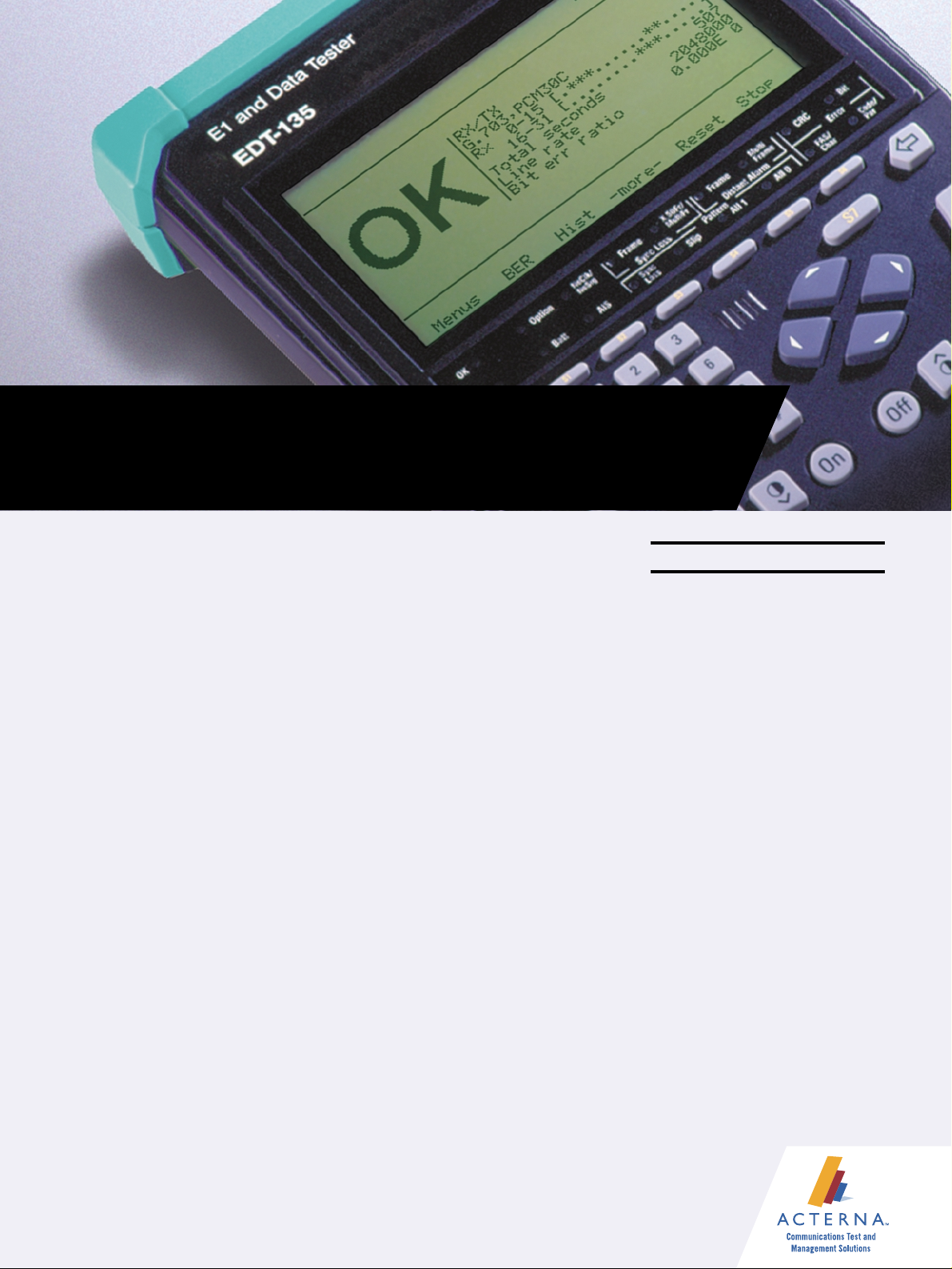

Acterna E1 and Data Testers
(EST-120, EST-125, EDT-130, EDT-135)
Scalable testing for digital networks
The range of E1 and Data Testers
provide a scalable, future-proof
solution for the testing needs of
engineers involved in the installation,
commissioning and maintenance of
digital networks. These instruments
can carry out both framed and unframed
tests on a wide variety of equipment,
ensuring that technicianscan perform
their jobs quickly and efficiently. The
E1 and Data testerscome in compact,
robust, handheld packages thatmake
them ideal for field use.
This low cost, time saving, multiple
language solution for E1 and Data
testing supportsa wide range of
software options including Pulse
Shape Analysis, Jitter, and Frame
Relay allimplemented on the same
straightforward user interface. The
generic hardware platform can be
configured and optioned to meet
the needsofvarious engineering
groups or activities. It can also be
reconfigured or upgraded as required.
Highlights
– Provides a scalable test solution for
E1 and Data testing applications,
supported bya large range of
software options for E1 services
(Frame Relay, GSM) and subrate
multiplexing system (X.50, HCM,
V.110) testing
– Allows for rapid evaluation of
circuits through an intuitive user
interface with an autoconfigure
feature and large, clear
results screens
– Employs a full set of physical
layer tests for E1 balanced and
unbalanced circuits including
BERT, VF, Round Trip Delay,
Signal Level, Pulse Shape and Jitter
– Provides standard options for
Quality ofService (QoS) measurements to ITU-T G.821, G.826,
and M.2100 recommendations
– Makes clear distinctions between
bit errors and bit slips in QoS
testing through the patented
Gelbrichtsynchronization method
The range of products comprizes
EST-120, EST-125, EDT-130, and
EDT-135. The EST-120 and EST-125
are multipurpose field service testers
designed for commissioning,
maintenance, and troubleshooting
on E1PCM circuits. Theycan perform a
wide variety of tests, including: framed
and unframed monitoring, framed
and unframed end-to-end testing,
drop and insert, channel associated
signaling monitoring, Round Trip Delay
measurement and repeated BERT.
The EDT-130 and EDT-135 have a
similar range of features for E1 circuit
testing, plusan extended range of
interfaces for data circuitand primary
multiplexer testing.
Some ofthe key functionsand benefits
of the E1 and Data testers include:
Ease of use
The EST/EDT range hasbeen designed
with the technician in mind. The instruments are lightweight, easy to hold and
carry, and feature a large LCD screen
with integral backlightfor the most
demanding testing environments.
Rapid faultidentification
Testresultsare displayed in a concise,
graphical formatwith our recognized
big “OK” when no errors or alarms
are present(figure 1). The testers
also supportmultiple languages.
With comprehensive alarm and errors
status LEDs, technicians are given a
clear indication of problems even at a
distance. All resultsand data can be
stored forlater analysis and printed to
an external printer or computer with a
single key press.
Autoconfigure
The autoconfigure feature greatly
simplifies instrument setup. A test
can be started on framed or unframed
traffic using just two key presses. For
a framed signal the instrument can
determine the framing type, timeslot
allocation and test pattern type.

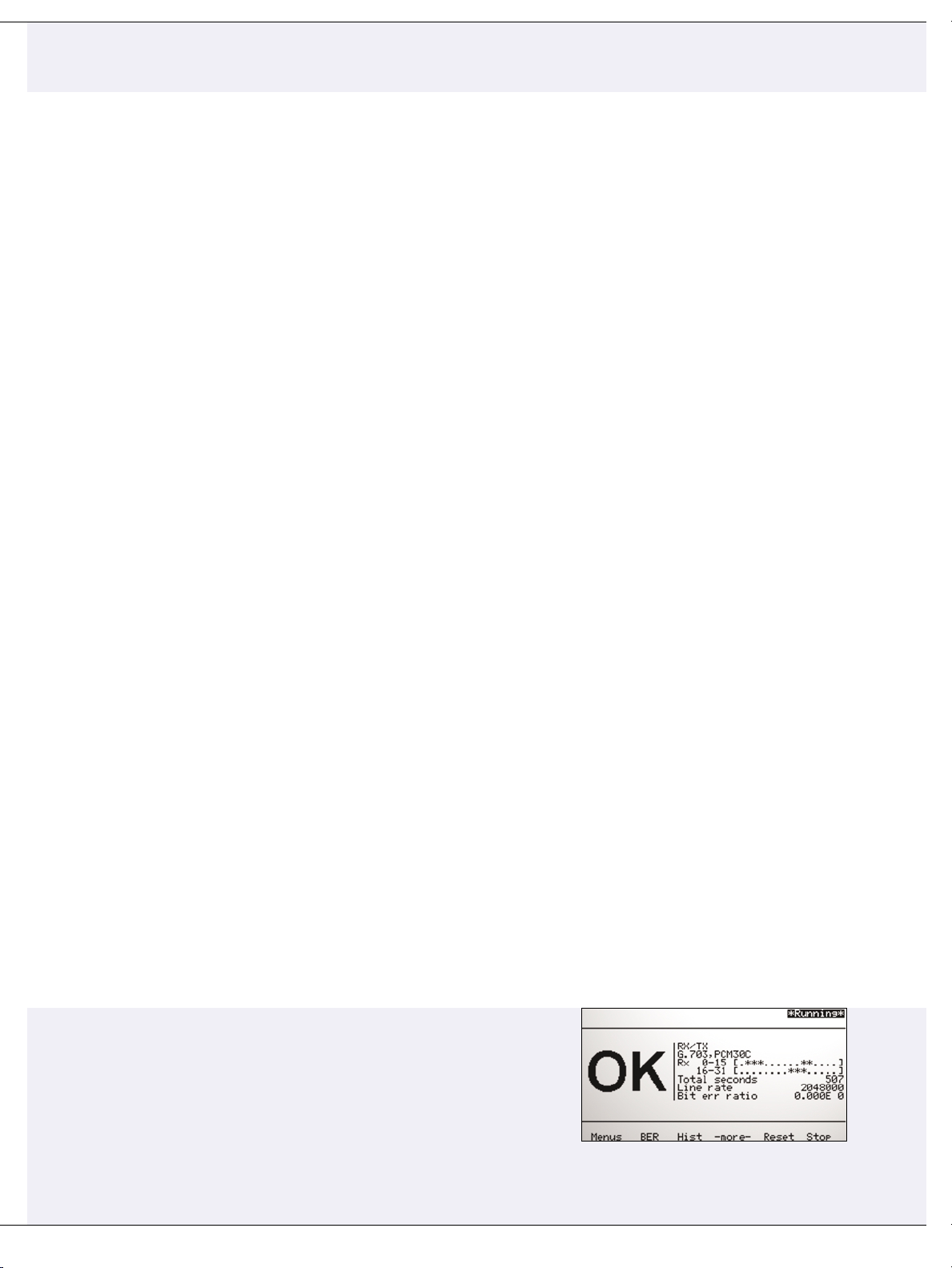

figure 1
2

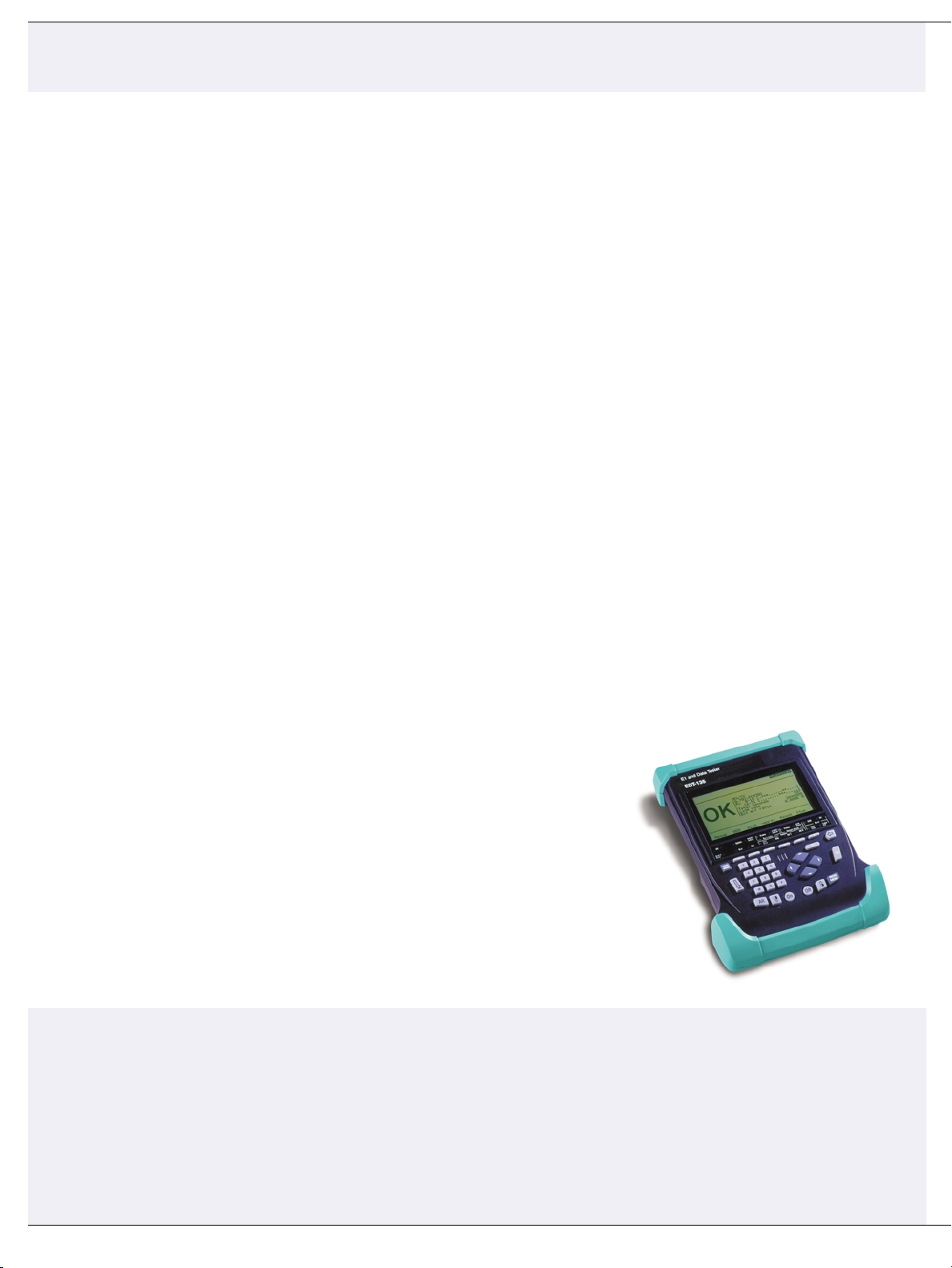

Gelbrich synchronization
The patented Gelbrich synchronization
method enables test pattern
synchronization and accurate BERT
measurement even in the presence
of rapid bursts of errors. Italso differentiates between bitslips and bit errors,
important in QoS testing.
Resultsstorage and printing
The EST/EDT range ofinstrumentshas
eight configuration and test memories
that store test configurationsand
results, allowing them to be viewed or
printed ata later time. Results are
printed through the serialportand a
setup screen enables the instrument
to be set for a range of serialprinters.
Parallel printersare supported with
the use of a serial to parallel converter
cable. Alternatively, printing to a PC
can be achieved using a software
program such as WG Print Capture.
Programmable timers
The instrument can be programmed to
start a delayed testata specific date
and time for a selectable duration.
Battery/mains operation
For field use, the instrumenthas an
8-10 hour battery life using rechargeable and exchangeable batteries.
Long duration testing can be achieved
using the combined ACmains power
supply and charger.
Software options
A key feature of the EST-125 and
EDT-135 instruments isthe ability
to load software optionsto extend
testing functionality.
Application orientated packages
A range of application orientated
packagesisavailable that combines
the instruments with a carefully
selected collection of software options
and accessories. Should requirements
change, a range of packagesis
available for upgrading EST/EDT
instruments to EDT-135.
Accessories
The ELM-2 accessory allows the
instrument to be connected to 2 Mbps
lines carrying hazardous voltages
and
√f distortion. Itremoves the DC
voltage, equalizes the voltage signal
and also measures and displays the
signal level.
The V.11 cable testadapter is used
to detecta number ofcommon faults
on V.11 cablesthatmightotherwise
go unnoticed due to the nature of
balanced line interfaces.
3
Feature summary
E1 Testers E1 and Datacom Testers
EST-120 EST-125 EDT-130 EDT-135
General features
Remote operation and control ••••
Autoconfigure ••••
Test patterns, fixed, programmable and ITU-T ••••
Local language support ••••
Downloadable software options ••••
Test configuration and results memories ••••
Printer interface ••••
Programmable timer ••••
Backlight ••••
LEDs ••••
Large display ••••
E1 circuit testing
Balanced and unbalanced G.703 Tx and Rx ••••
Terminated and high impedance termination modes ••••
Framed and unframed test signal generation ••••
n and m x 64 kbps time slot monitoring ••••
Pattern generation into n and m x 64 kbps timeslots ••••
G.821, G.826, M.2100 analysis (both IS and OOS) ••••
Error and alarm, generation and analysis ••••
PCM tone generation with variable level and frequency ••••
PCM decoding and audio output ••••
CAS monitoring of all 30 channels ••••
CAS history for a single channel ••••
E1 signal Through mode ••••
n x 64 kbps drop or n x 64 kbps insert ••••
m x 64 kbps drop and insert ••
Si, Sa, A and E monitoring and generation ••
NFAS and NMFAS monitoring and generation ••
Tx frequency offset ••
Round trip delay, framed and unframed ••
Primary multiplexer testing
Pattern into MUX channel and monitoring on E1 signal ••
Pattern into E1 signal and monitoring on MUX channel ••
X.50 multiplexer testing •
Datacom circuit testing
X.21 V.11/RS422 interface ••
V.24/RS232 interface (sync and async) ••
V.35 interface via adapter ••
V.36/RS449 interface via adapter ••
EIA530 interface via adapter ••
4
Accessories
Unbalanced 75 Ω BNC 2m (x4) K169
Type 43 stub adapter cable (for above) K1549
Balanced 120 Ω CF to 3 x Banana 2m (x4) K71
Balanced 120 Ω CF to RJ45 K1597
BNC to Siemens 1.6/5.6 K1616
External clock adapter K1513
V.24 download cable K1515
Serial printer cable (25 way) K1500
Serial to parallel printer cable K1589
V.11 DCE adapter cable K1505
V.24 DCE adapter cable K1512
V.35 DTE (AMP 1.6 mm) adapter cable K1508
V.35 DCE (AMP 1.6 mm) adapter cable K1509
V.35 DTE (Positronic 1.6 mm) adapter cable K1525
V.35 DCE (Positronic 1.6 mm) adapter cable K1526
V.35 DTE (Positronic 1.0 mm) adapter cable K1510
V.35 DCE (Positronic 1.0 mm) adapter cable K1511
V.36/RS449 DTE adapter cable K1506
V.36/RS449 DCE adapter cable K1507
EIA-530 DCE adapter cable K1629
EIA-530 DTE adapter cable K1630
ELM-2 Equalizer Level Meter BN 4546/01
V.11 cable test adapter BN 4534/00.37
Equipment case (small) BN 4562/00.50
Equipment case (large) BN 4562/00.51
Soft carrying case BN 4518/00.08
Soft shoulder bag BN 4562/00.01
Neck strap BN 4562/00.53
Software options (available at extra cost)
French S/C bits BN 4562/00.11
X.50 BN 4562/00.14
GSM BN 4562/00.15
Large Frequency Offset BN 4562/00.19
All 1’s/All 0’s histogram BN 4562/00.20
Noise Measurement BN 4562/00.23
V Interface Status Monitor BN 4562/00.28
V.110 BN 4562/00.32
HCM BN 4562/00.38
Frame Relay BN 4562/00.41
Jitter BN 4562/00.42
Datacom BN 4562/00.44
V delay BN 4562/00.48
E1 Level Measurement BN 4562/00.52
E1 Pulse Shape Analysis BN 4562/00.56
Technical specification
Generator/Receiver
Interfaces
G.703
X.21/V.11
V.24 (RS232)
V.35 via adapter
V.36 (RS449) via adapter
EIA530 via adapter
Physical Connections
3 pin CF connectors (120 Ω balanced)
BNC connectors (75 Ω unbalanced)
15 way D type (100 Ω balanced)
25 way D type
G.703 Test Modes
RX mode
Framing PCM30, PCM30CRC, PCM31,
PCM31CRC or unframed
G.703 line code HBD3, AMI, codirectional
V.11 Drop n x 64 kbps, m x 64 kbps
RX/TX
As RX plus: BER test pattern generation
n x 64 kbps, m x 64 kbps
V.11 Drop/Insert Drop or insert n and m x 64 kbps
Drop and insert n x 64 kbps
2 Mbps internal clock offset up to ±150ppm
Programmable Si, Sa, A and E bits and NMFAS
Through mode
As RX/TX mode plus:
Drop and insert n and m x 64 kbps
Round Trip Delay mode
Framed and unframed 2 Mbps:
Range 0-10s
Resolution 1µs
MUX/DEMUX mode
G.703 interface as RX/TX mode
Unframed DTE emulation on V.11, V.24, V35, V.36
Monitor mode
Simultaneous monitoring and display of any time
slot in both frame and multiframe.
Simultaneous monitoring and generation of the Si,
Sa, A and E bits of the NFAS.
Simultaneous monitoring and generation of the
NMFAS.
Level and Frequency mode
PCM generation and measurement of sinusoidal
signals in a time slot. (A-law coding to ITU-T Rec.
G.711)
Tx frequency range 5 Hz to 3998 Hz
Tx level range –55 dBm0 to +3 dBm0
Rx level measurements –80 dBm0 to +5 dBm0
X.50 Test modes
RX/TX, through, D&I and MUX/DEMUX
Division 2 and 3 framing
Test pattern insertion/evaluation in n x 600,
19.2, 48 kbps
X.50 frame analysis
Programmable A-H bits
Test patterns
2E6–1, 2E9–1, 2E11–1, 2E15–1, 2E20–1, 2E23–1
Alternating 1s and 0s, All 1s, All 0s
8 and 16 bit programmable words
Error injection
Bit, code, FAS,
CRC errors: Single, ratio or frequency
Clocking
G.703 transmit clock source 2048 kbps and co-dir.:
Internal, external, from RX
Printer and remote operation
Interface V.24, DTE, Async
Baud rates 300, 600, 1200, 2400,
9600, 19200, 38400
Front panel
Display 42 character x 16 line LCD with backlight
LEDs 2 summary, 14 alarm/error,
option and low battery
Keyboard Numeric keypad, 4 cursor, 2 contrast,
main menu, 6 soft keys, alt, on and off
Stores/Memory
8 test configuration stores and 8 test results
memories
Self check
Comprehensive self check at power on
Languages
English, German, French, Spanish, Italian,
Turkish and Portuguese
Power Supply
Internal supply Rechargeable NiCd batteries
(8 to 10 hours operating time)
External supply External mains adapter/charger
Low battery warning LED before auto switch off
Weight/Dimensions
Weight 1.55 kg approximately
Dimensions (w x h x d) 270 x 199 x 56 mm
5
Ordering information
– EST Silver Package BN4562/21
(Includes EST-120 with M.2100, G.826,
extended PRBS and Level Measurement options)
– EST Gold Package BN4562/26
(Includes EST-125 with M.2100, G.826,
extended PRBS, Pulse Shape Analysis
with Level Measurement and Jitter options)
– EDT Platinum Package BN4562/31
(Includes EDT-135 with M.2100, G.826,
extended PRBS and Level Measurement options)
– EDT Diamond Package BN4562/33
(Includes EDT-135 with M.2100, G.826,
extended PRBS, Pulse Shape Analysis
with Level Measurement and Jitter options)
– EDT X.50 Sub-Rate Package BN4562/32
(Includes EDT-135 with M.2100, G.826, X.50,
HCM and V.110 options)
– EDT Frame Relay Package BN4562/36
(Includes EDT-135 with M.2100, G.826,
extended PRBS Frame Relay and
All 1s and All 0s options)
– EDT-130 BN4562/30
(Includes EDT-130 with M.2100, G.826,
and extended PRBS options)
– EDT Datacom Package BN4562/37
(EDT-135 with all software options
to comprehensively address datacom testing)
– EDT Complete Package BN4562/38
(Includes all software options)
All complete with AC adapter/charger
Plug for US, Euro, UK or Australian voltage
User manual
Packages include:
Soft case or small equipment case
K1515 download cable, plus a choice of three other
cables from the cable list
Acterna is the world’s largest provider
of test and managementsolutionsfor
optical transport, access and cable
networks, and the second largest
communicationstestcompanyoverall.
Focused entirely on providing equipment, software, systems and services,
Acterna helps customers develop,
install, manufacture and maintain
optical transport, access, cable,
data/IP and wireless networks.
Worldwide
Headquarters
One Milestone Center Court
Germantown, Maryland
20876-7100
USA
Acterna is present in more
than 80 countries. To find
your local sales office go to:
www.acterna.com
Regional Sales
Headquarters
North America
One Milestone Center Court
Germantown, Maryland
20876-7100
USA
Toll Free: 1 866 ACTERNA
Toll Free: 1 866 228 3762
Tel: +1301 3531560 x2850
Fax: +1301353 9216
Latin America
Acterna do Brasil Ltda.
Av. Eng.Luis Carlos Berrini
936 9th Floor
04571-000 São Paulo
SP-Brazil
Tel: +55 11 5503 3800
Fax:+55 11 5505 1598
Asia Pacific
Acterna Hong Kong Ltd.
Room 902, 9th Floor
Bank of East Asia
Harbour View Centre
56 Gloucester Road
Wanchai, Hong Kong
Tel: +852 2892 0990
Fax:+852 2892 0770
Western Europe
Acterna Germany GmbH
Mühleweg 5
Germany
Tel: +49 7121 86 2222
Fax:+49 7121 86 1222
Eastern Europe,
Middle East & Africa
Acterna Austria GmbH
Aredstrasse 16-18
A-2544 Leobersdorf
Tel.: +43 2256 65610
Fax: +43 2256 65610-22
Acterna Moscow
Prospect Mira 26,
stroenie 5
RF-129090 Moscow
Tel.: +7 095 937 88 04
Fax: +7 095 775 26 05
© Copyright 2004
Acterna, LLC.
All rights reserved.
Acterna, Communications
Test and Management
Solutions, and its logo are
trademarks of Acterna,
LLC. All other trademarks
and registered trademarks
are the property of their
respective owners. Major
Acterna operations sites
are IS0 9001 registered.
Note: Specifications,
terms and conditions
are subject to change
without notice.
E1ESTEDT/DS/ACC/03-04/AE/PDFONLY
Loading...
