JDSU 2700-TE User Manual

COMMUNICATIONS COMPONENTS

Key Features

• High kink-free powers to 300 mW

• Low-profile, epoxy-free, and flux-free 14-PIN butterfly
planar package

• Fiber Bragg grating stabilization

• Wavelength selection available

• Tight tracking of fiber-coupled power

• Integrated thermoelectric cooler, thermistor, and
monitor diode

• High dynamic range

• Excellent low power stability

The JDSU 2700-TE Series 980 nm pump module utilizes a planar construction
with chip on subcarrier. The high power JDSU laser chip is hermetically sealed in
a low-profile, epoxy- and flux-free 14-pin butterfly package and fitted with a
thermistor, thermoelectric cooler, and monitor diode. The module meets the
stringent requirements of the telecommunications industry, including Telcordia™
GR-468-CORE for hermetic 980 nm pump modules.

The 2700-TE Series pump module uses fiber Bragg grating stabilization to “lock”
the emission wavelength. It provides a noise-free narrowband spectrum, even
under changes in temperature, drive current, and optical feedback. Wavelength
selection is available for applications that require the highest performance in
spectrum control with the highest available powers.

The 2700-TE Series design also offers tight tracking of fiber-coupled power via the
monitor diode signal.

Applications

• Erbium doped fiber amplifiers (EDFAs)
without a front-fiber tab for tracking

• Dense wavelength division
multiplexing (DWDM) EDFAs for
small package designs

• High bit rate, high channel count EDFAs

• CATV distribution

Compliance

• Telcordia GR-468-CORE

Up to 300 mW Fiber Bragg Grating Stabilized 980 nm Pump
Modules with Tight Tracking

2700-TE Series

NORTH AMERICA: 800 498-JDSU (5378) WEBSITE: www.jdsu.comWORLDWIDE: +800 5378-JDSU

(Note: Specifications in mm unless otherwise noted; tolerance = .x ± .3, .xx ± .20
The module pigtail consists of 250 µm buffered,Corning PureMode

TM

HI-1060 Single-

mode fiber.)

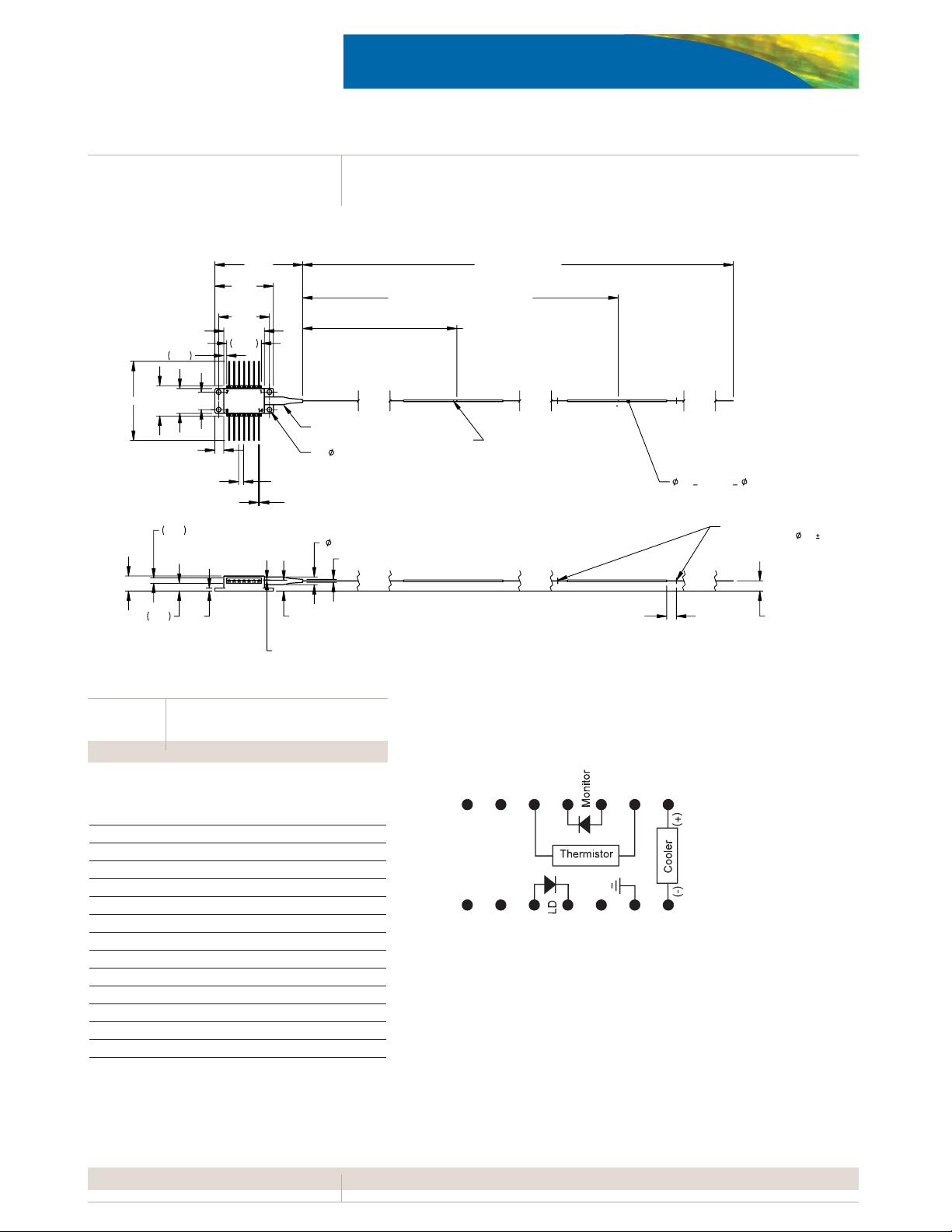

Dimensions Diagram
250 µm Bare Fiber Type A Wiring

2

2700-TE SERIES

Pinout

Pin Description

1 Cooler (+)
2 Thermistor
3 Monitor PD Anode
4 Monitor PD Cathode
5 Thermistor
6 N/C
7 N/C
8 N/C
9 N/C
10 Laser Anode
11 Laser Cathode
12 N/C
13 Case Ground
14 Cooler (-)

40.54

0.03

0.62

2

8.0

5.1

7.21

5.51.MON

5.04

6.4

8.2

02.0±7.7

5.19.3

8.71

0.9

)MON 0091( NIM 0061

GNITARG FO RETNEC OT .MON 0001

)LANOITPO( ECILPS FO L/C OT .MON 005

FEILER NIARTS

X4

5.2

X21

15.0

X41

URHT 05.2

GNICAPS DAEL

HTDIW DAEL

00.4

05.1

=< ELBIXELF

004
TAOCER NORCIM

EVITALUMUCCA-NON SI ECNARELOT

< TAOCER < 062)NORCIM( 539

-NON DER

KRAM ENELYX

HTIW TAOCER ROF59253μm

62.5L/C DAEL OT 6.5 5~ X2

SSENKCIHT DAEL 52.0

1234567

141312111098

3

2700-TE SERIES

Table 1:Absolute Maximum Ratings

Parameter Symbol Test Conditions Minimum Maximum

Operating case temperature T

op - -5 °C 75 °C

Storage temperature Tstg 2000 hours -40 °C 85 °C
LD submount temperature T

LD - 0 °C 50 °C

LD reverse voltage V

r - - 2 V

LD forward current - - 650 mA
LD current transient 1 µs maximum - 1000 mA
LD reverse current - - 10 µA
PD reverse voltage V

PD - - 20 V

PD forward current IPD - - 10 mA
Electrostatic discharge (ESD) VESD C = 100 pF, R = 1.5 Ω, human body model - 1000 V
TEC current I

TEC - - 2.5 A

TEC voltage VTEC - - 4.0 V
Axial pull force 3 x 10 seconds - 5 N
Side pull force 3 x 10 seconds - 2.5 N
Fiber bend radius - 16 mm ­Relative humidity R

H 40 °C 5% 95%

Lead soldering time 260 °C - 10 seconds

Note: Absolute maximum ratings are the maximum stresses that may be applied to the pump module for short periods of time without causing damage. Stresses in excess of the absolute maximum ratings can

permanently damage the device. Exposure to absolute maximum ratings for extended periods, or exposure to more than one absolute maximum rating simultaneously may adversely affect device reliability.

Table 2:Operating Parameters

Product Maximum Maximum Minimum Kink-Free
Code

1

Operating Operating Kink-Free Current
Power Current Power Imax (mA)

3

Pop (mW)

2,3

Iop (mA) Pmax (mW)

4

Maximum

4

Maximum

2

27-xxxx-190-TE 170 360 190 400
27-xxxx-200-TE 180 380 200 420
27-xxxx-210-TE 190 400 210 440
27-xxxx-220-TE 200 420 220 460
27-xxxx-230-TE 210 440 230 480
27-xxxx-240-TE 220 460 240 500
27-xxxx-250-TE 230 480 250 520
27-xxxx-260-TE 240 500 260 540
27-xxxx-270-TE 250 520 270 560
27-xxxx-280-TE 260 540 280 580
27-xxxx-290-TE 270 560 290 600
27-xxxx-300-TE 280 560 300 600

1. The 29-xxxx-xxx-FL may be substituted for this part series.All 27-xxxx-xxx-TE end product specifications will remain as published; there is no change to part numbers, product testing, quality or reliability.
Traceability is accomplished through product serial number.

2. The maximum operating power P

op will be achieved at a device-specific current, the maximum operating current Iop. The individual value of Iop is noted on the hardcopy data sheet shipped with the device.

All values of I

op are limited by the maximum value listed in Table 2.

3. The pump laser shall never be operated at a power higher than the maximum operating power P

op throughout its lifetime. At Begin of Life (BOL), the operating current shall never be higher than the

device-specific maximum operating current I

op that is noted on the hardcopy data sheet shipped with the device. At End of Life (EOL), the operating current shall never be higher than the device-specific

kink-free current I

max that is noted on the hardcopy data sheet shipped with the device.

4. The module is kink-free (at least) up to a minimum kink-free power P

max that the module will achieve at a device-specific current, the kink-free current Imax. The individual value of Imax is noted on the

hardcopy data sheet shipped with the device. All values of I

max are limited by the maximum value listed in Table 2.

(BOL, T

case

= 0 to 75 °C, TLD = 25 °C,-50 dB reflection, unless noted otherwise)

4

2700-TE SERIES

Table 3:Available Peak Wavelength Selection

Product Code Minimum Peak Wavelength Maximum Peak Wavelength

27-8000-xxx-TE 970.0 nm 985.0 nm
27-7402-xxx-TE 973.0 nm 975.0 nm
27-7552-xxx-TE 974.5 nm 976.5 nm
27-7602-xxx-TE 975.0 nm 977.0 nm
27-7702-xxx-TE 976.0 nm 978.0 nm
27-8052-xxx-TE 979.5 nm 981.5 nm

Table 4:Electro-Optical Performance (BOL,Tcase = 0 to 75 °C, TLD = 25 °C, -50 dB reflection,unless noted otherwise)

Parameter Symbol Test Condition Minimum Maximum

Threshold current Ith - - 25 mA
Forward voltage V

f If = Iop - 2.5 V

Spectral width ΔλRMS 50 mW < P < Pop - 2.0 nm
Peak wavelength tuning ΔλP

/ΔΤ

amb

50 mW < P < Pop - 0.02 nm/°C

Side-mode suppression ratio SMSR 50 mW < P < P

op 15 dB -

Relative optical power stability Peak-to-peak, T = 10 min,

50 kHz sampling, T

case = 25 °C

20 mW < P < P

op -4%

12 mW < P < 20 mW - 10%

3.5 mW < P < 12 mW - 25%

Tracking error TE 20 mW < P < Pop

1

-8% 8%

Tracking ratio TR 20 mW < P < Pop

2

0.90 1.10

Monitor diode responsivity Resp

BF

20 mW < P < P

op 2 µA/mW 10 µA/mW

TEC current ITEC Tcase = 75 °C - 1.5 A
TEC voltage V

TEC Tcase = 75 °C - 2.5 V

Thermistor resistance Rth - 9.5 kΩ 10.5 kΩ
Thermistor constant B - 3600 K 4200 K
Module power consumption T

case = 75 °C - 4.5 W

Tcase = 75 °C, EOL - 5.5 W

1. The Tracking Error is defined as the normalized change of output power relative to the operating power over case temperature range 0 °C to 75 °C, at constant back face monitor current corresponding
to the operating power at 25 °C.

2. The Tracking Ratio is a measure of the front-to-back tracking when the output power is varied. On a plot of optical power versus back-face photocurrent, a straight line is drawn between the minimum
power (20 mW) and the operating power P

op points. The tracking ratio is defined as the ratio between measured optical power (shown as data points on the plot) to the value derived from the straight line.

(Tamb = 25±3 °C, 50 mW < P < Pop)

5

2700-TE SERIES

Ordering Information

For more information on this or other products and their availability, please contact your local JDSU account manager or
JDSU directly at 1-800-498-JDSU (5378) in North America and +800-5378-JDSU worldwide or via e-mail at
[e-mail].

Sample: 27-7402-190-TE

User Safety

Safety and Operating Considerations

The laser light emitted from this laser diode is invisible and may be harmful to the human eye. Avoid looking directly into the
fiber when the device is in operation.

CAUTION: THE USE OF OPTICAL INSTRUMENTS WITH THIS PRODUCT INCREASES EYE HAZARD.

Operating the laser diode outside of its maximum ratings may cause device failure or a safety hazard. Power supplies used with
this component cannot exceed maximum peak optical power.

CW laser diodes may be damaged by excessive drive current or switching transients. When using power supplies, the laser
diode should be connected with the main power on and the output voltage at zero. The current should be increased slowly
while monitoring the laser diode output power and the drive current. Careful attention to heatsinking and proper mounting
of this device is required to ensure specified performance over its operating life. To maximize thermal transfer to the heatsink,
the heatsink mounting surface must be flat to within .001” and the mounting screws must be torqued down to 1.5 in.-lb.

ESD PROTECTION — Electrostatic discharge (ESD) is the primary cause of unexpected laser diode failure. Take extreme
precaution to prevent ESD. Use wrist straps, grounded work surfaces, and rigorous antistatic techniques when handling laser diodes.

Code Minimum Kink-Free Power

190 190 mW
200 200 mW
210 210 mW
220 220 mW
230 230 mW
240 240 mW
250 250 mW
260 260 mW
270 270 mW
280 280 mW
290 290 mW
300 300 mW

Code Peak Wavelength

7402 973.0 to 975.0 nm
7552 974.5 to 976.5 nm
7602 975.0 to 977.0 nm
7702 976.0 to 978.0 nm
8000 970.0 to 985.0 nm
8052 979.5 to 981.5 nm

27-

-

-TE

2700-TE SERIES

NORTH AMERICA: 800 498-JDSU (5378) WEBSITE: www.jdsu.comWORLDWIDE: +800 5378-JDSU

Labeling

21 CFR 1040.10 Compliance

Because of the small size of these
devices, the output power and laser
emission indicator label shown below is
attached to the individual shipping
container. All labels are illustrated here
to comply with 21 CFR 1040.10 as
applicable under the Radiations Control
for Health and Safety Act of 1968.

14-Pin Module Label

Shipping Box Label

Output Power and Laser Emission Indicator Label

Product specifications and descriptions in this document subject to change without notice. © 2008 JDS Uniphase Corporation 10143014 005 0408 2700TEPUMP.DS.CC.AE April 2008
PureMode is a registered trademark of Corning Incorporated. Telcordia is a registered trademark of Telcordia Technologies Incorporated.

02/09/07 27-ABC123

27-xxxx-xxx-TE

Made in China

Serial:

27-ABC123

Model:

27-xxxx-xxx-TE

JDS Uniphase (Shenzhen) Ltd
3 Hongmian Road
Futian Free Trade Zone
Shenzhen, China 518038
Made in China

DANGER

INVISIBLE LASER RADIATION ­AVOID DIRECT EXPOSURE TO BEAM

PEAK POWER 500 mW
WAVELENGTH 630 - 1,550 nm

CAUTION - Handle with care. Easily damaged
by electrostatic discharge

This product complies with 21 CFR Chapter 1, Subchapter J

CLASS 3B LASER PRODUCT

INVISIBLE

LASER DIODE

AVOID EXPOSURE

Visible/invisible
radiation emitted
from fiber end or

fiber receptacle

02/09/07
