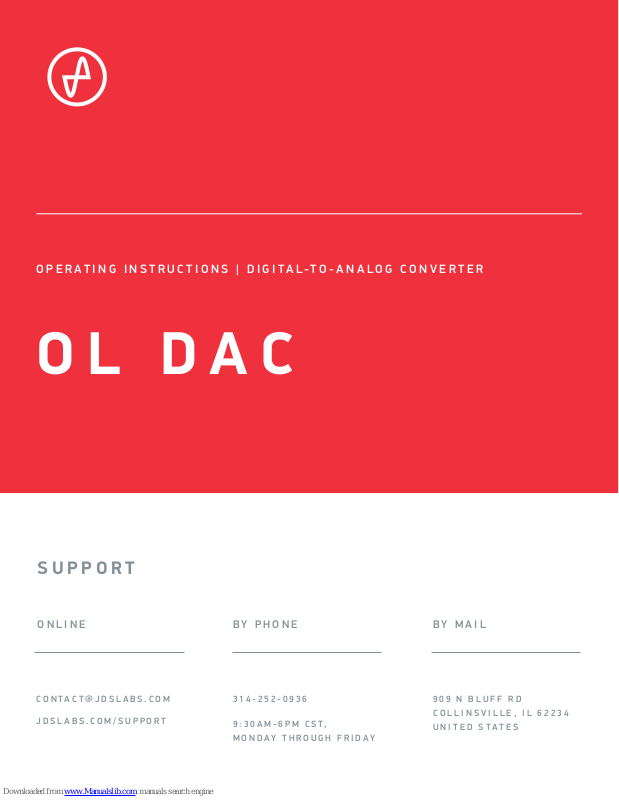

OPERATING INSTRUCTIONS | DIGITAL-TO-ANALOG CONVERTER
OL DAC
SUPPORT
ONLINE BY PHONE BY MAIL
CONTACT@JDSLABS.COM
JDSLABS.COM/SUPPORT
314-252-0936
9:30AM-6PM CST,
MONDAY THROUGH FRIDAY
909 N BLUFF RD
COLLINSVILLE, IL 62234
UNITED STATES
SECTION 1
QUICK SETUP
STEP 01
Connect AC power adapter
to rear power jack (15V), then
connect to wall outlet.
STEP 03
Press the Power button on the front.
STEP 02
Connect cables to your desired digital
audio players (USB and/or TOSLINK),
and connect an RCA output cable to
your amplifier.
STEP 04
Select USB or OPTICAL input using
the Mode switch.
JDSLABS.COM 2
SECTION 2
CONFIGURATION
CONNECTIVITY
OL DAC accepts two methods of digital input:
USB
TOSLINK
Maximum RCA Output voltage is 2.0VRMS.
*Many optical sources are unable to reliably transmit at 192kHz.
6/44.1k thru 24/96kHz
16/8kHz thru 24/192kHz*
JDSLABS.COM 3
LISTENING TIPS
For maximum signal fidelity, set the
DAC to 24-bit audio and adjust digital
volume slightly below 100% at your
computer. Only control volume from
your amplifier.
Listen safely to conserve your hearing:
www.hearingloss.org
When using USB mode, set sampling
frequency to match the majority of
your music collection (i.e., use 44100
Hz for 44.1kHz).
OL DAC automatically selects appropriate sampling rate in optical mode.
To ensure an optimal noise floor,
always position audio equipment as far
away as possible from wireless devices.
OPERATING CARE
Use gentle force when inserting or
removing cables.
JDSLABS.COM 4
SECTION 3
SETUP
COMPUTER SETUP
OL DAC requires no drivers in Windows, Mac OS X, or Linux. Most
operating systems immediately recognize and set the DAC as the default
playback device. To manually select the playback device in:
Windows Vista/7/8/10
Right click volume icon in taskbar, click
Playback Devices, set JDS Labs OL DAC as
default device.
Suggested Properties (right click JDS EL
DAC “Speakers” icon):
z Enhancements: Check “Disable all
enhancements”
z Advanced: See Listening Tips
Mac OS X
Ensure OL DAC is selected from Audio
Devices
JDSLABS.COM 5
TROUBLESHOOTING
USB device unable to initialize
Cause: Bad USB cable or incorrect drivers
Solution: Try another USB cable or refer to jdslabs.com/troubleshooting
No sound in one channel
Cause: Bad cable, or incorrect computer settings
Solution: Check balance settings; try another headphone or RCA cable.
Some Mac OS X systems will pan audio to the Left channel upon initial
connection of a DAC. User must restore balance to center.
POWER ADAPTERS
ATTENTION: Incorrect power adapters can result in capacitor
explosion hazards and device damage. Only use the power
adapter included with your EL DAC:
Type: AC-to-AC Transformer Output Voltage: 15 VAC
Current: Minimum 1500mA Connector: 2.1x55.mm (ID x OD)
JDSLABS.COM 6
Application for Council Directives 2004/108/EC, 2006/95/EC, 2002/95/
EC.Conformity declared for EN55022:2011, EN611000-3-2, EN61000-33, EN55024-2
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules.
JDSLABS.COM 7
