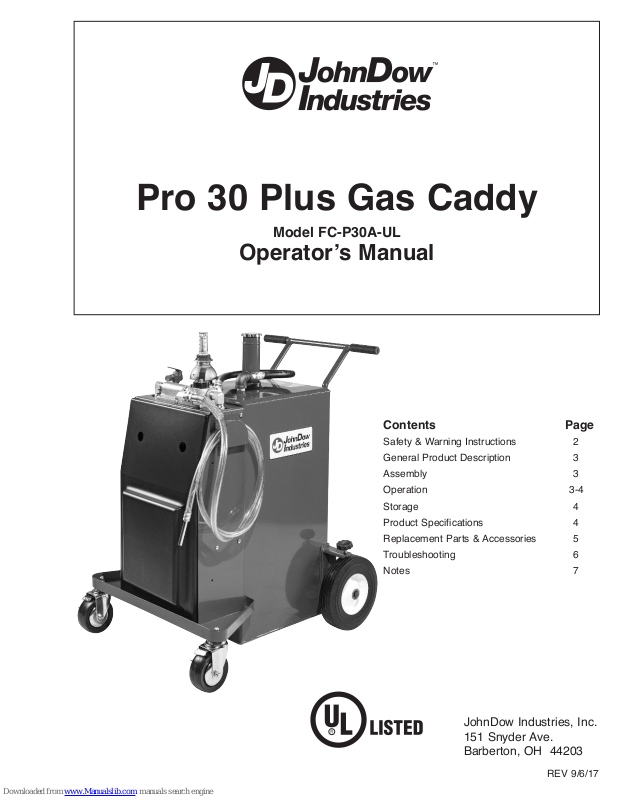

Page 1
™
Pro 30 Plus Gas Caddy
Model FC-P30A-UL
Operator’s Manual
Contents Page
Safety & Warning Instructions 2
General Product Description 3
Assembly 3
Operation 3-4
Storage 4
Product Specifications 4
Replacement Parts & Accessories 5
Troubleshooting 6
Notes 7
JohnDow Industries, Inc.
151 Snyder Ave.
Barberton, OH 44203
REV 9/6/17
Page 2
OPERATOR’S MANUAL FC-P30A-UL
INSTRUCTIONS PERTAINING TO THE RISK OR INJURY TO PERSONS.
IMPORTANT SAFETY INSTRUCTIONS. SAVE THESE INSTRUCTIONS.
READ THIS MANUAL CAREFULLY BEFORE INSTALLING,
OPERATING OR SERVICING THIS EQUIPMENT
It is the responsibility of the employer to place this information in the
hands of the operator. Keep for future reference.
DANGER
1. Gasoline and other fuels are extremely flammable. Keep away from heat sparks and open flames as an explosion will result
in severe personal injury.
2. Gasoline vapors can explode. Harmful or fatal is swallowed. Avoid breathing fuel vapors.
3. Attach ground wire and bond containers or equipment that are being pumped from and into nuetralize the potential charge
between them
4. Ground all containers for extra safety by connecting the containers to a metal pipe or rod that is buried underground.
5. This product is an atmospheric tank. DO NOT modify this tank or its components. All components and design features have
been tested and approved for use for handling flammable fuels.
6. DO NOT use funnels when transferring fuel through the fill tube.
7. Avoid excess agiation, shaking, splashing or high-flow rates as these can increase the risks of static charge build up.
8. DO NOT use electronics or mobile communication devices such as mobile phones while dispensing or handling fuel.
9. DO NOT smoke near or while using this gas caddy.
10. This product is intended for fuel transfer only and is NOT to be used to transport fuel in any vehicle or trailer.
WARNING
1. DO NOT exceed 50 psi air pressure.
2. Obtain Material Safety Data Sheets on fuels being handled. Always wear required proper personal protection equipment
and clothing.
3. DO NOT tips or operate on incline surfaces.
4. Keep both hands on the handles when maneuving to maintain control.
5. When using this product precautions should always be followed, including the following:
a. Read all instructions before using this product.
b. To reduce the risk of injury, close supervision is necessary.
c. Keep out of reach of children.
d. DO NOT put fingers or hands into openings or into the pump.
6. Ensure that all fittings and threaded hose and pipe connections are tightened and leak free.
Indicates an imminently hazardous situation which, if not avoided, will result in death or
serious injury.
Indicates a potentially hazardous situation which, if not avoided, mayh result in death or
serious injury.
CAUTION
1. Be certain all operators of the equipment have been trained for safe working practices and understand its limitations.
2. Use Caddy for “one type of fuel ONLY” to avoid possible damage to vehicle.
3. Use care when maneuving to prevent injury or loss of control. Seek assistance to avoid strain or injury when required.
4. Not for prolonged storage of fuel.
5. Monitor flow rate and fill levels to prevent overflows and spills. DO NOT overfill containers, drums or tanks.
6. Always empty the pump and hose after use by lifting the hose and turning the handle in the opposite direction of the arrow
to empty all remaining liquids back into the caddy.
Indicates a potentially hazardous situation which if not, avoided, may result in minor or
moderate personal injury. It may also warn of unsafe practices.
2.
Page 3
OPERATOR’S MANUAL FC-P30A-UL
GENERAL PRODUCT DESCRIPTION
The Gas Caddy is designed and approved to safely transfer
fuel to and from a vehicle. It may be used to safely store fuel
during vehicle service. It is approved for use with unleaded
gasoline, diesel, and kerosene fuels.
The FC-P30A comes standard with a 10 micron filter for use
with gasoline. Other filters are available for other fuels. Select
the correct filter for the intended application. Proper filter
selection is critical to achieving maximum pumping efficiency
nd to properly remove contaminates from the fuel.
a
Refer to the table shown in REPLACEMENT PARTS AND
ACCESSORIES if you intend to pump different fuels.
Fuel Type
Unleaded Gasoline 10 micron
Diesel and Kerosene 30 micron
ASSEMBLY
Tools and Supplies (not included):
• TPFE tape
• 1-1/16 inch open end wrench
• 1/4” NTP Quick-connect fitting to connect to shop air.
Filter Type

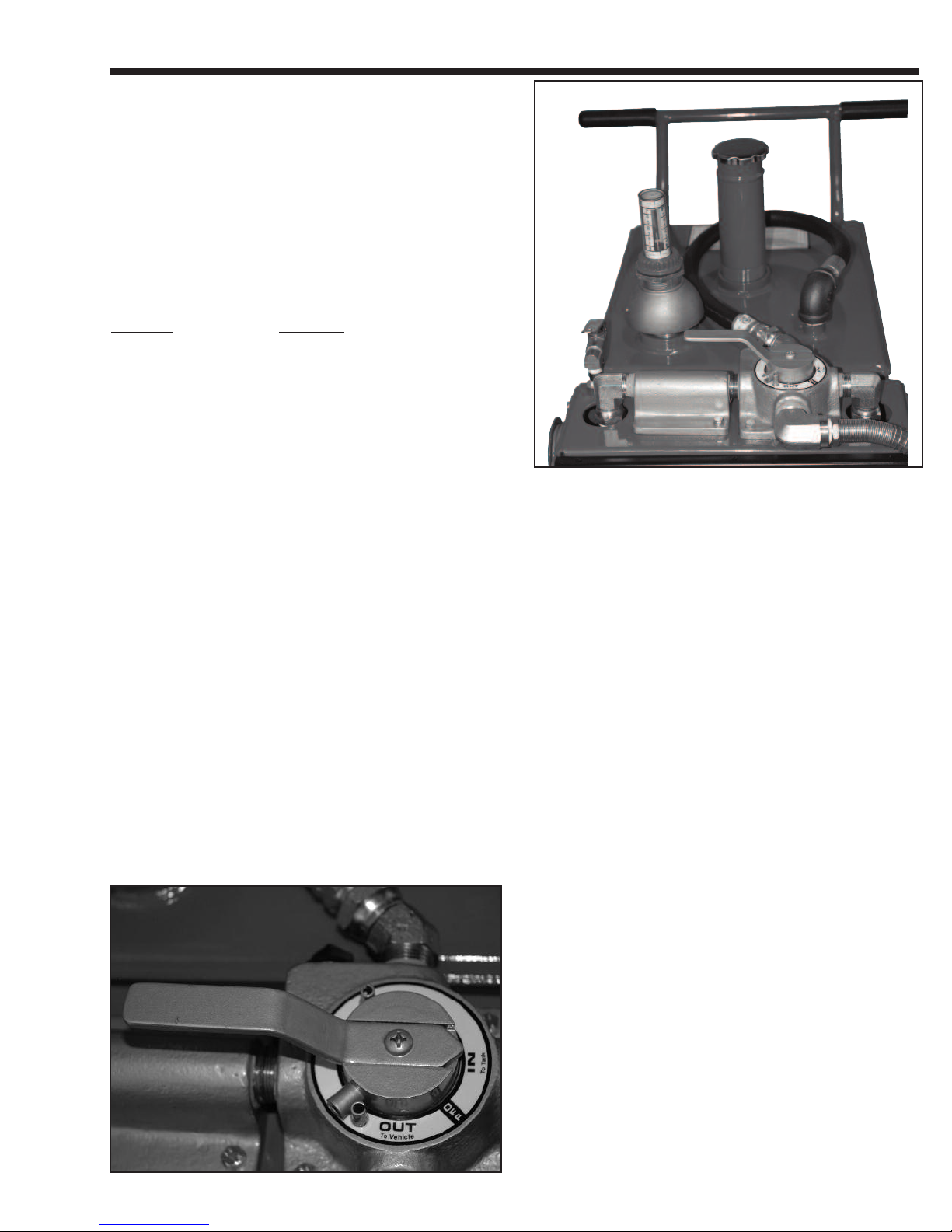

Fig. 1
1. Wrap 2 inch NPT thread on fill tube 4-6 wraps with PTFE
tape wrapping clockwise.
2. Install quick-connect air fitting into air throttle valve.
3. Assemble the discharge hose threading the 3/4 NPT fitting
into 90° fitting located on the front of the valve assembly.
Tighten with wrench.
4. Coil and hang the discharge hose on the hose hanger
bracket on the side of the tank.
5. Thread the 2 inch fill pipe and cap assembly onto the fitting
in the center of the tank. Tighten by hand until secure.
6. Remove tape from top of fuel gauge and install plastic
indicator cap and plastic nut onto float assembly. Align
indicator mark to point diagonally across tank so that float is
free to move full range. Tighten nut by hand to secure cap
and fuel gage.
NOTE: The regulator is factory preset to 40 psi (2.75 BAR).
Adjust if desired to increase or decrease flow rate. Do not set
regulator above 50 psi (3.45 BAR). This will not increase flow
and result in premature wear of air motor and/or pump.
OPERATION
PUMPING FROM VEHICLE TO GAS CADDY
1. Position the Gas Caddy near the vehicle and lock the wheel
brakes.
2. Attach the ground wire clamp to the vehicle to a known
ground surface.
3. Place the hose inside the fill pipe of the vehicle fuel tank.
4. Align valve handle so that the point is to the “IN” to tank
postilion. See Figure 2.
5. Connect shop air supply. WARNING: AIR SUPPLY MUST
NOT EXCEED 120 PSI.
6. Squeeze the air throttle valve to operate pump. Closely
monitor flow to prevent overfilling.
7. Release valve when desired amount is pumped.
8. Uncoil and raise the hose and breifly run the pump to return
any remaining fuel in the system to the tank.
9. Coil and hang the hose on the hanger bracket.
10. Turn valve handle to the “OFF” position.
Fig. 2
3.
Page 4
OPERATOR’S MANUAL FC-P30A-UL
OPERATION
PUMPING FROM GAS CADDY TO VEHICLE
1. Position the Gas Caddy near the vehicle and lock the wheel
brakes.
2. Attach the ground wire clamp to the vehicle to a known
ground surface.
3. Place the hose inside the fill pipe of the vehicle fuel tank.
. Align valve handle so that the point is position to the “OUT”
4
to vehicle position. (See Fig. 3)
. Connect shop air supply. WARNING: AIR SUPPLY MUST
5
NOT EXCEED 120 PSI.
. Squeeze the air throttle valve to operate pump. Closely
6
monitor flow to prevent overfilling or spilling.
7. Release valve when desired amount is pumped.
8. Turn the valve to the “IN” to tank position.
9. Uncoil and raise the hose and briefly run the pump to return
any remaining fuel in the system to the tank.
10.Coil and hang the hose on the hanger bracket.
11.Turn valve handle to the “OFF” position.
STORAGE
1. Disconnect supply air when not in use.
2. Always place the valve in the “OFF” position when not in
use.
3. Wrap and store the hose on the provided hose wrap brack-
t.
e
4. Wrap and store the ground wire on the provided wire wrap
racket.
b
5. Locate the park the Gas Caddy on a flat level surface, away
rom any potential ignition sources, away from any potential
f
hazards that may impact or damage the Gas Caddy.
6. Lock wheel brakes.
7. Be certain that the fuel gage vent dome, indicator cap, fill
tube and fill tube cap are all present and secure. Replace
any missing parts immediately.
PRODUCT SPECIFICATIONS
Weight (empty): 154 lbs (69.5 kgs.)
Capacity: 30 gal (114 L)
Length: 31.25” (76 cm)
Width: 25.0” (88.9 cm)
Height: 39.50” (100.5 cm)
Approx. Flow: 7 gpm (26 L pm) @ 40 PSI

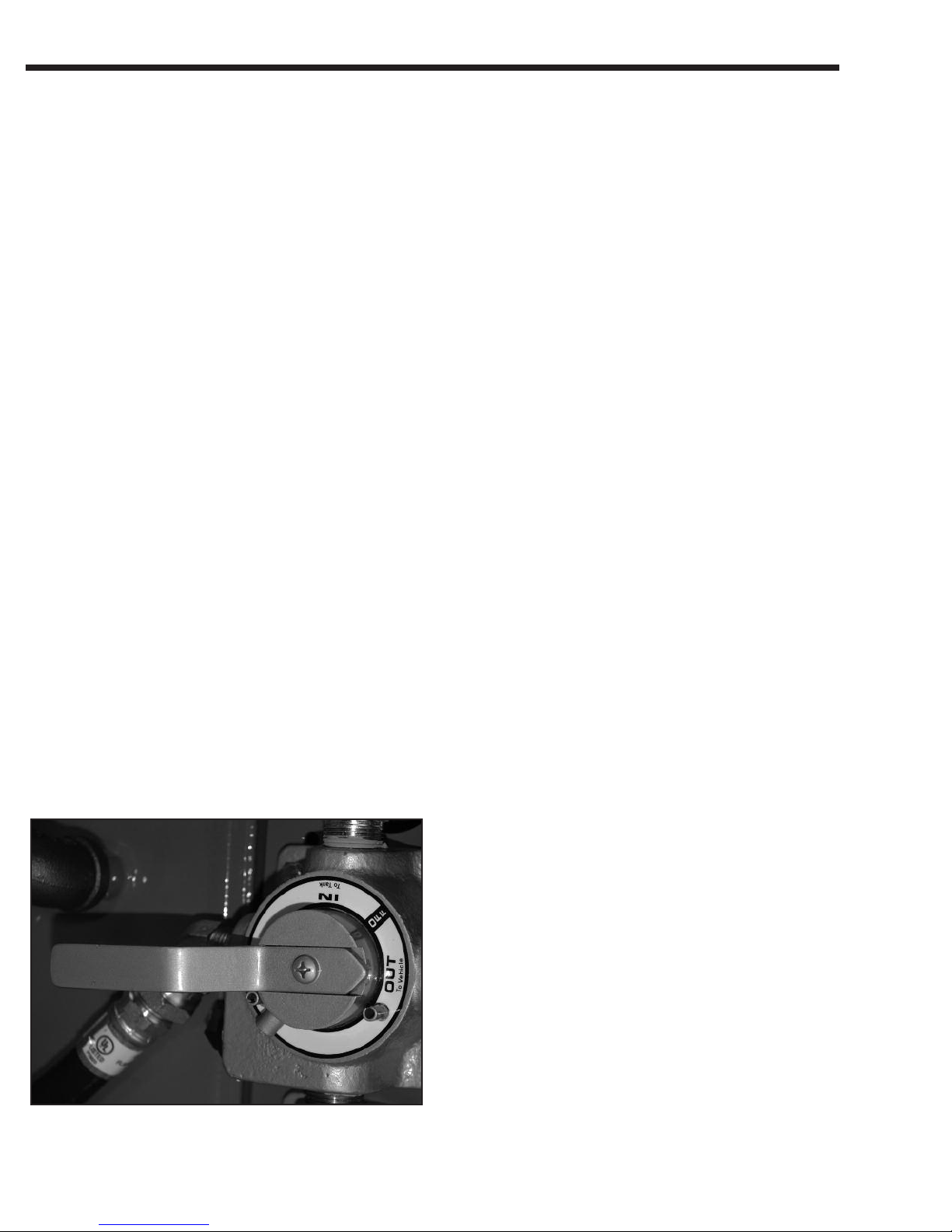

Fig. 3
4.
Page 5
OPERATOR’S MANUAL FC-P30A-UL

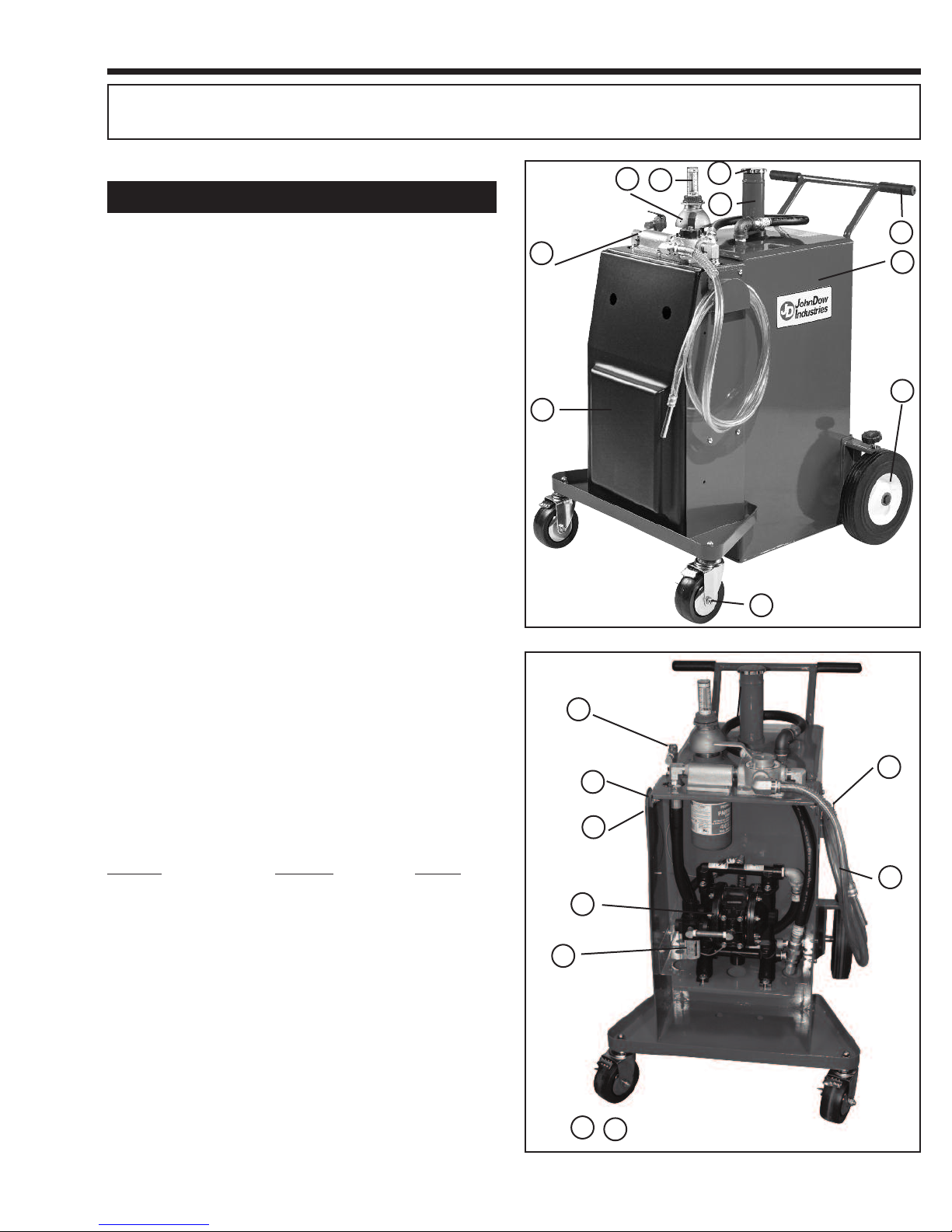

Replacement Parts & Accessories
REPLACEMENT PARTS:
Item Description Qty Part No.
1 Tank 1 _____
2 Handle 1 30GC-02C
3 Cover 1 30GC-49-UL
4 Wheel (10”) 2 30GC-UL
5 Caster (5”) 2 30GC-48
6 Fuel Gage (cap/nut) 1 30GC-FGK
7 Fuel Gage (complete) 1 FC-P30-FG
8 Vent 1 30GC-08-VENT
9 Fill Tube 1 30GC-09-01
10 Fill Cap 1 30GC-09-02
11 Hose Assembly 1 80-593-NI
12 Ground Strap 1 80-572
13 Valve/Filter Support Asm. 1 30GC-30/31
14 ARO Diaphragm Pump
(UL Listed) 1 670042
15 Air Throttle Valve 1 FC-AT
16 Filter/Regulator 1 P391246000
17 Contents Decal Set 1 25GC-04
18 Hose Bracket 1 30GC-46
19 Ground Wire Bracket 1 30GC-47
20 Hose Kit (3 Hoses) 1 FC-P30A-HK
13
8
6
3
10
9
2
1
4
5
REPLACEMENT FILTERS
Fuel Type Filter Type Part No.
Unleaded Gasoline 10 micron 10M-FF
Diesel/Kerosene 30 micron 30M-FF
Note:Coat the O-ring seal with oil or grease before assembly. Hand tighten by
turning approximately 1/2 turn after rubber seal contacts the filter support. Do
not over-tighten.
16
15
14
17
19
12
20
18
11
Not Shown
5.
Page 6
OPERATOR’S MANUAL FC-P30A-UL
TROUBLESHOOTING
CONDITION POSSIBLE CAUSE
Poor flow Filter is incorrect size for type of
fuel
Filter is clogged Replace filter
Low air pressure Check incoming supply air pressure. Check
Pump is difficult to prime Hose not submerged in fuel when
trying to prime
Loose filter Inspect and tighten
Leak at fittings or pump mount
Leak in hose fittings
Damaged, kinked, or cracked hose
Fuel level gauge does not work Float positioned diagonally across
tank
SOLUTION
Replace with correct size filter 1 micron for
85. 10 micron for gasoline, 30 micron for
E
diesel/kerosene
regulator setting and adjust to 40 - 50 psi.
Check for tube connection and fittings.
Check hose and reposition hose in vehicle
fuel tank
Check fittings and tighten as required.
Check fittings and tighten
Replace with hose assembly
Remove red plastic nut and indicator cap.
Remove float mechanism and position so that
float is position across tank. Replace cap and
nut.
Ground wire is damaged or will not
clamp
Damaged
Replace
6.
Page 7
OPERATOR’S MANUAL FC-P30A-UL
NOTES
7.
Page 8
™
For Service Assistance
Phone Toll Free 1-800-433-0708
