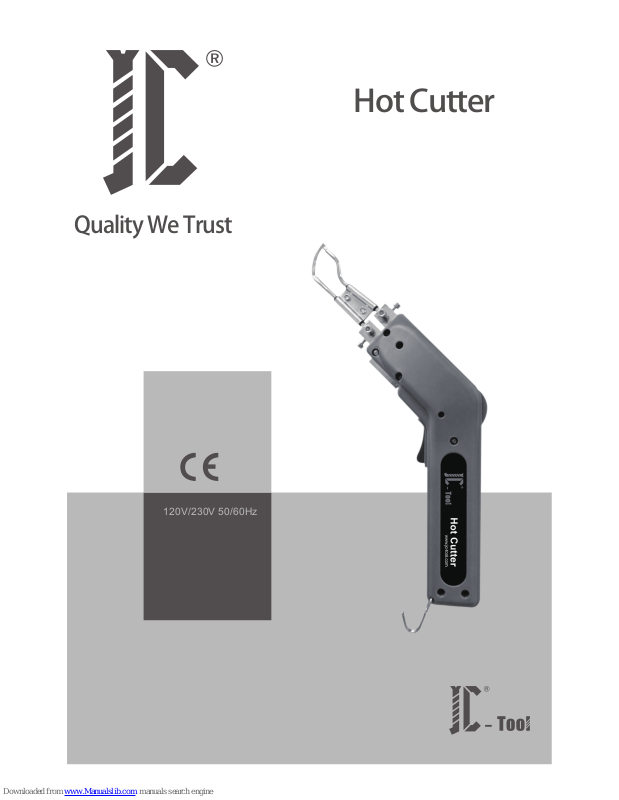

Hot Cutter
120V/230V 50/60Hz
Quality We Trust
Page 2
Contents
02
03
03
03
04
04
04
04
05
05
06
01
Spare parts and buttons
Safety precautions
Warning -----to lower the risk of fire,electric shock and injury
Comprehensive instructions and power consumption safety
Tool functions
Directions for use
Installation of the blade
Instructions for the cutting
Clearance of the residue on the blade
Specification
Packing list
JC MACHINERY & TOOLS INC.
Page 3
Round Head
Square Head
JC MACHINERY & TOOLS INC.

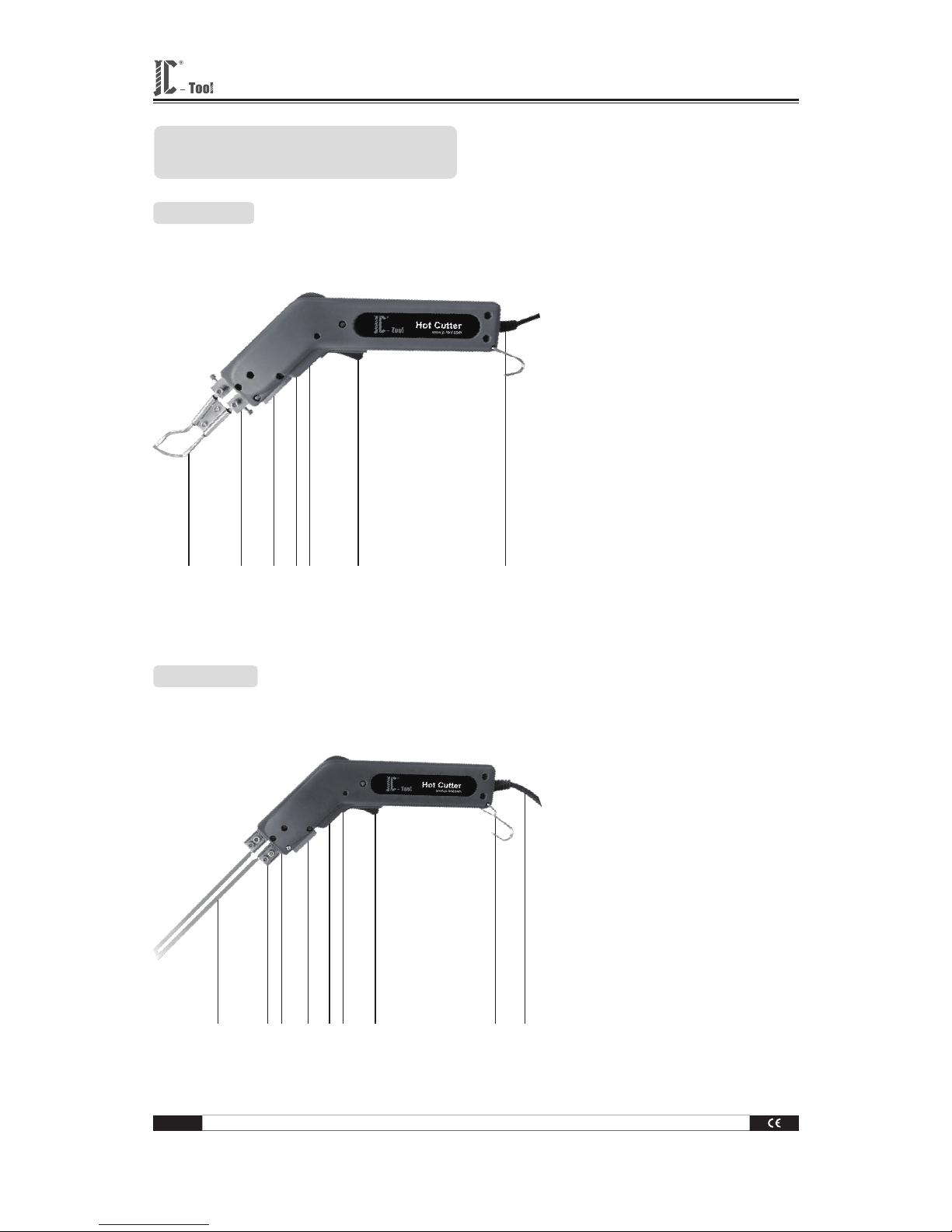

Spare Parts and Buttons
Temperature round
Fitting
Tool apron
Tool blade
Shift knob
Power line
Indicator light
1
1
1 2 3 4 5 6 7 8 9
2 3 4 5 6 7
2
3
4
5
6
7
Titting
Tool apron
Nuts
Tool blade
Indicator light
Shift knob
Temperature round
1
2
3
4
5
6
7
Hook
8
Power line
9
02
Page 4
Warning-- to lower the risk of fire ,electric shock and injury
Comprehensive instructions and power consumption safety
Safety precautions
1. This tool must be used in a well-ventilated environment in case of fire danger.
2. Don’t touch the blade in the case of electrical heating and don’t put it beside clothes or
other inflammables.
3. Deal with the blade when it cools down in order to avoid accidental injury.
4. Please power dump or pull the plug when changing the blade.
5. Don’t use the tool on a wet desk or ground in case of electric shock.
6. Don’t operate the tool with wet hands in order to avoid electric shock.
7. Please use accessories and blades made or recommended by the manufactures.
8. Don’t use damged power line or plug.
9. Don’t burn the residue on the blades,or it would warp.
10. Turn on the switch until the blade touches the object and then start to heat the knife to cut.
11. Never burns the blade hot while not cutting materials.
12. The condition that the handheld part turns ho
t after a long times operation is normal.
13. The blade would not be heated if not installed correctly.
14. Avoid two cutting heads in touch for the risk of short circuit.
15. This tool is 15 seconds intermittent type, of which the lasting time to cut should not
exceed 60 seconds.
Please read all the instrcutions and basic preventive measures during operation as
follows:
1. Please ensure the operating environment is safe.
2. Please check whether the power condition complies with the product specifications.
03
JC MACHINERY & TOOLS INC.
Page 5
Installation of the blade
Instructions for the cutting
Tool functions
Directions for use
1. When the tool is cool and not energized, unscrew the two nuts clamping the knife leg with
hexagonal wrench in counter-clockwise direction.
2. Insert two legs of the blade into the holes of the two cutting heads and then tighten the two
nuts to ensure knife legs and cutting heads in full contact.improper assembling would not
heat up the blade.
3. Turn on the power .
4. Adjust the temperature wheel, the higher the temperature if roated inward and the lower
the temperature with outward rotation.
1. Firstly, adjust the temperature wheel in the middle position, and set the blade on the
object. Turn on the shift and warm up the tool for seconds before cutting (recommend to test
on waste materials before cutting)
2. Secondly, keep the consistency of
the temperature and speed. Too much fog might be
caused by slow speed or over temperature. This will lead to irregular and uneven cutting
track, which could resolved by cooling down the blade temperature or loosen the switch for
intermittence. Remember to release the switch before finishig the last 3-5cm. Besides, the
exposed part of the blade during cutting temperature and speed 2 cm. For overexposing
might lead to deformation of the blade. Proper cutting temperature and speed not only
improve the work efficiency but also extend the service life oh the tool.
1. Cut mooring rope with in 2 cm diameters. Cut flat woven bag with even fracture and no
thread loosing.
2. Cut the sewing tampons of cloth toys and ton bag with melt fracture.
3. It is most suitable to process sail cloth, awnings and
filter cloth (synthetic fabrics with
thickness of 0.3mm or more). Cut all kinds of fabrics (clothing, banners, silk, chemical fiber
cloth, velvet, advertising cloth, non-woven, nylon fabric. Wallpaper mural plastic sheeting)it
will heal the contact area while cutting, which results in smooth and even cut surface, without
thread pulling or burrs by welding the interface, (note)coupled with incision blade, it can be
used to cut thin plastic sheet, or used in some simple cutting occasions, and for cutting
plasitc pipe.
04
JC MACHINERY & TOOLS INC.
Page 6
Clearance of the reside on the blade
Specification
After using period of time, the material residue might be stuck on the blade, please use a
dedicated wire brush for cleaning.
05
Model
Power Max 150W Max 200W Max 250WMax 100W
JC-100B-HC
JC-100A-HC
JC-150B-HC
JC-150A-HC
JC-200B-HC
JC-200A-HC
JC-250B-HC
JC-250A-HC
Net weight 390g
Speed Controllable
Power source 220v/50hz
Blade temperature Heat up to 400 within 6seconds
Power line length 3m
Boundary dimension 24*4.5*3.5cm
BDof tool kit 28*23*8cm
Security certificate CE certificate
JC MACHINERY & TOOLS INC.
Page 7

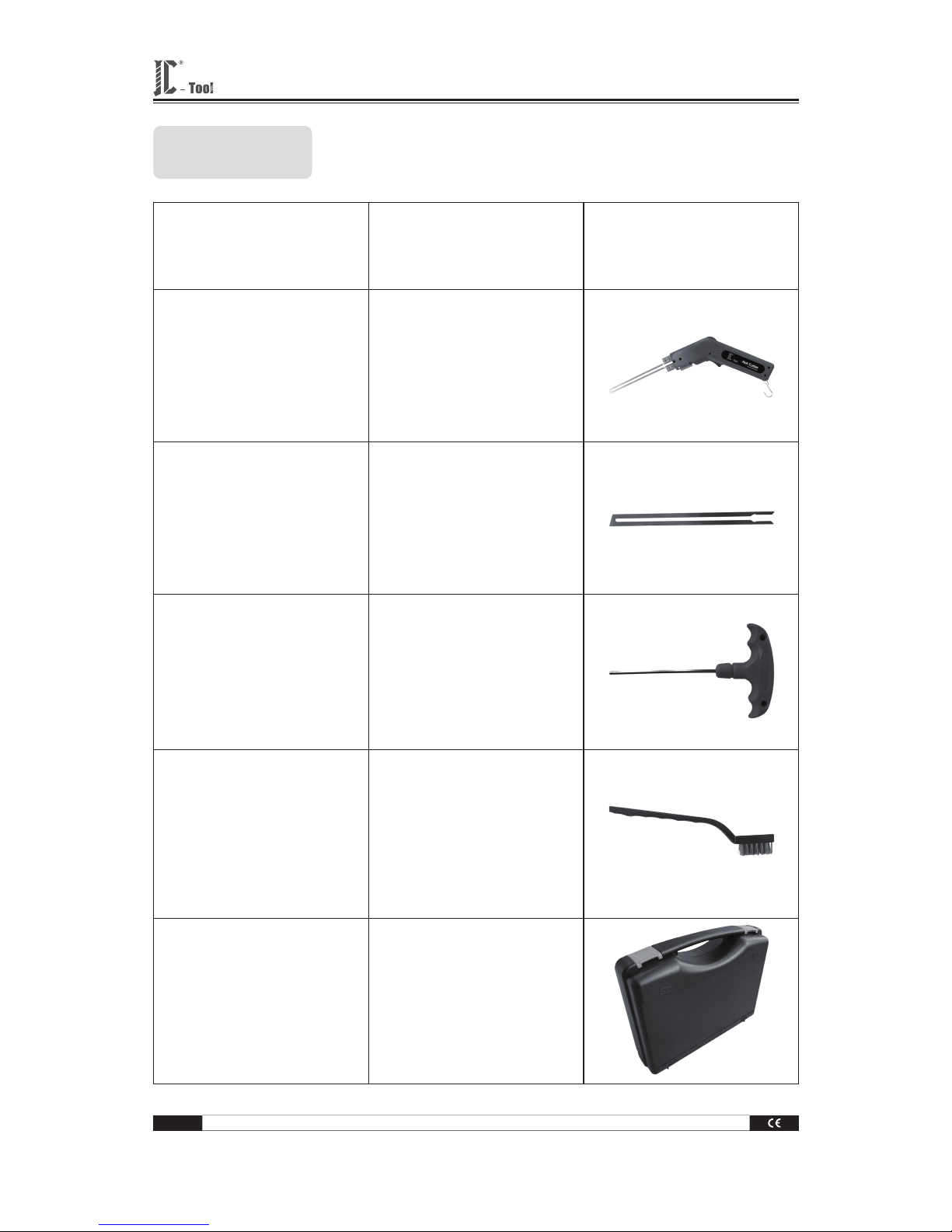

Packing list
06
Itemsl
Body 1
Blade 1
Small spanner 1
Wire brush 1
Tool kit 1
