TOOLS
TOOLS NEEDED TO BUILD THIS KIT:
1. ALLEN WRENCHES
A. .050"
B. 1/16"
C. 5/64"
D. 3/32"
E. 2.5mm
2. NUT DRIVERS
A. 3/16"
B. 1/4"
C. 11/32"
BAG A
3. MISC. TOOLS
A. NEEDLE NOSE PLIERS
B. THREAD LOCKING COMPOUND (BLUE)
C. HOBBY KNIFE (DANGER!) THIS KNIFE CUTS
PLASTIC AND FINGERS WITH EQUAL EASE.
D. PRECISION RULER
E. FLAT FILE
F. 7/16" OPEN END WRENCH
4. HELPFUL TOOLS (NOT REQUIRED)
A. VERNIER CALIPERS
B. HOBBY SCISSORS
C. 2.5mm BALL END HEX DRIVER
ITEMS NEEDED TO COMPLETE YOUR CAR:
1. R/C TWO CHANNEL SURFACE FREQUENCY RADIO SYSTEM.
2. BATTERY PACK (6 CELL)
3. BATTERY CHARGER (PEAK DETECTION CHARGER)
4. ELECTRONIC SPEED CONTROL
5. R/C ELECTRIC MOTOR
6. PINON GEAR (SIZE TO BE DETERMINED BY MOTOR CHOICE)
7. 1/10TH SCALE 4WD FRONT TIRES (BOX ART SHOWN: HOLESHOTS)
8. 1/10TH SCALE BUGGY REAR TIRES (BOX ART SHOWN: HOLESHOTS)
BAG "A" INCLUDES:
CHASSIS x 1
TOP DECK x 1
FRONT SHOCK TOWER x 1
REAR SHOCK TOWER x 1
BEARING BLOCK x 2
STEERING RACK x 1
STEP 1
CHASSIS PREPARATION:

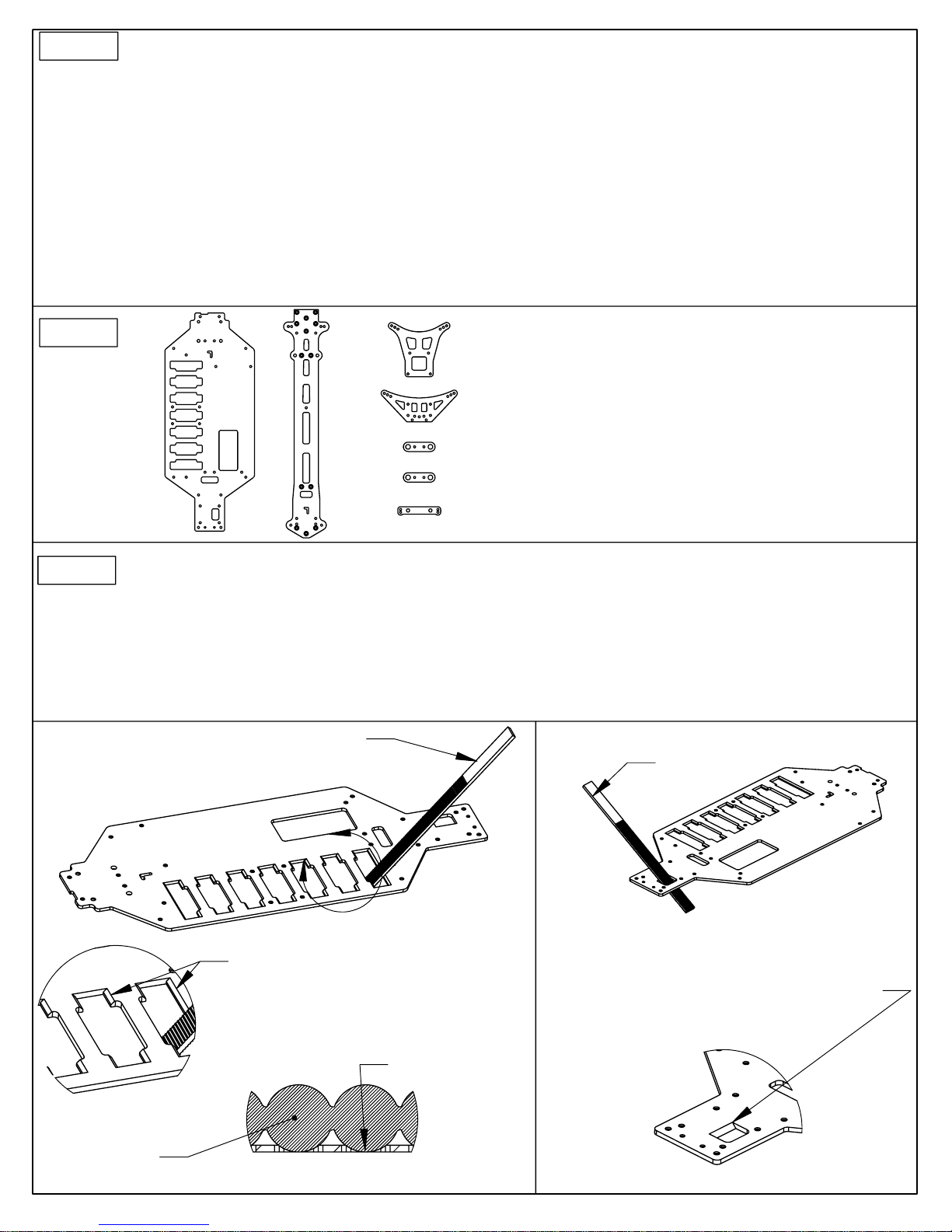

1. BATTERY SLOTS: THE PURPOSE OF THIS STEP IS TO F ILE THE BATTERY S L OTS SO THAT WHEN TH E B ATTERY PACK
IS IN THE CAR, THE BOTTOM OF THE BATTERY IS AL M O ST EVEN WITH TH E C HASSIS. (REFER TO PICTURES B EL O W)
2. REAR TRANSMISSION SLOT: THE PURPOSE OF THIS STEP IS TO FILE THE REAR TRANSMISSION SLOT TO
ALLOW THE REAR TRANSMISSION CASE TO SIT FLAT ON THE CHASSIS. (REFER TO PICTURES BELOW)
FILING BATTERY SLOTS:
FILE
FILING TRANSMISSION SLOT:
FILE
A
NOTE: THIS IS A CLEARANCE FOR TH E B OTTOM OF THE REAR
NOTE: FILE SLOT WITH THE BOTTOM SURFACE OF THE FILE.
FILE AT THE G R E ATEST ANGLE POSSIBLE WITHOUT THE TOP
SURFACE OF THE FILE HITTING THE OTHER SIDE OF THE SLOT.
A PROPERLY FILED BATTERY SLOT SHOULD ALLOW THE
BATTERY TO SIT ALMOST EVEN WITH TH E BOTTOM OF THE
CHASSIS. CHECK THE FIT USING A BATTERY PACK, AND
REMOVE A SMALL AMOUNT OF MATERIAL AT A TI ME U N TIL
THE PROPER FIT IS ACHIEVED.
TRANSMISSION CASE. A PROP ERLY FILED CHASSIS WILL ALLOW
THE REAR TRANSMISSION CASE TO SIT FLAT ON THE CHASSIS.
FILE CARE F ULLY! USE TH E PROPER CASE TO CHECK THE FIT
WHILE REMOVING A SM ALL AMOUN T OF MATERIAL AT A TIME.
BATTERY PACK
NOTE: PROPER FIT
Page 3
BAG B

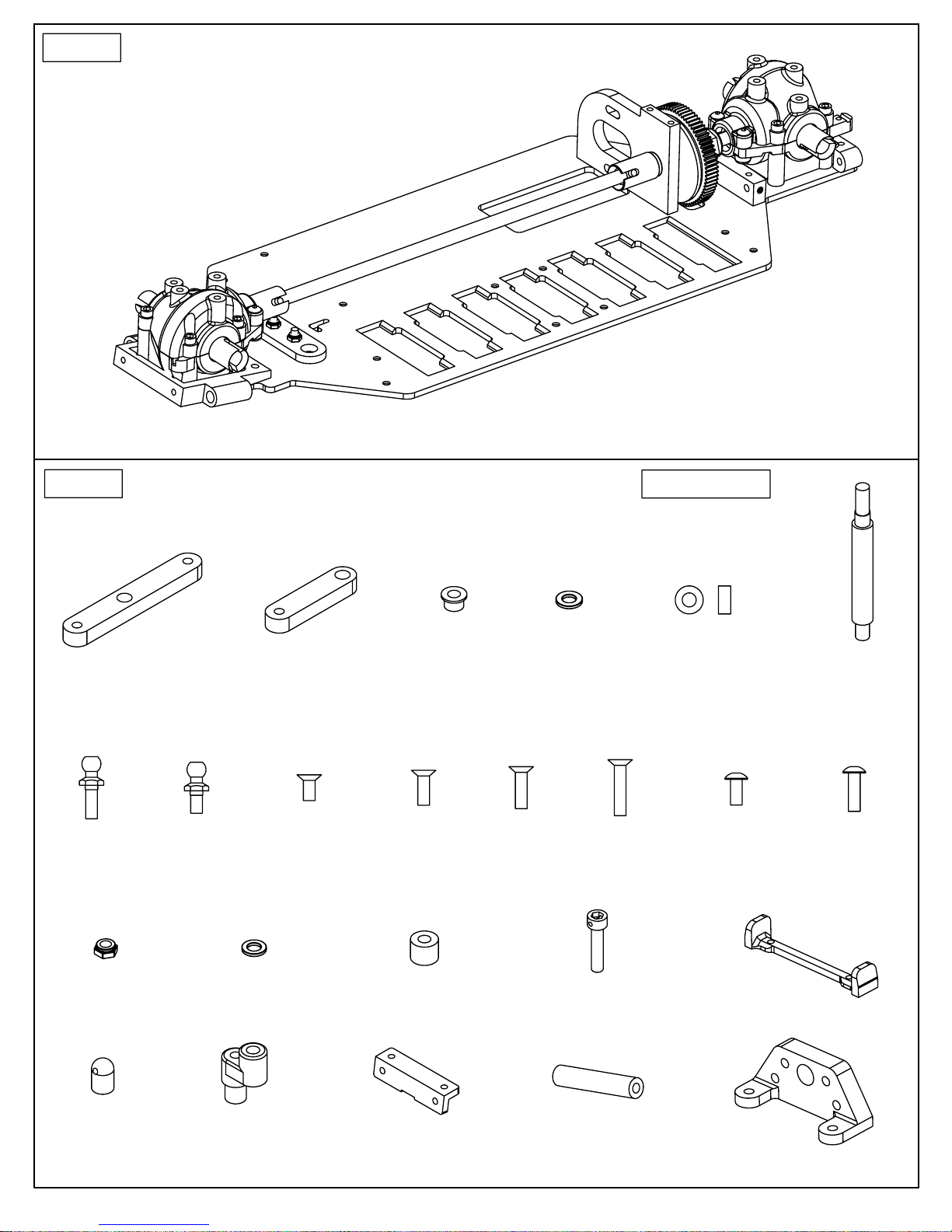

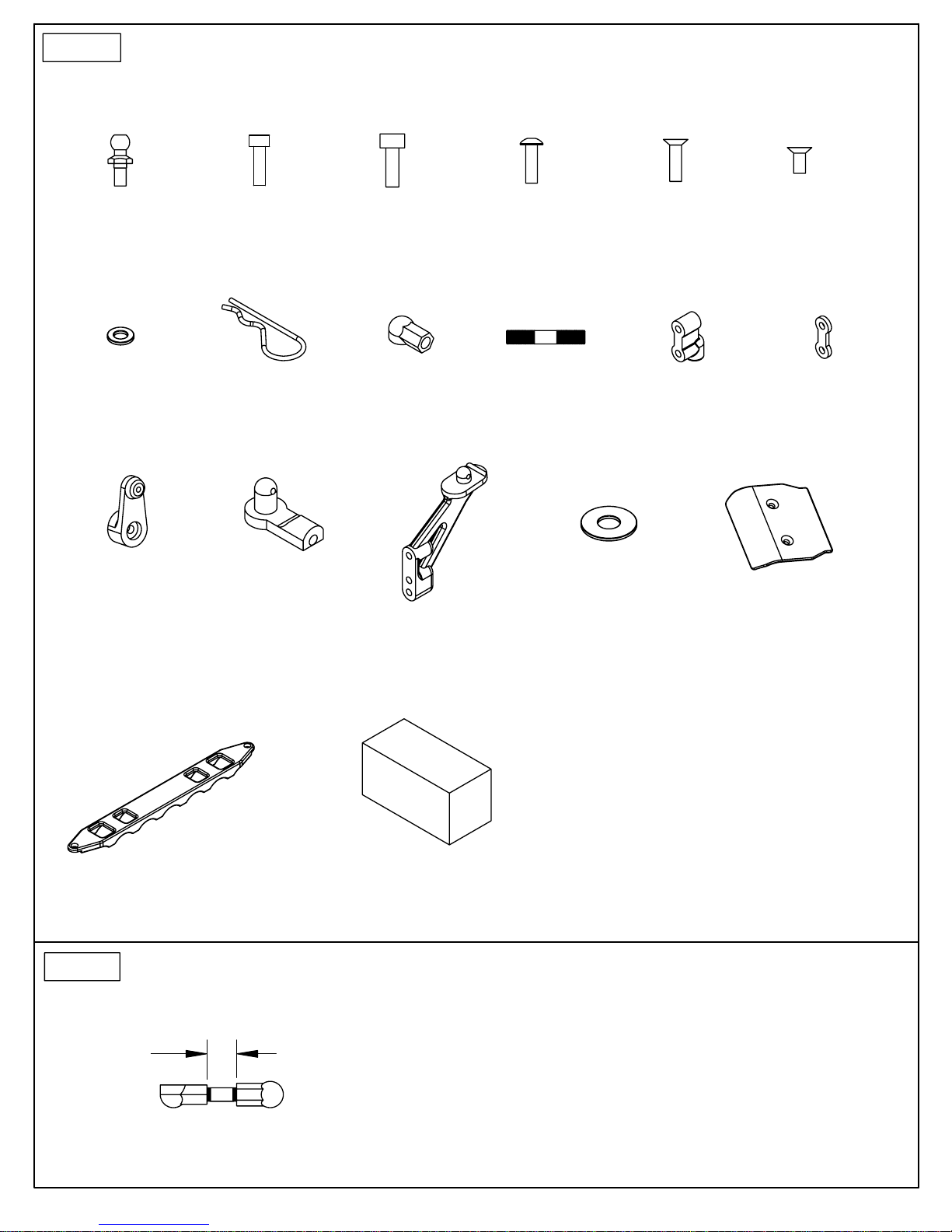

HARDWARE INSIDE BAG "B"
SCALE: 1:1
FRONT BULKHEAD
x 1
MOTOR MOUNT
x 1
REAR SUSPENSION MOUNT (FRONT) x 1
NOTE MOUNTING DIR E CTION IN DRAWIN G
4-40 x 3/8" FLAT HEAD
x 2
5-40 x 5/16" FLAT HEAD
x 2
4-40 x 5/16" FLAT HEAD
x 7
4-40 MINI LOCKNUT
x 2
BELOW
REAR SUSPENSION MOUNT (BACK) x 1
NOTE MOUNTING DIR E CTION IN DRAWIN G
BELOW
STEP 1

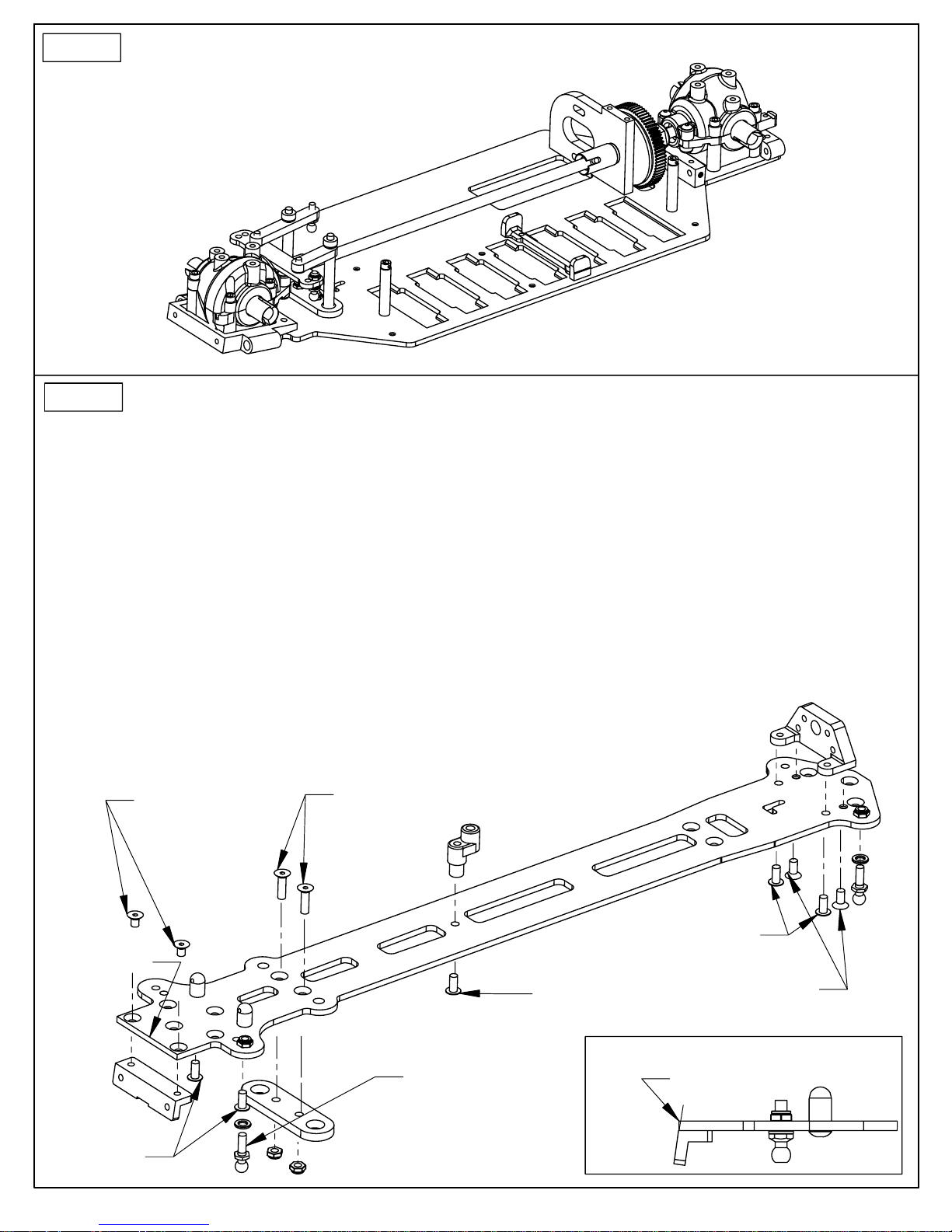

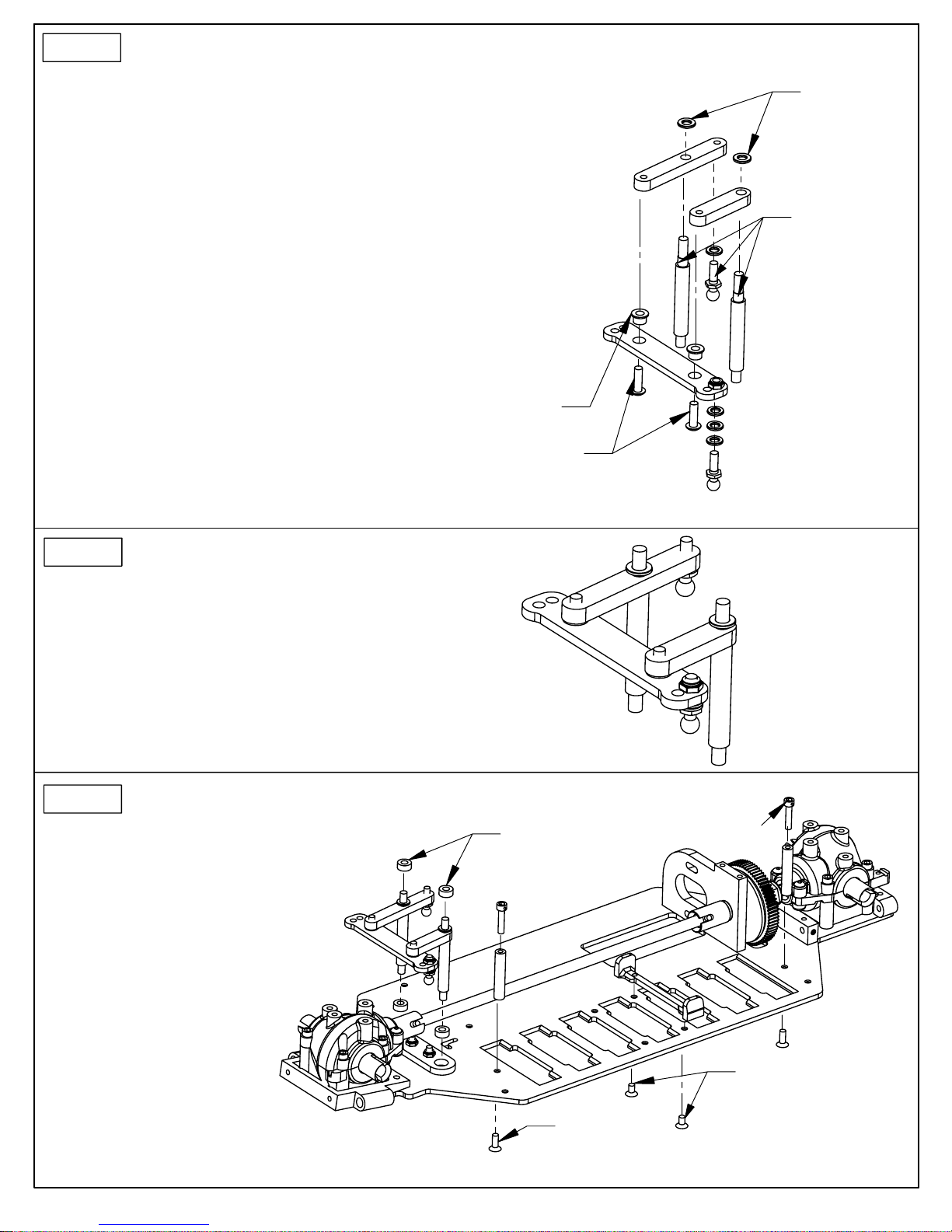

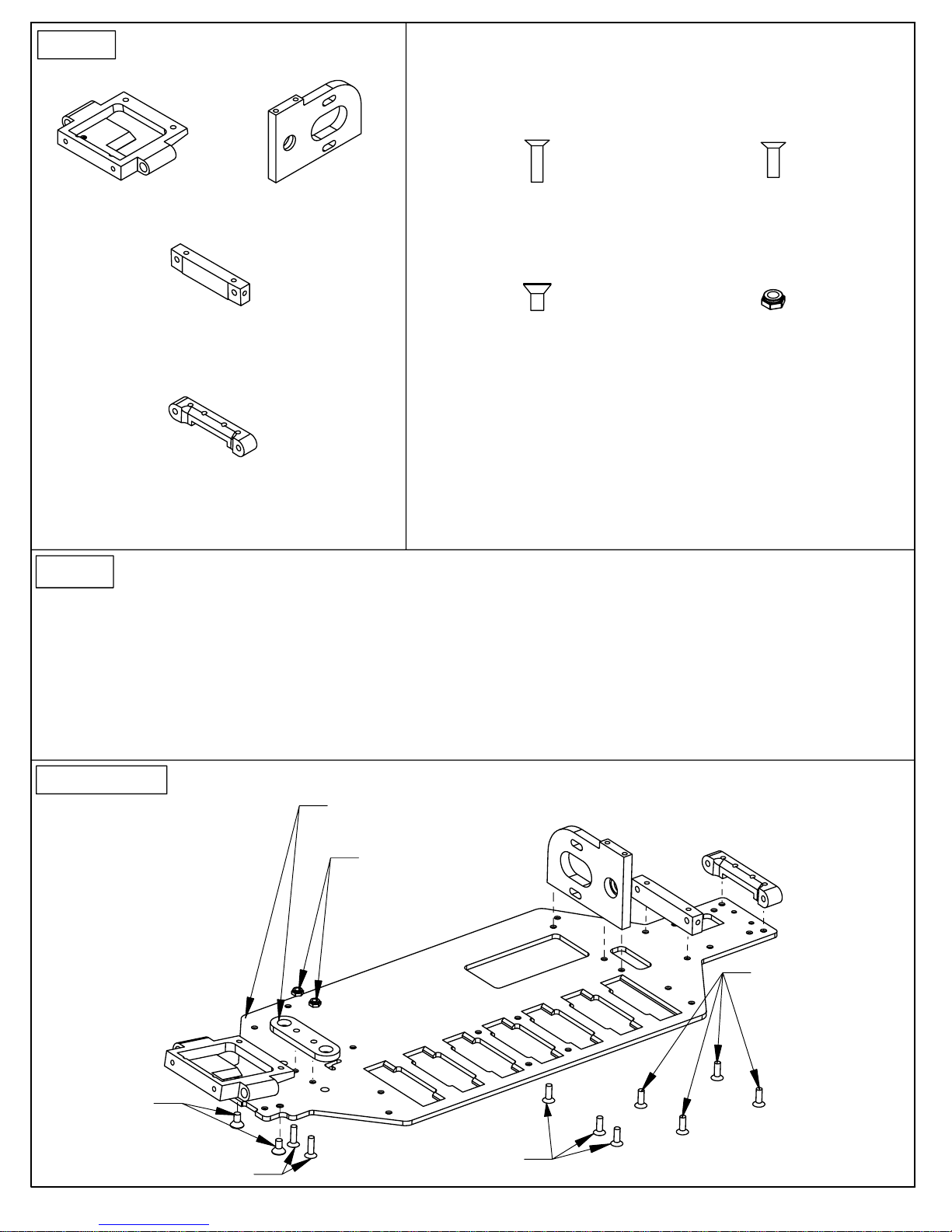

ASSEMBLING CHASSIS COMPONENTS:
1. ATTACH FRONT BULKHEAD TO CHASSIS WITH TWO 5-40 X 5/16" FLAT HEAD SCREWS .
2. ATTACH BEARING BLOCK TO CHASSIS WITH TWO 4-40 X 3/8" FLAT HEAD SCREWS. SECURE WITH TWO 4-40 LOCKNUTS.
3. ATTACH MOTOR MOU N T TO CHASSI S WITH THR EE 4 - 40 X 5/16" F L AT HEAD SCREWS. LEAVE S C R EWS LOOSE SO TH E
MOTOR MOUNT H AS SOME MOVEM E NT FRONT TO BACK. SCREWS WILL BE TI G HTENED LATER I N THE ASSEMBL Y.
4. ATTACH REAR SUS PENSIO N MOUNT (FRONT) WITH TWO 4-40 X 5 /16" FLAT HE AD S CREWS. NOTE DIRECTIO N
5. ATTACH REAR SUSPENSION MOUNT (BACK) WITH TWO 4-40 X 5/16" FLAT HEAD SCREWS. NOTE DIRECTION
TOOLS USED
1. 1/16" ALLEN WRENCH
BEARING BLOCK AND
CHASSIS FROM BAG "A"
APPLY BLUE THREAD LOCKING COMPOUND
WHERE NOTED. (JUST A SMALL AMOUNT)
2. 5/64" ALLEN WRENCH
3. 3/16" NUT DRIVER
FRONT BULKHEAD
5-40 x 5/16" x 2
(APPLY A SMALL AMOUNT OF
THREAD LOCKING COMPOUND)
BEARING BLOCK
4-40 x 3/8" x 2
4-40 MINI LOCKNUTS
x 2
MOTOR MOUNT
4-40 x 5/16" x 3
REAR SUSPENSION MOUNT
4-40 x 5/16" x 4
(APPLY A SMALL AMOUNT OF
THREAD LOCKING COMPOUND)
Page 4
BAG C
DRIVETRAIN COMPONETS (DIFF x 2)
SCALE: 1:1
TOOLS USED
1. 5/64" ALLEN WRENCH
2. NEEDLE NOSE PLIERS
DIFF THRUST WASHER
x 2
DIFF T-NUT
x 1

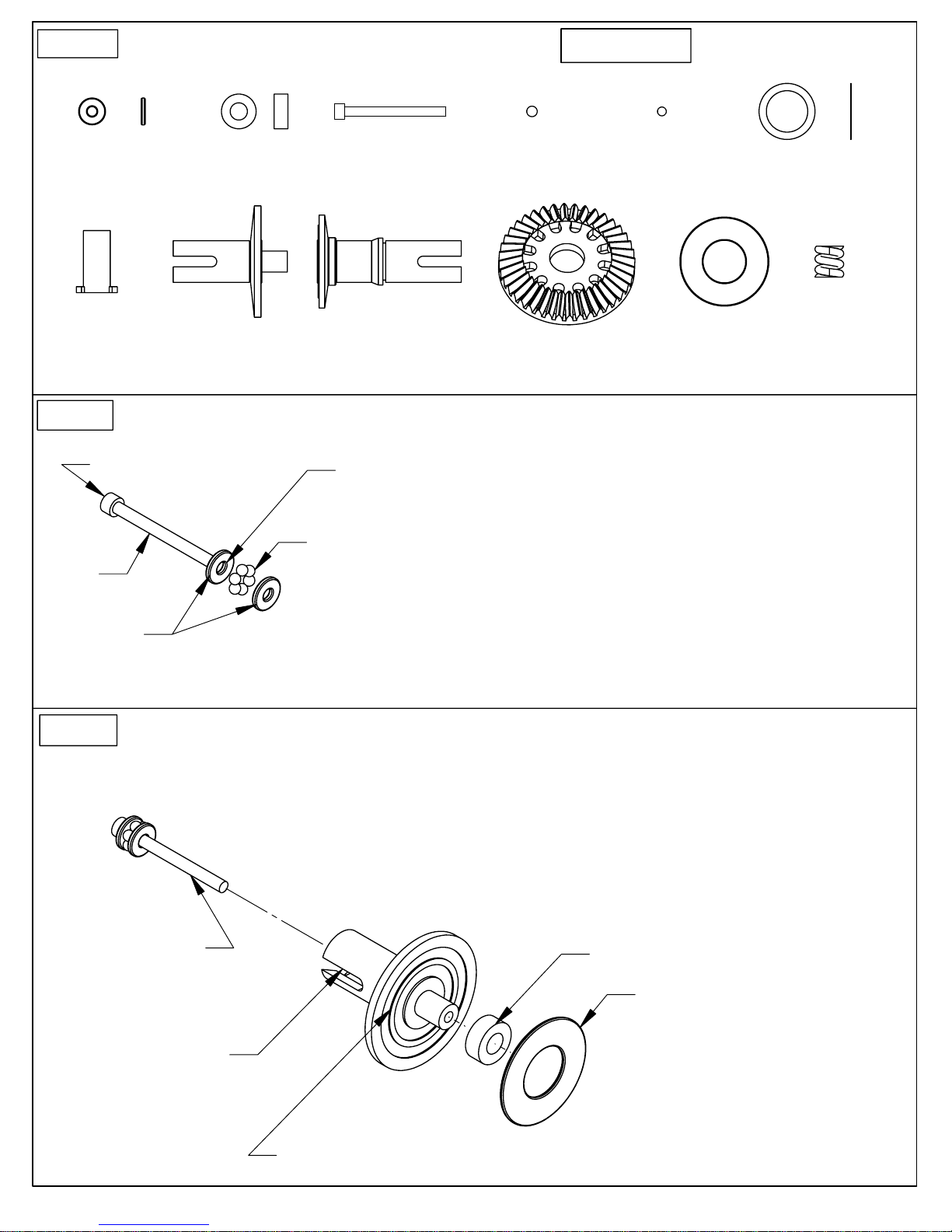

STEP 1
DIFF BOLT
THRUST BALL ASSEMBLY:
HOLD WITH 5/64" ALLEN
WRENCH
3/16 X 5/16 DIFF
BEARING x 2
SHORT OUTDRIVE HUB
x 1
DIFF BOLT
x 1
LONG OUTDRIV E HUB
x 1
APPLY GENEROUS AMOUNT OF BLACK GREASE
3/32 DIFF BALL
x 12
DIFFERENTIAL RING GEAR
x 1
1. HOLD THE DIFF BOLT WITH THE 5/64" ALLEN WRENC H
5/64
THRUST
BALLS
x 6
AND SLIDE ONE THRUST WASHER ONTO THE DIFF BOLT.
2. APPLY A GENEROUS AMOUNT OF BLACK GREASE TO THE
WASHER ON THE SIDE FACING AWAY FROM THE BOLT HEAD.
5/64 THRUST BALL
x 6
DRIVE RING
x 2
OUTDRIVE SHIM
x 1
DIFF SPRING
x 1
THRUST WASHERS
STEP 2
THRUST ASSEMBLY
SHORT OUTDRIVE HUB
3. PLACE SI X TH RUST BALLS INTO THE G R EAS E AG AINST THE BOLT AND
WASHER. ADD THE OTHER THRUST WASHER. THE GREASE WILL HOLD
THE BALLS IN PLACE DURING ASSEMBLY , SANDWICHED BETWEEN THE
WASHERS.
SHORT HUB ASSEMBLY:
1. INSER T THE THRUST ASSEMBLY IN TO THE SHORT OUTDR IVE HUB .
2. ADD A LIGHT COAT OF STEALTH LUBE TO THE SHORT H UB FACE
WHERE SHOWN.
3. PLACE A DIFF DRIVE RING ON TO THE F AC E OF THE SHORT HUB.
4. SLIDE A DIFF BEARING ONTO THE PROTRUSION OF THE SHORT HUB.
3/16 x 5/16 DIFF BEARING
DIFF DRIVE RING
SMEAR A SMALL AMOUNT OF STEALTH LUBE
HERE TO HOLD THE DIFF DRIVE RING IN PLACE
NOTE: REMOVE ANY OIL RESIDUE FROM OUTDRIVE
HUB THOROUGHLY BEFORE APPLYING STEALTH LUBE
Page 5
STEP 3

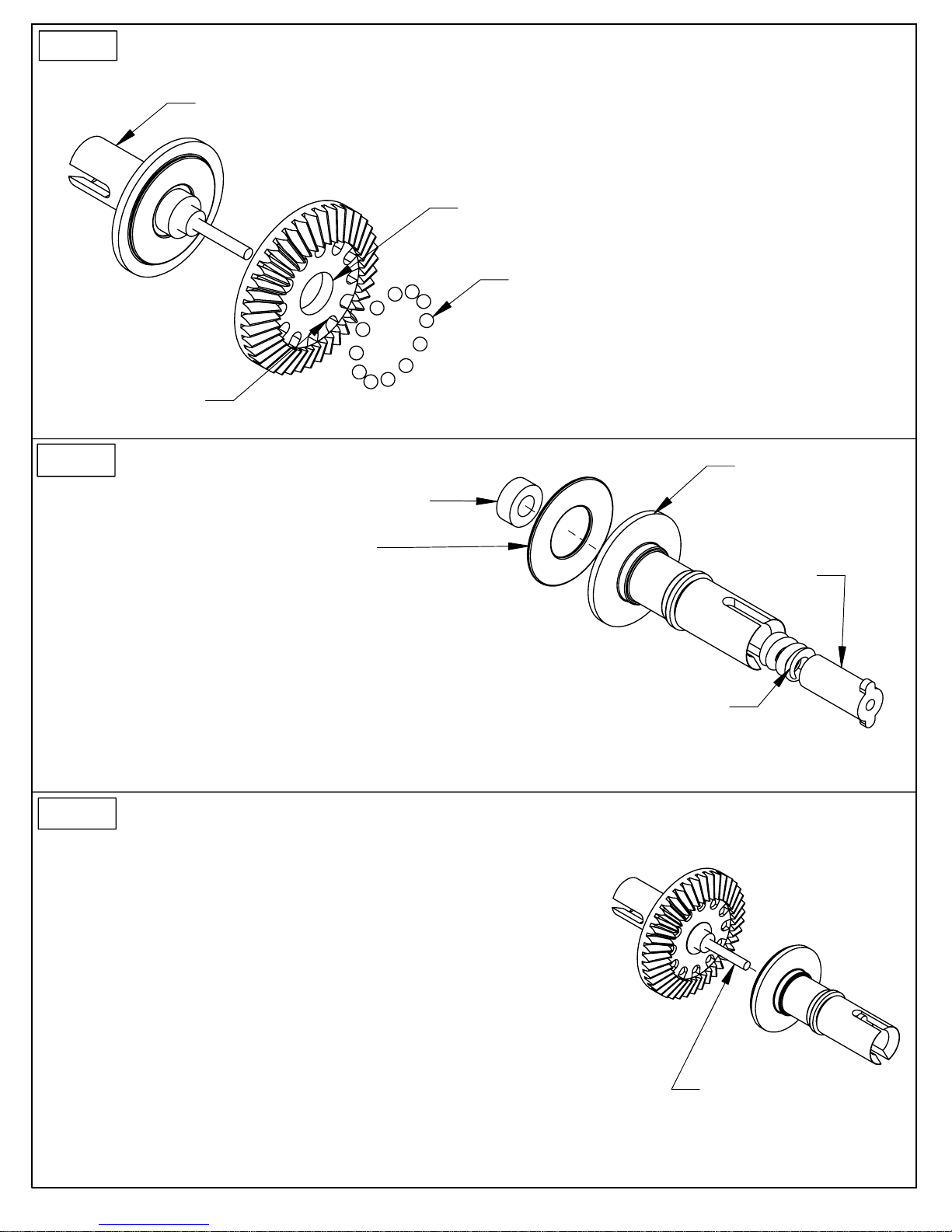

DIFFERENTIAL RING GEAR:
STEP 4
SHORT HUB ASSEMBLY
STEALTH DIFF LUBE
LONG HUB ASSEMBLY:
1. TRIM ANY BURRS FROM THE INSIDE OF THE GEAR WITH A HOBBY KNIFE.
2. ADD A GENEROUS AMOUNT OF STEATLH DIFF LUBE TO THE RING GEAR
BALL HOLES AND PUSH IN THE TWELVE 3/32 DIFF BALLS. THEN PUSH IN
THE LUBE THAT CAME OUT.
3/16 X 5/16 DIFF BEARING
TRIM ANY BURRS FROM THE INSIDE
OF THE GEAR WITH A HO BBY KNIFE
AFTER APPLYING THE STEALTH DIFF LUBE,
SNAP THE 3/32 DIFF BALLS IN PLACE
LONG OUTDRIVE HUB
DIFF DRIVE RING
1. INSERT TH E D IFF SPR ING INTO THE LONG OUTDRIVE HUB.
2. INSERT THE T-NUT INTO THE LONG HUB UNTIL I T TO UCHES
THE DIFF SPRING.
3. ADD A LIGHT COAT OF STEALTH LUBE TO THE LONG HUB FACE.
4. PLACE A DIFF DRIVE RING ONTO TH E F ACE OF THE LON G HUB.
5. INSERT THE 3/ 1 6 X 5 / 16 DIFF BEARING INTO THE LONG HUB.
STEP 5
DIFF ASSEMBLY:
NOTE: REMOVE ANY OIL RESIDUE FROM OUTDRIVE
HUB THOROUGHLY BEFORE APPLYING STEALTH LUBE.
1. INSERT THE LONG HUB ASSEMBLY INTO THE SHORT HUB ASSEMBLY,
MAKING S URE YOU LI N E U P THE BOLT IN TH E HUB AND THE BOLT
THREADS I NTO THE T-NUT.
CHECK ALIGNMENT OF THE HUBS
2. TIGHTEN TH E D IFF WITH YOUR 5/64" ALLEN WRENC H, BUT NOT COMPLE TELY.
3. SCREW IN THE DIFF BOLT A FEW TURNS THEN STOP TO RO TATE THE D IFF H U BS
IN OPPOSITE DIRECTIONS. THEN SCREW IN THE BOLT SOME MORE. FOLLOW
THIS PROCEDURE TO CH ECK PROPER ALIGNMEN T OF THE PARTS. THE
FOLLOWING NOTE CLARIFIES THIS.
T-NUT
DIFF SPRING
READ THE FOLLOWING CAREFULLY
AS YOU TIGHTEN THE DIFF BOLT, PAY CLOSE ATTENTION TO THE FEELING WHEN THE SPRING IS FULLY
COMPRESSED. DO NOT OVERTIGHTEN THE BOLT. WHEN YOU FEEL THE SPRING COMPRESSED,
LOOSEN THE DIFF BOLT 1/4 TURN. NO MORE, NO LESS. AFTER YOU HAVE DRIVEN THE CAR FOR ONE
BATTERY PACK, RECHECK THE DIFF ADJUSTMENT AS ABOVE SO THAT WHEN YOU FEEL THE SPRING
FULLY COMPRESSED, LOOSEN THE DIFF BOLT 1/4 TURN. NEVER ADJUST THE DIFF ANY OTHER WAY.
NOW ASSEMBLE THE SECOND DIFF THE SAME WAY
TIGHTEN USING 5/64" ALLEN WRENCH
Page 6
STEP 6

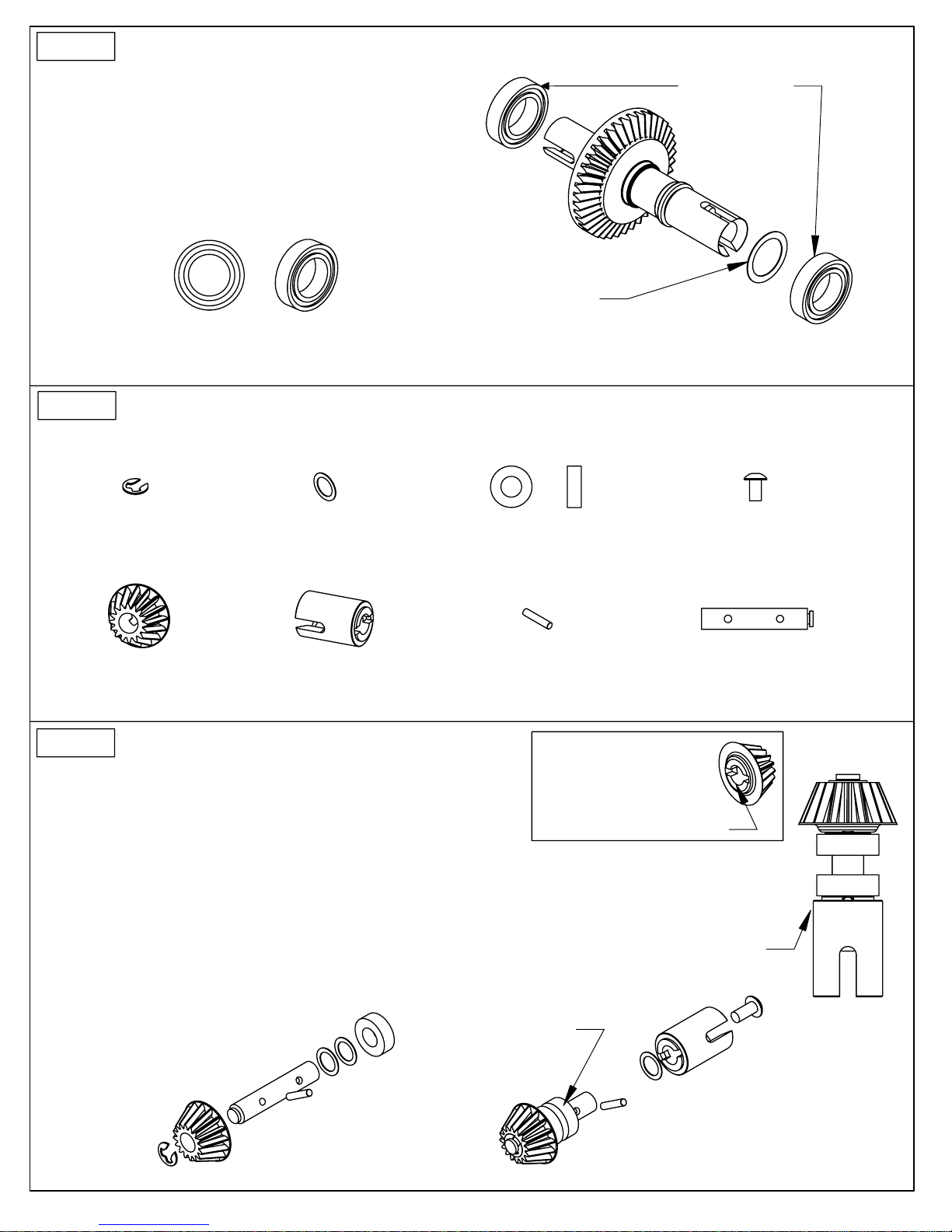

FINAL OUTDRIVE ASSEMBLY:
1. PRESS ONE OUTDRIVE SHIM ON THE LONG HUB.
(NOTE CORRECT DIRECTION ON DRAWING)
2. PLACE ONE 3/8 X 5/8 BEARING OVER EACH
OUTDRIVE HUB.
SCALE: 1:1
3/8 x 5X8 RUBBER
SEALED BEARING
x 4
BAG C
FRONT INPUT SHAFT BAG CONTENTS
SCALE: 1:1
* SMALL E-CLIP
x 1
INPU T SHAFT SHIM
x 3
OUTDRIVE SHIM
VERY IMPORTANT
* (E-CLIPS ARE LOCATED IN THE SHOCK BAG)
3/16 X 3/8 RUBBER
SEALED BEARING
x 2
3/8 X 5X8 BEARING
4-40 X 3/16"
BUTTON HEAD SCREW
x 1
DRIVE PI N O N
x 1
STEP 7
1. INSTALL AND CENTER THE DOWEL PIN INTO THE FRONT INPUT SHAFT. (FIGURE 1)
2. TRIM BURRS FROM THE DRIVE PINION EDGE WHERE SHOWN BELOW.
SLIDE THE DRIVE PINION ON TO THE INPU T SHAFT. MAK E SURE THE
DOWEL PIN ALIGNS PERF ECTLY WITH THE SLOT IN THE PINION.
3. ADD THE SMALL E-CLIP.
4. SLIDE TWO INPUT SHAFT SHIMS AND ONE 3/16 X 3/8 BEARING ONTO
THE INPUT SHAFT.
5. SLIDE THE SEC OND BEARING ONTO THE INPUT SHAFT, THEN ON E INPUT
SHAFT SHIM. (FIGURE 2)
6. INSTALL AND CENTER TH E DOWEL PIN INTO THE INPUT SHAFT.
7. SLIDE A DRIVE CUP ONTO THE END OF THE INPUT SHAFT.
8. TIGHTEN IT DOWN WITH ONE 4-40 x 3/16" SCREW.
FRONT INPUT SHAFT ASSEMBLY:
DRIVE CUP
x 1
DOWEL PIN
x 2
FRONT INPUT SHAFT ASSEMBLED
(PLEASE COMPARE YOUR ASSEMBLY CAREFULLY)
SECOND BEARING
IN POSTION
FRONT I NPUT SHAF T
x 1
ATTENTION!
CAREFULLY TRIM ANY BURRS
FROM THIS EDGE OF THE DRIVE
PINION WITH A HOBBY KNIFE.
SCALE
1.5 : 1
FIGURE 1
FIGURE 2
Page 7
BAG C
REAR INPUT SHAFT BAG CONTENTS
* (E-CLIPS ARE LOCATED IN THE SHOCK BAG)
TOOLS USED
1. 1/16" ALLEN WRENCH
2. 7/16" OPEN END WRENCH
3. NEEDLE NOSE PLIERS
*SMALL E-CLIP
x 1
SMALL C-CLIP
x 1
DRIVE PI N O N
x 1
SLIPPER SPRING
x 1
3/16 x 3/8 BUSHING
x 1
INPU T SHAFT SHIM
x 2
ONE-WAY HUB
x 1
OUTER SLIPPER HUB
x 1
DOWEL PIN
x 2
INNER SLI P P ER HUB
x 1
SLIPPER THRUST
RETAINER
x 1
ONE-WAY SLIPPER SHAFT
x 1
3/16 X 3/8 RUBBER
SEALED BEARING
x 2
SLIPPER PAD
x 1
4-40 X 3/16"
BUTTON HEAD SCREW
x 2
1/4 X 28 LOCKNUT
x 1
72 TOOTH SPUR GEAR
x 1
STEP 8

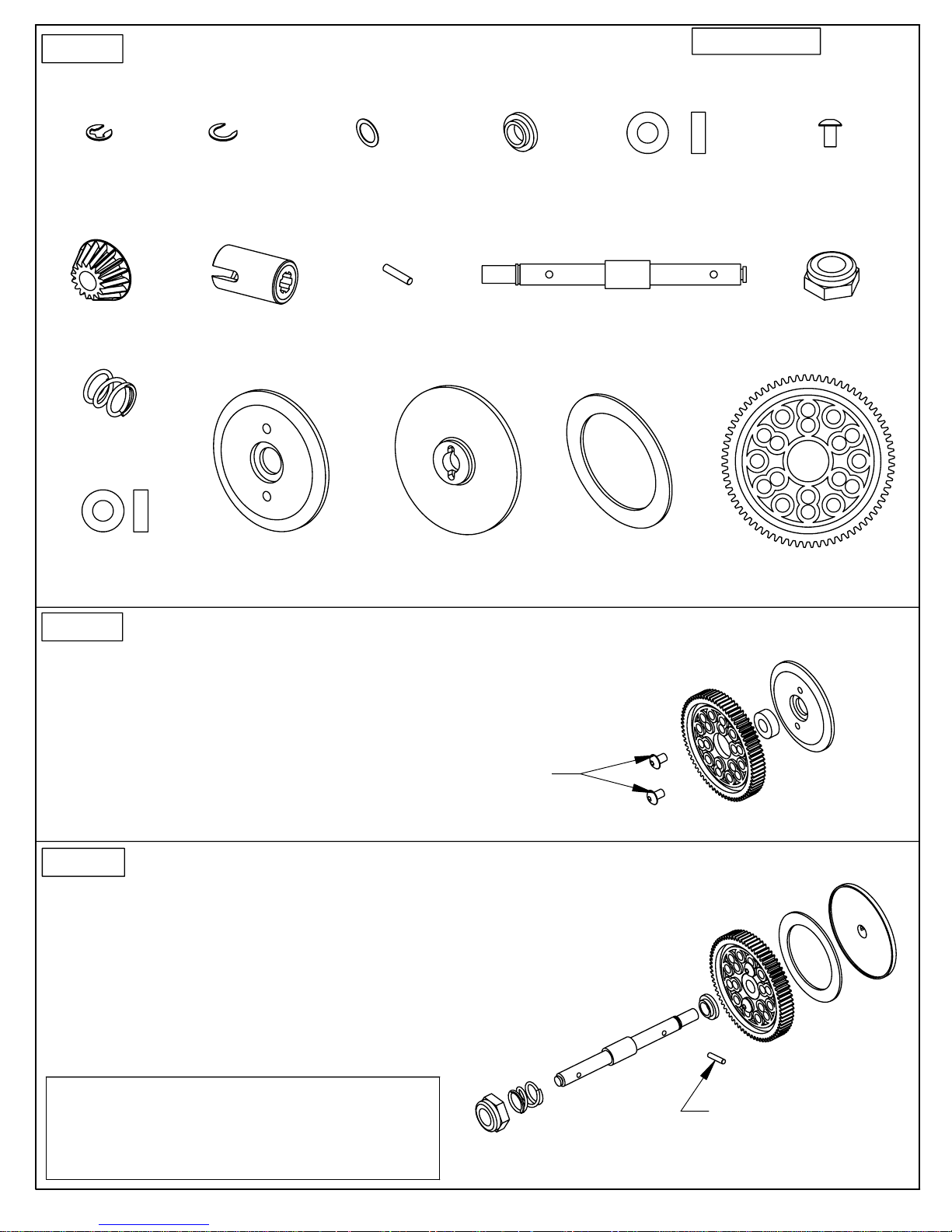

OUTER SLIPPER HUB ASSEMBLY:
1. PLACE BUSHING IN RECESS OF OUTER SLIPPER HUB.
2. SLIDE SPUR GEAR ONTO BUSHING AND FASTEN TO OUTER
SLIPPER HUB WITH TWO 4-40 X 3/16" BUTTON HEAD SCREWS.
(APPLY THREAD LOCKING COMPOUND TO SCREWS)
4-40 x 3/16" x 2
(APPLY A SMALL AMOUNT OF
THREAD LOCKING COMPOUND)
STEP 9
REAR INPUT SHAFT/SLIPPER ASSEMBLY:
1. IN ORDER, SLIDE THE SLIPPER THRUST RETAINER, OUTER SLIPPER HUB ASSEMBLY,
SLIPPER PAD, AND INNER SLIPPER HUB ONTO THE SLIPPER SHAFT.
2. INSTALL DOWEL PIN AND SLIDE ENTIRE SLIPPER ASSEMBLY BACK
SO IT CAPTURES THE DOWEL PIN.
3. SLIDE SLIPPER SPRING AND LOCKNUT ONTO THE OPPOSITE END OF THE SHAFT.
4. TIGHTEN TH E L O CKNUT UNTIL THE SLI PPER SPRING COMPRES SES
TO APPROXIMATELY 0.25" IN LENGTH.
ATTENTION!
THE NYLON INSERT IN THE LOCKNUT IS VERY TIGHT ON THE
SLIPPER SHAFT THREADS. IN ORDER TO TIGHTEN THE LOCKNUT
TO THE GIVEN LENGTH, INSE RT A .050" ROD THROUGH THE SHAFT
AND TIGHTEN THE LOCKNUT WITH A 7/16" OPEN END WRENCH.
(DO NOT USE PLIERS ON THE SLIPPER SHAFT!!!)
USE SHORTER 1/4" DOWEL PIN
LOCATED SEPARATELY
Page 8
STEP 10
1. SLIDE ONE BEARING AND TWO INPUT SHAFT SHIMS ONTO THE SLIPPER SHAFT.
2. INSTALL AN D CENTER A DOWEL PI N INTO THE SLIPPER SHAFT.
3. SLIDE A DRIVE PINON ON TO TH E EN D OF THE INPUT SHAFT. MAKE SURE THE
DOWEL PIN ALIGNS PERFECTLY WITH THE SLOT IN THE PINION.
4. ADD A SMALL E-CLIP.
REAR INPUT SHAFT/SLIPPER ASSEMBLY:
STEP 11
BAG C
COMPARE REAR INPUT SHAFT/SLIPPER ASSEMBLY

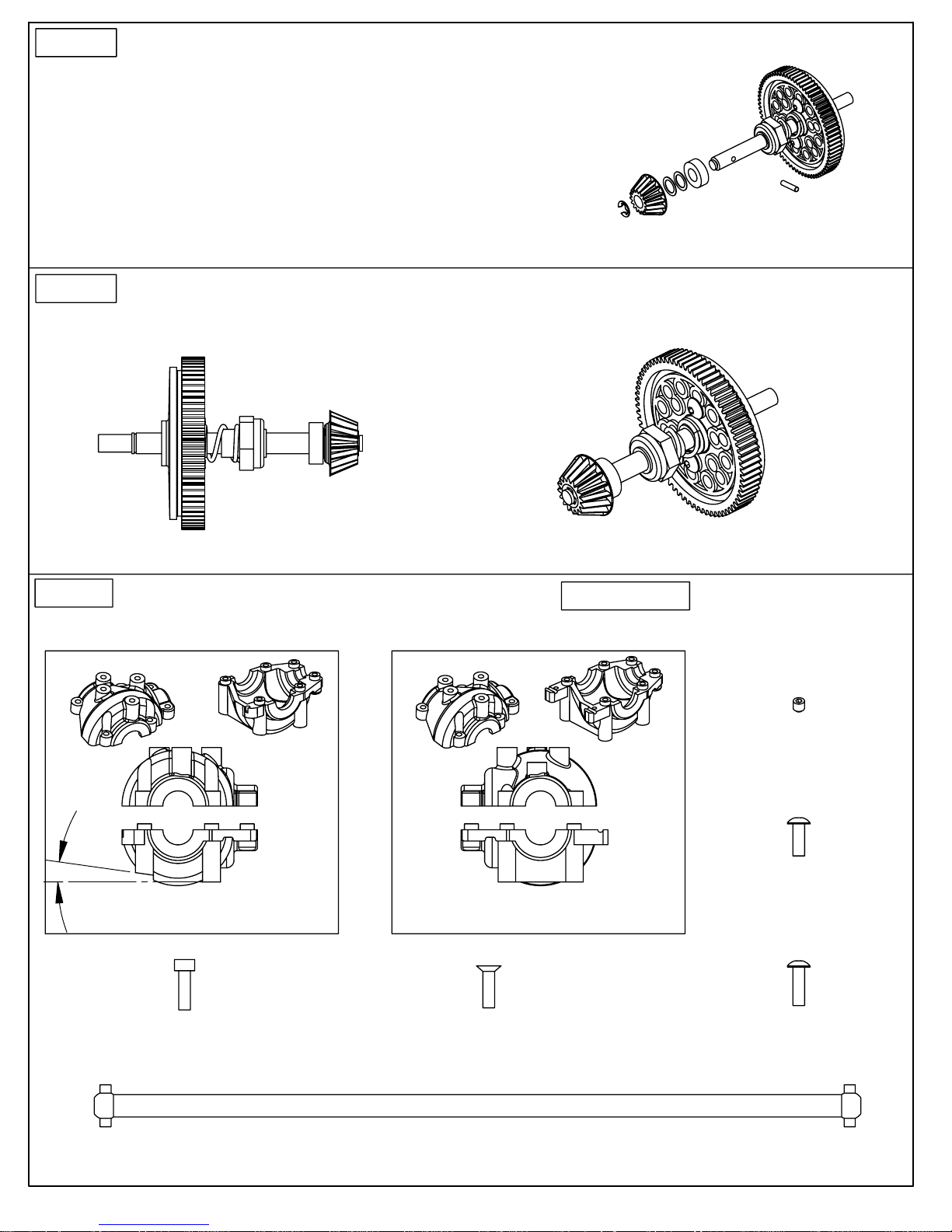

TRANSMISSION COMPONENTS
TOOLS USED
1. 1/16" ALLEN WRENCH
2. 3/32" ALLEN WRENCH
3. .050" ALLEN WRENCH
4-40 x 1/8"
SET SCREW
x 2
8°
FRONT TRANSMISSION HOUSING
4-40 X 3/8"
SOCKET HEAD SCREW
x 8
REAR TRANSMISSION HOUSING
4-40 X 3/8"
FLAT HEAD SCREW
x 6
DRIVE SHAFT
4-40 X 3/8"
BUTTON HEAD SCREW
x 4
4-40 X 3/8"
BUTTON HEAD SCREW
x 4
Page 9
STEP 12

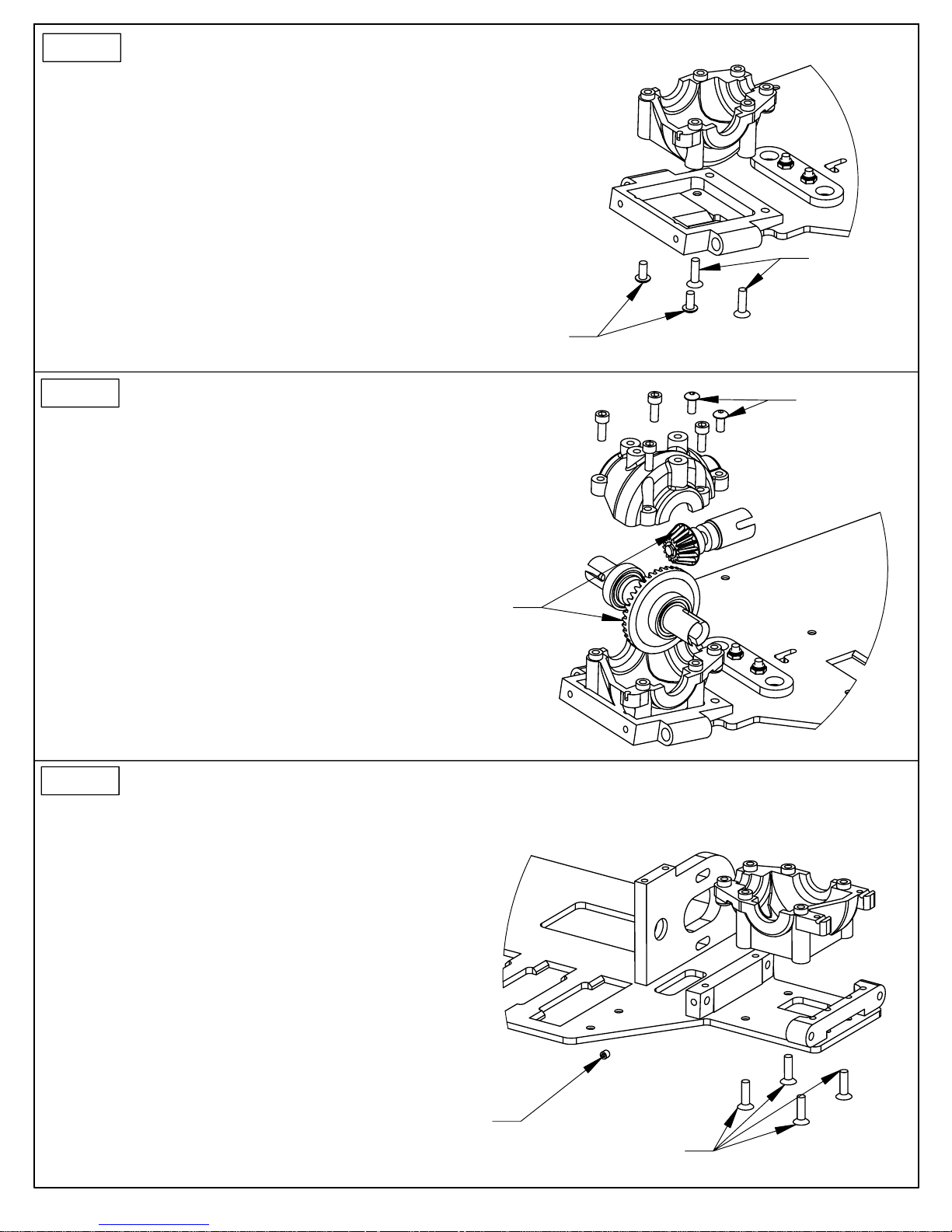

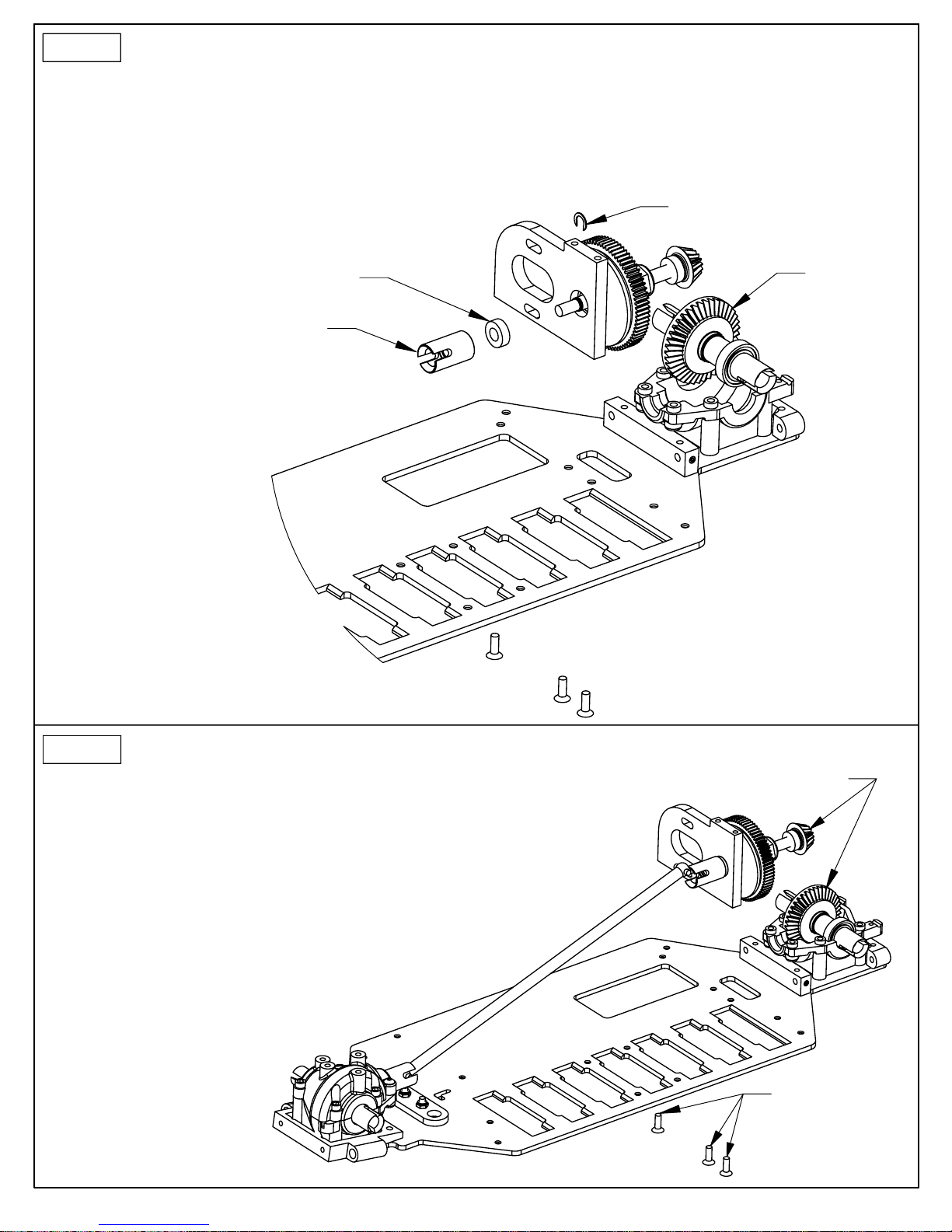

FRONT TRANSMISSION ASSEMBLY, LOWER HALF:
1. ATTACH THE LOWER FRO N T TR AN SMISS ION HOUSING TO THE CHASSIS
AND FRONT BULKHEAD USING TWO 4-40 x 5/16" BUTTON HEAD SCREWS
IN THE FRONT AND TWO 4-40 x 3/8" FLAT HEAD SCREWS IN THE BACK.
4-40 x 5/16"
BUTTON HEAD
x 2
4-40 x 3/8"
FLAT HEAD
x 2
STEP 13
FRONT TRANSMISSION ASSEMBLY:
1. INSTALL TH E FRONT DIFF ASSEMBLY AN D FRONT IN PUT SHAFT
ASSEMBLY IN THE LOWER TRANSMISSION CASE.
2. ADD A SMALL AMOUN T OF STEALTH LUBE TO TH E FRONT SIDE
OF THE RING GEAR AND PINON GEAR.
3. ATTACH THE UPPE R TRANSMISS ION CASE TO THE LOWER CASE
WITH FOUR 4-40 x 3/8" SOCKET HEAD SCREWS AND TWO
4-40 x 3/8" BUTTON HEAD SCREWS.
APPLY A SMALL AMOUNT
OF STEALTH LUBE
STEP 14
REAR TRANSMISSION ASSEMBLY, LOWER HALF:
1. ATTACH THE LOWER REAR TR AN S M ISSION HOUSING
TO THE REAR OF THE CHASSIS USING FOUR 4-40 x 3/8"
FLAT HEAD SCREWS.
4-40 x 3/8"
BUTTON HEAD
x 2
2. TEMPORARILY SCREW THE 4-40 x 1/8" SET SCREWS INTO
THE REAR SUSPENSION MOUNT (FRONT) ON BOTH SIDES.
LATER IN THE CAR ASSEMBLY IT WILL BE NECESSARY TO
TIGHTEN THE SET SCREWS AGAINST THE HINGE PINS.
A SMALL AMOUNT OF THREAD LOCKING COMPOUND
WILL BE USED AT THAT TIME.
4-40 x 1/8"
SET SCREW
x 2
4-40 x 3/8"
FLAT HEAD
x 4
Page 10
STEP 15
1. UNBOLT THE MOTOR MOUNT FROM THE CHASSIS WHERE IT WAS LOOSELY ATTACHED IN CHASSIS ASSEMBLY STEP 1.
2. SLIDE THE SLIPPER SHAFT ASSEMBLY THROUGH THE BACKSIDE OF THE MOTOR MOUNT. SLIDE ONE 3/16 x 3/8 BEARING
ONTO THE SLIPPER SHAFT, MAKING SU RE IT SETS NICELY INTO THE COUNTERBO RED SIDE OF THE MOTOR MOUNT.
3. PRESS THE SMALL C-CLIP ON THE GROOVE LOCATED ON THE SLIPPER SHAFT AND SNAP INTO PLACE.
4. SLIDE THE ONE-WAY HUB ONTO THE SLIPPER SHAFT ASSEMBLY. TIP - SPINNING THE ONE-WAY HUB
WHILE PRESSING IT ON THE SHAFT MAKES IT EASIER TO INSTALL.
5. INSTALL THE REAR DIFF ASSEMBLY IN THE LOWER REAR TRANSMISSION CASE.
REAR TRANSMISSION ASSEMBLY:
SMALL C-CLIP
3/16 X 3/8
BEARING
ONE-WAY HUB
FRONT SIDE
OF GEAR
STEP 16

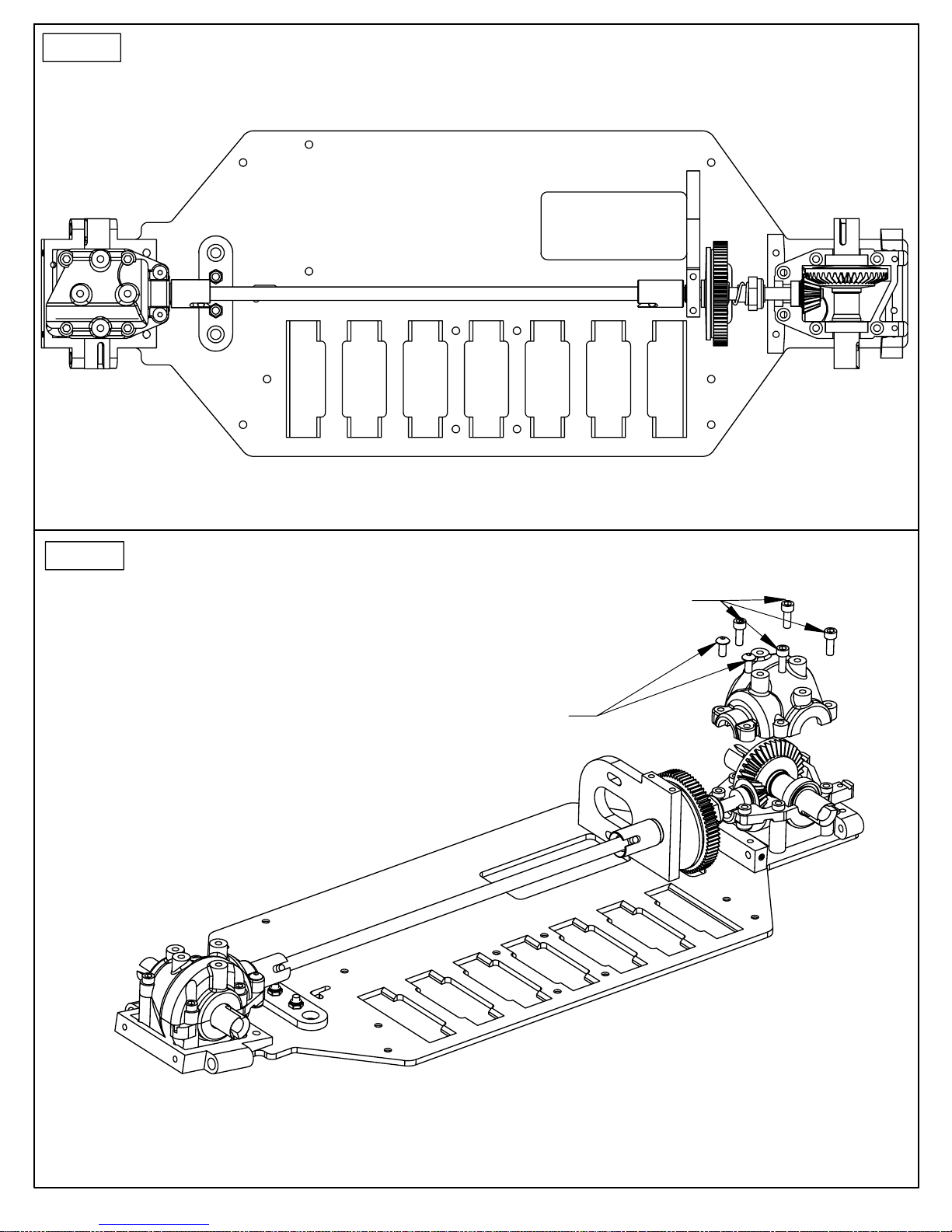

1. LOCATE THE DRIVE S HAFT AND LINE UP THE SLOT ON THE FRONT TRANSMISSION CUP AND PIN
ON THE DRIVE SHAFT AND SLIDE IT INTO PLACE.
2. HOLD THE MOTOR MOUNT AND REAR SLIPPER ASSEMBLY ABOVE THE CHASSIS SURFACE WHILE
HOLDING THE DRIVE SHAFT AT AN ANGLE WHERE THEY PROPERLY SLIDE TOGETHER.
3. LOWER THE MOTOR MOUNT AND SLIPPER ASSEMBLY, WITH THE DRIVE SHAFT INSTALLED,
DOWN TO THE CHASSIS SURFACE. ROTATING THE GEARS MAY BE NECESSARY TO
GET THEM TO MESH AND F OR THE ENTIRE ASSEMBLY TO FIT INTO PLACE.
(ADD A SMALL AMOUNT OF STEALTH LUBE AS NOTED)
4. SECURE THE MOTOR MOUNT TO THE CHASSIS WITH
THREE 4-40 x 5/16" FLAT HEAD SCREWS.
(APPLY A SMALL AMOUNT OF
THREAD LOCKING COMPOUND)
REAR TRANSMISSION ASSEMBLY:
APPLY A SMALL AMOUNT
OF STEALTH LUBE
4-40 x 5/16"
FLAT HEAD
x 3
(APPLY A SMALL AMOUNT OF
THREAD LOCKING COMPOUND)
Page 11
STEP 17
COMPARE TRANSMISSION ASSEMBLY
STEP 18
REAR TRANSMISSION ASSEMBLY:
1. ATTACH THE UPPE R TRANSMISSION CAS E TO THE LOWER
TRANSMISSION CASE WITH FOUR 4-40 x 3/8" SOCKET HEAD
SCREWS AND TWO 4-40 x 3/8" BUTTON HEAD SCREWS.
4-40 x 3/8"
BUTTON HEAD
x 2
4-40 x 3/8"
SOCKET HEAD
x 4
Page 12
STEP 19
COMPARE DRIVETRAIN ASSEMBLY
BAG D
LONG STEERING
BELLCRANK
x 1
LONG
BALL END
x 6
STEERING AND TOP DECK COMPONENTS
STEERING
BUSHING
x 2
4-40 X 5/16"
FLAT HEAD
x 2
4-40 X 3/8"
FLAT HEAD
x 9
SHORT
BALL END
x 1
SHORT STEERING
BELLCRANK
x 1
4-40 X 1/4"
FLAT HEAD
x 6
.030 NYLON
WASHER
x 2
4-40 X 1/2"
FLAT HEAD
x 2
TOOLS USED
1. 1/16" ALLEN WRENCH
2. NEEDLE NOSE PLIERS
3. 3/16" NUT DRIVER
1/8 x 1/4
BEARING
x 4
4-40 X 1/4"
BUTTON HEAD
x 4
STEERING POS T
x 2
4-40 X 3/8"
BUTTON HEAD
x 3
4-40 MINI
LOCKNUT
x 8
FRONT BODY
MOUNT
x 2
.030 ALUMINUM
WASHER
x 11
ANTENNA
MOUNT
x 1
TRANSMISSION
SPACER
x 2
FRONT TOWER
MOUNT
x 1
4-40 x 1/2" SOCKET
HEAD WITH HOLE
x 2
BATTERY POST
x 2
BATTERY
RETAINER
x 1
REAR TOWER
MOUNT
x 1
Page 13
STEP 1
STEERING ASSEMBLY:
1. THREAD BOTH STEERING POSTS INTO THE STEERING BELLCRANKS AS SHOWN.
(APPLY A SMALL AMOUNT OF THREAD LOCKING COMPOUND)
2. SLIDE ONE .030" NYLON WASHER ONTO THE TOP OF EACH STEERING POST.
3. SLIDE ONE .030" ALUMINUM WASHER ON TO A SHORT BALL END AND
FASTEN IT TO THE LONG BELLCRANK AS SHOWN.
(APPLY A SMALL AMOUNT OF THREAD LOCKING COMPOUND)
4. SLIDE THREE .030" ALUMINUM WASHERS ONTO A LONG BALL END.
INSERT THE BALL END WITH THE THREE WASHERS INTO THE BACK
HOLE OF THE GRAPHITE STEERING RACK. SECURE THE BALL
END WITH ONE 4-40 MINI LOCKNUT. REPEAT FOR OTHER SIDE.
5. INSERT A STEERING BUSHING INTO THE G RAPHITE STEERING RACK.
(NOTE DIRECTION) SLIDE ONE 4-40 X 3/8" BU TTON HEAD SCREW
UP THROUGH THE BOTTOM OF TH E RACK AND TI GHTEN THE SCREW
INTO THE BELLCRANK. REPEAT FOR OTHER SIDE.
(APPLY A SMALL AMOUNT OF
THREAD LOCKING COMPOUND)
NOTE DIRECTION
APPLY A SMAL L AMOUNT OF
THREAD LOCKING COMPOUND
NYLON
APPLY A SMALL
AMOUNT OF
THREAD LOCKING
COMPOUND
STEP 2
STEP 3
1. ATTACH EACH BATTERY POST TO THE CHASSIS
WITH ONE 4-40 X 3/8" FLAT HEAD SCREW.
(APPLY THREAD LOCKING COMPOUND)
2. THREAD ONE SOCKET HEAD CAP SCREW WITH
HOLE INTO THE TOP OF EACH BATTERY POST.
(LENGTH WILL BE ADJUSTED LATER)
3. ATTACH THE BATTERY RETAINER USING TWO
4-40 X 1/4" FLAT HEAD SCREWS.
(APPLY THREAD LOCKING COMPOUND)
4. INSERT TWO 1/8 X 1/4 BEARINGS INTO THE
BEARING BLOCK ON THE CHASSIS.
5. SLIDE THE STEERING ASSEMBLY
INTO THE BEARINGS.
6. SLIDE ONE 1/8 X 1/4 BEARING
ONTO THE TOP OF EACH
STEERING POST.
COMPARE STEERING ASSEMBLY
STEERING AND CHASSIS COMPONENT ASSEMBLY:
1/8 X 1/4 BEARING
x 4
4-40 X 3/8"
FLAT HEAD SCREW
x 2
(APPLY A SMALL AMOUNT OF
THREAD LOCKING COMPOUND)
SPECIAL 4-40 SOCKET
HEAD WITH HOLE
x 2
4-40 X 1/4"
FLAT HEAD SCREW
x 2
(APPLY A SMALL AMOUNT OF
THREAD LOCKING COMPOUND)
Page 14
STEP 4
COMPARE STEERING AND CHASSIS ASSEMBLY
STEP 5

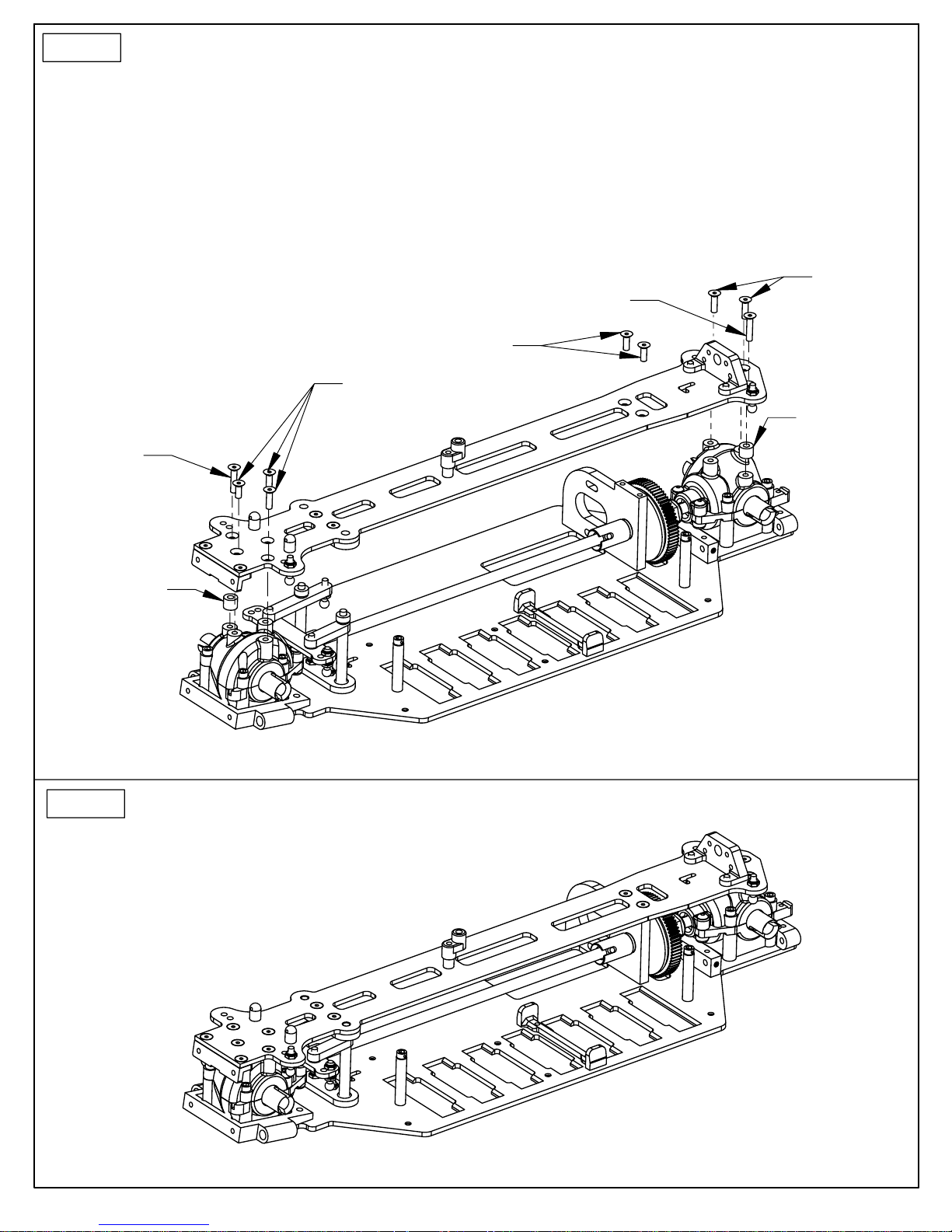

TOP DECK ASSEMBLY:
1. ATTACH THE FRON T TO WER M O UNT USI NG TWO 4-40 x 1/4" FLAT HE AD SCREWS.
(APPLY A SMALL AMOUNT OF THREAD LOCKING COMPOUND)
2. CAREFULLY FILE THE LEADING EDG E OF THE TOP PLATE SO IT IS AT THE SAME ANG L E AS TH E FRONT TOWER
WHEN VIEWED FROM THE SIDE. (REFER TO ILLUSTRATION BELOW)
3. SLIDE ONE .030" WASHER ON EACH OF FOUR LONG BALL ENDS. INSERT THE BALL ENDS, WITH WASHERS,
INTO THE HOLES SHOWN BELOW. SECURE THE BALL ENDS USING F OUR 4-40 MINI LOCKNU TS.
4. ATTACH THE FRONT B O D Y MOUNTS WITH TWO 4-40 x 1/4" BUTTON HEAD SCREWS.
5. ATTACH A BEARING BLOCK TO THE BOTTOM OF THE TOP DECK USING TWO 4-40 x 3/8" FLAT HEAD SCREWS.
SECURE WITH TWO 4-40 MINI LOCKNUTS.
6. ATTACH THE ANTENNA MOUNT TO THE TOP DECK U S ING ONE 4 -4 0 x 3/8" BUTTO N HEAD SCREW.
7. ATTACH THE REAR TOWER MO UNT WITH TWO 4 - 40 x 1/4" B U TTON HEAD SCREWS FROM THE
BOTTOM OF THE TOP D E C K. FINISH ATTACHING THE REAR TO WER M O UNT BY ADDING TWO
4-40 x 1/4" FLAT HEAD SCREWS. REFER TO ILLUSTRATION BELOW FOR LOCATION OF SCREWS.
(APPLY A SMALL AMOUNT OF THREAD LOCKING COMPOUND)
4-40 x 1/4" FLAT HEAD
x 2
(APPLY A SMALL AMOUNT OF
THREAD LOCKING COMPOUND)
4-40 x 3/8" FLAT HEAD
x 2
FILE EDGE AS
SHOWN BELOW
4-40 x 1/4"
BUTTON HEAD
x 2
4-40 x 3/8"
BUTTON HEAD
LONG BALL END WITH ONE
.030" ALUMINUM WASHER
x 4
4-40 x 1/4" BUTTON HEAD
x 2
(APPLY A SMALL AMOUNT OF
THREAD LOCKING COMPOUND)
4-40 x 1/4" FLAT HEAD
x 2
(APPLY A SMALL AMOUNT OF
THREAD LOCKING COMPOUND)
FILING TOP DECK EDGE:
EDGE
Page 15
STEP 6
TOP DECK ASSEMBLY:
1. ATTACH THE TOP DECK BY FI R ST LINING UP THE BEARING BLOCK ON TH E B O TTOM O F THE TOP DECK WITH THE
TWO BEARINGS ON TOP OF THE STEERING POSTS. PRESS THE TOP DECK DOWN INTO PLACE.
2. SLIDE THE TWO ALUMINUM TRANSMISSION SPACERS BETWEEN THE TRANSMISSION CASES AND THE TOP DECK.
INSERT TWO 4-40 x 1/2" FLAT HEAD SCREWS AND TIGHTEN. REFER TO ILLUSTRATION BELOW FOR LOCATION
OF SCREWS.
3. SECURE THE TOP D ECK IN FR O NT WITH THREE 4-4 0 x 3/8" FLAT HE AD SCREWS. SECURE THE TO P D ECK TO THE
MOTOR MOUNT WITH USING TWO 4- 4 0 x 5/16" F L AT HEAD SCREWS. (APP L Y A SMALL AMOUNT O F THREAD
LOCKING COMPOUND) FINISH WITH TWO 4-40 x 3/8" FLAT HEAD SCREWS IN THE REAR.
4-40 x 1/2"
FLAT HEAD
TRANSMISSION
SPACER
4-40 x 3/8"
FLAT HEAD
x 3
4-40 x 5/16"
FLAT HEAD
x 2
(APPLY A SMALL AMOUNT OF
THREAD LOCKING COMPOUND)
4-40 x 1/2"
FLAT HEAD
4-40 x 3/ 8"
FLAT HEAD
x 2
TRANSMISSION
SPACER
STEP 7
COMPARE TOP DECK ASSEMBLY
Page 16
CVD BAG
FRONT CVD COMPONENTS
REMOVE THESE PARTS FOR THE FR ON T C VD' S
TOOLS USED
1. .050" ALLEN WRENCH
CVD COUPLING
x 2
CVD FRONT HEX
x 2
CVD BAG
CVD COUPLING
x 2
CVD CROSS PIN
x 2
CVD FRONT
WHEEL NUT
x 2
CVD FRONT AXLE
x 2
CVD SET SCREW
x 2
REAR CVD COMPONENTS
REMOVE THESE PARTS FOR THE REAR CVD'S
CVD CROSS PIN
x 2
CVD SET SCREW
x 2
CVD ROLL PIN
x 2
CVD FRONT BONE
x 2
CVD ROLL PIN
x 2
BEARING SPACER
x 2
TOOLS USED
1. .050" ALLEN WRENCH
CVD AXLE
SHIM (THIN)
x 6
CVD AXLE
SHIM (THICK)
x 2

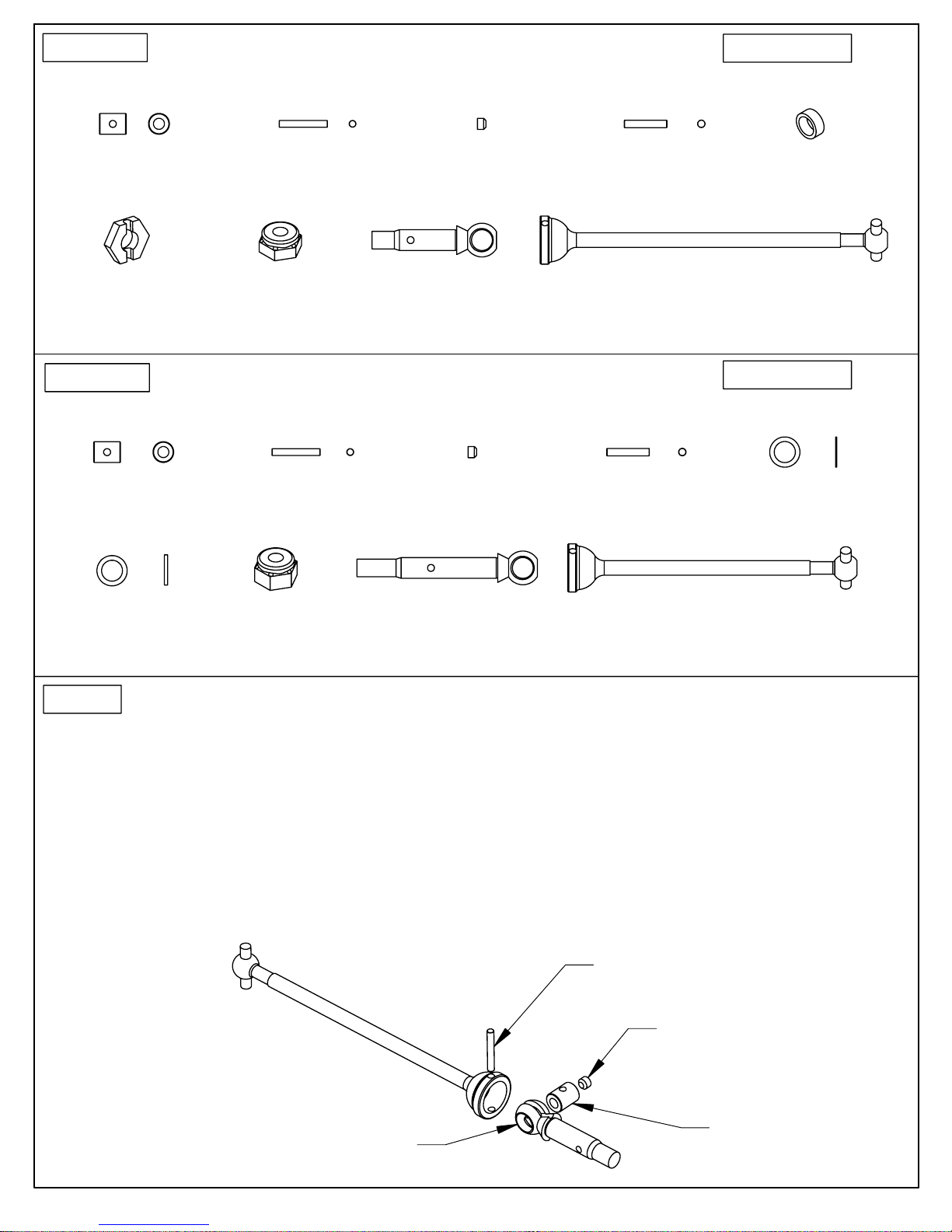

STEP 1
1. SPREAD A SMALL AMO UNT OF BLACK GREASE ON THE OUTSIDE OF THE CVD COUPLING AND IN SERT THE
COUPLING INTO THE AXLE AS SHOWN.
2. SPREAD A SMALL AMO UNT OF BLACK G R EASE ON THE ROUND PORTION O F THE AXLE AND INSERT IN TO THE
CVD BONE, ALIGNING THE CROSS HOLES.
3. INSERT THE CROSS PIN, MAKING SURE IT IS EVENLY SPACED ON BOTH SIDES OF THE CVD BONE.
4. APPLY A SMALL AMOUNT OF MIP THREAD LOC KING COMPOUND TO THE SET SCREW. ANGL E AND TURN
THE CVD SO THE SET SCREW CAN BE SCREWED IN WITH AN ALLEN WRENCH.
5. REPEAT THI S PROCEDURE F O R AL L O F THE CVD'S. SET THE COMPLETED CVD 'S AND ADDI TIONAL HARDWAR E
ASIDE FOR LATER ASSEMBLIES.
FRONT/REAR CVD ASSEMBLY:
CVD REAR
WHEEL NUT
x 2
CVD REAR AXLE
x 2
CVD CROSS PIN
SOLID
CVD REAR BONE
x 2
APPLY A SMAL L AMOUNT OF
THREAD LOCKING COMPOUND
APPLY A SMALL AMOUNT
OF BLACK GREASE
APPLY A SMALL AMOUNT
OF BLACK GREASE
Page 17
BAG E TOOLS USED
FRONT END COMPONENTS
1. .050" ALLEN WRENCH
2. 1/16" ALLEN WRENCH
3. 5/64" ALLEN WRENCH
4. NEEDLE NOSE PLIERS
5. 3/16" NUT DRIVER
SHORT
BALL END
KING PIN
x 4
x 4
PIVOT SLEEVE
x 2
FRONT SHOCK TOWER
x 1
4-40 x 3/8"
BUTTON HEAD
x 2
FRONT A-ARM
x 2
4-40 x 1/4"
BUTTON HEAD
x 2
CASTOR BLOCK,
LEFT & RIGHT
x 1 EACH
BALL CUP
x 12
TITANIUM TURNBUCKLE
1.775" (STEERING)
x 2
.030 ALUMINUM
WASHER
x 4
STEERING BLOCK,
LEFT & RIGHT
x 1 EACH
3/ 16 X 3/8 RUBBER
SEALED BEARING
x 4
4-40 MINI
LOCKNUT
x 2
BALL END DUST COVER
x 14
2-56 x 1/8"
BUTTON HEAD
x 4
FRONT HINGE
PIN BRACE
x 1
HINGE PIN 1.OO"
(FRONT OUTER)
x 2
TITANIUM TURNBUCKLE
2.00" (CAMBER)
x 2
STEP 1
REAR SHOCK TOWER
x 1

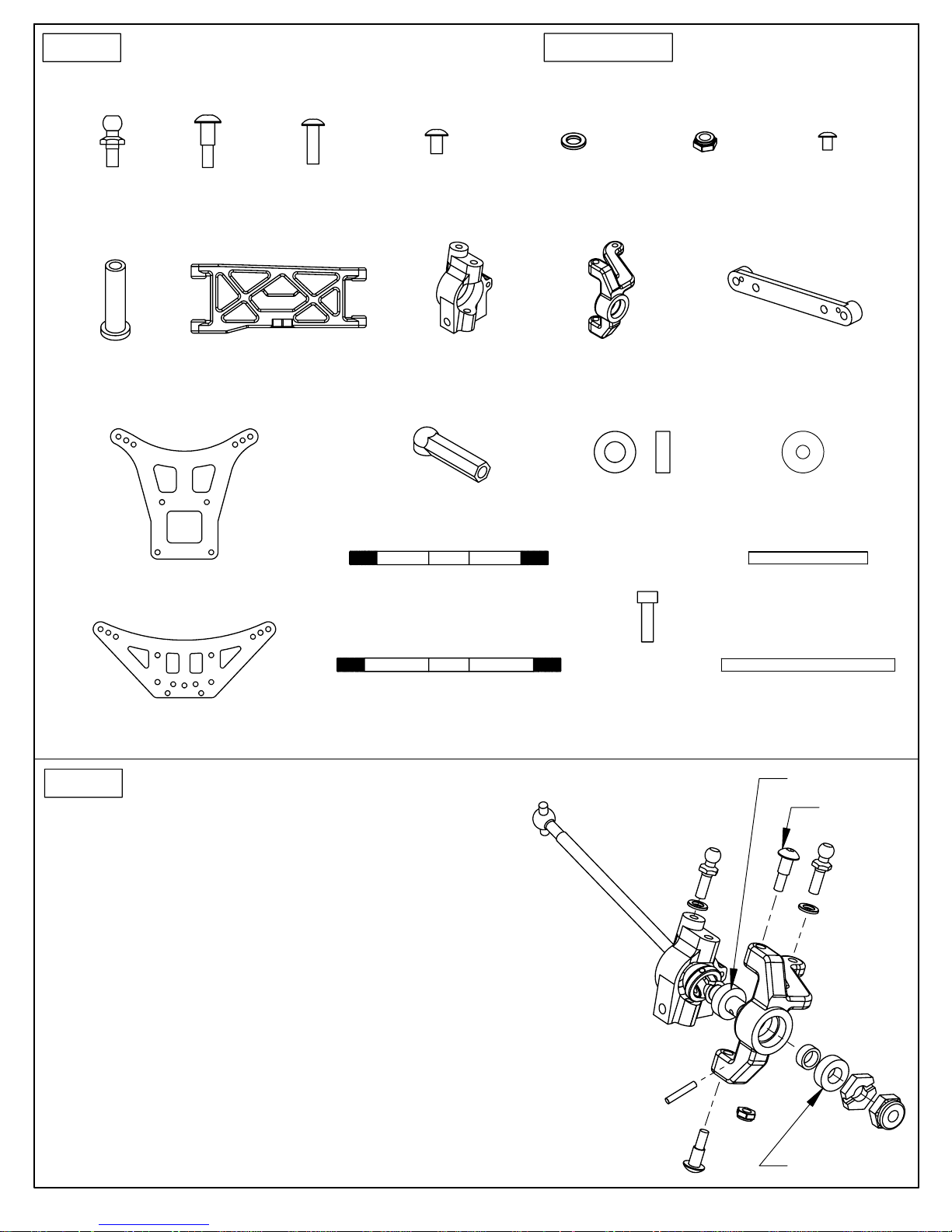

STEERING AND CASTER BLOCK ASSEMBLY:
NOTE: USE COMPLETED F RO N T CVD'S FOR THIS STEP
1. INSTALL ONE 3/16 X 3/8 BEARING ONTO THE CVD AXLE. SLIDE THE AXLE
ASSEMBLY INTO THE BACK OF THE STEERING BLOCK.
2. IN ORDER, SLIDE A BEARING SPACER, 3/16 X 3/8 BEARING, AND CVD FRONT HEX
ONTO THE CVD AXLE.
3. PRESS THE BEARING INTO THE STEERING BLOCK AND INSERT A ROLL PIN THROUGH
THE GROOVE IN THE CVD HEX AND INTO THE AXLE.
5. PARTIALLY THREAD A FRONT WHEEL NUT ON THE AXLE.
6. SLIDE THE CVD BONE THROUGH THE CASTER BLOCK. WHEN ANGLED CORRECTLY,
THE CVD BONE WILL DROP THROUGH THE CASTER BLOCK FREELY. FIT THE STEERING
BLOCK OVER THE CASTOR BLOCK AND FASTEN IT USING TWO KING PIN SCREWS.
7. SLIDE ONE .030" WASHER ON EACH OF TWO SHORT BALL ENDS. THREAD ONE BALL
END WITH WASHER INTO THE CASTOR BLOCK.
(APPLY A SMALL AMOUNT OF THREAD LOCKING COMPOUND)
8. SLIDE ONE SHORT BALL END WITH WASHER INTO THE STEERING BLOCK. SECURE IT
WITH ONE 4-40 MINI LOCKNUT.
9. CHECK TO MAKE SURE STEERING BLOCK PIVOTS FREELY.
10. REPEAT FOR THE OPPOSITE SIDE ASSEMBLY.
4-40 X 5/16"
SOCKET HEAD
x 4
HINGE PIN 1.55"
(FRONT INNER)
x 2
3/16 x 3/8 BEARING
KING PIN
x 2
ATTENTION! NOTE DIRECTION OF STEERING BLOCK AND CASTOR BLOCK
3/16 x 3/8 BEARING
Page 18

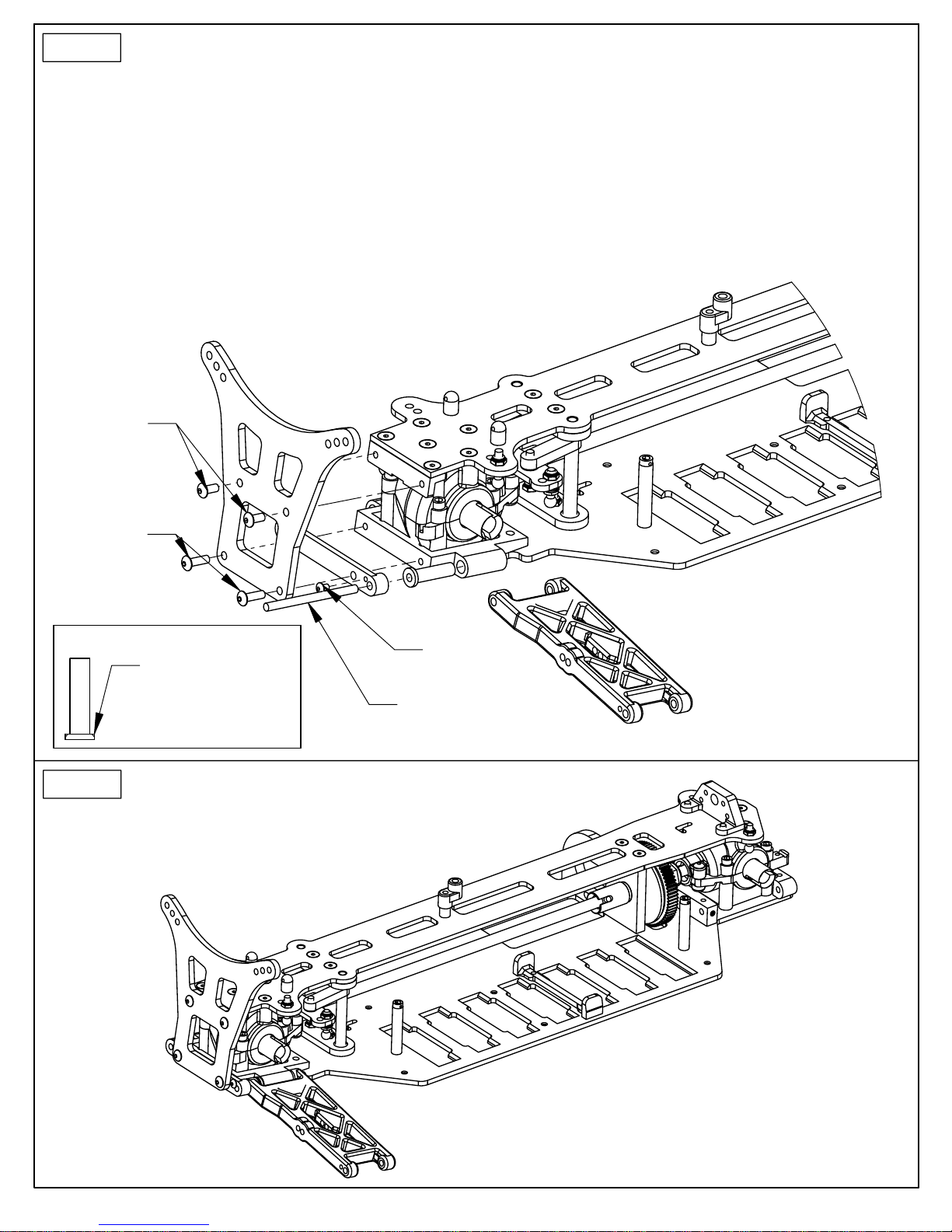

STEP 2
FRONT SUSPENSION ASSEMBLY:
1. USE REFERENCE ILLU STRATION BELOW TO PREPARE THE TWO PIVOT SLEEVES.
2. INSERT BOTH PIVOT SLEEVES INTO TH E F RON T BU LKHEAD.
3. ALIGN THE FRONT A-ARMS WITH THE PIVOT SLEEVES AN D PRESS THE FRONT I N NER HINGE PINS IN TO P L AC E.
4. SLIDE THE FRON T H INGE PIN BRACE OVER THE FRONT I N NER HINGE P INS UNTIL IT PRESSES AG AINST THE FRON T
BULKHEAD. NOTE THE DIRECTION AND LOCATION OF THE 2-56 H OLES IN THE ILLUSTRATION BELOW.
5. ATTACH THE FRON T S HOCK TOWER US ING TWO 4- 4 0 x 3/8" BUTTON HEAD SCREWS AT THE BOTTOM AND TWO
4-40 x 1/4" BUTTON HEAD SCREWS AT THE TOP. (APPLY A SMALL AMOUNT OF THREAD LOCKING COMPOUND)
6. CAPURE THE FRONT INNER HINGE PINS BY INSERTING TWO 2-56 x 1/8" BUTTON HEAD
SCREWS INTO THE FRONT HINGE PIN BRACE.
7. CHECK TO MAKE SURE SUSPENSION ARMS PIVOT FREELY.
4-40 x 1/4"
BUTTON HEAD
x 2
(APPLY A SMALL AMOUNT OF
THREAD LOCKING COMPOUND)
4-40 x 3/8"
BUTTON HEAD
x 2
(APPLY A SMALL AMOUNT OF
THREAD LOCKING COMPOUND)
VERY CRITICAL FIT!
IF NECESSARY, REMOVE A
SMALL AMOUNT OF M ATERIAL
FROM THE EDGE OF EACH PIVOT
SLEEVE UNTIL IT FITS FLAT AGAINST
THE FRONT BULKHEAD.
STEP 3
COMPARE FRONT SUSPENSION ASSEMBLY
2-56 x 1/8"
BUTTON HEAD
x 2
FRONT INNER
HINGE PIN
x 2
Page 19
STEP 4
FRONT SUSPENSION AND REAR TOWER ASSEMBLY:
1. POSITION THE STEERING AN D C ASTER BLOCK ASS EMBLIES AS SHOWN AND SLIDE THE FRONT OUTER HINGE
PINS INTO PLACE.
2. CAPTURE THE FRONT OUTER HINGES BY INSERTING A 2-56 x 1/8" BUTTON HEAD SCREWS INTO EACH A-ARM.
3. PUT BALL END DUST COVERS ON THE FRONT SUS PENSION AND
TOP DECK BALL ENDS.
4. MAKE SURE THE CASTER BLOCKS PIVOT FREELY IN THE A-ARMS.
6. ATTACH THE REAR SHOCK TOWER USING FOUR 4-40 X 5/16"
SOCKET HEAD SCREWS. (APPLY A SMAL L AMOUNT OF
THREAD LOCKING COMPOUND)
4-40 x 5/16"
SOCKET HEAD
FRONT OUTER
HINGE PIN
x 2
x 4
(APPLY A SMALL AMOUNT OF
THREAD LOCKING COMPOUND)
2-56 x 1/8"
BUTTON HEAD
x 2
STEP 5
FRONT TURNBUCKLE ASSEMBLY:
1. TWIST THE BALL C U PS ON TO EACH B L UE TITANIUM TURNBUC KLE UNTIL YOU GET THE DIMENSI O N SHOWN FOR
EACH PART.
2. LOCATE THE NOTCH ON EACH TURNBUCK L E AND RO TATE TH EM SO THAT IT IS LOCATED ON THE O UTSIDE OF
THE CAR ON THE LEFT AND THE INSIDE ON THE RIGHT. SNAP AL L O F THE FRONT TURNBUCKLES INTO PLACE
WHERE SHOWN. MAKE SURE THAT ALL OF THE CVD BONES ARE IN THE SLOTS OF THE OUTDRIVE HUBS.
1.30
FRONT CAMBER TURNBUCKLE 2.00": x 2
SCALE 1:1
1.05
STEERING
TURNBUCLKE
FRONT STEERING TURNBUCKLE 1.775": x 2
SCALE 1:1
CAMBER
TURNBUCKLE
Page 20

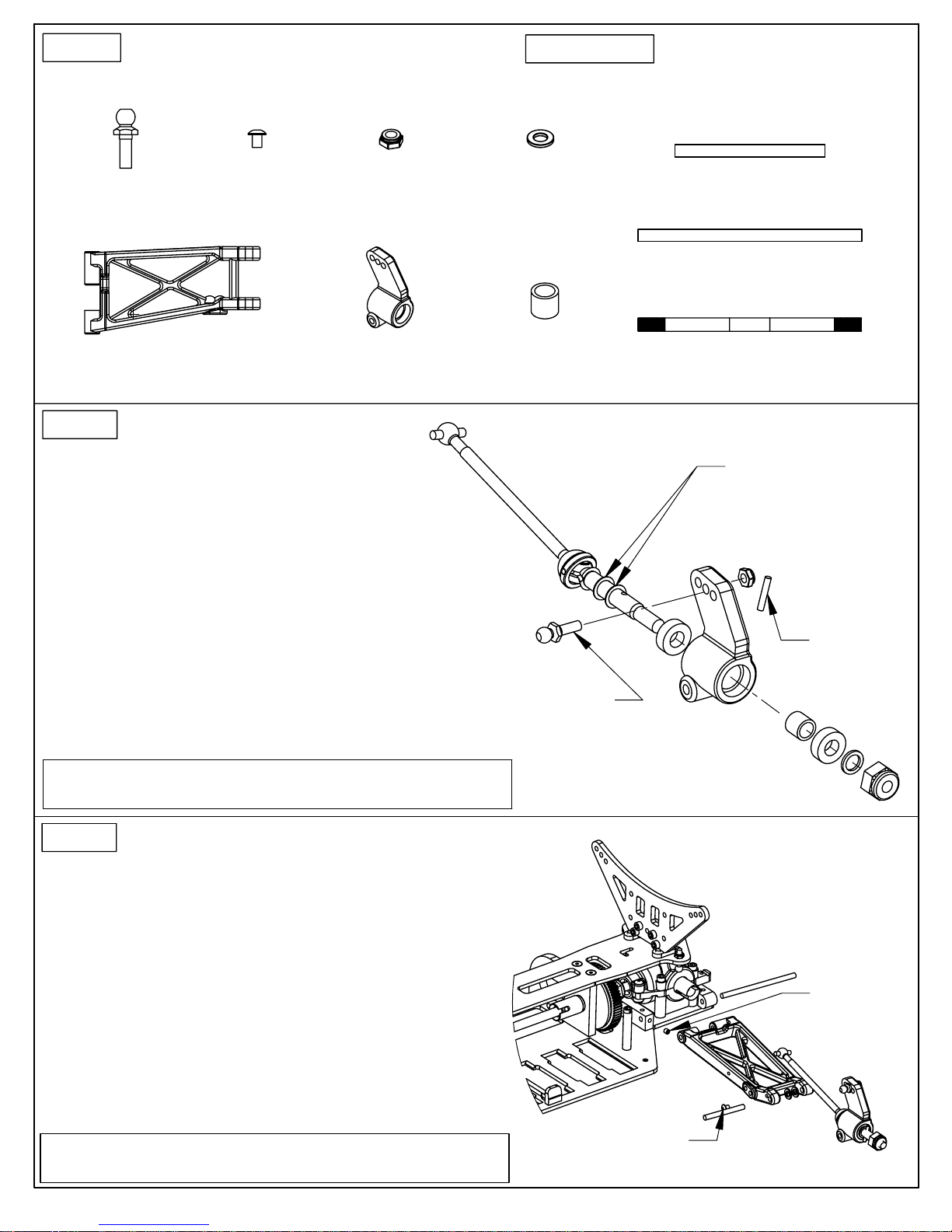

BAG F
REAR END COMPONENTS
TOOLS USED
1. .050" ALLEN WRENCH
2. 1/16" ALLEN WRENCH
3. 5/64" ALLEN WRENCH
4. NEEDLE NOSE PLIERS
5. 3/16" NUT DRIVER
LONG BLACK
BALL END
x 2
REAR A-ARM
LEFT & RIGHT
x 1 EACH
STEP 1
NOTE: USE COMPLETED REAR CVD'S FOR THIS STEP
1. SLIDE TWO SMALL AXLE SHIMS AND ONE 3/16 x 3/8
BEARING ON TO THE CVD AXLE. SLIDE THE AXLE
ASSEMBLY INTO THE BACK OF THE HUB CARRIER.
2. IN ORDER, SLIDE A BEARING SPACER, 3/16 x 3/8
BEARING, AND ONE THICK AXLE SHIM ONTO THE
CVD AXLE.
3. PRESS THE BEARING INTO THE HUB CARRIER AND
INSERT A ROLL PIN INTO THE AXLE.
4. PARTIALLY THR EAD A REAR WHEEL NUT ON THE AXLE.
HUB CARRIER ASSEMBLY:
2-56 x 1/8"
BUTTON HEAD
x 2
4-40 MINI
LOCKNUT
x 2
HUB CARRIER
LEFT & RIGHT
x 1 EACH
.030 NYLON
WASHER
x 4
BEARING SPACER
x 2
HINGE PIN 1.O6"
(REAR OUTER) x 2
HINGE PIN 2.00"
(REAR INNER) x 2
TITANIUM TURNBUCKLE
2.00" (CAMBER) x 2
THIN AXLE SHIMS
x 2
ROLL PIN
5. THREAD ONE LONG BLACK BALL END INTO THE MIDDLE
HOLE ON THE HUB CARRIER. SECURE IT USING ONE 4-40
MINI LOCK NUT. REFER TO ILLUSTRATION FOR LOCATION.
6. REPEAT FOR THE OPPOSITE ASSEMBLY.
ATTENTION!
STEP 2
1. ALIG N THE REAR A-ARMS BETWEEN THE REAR SUSPENSION MOUNTS.
SLIDE THE REAR INNER HI NGE PINS INTO PLACE AND SECURE THEM
WITH WITH THE 4-40 SET SC R EWS. (APPLY A SMALL AMOUNT OF
THREAD LOCKING COMPOUND)
2. POSITION THE HUB CARRIER ASSEMBLY AS SHOWN AND SLIDE THE
REAR OUTER HINGE PINS PARTIALLY THROUGH THE HUB CARRIERS.
POSITION TWO .030" NYLON WASHERS BEHIND EACH HUB
CARRIER AND CONTINUE TO PUSH THE HINGE PIN THROUGH
THE WASHERS INTO THE A-ARM.
3. CAPTURE THE OUTER HINGE PINS BY INSERTING A 2-56 x 1/8"
BUTTON HEAD SCREW INTO EACH A-ARM.
4. PUT BALL END DUST COVERS ON ALL OF THE REAR
SUSPENSION BALL ENDS.
5. MAKE SURE THE A-ARMS AND HUB CARRIERS PIVOT FREELY.
ATTENTION!
THIS IS A LEFT SIDE ASSEMBLY ILLUSTRATION, NOTE
DIRECTION AND CONFIGURATION OF HUB CARRIER
REAR SUSPENSION ASSEMBLY:
THIS IS A LEFT SIDE ASSEMBLY ILLUSTRATION, NOTE
DIRECTION OF HUB CARRIER AND SUSPENSION ARM
LONG BLACK
BALL END
2-56 x 1/8"
BUTTON HEAD
4-40 x 1/8"
SET SCREW
Page 21

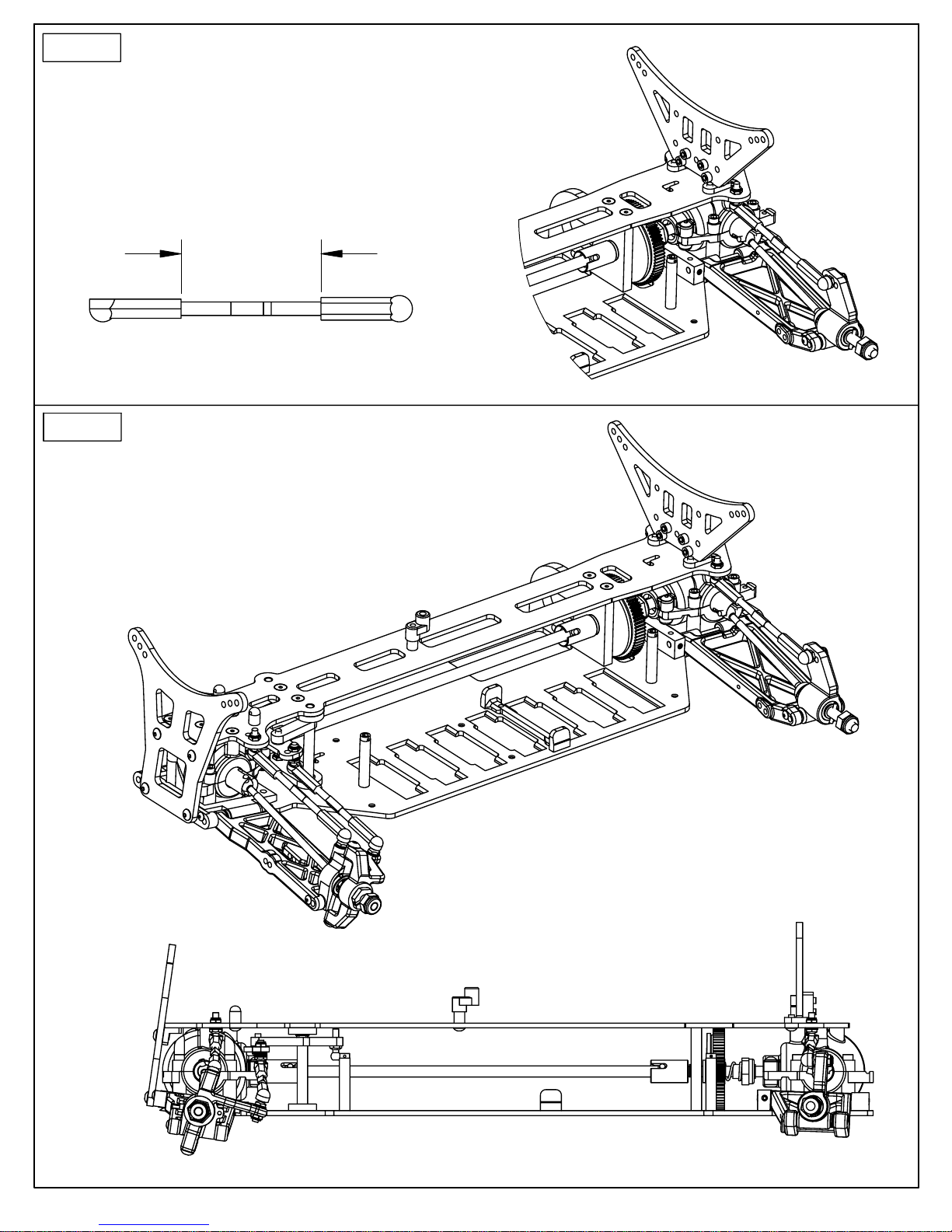

STEP 3

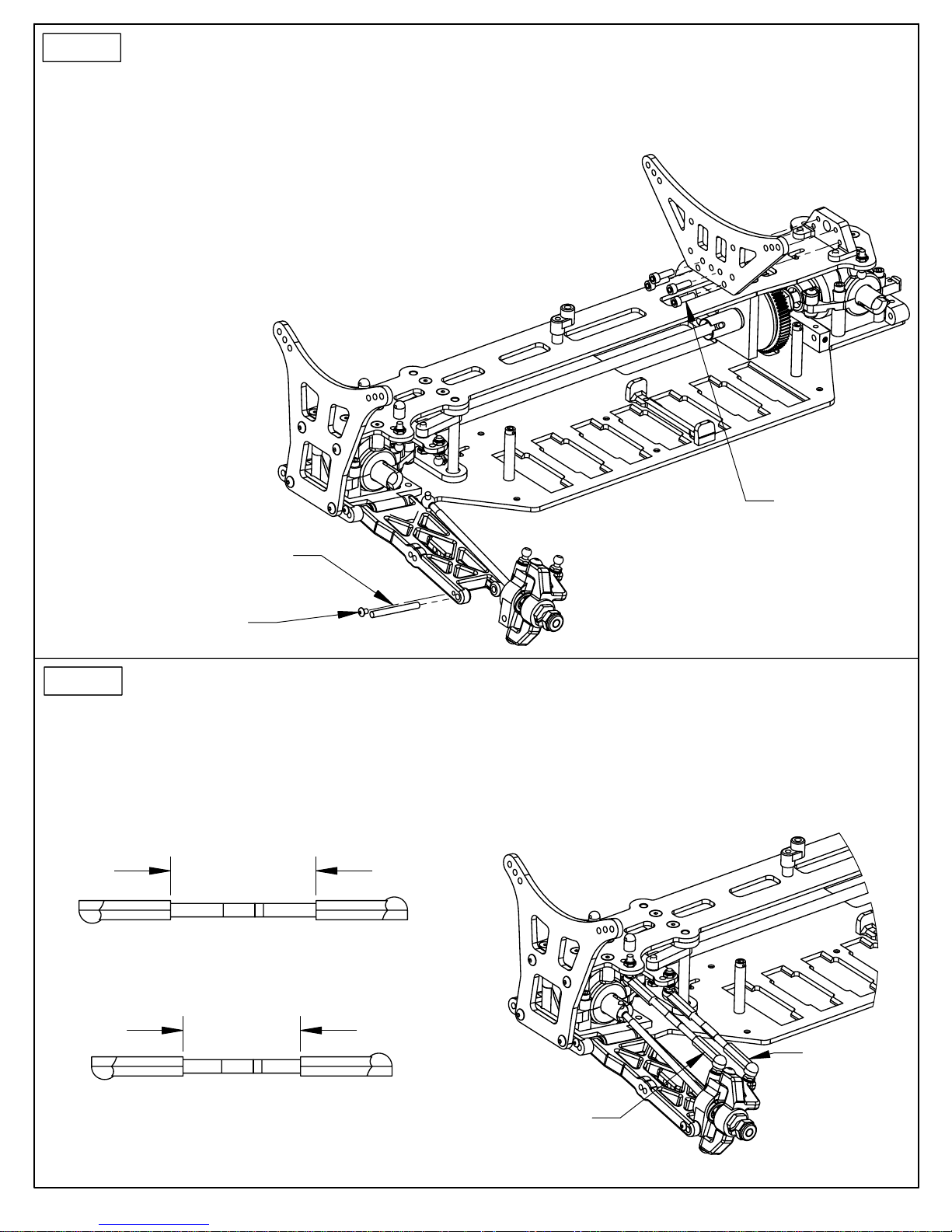

1. TWIST THE BALL CUPS ONTO EACH BLUE TITAN IUM TURN B U CKLE
UNTIL YO U GET THE DIMENSION S HOWN FOR EACH EACH PART.
2. LOCATE THE NOTCH O N EACH TURNBUCKLE AND ROTATE THEM
SO THAT IT IS LOCATED ON THE OUTSIDE OF TH E CAR O N THE
LEFT AND THE INSIDE ON THE RIGHT. SNAP ALL THE REAR
TURNBUCKLES INTO PLACE WHERE SHOWN. MAKE SURE
THAT ALL THE CVD BONE S ARE IN THE SLOTS OF THE
OUTDRIVE HUBS.
REAR TURNBUCKLE ASSEMBLY:
1.25
REAR CAMBER TURNBUCKLE 2.00": x 2
SCALE 1:1
STEP 4
COMPARE SUSPENSION ASSEMBLY
Page 22

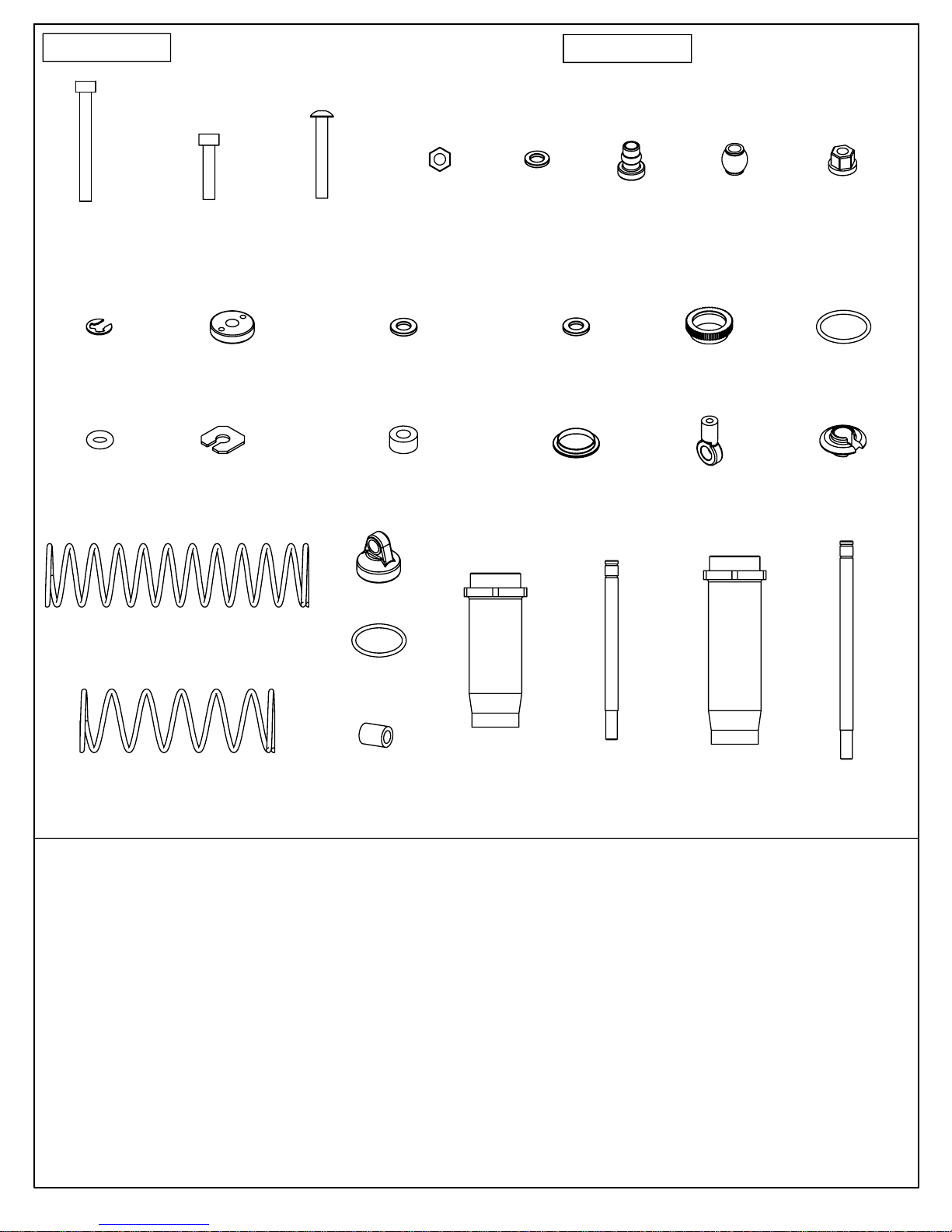

SHOCK BAG
SHOCK COMPONENTS
TOOLS USED
1. 1/16" ALLEN WRENCH
2. 3/32" ALLEN WRENCH
3. MOLDED WRENCH SET
4. HOBBY KNIFE
5. SHOCK TOOL
4-40 x 1"
SOCKET HEAD
x 2
E-CLI P ROLL
x 1
SHOCK O-RING
x 8
REAR SPRING
BLACK
x 2
4-40 x 1/2"
SOCKET HEAD
x 2
SHOCK PISTON
#1, #2, #3 (TREE)
x 1
SHOCK SNAP
RETAINER (TREE)
x 4
4-40 X 3/4"
BUTTON HEAD
x 4
SMALL SHOCK
SPACER (TREE)
x 8
LARGE SHOCK
SPACER (TREE)
x 4
SHOCK CAP
x 4
SHOCK CAP
O-RING
x 4
4-40 PLAIN
NUT
x 4
GOLD
WASHER
x 4
.030" WASHER
TRAVEL LIMITER
x 6
SPRING RETAINER
x 4
SHOCK
BUSHING
x 4
SHOCK PIVOT
BUSHING
x 4
THREAED SHOC K
COLLAR
x 4
SHOCK EYELET
x 4
SHOCK
NUT
x 4
SHOCK COLLAR
O-RING
x 4
SPRING CUP
x 4
FRONT SPRING
SILVER
x 2
A-ARM
SPACER
x 2
FRONT SHOCK
BODY (.89")
x 2
FRONT SHOCK
SHAFT (.89")
x 2
REAR SHOCK
BODY (1.18")
x 2
REAR SHOCK
SHAFT (1.02")
x 2
Page 23
STEP 1

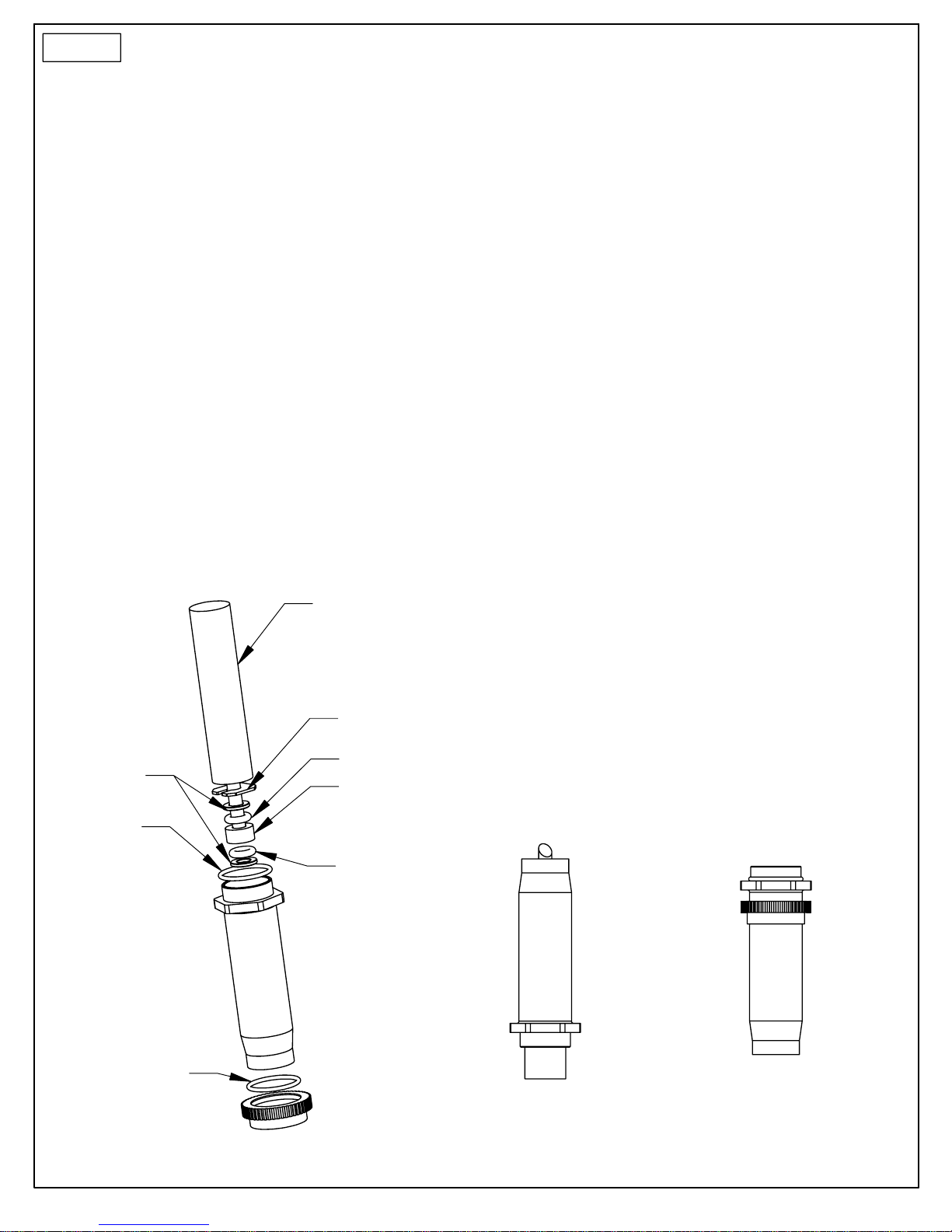

1. BEGIN THE SHOCK ASSEMBLY BY FIRST TRIMMING EACH PART OFF THE SHOCK PARTS TREE.
CAREFULLY TRIM EACH PART FROM THE PARTS TREE SO NO PART OF THE TWO MOLDING
RUNNERS REMAIN. IT IS SAFER TO REMOVE A TINY AMOUNT OF THE PART THAN TO RISK THE
CHANCE OF A BURR REMAINING. SHORT BLADE SCISSORS OR A HOBBY KNIFE WILL WORK FINE.
RUN YOUR FINGER OVER THE EDGES TO FEEL FOR BURRS YOU CANNOT SEE. REMOVE THE ONES
YOU FIND. BURRS CAN KEEP THE PARTS FROM SNAPPING IN CORRECTLY, AND CAN CAUSE
THE SHOCK TO LEAK OR THE SHAFT TO JAM.
2. LOAD THE SHOCK TOOL WITH THE PARTS JUST TRIMMED OFF THE SHOCK PARTS TREE.
LOAD THE SHOCK TOOL IN THIS ORDER:
A. SHOCK SNAP RETAINER
B. SMALL SHOCK SPACER .030"
C. SHOCK O-RING
D. LARGE SHOCK SPACER
E. SHOCK O-RING
F. SMALL SHOCK SPACER .030"
(USE REFERENCE ILLUSTRATION FIGURE A BELOW.)
3. ADD 3-4 DROPS OF THE INCLUDED SHOCK OIL TO THE SHOCK SEAL PARTS WHILE IT IS ON THE
SHOCK TOOL.
4. INSERT THE TOOL TIP INTO THE SHOCK BODY ALL THE WAY. PUSH EASILY UNTIL THE PARTS
SNAP INTO PLACE.
5. CHECK THE TOOL HEIGHT IN FIGURE B AND COMPARE IT TO YOUR ASSEMBLY. IF YOUR SHOCKS
DO NOT SNAP TOGETHER EASILY, CHECK THE PARTS FOR BURRS AGAIN.
6. ADD 1-2 DROPS OF OIL TO THE THREADS ON THE TOP OF THE SHOCK BODY. SLIDE ON THE
SHOCK BODY O-RING. (USE THE BLACK O-RINGS INCLUDED WITH ALL I NNER SHOCK PARTS)
7. INS ERT THE SHOCK COLLAR O-RING INTO THE THREADED SHOCK COLLAR. THREAD ON THE SHOCK COLLAR
ALL THE WAY UP THE SHOCK BODY. (USE THE BLACK O-RINGS PACKAGED WITH THE SHOCK COLLARS.)
8. COMPARE YOUR ASSEMBLY TO FIGURE C.
SHOCK ASSEMBLY: BUILD ALL FOUR SHOCKS USING THIS METHOD
ATTENTION: BUILDING THE SHOCKS IS ONE OF THE MOST IMPORTANT PARTS OF THE KIT ASSEMBLY.
PLEASE READ THROUGH EVERYTHING FIRST BEFORE BEGINNING.
SMALL SHOCK
SPACER
SHOCK BODY
O-RING
SHOCK TOOL
SNAP RETAINER
SHOCK O-RING
LARGE SHOCK
SPACER
SHOCK O-RING
SHOCK COLLAR
O-RING
SHOCK ASSEMBLY
FIGURE A
SHOCK ASSEMBLY
FIGURE B
SHOCK ASSEMBLY
FIGURE C
Page 24

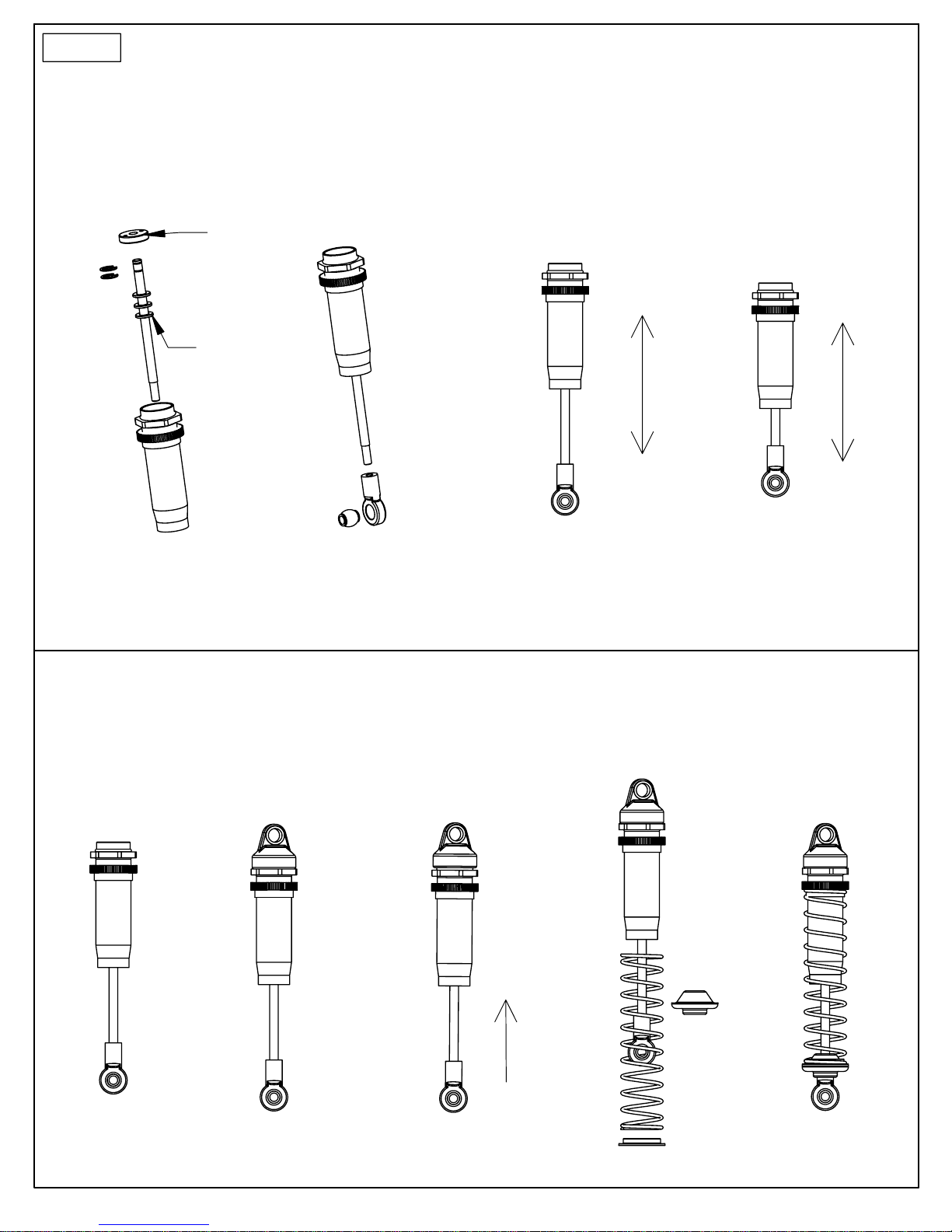

STEP 2
SHOCK ASSEMBLY: BUILD ALL FOUR SHOCKS USING THIS METHOD
ATTENTION: BUILDING THE SHOCKS IS ONE OF THE MOST IMPORTANT PARTS OF THE KIT ASSEMBLY.
PLEASE READ THROUGH EVERYTHING FIRST BEFORE BEGINNING.
1. INSTALL AN E-CLIP ON BOTH
SIDES OF THE SHOCK PISTON.
#3 PISTONS FOR FRONT SHOCKS.
NO LIMITERS
#1 PISTONS FOR REAR SHOCKS.
THREE .030" LIMITERS
# 3 PISTONS IN FRONT
# 1 PISTONS IN REAR
THREE .030" TRAVEL
LIMITERS ON REAR
SHOCK SHAFTS ONLY!
FIGURE A
2. THREAD ON THE SHOCK
EYELET AND SNAP THE PIVOT
BALL INTO THE EYELET.
FIGURE B
3. FILL THE SHOCK HALF WAY WITH
SHOCK OIL AND MOVE THE SHOCK
SHAFT UP AND DOWN A FEW TIMES.
MAKING SURE TO PUSH THE PISTON
PAST HALF WAY A FEW TIMES. AS IN
FIGURE D.
FIGURE C
4. FIGURE D IS SHOWING THE
SHOCK SHAFT AT IT'S HALF WAY
POINT.
FIGURE D
5. NOW FILL THE SHOCK
BODY TO THE TOP OF
THE THREADS WITH THE
SHOCK OIL.
6. THREAD ON THE SHOCK
CAP ALL THE WAY AND
THEN LOOSEN IT A FEW
TURNS. AS SHOWN IN
FIGURE G.
7. NOW PUSH THE SHOCK
SHAFT UP UNTIL IT PUSHES
OUT EXTRA SHOCK OIL IN
THE BODY. TIGH TE N TH E CAP.
NOW WHEN YOU PUSH IN THE
SHOCK IT SHOULD ONLY
REBOUND ABOUT .25". REPE AT
THE BLEEDING PROCESS UNTI L
.25" REBOUND IS ACHIEVED.
8. SLIDE ON THE SHOCK
SPRING THEN SLIDE ON
SRRING RETAINER. SLIDE
ON THE SPRING CUP AND
PUSH DOWN ON TO THE
SHOCK EYELET.
9. THREAD THE SHOCK
COLLAR DOWN UNTIL IT
TOUCHES THE SPRING.
SET THE RIDE HE IGHT
ONCE THE ELECTRICAL
IS MOUNTED IN THE CAR.
FIGURE E
FIGURE F
FIGURE G
FIGURE H
FIGURE I
Page 25
STEP 3

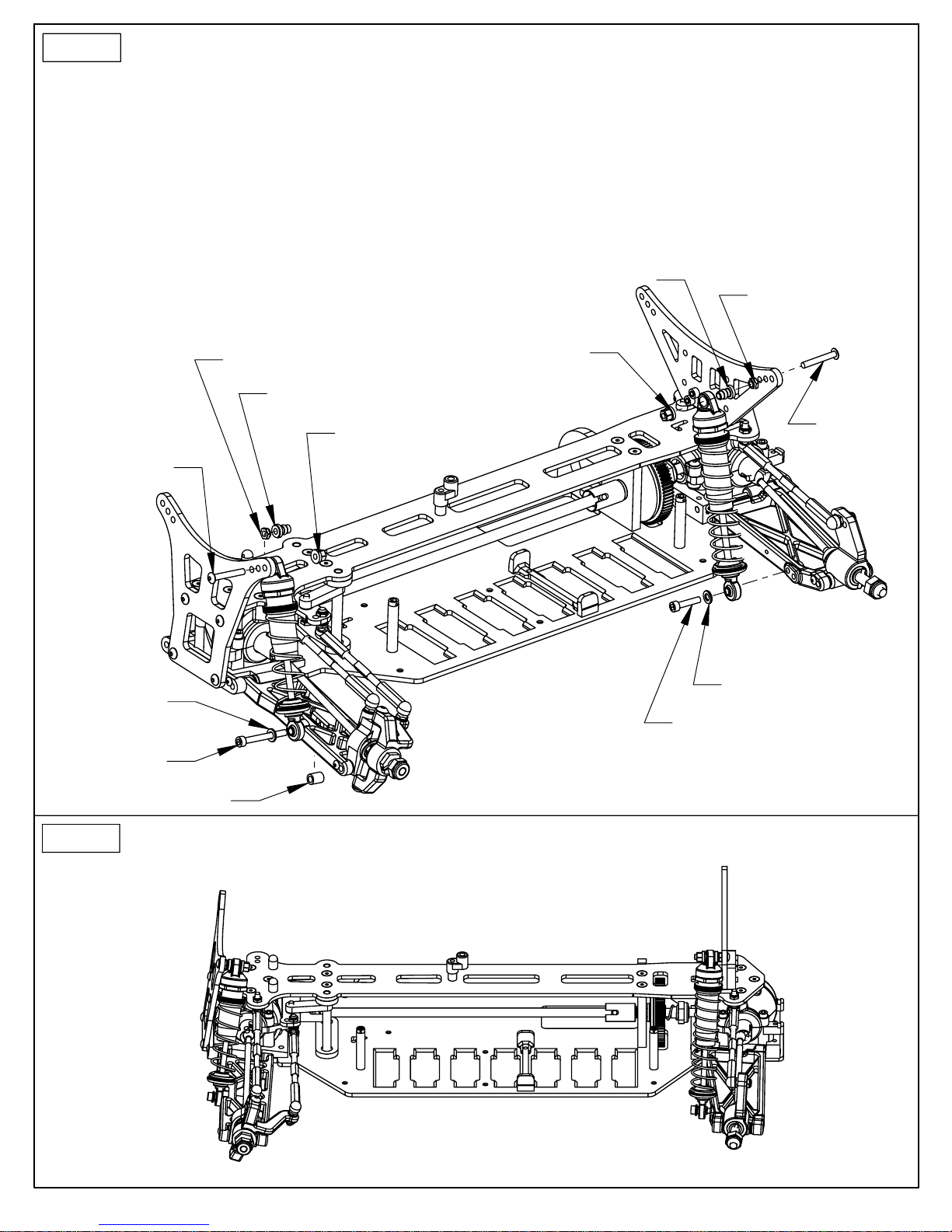

SHOCK MOUNTING:
1. MOUNT THE BOTTOM O F THE FRONT SHOC KS TO THE OUTSIDE HOLES ON TH E F R O NT A-ARMS USING THE
4-40 X 1" SOCKET HEAD SCREWS, WITH A GOLD WASHER ON EACH. MAKE SURE THE A-ARM SPACER IS IN
POSITION ON TH E A-ARM. THE SCREW WILL SHOU LD PASS THROUG H THE SPACER.
2. MOUNT THE BOTTOM O F THE REAR SHOCKS TO THE IN SIDE HOLES ON THE REAR A-ARMS U SING TH E
4-40 X 1/2" SOCKET HEAD SCREWS, WITH A GOLD WASHER ON EACH.
3. SLIDE TH E 4-40 X 3/4" BU TTO N HEAD SCREWS THR O UGH THE MI D D L E HOLES ON THE FRO N T AND REAR
SHOCK TOWERS. S E C URE THE SCREWS WITH THE 4-40 PLAIN NU TS. SLIDE THE S HOCK PIVOTS AND TOP
OF EACH SHOC K ONTO THE SCREWS . S ECURE THE SHOCKS WITH THE PLASTIC S HOCK NUTS.
DO NOT OVER TIG HTEN. ALLOW THE SHOC KS TO PI V O T.
SHOCK PIVOT
4-40 X 3/4"
BUTTON HEAD
x 2
4-40 PLAIN NUT
x 2
SHOCK PIVOT
x 2
SHOCK NUT
x 2
x 2
SHOCK NUT
x 2
4-40 PLAIN NUT
x 2
4-40 X 3/4"
BUTTON HEAD
x 2
GOLD WASHER
x 2
4-40 X 1/2"
SOCKET HEAD
x 2
STEP 4
A-ARM SPACER
x 2
COMPLETED SUSPENSION ASSEMBLY
GOLD WASHER
x2
4-40 x 1/2"
SOCKET HEAD
x 2
Page 26
BAG G
MISCELL ANEOUS COMPONENTS
SHORT
BALL END
x 1
GOLD WASHER
x 6
SERVO HORNS
AIRTRONICS
FUTABA
HI-TEC
JR
x 1 EA
4-40 x 3/8"
SOCKET HEAD
x 1
AE BODY CLIP
x 2
LOSI BODY CLIP
x 5
REAR BODY
MOUNT
x 1
3mm x 10mm
SOCKET HEAD
x 2
SHORT
BALL CUP
x 2
WIN G MOU NTS
x 2
4-40 x 3/8"
BUTTON HEAD
x 8
TITANIUM
TURNBUCKLE
(STEERING)
x 1
WIN G MOU NT
SPACER
x 2
4-40 x 3/8"
SOCKET HEAD
x 2
SERVO MOUNTS
(PARTS TREE)
x 2
FRONT BUMPER
x 1
4-40 x 1/4"
FLAT HEAD
x 2
SERVO MOUNT
SPACERS
(PARTS TREE)
THIC K x 2
THIN x 2
BATTERY
HOLD DOWN
x 1
STEP 1
STEERING TURNBUCKLE ASSEMBLY:
.265
STEERING TURNBUCKLE 1.00": x 1
SCALE 1:1
FOAM BLOCK
x 1
1. TWIST THE BALL C UPS ONTO THE BLUE TITANIUM TURNBU C KLE
UNTIL YOU GET THE DIME N SION SHOWN.
Page 27
STEP 2
MISCELLANEOUS ASSEMBLY:

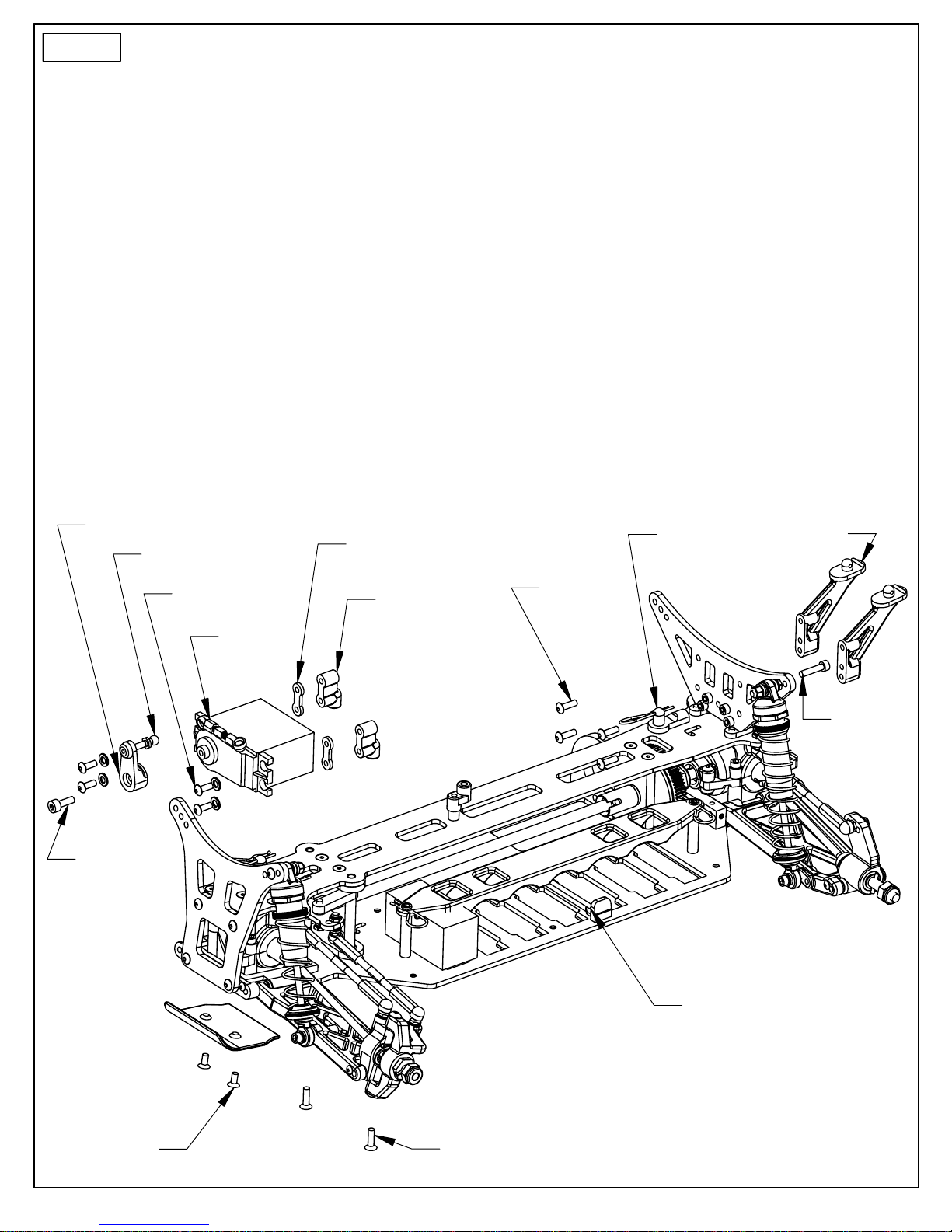

1. ATTACH THE SERVO MOUNTS TO YOUR SERVO BY USING F O UR 4- 40 x 3/8" BUTTON HEAD SCREWS WITH THE GOLD WASHERS
IN PLACE. CHECK THE ALIGNMENT OF YOUR SERVO WITH TH E SUPPLIED MOUNTS. TYPICALLY, AIRTRONICS, JR AND FUTABA
SERVOS WILL USE THE THIN SERVO MOUNT SPACERS IN FRONT OF THE ACTUAL SERVO MOUNTS.
2. INSTALL A SHORT BALL END INTO THE SER VO HORN THAT MATCHES THE BRAND OF YOUR SERVO. ALIGN TH E SPLINES ON THE
SERVO HORN WITH YOUR SERVO AT A VERY SLIGHT ANGLE TOWARD THE CENTER OF THE CAR. PRESS THE SERVO HORN ONTO
THE SERVO. USE THE SCREW THAT WAS SUPPLIED WITH YOUR SERVO TO ATTACH THE SERVO HORN. AFTER ALL THE ELECTRONI CS
ARE INSTALLED, IT MAY BE NECESSARY TO COME BACK AND ALIGN THE ACTUAL CENTER ON THE SERV O.
3. SECURE THE SERVO TO THE CHASSIS BY WITH TWO 4-40 x 3/8" FLAT HEAD SCREWS.
4. PUT THE BALL END DUST COVERS ON THE SERVO HORN AND THE STEERING BELLCRANK BALL ENDS.
5. ATTACH THE ASSEMBLED STEERING TURNBUCKLE TO THE BALL ENDS LOCATED ON THE S ERVO HORN AND STEERING BELLCRANK.
6. INSTALL THE WING MOUNTS USING FOUR 4-40 x 3/8" BUTTON HEAD SCREWS.
7. INSTALL THE REAR BODY MOUNT USING ONE 4-40 x 3/8" SOCKET HEAD SCREW.
8. INSTALL THE CHASSIS TAPE ON THE BOTTOM OF THE CHASSIS . USE THE PHOTOS LOCATED AT THE END OF THE MANUAL FOR
A REFERENCE.
9. INSTALL A PIECE OF THE CHASSIS TAPE TO EACH INSIDE PORTION OF THE BATTERY RETAINER WHERE IT WOULD TOUCH THE
BATTERY PACK.
10. INSTALL THE FRONT BUMPER OVER THE CHASSIS TAPE WITH TWO 4-40 x 1/4" FLAT HEAD SCREWS.
(APPLY A SMALL AMOUNT OF THREAD LOCKING COMPOUND)
11. INSTALL THE BATTERY HOLD DOWN WITH TH E SUPPLIED AE BODY CLIPS.
(THE BATTERY HOLD DOWN CAN ALSO BE SCREWED DOWN WITH WASHERS FOR A MORE SECURE ATTACHMENT)
SERVO HORN
SHORT BALL END
SERVO MOUNT
SCREW
(SUPPLIED WITH
YOUR SERVO)
4-40 x 3/8"
BUTTON HEAD
x 4
STEERING
TURNBUCKLE
THIN SPACER
x 2
SERVO MOUNTS
x 2
4-40 X 3/8"
BUTTON HEAD
x 4
REAR BODY
MOUNT
WING MOUNT
4-40 x 3/8"
SOCKET HEAD
x 1
4-40 x 1/4"
FLAT HEAD
x 2
(APPLY A SMALL AMOUNT OF
THREAD LOCKING COMPOUND)
4-40 x 3/8"
FLAT HEAD
x 2
INSTALL A PIECE OF CHASSIS
TAPE TO THE INSIDE PORTION OF
THE BATTERY RETAINER ON BOTH
SIDES.
Page 28
STEP 3
MISCELLANEOUS ASSEMBLY:
1. INSTALL YOUR MOTOR USING THE 3mm x 10mm SOCKET HEAD SCREWS WITH THE GOLD WASHERS IN PLACE. YOUR
PINON GEAR WILL BE DETERMINED BY YOUR MOTOR SELECTION. THE RECOMMENDEDPINON GEAR FOR A 10x2
MODIFIED MOTOR IS A 17 TOOTH. SET THE GEAR MESH SO THAT THE PINON GEAR AND THE SPUR GEAR ROCK BACK
AND FORTH JUST A SMALL AMOUNT .
2. ATTACH THE REST OF YOUR ELECTRICAL TO THE CHASSIS USING THE INCLUDED SPEED CONTROL AND RECEIVER TAPE.
KEEP IN MIND THAT THE GRAPHITE CHASSIS AND TOP DECK ARE VERY CONDUCTIVE. IT IS RECOMMENED THAT YOU
PUT 2 LAYERS OF SPEED CONTROL AND RECEIVER TAPE UNDER YOUR ELECTRONICS. IT IS ALSO RECOMMENED THAT
A SMALL AMOUNT OF ELECTRICAL TAPE BE PUT BETWEEN THE BATTERY PACK AND THE EXPOSED EDGES OF CHASSIS SLOTS.
ALSO PUT A PIECE OF ELECTRICAL TAPE BETWEEN THE TOP DECK AND THE RECEIVER ANTENNA WIRE. RUN YOUR RECEIVER
ANTENNA WIRE UP THROUGH THE ANTENNA MOUNT AND ANTENNA TUBE. PRESS THE ANTENNA TUBE DOWN INTO THE
MOUNT. INSTALL THE ANTENNA CAP TO HOLD THE ANTENNA WIRE IN PLACE. USE THE PHOTOS LOCATED AT THE END OF
THE MANUAL FOR A REFERENCE.
3. CUT OUT THE ILLUZION WING ALONG THE CUT LINES USING LEXAN SCISSORS. MOUNT THE WING TO THE MOUNTS USING
THE WING MOUNT SPACERS FIRST, THEN THE INCLUDED LARGER STYLE BODY CLIPS (LOSI).
4. MOUNT YOUR 4WD FRONT TIRES OF CHOICE ON THE FRONT WHEELS AND INS TALL THE TIRES AND WHEELS TO THE FRONT
AXLES USING THE THIN 8-32 LOCKNUTS.
5. MOUNT YOUR BUGGY REAR TIRES OF CHOICE ON THE REAR WHEELS AND INSTALL THE TIRES AND WHEELS TO THE REAR
AXLES USING THE STANDARD 8-32 LOCKNUTS.
SPEED CONTROL AND
RECEIVER CAN BE MOUNTED
THE WAY SHOWN, OR FLIPPED
AROUND WITH THE SPEED CONTROL
NEXT TO THE SERVO.

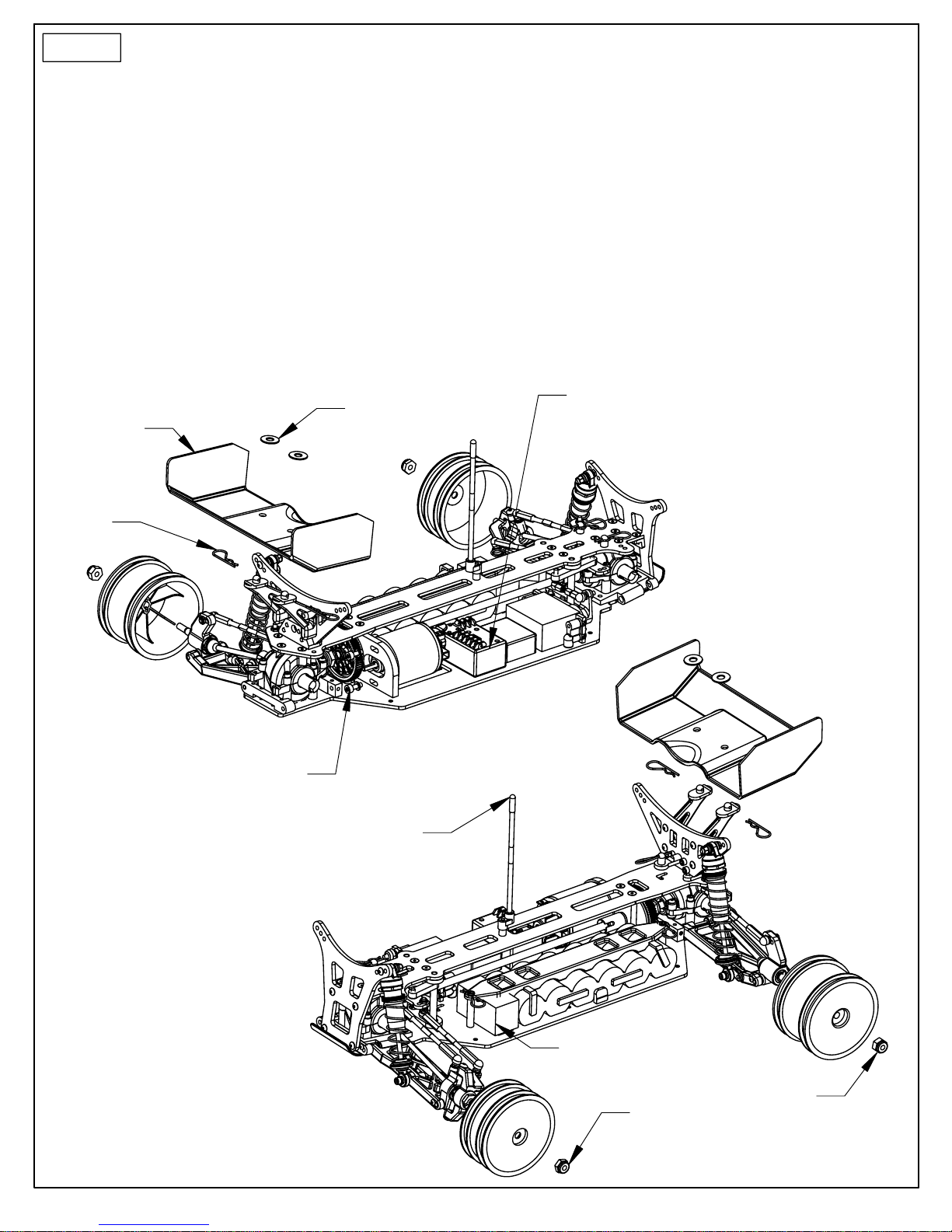

BJ4 ILLUZION WING
WING MOUNT
SPACERS
x 2
LARGE STYLE
BODY CLIPS
(LOSI)
3mm x 10mm
SOCKET HEAD SCREWS
WITH GOLD WASHERS
x 2 EA
ANTENNA TUBE
WITH CAP
FOAM BATTERY SPACER
8-32 THIN
LOCKNUT
8-32 LOCKNUT
Page 29
STEP 4

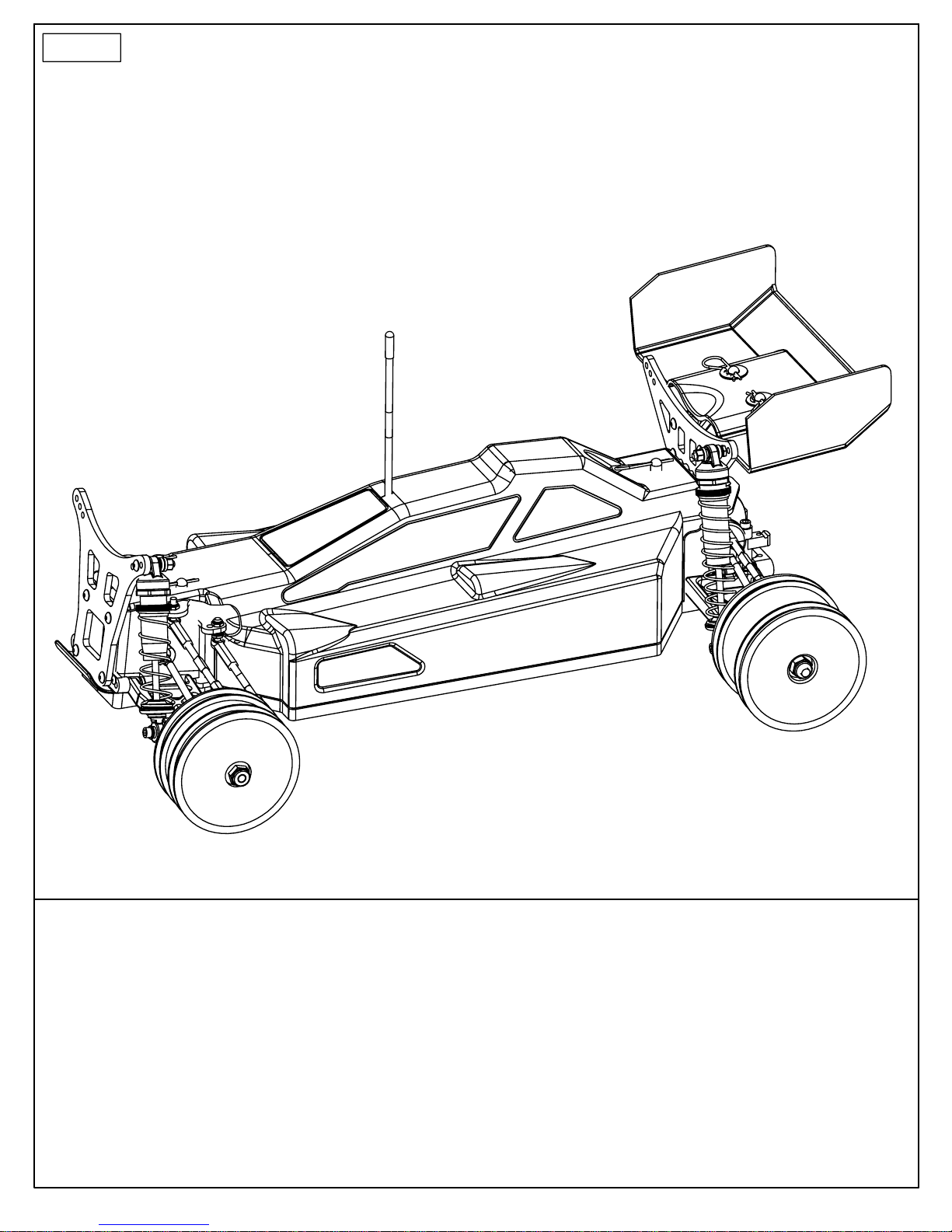

1. CUT OUT THE BJ4 BO D Y ALONG THE CUT LINES USING LEXAN SCISSORS. THEN DRILL OU T THE LOCATION S
FOR THE BODY MOUNTS. MOUNT THE BODY USING THE INCLUDED LARGER STYLE BODY CLIPS (LOSI).
WHEN THE BODY IS CUT OUT, IT HAS THE TENDENC Y TO FLARE OUT. FLEX THE BO D Y AT BOTH ENDS TO HEL P
IT REGAIN ITS NATURAL SHAPE. IT SHOULD FIT CLOSE TO THE SIDES OF THE CHASSIS.
BODY TRIMMING AND COMPLETED ASSEMBLY:
Page 30

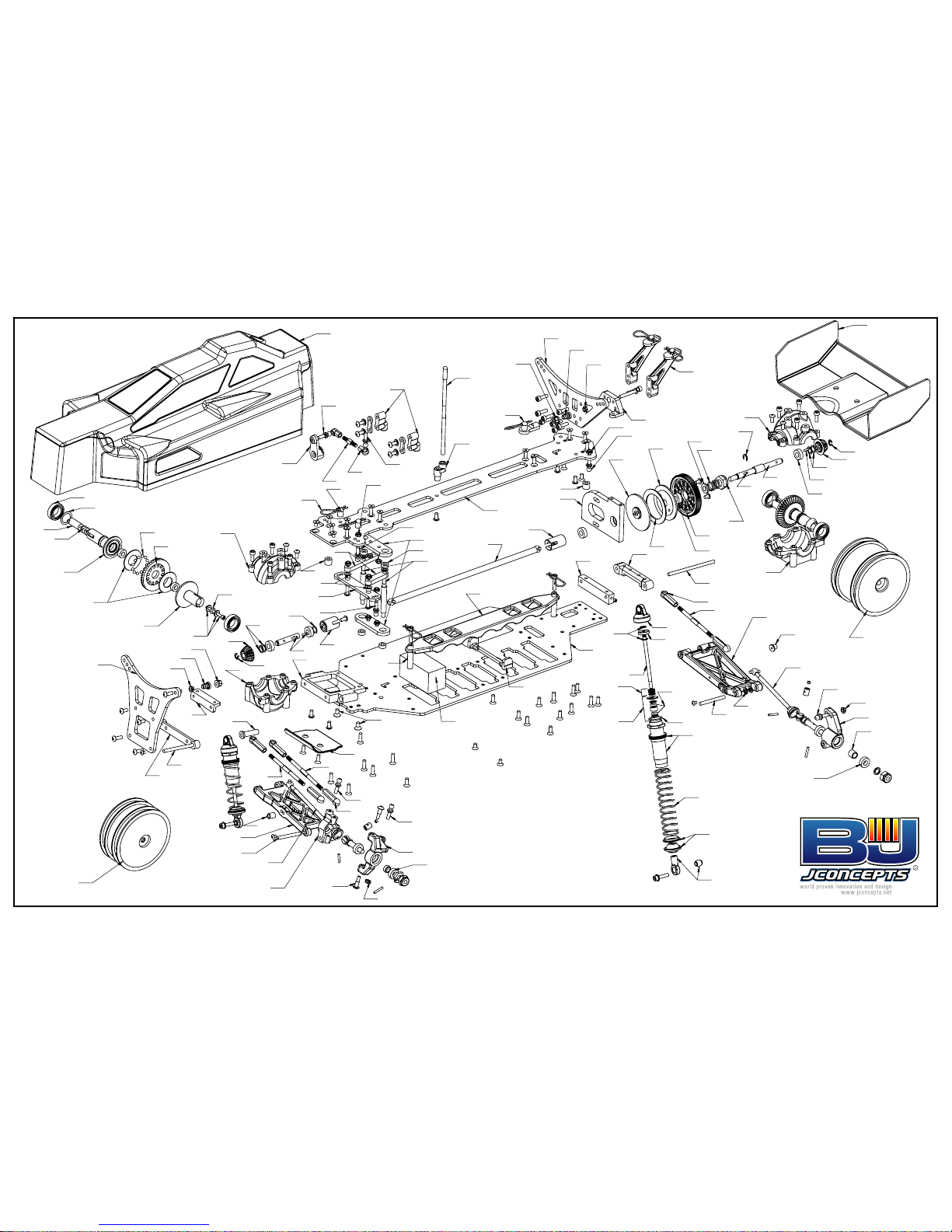

JC 1000
JC 1000SD
JC 1000HD
JC 1001
JC 1002
JC 1003
JC 1005
JC 1006
JC 1007
AE 9589
AE 7217
AE 6475
AE 6481 (black rear)
AE 6496 (sliver front)
AE 9662 (rear)
AE 9312 (front)
AE 6440
AE 5407
AE 6469
AE 6417 (REAR)
AE 6418 (FRONT)
AE 6465
AE 6428
AE 9584
AE 7377
AE 3858
AE 2249
JC 1004
JC 1008
JC 1009
JC 1010L (left)
JC 1010R (right)
JC 1011
JC 1012
JC 1013
JC 1014
JC 1015
JC 1016
JC 1020
JC 1021
JC 1022
JC 1023
JC 1024
JC 1026
JC 1027
JC 1028 (X2)
JC 1029
JC 1030
JC 1030
JC 1031
JC 1032
JC 1033
JC 1034
JC 1037 (MIP CVD complete set)
JC 1036 (MIP CVD complete set)
JC 1035
JC 1038
JC 1038
JC 1039
JC 1039
JC 1040 (left and right)
JC 1043
JC 1035
JC 1042
AE 9620
AE 6473
AE 6472
AE 9562
AE 3853
AE 3937
AE 6585
AE 7230
AE 1406
AE 9620
AE 3922
AE 6273
JC 1035
AE 6473
AE 6472
AE 6338
AE 7336
AE 9170
AE 1410
AE 6271
AE 6271
JC 1035
AE 6273
AE 6273
AE 7323
AE 6271
AE 6271
AE 1406
AE 1404
AE 7230
AE 4187
AE 4187
AE 3919
AE 3919
AE 3919
AE 3911
AE 3919
AE 3914
AE 6599
AE 2328
AE 2331
AE 3914
AE 6581
AE 2328
AE 6582
AE 2330
AE 3911
AE 6574
AE 6573
AE 3917
AE 3911
AE 3911
AE 3911
AE 3914
AE 3919
AE 3919
JC 1035
TL A-7046
TL A-1216
TL A-6235
JC 1035
TL A-4221
TL A-4221
TL A-4221
TL A-4221
TL A-3124
AE 9180
AE 3848
3/16 x 3/8
3/16 x 3/8
3/8 x 5/8
3/16 x 3/8
1/8 X 1/4
Page 31

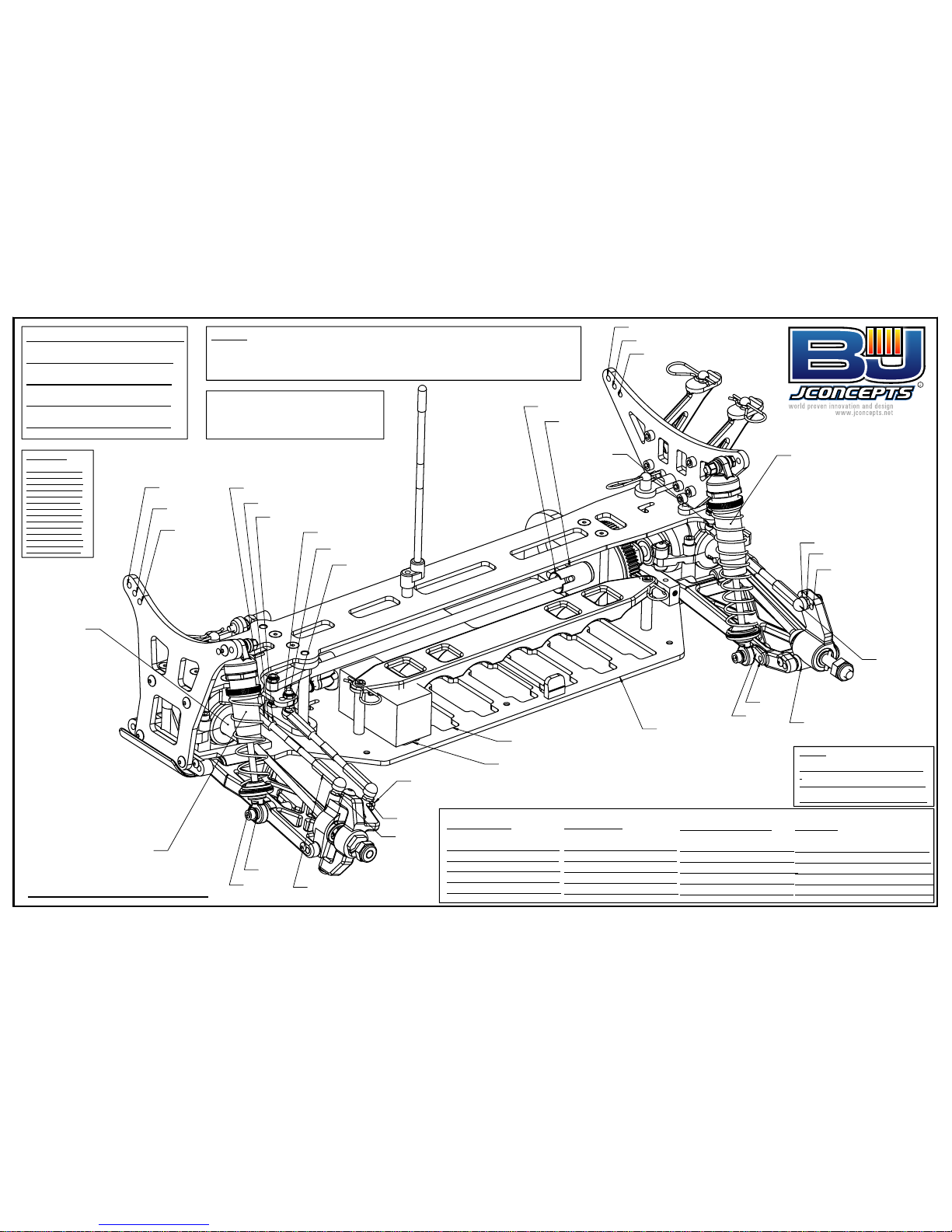

3:_______
2:_______
1:_______
A:______
B:_____
C:_____
1:_____
2:____
WASHERS:____
WASHERS:____
BATTERY POSITION BACK:____
BATTERY POSITION FORWARD:____
PISTON:________
LIMITING:______
SHAFT:________
OIL:___________
SPRING:_______
PISTON:_____
LIMITING:_____
SHAFT:_______
OIL:__________
SPRING:______
1:____
2:____
STEERING RACK(FORWARD):____
STEERING RACK (BACK):____
WASHERS:____
ONE-WAY:_____
DIRECT:_____
BJ4 LENGTH:
STANDARD:_____
SHORT:________
ONE-WAY:_____
DIFF:__________
3:_____
2:_____
1:_____
WASHERS:_____
A (INSIDE):_____
B (OUTSIDE):_____
WASHERS:_____
J-CONCEPTS BJ4 SET-UP SHEET:
DRIVER:
DATE:
TRACK/CITY:
EVENT:
FRONT TIRES:
FRONT:
INSERT:
WHEEL:
COMPOUND:
ADDITIVE:
REAR TIRES:
REAR:
INSERT:
WHEEL:
COMPOUND:
ADDITIVE:
RADIO/BATTERIES:
RADIO:
SERVO:
ESC:
ESC (SETTING):
BATTERIES:
MOTOR:
MOTOR:
WIND:
BRUSHES:
SPRINGS:
PINON/SPUR:
NOTES:
CONDITIONS:
SMOOTH:
BUMPY:
LOW TRACTION:
MED TRACTION:
HIGH TRACTION:
WET:
DRY:
SANDY:
SOFT DIRT:
GRASS:
BLUE GROOVE:
CLAY:
DUSTY:
OTHER:
WWW.JCONCEPTS.NET
CAMBER:_______
WHEELBASE:
LONG:________
MED:_________
SHORT:________
CAMBER:_____
TOE-IN(+)/ OUT(-)_______
OTHER:
BODY:
WING:
EXTRA CHASSIS WEIGHT:_____
Page 32
Loading...
