jcmtechnologies
user manual
KEEROLL KIT
KEEROLL + RSENS3 TGL868 + 2 MUV
EN
KEEROLL
jcmtechnologies
2
Introduction 3
General description 3
RadioSens3 System description 5
Installation 6
Control panel fixations 6
Connections 8
Configuration / Starting up 10
Options selection 10
Programming 11
Transmitter programming 11
Safety elements programming 11
Manoeuvre programming 12
Verification 13
Verify that the control panel is working properly 13
Communication’s quality 13
Impact detection adjustment 13
Maintenance 14
Fuse replacement 15
Battery replacement of RadioSens3 transmitter 15
Use of the system 15
Troubleshooting 16
Troubleshooting 16
Technical Data 17
Electrical parameters 17
Radio transmitters frequency parameters 17
Radio safety elements frequency parameters 17
Notes 18
Regulatory Data 20
Safety instructions for installation 20
Safety instructions for the use 20
EC Declaration of Conformity 20
KEEROLL
3
Introduction

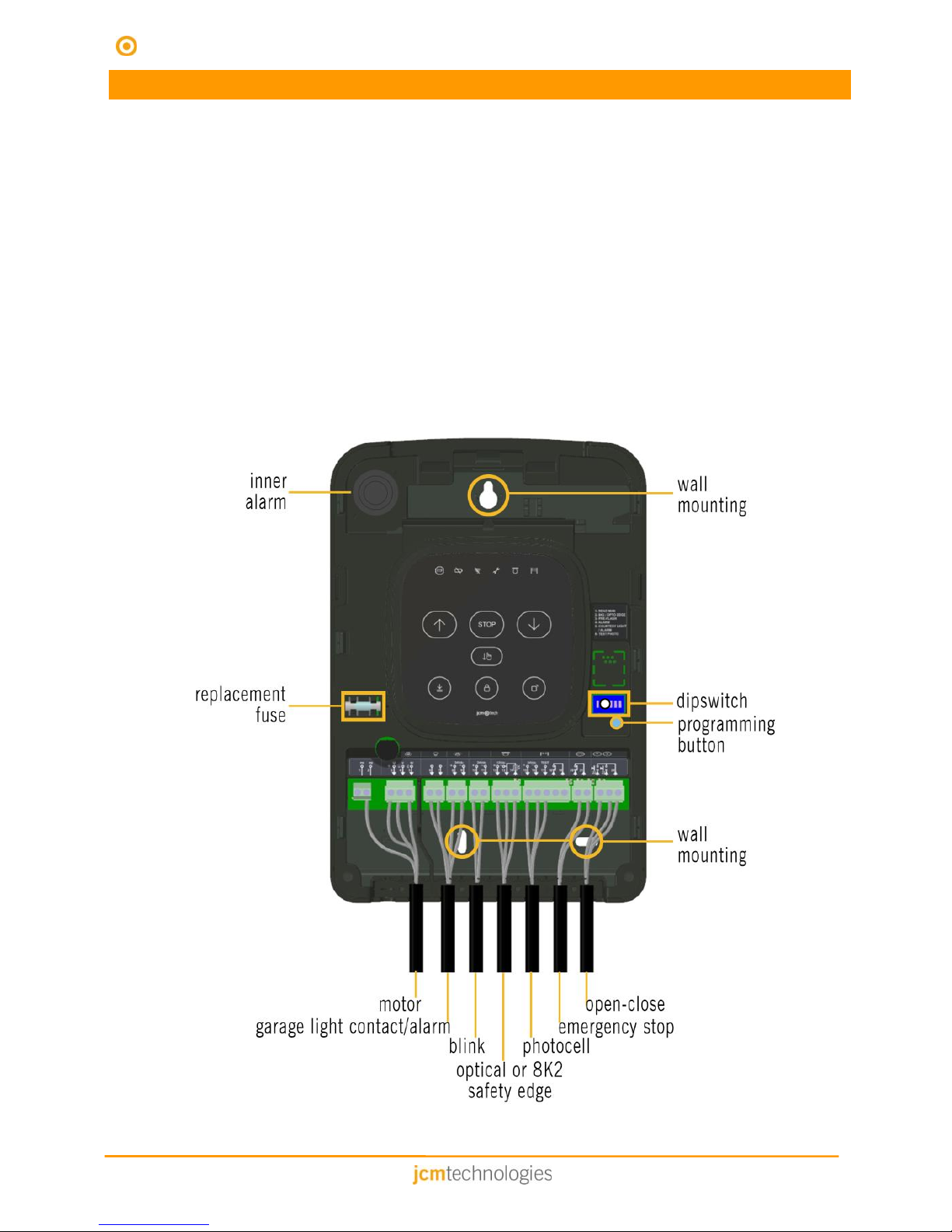

General description
Designed for residential aluminium roller shutters, the KEEROLL solution, together with the RadioSens3
system, has direct communication with the user and the installer.
Its capacitive front with illuminated keys provides comfort and security. The door can be opened and
closed by any person without the need for technical know-how. The installer requires no initial training
in the product.
The control panel incorporates the most advanced system for detecting obstacles via radio, without
wires. With the RadioSens3 system you can forget about fitting a safety edge. You only need to fit the
transmitter onto the last slat of the door to comply with all safety regulations. It's clean, quick and
straightforward.
In addition, the system includes two smart-looking pocket transmitters that allow you to open the door
from your car.
The system complies with standard EN ISO 13849-1: 2008, category 2, PLd.
KEEROLL
jcmtechnologies
4

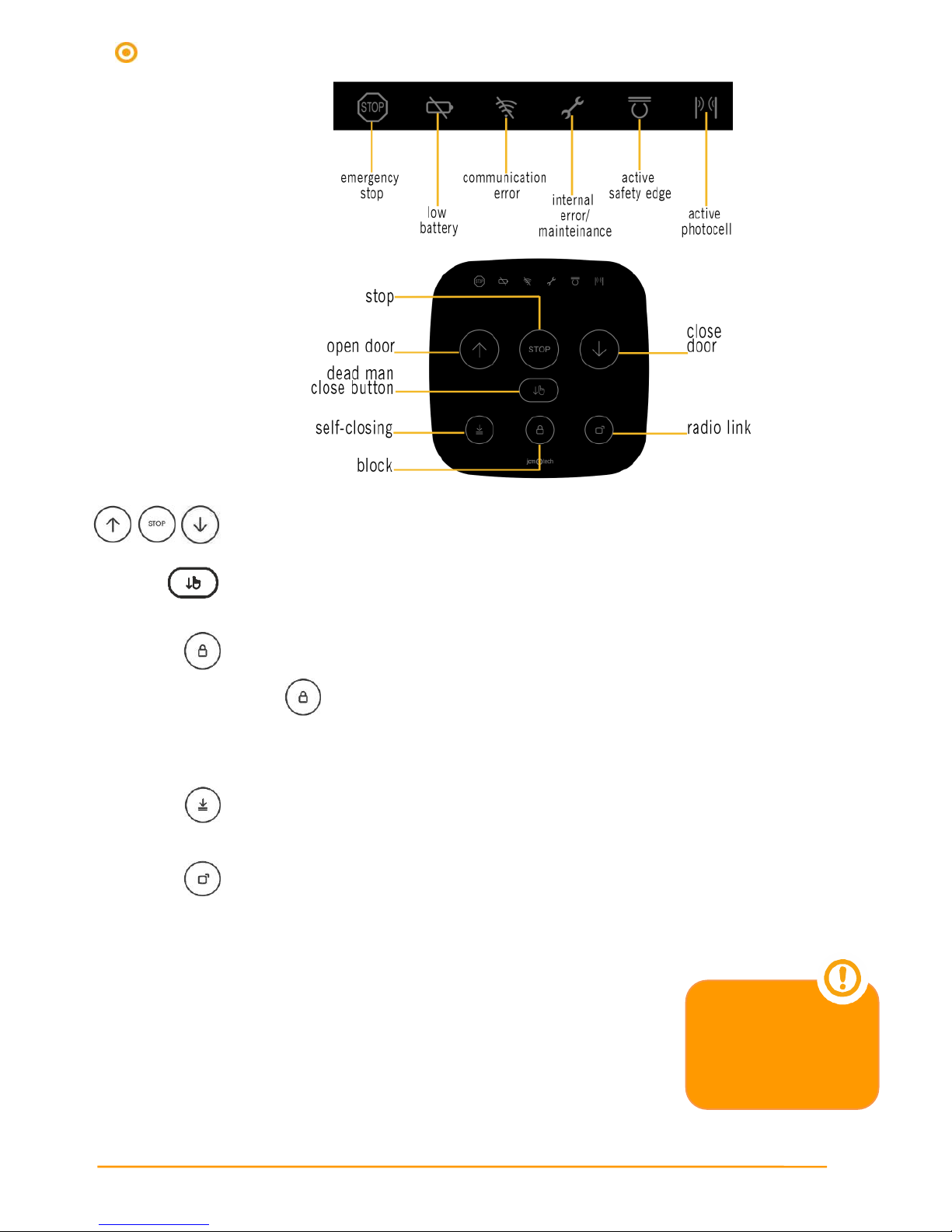

Indicators
Actions
Press to open, stop and close the door.
Press to close the door in dead man mode.
Block function: KEEROLL control panel incorporates a block button on the cover to
prevent the door from being opened accidentally.
Press to block the door, key lights ON.
The control panel will not be able to move the door neither to receive any transmitter.
Useful function to block the door during the night.
Adjust self-closing time: The user can set the desired time to leave the door open
simply by pressing a button on the cover.
New transmitters: The user can program new transmitters simply by pressing a
button on the cover (deleting transmitters is an action that is only allowed in installer
mode).
Alarm function: With the ALARM accessory it is possible to detect unwanted
openings of the door (robbery), enabling the control panel’s
sound alarm to be activated, or even connecting it to the
alarm system already present in the home.
Dipswitch 4 at ON. With door totally closed, if someone
tries to move it manually, the alarm will be activated.
To stop the alarm, press any button of a programmed transmitter.
ALARM device is
necessary to
activate this
function
KEEROLL
5

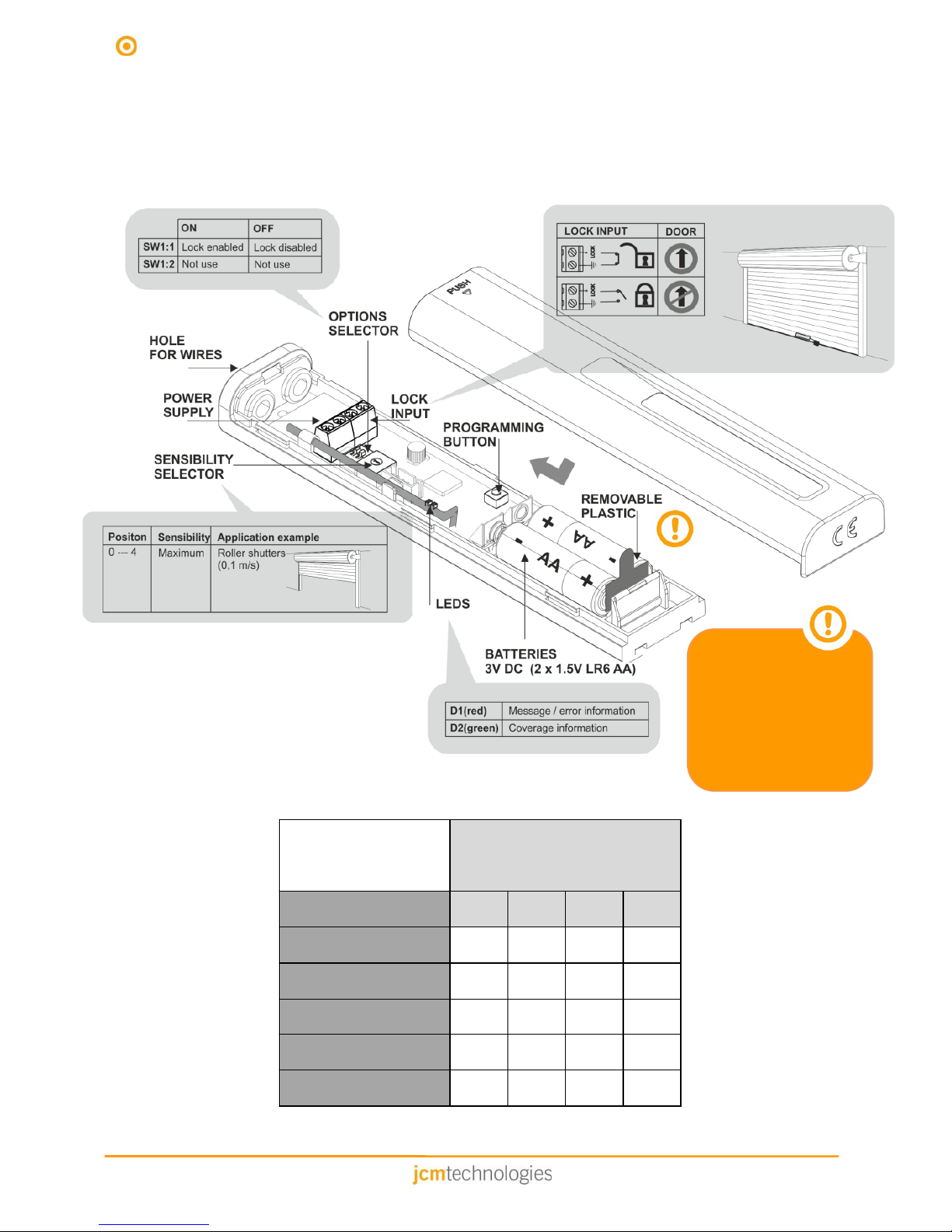

RadioSens3 System description
RadioSens3 is an impact detection system installed at the last slat of the roller shutter. It detects the
obstacle and reopens without causing any damage.
The communication system between the RS3 T868 and the KEEROLL is permanently monitored (twoway link via radio)
Battery life
Table
Battery life in days
Manoeuvres / day
Manoeuvre time (s)
25
10 5 4
10
320
410
440
450
15
275
375
425
435
20
250
350
410
420
25
220
325
385
410
30
200
300
375
390
Options and
sensibility selectors
must be set before
programming. Any
later change will
have no effect.
(guide values, with alkaline batteries and at an ambient temperature of 25ºC)
KEEROLL
jcmtechnologies
6
Installation

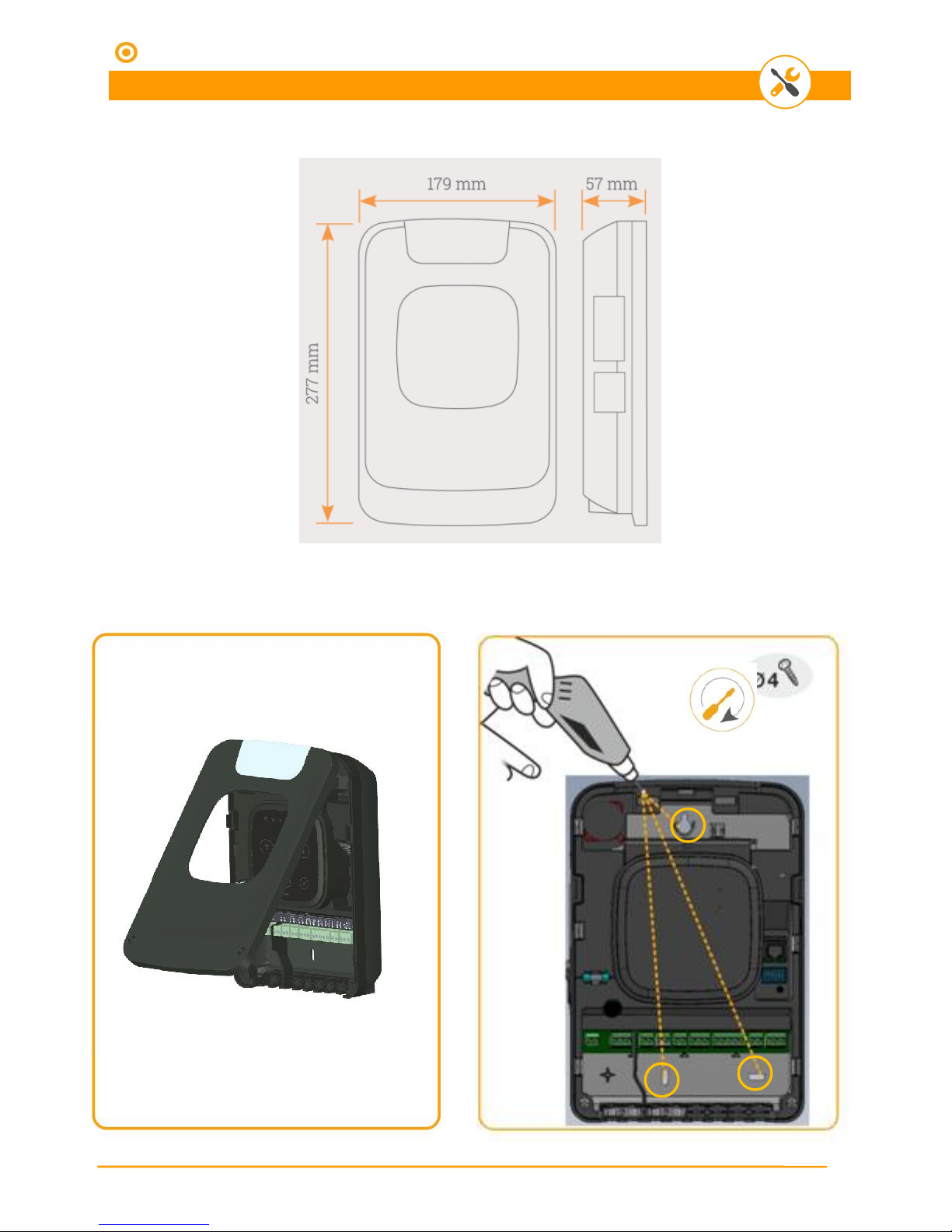

Control panel fixations
Remove the front cover of the control panel. Install the bottom part on the wall in a vertical position, at
least 1,5 meters over the ground and in accordance with the assembly instructions below.
1st
2nd
2nd
KEEROLL
7

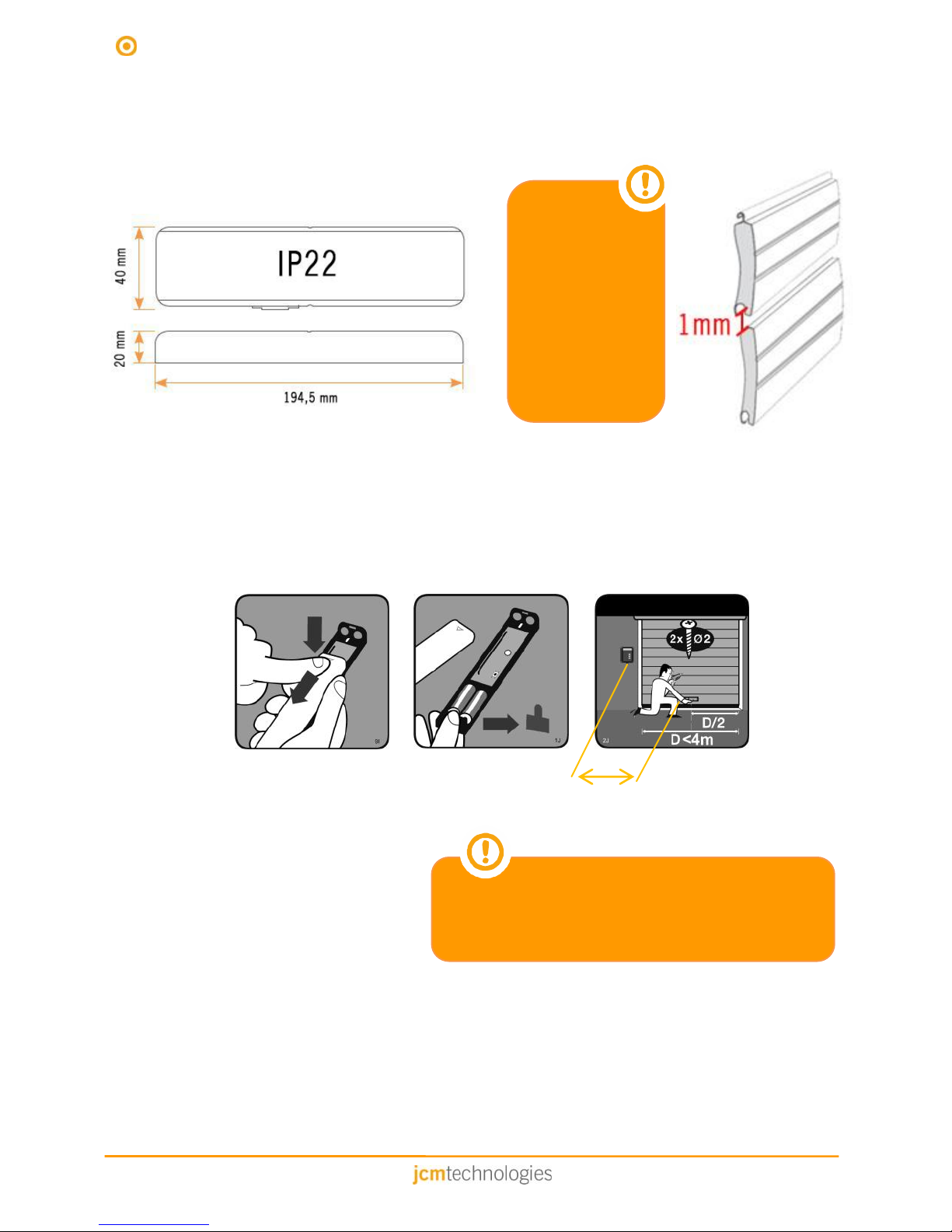

RadioSens3 fixations
Install the transmitter in horizontal position, at the middle of the last slat. Avoid placing metallic
surfaces between the receiver and the transmitter.
Control panel detects automatically the limit switches in the tubular motor. An adjustment of the limit
switches before RadioSens3 installation is requested.
SWIPE TO OPEN COVER REMOVE COVER DRILL DOOR
Maximum width of the door: 4 m
Recommended door speed: 0.1m/s or higher
(and 17 rpm motors).
<10m
The last
slat must
have a
tolerance of
minimum
1mm of
movement.
KEEROLL
jcmtechnologies
8

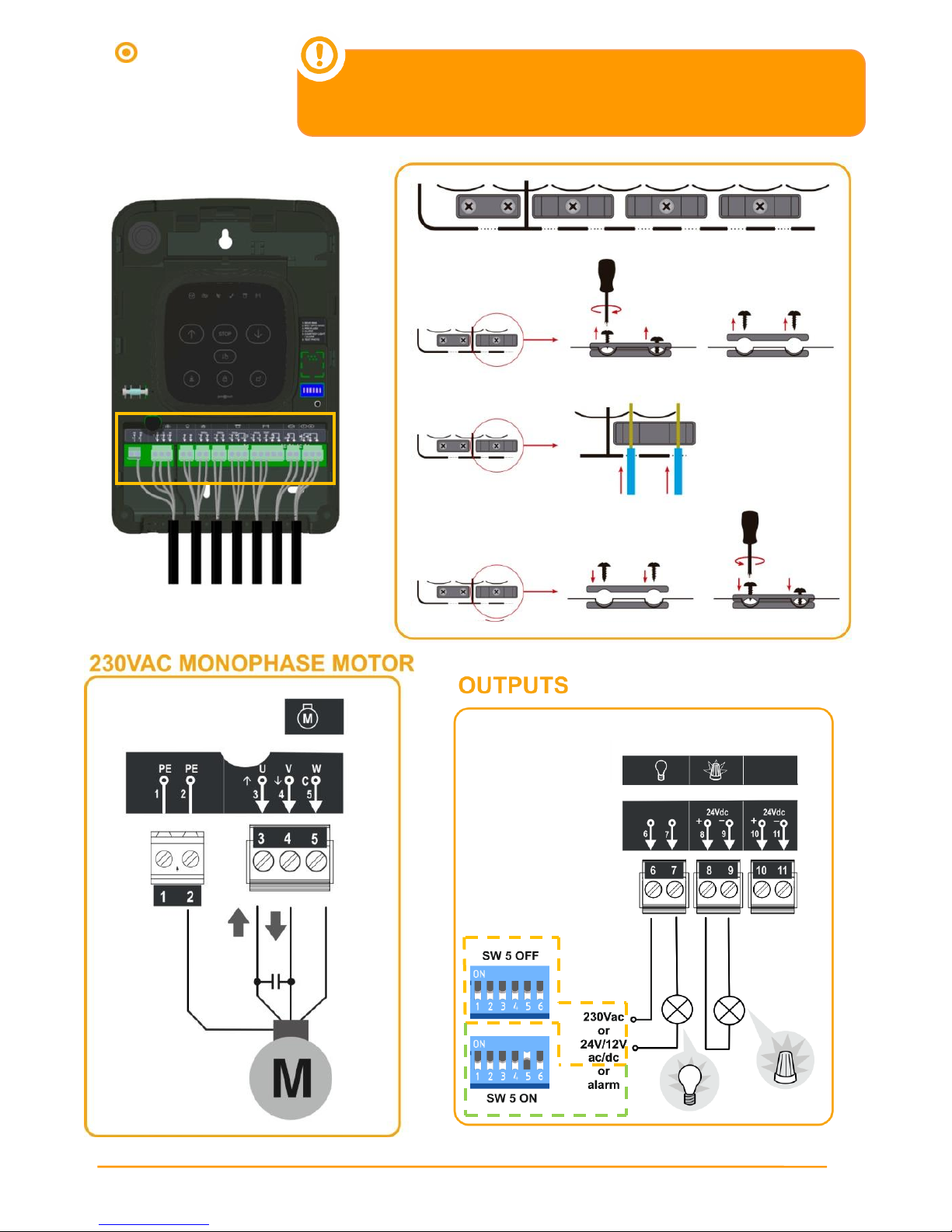

Connections
To prevent electric shocks, the equipment must be
disconnected from the power supply and all the electrical
connections.

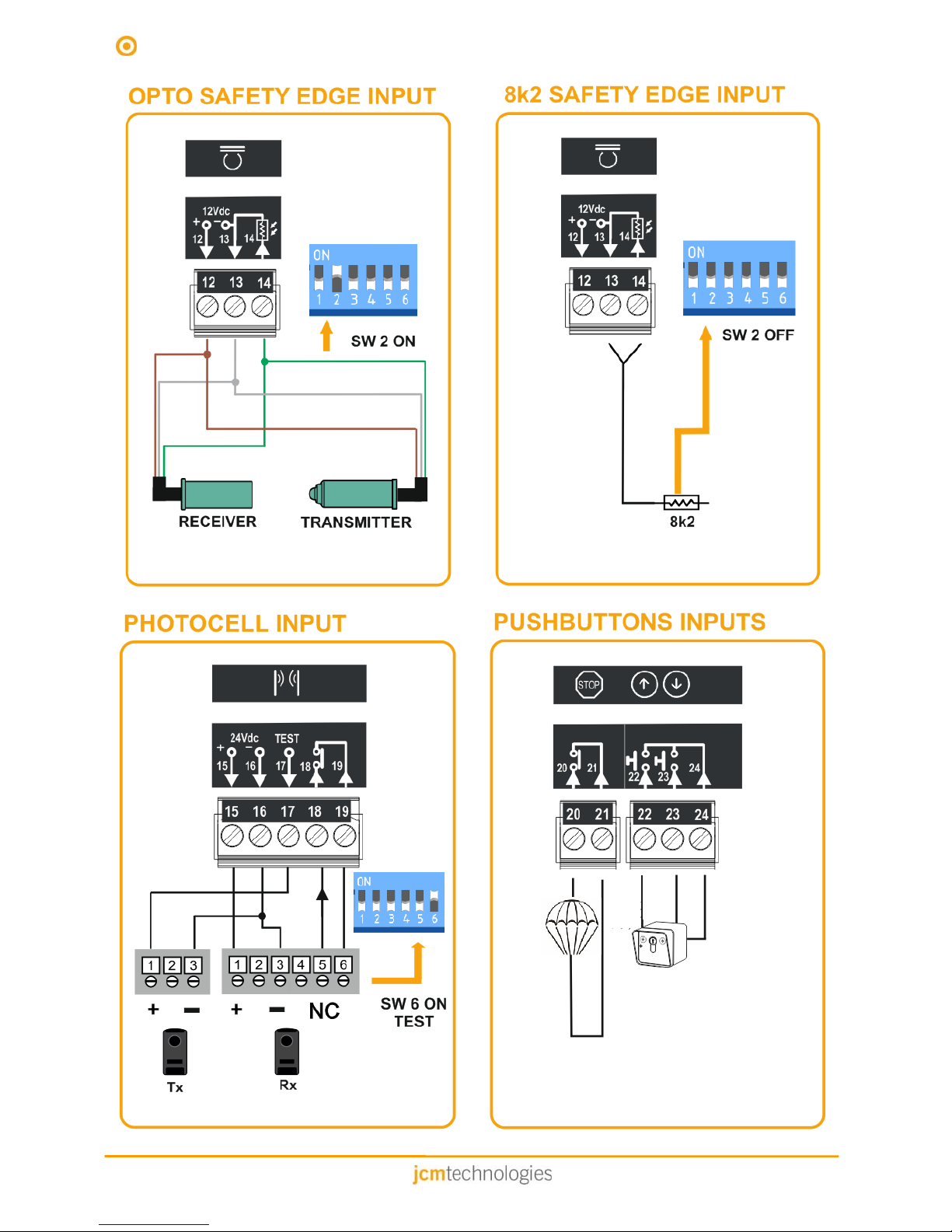

KEEROLL
9
KEEROLL
jcmtechnologies
10

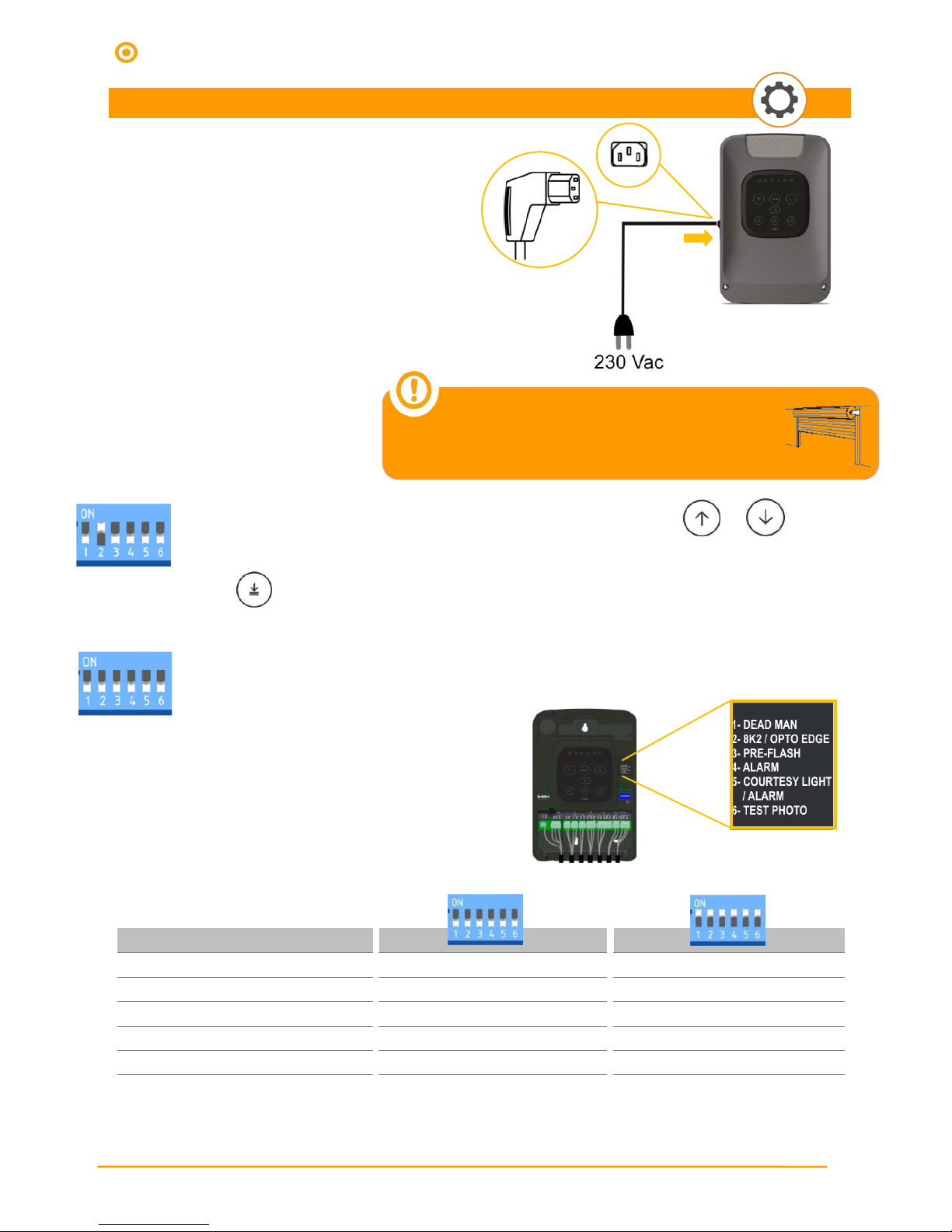

Configuration / Starting up
Connect the power supply
Adjusting limit switch
Dipswitch 1 at ON. Door will move in dead man mode. Keep pressed or to move
up and down the door.
Press , to change the phase of the motor in case the door is not moving in the proper
sense.
Dipswitch 1 at OFF to exit dead man mode.
Options selection
Dipswitch function
OFF
ON
1- DEADMAN
Normal operation
Dead man operation
2- SAFETY EDGE WIRED
8K2 safety edge connection
Optical safety edge connection
3- PRE-FLASH
Pre-flash disabled
3s pre-flash enabled
4- ALARM* (detector needed)
Alarm function disabled
Alarm function enabled
5- COURTESY LIGHT / ALARM
Courtesy light output
External alarm output
6- TEST PHOTO
Test photocell disabled
Test photocell enabled
* Optional alarm. JCM can provide you the alarm detector (optional)
Door MUST BE AT HALFWAY position before
starting the limit switch adjusting
KEEROLL
11
Start
Courtesy
light
Programming

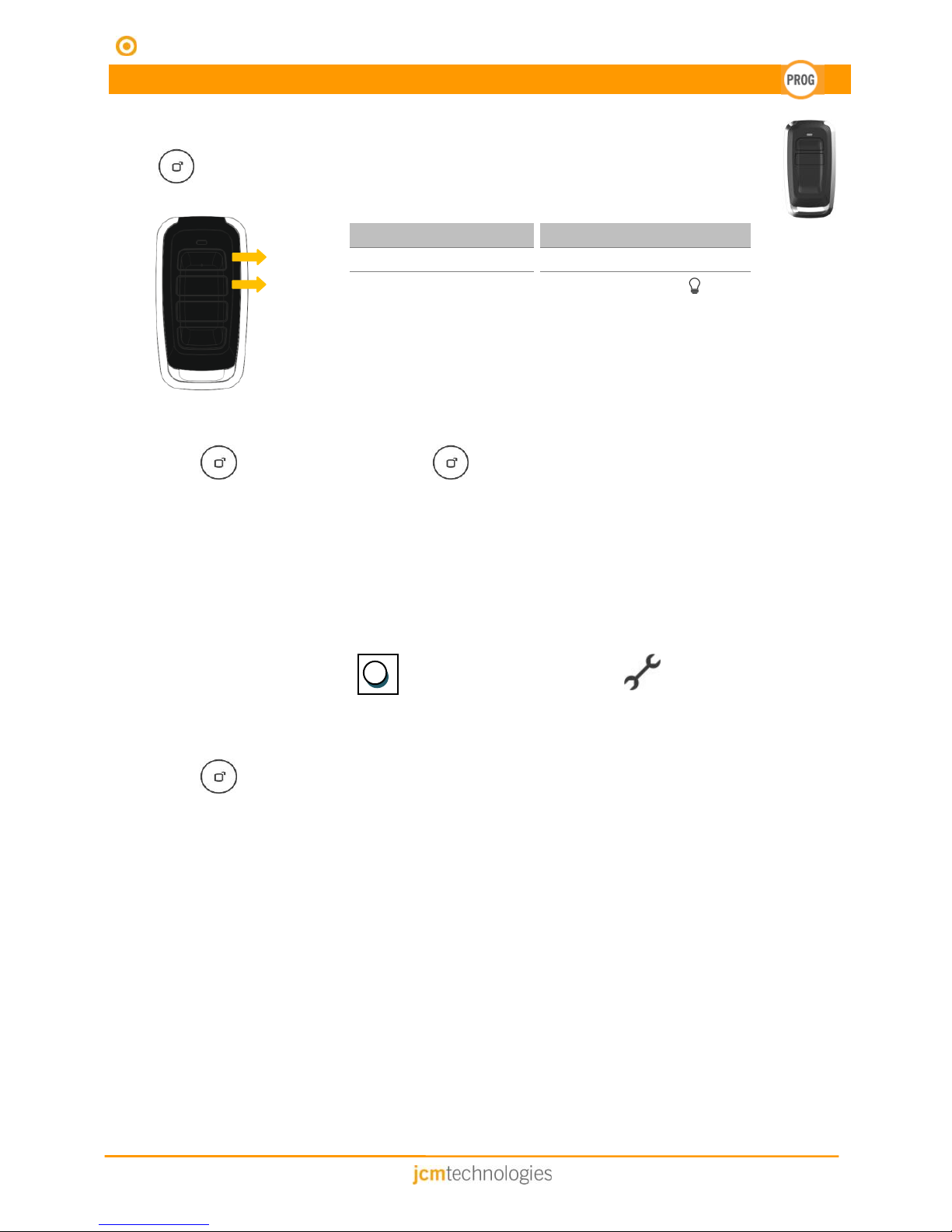

Transmitter programming
Press , button lights ON, a beep will be heard.
Press each transmitter button to be programmed, a beep will be heard each time a
transmitter is programmed.
Press again to exit radio programming, lights OFF and two beeps will be heard.
Safety elements programming
Enter Installer mode Press , the maintenance indicator lights ON, a beep will be
heard.
Press the PROG button of RadioSens3, a beep will be heard once it is programmed.
Press again to exit Installer mode, key lights OFF and two beeps will be heard.
Button
Function
1st
Open-stop / Close-open
2nd
Courtesy light
KEEROLL
jcmtechnologies
12

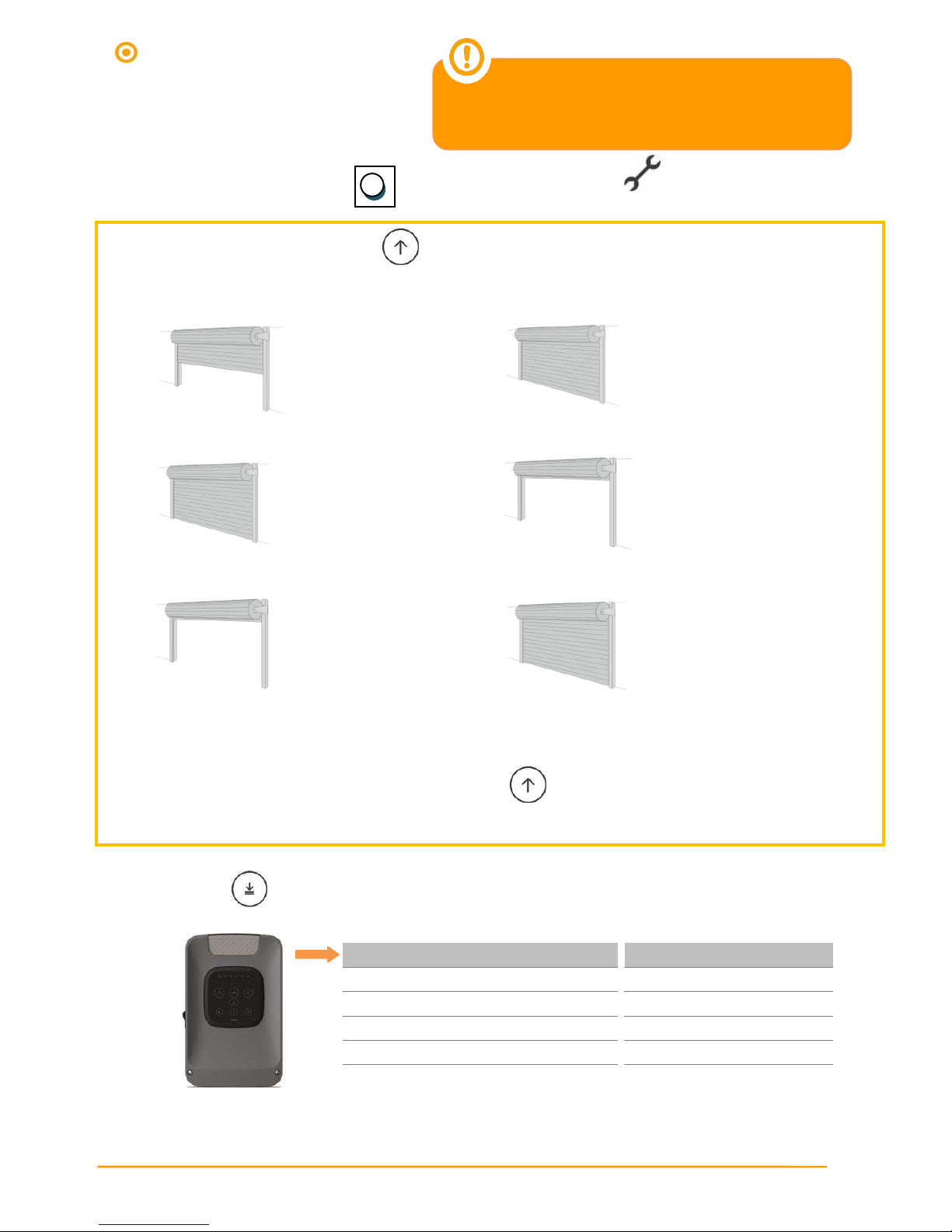

Manoeuvre programming
Enter Installer mode Press , the maintenance indicator lights ON, a beep will be
heard.
With the door totally closed, press and the control panel will initiate and auto-programming
sequence:
By default, RadioSens3 system adds an inhibition zone of maximum 4cm at the end of the closing movement.
It is possible to change the inhibition zone pushing on when the door is closing on step 6. From
this point, RadioSens3 will be inhibited.
Keep pressing the times needed to change the self-closing time (with door totally closed).
Frontal light
Indication
fast flash
OFF
1 flash
OPEN 1 minute
2 flashes
OPEN 5 minutes
3 flashes
OPEN 10 minutes
the door opens slightly;
the door closes to the
lower limit switch;
the door closes until
finding the lower
immediately after, the
door opens again to
the upper limit
switch;
the door opens to the
upper limit switch.
and then closes to the
lower limit switch.
Door MUST BE TOTALLY CLOSED before
starting the manoeuvre programming.
1.
2.
3.
4.
5.
6.
KEEROLL
13

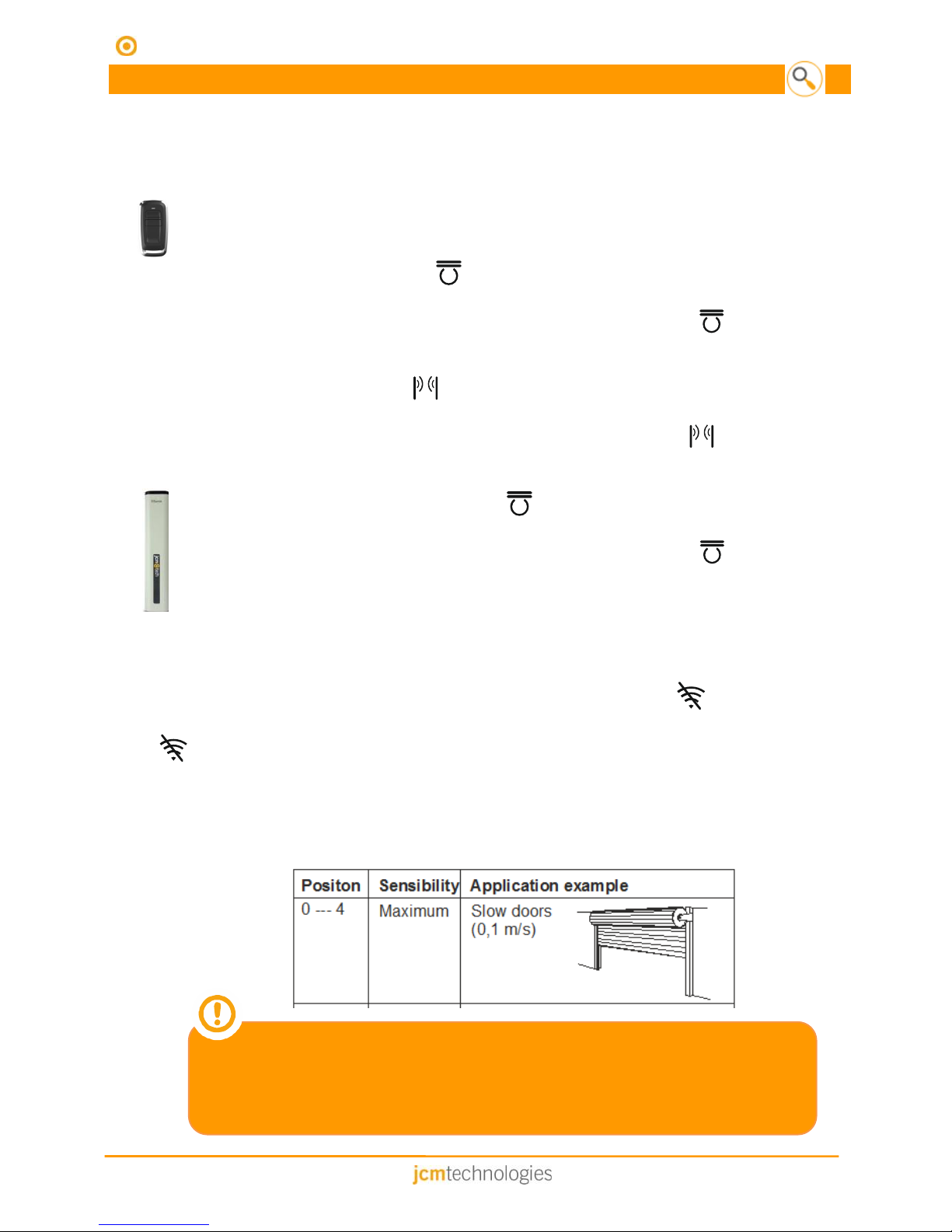

Verification
Verify that the control panel is working properly
Once the control panel is correctly wired and programmed, check that all the system is working
properly.
Transmitter Press the transmitter button and check that the door opens. Press again, and
check that the door stops/closes.
Safety edge Check that the led is at OFF.
If you activate the safety edge when the door is closing, the led will pass at ON,
indicating the activation of the safety edge.
Photocell Check that the led is at OFF.
If you activate the photocell when the door is closing, the led will pass at ON,
indicating the activation of the photocell.
RadioSens3 system Check that the led is at OFF.
If you activate the RadioSens3 when the door is closing, the led will pass at ON,
indicating the activation of the safety element.
Communication’s quality
To ensure that the radio communication is good enough, check that the led is at OFF.
If is permanently activated, please check RadioSens3.
Impact detection adjustment
To adjust the impact detection of the RadioSens3 system, change the sensibility selector between 0
and 4.
If the position of the sensibility selector is changed, it is necessary to
reprogram the RadioSens3 transmitter on control panel as safety
elements programming (not the manoeuvre).
KEEROLL
jcmtechnologies
14

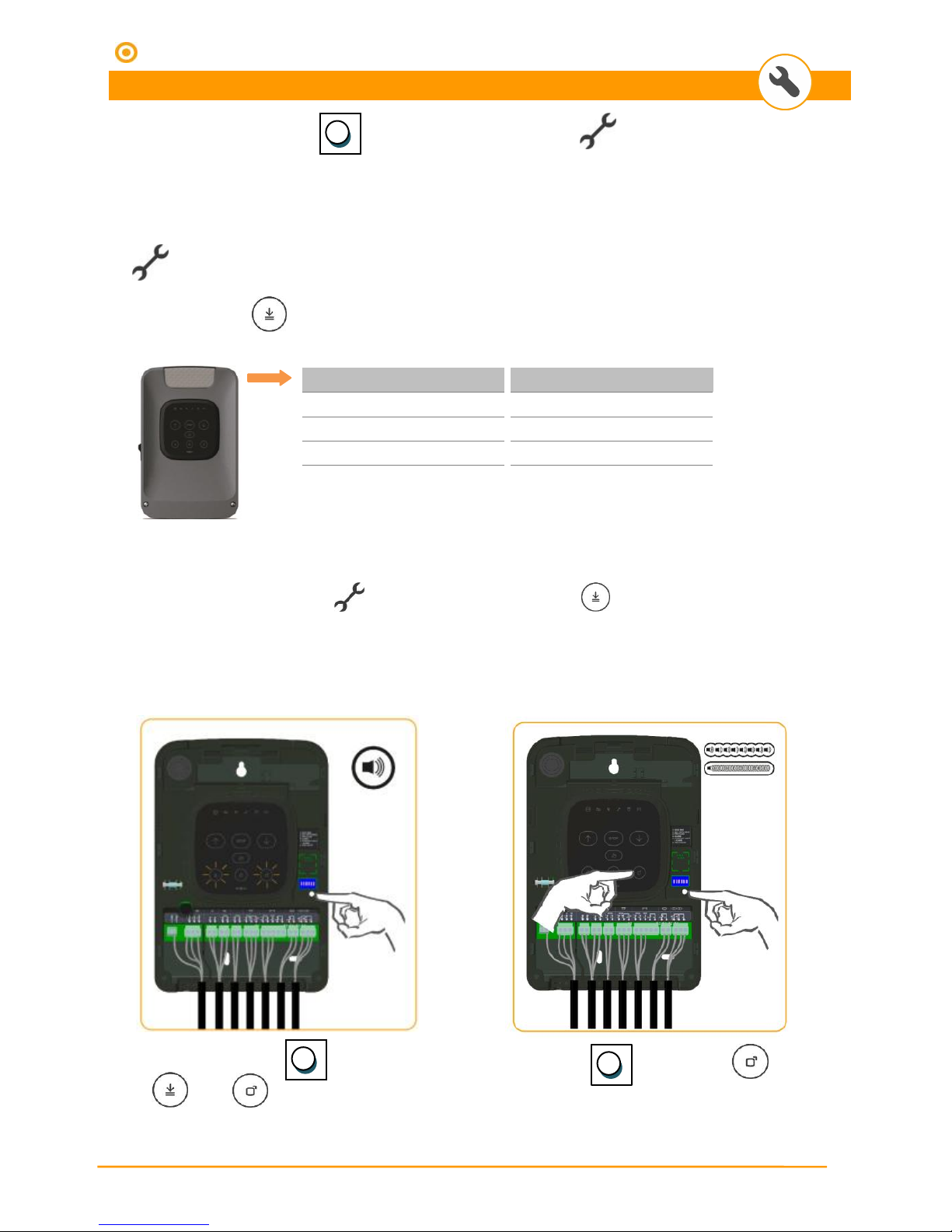

Maintenance
Enter Installer mode Press , the maintenance indicator lights ON, a beep will be heard.
The following functions can be done inside this maintenance mode.
Program maintenance manoeuvres
Maintenance warning: By entering Installer mode you can set the number of manoeuvres for
the maintenance warning.
Keep pressing to set up the maximum number of manoeuvres:
Frontal light
Indication
1 flash
2000 manoeuvres
2 flashes
3000 manoeuvres
3 flashes
5000 manoeuvres
Reset manoeuvres counter
If the maintenance alarm is activated, when you press a few quick flashes will light ON
and the number of operations will be set to 0.
Reset transmitters
Keep
presse
d
and
press
, to
erase
trans
mitter
s,
some
beeps
will be heard followed by a long beep.
or 1 year
Press and keep pressed
until and keys starts flashing, a
beep will be heard.
Keep pressed and press , to
erase transmitters, some beeps will be heard
followed by a long beep.
KEEROLL
15

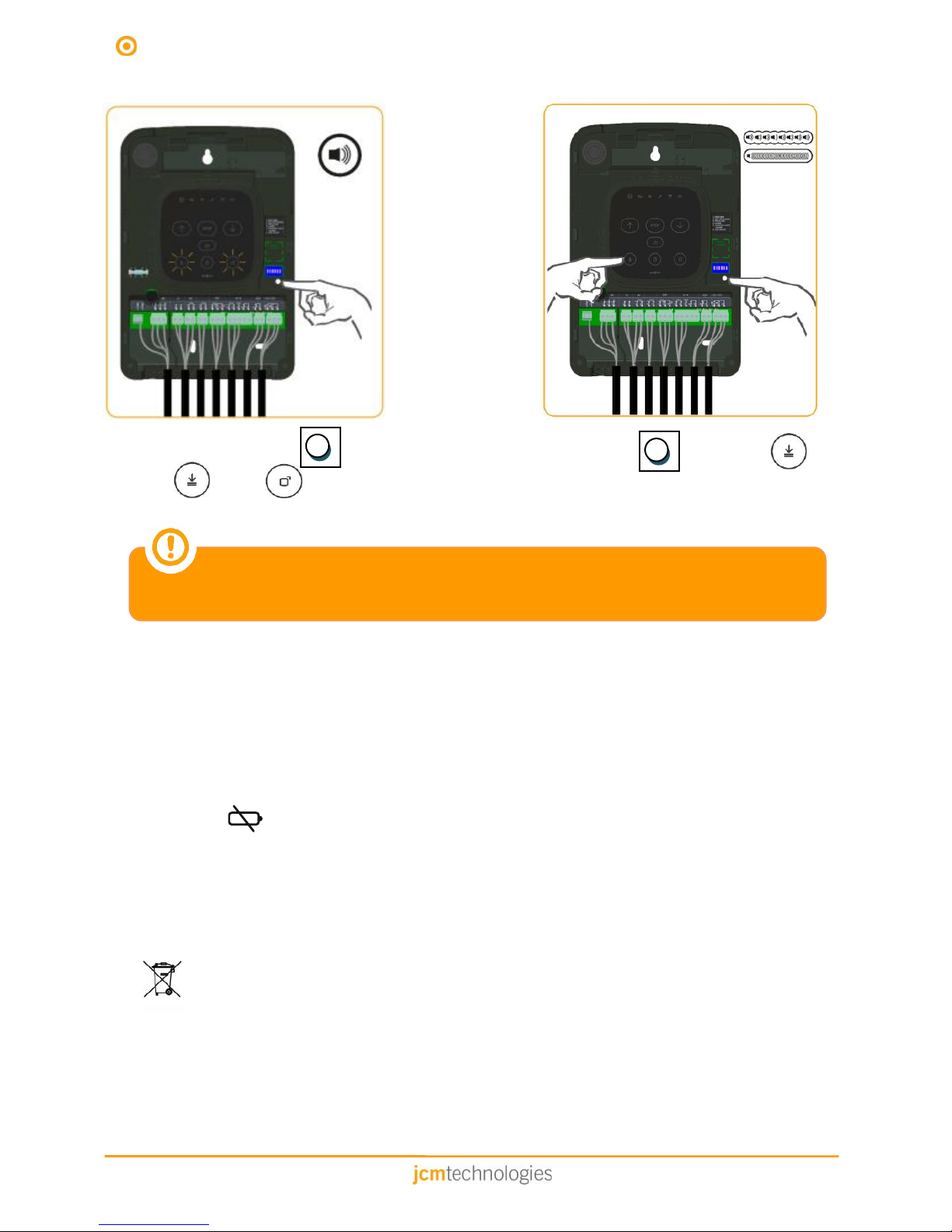

Reset safety elements
Fuse replacement
When you power supply the equipment, if the frontal panel does not light, remove the front cover and
replace the fuse with another fuse with the same characteristics. You have a fuse available on the
middle cover for the first time.
Battery replacement of RadioSens3 transmitter
If the led is at ON, the RadioSens3 connected is in a low battery state.
Proceed to replace the two batteries for new ones, taking care of the polarity marked on the
connector. Check that the new batteries support the same range of temperature that the ones
replaced. Do not mix new and old batteries. Battery duration: 2 years approximately.
Battery type: 2 x 1,5VDC LR6 AA
Before throwing away the device, the batteries must be removed and deposited in a
collection point.
Use of the system
Designed for automation of residential garage doors, in accordance with the general description. Not
guaranteed for other uses.
The manufacturer reserves the right to change the equipment specification without prior notice.
Press and keep pressed
until and keys starts
flashing, a beep will be heard.
Keep pressed and press ,
to erase safety elements, some beeps
will be heard followed by a long beep.
In case of erasing safety elements, the manoeuvre has to be
reprogrammed again. See Programming chapter.
KEEROLL
jcmtechnologies
16
Troubleshooting
Troubleshooting
INDICATOR
ON
SOLUTION
Emergency stop input activated
Low battery detection
Verify the batteries of the transmitter
Radio communication error
Verify the radio signal. Check the
batteries, reprogram again or change
equipments location.
ON: Installer mode
Flashing: Maintenance warning
See Maintenance chapter
ON: Closing photocell activation error
Flashing: Indicates the reversed
movement after a safety detection
ON: RS3 / Safety edge activation
Flashing: Indicates the reversed
movement after a safety detection
In case of any safety error, the door can be moved keeping pressed
the or buttons or
KEEROLL
17
Technical Data
Electrical parameters
Parameter
Value
Power supply range
230 Vac +/-10%
Stand-by / operating consumption
<60 mA / 200mA
Maximum power supported
1,2kW
Motor fuses
6A
Operating temperature
-20ºC to 55 ºC
Watertighness
IP42
Size (L/W/H)
180,0 x 277,4 x 57,5 mm
Radio transmitters frequency parameters
Parameter
Value
Operating frequencies
868,35 MHz
Coding
High security changing code
Memory
27 codes, expandable to 500 codes
Number of channels
4 channels
Radio safety elements frequency parameters
Parameter
Incorporated receiver
RS3 TGL868
Operating frequencies
Multifrequency system 868 MHz auto-adjustable (Channel 1: 868,700 -
869,200MHz¸Channel 2: 868,000 -868,600MHz; Channel 3: 869,400 -
869,650MHz; Channel 4: 869,400 -869,650MHz)
Memory
RBAND3: 3 transmitters or
RSENS3: 1 safety element
---
Standby / Operating
consumption
0,1mA / 12mA
Radiated power
<1mW
Range (in open field)
50m
Battery life (approx)
---
See battery life table
Compatible equipments
RB3 T868, RB3 TGL868 and
RB3 TGLA868 or
RS3 T868, RS3 TGL868
Incorporated receiver
KEEROLL
jcmtechnologies
18
Notes
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
KEEROLL
19
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
__________________________________________________
KEEROLL
jcmtechnologies
20
Regulatory Data
Safety instructions for installation
· The panel must be installed while the power is disconnected.
· Before installing the panel, remove all unnecessary ropes or chains and disable any equipment such as
locks that is not necessary for the automatic operation.
· Before installing the panel, check that the door is in good mechanical condition, correctly balanced and
that it opens and closes correctly.
· Install the manual unlocking device at a height lower than 1.8m.
· Install any permanent control next to the door away from any moving part and at a minimum height of
1.5m.
· For permanently connected equipment, an easily accessible power disconnection device must be
incorporated into the wiring. It is recommended that this be of the emergency switch type.
· If the control panel is supplied without emergency stop button, this will be incorporated in the
installation, connecting it to the STOP terminal.
· For correct use of the security edge, this must never be activated when the door is fully closed. It is wise
to install the ends of run before activating the edge.
· This equipment can only be handled by a specialist fitter, by maintenance staff or by a suitably trained
operator.
·To connect the power supply and motor wiring, 2.5 mm2 section terminals must be used.
· Use protective goggles when handling the equipment.
· Fuses must only be handled when the appliance is disconnected from the mains.
· The instructions for using this equipment must remain in the possession of the user.
· European door normative EN 12453 and EN 12445 specify the following minimum protection and door
safety levels:
- for single-family dwellings, prevent the door from making contact with any object or limit the force of
contact (e.g. safety band), and in the case of automatic closing, it is necessary to complement this with a
presence detector (e.g. photocell).
- for communal and public installations, prevent the door from making contact with any object or limit the
force of contact (e.g. safety band), and complement this with a presence detector (e.g. Photocell)
Safety instructions for the use
· Do not allow children to play with the door controls.
· Keep the remote controls out of the reach of children.
· Watch the door movement and keep people away until the door is fully open or closed.
· Precaution when operating the manual unlocking device, as the door may suddenly fall due to the bad
condition of the springs or door unbalance. Details on how to use the manual unlocking device must be
provided by the manufacturer or the device installer.
· Examine the installation frequently, especially the cables, springs and supports, to detect signs of wear,
damage or unbalance. Do not use the door if repair work or adjustments are required, as this may cause
damage.
EC Declaration of Conformity
JCM TECHNOLOGIES, S.A. declares herewith that the product KEEROLL complies with the requirements
of the 2006/42/CE Machinery Directive, as well as with the ones of the 2004/108/CE Electromagnetic
Compatibility Directive and 2006/95/CE Low Voltage Directive, insofar as the product is used correctly.
UM_3200802_KEEroll_EN_Rev00
Loading...
