JCM WAVE User Manual
1248003-GB_v1.1
1
1248003-GB_v1.1
TECHNICAL CHARACTERISTICS
WAVE500 WAVE500-B
Frequency 868,35MHz 868,35MHz
Coding High security rolling code High security rolling code
Memory 500 codes 500 codes
Number of relays 1/2 relays (expandable up to 4) 1/2 relays (expandable up to 4)
Supply 230V ac 12/24V ac/dc
Power supply range +/- 10%
Relay contacts 1A 1A
Standby/Op. consumption 35mA / 50mA 60mA / 350mA
Access control output
(3 readers max. without external power supply)
Op. temperature -20ºC to +85ºC -20ºC to +85ºC
Watertightness IP54 (with glands IP65) IP54 (with glands IP65)
Size 115x85x40mm 115x85x40mm
Box dimensions 140x220x55mm 140x220x55mm
BUS-L BUS-L
9-23 / 22-35V dc
8-16 / 16-27V ac

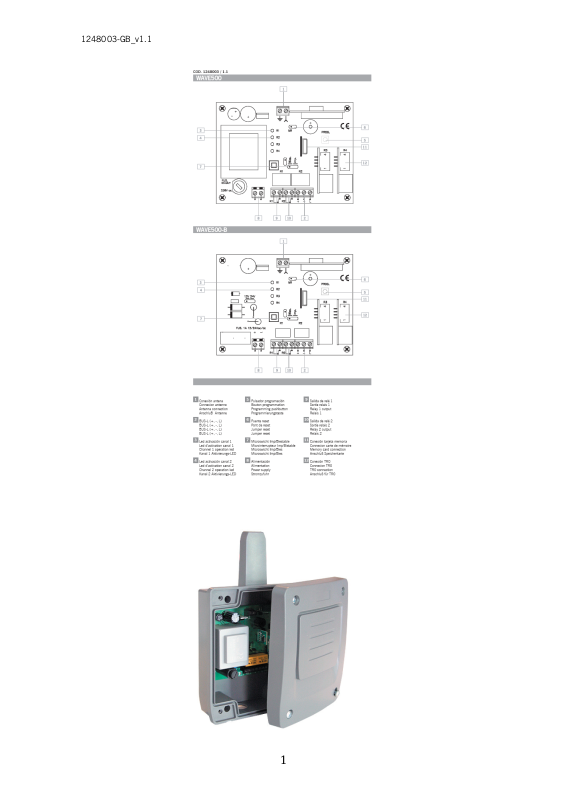

INSTALLATION AND CONNECTIONS
Attach the rear part of the housing to the wall using the plugs and screws supplied. Pass
the cables through the bottom of the receiver. Connect the power cables to the terminals
marked in the mother board, as indicated. Fix the receiver front to the rear part using the
screws supplied.
OPERATING
The pilot lights are activated every 5 seconds to indicate the correct supply of power to the
equipment.
Upon receiving a code, the receiver checks whether it is in its memory, activating the
corresponding relay. The relay activation mode is selected in either impulse or ON/OFF
using the Imp/Bies jumper (only with the relay 2).
PROGRAMMING
MANUAL PROGRAMMING
Press the receiver programming button for 1 sec. and an acoustic signal will be heard. The
receiver will enter standard programming (see table). If the receiver programming button is
held pressed down, the receiver will enter special programming, cyclically passing from
one configuration to the next. Once the programming configuration for the transmitter to be
registered has been chosen, send the code to be programmed by pressing the transmitter.
Every time a transmitter is programmed, the receiver will issue an acoustic signal for 0.5
sec. After 10 seconds without programming or pressing the first two transmitter buttons,
the receiver will exit programming mode, issuing two acoustic signals of 1 sec. If upon
programming a transmitter the receiver memory is full, it will issue 7 acoustic signals of
0.5 sec. and exit programming.
