JCM ROLLER 868 User Manual
1248015-GB_v1.1

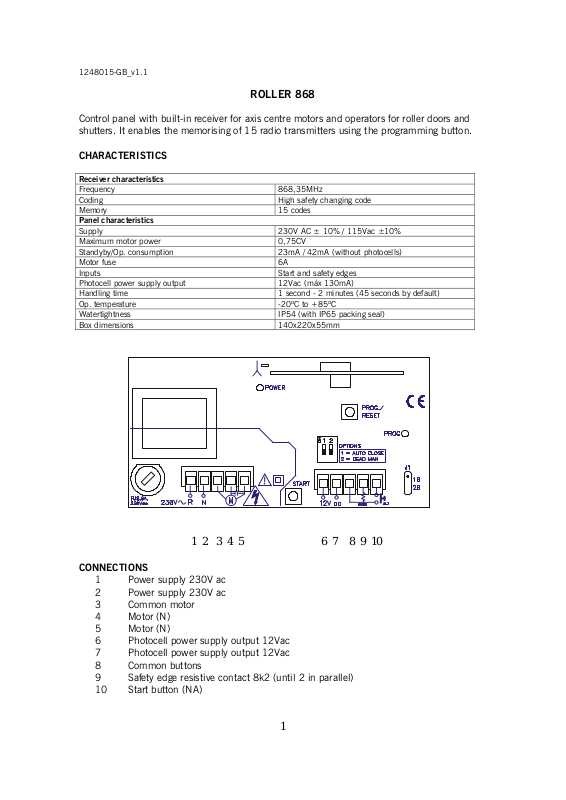

ROLLER 868
Control panel with built-in receiver for axis centre motors and operators for roller doors and
shutters. It enables the memorising of 15 radio transmitters using the programming button.
CHARACTERISTICS
Receiver characteristics
Frequency 868,35MHz
Coding High safety changing code
Memory 15 codes
Panel characteristics
Supply 230V AC ± 10% / 115Vac ±10%
Maximum motor power 0,75CV
Standyby/Op. consumption 23mA / 42mA (without photocells)
Motor fuse 6A
Inputs Start and safety edges
Photocell power supply output 12Vac (máx 130mA)
Handling time 1 second - 2 minutes (45 seconds by default)
Op. temperature -20ºC to +85ºC
Watertightness IP54 (with IP65 packing seal)
Box dimensions 140x220x55mm
CONNECTIONS
1 Power supply 230V ac
2 Power supply 230V ac
3 Common motor
4 Motor (N)
5 Motor (N)
6 Photocell power supply output 12Vac
7 Photocell power supply output 12Vac
8 Common buttons
9 Safety edge resistive contact 8k2 (until 2 in parallel)
10 Start button (NA)
1 2 3 4 5 6 7 8 9 10
1
1248015-GB_v1.1
ROLLER 868
INSTALLATION
Fit the rear of the box to the wall using the raw plugs and screws supplied. Pass the cables
through the bottom of the equipment. Connect the power supply cables to the terminals on
the printed circuit, following the indications engraved on the board. Fit the front of the
equipment to the rear using the screws supplied.
OPERATING
CONTROL PANEL OPERATIONS
Power supply: The green pilot light indicates the correct power supply to the equipment.
OPTIONS SELECTOR
OFF position (default option) ON position
1 = AUTO CLOSE Semi-automatic operating = it does not
closes automatically
2 = DEAD MAN Semi-automatic operating or automatic
depending on 1 selector
PUSHBUTTONS
START Black It carries out the same function as a NC button in ALT terminals
PROG./RESET Red It carries out two functions: time programming and transmitter
programming
A) SEMI-AUTOMATIC / AUTOMATIC OPERATING
The Start button carries out the following function. When the button is pressed for the first
time, the motor starts, when pressed for the second time (if it has not reached the limit
switch) it stops, and it closes automatically or it waits for the third time to close.
closure will only be carried out if the entire opening movement has been completed and
option switch 1 is turned to ON.
Automatic operating = it closes
automatically
Dead man operating
Automatic
2
1248015-GB_v1.1
(2)
(4)
ROLLER 868
Possible connections:

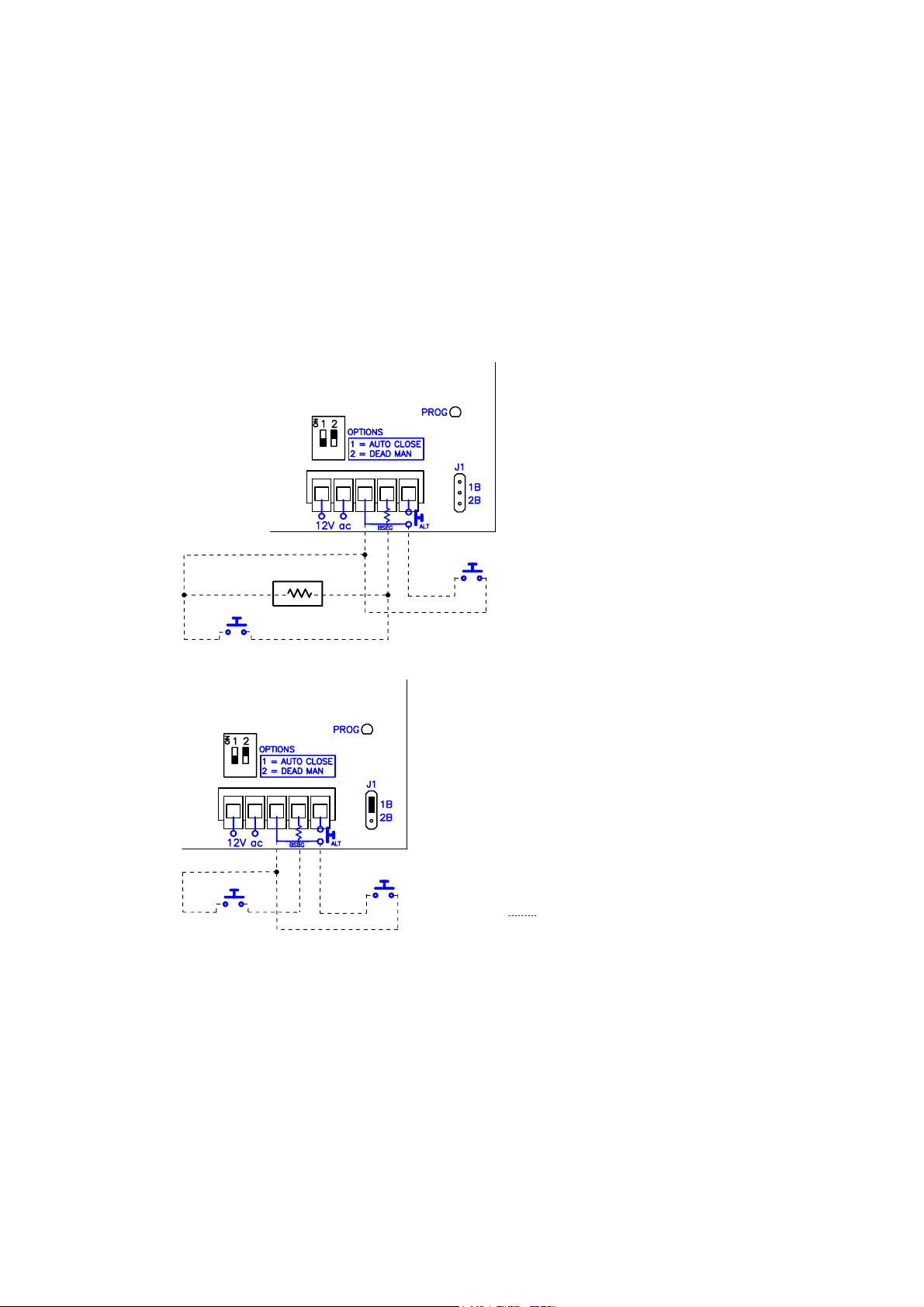

A1) Connection of two safety edge in parallel (open and close): This acts on opening and
closing, causing stoppage and 1 second inversion. The connection of a start button is
optional. J1 in OFF.
8k2
(1)
8k2
(3)
(1) - Safety edge in opening
(2) - Safety edge in closing
(3) - NO pushbutton
(4) - NC security contact
(Optional)
A security device (photocells, normally closed contact) can be connected in series with
the safety edge. The activation of this security device causes a stoppage and a total
reversion of the door.

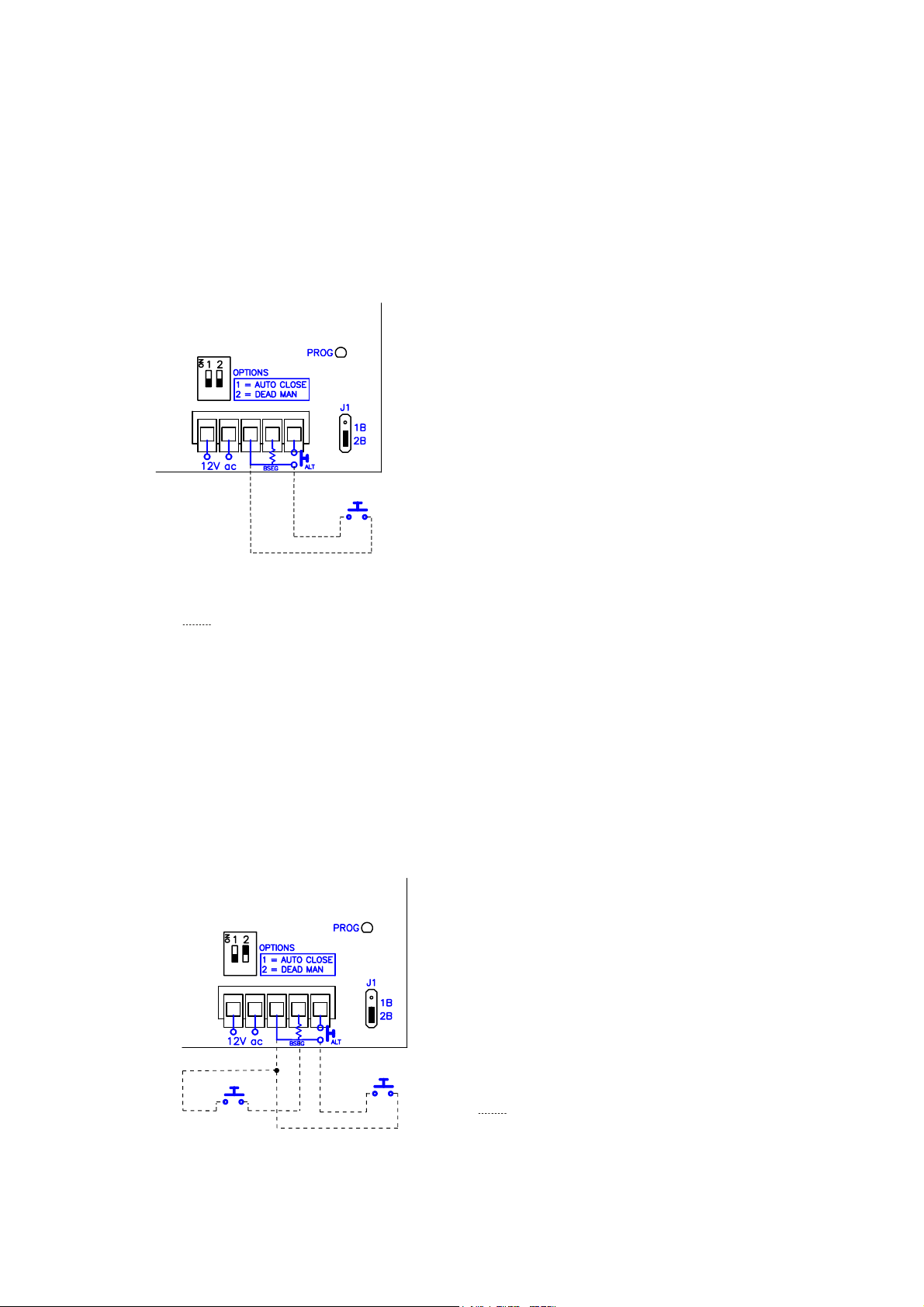

A2) Connection of a safety edge (open or close): This acts on opening and closing,
causing stoppage and 1 second inversion. The connection of a start button is optional.
Situate the jumper J1 on 1B position.
8k2
(4)
(1) / (2)
(1) - Safety edge in opening
(3)
(2) - Safety edge in closing
(3) - NO pushbutton
(4) - NC security contact
(Optional)
