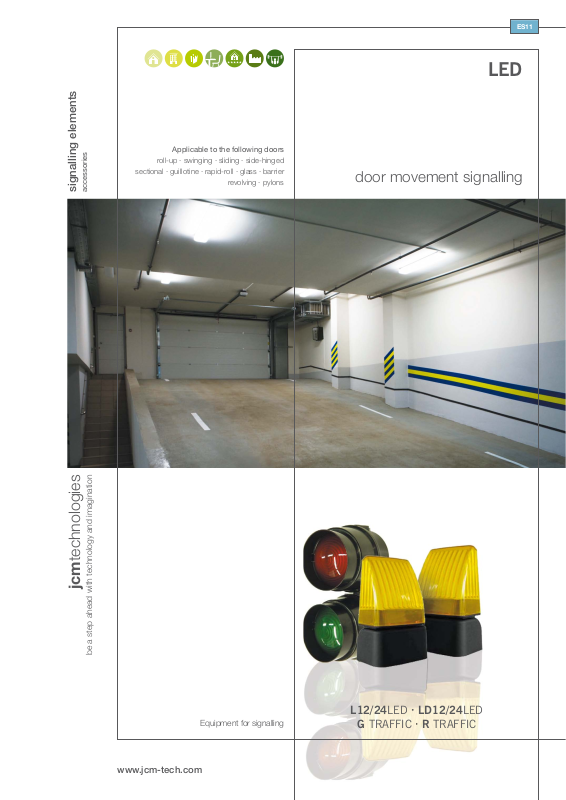

JCM LED User Manual

roll-up · swinging · sliding · side-hinged

sectional · guillotine · rapid-roll · glass · barrier

signalling elements

accessories

Applicable to the following doors

revolving · pylons

ES11

LED

door movement signalling

jcmtechnologies

be a step ahead with technology and imagination

Equipment for signalling

www.jcm-tech.com

L12/24LED · LD12/24LED

G TRAFFIC · R TRAFFIC

accessories

signalling elements

FLASHES

· Power supply: 12/24Vac/dc.

· Power: 1W.

· Operating temperature: -20Cº to +60Cº.

· Exterior cover: Polycarbonate.

· Airtightness: IP65.

· Dimensions: 95 x 165 x 65.

TRAFFIC LIGHT

L12/24LED

· Fixed light.

· Power supply: 250Vac (max).

· Power: 25 W (max).

· Operating temperature: -30Cº to +50Cº.

· Airtightness: IP65.

· Weight: 400g.

· Dimensions with visor: 154 x 150 mm.

· Dimensions without visor: 147 x 150 mm.

G TRAFFIC

· Colour: Green.

LD12/24LED

· Flashing light.

R TRAFFIC

· Colour: Red.
