JCM Access 1000, Access 2000 User Manual
COD. 1247005 / 1.2
ACCESS-1000 / ACCESS-2000
1247005v1-2.indd 1 19/05/2010 11:09:43
ACCESS-1000 / ACCESS-2000
TECHNICAL FEATURES
ACCESS-1000 / ACCESS-2000
Frequency 868.35MHz
Coding High-security rolling code
Memory 1000 codes (extendible to 2000) / 2000 codes
Events 2000 codes
Number of relays 2 extendible to 4
Anti-panic function Configurable on the 4 relays (assignable only to 1 relay)
Alarm function Only available on proximity equipment with alarm function
Power supply 230Vac / 12Vac/dc
Range at 12V dc 11V –- -19V dc
Range at 12V ac 8 V – 14 V ac
Relay contacts 1A
Standby / Op. Consumption 27mA / 57mA to 230Vac
150mA/550mA to 12V ac/dc
Battery CR 2032 3Vdc (date/time/events)
Access control outlet BUS-L
(Max. 4 readers without external power supply)
Op. temperature -20ºC to +85ºC
Watertightness IP42
Dimensions 170x100x40mm
Box dimensions 220x220x75mm

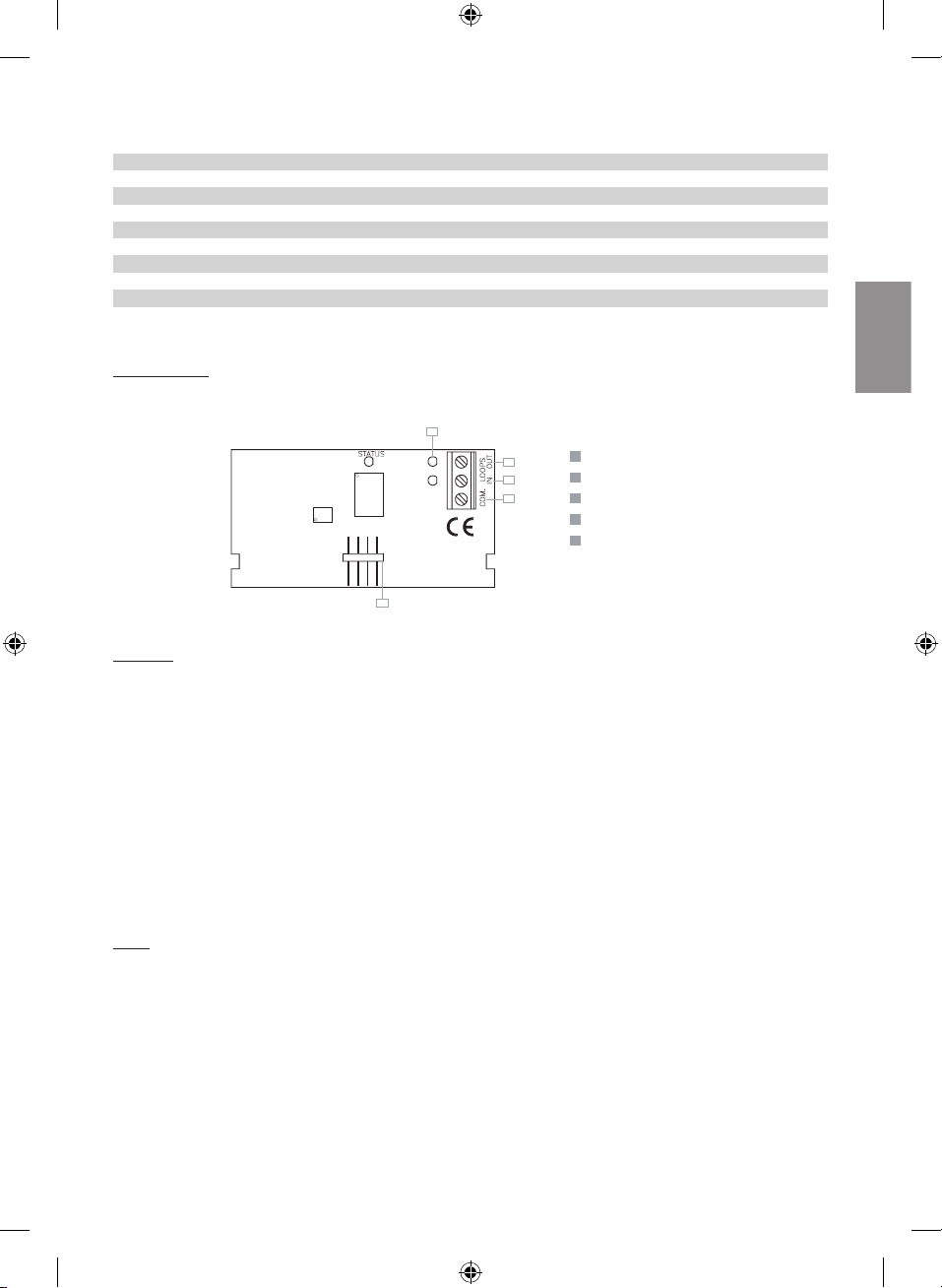

INSTALLATION AND CONNECTIONS
Fit the rear of the box to the wall using the rawlplugs and screws supplied. Pass the cables through the bottom of the equipment.
Connect the power supply cables to the terminals on the printed circuit, following the indications engraved on the board. Close the
lid on the equipment using the screws supplied.
OPERATING
The name of the controller, the programme version and the date and time will appear on the screen when the equipment is switched on.
Upon receiving a code, the equipment checks whether it is in its memory, enabling the programmed relay/s. The position in the
memory held by the code received and by the relay/s enabling the channel sent by the device are displayed on the screen.
If the device code is not recorded in the memory, the controller will remain motionless and the message “NO” will appear on the
screen.
ENGLISH
MENUS
Press any key to enter the menu and the controller will ask for the password. Enter the 4-digit password using the numeric keys. If
the password is incorrect, the message ERROR 1 will appear on the screen and the equipment will issue a sound signal.
The password is written on an adhesive label on the memory card as standard.
The menus displayed will be:
1- SETUP SYSTEM:Allows for the following to be configured: date/time, relays, channels and language.
2- SETUP CODES: Allows for registrations, cancellations, killpass and discounts to be made
3- SETUP APB: Allows for the anti-passback timer to be configured and reset.
4- EVENTS: Allows for events to be displayed and deleted.
The menu is changed using . To validate each option, press ENTER.
Menu movement key
Menu entry key
ENTER Menu entry or option validation key
ESC Cancellation Key
If no action is made, the equipment will automatically exit programming after 60 seconds and two short sound signals will be given.
19
1247005v1-2.indd 19 19/05/2010 11:09:49
21
1- SETUP SYSTEM
Allows for the following to be configured: date/time, relays, channels and language.
1.1 DATE&TIME
1.2 RELAYS
1.3 CHANNELS
1.4 LANGUAGE
1.1 DATE&TIME
This allows for the date and the time to be configured in the controller for correct event management and expiry date management.
Enter the date and time using the numeric keys. If no modifications are to be made, press ESC.
If no action is made, the equipment will automatically exit programming after 60 seconds and two short sound signals are given.
1.2 RELAYS
This allows for the relay enabling timer and anti-panic function on each independent relay to be configured.
Relays Pulsed Biestable Antipanic
1 / 2 / 3 / 4 01-30 seconds Yes 01-15 minutes
If no action is made, the equipment will automatically exit programming after 60 seconds and two short sound signals are given.
1.3 CHANNELS
Allows for a specific relay or relays to be configured for enabling with each channel.
Factory configuration is: Channel 1 enables relay 1, channel 2 enables relay 2, channel 3 enables relay 3 and channel 4 enables
relay 4.
Example: If channel 1 of the transmitter is to be configured to enable relays 1 and 3, numbers 1 and 3, selected using the numeric
keys, must be displayed on the screen.
Every time a numeric key is pressed the required relay is enabled or disabled.
To exit the menu, press ESC.
The configuration chosen for each channel will be programmed into the controller.
If no action is made, the equipment will automatically exit programming after 60 seconds and two short sound signals are given.
1.4 LANGUAGE
This allows for the required language to be selected. This is Spanish by default.
1- ESPAÑOL
2- FRANÇAIS
3- ENGLISH
If no action is made, the equipment will automatically exit programming after 60 seconds and two short sound signals are given.
2- SETUP CODES
Allows for registrations, cancellations, killpass and discounts to be made
2.1 ADD CODES
2.2 DEL CODES
2.3 KILLPASS
2.4 PRE-PAY
2.1 ADD CODES
Allows for individual and sequential registrations to be made
2.1.1 SINGLE
a) Indicating position and code
Enter the position number required and press ENTER. Enter the code number to be programmed and press ENTER. The controller
will issue a sound signal indicating that the operation has been successfully completed.
20
1247005v1-2.indd 20 19/05/2010 11:09:49
