company
Yellow/green
Architectural Exterior Range
Installation instructions for exterior Wall Bar
Warnings & Cautions
• To avoid electric shock, serious injury or property damage, isolate
power before installing, removing or servicing the product.
• It is recommended that luminaires are installed by a qualied
electrician to ensure the installation complies with the local current
wiring regulations.
• It may be necessary to upgrade your MCBs to allow for increased
inrush current.
• This luminaire is suitable for indoor and outdoor use.
a
• These products are designed for connection to a 200-240V~
50/60Hz supply.
• For exterior products, do not install in areas that are near to continual
running water or prone to ooding.
• Any broken or damaged parts should be replaced as soon as possible.
JCC will not accept responsibility for claims arising from sub-standard
installations; which will void the warranty.
Specications Colour temp: 3000K
Product code Wattage
JC17002 19.6W 1818 93 82
JC17003 14.4W 1098 76 84
JC17004 14.7W 1377 94 84
JC17005 7.2W 587 82 85
JC17006 4.3W 279 65 85
Available nishes: Anthracite only
Standard version connection
200-240V~ 50/60Hz / Class I
Figure 1. Mains input
Live = Brown
Neutral = Blue
Lumens LpcW Ra
Live = Brown
Yellow/green
Neutral = Blue
INSTALLATION
ENGLISH
• Read instructions and check that you have all of the tools and
accessories required to complete the installation correctly. Isolate
power supply before starting the installation.
Installation procedure
1. Remove back plate from body and use as a template for xing.
2. Feed power supply through compression coupling grommet.
3. Fix back plate to desired location ensuring correct orientation.
4. Terminate electrical connections as shown in Fig 1.
5. Ret body to back plate and secure.
6. Turn on supply and test for operation.
RoHS
Compliant
IP65
jcc.co.uk V7_Sept_2022_RS
60
60 500
250
60
190
33
Technical Support: +44(0)1243 838986 Customer Services: +44(0)1243 838999
BS EN ISO9001 - 2015 - Registered Firm Certificate No. GB 1552
Important warranty information
This product is supported by a 2-year standard warranty which will extend to 3 years if registered within the first year of purc
Please register at jcc.co.uk/warranty - Terms and conditions apply.
The installer will be asked to provide the following information, which is detailed on a label attached to the luminaire’s chas
Product Code/Date Code.

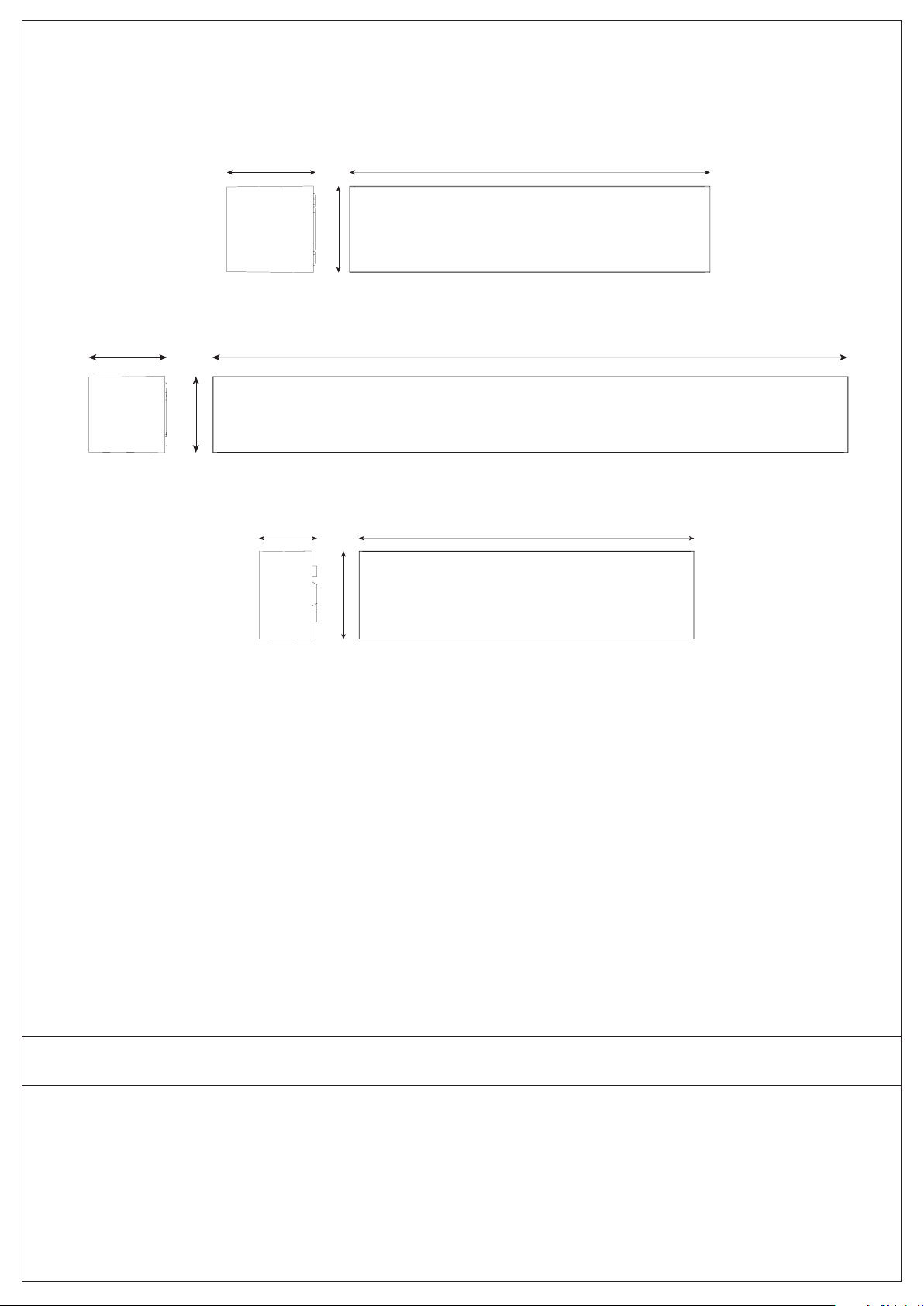

Prole & Dimensions
JC17004/JC17005
60
JC17002/JC17003
JC17006
50
All dimensions in millimetres
General maintenance requirements for exterior products:
JCC recommends that all exterior products, especially those with stainless steel components are cleaned with warm water and dried with a chamois leather
or absorbent dry cloth. Weathering, environmental pollution and bird droppings should be cleaned off with a non-abrasive cleaner suitable for the material
type. To preserve the nish of the product, clean every two to three months. After installation is complete, then bi-annually, grease or lubricate removable
xings, to help ensure maintenance is trouble free.
You can help protect the environment. Please remember to respect the local regulations: hand in the non-working electrical equipment to an appropriate waste disposal
centre. The packaging material is recyclable. Dispose of the packaging in an environmentally friendly manner and make it available for the recyclable material collection
service.
JCC Lighting Products Ltd. Lux Park, Chichester Business Park, City Fields Way, Tangmere, Chichester, West Sussex, PO20 2FT
