Architectural Exterior Range
Yellow/green
Installation instructions
Warnings & Cautions
• To avoid electric shock, serious injury or property damage, isolate power
before installing, removing or servicing the product.
• It is recommended that luminaires are installed by a qualied electrician
to ensure the installation complies with the local current
wiring regulations.
• Any broken or damaged parts should be replaced as soon as possible.
JCC will not accept responsibility for claims arising from sub-standard
installations; which will void the warranty.
a
• These products are designed for connection to a Mains voltage supply.
• These luminaires are suitable for indoor and outdoor use.
• It may be necessary to upgrade your MCBs to allow for increased
inrush current.
• For exterior products, do not install in areas that are near to continual
running water or prone to ooding.
• Ensure that you have the tools and accessories required to complete
the installation correctly: Isolate the power before starting
the installation.
Specications Colour temp: 3000K
Product code Wattage
JC17010 5W 160 32 80
JC17011* 16W 1116 70 83
JC17014 30W 1700 57 80
JC17015* 7.7W 683 89 83
JC17016* 15.9W 1209 76 83
JC17001* 8.9W 580 65 83
JC17035**
200-240V~ 50/60Hz / Class I
*100-277V~ 50/60Hz / Class I
Figure 1. Mains input
Live = Brown
Neutral = Blue
2 X 5W LED
GU10
Lumens LpcW Ra:
N/A N/A N/A
Live = Brown
Yellow/green
Neutral = Blue
INSTALLATION
ENGLISH
• Read instructions and check that you have all of the tools and
accessories required to complete the installation correctly. Isolate
power supply before starting the installation.
Installation procedure
1. Remove body from base/back plate and use as a template for
xing ensuring correct orientation
2. Feed cable through grommet, ensuring water tight prior to xing
in desired location.
3. Terminate electrical connections as shown in Fig 1.
4. Fit suitable LED lamp as required (max 5W GU10 LED).
5. Ret body and secure with xings.
6. Turn on supply and test for operation.
General maintenance requirements for exterior products:
JCC recommends that all exterior products, especially those with
stainless steel components are cleaned with warm water and dried with
a chamois leather or absorbent dry cloth. Weathering, environmental
pollution and bird droppings should be cleaned off with a non-abrasive
cleaner suitable for the material type. To preserve the nish of the
product, clean every two to three months. After installation is complete,
then bi-annually, grease or lubricate removable xings, to help ensure
maintenance is trouble free.
RoHS
Compliant
IP54/65**
jcc.co.uk
JC17001/10/11/14/15/16
JC17035
You can help protect the environment. Please remember to respect the local
regulations: hand in the non-working electrical equipment to an appropriate waste
disposal centre. The packaging material is recyclable. Dispose of the packaging in
an environmentally friendly manner and make it available for the recyclable material
collection service.
V9_Sept_2022_RS

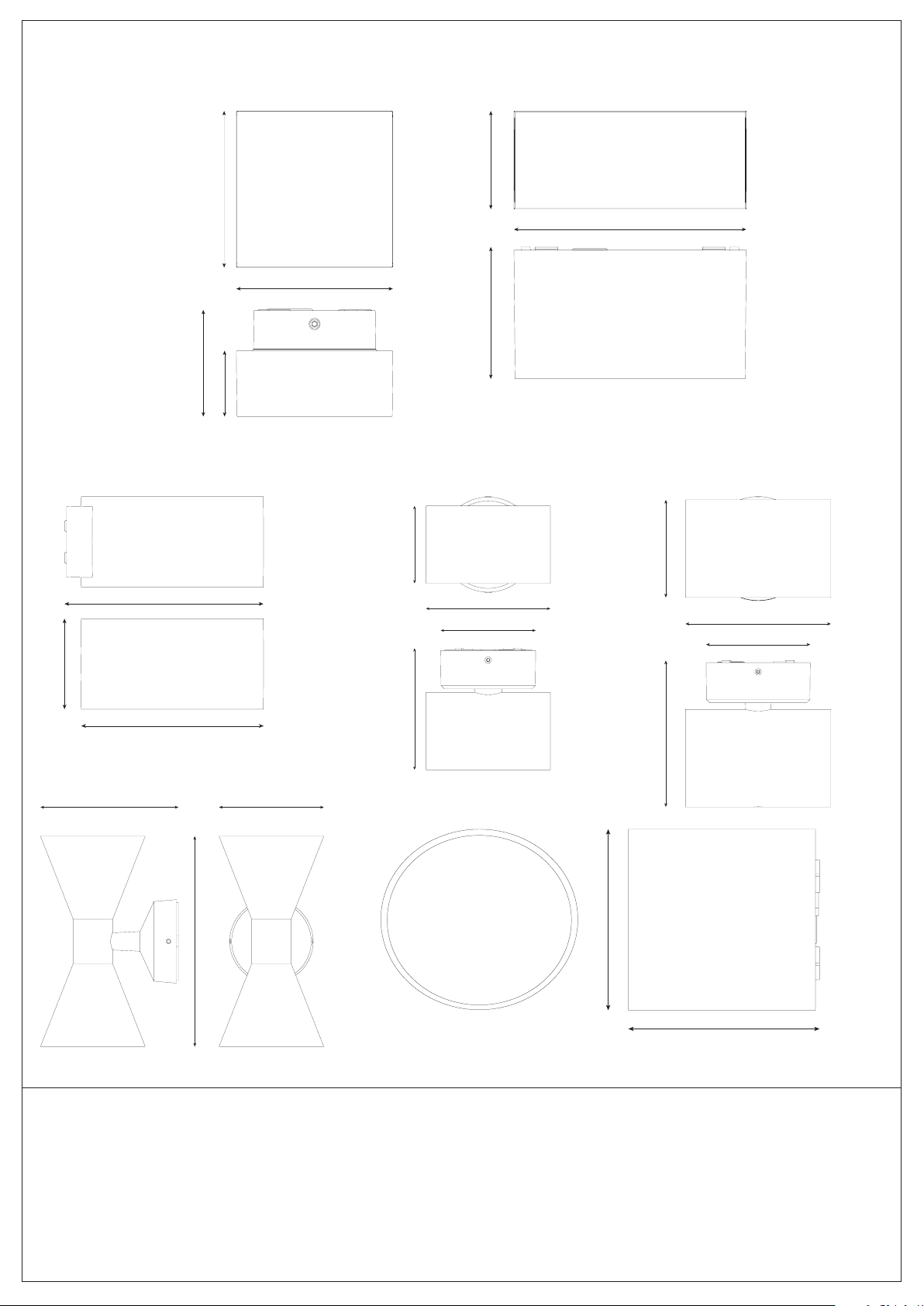

Prole & Dimensions
108
Ø218
Ø68.5
108
135 90
Ø106140
62
82
58
95
BS EN ISO9001 - 2015 - Registered Firm Certificate No. GB 1552
Important warranty information
This product is supported by a 2-year standard warranty which will extend to 3 years if registered within the first year of purc
Please register at jcc.co.uk/warranty - Terms and conditions apply.
The installer will be asked to provide the following information, which is detailed on a label attached to the luminaire’s chas
Product Code/Date Code.
JC17010
82
82
34.5
JC17011
145
JC17014 JC17015 JC17016
238
JC17035
214
110
Ø84
JC17001
134
Ø96
Ø90
All dimensions in millimetres
JCC Lighting Products Ltd. Lux Park, Chichester Business Park, City Fields Way, Tangmere, Chichester, West Sussex, PO20 2FT
Technical Support: +44(0)1243 838986 Customer Services: +44(0)1243 838999
