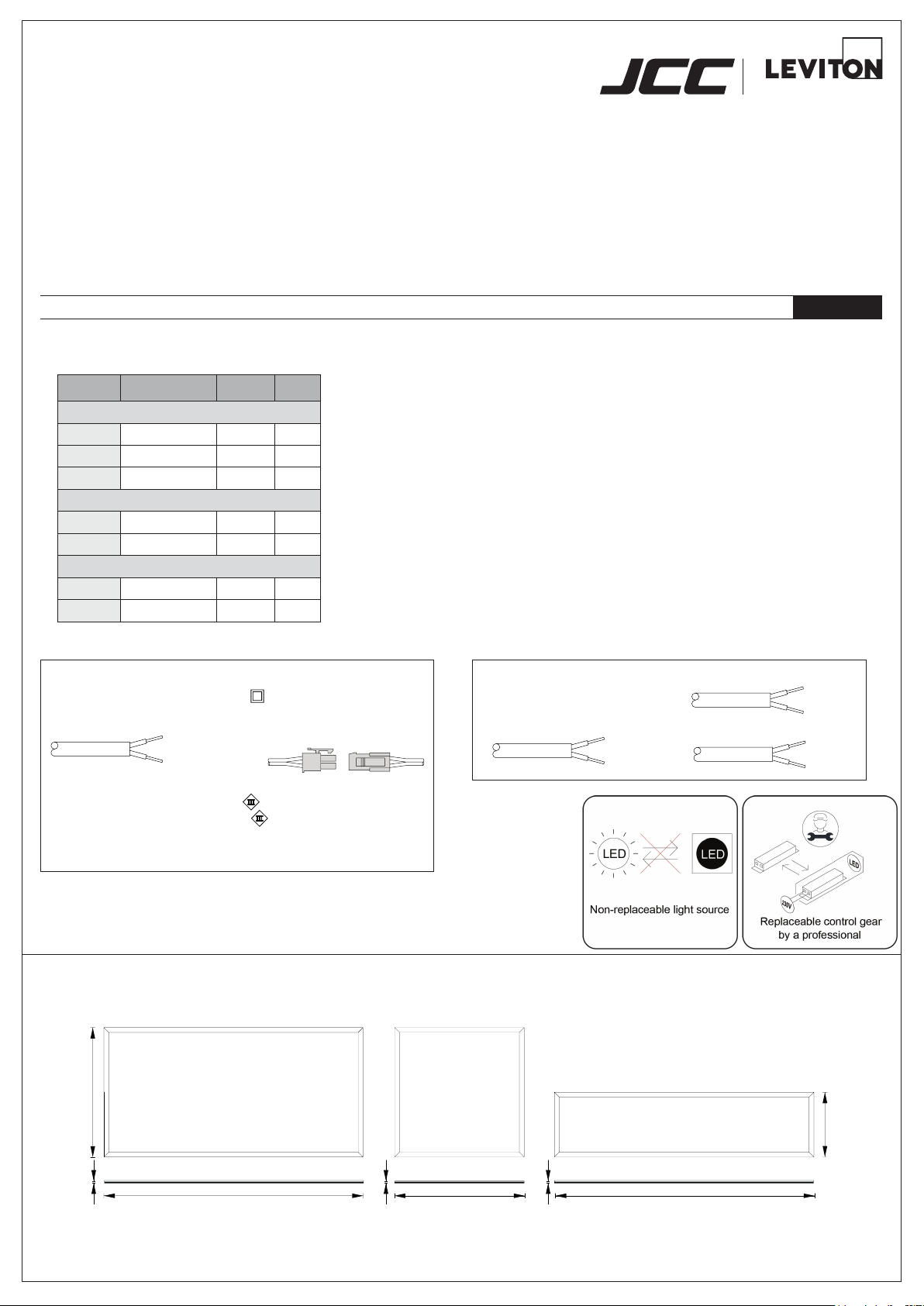

company
Skytile® Range
Installation instructions for Skytile® recessed LED panels
Warnings and cautions
• To avoid electric shock, serious injury or property damage, isolate
power before installing, removing or servicing the product
• It is recommended that luminaires are installed by a qualied
electrician and the installation complies with the local current
wiring regulations
• Any broken or damaged parts should be replaced as soon as possible
JCC will not accept responsibility for claims arising from any
sub-standard installations
• This luminaire is suitable for indoor use only
• These products are designed for connection to a mains supply of
• It may be necessary to upgrade your MCBs to allow for increased
• Do not cover with insulation
• Do not carry out insulation tests with the product connected to
• It is recommended that the ambient room temperature should not
a
220-240V~ 50/60Hz
inrush current
the circuit
exceed 25°C
INSTALLATION
• Read instructions and check that you have all of the tools and accessories required to complete the installation correctly. Isolate power supply
before starting the installation.
Wattage Colour Temp Lumens LpcW
600 x 600
30W 3000K 3000 100
30W 4000K 3000 100
30W 5700K 3000 100
300 x 1200
30W 4000K 3000 100
30W 5700K 3000 100
600 x 1200
48W 4000K 4800 100
48W 5700K 4800 100
Standard non-dimmable/dimmable luminaire installation
1. Remove the ceiling tile or tiles from the location where you wish to install
the LED panel.
2. Wire the LED driver to the mains supply as indicated in gure 1. If a
dimmable variant, connect the dimming control wires (DALI/1-10V/DSI)
as shown in gure 2.
3. Move LED panel into the ceiling aperture and when positioned halfway
connect the driver low voltage output to the LED panel (luminaire) as
shown in gure 1.a.
4. Position the LED panel into place in the grid ceiling.
5. Reconnect mains power supply and test for operation.
ENGLISH
Specications Ra: 80
Wiring connection
220-240V 50/60Hz / Class II
Fig. 1. Mains Input Cable
Neutral: Blue
Live: Brown
Terminal block must comply to EN 60998-2-1 or EN 60998-2-2
Fig.1.a. Luminaire connection
Plug & Play Connectors
Dimming control input
Figure 2.
1-10V control wires DALI control wires
1-10V+
1-10V-
DSI control wires
DSI +
DSI -
DA +
DA -
700mA/27-45V DC / Class III
1050mA/27-54V DC / Class III
30W = 700mA
48W = 1050mA
You can help protect the environment. Please remember to respect the local regulations: hand
in the non-working electrical equipment to an appropriate waste disposal centre. The packaging
material is recyclable. Dispose of the packaging in an environmentally friendly manner and make it
available for the recyclable material collection service.
Prole & Dimensions
1200 x 600 600 x 600
10.6
1195
13.35
All dimensions in millimetres
595
1200 x 300
10.6
1195
V5_July_22_RS
Important warranty information
This product is supported by a 2-year standard warranty which will extend to 5-years if registered
within the first year of purchase. (inc 2 year on site)
Please register at jcc.co.uk/warranty (Terms and conditions apply).
The installer will be asked to provide the following information, which is detailed on a label attached
to the luminaire’s chassis: Product Code/Date Code.
Technical Support: +44(0)1243 838986 Customer Services: +44(0)1243 838999
BS EN ISO9001 - 2015 - Registered Firm Certificate No. GB 1552
Supply
Ceiling Grid
Wire suspension
Suspension Mounting
JCC can also supply
a Wire Suspension Kit
for applications where
a ceiling grid is not
available
Suspension
Wire
Panel Fixing
Bracket
Surface mounting box
Surface Mounting
JCC can also supply a
Surface Mounting Tray.
Please ensure there
is adequate clearance
around the tting to
allow access
to the panel.
JC71262- 600 x 600mm
JC71295- 1200 x 600mm
JC71299- 1200 x300mm
Ceiling Fix
LED
Panel
Mounting options
Grid ceiling
Mains
Recommended remote emergency packs:
JCEM001- JCC Emergency Remote Pack
JCEM001ST -JCC Emergency remote pack self-test
Driver
Positioning
LED Panel
Suspension bracket xing points
1200 x 600mm
600 x 600mm
1200 x 300mm
RoHS
Compliant IP44
JCC Lighting Products Ltd. Lux Park, Chichester Business Park, City Fields Way, Tangmere, Chichester, West Sussex, PO20 2FT
