ENGLISH USER MANUAL V1.0
JB SYSTEMS® 1/4 DSP2-LED
Thank you for buying this JB Systems® product. To take full advantage of all possibilities, please read these operating instructions very carefully.
FEATURES
This 2 channel mosfet dimmer works perfectly with small loads like LED-lamps & small halogen lamps.
Excellent dimming of 100-240Vac dimmable LED lamps and LED-drivers with loads down to only 2watt!
Forward- / Reverse-phase control dimmer for a wide lamp compatibility!
The minimum dimmer brightness from 1% to 40% can be programmed to avoid flicker.
Different operating modes:
DMX-control: 1 or 2 DMX-channels with possibility for remote RDM-addressing
Stand-alone dimmer: with up to 8 dimmer presets, no DMX needed.
Stand-alone dynamic: 4 different modes with brightness and speed setting
Small dimensions for easy blind installation in cabinets or in false ceilings!
Maximum output: 2x 1A (2x 240W / 240Vac or 2x 120W / 120Vac)
BEFORE USE
Check the contents:
Check that the carton contains the following items:
DSP2-LED
User manual
Some important instructions:
Before you start using this unit, please check if there’s no transportation damage. Should there be any, do not use the device and consult your dealer first.
Important: This device left our factory in perfect condition and well packaged. It is absolutely necessary for the user to strictly follow the safety instructions and warnings in this user manual. Any damage caused by mishandling is not subject to warranty. The dealer will not accept responsibility for any resulting defects or problems caused by disregarding this user manual.
Keep this booklet in a safe place for future consultation. If you sell the fixture, be sure to add this user manual.
To protect the environment, please try to recycle the packing material as much as possible.
SAFETY INSTRUCTIONS:
To prevent fire or shock hazard, do not expose this appliance to rain or moisture.
To avoid condensation to be formed inside, allow the unit to adapt to the surrounding temperatures when bringing it
into a warm room after transport. Condense sometimes prevents the unit from working at full performance or may even cause damages.
This unit is for indoor use only.
CAUTION
CAUTION: To reduce the risk of electric shock, do not remove the
top cover. No user-serviceable parts inside. Refer servicing to qualified service personnel only.
The lightning flash with arrowhead symbol within the equilateral triangle is intended to alert the use or the presence of un-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.
The exclamation point within the equilateral triangle is intended to alert the user to the presence of important operation and maintenance (servicing) instructions in the literature accompanying this appliance.
This symbol means: indoor use only
This symbol means: Read instructions
Page 4
ENGLISH USER MANUAL V1.0
JB SYSTEMS® 2/4 DSP2-LED
Don’t place metal objects or spill liquid inside the unit. No objects filled with liquids, such as vases, shall be placed on this appliance. Electric shock or malfunction may result. If a foreign object enters the unit, immediately disconnect the mains power.
No naked flame sources, such as lighted candles, should be placed on the appliance.
Don’t cover any ventilation openings as this may result in overheating.
Prevent use in dusty environments and clean the unit regularly.
Keep the unit away from children.
Inexperienced persons should not operate this device.
Maximum save ambient temperature is 40°C. Don’t use this unit at higher ambient temperatures.
Always unplug the unit when it is not used for a longer time or before you start servicing.
The electrical installation should be carried out by qualified personal only, according to the regulations for electrical
and mechanical safety in your country.
Check that the available voltage is not higher than the one stated on the rear panel of the unit.
The socket inlet shall remain operable for disconnection from the mains.
The power cord should always be in perfect condition: switch the unit immediately off when the power cord is
squashed or damaged. It must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard
Never let the power-cord come into contact with other cables!
In order to prevent electric shock, do not open the cover. There are no user serviceable parts inside.
In the event of serious operating problems, stop using the appliance and contact your dealer immediately.
Please use the original packing when the device is to be transported.
Due to safety reasons it is prohibited to make unauthorized modifications to the unit.
MAINTENANCE
Clean by wiping with a polished cloth slightly dipped with water. Avoid getting water inside the unit. Do not use volatile liquids such as benzene or thinner which will damage the unit.
FUNCTIONS

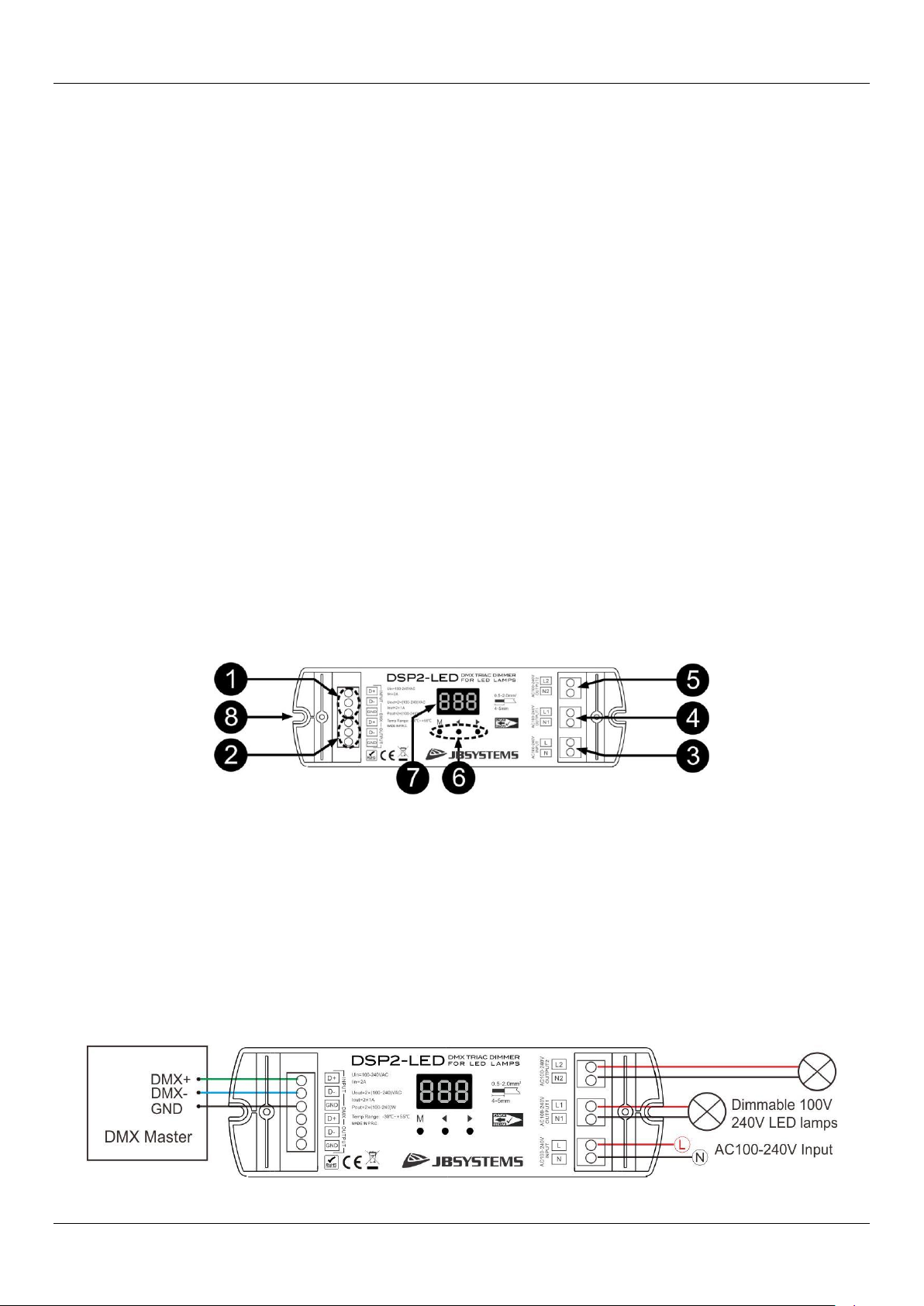

1. DMX Input: receives incoming DMX signal
2. DMX Output: links the incoming DMX signal to another DMX fixture.
3. MAINS INPUT: Terminal block used to connect the dimmer to the mains (100Vac → 240Vac).
4. CHANNEL OUTPUT 1: Terminal block used to connect small loads between 2W and max 240W (1A).
5. CHANNEL OUTPUT 2: Terminal block used to connect small loads between 2W and max 240W (1A).
6. MENU buttons: mainly used to browse the setup menu and adapt the different settings.
M-button: used to select the different menu options
◄/►-buttons: used to change the functions / adjust parameters.
7. DISPLAY: helps setting up the different options.
8. INSTALLATION OPENING: used to fix the dimmer on a flat surface. Note that the screws (Dmax=4mm) are not
included!
INSTALLATION
Page 5
ENGLISH USER MANUAL V1.0
JB SYSTEMS® 3/4 DSP2-LED
MENU STRUCTURE AND SETUP
IMPORTANT: The DSP2-LED can work fully stand-alone or controlled by a DMX-signal.
As soon as a DMX-signal is connected the DMX-mode will always get
priority!
DMX CONTROLLED
STANDARD DISPLAY
The selected DMX-address is shown, if the DMX-signal disappears, the display starts blinking.
SET DMX ADDRESS
Press the ◄/►buttons until the DMX-address is shown.
SET DMX CHANNEL MODE
Sets the unit to 1 or 2 channel mode
Press the M-button for 2 seconds to enter the setup menu
The display shows d-1 or d-2:
d-1: 1 DMX-channel used: both outputs work together.
d-2: 2 DMX-channels used: both outputs can be controlled
separately.
Press the M-button for 2 seconds to leave the setup menu
SET PHASE CONTROL METHOD
Determines the dimmer method, important to choose the right one!
Press the M-button for 2 seconds to enter the setup menu
Press the M-button until C-F or C-A is shown:
C-F: the dimmer is working in FORWARD-phase mode:
Better energy efficiency with incandescent / halogen lamps.
Better performance with magnetic transformers (P36 pin-spot)
Works well with certain LED lamps / drivers, not all!
C-A: the dimmer is working in REVERSE-phase mode:
In general better dimmer performance with most dimmable LED lamps / drivers.
Better performance with electronic transformers
Extremely silent operation and smoother dimming down to 5%
Press the M-button for 2 seconds to leave the setup menu
SET MINIMUM BRIGHTNESS
Sets the minimum dimmer level, helps avoiding flicker on certain dimmable LED-lamps
Press the M-button for 2 seconds to enter the setup menu
Press the M-button until b01 b40 is shown:
Press the ◄/►buttons to set the minimum dimmer level.
Press the M-button for 2 seconds to leave the setup menu
SET DISPLAY BLACKOUT
Choose if the display should go dark or not.
Press the M-button for 2 seconds to enter the setup menu
Press the M-button until boF or bon is shown:
boF: display is always lit
bon: display turns dark while not used
Press the M-button for 2 seconds to leave the setup menu
Page 6
ENGLISH USER MANUAL V1.0
JB SYSTEMS® 4/4 DSP2-LED
STAND-ALONE MODE
IMPORTANT: Make sure that no DMX-signal is connected.
Select which stand-alone mode you want to use:
DIMMER MODE: the output is set to a predefined dimmer level, in most cases this is the one you need!
DYNAMIC MODE: automatic dim or switch sequence.
After switching the unit off, it will always startup in the last selected working mode.
SETUP DIMMER MODE:
Press the M-button until L-.. is shown.
Press the ◄/►-buttons to choose one of the 8 dimmer modes.
SET DIMMER LEVEL
Press the M-button for 2 seconds:
The display shows 100 1FF for output1 (00= 0%, FF= 100%)
Press the ◄/►-buttons to set the desired level for output 1.
Press the M-button until 200 2FF is shown for output 2
Press the ◄/►-buttons to set the desired level for output 2.
Press the M-button for 2 seconds to leave the setup menu.
SETUP DYNAMIC MODE:
Press the M-button until P-.. is shown.
Press the ◄/►-buttons to choose one of the 4 dynamic modes:
P-1 : the 2 outputs switch together on/off
P-2 : the 2 outputs switch alternately on/off
P-3 : the 2 outputs dim together
P-4 : the 2 outputs dim alternately
SET SPEED & BRIGHTNESS
Press the M-button for 2 seconds:
The display shows S-1 S-F
Press the ◄/►-buttons to set the desired speed (S-1 = slow, S-F = fast).
Press the M-button until b-1 b-F is shown.
Press the ◄/►-buttons to set the desired brightness.
Press the M-button for 2 seconds to leave the setup menu.
RESET TO FACTORY DEFAULTS
Press the ◄/►-buttons for 2 seconds until the display shows RES
Factory defaults: 2channel DMX-mode, start address: 001, REVERSE phase control, 10% min. output.
SPECIFICATIONS
This unit is radio-interference suppressed. This product meets the requirements of the current European and national guidelines. Conformity has been established and the relevant statements and documents have been deposited by the manufacturer.
Power Input: AC 100-240V 50/60Hz. Max load Per Channel: 1 A ( 240W / 240Vac) Weight: 2,9 kg
All this information is subject to change without prior notice
You can download the latest version of this user manual on our website: WWW.JB-SYSTEMS.EU
Copyright © 2019 BEGLEC NV, reproduction or publication of the content in any manner, without express permission of the publisher, is prohibited.
