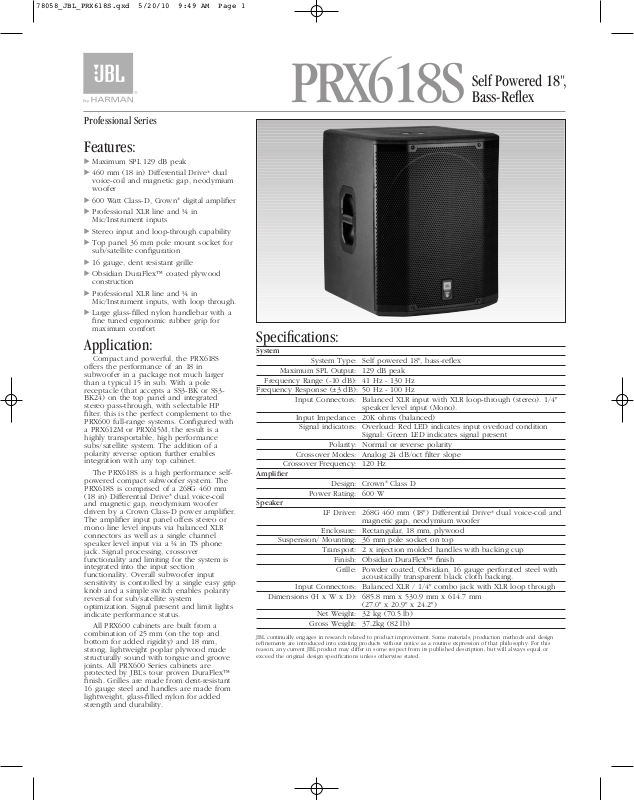

Professional Series
Features:
䉴
Maximum SPL 129 dB peak
䉴
460 mm (18 in) Differential Drive®dual
voice-coil and magnetic gap, neodymium
woofer
䉴
600 Watt Class-D, Crown®digital amplifier
䉴
Professional XLR line and ¼ in
Mic/Instrument inputs
䉴
Stereo input and loop-through capability
䉴
Top panel 36 mm pole mount socket for
sub/satellite configuration
䉴
16 gauge, dent resistant grille
䉴
Obsidian DuraFlex™ coated plywood
construction
䉴
Professional XLR line and ¼ in
Mic/Instrument inputs, with loop through.
䉴
Large glass-filled nylon handlebar with a
fine tuned ergonomic rubber grip for
maximum comfort
Application:
Compact and powerful, the PRX618S
offers the performance of an 18 in
subwoofer in a package not much larger
than a typical 15 in sub. With a pole
receptacle (that accepts a SS3-BK or SS3BK24) on the top panel and integrated
stereo pass-through, with selectable HP
filter, this is the perfect complement to the
PRX600 full-range systems. Configured with
a PRX612M or PRX615M, the result is a
highly transportable, high performance
subs/satellite system. The addition of a
polarity reverse option further enables
integration with any top cabinet.
The PRX618S is a high performance selfpowered compact subwoofer system. The
PRX618S is comprised of a 268G 460 mm
(18 in) Differential Drive
and magnetic gap, neodymium woofer
driven by a Crown Class-D power amplifier.
The amplifier input panel offers stereo or
mono line level inputs via balanced XLR
connectors as well as a single channel
speaker level input via a ¼ in TS phone
jack. Signal processing, crossover
functionality and limiting for the system is
integrated into the input section
functionality. Overall subwoofer input
sensitivity is controlled by a single easy grip
knob and a simple switch enables polarity
reversal for sub/satellite system
optimization. Signal present and limit lights
indicate performance status.
All PRX600 cabinets are built from a
combination of 25 mm (on the top and
bottom for added rigidity) and 18 mm,
strong, lightweight poplar plywood made
structurally sound with tongue and groove
joints. All PRX600 Series cabinets are
protected by JBL’s tour proven DuraFlex™
finish. Grilles are made from dent-resistant
16 gauge steel and handles are made from
lightweight, glass-filled nylon for added
strength and durability.
®
dual voice-coil
Self Powered 18",
PRX618S
Bass-Reflex
Specifications:
System
System Type: Self powered 18", bass-reflex
Maximum SPL Output: 129 dB peak
Frequency Range (-10 dB): 41 Hz - 130 Hz
Frequency Response (±3 dB): 50 Hz - 100 Hz
Input Connectors: Balanced XLR input with XLR loop-through (stereo). 1/4"
Input Impedance: 20K ohms (balanced)
Signal indicators: Overload: Red LED indicates input overload condition
Polarity: Normal or reverse polarity
Crossover Modes: Analog 24 dB/oct filter slope
Crossover Frequency: 120 Hz
Amplifier
Design: Crown®Class D
Power Rating: 600 W
Speaker
LF Driver: 268G 460 mm (18") Differential Drive
Enclosure: Rectangular, 18 mm, plywood
Suspension/ Mounting: 36 mm pole socket on top
Transport: 2 x injection molded handles with backing cup
Input Connectors: Balanced XLR / 1/4" combo jack with XLR loop through
Dimensions (H x W x D): 685.8 mm x 530.9 mm x 614.7 mm
Net Weight: 32 kg (70.5 lb)
Gross Weight: 37.2kg (82 lb)
JBL continually engages in research related to product improvement. Some materials, production methods and design
refinements are introduced into existing products without notice as a routine expression of that philosophy. For this
reason, any current JBL product may differ in some respect from its published description, but will always equal or
exceed the original design specifications unless otherwise stated.
speaker level input (Mono).
Signal: Green LED indicates signal present
®
magnetic gap, neodymium woofer
Finish: Obsidian DuraFlex™ finish
Grille: Powder coated, Obsidian, 16 gauge perforated steel with
acoustically transparent black cloth backing.
(27.0" x 20.9" x 24.2")
dual voice-coil and
Page 2
Dimensions in (mm) inches
SS PRX618S
CRP
05/10
䉴 PRX618S 18" Self Powered, Bass-Reflex
LIMIT
OUT
IN
HPF
THRU
LEVEL
SIGNA L

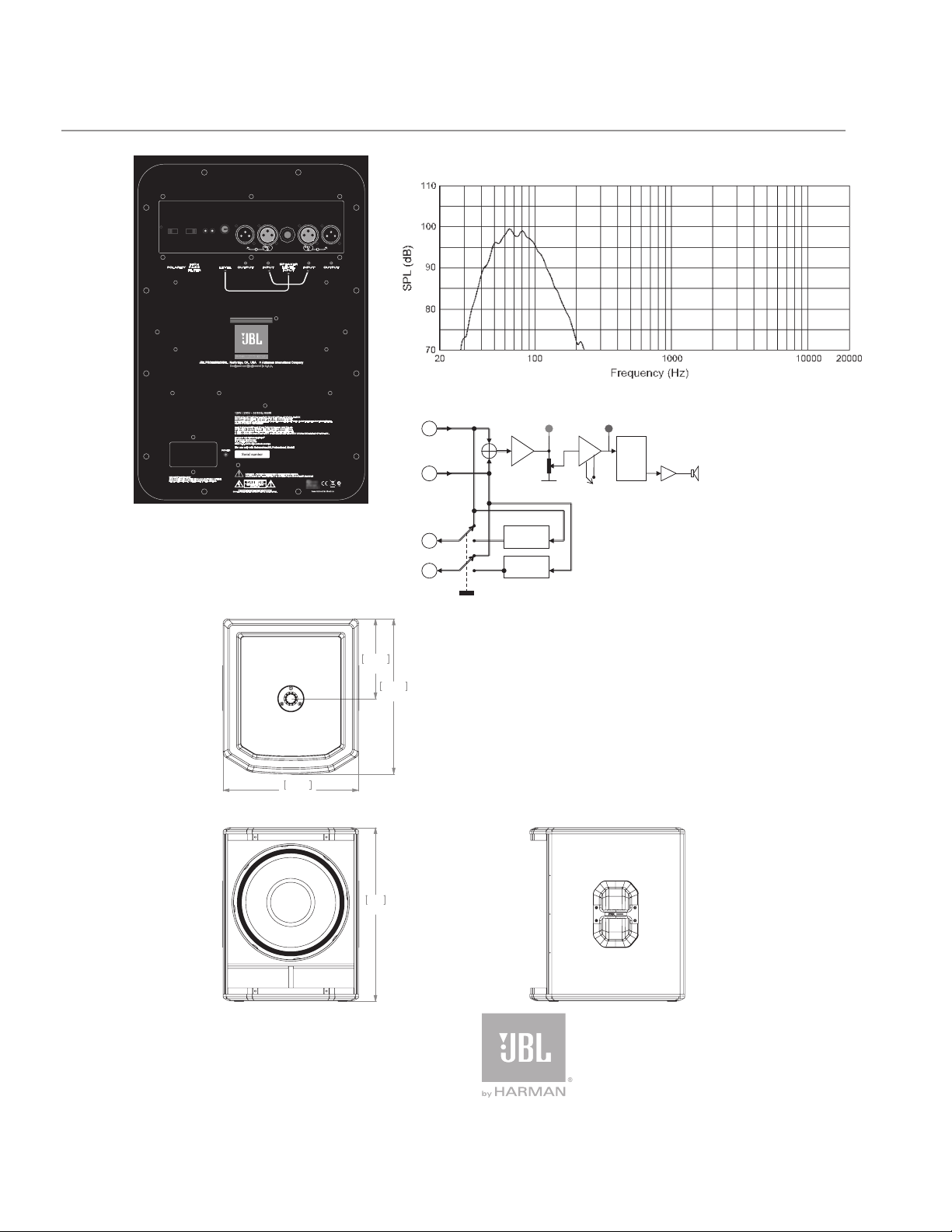

PRX618S Input Panel
Frequency Response
Block Diagram
t
t
m
r
IN
HPF
OUT
THRU
LIMIT
LEVEL
SIGNAL
PRX618S
Input 1
PRX618S
Input 2
Output 1
Output 2
Filters Inser
Su
Signal Presen
Overload
DSP
Level
Invert Signal
Power Amplifie
Sub
High Pass
High Pass
314.8
12.4
612.1
24.1
535.2
21.1
686
27.0
