THANK YOU
for choosing a JBL®GTi Series subwoofer.
GTi subwoofers are designed to
provide maximum sound output in a
variety of enclosure types while
maintaining the superb sound quality
associated with JBL. To ensure the best
subwoofer performance, we strongly
recommend that installation be entrusted to a
qualified professional. Although these instructions
explain how to install a GTi Series subwoofer in
a general sense, they don’t show the specific
installation procedures that may be required for
your particular vehicle. If you feel you don’t have
the necessary tools or experience, don’t attempt
the installation yourself; rather, ask your authorized
JBL dealer about professional-installation options.
INSTALLATION WARNINGS AND TIPS
WARNING
Playing loud music in an automobile can
hinder your ability to hear traffic, as well
as permanently damage your hearing.
We recommend listening at low levels
while driving. JBL accepts no liability for
hearing loss, bodily injury or property
damage resulting from use or misuse of
this product.
YOUR CAR AND BASS
REPRODUCTION
Depending on the size of the vehicle’s
interior listening space, reproduced
frequencies below 80Hz may be boosted
by nearly 12dB per octave as frequency
decreases. This effect, commonly known
as transfer function, or cabin gain, plays
an important role in defining the in-car
frequency response of your subwoofer.
It is displayed graphically, along with
freespace response, on the enclosed
data sheet for your GTi subwoofer.
POWER-HANDLING
LIMITATIONS
The power-handling capacity of any
subwoofer is related to the excursion
limit of its suspension and its ability to
dissipate heat. A speaker reaches its
excursion-limited power-handling
capacity when its suspension is
stretched to its limit. The excursion
curve shown on the Enclosure Design
Sheet (included with your woofer)
displays cone excursion at the input
power level required to drive the woofer
to maximum linear excursion (X
The input power shown may be used
max
).
as instantaneous input only.
Thermal power handling is determined
by the amount of heat that may be
dissipated by the driver’s voice coil.
The power-handling rating assigned
to your GTi Series subwoofer is its
thermal-power-handling rating. This
rating assumes a clean (unclipped)
signal. A clipped waveform has much
higher average power, due to the longer
duty cycle at the top and bottom of the
waveform; it will heat the woofer’s voice
coil faster than a clean signal and may
damage the voice coil. A square wave
has a 100% duty cycle and is extremely
dangerous for any speaker. Audible
distortion in the output of your woofer
is an indication that your amplifier may
be clipping, which could damage your
speakers over time.
2
CHOOSING AN ENCLOSURE
GTi Series subwoofers are optimized to
perform best in small sealed, vented and
bandpass enclosures. While infinitebaffle mounting of GTi Series subs is
possible, power handling will be
compromised since there will be no
enclosed volume of air to help the
speaker’s suspension control the motion
of the woofer’s cone. For this reason,
we do not recommend infinite-baffle
mounting for high-power applications.
You should choose the enclosure you’ll
use based on the type of music you
listen to, how much amplifier power
you’ll use to drive the subwoofer, and
how much space inside the vehicle you
can devote to a subwoofer enclosure.
If you’ll be using your GTi Series
subwoofer for SPL competition, please
see the document titled “GTi as SPL
Competition Subwoofers” (included
with your woofer).
Because a sealed enclosure provides
the most control over the woofer’s
movement, a woofer mounted in a
sealed enclosure will handle more
power at low frequencies than a woofer
mounted in another enclosure type.
Sealed enclosures provide more
accurate sonic reproduction than
other enclosure types, so they are
well suited to all types of music.
Sealed-enclosure construction is
straightforward. An optimum sealed
enclosure is always smaller than other
types of enclosures that are optimized
for a particular speaker, so they require
the least space inside the vehicle.
Vented enclosures provide better
efficiency in the 40Hz – 60Hz range,
but this efficiency comes at the expense
of sound output in the lowest octave
(below 40Hz) and at the expense of
some control and power handling below
box tuning. If you are using a small
amplifier, a vented box will provide
more bass output from less power.
Vented enclosures are also well suited
to a variety of music types. Because
vented enclosures require the volume
of the enclosure and the size of the
port to have a specific relationship with
the characteristics of the woofer, the
enclosure must be built exactly to the
specifications provided. If you wish to
use a vented enclosure, we strongly
recommend having your authorized JBL
dealer build it; or verify that your design
is correct if you wish to build it yourself.
An optimum vented enclosure is always
larger than the optimum sealed box for
the same woofer, and will require more
space inside the vehicle.
Bandpass enclosures can provide
the greatest output available from any
amplifier and subwoofer combination –
at the expense of sonic accuracy. If
sheer SPL (sound pressure level) is
what you desire most, choose a vented
or bandpass enclosure. Bandpass
enclosure design is very tricky and the
aid of a computer and enclosure design
software is necessary if you wish to
design the enclosure yourself. Like a
vented enclosure, a bandpass enclosure
must be built exactly to the specifications
provided. Bandpass enclosures can be
quite large and may require a lot of space
inside your vehicle.
3
T-NUTS
(PROVIDED)
10/24"
SCREWS
(PROVIDED)
TOP PLATE
POLEPIECE / BACKPLATE
CONE
SPIDER
BOTH COILS
D
RIVE CONE
FORWARD
AND
REARWARD
MAGNET
CONVENTIONAL
DUAL VOICE COIL DESIGN
OVERHANG DETERMINES
X
m
ax
4
ENCLOSURE
CONSTRUCTION
Please observe the following suggestions
when building an enclosure for GTi
Series subwoofers.
1. Choose an enclosure design from the
Enclosure Design Sheet included with
your subwoofer.
2. Use at least 3/4" (19mm) MDF (medium
density fiberboard) or marine birch
plywood to build the enclosure.
Enclosures for 12" and larger subwoofers and smaller woofers driven
by high-power amplifiers should be
constructed using 1" (25mm) material.
3. Join pieces of wood with glue and
screws; do not use nails. Once the box
has been tested, seal all joints inside
the box with silicone caulk.
4. Fill the enclosure with damping
material (Dacron,®fiberglass insulation
or long-fiber wool) according to the
design you have chosen from the
Enclosure Design Sheet. “0% fill”
indicates that no damping material
should be used; “50% fill” indicates
that all interior walls except the baffle
should be lined with 1"-thick damping
material, and “100% fill” indicates that
the box should be loosely stuffed with
damping material.
5. Use PVC or ABS plastic pipe for ports.
Keep in mind that the openings at
either end of the port must be at least
one port diameter away from any
obstruction.
6. Use the 10/24" machine screws and
T-nuts provided to mount the woofer
to the baffle. See Figure 1.
Figure 1. Mounting the GTi woofer in its
enclosure
DUAL COIL VERSUS
DIFFERENTIAL DRIVE
®
*
Conventional dual-voice-coil woofers
use a pair of voice coils “interwound” on
the former and centered in the magnetic
gap. The two coils may be connected in
series or parallel in order to maximize an
amplifier’s output power. Both coils drive
the cone forward and rearward. X
(one-way-linear) is determined by the
max
amount of voice coil exposed above and
below the top plate. A conventional
voice coil is made up of several layers of
windings, each transferring heat to the
winding next to it until the heat is finally
dissipated by the outside layer through
the top plate, magnet and backplate. This
arrangement is inefficient, and results in
low thermal power handling. See Figure 2.
* U.S. patent no. 5,748,760 and other patents pending
Figure 2. Conventional dual-voice-coil
design
JBL GTi Series subwoofers employ
Differential Drive, a technology
developed by JBL Professional.
Differential Drive employs two voice
coils positioned at opposite ends of the
former, each suspended in a separate
magnetic gap. These two coils may be
connected in series or parallel, like a
conventional DVC woofer, to maximize
an amplifier’s output power. Both coils
MUST be connected to the amplifier in
correct polarity! At low power, both
voice coils drive the woofer’s cone, and
any motor nonlinearities are cancelled
by the out-of-phase coils and gaps. As
power input increases so that one coil
rides completely out of its gap, force is
still applied to the cone by the other coil.
TOP COIL
IN GAP #1
DRIVES CONE
FORWARD
ALUMINUM
COVER
2nd
TOP PLATE
1st
TOP PLATE
POLEPIECE
BOTTOM COIL
IN GAP #2
DRIVES CONE
REARWARD
CONE
SPIDER
GAP #1
GAP #2
MAGNET
JBL
DUAL GAP DESIGN
OVERHANG
DETERMINES
X
max
TERMINAL
JUMPER
INTACT
TERMINAL
JUMPER
INTACT
+
RED
TERMINAL
BLACK
TERMINAL
TERMINAL
JUMPER
REMOVED
TERMINAL
JUMPER
REMOVED
+
RED
TERMINAL
BLACK
TERMINAL
At extremely high power, each coil will
enter the other coil’s magnetic gap. This
will cause magnetic braking, which will
slow the cone’s motion and prevent
damage due to overexcursion. For a
GTi Series woofer, X
by the amount of voice-coil overhang
is determined
max
between the first and second top plates.
See Figure 3. Thermal power handling is
far superior to a conventional DVC
woofer using voice coils of a similar
diameter and length because Differential
Drive provides twice the heat-dissipating
surface area and two top plates to
transfer heat to the magnet-cover fins.

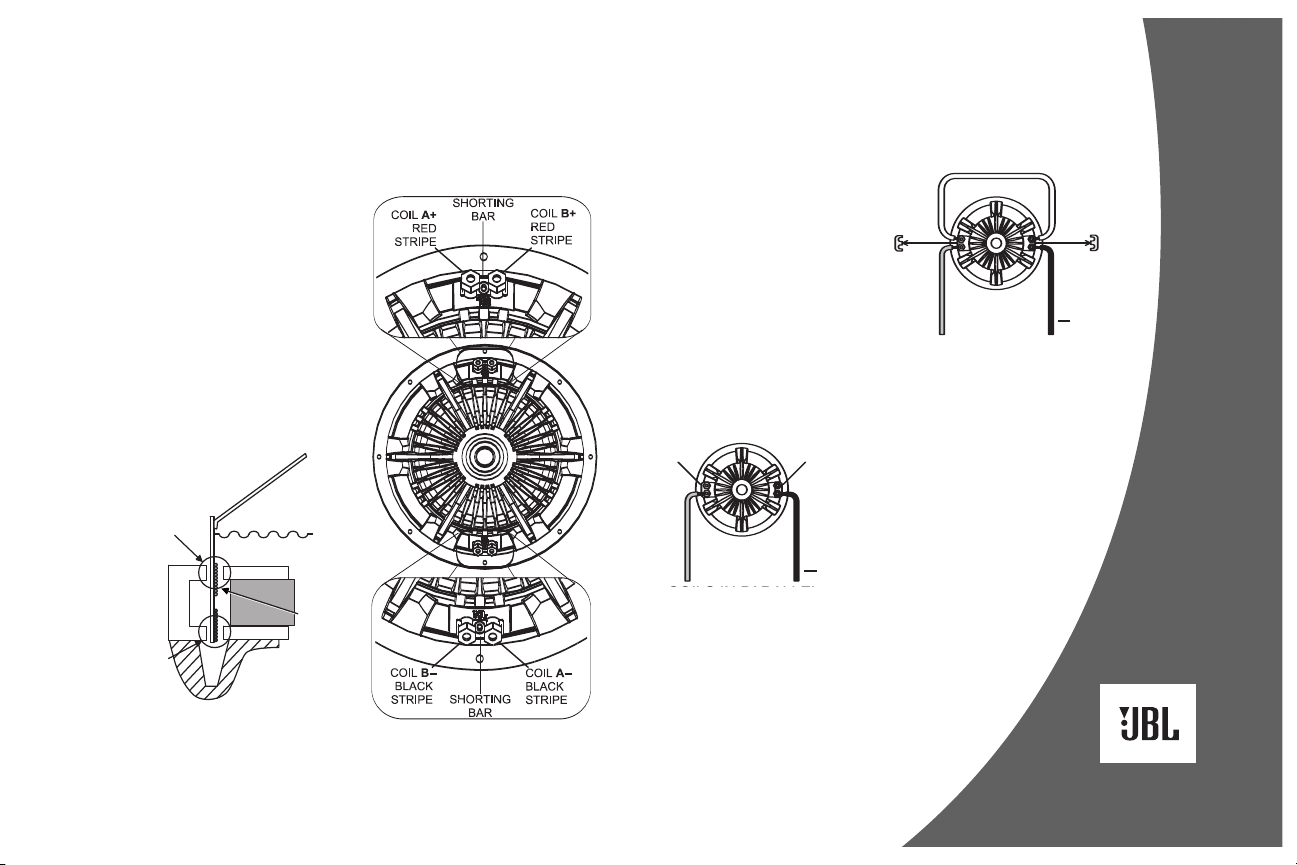

Figure 3. JBL dual-gap design
CONNECTING YOUR SUBWOOFER TO AN AMPLIFIER
CONFIGURING
THE VOICE COILS
Figure 4. Terminal locations
Note: Unlike conventional DVC
subwoofers, the two sets of terminals
are configured so that both positive (+)
terminals are on one side of the frame
and both negative (–) terminals are on
the other side. GTi Series subwoofers
are shipped with terminal jumpers
installed which configure the two 6-ohm
voice coils in parallel for a 3-ohm load.
Note: Both voice coils MUST be
connected to the amplifier in series
or parallel.
Figure 5. Connecting the voice coils in
parallel (3 ohms)
Note: Connect the coils in parallel if you
are connecting a single woofer to an
amplifier.
Figure 6. Connecting the voice coils in
series (12 ohms)
5
CONFIGURING
TERMINAL
JUMPERS
INTACT
+
TERMINAL
JUMPERS
INTACT
RED
TERMINAL
BLACK
TERMINAL
+
TERMINAL
JUMPER
REMOVED
TERMINAL
JUMPER
REMOVED
RED
TERMINAL
BLACK
TERMINAL
+
TERMINAL
JUMPER
REMOVED
TERMINAL
JUMPER
REMOVED
RED
TERMINAL
BLACK
TERMINAL
MULTIPLE WOOFERS
FOR CONNECTION TO
A SINGLE AMPLIFIER
Figure 7. Connect two woofers in parallel
(with coils in parallel) for a 1.5-ohm load
Figure 8. Connect three woofers in parallel
(with coils in series) for a 4-ohm load
Figure 9. Connect four woofers in parallel
(with coils in series) for a 3-ohm load
6
SPECIFICATIONS
W10GTi MkII W12GTi MkII W15GTi MkII
10" Automotive subwoofer 12" Automotive subwoofer 15" Automotive subwoofer
Power handling (peak) 3000W 4000W 5000W
Power handling (RMS) 600W 700W 800W
Frequency response (in-car) 20Hz – 1kHz, ±3dB 18Hz – 1kHz, ±3dB 16Hz – 1kHz, ±3dB
Impedance 3 or 12 ohms 3 or 12 ohms 3 or 12 ohms
Sensitivity (2.83V/1m) 90dB 91dB 92dB
Overall diameter 10-1/2" (267mm) 12-1/4" (312mm) 15-1/4" (388mm)
Cutout diameter 9-3/16" (234mm) 11" (280mm) 13-7/8" (353mm)
Mounting depth 9-1/8" (232mm) 10-1/4" (260mm) 10-1/4" (260mm)
Basket displacement .108 cu. ft. (3.06 L) .149 cu. ft. (4.23 L) .174 cu. ft. (4.93 L)
GENERAL CARE
The loudspeaker grilles may be cleaned with a damp cloth. Do not use any cleaners or solvents on the grilles or the speaker cones.
These products are designed for mobile applications and are not intended for connection to the mains.
A valid serial number is required for warranty coverage.
Features, specifications and appearance are subject to change without notice.
Not all models are available in all markets.
7
JBL Consumer Products
250 Crossways Park Drive, Woodbury, NY 11797 USA
516.255.4JBL (4525) (USA only) www.jbl.com
© 2006 Harman International Industries, Incorporated. All rights reserved.
JBL and Harman International are registered trademarks of Harman International
Industries, Incorporated.
Dacron is a registered trademark of Invista.
Part No. W10/12/15GTIOM1/06
Declaration of Conformity
We, Harman Consumer Group International
2, route de Tours
72500 Château du Loir
France
declare in own responsibility that the products described in this owner’s
manual are in compliance with technical standards:
EN 61000-6-3:2001
EN 61000-6-1:2001
Klaus Lebherz
Harman Consumer Group International
Château du Loir, France 1/06
www.jbl.com
Loading...
