PRX812W
SERIES
PR X800W
PRX815W
User’s Guide
PRX815XLFW
PRX818XLFW
PRX825W
PRX835W
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS ..................................................3
PRECAUTIONS ........................................................................................4
SUSPENSION OF LOUDSPEAKER SYSTEMS ......................................5
WATCH FOR THESE SYMBOLS .............................................................7
PRX800W SERIES SPEAKERS DECLARATION OF CONFORMITY .....8
THE PRX800W SERIES POWER AMPLIFIER ........................................9
INTRODUCTION TO THE PRX800W SERIES .....................................10
SYSTEM SPECIFICATIONS ..................................................................12
SYSTEM SET UP – FULL RANGE MODELS .......................................14
SYSTEM SET UP – SUBWOOFERS .....................................................16
WI-FI SETUP ..........................................................................................18
FACTORY RESETS .............................................................................19
TROUBLESHOOTING ...........................................................................20
CONTACT INFORMATION .....................................................................22
WARRANTY INFORMATION .................................................................23
2
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
ampliers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide
blade or the third prong is provided for your safety. If the provided plug does not t into your outlet, consult
an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
11. Only use attachments/accessories specied by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specied by the manufacturer,
or sold with the apparatus. When a cart is used, use caution when moving the
cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been
damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have
fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or
has been dropped.
15. If Service Instructions are included in the Owner’s Manual: “CAUTION - THESE SERVICING
INSTRUCTIONS ARE FOR USE BY QUALIFIED SERVICE PERSONNEL ONLY. TO REDUCE THE RISK
OF ELECTRIC SHOCK DO NOT PERFORM ANY SERVICING OTHER THAN THAT CONTAINED IN THE
OPERATING INSTRUCTIONS UNLESS YOU ARE QUALIFIED TO DO SO.”
16. To completely disconnect this apparatus from the AC mains, disconnect the power supply cord plug
from the AC receptacle.
17. “WARNING – TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPARATUS TO RAIN OR MOISTURE.”
18. Do not expose this equipment to dripping or splashing and ensure that no objects lled with liquids, such as
vases, are placed on the equipment.
19. The main plug of the power supply cord shall remain readily operable.
Care And Cleaning
PRX800W Series systems may be cleaned with a dry cloth. Do not get moisture into any of the openings in the
system. Ensure that the system is unplugged from the AC outlet before cleaning. In the event the DuraFlex nish
is damaged a touch up kit can be obtained from JBL Professional (part number 363972-001).
THIS APPARATUS CONTAINS POTENTIALLY LETHAL VOLTAGES. TO PREVENT ELECTRIC SHOCK OR
HAZARD, DO NOT REMOVE CHASSIS, INPUT MODULE OR AC INPUT COVERS. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
3
PRECAUTIONS
The PRX800W Series speakers covered by this manual are not intended for use in high
moisture environments. Moisture can damage the speaker cone and surround and cause
corrosion of electrical contacts and metal parts. Avoid exposing the speakers to direct
moisture. Keep speakers out of extended or intense direct sunlight. The driver suspension
will prematurely dry out and nished surfaces may be degraded by long-term exposure
to intense ultra-violet (UV) light. PRX800W Series speakers can generate considerable
energy. When placed on a slippery surface such as polished wood or linoleum, the
speaker may move due to its acoustical energy output. Precautions should be taken to
assure that the speaker does not fall off a stage or table on which it is placed.
Stand Mounting Safety Precautions
Some PRX800W Series models include a 36 mm receptacle cup to allow mounting on tripod stands or on a pole
over subwoofers. When using stands or poles, be sure to observe the following precautions:
• Check the stand or pole specication to be certain the device is designed to support the weight of the
speaker. Observe all safety precautions specied by the manufacturer.
• Always verify that the stand (or subwoofer/pole) is placed on a at, level and stable surface and be
sure to fully extend the legs of tripod type stands. Position the stand so that the legs do not present a
trip hazard.
• Route cables so that performers, production crew, and audience will not trip and topple the speakers over.
• Inspect the stand (or pole and associated hardware) before each use and do not use equipment with
worn, damaged or missing parts.
• Do not attempt to place more than one PRX800W Series speaker on a stand or pole.
• Always be cautious in windy, outdoor conditions. It may be necessary to place additional weight
(i.e. sandbags) on the base of the stand to improve stability. Avoid attaching banners or similar items to
any part of a speaker system. Such attachments could act as a sail and topple the system.
• Unless you are condent that you can handle the weight of the speaker, ask another person to help
you get it onto the tripod stand or pole.
• JBL highly recommends that no more than 80 lbs of weight be placed on a speaker pole that is
mounted to a PRX815XLFW or PRX818XLFW.
Suspension of Loudspeaker System
Before attempting to suspend your JBL loudspeakers, read and understand the following safety information.
IMPORTANT SAFETY WARNING!
The information in this section has been assembled from recognized engineering data and is intended for
informational purposes only. None of the information in this section should be used without rst obtaining
competent advice with respect to applicability to a given circumstance. None of the information presented herein
is intended as a representation or warranty on the part of JBL. Anyone making use of this information assumes
all liability arising from such use. All information presented herein is based upon materials and practices common
to North America and may not directly apply to other countries because of differing material dimensions,
specications, and/or local regulations. Users in other countries should consult with appropriate engineering
and regulatory authorities for specic guidelines. Correct use of all rigging hardware is required for secure
system suspension. Careful calculations should always be performed to ensure that all components are used
within their working load limits before the array is suspended. Never exceed the maximum recommended load
ratings. Before suspending any speaker system always inspect all components (enclosure, rigging frames, pins,
eyebolts, track ttings, etc.) for cracks, deformations, corrosion, missing, loose or damaged parts that could
reduce strength and safety of the array. Do not suspend the speaker until the proper corrective action has been
taken. Use only load-rated hardware when suspending JBL suspendable loudspeaker models.
4
SUSPENSION OF LOUDSPEAKER SYSTEMS
Are You New to Rigging?
If you are new to rigging, you should do the following:
• Read and study JBL Technical Note Volume 1, Number 14: Basic Principles for Suspending Loudspeaker
Systems (available at http://www.jblpro.com/catalog/support/getle.aspx?docid=296&doctype=3).
• Know the rules for safe rigging.
• Attend a safe rigging seminar, such as that presented by professionals like Rigging Seminars™ or by Chain
Motor Hoist manufacturers like Columbus McKinnon Corp. (manufacturers of the C/M Lodestar).
• Meet and establish a relationship with a licensed mechanical or structural engineer. Get in the habit of asking
them questions instead of guessing about their answers. Learn from what they tell you.
• Meet and discuss this aspect of your business with your Insurance Agent.
• Research and understand the codes, practices, and requirements in the venues where you intend to operate
your sound system.
General Hardware Information
Any hardware used in an overhead suspension application must be load rated for the intended use. Generally,
this type of hardware is available from rigging supply houses, industrial supply catalogs and specialized rigging
distributors. Local hardware stores do not usually stock these products. Hardware that is intended for overhead
suspension will comply with ASME B30.20 and will be manufactured under product traceability controls.
Compliant hardware will be referenced with a working load limit (WLL) and a traceability code.
Attachment to Structures
A licensed Professional Engineer must approve the placement and method of attachment to the structure prior
to the installation of any overhead object. The following performance standards should be provided to the
Professional Engineer for design purposes; Uniform Building Code as applicable, Municipal Building Code
as applicable, and Seismic Code as applicable.
The installation of the hardware and method of attachment must be carried out in the manner specied by
the Professional Engineer. Improper installation may result in damage, injury or death.
Inspection & Maintenance
Suspension systems are comprised of mechanical devices and, as such, they require regular inspection and
routine maintenance to ensure proper function ability. JBL suspendable loudspeakers must be inspected for
fatigue at least annually or, if there has been signicant seismic activity, immediately thereafter. The inspection
shall include a visual survey of all corners and load bearing surfaces for signs of cracking, water damage,
de-lamination, or any other condition that may decrease the strength of the loudspeaker enclosure. Accessory
suspension hardware provided with or for the JBL loudspeakers must be inspected for fatigue at least annually.
The inspection shall include a visual survey of the material for signs of corrosion, bending or any other condition
that may decrease the strength of the fastener. Additionally, any eyebolts shall be checked for possible spin-out
of the enclosure.
For all other hardware and ttings, refer to the hardware manufacturer’s inspection and
maintenance guidelines for process.
JBL is not responsible for the application of its products for any purpose or the misuse of this information for
any purpose. Furthermore, JBL is not responsible for the abuse of its products caused by avoiding compliance
with inspection and maintenance procedures or any other abuse.
Prior to suspending the system, an expert, trained and experienced in suspending speaker systems should
inspect all rigging parts and components.
5
Resources
Adaptive Technologies Group McMaster Carr
562.424.1100 Various locations in the USA
1635 E. Burnett Street For a location near you, visit
Signal Hill, CA 90755 them at www.mcmaster.com
www.adapttechgroup.com
JBL Professional - Tech Note Vol. 1 No. 14
“Basic Principles for Suspending Loudspeakers”
www.jblpro.com/catalog/support/getle.aspx?docid=296&doctype=3
Safe Rigging
JBL suspendable version loudspeakers are supplied with built-in internal brackets. The systems are designed
to facilitate the suspension of the loudspeaker by a qualied person familiar with rigging hardware and industry
practices. Improper installation may result in damage, injury or death.
If you are unfamiliar with Safe Rigging Practices you will need to consult with a qualied person familiar
with rigging hardware and industry practices.
Working Load Limit
Working Load Limit for M10 Suspension Points:
The working load limit (WLL) of the JBL PRX800W Series loudspeakers utilizing M10 attachment points will be
maintained with a safety factor of 5:1, provided no more than 470lbs/213kg from 2 points equally loaded, or no
more than 235lbs/106kg maximum from a single suspension point, is utilized in conjunction with industry
recognized safe rigging practices and the guidelines established within this manual.
For permanent installation applications utilizing the M10 suspension points order JBL 229-00009-01.
This kit includes three M10 x 35 mm forged shoulder steel eyebolts with washers.
WARNING
Suspension of JBL loudspeakers must employ a minimum of two attachment points. When “bridling” a JBL
loudspeaker system, two legs of equal length must be used. The rear attachment points are pull-back points and
are intended only for use in adjusting the down-angle of the speaker enclosure. Only the top and bottom
attachment points are intended for use as suspension points.
Hearing Damage, Prolonged Exposure To Excessive SPL
PRX800W Series loudspeakers are easily capable of generating sound pressure levels (SPL) sufcient to cause
permanent hearing damage to performers, production crew and audience members. Caution should be taken to
avoid prolonged exposure to SPL in excess of 90 dB.
6
WATCH FOR THESE SYMBOLS
The lightning ash with arrowhead symbol within
an equilateral triangle, is intended to alert the
user to the presence of uninsulated “Dangerous
Voltage” within the product’s enclosure that may be
of sufcient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (Servicing) instructions in
the literature accompanying the product.
7
PRX800W SERIES SPEAKERS DECLARATION OF CONFORMITY
Safety and EMC Compliance Specications
EN 55103-1:1997 Electromagnetic Compatibility - Product Family Standard for Audio, Video, Audio-Visual
and Entertainment Lighting Control Apparatus for Professional Use, Part 1: Emissions
EN 55103-1:1997 Magnetic Field Emissions-Annex A@ 10 cm and 20 cm
EN 55022:2003 Limits and Methods of Measurement of Radio Disturbance Characteristics
of ITE: Radiated, Class B Limits; Conducted, Class A
EN 55103-2:1997 Electromagnetic Compatibility - Product Family Standard for Audio, Video, Audio-Visual
and Entertainment Lighting Control Apparatus for Professional Use, Part 2: Immunity
EN 61000-4-2: A2:2001 Electrostatic Discharge Immunity (Environment
E2-criteria B, 4 kV Contact, 8 kV Air discharge)
EN 61000-4-3:2003 Radiated, Radio-frequency, Electromagnetic Immunity (Environment E2, criteria A)
EN61000-4-4:2005 Electrical Fast Transient/Burst Immunity (criteria B)
EN 61000-4-5:2001 Surge Immunity (criteria B)
EN 61000-4-6:1996 Immunity to Conducted Disturbances Induced by Radio-Frequency Fields (criteria A)
EN 61000-4-11:2004 Voltage Dips, Short Interruptions and Voltage Variation
UL 6500 2nd Edition 1999 Audio/Video and Musical Instruments Apparatus for Household, Commercial,
and Similar General Use
CAN/CSA-E60065-00 Audio, video and similar apparatus - Safety requirements
UL Compliance Specications
CUL 60065 7th Ed. IEC 60065(ed.7), IEC 60065(ed.7);am1,
IEC 60065(ed.7);am2 EN 60065:2002/A1:2006/A11:2008/A2:2010/A12:2011
FCC Compliance Notice
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
CAUTION: Changes or modications not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio
communications. However there is no guarantee that the interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio and television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio / TV technician for help.
8
THE PRX800W SERIES POWER AMPLIFIER
AC Power Requirements
Standard PRX800W Series speaker systems are equipped with a multi-channel Class-D power amplier and
loudspeaker-specic DSP electronics and require appropriate AC power. Before plugging a PRX800W speaker
into an outlet, ensure that it is able to provide the appropriate AC power as required by the speaker.
A robust AC supply is necessary for maximum performance. If the supply is too weak, the bass performance
may be affected and, if it sags (drops) too much, the system may self-mute to protect itself. As soon as the
appropriate AC supply is restored, it will continue to operate. Plugging multiple systems into the same outlet and
the use of long extension cord runs may affect the AC supply to the systems.
CAUTION
In compliance with safety agency criteria and proper system operation, it is critical that the system installer
observe all electrical safety practices at all times and provide proper earth grounding for all AC Power
connections.
Powering Up

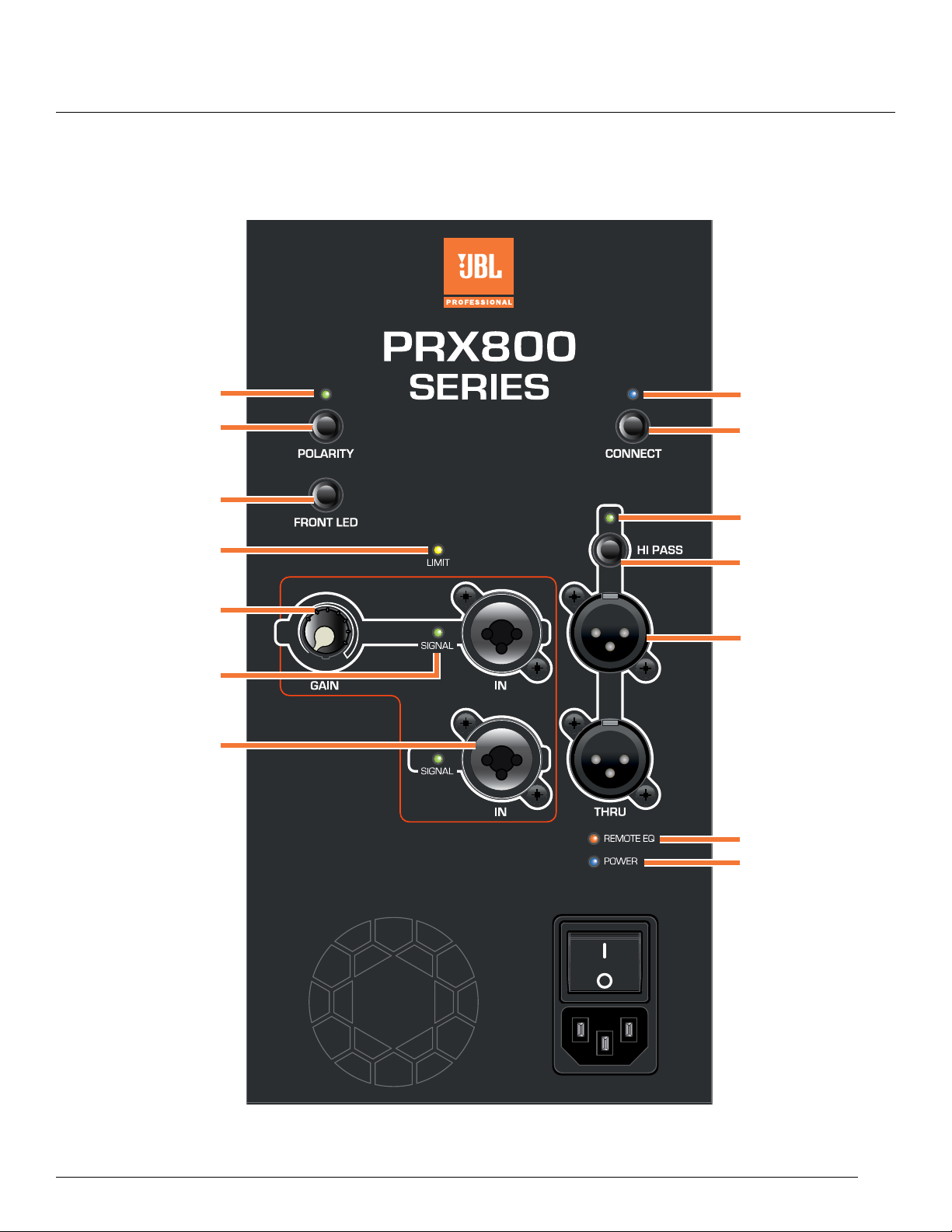

The main power switch is located on the input panel on the back of the enclosure. Always ensure that the
speaker system is the last thing you power up, and the rst thing you turn off when operating your complete PA
system. If speaker systems are daisy chained together, always turn off the last system in the chain rst. Power
“on” is indicated by the illumination of the blue LED on the front of the enclosure.
Operating Temperature
The design of the amplier is such that it is very energy efcient and, as a result, does not get very hot. In the
rare event that it does get too hot, it will automatically shut down to protect itself. When its temperature has
returned to within its operating range, it will turn back on. A condition under which this may occur is when the
system is operated in very high ambient temperatures or the rear of the enclosure is in direct sunlight. Always
ensure adequate cooling and appropriate shade.
9
INTRODUCTION TO THE PRX800W SERIES

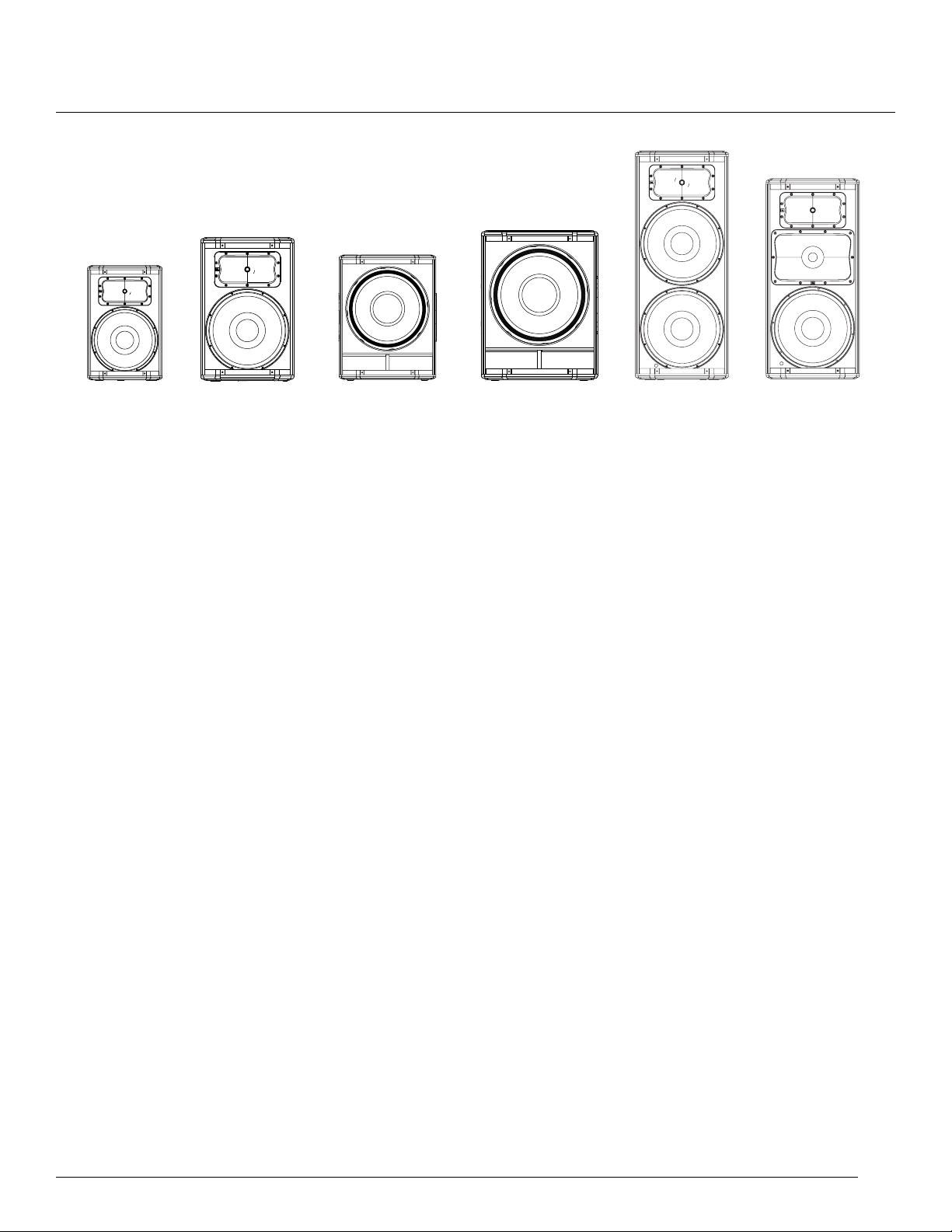

PRX812W PRX815W PRX815XLFW PRX818XLFW PRX825W PRX835W
Thank you for choosing the JBL PRX800W Series self-powered PA loudspeakers. The PRX800W Series
represent an evolutionary step in the efcient use of amplier power, rugged durability and enhanced versatility
in a self-powered loudspeaker with WI-FI application conguration and control. The speakers were designed
from the ground up to perform in the real world of sound reinforcement, where challenging audio environments,
high ambient noise levels and loud volumes are the norm. And we’ve built these speakers to last a lifetime using
tour-tested technology that’s reliable and trustworthy. Knowing you can rely on your system to deliver everything
you need gives you the freedom to deliver your best. That’s performance you can trust. With the PRX800W
Series, as always, JBL delivers with precision and care. Properly maintained, your PRX800W Series speaker will
provide you with many years of awless performance. To ensure you are always receiving optimum performance,
we encourage you to review this user’s guide completely before hooking up your new system.
The PRX800W Series is a platform technology that allows you to create the system you need from an intelligent
range of models. While each model was designed to excel at a specic application, the PRX Series integrate
seamlessly with one another offering a multitude of choices when tailoring a system to t your specic needs.
Whether you need a single speaker on a stand for public address situations, a full-range stereo setup with two
top cabinets and a sub-woofer for live performance or DJ applications, or multiple cabinets for a scalable, highly
professional sound reinforcement situation, the PRX800W Series offers the solution. In fact, you can even
suspend any of the top cabinets for use in a commercial installation or House of Worship. If versatility, scalability,
portability and affordability are what you’re looking for in a system, PRX800Ws are the intelligent choice.
Road Tough
All PRX800W cabinets are built from a combination of 25mm (on the top and bottom for added rigidity) and
18mm, strong, lightweight poplar plywood made structurally sound with tongue and groove joints. All PRX800W
Series cabinets are protected by JBL’s tour proven DuraFlex™ nish. We make our grilles from dent-resistant
16 gauge steel, and our handles are made from lightweight, glass-lled nylon for added durability. All M10
suspension points are constructed from 14 gauge steel, and the M10 suspension points have been tested with a
yield-strength of 1000 lbs. each.
Differential Drive Transducers
Extended frequency response, high power output and low distortion are hallmarks of all JBL transducers.
Our tour-tested, tour-proven and patented Differential Drive® technology delivers all this performance in a
dramatically lighter package than traditional transducer designs.
Built-In WI-FI Control
All PRX800W models can be managed and controlled via our PRX Connect application. Run your entire show
from your tablet without having to go to each speaker before or during the show. Added EQ and delay settings
are an added benet of the application. See “WI-FI SETUP” on page 18 for information on using WI-FI
control.
10
Powered Speaker Systems
A Closed System Architecture…
There is much confusion these days in the world of powered speakers, especially when it comes to dening
“performance”. What constitutes “exceptional performance”? Is it wattage ratings, driver dimensions, cabinet
dimensions, sound pressure levels, tone? It can get very confusing when you’re confronted with a barrage of
specications from manufacturers all claiming to have the “best performance”. A self-powered speaker is really
a “system” unto itself — it’s a “closed system”. Unlike a passive speaker, where amplier and signal processing
chain components can be interchanged or upgraded, the powered speaker is a “closed system” that operates
as a single unit. When properly designed, all of the components are chosen to work together, complementing
each other to create an environment where the whole is greater than the sum of the parts. The cabinet volume
needs to support the mechanical performance of the speaker which is impacted by the power amplier’s
performance which, if there is Digital Signal Processing on the input, is affected by the DSP programming.
Some manufacturers simply stick an amplier on an existing speaker cabinet and call it a “powered speaker”
(technically correct), while more experienced companies, like JBL, spend hundreds of man hours optimizing the
relationship between the components in order to maximize amplier and speaker efciency, spectral balance,
tone and dependability. Here at JBL we not only work hard on the system but on our proprietary components as
well. Products like Differential Drive® speakers, for example, are patented designs born from years of dedicated
research and development into acoustical and transducer science. No one else has access to this technology,
and Differential Drive® speakers have been tested on worldwide concert tours for years.
Harman Professional “Green Edge™” Mission
At Harman Professional we understand and respect that we have a duty to serve our customers and
our employees by serving the planet. We accept that responsibility and strive to be energy efcient and
environmentally minded in our everyday business. When we design, produce, and deliver our products we look
for opportunities to do so more efciently and sustainably. We’re committed to a healthier planet and healthier
life for every living thing. JBL is proud that PRX800Ws have been certied “Green Edge” compliant by Harman
Professional. We’ve not only lowered our Carbon Footprint, but the CF of any one who purchases them.
11
SYSTEM SPECIFICATIONS
Full-Range Models
PRX812W PRX815W PRX825W PRX835W
SYSTEM SPEC
System Type: Self powered t wo-way 12”
Max SPL Output: 135 dB 137 dB 138 dB 138 dB
Freq Range (-10 dB): Main: 45 Hz – 20 kHz
Freq Response (±3 dB): Main: 56 Hz – 20 kHz
Input Connectors: 2 x Balanced XLR / ¼” input, 2 x
Input Impedance: 20K Ohms (balanced), 10K Ohms
Signal Indicators: Limit: Yellow LED indicates input
Dynamic Control (Input): dbx Type IV™ limiter circuit dbx Type IV™ limiter circuit dbx Type IV™ limiter circuit dbx Type IV™ limiter circuit
Crossover
Frequency:
AMPLIFIER
Power Rating: 1500W (2 x 750W) 1500W (2 x 750W) 1500W (2 x 750W) 1500W (2 x 750W)
SPEAKER
Coverage Pattern: 90º x 50º nominal 90º x 50º nominal 90º x 50º nominal 90º x 50º nominal
Enclosure: Asymmetrical, 18 mm, plywood Asymmetrical, 18 mm, plywood Trapezoidal, 18 mm, plywood Trapezoidal, 18 mm, plywood
Suspension/Mounting: Dual 36 mm pole socket, 12 x
Transport: 1 x injection molded handles with
Dimensions (mm):
(H x W x D) (in):
Net Weight: 19.4 kg (42.5 lb) 21.6 kg (47.5 lb) 37.19 kg (82 lb) 34.9 kg (77 lb)
woofer 1” exit compression
driver, bass-reflex
Monitor: 45 Hz – 20 kHz
Monitor: 56 Hz – 20 kHz
unbalanced RCA input
(unbalanced)
is clipping or peak output has
been reached and the DSP limiter
is acting.
Signal: Green LED indicates signal
present.
Power: Blue indicates system has
power and ready to pass audio.
EQ: Presets for Main and Monitor Presets for Main and Monitor Presets for Normal and Boost Presets for Normal and Boost
1.8 kHz 2.0 kHz 2.4 kHz 580 Hz, 2.1 kHz
Design: Class-D Class-D Class-D Class-D
LF: 1 x JBL 272G 305mm (12”)
woofer
MF: n/a n/a n/a 1 x JBL 196H 165mm (6.5 in)
HF: 1 x JBL 2408H-2 37.5 mm (1.5”)
annular polymer diaphragm,
neodymium compression driver
M10 Suspension Points
backing cup
Finish: Obsidian DuraFlex™ finish Obsidian DuraFlex™ finish Obsidian DuraFlex™ finish Obsidian DuraFlex™ finish
Grille: Powder coated, Obsidian, 16
gauge perforated steel with
acoustical transparent black cloth
backing.
599 x 385 x 341
23.6 x 15.1 x 13.4
Self powered two-way 15”
woofer 1” exit compression
driver, bass-reflex
Main: 43 Hz – 20 kHz
Monitor: 43 Hz – 20 kHz
Main: 56 Hz – 20 kHz
Monitor: 56 Hz – 20 kHz
2 x Balanced XLR / ¼” input, 2 x
unbalanced RCA input
20K Ohms (balanced), 10K Ohms
(unbalanced)
Limit: Yellow LED indicates input
is clipping or peak output has
been reached and the DSP limiter
is acting.
Signal: Green LED indicates signal
present.
Power: Blue indicates system has
power and ready to pass audio.
1 x JBL 275G (15 in) woofer 2 x JBL 275 (15 in) woofer 1 x JBL 275G 380mm (15 in)
1 x JBL 2408H-2 37.5 mm
(1.5””) annular polymer diaphragm, neodymium compression
driver”
Dual 36 mm pole socket, 12 x
M10 Suspension Points
1 x injection molded handles with
backing cup
Powder coated, Obsidian, 16
gauge perforated steel with
acoustical transparent black cloth
backing.
701 x 446 x 359
27.6 x 17.5 x 14.1
Self powered two-way 15”
woofer 1” exit compression
driver, bass-reflex
Normal: 40 Hz – 19 kHz
Boost: 40 Hz – 19 kHz
Normal: 46 Hz – 17 kHz
Boost: 46 Hz – 17 kHz
2 x Balanced XLR / ¼” input, 2 x
unbalanced RCA input
20K Ohms (balanced), 10K Ohms
(unbalanced)
Limit: Yellow LED indicates input
is clipping or peak output has
been reached and the DSP limiter
is acting.
Signal: Green LED indicates signal
present.
Power: Blue indicates system has
power and ready to pass audio.
1 x JBL 2408H-2 37.5 mm
(1.5””) annular polymer diaphragm, neodymium compression
driver”
8 x M10 Suspension Points, 1 x
M10 pull back point
2x injection molded handle with
backing cup
Powder coated, Obsidian, 16
gauge perforated steel with
acoustical transparent black cloth
backing.
1061 x 446 x 539
41.8 x 17.5 x 21.2
Self powered three-way, 15”
woofer, 6.5” midrange, 1” exit
compression driver, bass-reflex
Normal: 34 Hz – 20 kHz
Boost: 34 Hz – 20 kHz
Normal: 39 Hz – 20 kHz
Boost: 39 Hz – 20 kHz
2 x Balanced XLR / ¼” input, 2 x
unbalanced RCA input
20K Ohms (balanced), 10K Ohms
(unbalanced)
Limit: Yellow LED indicates input
is clipping or peak output has
been reached and the DSP limiter
is acting.
Signal: Green LED indicates signal
present.
Power: Blue indicates system has
power and ready to pass audio.
woofer
horn-loaded midrange transducer
1 x JBL 2408H-2 37.5 mm
(1.5””) annular polymer diaphragm, neodymium compression
driver”
12 x M10 Suspension Points
2x injection molded handle with
backing cup
Powder coated, Obsidian, 16
gauge perforated steel with
acoustical transparent black cloth
backing.
938 x 446 x 539
36.9 x 17.5 x 21.2
12
PRX815XLFW PRX818XLFW
SYSTEM SPEC
System Type: Self powered 15”, bass-reflex Self powered 18”, bass-reflex
Max SPL Output: 131 dB 134 dB
Frequency Range (-10
Frequency Response
Input Connectors: Two Balanced female XLR/ 1/4”
Input Impedance: 20K Ohms (balanced) 20K Ohms (balanced)
Signal Indicators: Limit: Yellow LED indicates input
Dynamic Control (Input): dbx Type IV™ limiter circuit dbx Type IV™ limiter circuit
Crossover
Frequency:
AMPLIFIER
Power Rating: 1500W 1500W
SPEAKER
Coverage Pattern: n/a n/a
Directivity Index (DI): n/a n/a
Directivity Factor (Q): n/a n/a
Enclosure: Rectangular, 18 mm & 25mm,
Suspension/Mounting: n/a n/a
Transport: 2 x injection molded handles with
Dimensions (mm):
(H x W x D) (in):
Net Weight: 25.4 kg (56 lb) 36.8 kg (81 lb)
36 Hz – 113 Hz 30 Hz – 103 Hz
dB):
40 Hz – 91 Hz 35 Hz – 87 Hz
(±3 dB):
combo connectors
is clipping or peak output has
been reached and the DSP limiter
is acting.
Signal: Green LED indicates signal
present.
Power: Blue indicates system has
power and ready to pass audio.
EQ: n/a n/a
Internal: 80 Hz DSP controlled 48
dB filter slope
Design: Class-D Class-D
LF: 1 x JBL 2275H 15 in woofer 1 x JBL 2278G 460 mm (18 in)
MF: n/a n/a
HF: n/a n/a
plywood
backing cup
Finish: Obsidian DuraFlex™ finish Obsidian DuraFlex™ finish
Grille: Powder coated, Obsidian, 16
gauge perforated steel with
acoustical transparent black cloth
backing.
548 x 446 x 572
21.6 x 17.5 x 22.5
Two Balanced female XLR/ 1/4”
combo connectors
Limit: Yellow LED indicates input
is clipping or peak output has
been reached and the DSP limiter
is acting.
Signal: Green LED indicates signal
present
Power: Blue indicates system has
power and ready to pass audio.
Internal: 80 Hz DSP controlled 48
dB filter slope
woofer
Rectangular, 18 mm, plywood
2 x injection molded handles with
backing cup
Powder coated, Obsidian, 16
gauge perforated steel with
acoustical transparent black cloth
backing.
692 x 523 x 724
27.26 x 20.6 x 28.5
SYSTEM SPECIFICATIONS
Subwoofers
13
SYSTEM SET UP – FULL RANGE MODELS
PRX800W Amplier Input Conguration for
PRX812W, PRX815W, PRX825W and PRX835W:
1
2
3
4
5
6
7
8
9
10
12
13
14
15
16
17
18
14
11
Features
1. SYSTEM EQ LED – This light indicates BOOST
(PRX825W & PRX835W only) or MONITOR
(PRX812W & PRX815W only).
2. SYSTEM EQ Button
a. Normal and Boost (PRX825W and PRX835W
only) – Default (light off) is NORMAL,
frequency response is linear and unaltered.
When light indicator is on, BOOST is selected
and internal equalization is applied to enhance
low frequency and high frequency response.
b. Main and Monitor (PRX812W & PRX815W
only) – Speaker is optimized for MAIN position
when light is off, and MONITOR when the light
indicator is on.
NOTE: This button is also used to Factory Reset
speaker settings. See “FACTORY RESETS” on
page 19 for more information.
3. FRONT LED Button – This push button allows
you to turn on/off the Power LED on the front of
the speaker.
4. LIMIT Indicator – There is one YELLOW LED
indicator that will illuminate when input clipping
occurs or peak output has been reached and the
DSP limiter is acting.
b. On – The speaker is connected to WI-FI.
c. Blinking Slowly – The speaker is in Access
Point mode and has not yet established a WIFI connection.
d. Blinking Rapidly – The speaker is in Access
Point mode and is communicating with a
connected device.
13. WI-FI CONNECT Button – This button is used
to connect to a WI-FI network for speaker
conguration and control using the PRX Connect
application. This button has two functions:
a. Press and release – Instructs the speaker to
try connecting to the congured WI-FI network.
b. Press and hold for 2 seconds – Switches
between “Access Point” and “Normal” network
operating modes. By default, the speaker is in
“Normal” network operating mode. Switching
to Access Point mode allows all PRX800W
speakers in a system to be initially congured
for your network router. When switched to
Access Point mode, the WI-FI LINK LED will
ash slowly.
For more information on using WI-FI, see “WI-FI
SETUP” on page 18.
5. GAIN Knobs – These gain knobs are for setting
the input level of CH1 and CH2.
6. SIGNAL Indicator – There are two LED indicators
(one for each channel) that will illuminate GREEN
when signal is present at the input connector.
7. MIC LED – This light indicates MIC input level is
selected for the channel.
8. MIC SELECT Button – Speaker is in LINE level
mode by default. Press and hold the button for 2
seconds to change to MIC level. Light indicator will
turn on while in MIC level input.
9. XLR Inputs – Female balanced XLR and 1/4 inch
phone jack combo input connectors.
10. RCA SIGNAL LED – This light indicates RCA input
signal.
11. RCA Inputs – Female unbalanced RCA input
connectors.
12. WI-FI LINK LED – This LED has four states:
a. Off – The speaker is not connected to WI-FI.
14. 50/50 MIX LED – This light indicates a 50/50 mix
going to the MIX OUT connector.
15. 50/50 MIX Button – This button determines how
the inputs are sent to the MIX OUT connector.
When disengaged (50/50 LED off, this is the
default), a true mix based on how the gains are
set between CH1 and CH2 will be sent to the MIX
OUT connector. When engaged (50/50 LED on), a
50/50 mix of CH1 and CH2 will be sent to the MIX
OUT connector. This button must be pressed and
held for 2 seconds to switch between options.
16. MIX OUT Connector – Male balanced XLR output
connector. This connector provides a full-range
signal which can be daisy chained to another
speaker.
17. REMOTE EQ LED – Indicates the speaker has
settings applied by the WI-FI application.
18. POWER LED – This LED illuminates when the
“Power Switch” has been turned to the on position.
It will illuminate BLUE when the system has power
and is ready to pass audio.
15
SYSTEM SET UP – SUBWOOFERS
PRX800W Amplier Input Conguration for
PRX815XLFW and PRX818XLFW:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
16
Features
1. POLARITY LED – This light indicates whether the
polarity is set to Normal or Inverse Polarity. When
the light is ON, speaker polarity is inverted.
2. POLARITY Button – This push button allows you
to choose between 0° (Normal) or 180° (Inverse
Polarity). The correct polarity setting will produce
the best blend between the subwoofer and the
full-range speaker and the strongest perceived
bass response at the listening position. If the bass
response seems weak, try inverting the polarity.
NOTE: This button is also used to Factory Reset
speaker settings. See “FACTORY RESETS” on
page 19 for more information.
3. FRONT LED Button – This push button allows
you to turn on/off the Power LED on the front of
the speaker. The front LED will illuminate BLUE
when the system has power and is ready to pass
audio.
4. LIMIT Indicator – There is one YELLOW LED
indicator that will illuminate when input clipping
occurs or peak output has been reached and the
DSP limiter is acting.
5. GAIN Knob – This gain knob is for setting the
input level. The 12 o’clock position is a good
starting point for most uses. Once the full-range
system has been connected the level can be
varied to match and deliver the desired balance.
6. SIGNAL Indicator – There is one GREEN LED
that will illuminate when signal is present.
7. XLR Inputs – Female balanced XLR and 1/4 inch
phone jack combo input connectors.
8. WI-FI LINK LED – This LED has four states:
a. Off – The speaker is not connected to WI-FI.
b. On – The speaker is connected to WI-FI.
c. Blinking Slowly – The speaker is in Access
Point mode and has not yet established a WIFI connection.
d. Blinking Rapidly – The speaker is in Access
Point mode and is communicating with a
connected device.
9. WI-FI CONNECT Button – This button is used
to connect to a WI-FI network for speaker
conguration and control using the PRX Connect
application. This button has two functions:
a. Press and release – Instructs the speaker to
try connecting to the congured WI-FI network.
b. Press and hold for 2 seconds – Switches
between “Access Point” and “Normal” network
operating modes. By default, the speaker is in
“Normal” network operating mode. Switching
to Access Point mode allows all PRX800W
speakers in a system to be initially congured
for your network router. When switched to
Access Point mode, the WI-FI LINK LED will
ash slowly.
For more information on using WI-FI, see “WI-FI
SETUP” on page 18.
10. HI-PASS LED – This LED will light to indicate the
HI-PASS lter is enabled on the THRU connector.
11. HI-PASS Button – This push button determines
whether the signal coming out of the THRU
connector is unaltered (FULL RANGE) or has
a high-pass lter (HI PASS) applied to it. By
default, the speaker is in a FULL RANGE mode.
If HI PASS is selected, an 80Hz 24dB/Octave
high-pass lter is applied to the signal coming
out of the THRU connector. Engaging the high-
pass lter allows for a smooth transition between
the subwoofer and full-range speaker that is
connected to the output connector. This button
must be pressed and held for 2 seconds to switch
between options.
12. THRU Connectors – Male balanced XLR output
connector. This connector provides a FULL
RANGE or HI PASS signal depending on the
setting of the HI-PASS button. In addition to
connecting a full-range system to the output, it’s
also possible to daisy chain subwoofers together.
13. REMOTE EQ LED – Indicates the speaker has
settings applied by the WI-FI application.
14. POWER LED – This LED illuminates when the
“Power Switch” has been turned to the on position.
It will illuminate BLUE when the system has power
and is ready to pass audio.
17
WI-FI SETUP
To connect to the PRX800W speakers via WI-FI, perform the following:
1. Download the app from www.jblpro.com then install it.
2. Power on all PRX800W speakers in your setup.
3. The application will display a welcome screen — select “SET UP A NEW SYSTEM”.
4. Enter the name of the band and the name of the venue.
5. Select NEXT.
6. Go to the back of each speaker and set it to Access Point mode by pressing and holding the CONNECT
button for 2 seconds — the CONNECT LED will begin ashing slowly.
7. Select NEXT once all speakers have been set to Access Point mode (ashing slowly).
8. Go to your device’s Wi-Fi settings and select any network labeled PRX800 xx.xx.xx.
9. Come back to the PRX Connect application and press NEXT.
10. Enter your router’s name, the security protocol, and the router password.
11. As each speaker begins to connect to the router, the CONNECT LED will begin ashing rapidly then light
solid once connected. (Note you may need to repeat this step if any speaker continues to have a ashing
light).
12. After the CONNECT LEDs light solid on all speakers, you can now continue with the layout and settings for
each speaker and the entire show.
13. For more details on the show setup and additional features, please see the complete application manual at
www.jblpro.com.
18
FACTORY RESETS
The following Factory Resets will reset settings back to their factory default state. This can be useful when you
wish to recongure a speaker from scratch.
WARNING: Performing the following reset procedures will result in the loss of settings and cannot be undone!
Factory Hard Reset
The Factory Hard Reset resets all DSP and network settings back to their factory default state.
To perform the Factory Hard Reset:
1. Turn the speaker power off.
2. Press and hold the POLARITY or SYSTEM EQ (NORM/BOOST or MAIN/MONITOR) button then turn
the speaker power back on. Keep the button held for 5 seconds or until the LED above the POLARITY or
SYSTEM EQ (NORM/BOOST or MAIN/MONITOR) button ashes briey.
3. All DSP and network settings have now been reset back to the factory default.
Factory Soft Reset
The Factory Soft Reset resets DSP settings back to their factory default state — network settings will not be
reset.
To perform the Factory Soft Reset:
1. While the speaker is on, press and hold the POLARITY or SYSTEM EQ (NORM/BOOST or MAIN/
MONITOR) button for 5 seconds.
2. Any DSP settings that have been altered will now be returned to the factory default.
19
TROUBLESHOOTING
Symptom Likely Cause What to do
No sound.
No sound, speaker is
connected to working AC
power but won’t come on.
No sound.
Speaker comes on.
No sound with microphone
connected directly to the
MIC input.
Speaker not connected
to active AC power.
Speaker power cable
is faulty or improperly
connected.
Blown fuse.
Signal source (mixer,
instrument, etc.) is not
active.
Faulty cables and
connections.
Microphone requires 48V
phantom power.
Faulty microphone cable.
Verify that speaker is connected and that
circuit is on. Switch on power and verify
that illuminated logo is on.
• Re-seat the power cable at both ends.
• Substitute a known-good power cable.
• Replace the fuse with the specied value and type.
• Take your speaker to a competent service center.
• Check VU meters on the source mixer.
• Verify that the CD/MP3 is playing.
• Use headphones to verify that the instrument is
actually sending an audio signal.
• Disconnect and re-seat signal cables.
• Replace suspected cable with a known-good
cable.
• The PRX800W speakers do not supply phantom
power. Switch to a dynamic microphone, use a
battery in the microphone (if possible), use an
external phantom power supply.
• Check cable.
Signal sounds distorted
and very loud, LIMIT LED
is lit most of the time.
Signal sounds distorted
even at moderate volumes,
LIMIT LED is not lit.
Noise or hiss heard at
output.
Hum or Buzz that increases
or decreases when the
mixer level controls are
moved.
Excessive input signal,
trying to exceed the
capabilities of the
speakers.
Mixer or other source is
overdriven (clipping).
Noisy Source Device.
Improper A/C ground or
faulty equipment
connected to mixer input.
Faulty cable between
source equipment and
mixer.
• Reduce the output level of the source.
• Turn down the level controls on the speaker.
Review the Owner’s Manual for your system setup
and adjust controls as needed.
• Check input sensitivity (gain).
• Check gain structure of signal chain.
Disconnect the devices that are connected to
your speaker one at a time. If the noise goes
away, the problem is with the source or the
connecting cable.
Disconnect or mute channels one at a time to
isolate the problem. Refer to the owner’s manual of
the faulty equipment for troubleshooting help.
Substitute a known-good cable for the suspected
faulty cable.
20
Symptom Likely Cause What to do
• “Telescope” the audio ground by using an XLR/F to
Hum or Buzz.
Improper A/C grounding,
ground loops.
Excessively long
unbalanced cable run.
XLR/M adapter on one end.
• Re-route audio cable away from AC power and
lighting cables.
• Use the balanced outputs (if available) of your
mixer or source equipment to drive your PRX800W
speakers.
• Use a “DI” (direct injection) box to convert your
unbalanced equipment output to a balanced
output.
Improper system gain
structure.
Microphones are pointed
into the speakers.
Speakers feedback and
howl when the microphone
volume is turned up.
Too much low frequencies
when playing back prerecorded music.
Speaker is unresponsive.
Equalizer settings are
incorrect.
Excessive gain.
Recorded music
with excessive low
frequencies.
System error may have
occurred.
Section 7: Connection Types
Review the Owner’s Manual for your system
setup and adjust controls as needed.
• Check input sensitivity (gain).
Move the speakers so they do not point to the
microphone’s pickup pattern.
Locate the feedback frequency and reduce it
using the mixer EQ or an external equalizer.
Reduce the gain at the mixer and move the
microphone closer to the sound source.
Switch the SYSTEM EQ button to “Normal”.
• Power cycle the speaker.
• Perform the Factory Soft Reset, see “FACTORY
RESETS” on page 19.
21
CONTACT INFORMATION
Mailing Address:
JBL Professional
8500 Balboa Blvd.
Northridge, CA 91329
Shipping Address:
JBL Professional
8500 Balboa Blvd., Dock 15
Northridge, CA 91329
(Do not return product to this address without
rst obtaining prior authorization from JBL)
Customer Service:
Monday through Friday
8:00am - 5:00pm
Pacic Coast Time in the U.S.A.
(800) 8JBLPRO (800.852.5776)
www.jblproservice.com
On The World Wide Web:
www.jblpro.com
Professional Contacts, Outside the USA:
Contact the JBL Professional Distributor in your area.
A complete list of JBL Professional international distributors
is provided at our U.S.A. website: www.jblpro.com
Product Registration:
Register your product online at www.jblpro.com/registration
22
WARRANTY INFORMATION
The JBL Limited Warranty on PRX800W is in effect for three years from the date of the rst consumer purchase.
Who Is Protected By This Warranty?
Your JBL Warranty protects the original owner and all subsequent owners so long as: A.) Your JBL product
has been purchased in the Continental United States, Hawaii or Alaska. (This Warranty does not apply to JBL
products purchased elsewhere except for purchases by military outlets. Other purchasers should contact the
local JBL distributor for warranty information.); and B.) The original dated bill of sale is presented whenever
warranty service is required.
What Does The JBL Warranty Cover?
Except as specied below, your JBL Warranty covers all defects in material and workmanship. The following are
not covered: Damage caused by accident, misuse, abuse, product modication or neglect; damage occurring
during shipment; damage resulting from failure to follow instructions contained in your Instruction Manual;
damage resulting from the performance of repairs by someone not authorized by JBL; claims based upon any
misrepresentations by the seller; any JBL product on which the serial number has been defaced, modied or
removed.
Who Pays For What?
JBL will pay all labor and material expenses for all repairs covered by this warranty. Please be sure to save
the original shipping cartons because a charge will be made if replacement cartons are requested. Payment of
shipping charges is discussed in the next section of this warranty.
How To Obtain Warranty Performance
If your JBL product ever needs service, write or telephone us at JBL Incorporated (Attn: Customer Service
Department), 8500 Balboa Boulevard, PO. Box 2200, Northridge, California 91329 (818/893-8411). We may
direct you to an authorized JBL Service Agency or ask you to send your unit to the factory for repair. Either way,
you’ll need to present the original bill of sale to establish the date of purchase. Please do not ship your JBL
product to the factory without prior authorization. If transportation of your JBL product presents any unusual
difculties, please advise us and we may make special arrangements with you. Otherwise, you are responsible
for transporting your product for repair or arranging for its transportation and for payment of any initial shipping
charges. However, we will pay the return shipping charges if repairs are covered by the warranty.
Limitation of Implied Warranties
ALL IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE LENGTH OF THIS WARRANTY.
EXCLUSION OF CERTAIN DAMAGES
JBL’S LIABILITY IS LIMITED TO THE REPAIR OR REPLACEMENT, AT OUR OPTION, OF ANY DEFECTIVE
PRODUCT AND SHALL NOT INCLUDE INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY KIND. SOME
STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS AND/OR DO NOT
ALLOW THE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS
AND EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS,
AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY, FROM STATE TO STATE.
23
SERIES
Part Number: 5075810-A 9/16 8500 Balboa Boulevard Northridge, CA 91329 USA www.jblpro.com
Loading...
