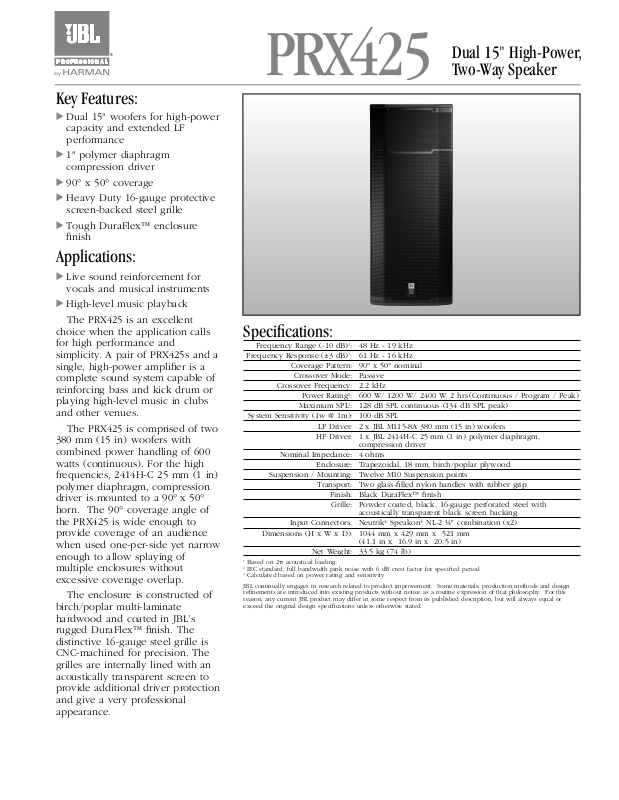

JBL PRX425 Data Sheet

Key Features:

䉴

Dual 15" woofers for high-power capacity and extended LF performance

䉴

1" polymer diaphragm compression driver

䉴

90° x 50° coverage

䉴

Heavy Duty 16-gauge protective screen-backed steel grille

䉴

Tough DuraFlex™ enclosure ﬁnish

Applications:

䉴

Live sound reinforcement for vocals and musical instruments

䉴

High-level music playback

The PRX425 is an excellent choice when the application calls for high performance and simplicity. A pair of PRX425s and a single, high-power ampliﬁer is a complete sound system capable of reinforcing bass and kick drum or playing high-level music in clubs and other venues.

The PRX425 is comprised of two 380 mm (15 in) woofers with combined power handling of 600 watts (continuous). For the high frequencies, 2414H-C 25 mm (1 in) polymer diaphragm, compression driver is mounted to a 90° x 50° horn. The 90° coverage angle of the PRX425 is wide enough to provide coverage of an audience when used one-per-side yet narrow enough to allow splaying of multiple enclosures without excessive coverage overlap.

The enclosure is constructed of birch/poplar multi-laminate hardwood and coated in JBL’s rugged DuraFlex™ ﬁnish. The distinctive 16-gauge steel grille is CNC-machined for precision. The grilles are internally lined with an acoustically transparent screen to provide additional driver protection and give a very professional appearance

Dual 15" High-Power,

PRX425

Two-Way Speaker

Speciﬁcations:

Frequency Range (-10 dB)1: 48 Hz - 19 kHz

Frequency Response (±3 dB)1: 61 Hz - 16 kHz

Coverage Pattern: 90° x 50° nominal

Crossover Mode: Passive

Crossover Frequency: 2.2 kHz

Power Rating2: 600 W/ 1200 W/ 2400 W, 2 hrs (Continuous / Program / Peak)

Maximum SPL3: 128 dB SPL continuous (134 dB SPL peak)

System Sensitivity (1w @ 1m): 100 dB SPL

LF Driver: 2 x JBL M115-8A 380 mm (15 in) woofers

HF Driver: 1 x JBL 2414H-C 25 mm (1 in) polymer diaphragm,

Nominal Impedance: 4 ohms

Enclosure: Trapezoidal, 18 mm, birch/poplar plywood

Suspension / Mounting: Twelve M10 Suspension points

Transport: Two glass-ﬁlled nylon handles with rubber grip

Input Connectors: Neutrik®Speakon®NL-2 ¼" combination (x2)

Dimensions (H x W x D): 1044 mm x 429 mm x 521 mm

Based on 2␲ acoustical loading.

IEC standard, full bandwidth pink noise with 6 dB crest factor for speciﬁed period

Calculated based on power rating and sensitivity

JBL continually engages in research related to product improvement. Some materials, production methods and design reﬁnements are introduced into existing products without notice as a routine expression of that philosophy. For this reason, any current JBL product may differ in some respect from its published description, but will always equal or exceed the original design speciﬁcations unless otherwise stated.

Net Weight: 33.5 kg (74 lb)

compression driver

Finish: Black DuraFlex™ ﬁnish

Grille: Powder coated, black, 16-gauge perforated steel with

acoustically transparent black screen backing.

(41.1 in x 16.9 in x 20.5 in)

䉴 PRX425 Dual 15" High-Power, Two-Way Speaker

1040.384

41.0

42.224

1.7

405.384

16.0

429.768

16.9

345.320

13.6

33.2°

197.304

7.8

521.462

20.5

953.516

37.5

43.434

1.7

556.822

21.9

296.345

11.7

Frequency Response:

115

105

SPL (dB)

20 100 1000 10000 20000

360

100

-6 dB Beamwidth (degrees)

20 100 1000 10000 20000

2␲ half space

4␲ free field

Frequency (Hz)

Horizontal

Vertical

Frequency (Hz)

Block Diagram:

GRDGRD

TIPTIP

INPUT/OUTPUT

1-1-1+1+

HPF

LPF1

Directivity Index:

Directivity Index (DI), dB

20 100 1000 10000 20000

Frequency (Hz)

100

Directivity Factor (Q)

JBL Professional 8500 Balboa Boulevard, P.O. Box 2200 Northridge, California 91329 U.S.A.

www.jblpro.com

Dimensions in mm (in)

SS PRX425 CRP 10/12
