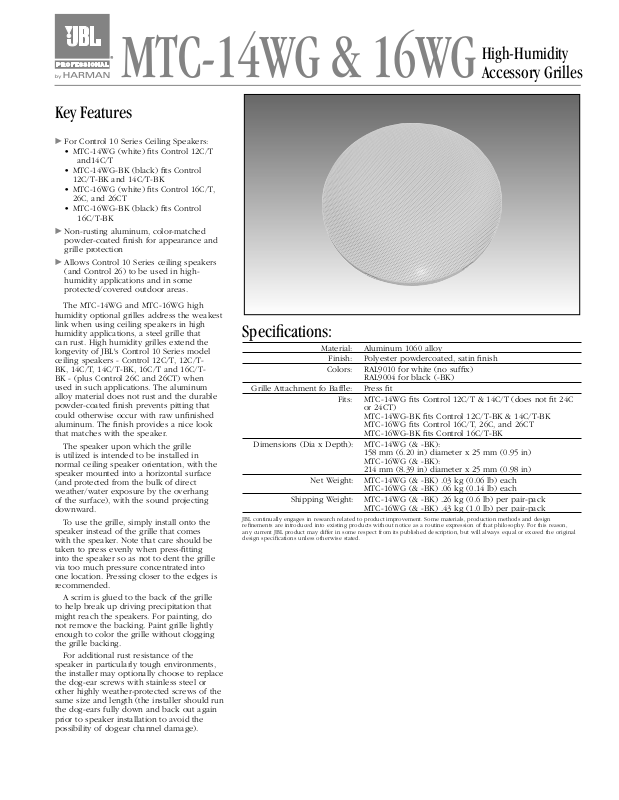

JBL MTC-14WG-BK Datasheet
High-Humidity
MTC-14WG & 16WG
Key Features
c For Control 10 Series Ceiling Speakers:
c • MTC-14WG (white) fits Control 12C/T
and14C/T
c • MTC-14WG-BK (black) fits Control
12C/T-BK and 14C/T-BK
c • MTC-16WG (white) fits Control 16C/T,
26C, and 26CT
c • MTC-16WG-BK (black) fits Control
16C/T-BK
c Non-rusting aluminum, color-matched
powder-coated finish for appearance and
grille protection
c Allows Control 10 Series ceiling speakers
(and Control 26) to be used in highhumidity applications and in some
protected/covered outdoor areas.
The MTC-14WG and MTC-16WG high
humidity optional grilles address the weakest
link when using ceiling speakers in high
humidity applications, a steel grille that
can rust. High humidity grilles extend the
longevity of JBL's Control 10 Series model
ceiling speakers - Control 12C/T, 12C/TBK, 14C/T, 14C/T-BK, 16C/T and 16C/TBK - (plus Control 26C and 26CT) when
used in such applications. The aluminum
alloy material does not rust and the durable
powder-coated finish prevents pitting that
could otherwise occur with raw unfinished
aluminum. The finish provides a nice look
that matches with the speaker.
The speaker upon which the grille
is utilized is intended to be installed in
normal ceiling speaker orientation, with the
speaker mounted into a horizontal surface
(and protected from the bulk of direct
weather/water exposure by the overhang
of the surface), with the sound projecting
downward.
To use the grille, simply install onto the
speaker instead of the grille that comes
with the speaker. Note that care should be
taken to press evenly when press-fitting
into the speaker so as not to dent the grille
via too much pressure concentrated into
one location. Pressing closer to the edges is
recommended.
A scrim is glued to the back of the grille
to help break up driving precipitation that
might reach the speakers. For painting, do
not remove the backing. Paint grille lightly
enough to color the grille without clogging
the grille backing.
For additional rust resistance of the
speaker in particularly tough environments,
the installer may optionally choose to replace
the dog-ear screws with stainless steel or
other highly weather-protected screws of the
same size and length (the installer should run
the dog-ears fully down and back out again
prior to speaker installation to avoid the
possibility of dogear channel damage).
Accessory Grilles
Specifications:
Material: Aluminum 1060 alloy
Finish: Polyester powdercoated, satin finish
Colors: RAL9010 for white (no suffix)
Grille Attachment fo Baffle: Press fit
Fits: MTC-14WG fits Control 12C/T & 14C/T (does not fit 24C
Dimensions (Dia x Depth): MTC-14WG (& -BK):
Net Weight: MTC-14WG (& -BK) .03 kg (0.06 lb) each
Shipping Weight: MTC-14WG (& -BK) .26 kg (0.6 lb) per pair-pack
JBL continually engages in research related to product improvement. Some materials, production methods and design
refinements are introduced into existing products without notice as a routine expression of that philosophy. For this reason,
any current JBL product may differ in some respect from its published description, but will always equal or exceed the original
design specifications unless otherwise stated.
RAL9004 for black (-BK)
or 24CT)
MTC-14WG-BK fits Control 12C/T-BK & 14C/T-BK
MTC-16WG fits Control 16C/T, 26C, and 26CT
MTC-16WG-BK fits Control 16C/T-BK
158 mm (6.20 in) diameter x 25 mm (0.95 in)
MTC-16WG (& -BK):
214 mm (8.39 in) diameter x 25 mm (0.98 in)
MTC-16WG (& -BK) .06 kg (0.14 lb) each
MTC-16WG (& -BK) .43 kg (1.0 lb) per pair-pack
c MTC-14WG & 16WG High Humidity Accessory Grilles
25
25
Dimensions
MTC-14WG
Ø
158
6.20
158
Ø
0.95
14
0.54
6.20
MTC-16WG
Ø
214
8.39
214
Ø
8.39
0.98
14
0.55
JBL Professional
8500 Balboa Boulevard, P.O. Box 2200
Northridge, California 91329 U.S.A.
© Copyright 2014 JBL Professional
www.jblpro.com
SS MTC-WG
CRP
05/14
