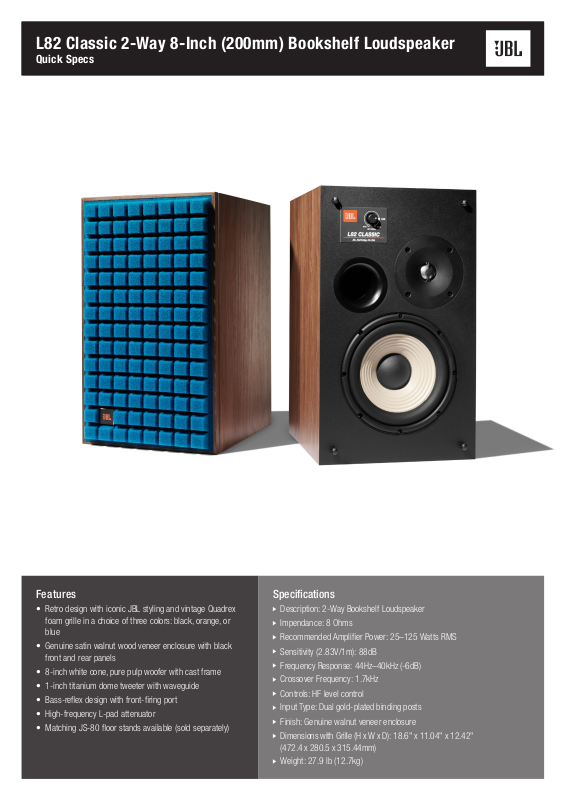

JBL L82 Classic Quick Specs

L82 Classic 2-Way 8-Inch (200mm) Bookshelf Loudspeaker

Quick Specs

Features

• Retro design with iconic JBL styling and vintage Quadrex foam grille in a choice of three colors: black, orange, or blue

• Genuine satin walnut wood veneer enclosure with black front and rear panels

• 8-inch white cone, pure pulp woofer with cast frame

• 1-inch titanium dome tweeter with waveguide

• Bass-reﬂex design with front-ﬁring port

• High-frequency L-pad attenuator

• Matching JS-80 ﬂoor stands available (sold separately)

Speciﬁcations

Description: 2-Way Bookshelf Loudspeaker

Impendance: 8 Ohms

Recommended Ampliﬁer Power: 25–125 Watts RMS

Sensitivity (2.83V/1m): 88dB

Frequency Response: 44Hz–40kHz (-6dB)

Crossover Frequency: 1.7kHz

Controls: HF level control

Input Type: Dual gold-plated binding posts

Finish: Genuine walnut veneer enclosure

Dimensions with Grille (H x W x D): 18.6" x 11.04" x 12.42" (472.4 x 280.5 x 315.44mm)

Weight: 27.9 lb (12.7kg)

11.043in

280.50mm

18.598in

472.40mm

L82 Classic 2-Way 8-Inch (200mm) Bookshelf Loudspeaker

Quick Specs

11.043in

280.50mm

18.598in

472.40mm

12.419in

315.44mm

11.487in

291.76mm

11.024in 280mm
