HLS410, HLS610 HLS615, HLS620 HLS810, HLS820 HLS Center
simple setup guide
thank you for choosing JBL. For more than 50 years, JBL
has been involved in every aspect of music and film recording
and reproduction, from live performances to monitoring the
recordings you play in your home, car or office.
We’re confident that the JBL loudspeakers you have chosen will
provide every note of enjoyment that you expected – and that
when you think about purchasing additional audio equipment for
your home, car or office, you will once again choose JBL.
It enables us to keep you posted on our latest advancements,
and helps us to better understand our customers and build
products that meet their needs and expectations.
JBL Consumer Products
one. Speaker Placement
40–60
oo
5
–6 ft.
0–2 ft.
Proper placement of the speakers is an important step in obtaining the most realistic soundstage possible. These recommendations are for the optimum placement of the
HLS615, HLS620, HLS820
HLS410, HLS610, HLS810
As Front Speakers
loudspeakers. Use these placement recommendations as a guide. Slight variations will not diminish your listening pleasure.
As Surround Speakers
All of the HLS Series loud­speakers are video shielded and can safely be placed near a television.
HLS Center
The HLS Center is designed to complement any of the HLS Series loudspeakers. It is the ideal way to re-create the cinematic experience in your home.

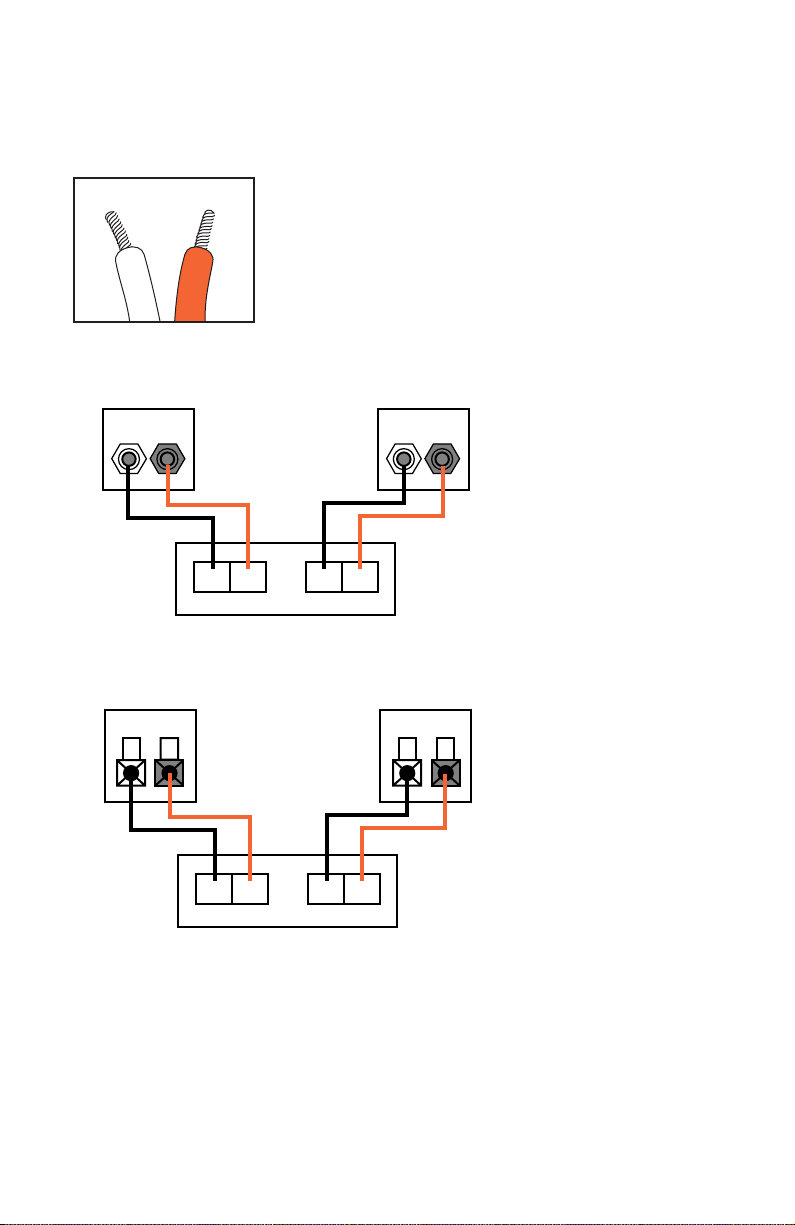

two. Speaker Connections
– +– +
+ +
Speaker Outputs
RIGHT LEFT
RIGHT LEFT
– +– +
– +
– +
Speaker Outputs
RIGHT LEFT
RIGHT
LEFT
Connection Tips
Speakers and electronics terminals have corresponding (+) and (–) terminals. It is important to connect both speakers identi­cally: (+) on the speaker to (+) on the amplifier and (–) on the speaker to (–) on the amplifier. Wiring “out of phase” results in thin sound, weak bass and a poor stereo image.
HLS610, HLS615, HLS620, HLS810, HLS820, HLS Center
HLS410
Troubleshooting
If there is no sound from any of the speakers, check the following:
• Receiver/amplifier is on and a source is playing.
• Review proper operation of your receiver/amplifier.
If there is no sound coming from one speaker, check the following:
• Check the “Balance” control on your receiver/amplifier.
• Check all wires and connec­tions between receiver/ amplifier and speakers.
• Make sure all wires are connected. Make sure none of the speaker wires are frayed, cut or punctured.
If the system plays at low volumes but shuts off as volume is increased, check the following:
• Check all wires and connec­tions between receiver/ amplifier and speakers.
• Make sure all wires are con­nected. Make sure none of the speaker wires are frayed, cut or punctured.
• If more than one pair of main speakers is being used, check the minimum imped­ance requirements of your receiver/amplifier.
If there is low bass output, check the following:
• Make sure the polarities (+ and –) of the left and right “Speaker Inputs” are connected properly.
If there is no sound from the center speaker, check the following:
• Make sure that your receiver’s Center Channel Mode is in the ”normal“ or ”wide“ position. If it is in the ”phantom“ position, the center speaker will not play.
• Check all connections between processor/amplifier and the center speaker.
HLS410 HLS610 HLS810 HLS615 HLS620 HLS820 HLS Center
254 x 140 x 156mm 413 x 211 x 240mm 494 x 248 x 248mm 806 x 211 x 240mm 908 x 211 x 291mm 1010 x 248 x 291mm 179 x 518 x 165mm
Specifications
requency Response 75Hz – 20kHz 55Hz – 20kHz 50Hz – 20kHz 45Hz – 20kHz 42Hz – 20kHz 40Hz – 20kHz 80Hz – 20kHz F
(±3dB)
Sensitivity 86dB 88dB 89dB 88dB 89dB 90dB 88dB
@ 2.83 volts/1 meter
Recommended 100 watts 125 watts 150 watts 150 watts 200 watts 250 watts 150 watts
Maximum Amplifier
Power*
We do not recommend sustained operation at these maximum power levels.
Nominal Impedance 8 ohms 8 ohms 8 ohms 8 ohms 8 ohms 8 ohms 8 ohms
Crossover Frequency 3000Hz 2700Hz 2600Hz 2700Hz 2700Hz 2600Hz 2800Hz
Low-Frequency 4" 6-1/2" 8" 6-1/2" Dual 6-1/2" Dual 8" Dual 5-1/4"
Transducer polypropylene polypropylene polypropylene polypropylene polypropylene polypropylene polypropylene
High-Frequency 10mm polycarbonate dome attached
Transducer to Constant-Directivity Horn
Dimensions 10 x 5-1/2 x 16-1/4 x 8-5/16 x 19-7/16 x 9-3/4 x 31-3/4 x 8-5/16 x 35-3/4 x 8-5/16 x 39-3/4 x 9-3/4 x 7-1/16 x 20-3/8 x
(H x W x D) 6-1/8" 9-7/16" 9-3/4" 9-7/16" 11-7/16" 11-7/16" 6-1/2"
Weight 12 lbs/5.5 kg 14 lbs/6.4 kg 21 lbs/9.5 kg 28 lbs/12.7 kg 35 lbs/15.9 kg 39 lbs/17.7 kg 15 lbs/6.8 kg
Occasional refinements may be made to existing products without notice but will always meet or exceed original specifications unless otherwise stated.
*The maximum recommended amplifier power rating will ensure proper system headroom to allow for occasional peaks.
declare in own resopsibility, that the looudspeakers described in this owner‘s manual are in compliance with technical standards: EN 50081-1:1992 EN 50082-1:1992
Steen Michaelsen
JBL Europe A/S
Birkerød. DENMARK. 8/98
Declaration of Conformity
We, JBL Europe A/S Kongevejen 194B DK-3460 Birkerød
DENMARK
A Harman International Company
JBL Consumer Products 250 Crossways Park Drive, Woodbury, NY 11797 8500 Balboa Boulevard, Northridge, CA 91329 1-800-336-4JBL (4525) (USA only) www.jbl.com
©1998 JBL, Incorporated. JBL is a registered trademark of JBL, Incorporated.
8/98 Part No. 332661-002
