CSMA Commercial Series
CSMA 1120
CSMA 2120
Commercial Series
Mixer-Amplifier
Operation Manual
CSMA 180
CSMA 240
CSMA 280
CSMA Mixer-Amplifiers
Contents
Important Safety Instructions .......................................................................... 3
JBL DECLARATION OF CONFORMITY .......................................................... 5
1.0 Welcome ................................................................................................... 7
1.1 Features ................................................................................................. 7
1.2 Front Control Panels and Indicators ...................................................... 8
1.3 Rear Panel Controls and Connectors - Four Channel............................ 9
1.4 Rear Panel Controls and Connectors - Eight Channel............................10
2.0 Setup ........................................................................................................12
2.1 Unpacking Your Amplifier ......................................................................12
2.2 Installing Your Amplifier .........................................................................12
2.3 Ensuring Proper Cooling .......................................................................17
2.4 Choosing Input Wire and Connectors ...................................................17
2.5 Output Wiring and Connectors .............................................................18
2.6 Wiring Your Audio System .....................................................................19
2.7 Connecting to AC Mains .....................................................................20
2.8 Protecting Your Speakers .....................................................................20
2.9 Startup Procedure .................................................................................20
3.0 Operation ..................................................................................................21
3.1 Precautions ............................................................................................21
3.2 Input Routing..........................................................................................22
3.3 High-Z Switch .........................................................................................22
3.4 Phantom Power ......................................................................................22
3.5 VOX Ducking ..........................................................................................22
3.6 Priority Muting ........................................................................................23
3.7 Remote Volume Control .........................................................................23
3.8 Sleep Mode ............................................................................................23
3.9 AUX Output ............................................................................................23
4.0 Troubleshooting ........................................................................................24
Appendix A: Target Performance Specifications ............................................25
Appendix B: Block Diagram ...........................................................................26
Appendix C: Contact Information ....................................................................28
This manual does not include all of the details of design, production, or variation of the equipment. Nor does it
cover every possible situation which may arise during installation, operation or maintenance.
The information provided in this manual was deemed accurate as of the publication date. However, updates to
this information may have occured.
Trademark Notice: JBL is registered trademark of JBL International. Other trademarks are the property of their
respective owners.
© 2013 JBL Commercial, 8760 South Sandy Parkway, Sandy, UT. All Rights Reserved.
2
IMPORTANT SAFETY INFORMATION
The sy mbols shown ab ove are internationa lly acc epted s ymbol s
that w arn of po tenti al haz ards wi th elec trical produ cts. T he lightning flash wit h arrow point in an equilateral t riangl e means t hat
ther e are dange rous volta ges pres ent within t he unit. The e xclamation po int in an equila teral tri angle indic ates tha t it is nece ssary fo r
the us er to ref er to the o wner ’s manual.
The se symbols w arn that t here are no u ser servi ceable p arts insid e
the uni t. Do not o pen the unit. Do not attempt to servic e the uni t
yourself. Re fer all se rvicing to qualified p erson nel. Opening th e
chas sis for an y reas on will void t he manufacturer ’s warr anty.
Do not get the uni t wet. I f liquid is sp illed on the unit, s hut it of f
imme diately an d take it to a de aler for ser vice. Disc onnect th e unit
durin g storm s to prevent dam age.
SAFETY INSTRUCTIONS
NOTICE FOR CUS TOMERS IF YOUR UNIT IS EQUIPP ED WIT H A
POWE R CORD.
WARNING: THIS APPLIANCE SHALL BE CONNECTED TO A MAINS
SOCKET OUTLET WITH A PROTECTIVE EARTHING CONNECTION.
The cores in the mains lead are coloured in accordance with the following code:
GREEN and YELLOW - Earth BLUE - Neutral BROWN - Live
As colours of the cores in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug,
proceed as follows:
•
The core which is coloured green and yellow must be connected to the
terminal in the plug marked with the letter E, or with the earth symbol, or
coloured green, or green and yellow.
•
The core which is coloured blue must be connected to the terminal
marked N or coloured black.
•
The core which is coloured brown must be connected to the terminal
marked L or coloured red.
This equipment may require the use of a different line cord, attachment
plug, or both, depending on the available power source at installation. If
the attachment plug needs to be changed, refer servicing to qualified service personnel who should refer to the table below. The green/yellow wire
shall be connected directly to the units chassis.
CONDUCTOR
L LIVE BROWN BLACK
N NEUTRAL BLUE WHITE
E EARTH GND GREEN/YEL GREEN
WARNING: If the ground is defeated, certain fault conditions in the unit or
in the system to which it is connected can result in full line voltage between
chassis and earth ground. Severe injury or death can then result if the chassis
and earth ground are touched simultaneously.
WIRE COLOUR
Normal Alt
WARNING FOR YOUR PROTECTION
READ THE FOLLOWING:
KEEP THESE INSTRUCTIONS
HEED A LL WARNING S
FOLLOW ALL INSTRUCTIONS
THE APPARAT US SHA LL NOT BE E XPOSED TO DRIPPING OR
SPLASHIN G LIQUID AND NO OBJECT FILLED W ITH LIQUID, S UCH
AS VASE S, SHA LL BE PL ACED ON THE APPARATUS
CLEAN ONLY WITH A DRY CLOTH.
DO NOT BLOCK ANY OF THE VENTIL ATION OPENINGS. INSTALL I N
ACCORDANCE WITH THE MANUFACTURER’S INSTRUCTIONS.
DO NOT IN STALL NEA R ANY HE AT SOURCES SUCH AS
RADIATORS, HEAT REGISTE RS, STOVES, OR OTHER A PPARATUS
(INCLUDING AMPLIFIERS) THAT PRODUCE HEAT.
ONLY USE AT TACHMENTS/ ACCESSOR IES SPE CIFIED BY THE
MANUFACTURER.
UNPLU G THIS APPAR ATUS DURING LIGHT NING STORM S OR
WHEN UNUSED FOR LONG PERIODS OF TIME.
Do not defeat t he saf ety purpose o f the polarized or grounding-t ype
plug. A polarized plug ha s two blade s with one wider than the
other. A grounding type plug has t wo blades and a third groundin g
prong. The wid e blade or third pro ng are provided f or your safety. If
the provided plug does not fit your outle t, consult an electrician for
replacement of the obsolete outlet.
Prote ct the power cord from being w alked on or pinched particularly
at plugs, convenienc e recepta cles, and th e point where they exit from
the apparatus.
Use onl y with th e cart stand, tripod bracket, or table spe cified by the
manu facture, or sold with the appa ratus. When a c art is used , use
caution whe n moving t he car t/apparatus combination to avoid inju ry
from tip-over. Refer a ll servicing to to qualified ser vice personnel.
Ser vicing is r equired when t he apparatus has be en damage d in any
way, suc h as power-supply cord or plug is damaged, liquid ha s been
spilled or objec ts have fallen into the appara tus, the apparat us has
been e xposed to rain or moisture, doe s not operate normally, or has
been dropped.
POWE R ON/OFF SWITCH: For pr oducts provided with a power
switch, the power switch DOES NOT break the c onnection from the
mains.
MAINS DISCO NNECT: T he plug sh all remain readily operable. F or
rack- mount or installation where plug is no t acce ssible, an all-p ole
mains s witch w ith a con tact s epar ation of a t leas t 3 mm in eac h pole
shall b e incorporated into the electrical installation of the rack or
building.
FOR UNITS EQUIPPED WITH EXTER NALLY ACCESSIBLE F USE
RECEPTACLE: R eplac e fuse with same ty pe and rating only.
MULTIPLE-IN PUT VOLTAGE: This equipment may re quire the use
of a differen t line cord, att achme nt plug, o r both, d epending on the
available pow er source at install ation. Connec t this equipmen t only
to the power source indicate d on the equipm ent rear pa nel. To reduce
the ris k of fire or e lectric shock, refer servicing to qualified service
personnel or equivalent.
If connected to 240V supply, a suitable CSA/UL certified power cord shall
be used for this supply.
3
IMPORTANT SAFETY INFORMATION
U.K. MAINS PLUG WARNING
A molded mains plug that has been cut off from the cord is
unsafe. Discard the mains plug at a suitable disposal facility.
NEVER UNDER ANY CIRCUMSTANCES SHOULD YOU INSERT
A DAMAGED OR CUT MAINS PLUG INTO A 13 AMP POWER
SOCKET. Do not use the mains plug without the fuse cover in
place. Replacement fuse covers can be obtained from your local
retailer. Replacement fuses are 13 amps and MUST be ASTA
approved to BS1362.
ELECTROMAGNETIC
COMPATIBILITY
This device complies with part 15 of the FCC Rules and the
Product specifications noted on the Declaration of Conformity.
Operation is subject to the following two conditions:
•
this device may not cause harmful
interference, and
•
this device must accept any interference received, including
interference that may cause undesired operation.
Operation of this unit within significant
electromagnetic fields should be avoided.
•
use only shielded interconnecting cables.
If you want to dispose this product, do not mix it with general household waste. There is a separate collection system
for used electronic products in accordance with legislation
that requires proper treatment, recovery and recycling.
Private household in the 25 member states of the EU, in Switzerland
and Norway may return their used electronic products free of charge to
designated collection facilities or to a retailer (if you purchase a similar
new one).
For Countries not mentioned above, please contact your local authorities
for a correct method of disposal.
By doing so you will ensure that your disposed product undergoes the
necessary treatment, recovery and recycling and thus prevent potential
negative effects on the environment and human health.
MAGNETIC FIELD
CAUTION! Do not locate sensitive high-gain equipment such as preamplifiers
or tape decks directly above or below the unit. Because this amplifier has a
high power density, it has a strong magnetic field which can induce hum into
unshielded devices that are located nearby. The field is strongest just above
and below the unit.
If an equipment rack is used, we recommend locating the amplifier(s) in
the bottom of the rack and the preamplifier or other sensitive equipment
at the top.
4
EC - DECLARATION OF CONFORMITY
Brand: JBL
Equipment Type: Commercial Audio Mixer-Amplifiers
Model names: CSMA 180, CSMA 1120, CSMA 240, CSMA 280, CSMA 2120
We, Harman International, declare under our sole responsibility that the product, to which this declaration relates, is in
conformity with the following standards.
Report No. Description
EN 55103-1:2009 EMC Compatibility – Product Family Standard for Audio, Video, Audio-Visual and
EN 55103-1:2009 Magnetic Field Emissions – Annex A @ 10cm and 20cm
EN 61000-3-2:2005,
AMD1:2008, & A2:2009
EN 61000-3-3:2008 Limitation of Voltage Fluctuations and Flicker in Low-Voltage Supply systems Rated Current
EN 55022:2010 Limits and Methods of Measurement of Radio Disturbance Characteristics of ITE: Radiated
EN 55103-2:2009 EMC Compatibility – Product Family Standard for Audio, Video, Audio-Visual and
EN 61000-4-2:2009 Electrostatic Discharge Immunity (Environment E2-Criteria B, 4k V Contact, 8k V Air
EN 61000-4-3:2010
Ed 3.2
EN 61000-4-4:2007 Electrical Fast Transient/Burst Immunity (Criteria B)
EN 61000-4-5:2006 Surge Immunity (Criteria B)
EN 61000-4-6:2006 Immunity to Conducted Disturbances Induced by Radio-Frequency Fields (Criteria A)
EN 61000-4-11:2004 Voltage Dips, Short Interruptions and Voltage Variation
Entertainment Lighting Control Apparatus for Professional Use, Part 1: Emissions
Limits for Harmonic Current Emissions (equipment input current less than or equal to 16A
less than or equal to 16A
& Conducted, Class B Limits
Entertainment Lighting Control Apparatus for Professional Use, Part 2: Immunity
Discharge)
Radiated, Radio-Frequency, EMC Immunity (Environment E2, Criteria A)
Safety Standard:
IEC 60065:2001 – 7th
Ed., AMD1:2005,
& AMD2:2010
Due to line current harmonics, we recommend that you contact your supply authority before connection.
We certify that the product identified above conforms to the requirements of the EMC Council Directive 89/336/EEC as amended
by 92/31/EEC, and the Low Voltage Directive 73/23/EES as amended by 93/68/EEC.
European Representative’s
Name and Address:
David Budge
10 Harvest Close
Yateley, GU46 6YS
United Kingdom
Safety Requirements – Audio, Video, and Similar Electronic Apparatus
Responsible for the technical
documentation is:
Wilson Zhou
Wilson.Zhou@harman.com
5
6
1.0 Welcome
The JBL® CSMA series of Mixer-Amplifiers are a professional tool designed and built
for Installed sound applications. There are both single channel and two channel
models with four or eight mixer channels, respectively. They provide mixer capability
with independent level control for each input channel and amplification with a choice
of low impedance, 70V or 100V outputs.
The product includes a rack mounting kit for installations to a cabinet. The system
can be easily expanded with additional JBL Commercial Series Amplifiers and Commercial Series Mixers. Provisions are included for a remote volume control using the
JBL CSR-V control module.
1.1 Features
• 4 or 8 inputs with 1 or 2 outputs, respectively
• Ideal for commercial and industrial use
• System may be expanded by adding JBL Commercial Series Mixers or
Commercial Series Amplifiers.
• Euro-block type mic/line input connectors and output connectors
• Independent Bass and Treble controls for each output channel
• VOX ducking during announcements
• Remote volume control capability using JBL CSR-V module and
standard ethernet cable
• Priority muting using PTT switch closure
• Configurable output routing
• Utilizes Crown’s DriveCoreTM technology providing excellent audio performance
with high efficiency
• 3 Year Warranty
*Warranty is only valid within the United States of America. For information on Warranty
outside of the U.S.A, please contact your local distributor.
7
1.2 Front Panel Controls and Indicators
Figure 1.2 Front View
A B C E
G
D
F
A. Input Level Controls
B. Input signal presence is indicated by green illumination of the ring around
the input level controls
C. Output Volume Controls
D. Illuminated ring around the output volume control will light green with signal
presence while red indicates clipping, i.e. the signal has reached the
threshold of audible distortion.
E. Power Switch
F. Illuminated ring around the power switch. Green indicates that the unit is
connected to the AC mains and is in standby or sleep mode. Blue
indicates that the unit is on and in normal operating mode.
G. Tone Controls - Bass and Treble potentiometers on each output channel
8
1.3 Rear Panel Controls and Connectors - Four Channel
Figure 1.3 Rear View - CSMA 1120
A B D E G J KI
100-240 V~ 50/60Hz 40W
CAUTION - TO REDUCE THE RISK
5028384
OF ELECTRIC SHOCK, GROUNDING
OF THE CENTER PIN OF THE PLUG
MUST BE MAINTAINED.
MADE IN MALAYSIA
CH2-4 IN / AUX OUT
AMP OUT
CSM A 112 0
CLASS 2
WIRING
Hi-Z PHANTOM
CSR-V ONLY
100V 70.7V COM
AUX OUT
C F H
CH3 INPUT
CH4 INPUT
MONO SUM
MICLINE
MICLINE
MONO SUM MONO SUM
MICLINE
PRIORITY
VOX
CH1 INPUT
MICLINE
CH2 INPUT
A. AC Power Inlet – Detachable IEC
B. Amplifier Output Connector
C. Auxiliary Line Level Output Connector
D. Hi-Z Switch – Enables the 70V and 100V outputs and activates the 70Hz high
pass filter
E. Phantom Power Switch – Applies 27V phantom power source for microphones.
F. Remote volume connector – RJ-45 style connector to connect to JBL CSR-V
control module
G. Mic/Line Selection Switch – Allows the user to select the gain depending upon
the source used
H. Mic/Line Input Connector – 3 pin Euro-block connector, balanced input (Ch2-4)
I. Dual RCA Input Connector – Stereo, unbalanced sources will be summed
together (Ch2-4)
J. Priority Input Connector – 5 pin Euro-block includes 3 pins for a balanced
input as well as two pins that, when shorted together, activates the priority
function. (Ch1)
K. VOX Adjustment – allows the input level to be set that will invoke priority
override. (CH1)
9
1.4 Rear Panel Controls and Connectors - Eight Channel
MONO SUM
MONO SUM
Figure 1.4 Rear View - CSMA 2120
A B D
CAUTION - TO REDUCE THE RISK OF
ELECTRIC SHOCK, GROUNDING OF THE
CENTER PIN OF THE PLUG MUST BE
MAINTAINED.
5025056
MADE IN MALAYSIA
100-240 V~ 50/60Hz 60W
OUTPUTS
AMP 1
CSM A 2120
AMP 2
100V 70.7V COM
CLASS 2
WIRING
AMP 1AMP 2
CSR-V
INPUT ROUTING
21 3 4 5 6
8 9 10 11 12
7
1 - CH1 TO AMP2
2 - CH2 TO AMP2
3 - CH3 TO AMP2
4 - CH4 TO AMP2
5 - AMP1 Hi-Z
6 - PHANTOM
7 - CH5 TO AMP1
8 - CH6 TO AMP1
9 - CH7 TO AMP1
10 - CH8 TO AMP1
11 - AMP2 Hi-Z
12 - NC
AUX 1 OUT
AUX 2 OUT
C E
A. AC Power Inlet – Detachable IEC
B. Amplifier Output Connector – Outputs available for low impedance or
constant voltage systems.
C. Remote Volume Control – RJ45 style connector to connect to a JBL CSR-V
control module.
D. Dip switches for input routing, phantom power, and 70/100V operation
E. Aux Out – Auxiliary line level output connector for each output channel.
LINE
CH4 INPUT
CH8 INPUT
MIC
MICLINE
10
I HG
MONO SUM
MONO SUM
CH3 INPUTCH7 INPUT
MICLINE
MONO SUM
MICLINE
MONO SUM MONO SUM
CH2 INPUTCH6 INPUT
MICLINE
MONO SUM
MICLINE
CH1 INPUTCH5 INPUT
MICLINE
MICLINE
PRIORITY
CH 1 VOX
CH 5 VOX
PRIORITY
F J
F. Mic/Line Input Connector – 3 pin Euro-block connector for a balanced input
source. (Ch 2-4 & 6-8)
G. Dual RCA Input Connector – Stereo, unbalanced sources will be summed
together. (Ch 2-8)
H. Priority Input Connector – 5 pin Euro-block includes 3 pins for a balanced
input as well as two pins that, when shorted together, activates the priority
function. (Ch 1 & 5)
I. Mic/Line Selection Switch – Allows the user to select the gain depending upon
the source used.
J. VOX Adjustment – Allows the input level to be set that will invoke priority
override. (Ch 1 & 5)
11
2.0 Setup
2.1 Unpacking Your Amplifier
Please unpack and inspect your amplifier for any damage that may have occurred
during transit. If damage is found, notify the transportation company immediately.
Only you can initiate a claim for shipping damage. We will be happy to help
as needed. Save the shipping carton as evidence of damage for the shipper’s
inspection.
We also recommend that you save all packing materials so you will have them if you
ever need to transport the unit. Never ship the unit without the factory pack.
WARNING: Before you start to set up your amplifier, make sure you read and
observe the Important Safety Instructions found at the beginning of this manual.
2.2 Installing Your Amplifier
CAUTION: Before you begin, make sure your amplifier is disconnected from the
power source and all level controls turned completely down (counterclockwise).
Note: We recommend that any sensitive equipment be located at least 8 inches
(20cm) away from the amplifier.
To install the amplifier, you can use one of the following approaches:
• Rack mount the amplifier with the rack mounting kit, see Figure 2.2.2.
• Place a single amplifier on a surface with 12 inches of air space around the
unit for convection cooling. Rubber feet are included and can be attached
onto the underside of the chassis. For amplifier dimensions,
see Figure 2.2.1.
12
Figure 2.2.1 Dimensions
43.3 mm
43.3 mm
[1.7 in]
CSMA 180, CSMA 1120
218.44 mm [8.6 in]
[1.7 in]
436.88 mm [17.2 in] 303.4 mm [11.9 in]
Figure 2.2.2 Mounting Kit
303.4 mm [11.9 in]
CSMA 240, CSMA 280, CSMA 2120
long angle bracket
(CSMA180/CSMA1120 only)
flat bracket
(CSMA180/CSMA1120 only)
front angle bracket
rear angle brackets
rear flat brackets
13

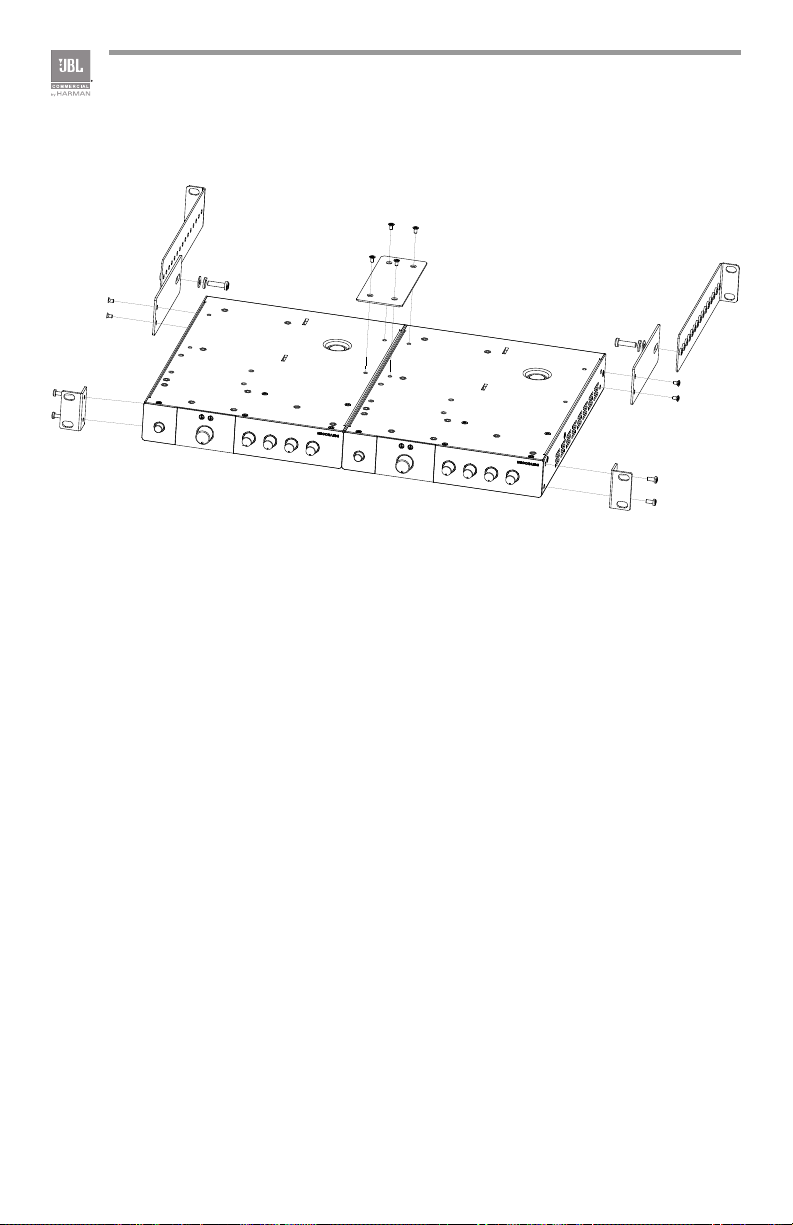

Figure 2.2.3 Rack mounting of two half rack Mixer units.
Solution A: Rack Mounting Two Half Rack Mixer Amplifiers
To install two half-rack width units in your cabinet system, refer to Figure 2.2.3 and
follow the steps below:
1. Align two modules side by side and upside down with the front panel towards
the same direction.
2. Connect them with the flat bracket using the screws provided.
3. Attach the front angle brackets to each side of the front of the amplifier assem-
bly using the screws provided.
4. Attach the rear flat brackets to each side of the rear of the amplifier assembly
with the screws provided.
5. Install the assembly into the cabinet using the rack mount screws through the
front angle brackets. For details of installation in the chassis of the cabinet, refer
to the user guide of your cabinet.
6. Align the rear angle brackets with the proper holes at the rear of the cabinet and
attach using rack mount screws.
7. With the rear angle brackets to the outside of the flat brackets, attach them each
using a screw passing through two washers, the rear flat bracket and the rear
angle bracket as shown in the figure.
14

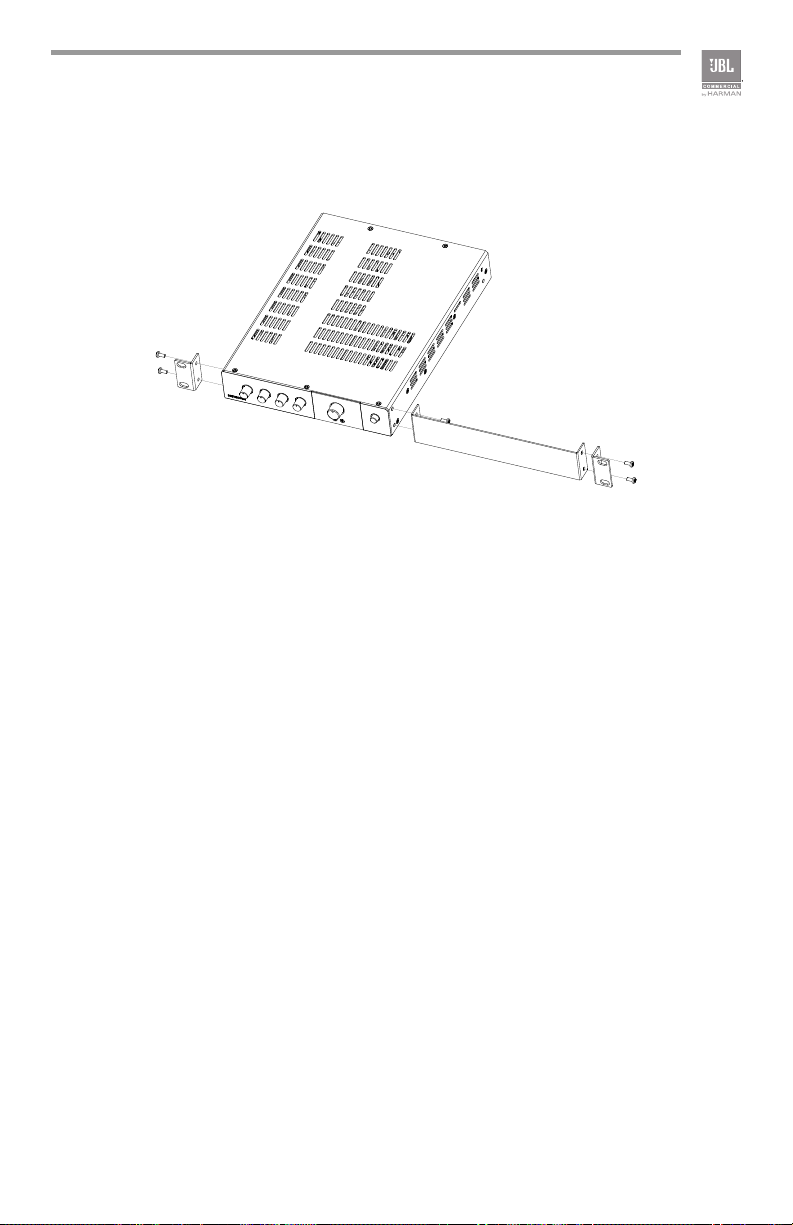

Figure 2.2.4 Rack Mounting a Half Rack Mixer Amplifier
Solution B: Rack Mounting Single Half Rack Mixer Amplifier
To install a single half-rack unit, refer to Figure 2.2.4 and follow the steps below:
1. Determine which side of the rack opening will be used for the amplifier and
attach the long angle bracket to the other side at the front of the amplifier using
the screws provided.
2. Attach the front angle brackets to each side of the front of the assembly, as
shown in the diagram, with the screws provided.
3. Install the assembly into the cabinet using the rack mount screws through the
front angle brackets. For details of installation in the chassis of the cabinet, refer
to the user guide of your cabinet.
15

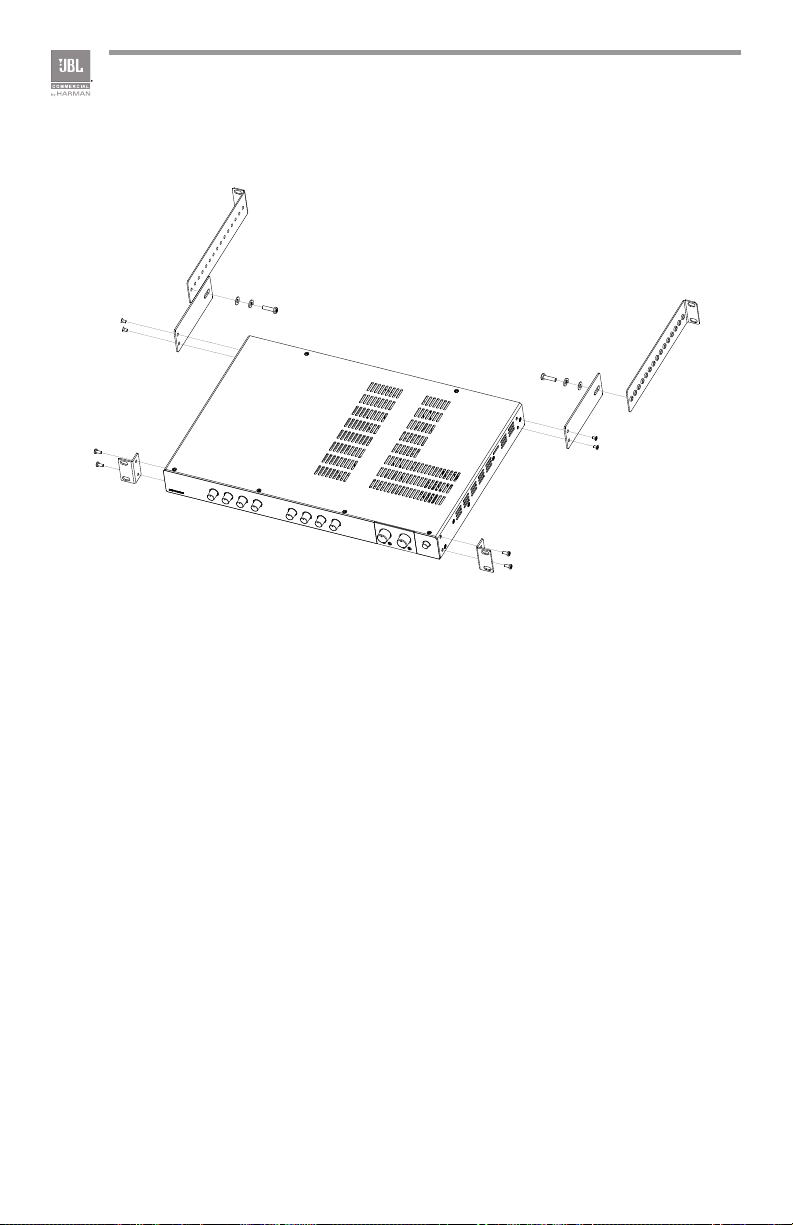

Figure 2.2.5 Rack Mounting Full Rack Mixer Amplifier
Solution C: Rack Mounting Full Rack Mixer Amplifier
To install a full-rack width unit, refer to Figure 2.2.5 and follow the steps below:
1. Attach the front angle brackets to each side of the front of the amplifier using the
screws provided.
2. Attach the rear flat brackets to each side of the rear of the amplifier with the
screws provided.
3. Install the unit into the cabinet using the rack mount screws through the front
angle brackets. For details of installation in the chassis of the cabinet, refer to
the user guide of your cabinet.
4. Align the rear angle brackets with the proper holes at the rear of the cabinet and
attach using rack mount screws.
5. With the rear angle brackets to the outside of the flat brackets, attach them each
using a screw passing through two washers, the rear flat bracket and the rear
angle bracket as shown in the figure.
16
2.3 Ensuring Proper Cooling
When using an equipment rack, keep a minimum space of 4 inches (10cm) from the
top surface of the unit. Close any open spaces in the rack with blank panels. DO
NOT block any air vents. The side walls of the rack should be a minimum of 2 inches
(5 cm) from the amplifier sides. The back of the rack should be open.
2.4 Choosing Input Wire and Connectors
We recommend using pre-built or professionally wired balanced line (two-conductor
plus shield) 22-24 gauge cables to connect the amplifier balanced input by using the
included Euroblock connectors, see Figure 2.4. Unbalanced lines may be used, but
may result in hum or RF noise very long cable runs.
You can also use RCA connectors to connect audio devices, for example, CD/DVD
player. However, do not use both Euroblock and RCA audio input connectors on a
single channel at the same time.
NOTE: Custom wiring should only be performed by qualified personnel.
MONO SUM
AUDIO
SOURCE
AUDIO
SOURCE
AUDIO
SOURCE
AUDIO
SOURCE
Figure 2.4.1 Input Wiring
Note: Two RCA connectors are provided for summing left and right channels from a
stereo source. Do not use both Euroblock and RCA connectors concurrently for any
single input channel.
17
2.5 Output Wiring and Connectors
To drive distributed speaker systems designed to operate at 70V or 100V, connect to
the corresponding output terminals.
JBL recommends using pre-built or professionally wired, high-quality, two-conductor,
heavy gauge speaker wire. Speakers wires should be twisted cable, if possible. To
prevent the possibility of short-circuits, the wires should be stripped back no greater
than 6 mm (1/4 inch), see Figure 2.5.2.
Suggested below are guidelines to select the appropriate size of wire based on the
distance from amplifier to speaker. Check with local code as this may vary.
Distance Wire Size
Up to 25 ft. (7.6m) 16AWG
26-40 ft. (7.9-12.2m) 14AWG
18
8 Ohm Speaker
Figure 2.5 Output Wiring
70V Speaker System
100V Speaker System
Figure 2.6 Wiring Audio System
Professional audio system
5028384
100-240 V~ 50/60Hz 40W
CAUTION - TO REDUCE THE RISK
OF ELECTRIC SHOCK, GROUNDING
OF THE CENTER PIN OF THE PLUG
MUST BE MAINTAINED.
MADE IN MALAYSIA
CH2-4 IN / AUX OUT
CSM A 112 0
AMP OUT
AUX OUT
100V 70.7V COM
CLASS 2
WIRING
Hi-Z PHANTOM
CSR-V ONLY
LEVEL
MONO SUM
MICLINE
CH3 INPUT
MICLINE
CH4 INPUT
CSR-V
MONO SUM MONO SUM
CD /OPTICAL
SPK 1 + 2 VIRTUAL
MICLINE
PRIORITY
VOX
CH1 INPUT
MICLINE
CH2 INPUT
2.6 Wiring Your Audio System
Typical input and output wirings are shown in Figure 2.6.
INPUTS: Connect input wiring for both channels using either the RCA or the
Euroblock input for each channel.
OUTPUTS: You may use either low impedance or high impedance speakers.
Always be sure to maintain the proper polarity when wiring speakers.
Low Impedance Speakers should be driven using the +/- pins of the amplifier output
connector. The minimum impedance an amplifier channel can drive is 4 Ohms.
Therefore, you can connect up to four 16 Ohm speakers, two 8 Ohm speakers or one
4 Ohm speaker to an amplifier output channel.
High Impedance Speakers should be driven using the appropriate (70V or 100V) pin
to speaker (+) and the COM pin to speaker (-) of the amplifier output connector. The
minimum impedance that can be driven from each output is provided in Appendix
A. Note that the HI-Z switch must be ON in order to provide audio to the high
impedance outputs.
WARNING: Do not connect to both low impedance speakers and high impedance
speakers from the same audio output channel.
19
2.7 Connecting to AC Mains
Connect your amplifier to the AC mains power source (power outlet) with the
supplied AC power cord. First, connect the IEC end of the cord set to the IEC
connector on the amplifier; then, plug the other end of the cord set to the AC mains.
When properly connected to a live power source, the power ring should illuminate
with a green color.
WARNING: The third prong of this connector (ground) is an important safety feature.
Do not attempt to disable this ground connection by using an adapter or other
methods.
Amplifiers don’t create energy. The AC mains voltage and current must be sufficient
to deliver the power you expect. You must operate your amplifier from an AC mains
power source with not more than a 10% variation above or below the specified line
voltage and within the specified frequency range indicated on the back panel of the
amplifier. If you are unsure of the output voltage of your AC mains, please consult
your electrician.
2.8 Protecting Your Speakers
It’s wise to avoid clipping the amplifier signal. Not only does clipping sound bad, but
it can damage high-frequency drivers. The built-in clip limiter prevents clipping.
Also, avoid sending strong subsonic signals to the amplifier. High-level, lowfrequency signals from breath pops or dropped microphones can blow out drivers.
You can switch to the HI-Z mode which, in addition to switching in the output
transformers for 70V and 100V speakers, activates the high-pass filter. The filter
prevents potentially damaging subsonic signals from going to the amplifier by
eliminating signals below 70Hz.
2.9 Startup Procedure
Use the following procedure when first turning on your amplifier:
1. Turn down the level of your audio source.
2. Turn down the level controls of the amplifier.
3. Power up the amplifier. The Power ring should change from green to blue.
4. Turn up the level of your audio source to an optimum level.
5. Turn up the Level controls on the amplifier until the desired loudness or power
level is achieved.
If you ever need to make any wiring or installation changes, don’t forget to
disconnect the power cord.
20
3.0 Operation
3.1 Precautions
Your amplifier is protected from internal and external faults, but you should still take
the following precautions for optimum performance and safety:
1. Before use, your amplifier first must be configured for proper operation,
including input and output wiring hookup. Improper wiring can result in serious
operating difficulties.
For information on wiring and configuration, please consult the Setup section of
this manual.
2. Use care when making connections, selecting signal sources and controlling the
output level.
3. Always be sure to have all levels at minimum when connecting or disconnecting
audio sources from the inputs, especially when MIC is selected from the MIC/
LINE switch. Failure to do so may cause the amplifier or speaker to go into a
protection mode or even cause damage.
4. WARNING: Never connect the output to a power supply, battery or power main.
Electrical shock may result.
5. Tampering with the circuitry, or making unauthorized circuit changes may be
hazardous and invalidates all agency listings.
6. Do not operate the amplifier with the red Clip LEDs constantly flashing.
7. Do not overdrive the mixer, which will cause clipped signal to be sent to
the amplifier. Such signals will be reproduced with extreme accuracy, and
loudspeaker damage may result.
8. Do not operate the amplifier with less than the rated load impedance. Due to
the amplifier’s output protection, such a configuration may result in premature
clipping and speaker damage.
9. Use the amplifier in a well-ventilated environment and do not use it in ambient
temperature conditions in excess of 40°C. Failure to do so will result in the auto
disconnection from power supply, and the overheat auto protection function will
be activated. The power indicator will become green and there will not be any
audio signal coming out of the amplifier. In this case, turn down the volume to
the minimum, and the amplifier will soon resume working. When the amplifier
returns to normal temperature the power indicator will return to blue and you
may turn the volume up to a safe level.
10. If the line voltage to the amplifier is too low, the low voltage protection function
will be activated. The power light ring will change from blue to green.
CAUTION: JBL is not liable for damage that results from overdriving other
system components.
21
3.2 Input Routing
INPUT ROUTING
213456
8910 11 12
7
1 - CH1 TO AMP2
2 - CH2 TO AMP2
3 - CH3 TO AMP2
4 - CH4 TO AMP2
5 - AMP1 Hi-Z
6 - PHANTOM
7 - CH5 TO AMP1
8 - CH6 TO AMP1
9 - CH7 TO AMP1
10 - CH8 TO AMP1
11 - AMP2 Hi-Z
12 - NC
The two channel models, CSMA240, CSMA280
and CSMA2120 include a default routing of input
channels 1-4 to amplifier 1 and input channels 5-8
to amplifier 2. The user may also take any input
and have it routed to both outputs by selecting the
appropriate switch. For example, if you set switch 1
to ON, it will be routed to both AMP1, and AMP2.
3.3 Hi-Z Switch
When this switch is in the “OFF” position, the amplifier is configured to drive low
impedance speakers, (4 Ohms ,minimum) The Hi-Z switch will switch in the built-in
output transformer allowing the unit to drive 70V or 100V speaker systems directly
when connected to the appropriate output terminals. As an added feature when
driving the high impedance speakers, the system automatically switches in a 70Hz
high pass filter.
CSMA180 and CSMA1120 utilizes a slide switch labeled “HI-Z.” while the CSMA240,
CSMA280 and CSMA2120 allows each amplifier output to be independently
configured using the DIP switches #5 & #11.
3.4 Phantom Power
Phantom power (27V) can be applied to all mic inputs by turning on the Phantom
Power switch. (DIP switch #6 on the CSMA240, CSMA280 & CSMA2120.)
3.5 VOX Function
Voice activated ducking is available
on input channel 1 of the CSMA180
and CSMA1120 and for both input
channels 1 and 5 of the CSMA240,
CSMA280 and CSMA2120. The
audio input level required to activate
ducking is set using the trim pot on the
rear panel. Adjusting in the counterclockwise direction will reduce that
level while the full clockwise setting will
disable the VOX function.
22
3.6 Priority Muting
With CSMA180 and CSMA1120 Input Channel 1 may be used as a priority channel,
muting all other channels when pins 4 and 5 are shorted using a switch closure. If
the amplifier has entered sleep mode due to inactivity, invoking priority will also bring
the unit out of sleep and ready for transmitting an announcement.
The CSMA240, CSMA280 and CSMA2120 lets Input Ch1 operate with priority over all
inputs into Amp 1. Ch1 will have priority over both Amp 1 and Amp 2 if the routing
DIP switch #1 is set to ON. Ch5, however, cannot have priority over the Amp1 inputs.
3.7 Remote Volume Control
Remote volume control can be implemented using a CSR-V controller connected
via an ethernet cable to the RJ45 connector on the back panel. For the CSMA240,
CSMA280 and CSMA2120, there are two connectors, one for each amplifier output.
3.8 Sleep Mode
To save energy, the unit is designed to go into sleep mode after approximately 30
minutes operating with no signal at any of the inputs. Return of signal (-40dBu or
7.75mVRMS) to any input will wake the unit from its slumber. Also, a switch closure
across the priority input pins will return the unit to normal operating mode.
3.9 AUX Output
An auxiliary output is available that you may connect to additional amplifiers. The
audio signal is the mix of the input channels. Note that the master volume control
and tone controls will have no effect on the aux output signal.
23
4.0 Troubleshooting
CONDITION: No power to the mixer-amplifier so that
the power ring is not illuminated.
POSSIBLE REASON: The mixer-amplifier is not plugged into the power receptacle
CONDITION: No sound or low sound.
POSSIBLE REASON: The input signal is not present or at a very low level.
POSSIBLE REASON: The Master Volume control is turned down.
POSSIBLE REASON: A CSR-V is connected and turned down.
POSSIBLE REASON: Mixer channel inputs are turned down.
POSSIBLE REASON: The Ch 1 Priority switch is closed, muting all except Ch 1 input.
POSSIBLE REASON: The Hi-Z switch is OFF while using the 70V or 100V outputs.
POSSIBLE REASON: The power switch is OFF. (Note that while plugged in, the
amplifier will be in standby mode and the power ring will be
green until the power switch is activated
and the power ring will turn blue.)
CONDITION: Distorted sound.
POSSIBLE REASON: Input signal level is too high. Please turn down the input level
controls. Note that the mixer-amplifier should not be operated
at a level that allows the clip indicator (red ring around the
Master Volume) to be constantly ON.
POSSIBLE REASON: Master Volume is too high.
POSSIBLE REASON: MIC/LINE switch is in MIC position when using a
line level source.
24
Appendix A: Target Performance Specifications
Performance CSMA 180 CSMA 1120 CSMA 240 CSMA 280 CSMA 2120
Max Output Power per Channel into
4 Ω or 8 Ω; 1kHz, ≤ 0.5% THD
Insertion Loss (70V & 100V outputs) 1 dB maximum
Continuous Power per Channel
Number of Input Channels
Number of Output Channels
Line Output level
Input Sensitivity to obtain full rated
power at 8 Ω (or 5V
Frequency Response (measured at
2.83V
into rated load impedance
RMS
at any output)
Total Harmonic Distortion (THD)
(measured at 2.83V
load impedance at any output)
Signal-to-Noise Ratio (Ref. Rated
Power, mixer levels @ min., master
volume @ max. A-weighted)
to line out)
RMS
into rated
RMS
Input Impedance (nominal) Mic: 400 Ω
Phantom Power
Crosstalk (reference rated power,
volume at mid position, 1kHz)
Nominal AC Line Voltages
Minimum Load Impedance
Low Impedance Output
70V Output
100V Output
Operating Temperature/Humidity
Storage Temperature
Dimensions & Weight
Net Weight (preliminary estimate)
Dimensions
Shipping Weight
80W 120W 40W 80W 120W
10W 15W 5W 10W 15W
4 4 8 8 8
1 1 2 2 2
5.0V
into 10kΩ
RMS
Mic Input: 3mV
Line Input: 775 mV
RCA Input: 300mV
4/8 Ohm Output: 20Hz - 20kHz, +/-2dB
70V/100V Outputs: 80Hz - 15kHz +/-2dB
Line Out: 20Hz - 20kHz, +/-1dB
Power Amp Output: <0.5%, 20Hz - 20kHz
Line Output: 0.05% typical
RMS
RMS
RMS
>90dB
Line: 20 kΩ (balanced)
RCA: 50 kΩ
27VDC
-70 dB
100-240V, 50/60 Hz
4 Ω
60 Ω
120 Ω
4 Ω
40 Ω
80 Ω
4 Ω
120 Ω
240 Ω
4 Ω
60 Ω
120 Ω
0°C to 35°C @ 95% R.H. (non-condensing)
-20°C to 85°C
6.8 lb
(3.1 kg)
Width: 8.6 in. (218.5 mm)
Depth: 11.9 in. (303.4 mm)
Height: 1.7 in. (43.3 mm)
9.9 lb
(4.5 kg)
7.1 lb
(3.2 kg)
10.1 lb
(4.6 kg)
10.6 lb
(4.8 kg)
Width: 17.2 in. (436.9 mm)
Depth: 11.9 in. (303.4 mm)
Height: 1.7 in. (43.3 mm)
13.9 lb
(6.3 kg)
11.9lb
(5.4 kg)
15.2 lb
(6.9 kg)
4 Ω
40 Ω
80 Ω
12.1 lb
(5.5 kg)
15.5 lb
(7.0 kg)
Note: For AC power draw and thermal dissipation information, please visit our website. www.jblcommercialproducts.com
25
Appendix B : Block Diagram
Figure C CSMA 2120/280/240 Block Diagram
Phantom Power
(SW6)
Mic/Line
[Bal]
CH1 PTT
Mic/Line
[Bal]
RCA
[MONO
SUM]
Input Gain
Line
Mic
CH1
Input Gain
Line
Mic
CH2
CH3 & CH4 Similar to CH2
SPI
OR
Gain 2
CH1 TO AMP1
CH2 TO AMP1
SW1
CH2 TO AMP1
CH8 TO AMP1
SW2
Gain 1
CH1 VOX
SPI
CH1 TO AMP2
CH2 TO AMP2
∑
CH1 Priority
∑
Attenuation
26
Mic/Line
[Bal]
CH5 PTT
Mic/Line
[Bal]
RCA
[MONO
SUM]
Input Gain
Line
Mic
CH5
Input Gain
Line
Mic
CH6
CH7 & CH8 Similar to CH6
SPI
Gain 5
CH5 VOX
OR
SPI
Gain 6
CH5 TO AMP2
SW7
CH6 TO AMP2
SW8
CH5 TO AMP2(Exclude)
CH1 TO AMP2
CH8 TO AMP2
CH5 TO AMP1
CH6 TO AMP1
CH5 Priority
(Closed as CH1 Route to AMP2)
∑
OR
Attenuation
CH1 TO AMP2
CH5 TO AMP2
∑
Preamp Line Out 1
Tone Control
Scaling
Power
AMP1
Output
XFMR
HPF CNTL
+
-
COM
100V
70.7V
Preamp Line Out 1
VCA 1
(SW5)
Master 1
SPI 1Clip 1
Limiter
Bass Treble
VCA
HPF
Tone Control
Bass Treble
Limiter
Power
AMP1
Bass
Tone Control
Treble
HPF
Preamp Line Out 2
HPF
HPF CNTL
HPF CNTL
Master 1
(SW5)
Master 2
(SW11)
Output
XFMR
SPI 1Clip 1
VCA
Scaling
VCA 1
COM
70.7V
100V
-
+
Clip 2
SPI 2
VCA
Scaling
VCA 2
Limiter
Power
AMP2
Output
XFMR
COM
70.7V
100V
-
+
27
Appendix C: Contact Information
For additional information, please consult JBL Professional Customer Service, your
system installer or retailer.
On The World Wide Web:
www.jblcommercialproducts.com
Professional Contacts, Outside the USA:
Contact the JBL Professional Distributor in your area. A complete list of JBL Professional
international distributors is provided at our U.S.A. Website: www.jblpro.com
28
