JBL Incorporated, 8500 Balboa Boulevard, P.O.Box 2200, Northridge, California 91329 U.S.A.
JBL CONTROL SB210
REV D
PACKAGE
WIRING DIAGRAM
06-10
Technical Manual
JBL CONTR OL SB210
SPECIFICATIONS
ACOUSTIC & ELECTRICAL SPECIFICATIONS:
• Nominal Impediance: 8 Ohms
• Power Capacity: 800W Continuous Program Power
400W Continuous Pink Noise
• Frequency Range: 42 Hz – 200 Hz (–10 dB)
• Sensitivity: 96 dB, 1 Watt @ 1 Meter
SYSTEM COMPONENTS:
• Cabinet: Enclosure (Not for Sale)
• Grille: 338995-001
• Low Frequency 2 338983-001, 250mm (10in.)
Transducer: Woofer
• DC Resistance: 3.3 ohms
• Crossover Network: 338990-001
AURAL SWEEP TEST SPECIFICATIONS:
A. System Aural Sweep Test: 5.0V Input, 20 Hz to 700 Hz
B. L.F. Aural Sweep Test: 2.5V Input, 20 Hz to 700 Hz
PHYSICAL SPECIFICATIONS:
• Enclosure Dimensions: 335 x 590 x 570 mm D
(14.0 x 23.3 x 22.5 in.D.)
• Shipping Weight: 43 lb (19.4 kg.)
WARRANTY INFORMATION:
• Refer to Warranty Statement packed with each product.
Warranty 59660
Owners Manual
338999-001
End Pad (2)
Plastic Bag
Carton
GRN
WHT
WHT/BLK GRN/BLK
Network Assembly
338990-001
Woofer (2)
338983-001
Install Kit for
Eyebolts 337714-001
Plastic Sealed Cover
MTC-PC4
Page 2
JBL CONTROL SB210
2
10W
2
10W
2
10W
2
10W
Stereo
Socket
Mono
L
+
L–
R+
R–
SK3
SK3
SK3
Socket
GRN/BLK
338990-001
WHT/BLK
Plug
WHT
GRN
SK3

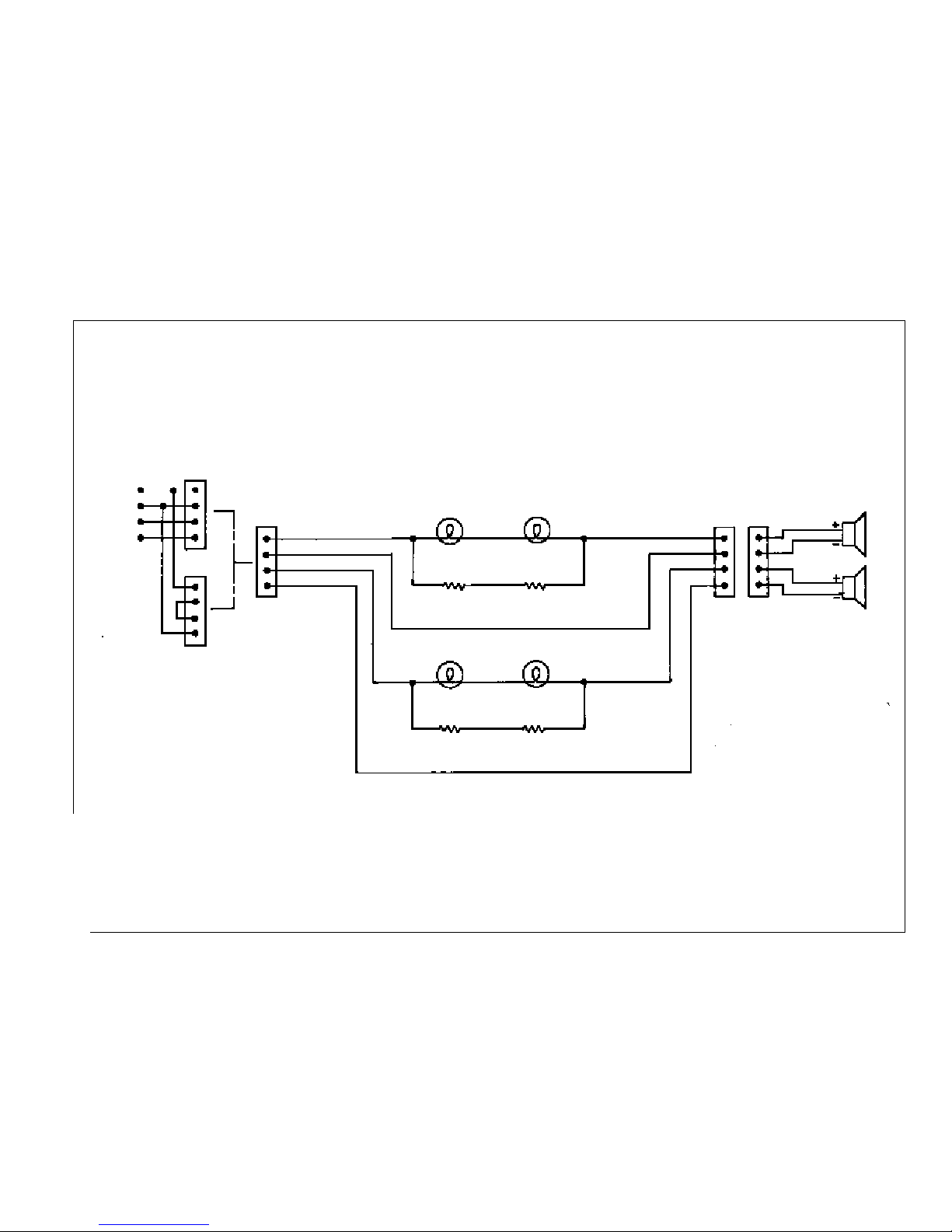

JBL CONTROL SB210
SCHEMATIC
Page 3
CONTROL SB210
COMPONENT EXPLODED VIEW
Screw (4)
Network
338990-001
Panel
Woofer (2)
338983-001
Cover (4)
Plug (4)
Screw (4)
Screw (8)
Washer (4)
Grille Assy
338995-001
Baffle (SB210)
338980-001
Screw (16)
338985-001
M5 x 12
Port Tube
(Not for Sale)
Logo Badge Assy
338996-001
Gasket
Enclosure Assembly SB210
(Not Available for Sale)
Plug (4)
Nylon Feet (R) (2)
339000-001
Nylon Feet (F) (2)
339001-001
Washers (4)
339003-001
Screws (4)
339002-001
Gasket (2)
338984-001
Screw (14)
CONTROL SB210
JBL Control SB210
