PMB POLE-MOUNT BRACKET

Pole Bushing
(used for
sm aller-diam eter
drop tubes)

Pole-M ount-B racketC ap

C levis Pin

C otterPin

Pole-M ountBracket

(4) #10-32 x 2" Screw s

Pole-M ount-BracketCover

C ableA ssem bly

for CONTROL CRV

FOUR-SPEAKER ARRAY
USING THE PMB POLE­MOUNT BRACKET

IMPORTANT

CAUTION: Installation must be

done by qualied persons using safe
rigging standards

The installer is responsible for proper
selection and use of mounting hardware, to
properly and safely pole-mount the speakers.

.

The JBL Control PMB Pole-Mount Bracket facilitates
installation of the JBL Control CRV loudspeakers
with a variety of general-purpose ceiling-fan-pole
assemblies available from many manufacturers.
Since different fan-pole assemblies have different
weight capacities, pole diameters and mounting
systems, it is the customer’s responsibility to check
with the fan-pole-assembly manufacturer or dealer to

determine whether that specic pole-mount assembly

is capable of correctly and securely attaching to the
PMB and handling the weight and proportions of
these loudspeakers in a safe and stable manner. JBL
disclaims any liability for the selection of fan-pole
assemblies and/or correct compatibility between the
selected fan-pole assembly and the JBL PMB Pole­Mount Bracket.

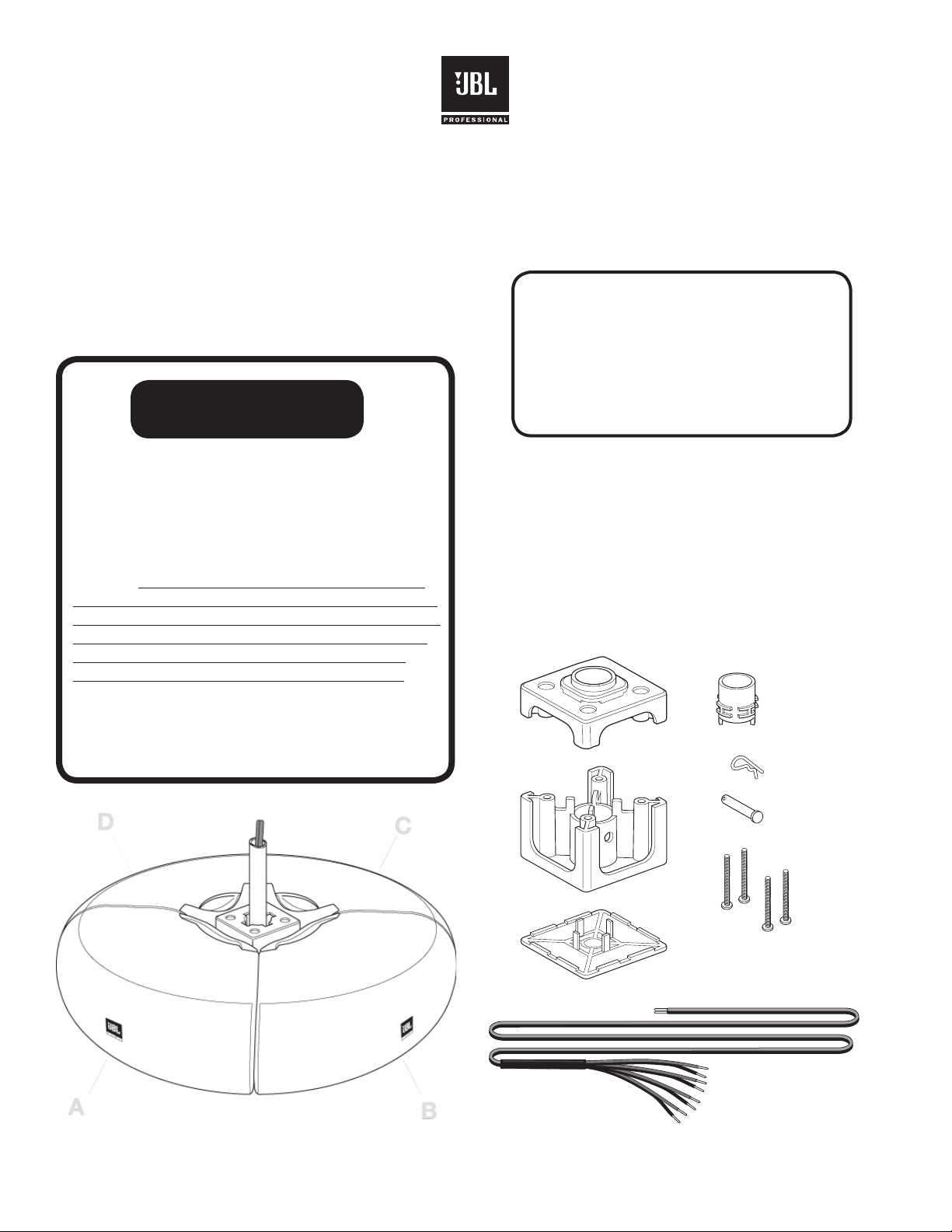

UNPACKING THE BRACKET AND CABLE KIT

Carefully unpack the bracket and cable assembly. If you
suspect damage from transit, report it immediately to your
dealer and/or delivery service. Keep the shipping carton and
packing materials for future use. Open the package and verify
the following contents:

Included:

1

Pole Bushing

Pole-M ount-B racketCap

Drop Tube

Pole-M ountBracket

Clevis Pin

CotterPin

PMB for CONTROL CRV

Pole-M ount-BracketCap

Drop Tube

Pole-M ountBracketC ap

Drop Tube

Pole-M ountB racket

Pinholes

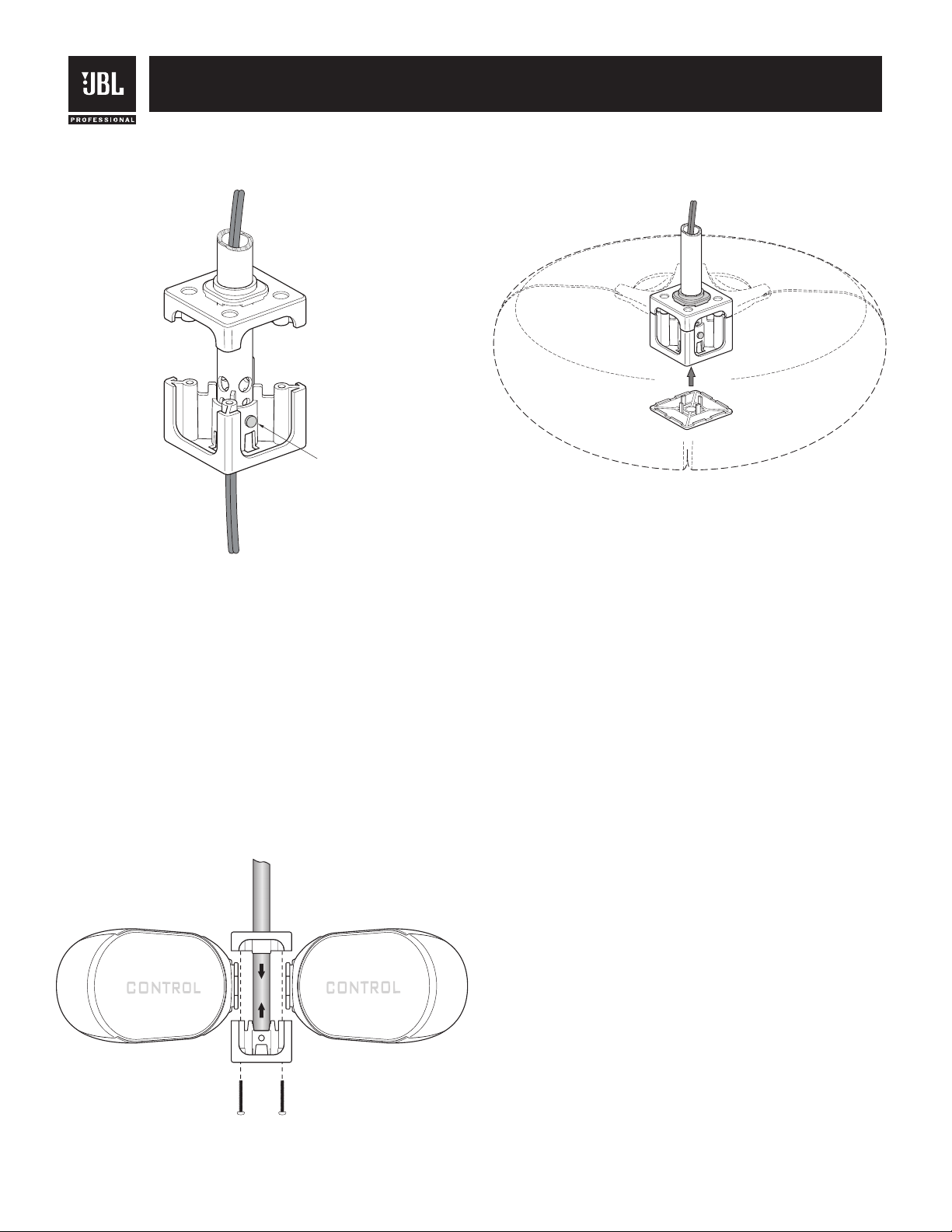

ATTACHING POLE TO POLE-MOUNT BRACKET

For Larger-Diameter Drop Tubes

1. Run the appropriate wiring down through the drop tube. Slide
the drop tube through the pole-mount-bracket cap.

For Smaller-Diameter Drop Tubes

2B. When using a smaller drop tube, use the pole bushing
when running the wiring down through pole-mount-bracket cap.
This will help to eliminate pole wobble.

2

2A. Slide the pole-mount bracket up onto the drop tube,
aligning the pinholes on the bracket with those on the drop
tube.

3. Slide the clevis pin through the aligned holes in the pole­mount bracket and drop tube. Secure the clevis pin by inserting
the cotter pin through the hole in the clevis pin.

Clevis Pin

Pole-M ount-BracketCap

Drop Tube

Pole-M ountBracket

PMB for CONTROL CRV

#10-32 x 2"Screw s (4)

Drop Tube

Pole-Mount-B racketCap

Pole-MountBracket

O nly tw o speakers show n here
forclarity.

Pole-M ountBracketC ap

DropTube

4. The pole-mount bracket can now hold the weight of the
speakers.

SPEAKER MOUNTING

1. Set the tap selector switches to the desired 70V/100V tap.
THRU position is not advised due to parallel speakers providing
too low of an impedance for most low impedance power

ampliers.

2. Connect the stripped bare wires to the input terminals of the
JBL Control CRV speakers.

3. After carefully placing all four speakers in the mounting
bracket, lightly jostle the speakers into place so that the pole­mount-bracket cap will slide down into place. Tighten the pole­mount-bracket assembly with the four #10-32 x 2” (M5 51 mm)
screws provided.

4. Place the pole-mount-bracket cover over the bottom visible
mounting bracket by snapping it into place.

CONTACTING
JBL PROFESSIONAL

These products are designed and backed by JBL Professional,
the world leader in professional sound reinforcement. For
complete warranty information, to order replacement parts or to

ask for clarications to this manual, contact JBL Professional.

Within the United States:

Applications Department, JBL Professional
8500 Balboa Blvd., PO Box 2200
Northridge, CA 91329 USA

In the USA you may call Monday through Friday 8:00am to

5:00pm Pacic Coast Time [phone].

Outside the USA:

Contact the JBL Professional Distributor in your country.

A list of JBL Professional Distributors and US Service Centers
can be obtained from the JBL Professional website at: www.
jblpro.comperformance.
