Control® 25AV-LS

Professional Series

Key Features:

c

UL 1480 UUMW Listed for Use in Fire Alarm
and/or Emergency Communication Systems
(file S7232); EN54-24 certified (Certificate No.
0359-CPR-00245)

c

Extremely Smooth Frequency Response

c Aluminum Grille with Polyester Powder

Coating for Enhanced Durability

c 60 Watt Transformer for 70V or 100V

Lines, with 8 ohm Bypass

c SonicGuard™ Overload Protection

c 130 mm (5¼”) Polypropylene Coated

Woofer, 10 mm (¾”) Titanium Coated
Horn-Loaded Tweeter

c Includes InvisiBall

and Sealed Input Panel Cover

®

Mounting Hardware

Two-Way, Professional
Compact Loudspeaker
for Life / Safety Applications

c Captive Screw-Down Input Terminals

c 110° x 85° High-Frequency Horn

Applications:

The Control® 25AV-LS is built on the
same platform as our popular Control 25AV
and is UL 1480 UUMW Listed for use in fire
alarm and/or emergency communication
systems. The Control 25AV-LS utilizes a
deep cabinet, high power components and
complex network to achieve extremely
smooth high fidelity performance from
a compact 2-way loudspeaker. Premium
performance capability and even coverage
ensures excellent sound quality throughout
the listening area.

A top-quality, low saturation transformer,
enables the loudspeaker to be used on
either 70 volt or 100 volt distributed speaker
lines, with similar fidelity performance to the
8 ohm bypass position.

The patented InvisiBall
is simple to install, aims easily, and provides
a high degree of theft deterrence. The cabinet
accepts a variety of paints to match any
décor. Weather resistance is maximized
by utilizing an aluminum grille featuring
polyester powder coating and liquid-tight
MTC-PC2 terminal covers.

Coating the woofer cone in polypropylene
and terminating its circumference in
JBL’s WeatherEdge
rubber extension of the woofer surround,
protects critical transducer elements.
The polycarbonate tweeter diaphragm is
reinforced with a thin film of titanium for
added rigidity and endurance. Nickel/zinc
rust-resistant terminals ensure a secure
input connection.

®

mounting method

TM

, a seamless, butyl

Specifications:

System: Frequency Range (-10 dB)1: 90 Hz - 20 kHz
Power Capacity 2: 200 Watts Continuous Program Power (at 8 ohm bypass mode)

100 Watts Continuous Pink Noise (at 8 ohm bypass mode)
60 Watts (at 60W tap setting)

Nom inal Sensitivity : 87 dB, 1W at 1 m (1 kHz – 10 kHz, ave., at 8 ohm bypass mode);
71 dB, 1W at 4m per EN54-24 (100 Hz – 10 kHz, ave., 60W tap)

Nominal Coverage Angle: 110° x 85° (1 kHz to 16 kHz, ave.)
Typical Horizontal: 120° at 4 kHz, 120° at 2 kHz, 155° at 1 kHz, 360° at 500 Hz
Typical Vertical: 100° at 4 kHz, 85° at 2 kHz, 160° at 1kHz, 360° at 500 Hz

Directivity Factor (Q): 4.8 (500 Hz to 4kHz)
Directivity Index (DI): 6.5dB (500 Hz to 4kHz)
Rated Maximum SPL: 107 dB @ 1 m (3.3 ft) average, 113 dB peak, at 8 ohm

bypass mode3; 89 dB at 4 m (13.2 ft) average, at
60W tap setting, measured.

Rated Impedance: 8 ohms (in bypass, position 5, mode) - tap 1: 667 ohms;
tap 2: 333 ohms; tap 3: 167 ohms, tap 4: 83 ohms (typical)

Transformer Taps: 60W 30W, 15W, (& 7.5W @ 70V)
Transducers: LF Driver: 130mm (5.25 in) with polypropylene coated paper cone

with WeatherEdge surround, 25 mm (1 in) voicecoil
on kapton former

HF Driver: 20mm (.75 in) titanium coated PEI
Enclosure: Input Connectors: Captive screw-down terminals, zinc-plated copper base,

nickel plated metal screws/washers, accepts up to 9 mm
outside 4 mm inside open lug, plus bare wire up to
12 AWG (2.5 mm)

Cabinet Material: ABS, (materials rated UL94-5VA)
Grille: Aluminum with polyester powder coating

 SafetyAgency: UL1480-UUMWListed(S7232),EN54-24:2008certied
  (CerticateNo.0359-CPR-00245),NFPA90,NFPA70A,

and in accordance with the requirements of IEC60849/EN60849
Dimensions (H x W x D): 236 x 186 x 159 mm (9.3 x 7.4 x 6.3 in)
Net Weight: 3.8 kg (8.4 lbs) ea
Shipping Weight: 8.6 kg (19 lbs) pair
Included Accessories: 1 pc MTC-PC2 input panel cover, Invisiball mounting base,

6 mm x 100 mm Invisiball hex wrench
Optional Accessories: MTC-25V for vertical columnar mounting of up to 3 speakers

MTC-25/23H for horizontal splaying of 2 speakers. Three
brackets array either 3 or 6 speakers in a hanging array module
for 360° horizontal coverage.
MTC-28/25CM to install speaker down from the ceiling.
See JBL Control Contractor Bracket and Adapter Handbook.

1

Half-space

2

Continuous Pink Noise rating is IEC-shaped pink noise with a 6 dB crest factor for 100 hours continuously. Continuous Program power is aconservative expression of the system’s ability

to handle normal speech and music program material, and is defined as 3 dB above the Continous Pink Noise Rating. JBL continually engages in research related to product improvement.
Changes introduced into existing products without notice are an expression of that philosophy.

3

Calculated based on power rating and measured sensitivity, exclusive of power compression.

Note: Reference Axis=0 degrees/on axis, Reference Plane=on axis, Horizontal Plane=on axis.

JBL continually engages in research related to product improvement. Changes introduced into existing products without notice are an expression of that philosophy.

c Control

25AV-LS, Two-Way Professional Compact Loudspeaker for Life / Safety Applications

Safety and Regulatory Information:

The Control 25AV-LS has passed extensive testing and is

in compliance with the following specications and uses:

• ListedUL-1480,categoryUUMW when installed with
a junction box (on-wall or in-wall). Forusewithnon­DCsupervisedsystems.

• General Purpose Use Listed UL-1480,
Category UEAY

• Control 25AV-LS is suitable for use outdoors in

wet locations

• Control 25AV-LS is suitable for use indoors in

damp locations

• Suitable for installation using Class 1, Class 2 or
Class 3 wiring methods in accordance with NFPA 70,
National Electric Code, 2002, Article 640, and with
NFPA 72 for use with non-DC supervised control
panels / ampliers.

• Suitable with re alarm circuit wiring methods in
accordance with NFPA 70, National Electric Code,
2002, Article 760, and with NFPA 72 for use with
non-DC supervised control panels / ampliers.

• EMC Directive 89/336/EEC and Article 10 (1) of the
directive EN50081-1 and EN50082-1

Dimensions:

236 mm

(9.3 in)

187 mm

(7.4 in)

°

12

135 mm

(5.3 in)

• Tested to IEC 60268-5

• EN54-24 certied

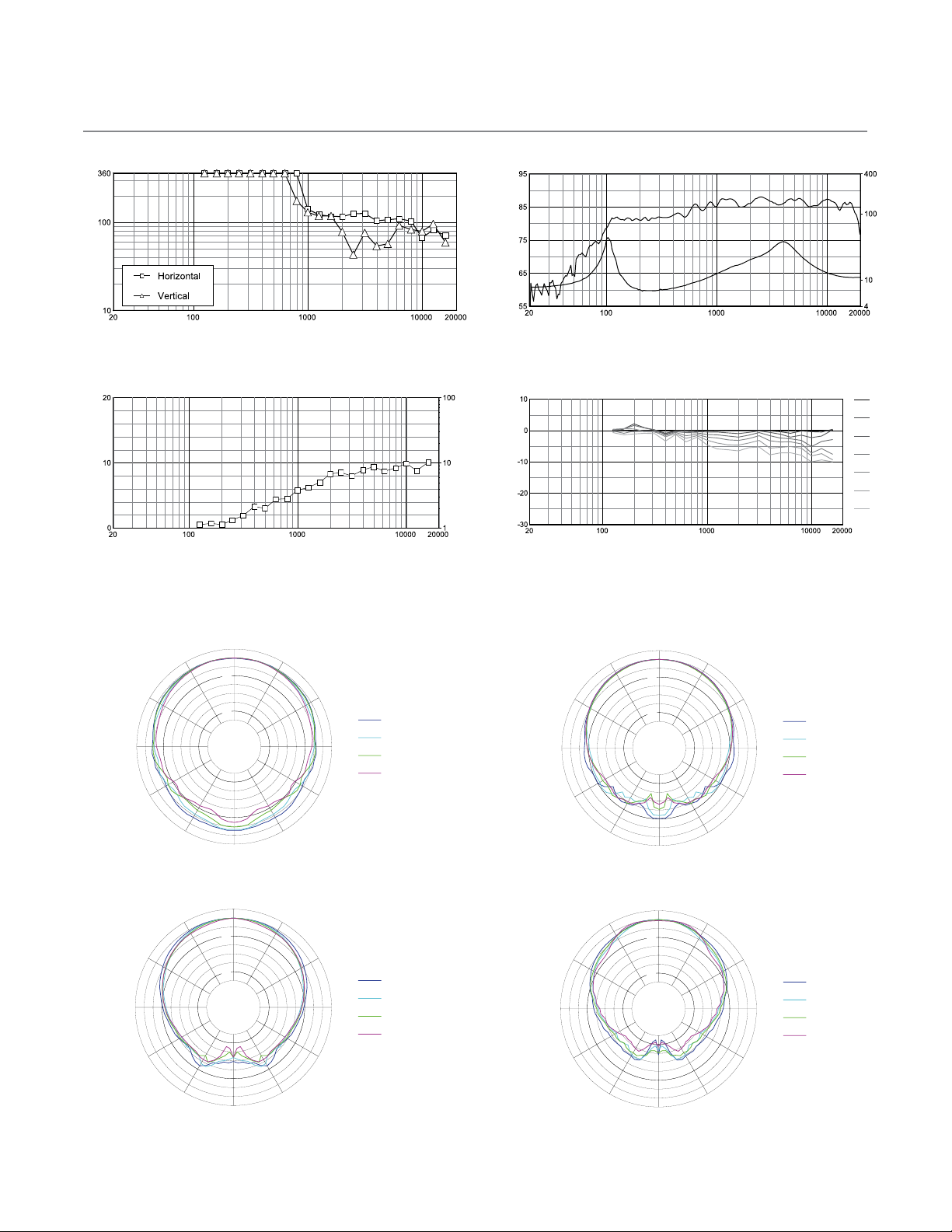

Measured audibility for the Control 25AV-LS at 10 feet
(3.1 meters) is:

Tap Sound Pressure Level dB(A)

70V, 7.5W 80 dB

70V, 15W 83 dB

70V, 30W 86 dB

70V, 60W 88 dB

100V, 15W 83 dB

100V, 30W 86 dB

100V, 60W 88 dB

8 ohm 90 dB

89 mm
(3.5 in)

159 mm

(6.3 in)

70 mm
(2.8 in)

5

7 mm

(.27 in)

°

64 mm
(2.5 in)

70 mm
(2.8 in)

51 mm
(2.0 in)
