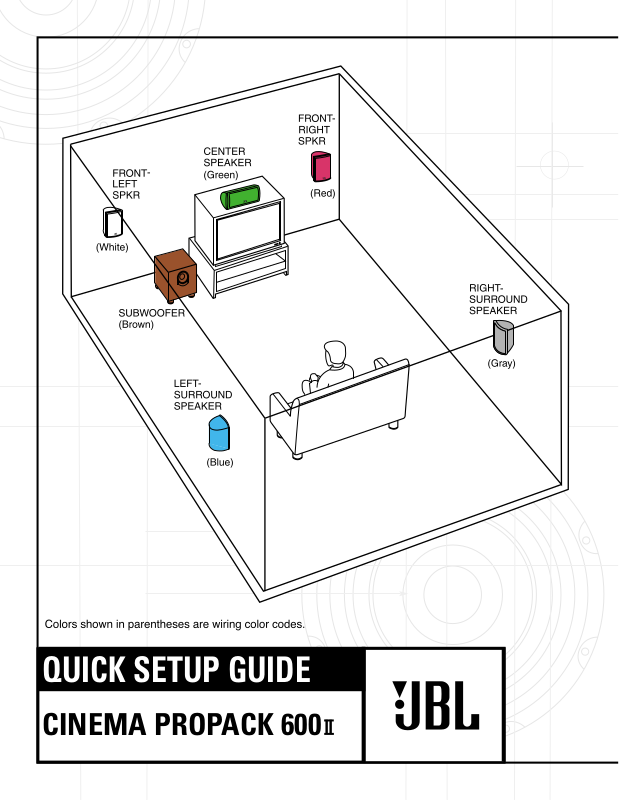

CINEMA PROPACK 600
II
QUICK SETUP GUIDE
-
-
-
-
Page 2
X +
0 +
Y
2
0
M
HZ
P/N: ai5194
TV
VIDEO IN
AUDIO IN
L
R
AUDIO OUT
L
R
VIDEO OUT
S-VIDEO IN
S-VIDEO OUT
COMPONENT
VIDEO IN
Pr
Pb
Y
White
Red
DCR600
II
DVD600
II
CONNECT TO
AC OUTLET
CONNECT TO
AC OUTLET
Yellow
Yellow BlackOrange
NOTES:
1. CONNECT “RIDGED” WIRE TO (+) COLORED TERMINAL AND CONNECT
“SMOOTH” WIRE TO (–) BLACK TERMINAL ON DCR600
II
AND SPEAKERS.
2. WIRE COLOR CODES ARE FOR EASE OF CONNECTION.
THE SPEAKER WIRES CAN BE INTERCHANGED IF NECESSARY.
(+)
Ridges
– +
SURROUND-RIGHT
SPEAKER
– +
SURROUND-LEFT
SPEAKER
– +
FRONT-RIGHT
SPEAKER
– +
FRONT-LEFT
SPEAKER
– +
CENTER
SPEAKER
– +
SUBWOOFER
Gray
Green
Red
White BrownBlue
Page 3
S-Video cable
not included
S-VIDEO IN
VIDEO IN
L
AUDIO IN
R
White
Red
S-VIDEO OUT
VIDEO OUT
L
AUDIO OUT
R
COMPONENT
VIDEO IN
TV
Pr
Pb
Y
S-Video cable
not included
Gray
DVD600
BlackOrange
CONNECT TO
AC OUTLET
DCR600
II
II
CONNECT TO
AC OUTLET
Green
Red White BrownBlue
(+)
Ridges
– +
SURROUND-RIGHT
SPEAKER
– +
SURROUND-LEFT
SPEAKER
– +
CENTER
SPEAKER
– +
FRONT-RIGHT
SPEAKER
– +
FRONT-LEFT
SPEAKER
– +
SUBWOOFER
NOTES:
1. CONNECT “RIDGED” WIRE TO (+) COLORED TERMINAL AND CONNECT
“SMOOTH” WIRE TO (–) BLACK TERMINAL ON DCR600
II
AND SPEAKERS.
2. WIRE COLOR CODES ARE FOR EASE OF CONNECTION.
THE SPEAKER WIRES CAN BE INTERCHANGED IF NECESSARY.
Page 4
Yellow
S-VIDEO IN
VIDEO IN
L
AUDIO IN
R
White
Red
S-VIDEO OUT
VIDEO OUT
L
AUDIO OUT
R
COMPONENT
VIDEO IN
Pr
Pb
Y
Component
video cable not included
TV
Orange
Yellow
Gray
Black
Green
Red White BrownBlue
DVD600
CONNECT TO
AC OUTLET
DCR600
CONNECT TO
AC OUTLET
II
II
(+)
Ridges
– +
SURROUND-RIGHT
SPEAKER
– +
SURROUND-LEFT
SPEAKER
– +
CENTER
SPEAKER
– +
FRONT-RIGHT
SPEAKER
– +
FRONT-LEFT
SPEAKER
– +
SUBWOOFER
NOTES:
1. CONNECT “RIDGED” WIRE TO (+) COLORED TERMINAL AND CONNECT
“SMOOTH” WIRE TO (–) BLACK TERMINAL ON DCR600
II
AND SPEAKERS.
2. WIRE COLOR CODES ARE FOR EASE OF CONNECTION.
THE SPEAKER WIRES CAN BE INTERCHANGED IF NECESSARY.
3. MUST USE VIDEO SWITCHING THROUGH TV TO ACCESS
COMPONENT VIDEO.
