Technical Manual
CF150
SPECIFICATIONS
ACOUSTIC & ELECTRICAL SPECIFICATIONS:
• Nominal Impedance: 8 ohm
• Recommended Amp Power: 10W to 325W
• Frequency Range: 32 Hz to 20 kHz (–6 dB)
• Sensitivity: 98 dB SPL*
• Crossover Frequencies: 850 Hz - 4.5 kHz
SYSTEM COMPONENTS:
• Cabinet: CCF150 (B6140659)
• Grille: GCF150 (B6940134)
• Low Frequency 15 in. (380mm) Polymer
Transducer: Laminate (C380L15U1070)
• DC Resistance: 5.2 ohm ±10% Copper Wire
• Mid Range 6-1/2 in. (165mm) Polymer
SYSTEM COMPONENTS:
(cont’d)
• Crossover Network/
Terminal Cup: B6034154
AURAL SWEEP TEST SPECIFICATIONS:
A. System Aural Sweep Test: 5.0V Input, 20 Hz to 20 kHz
B. L.F. Aural Sweep Test: 5.0V Input, 50 Hz to 5 kHz
C. M.F. Aural Sweep Test: 4.0V Input, 700 Hz to 5 kHz
D. H.F. Aural Sweep Test: 2.0V Input, 1 kHz to 20 kHz
PHYSICAL SPECIFICATIONS:
• Enclosure Dimensions: 35.0 x 17.87 x 18.93 in. D
(889mm x 454mm x 481mm D)
SHIPPING WEIGHT: 70 lbs. (31.8 kg.)
Transducer: Laminate (C160L94J1970)
• DC Resistance: 5.4 ohm ±10% Copper Wire
• High Frequency 1 in. (25mm) Mylar Laminate
WARRANTY INFORMATION:
• Refer to the Warranty Statement packed with each product.
(D025N55J1970)
• DC Resistance: 5.6 ohm ±10% Copper Wire
* 1 Watt @ Meter

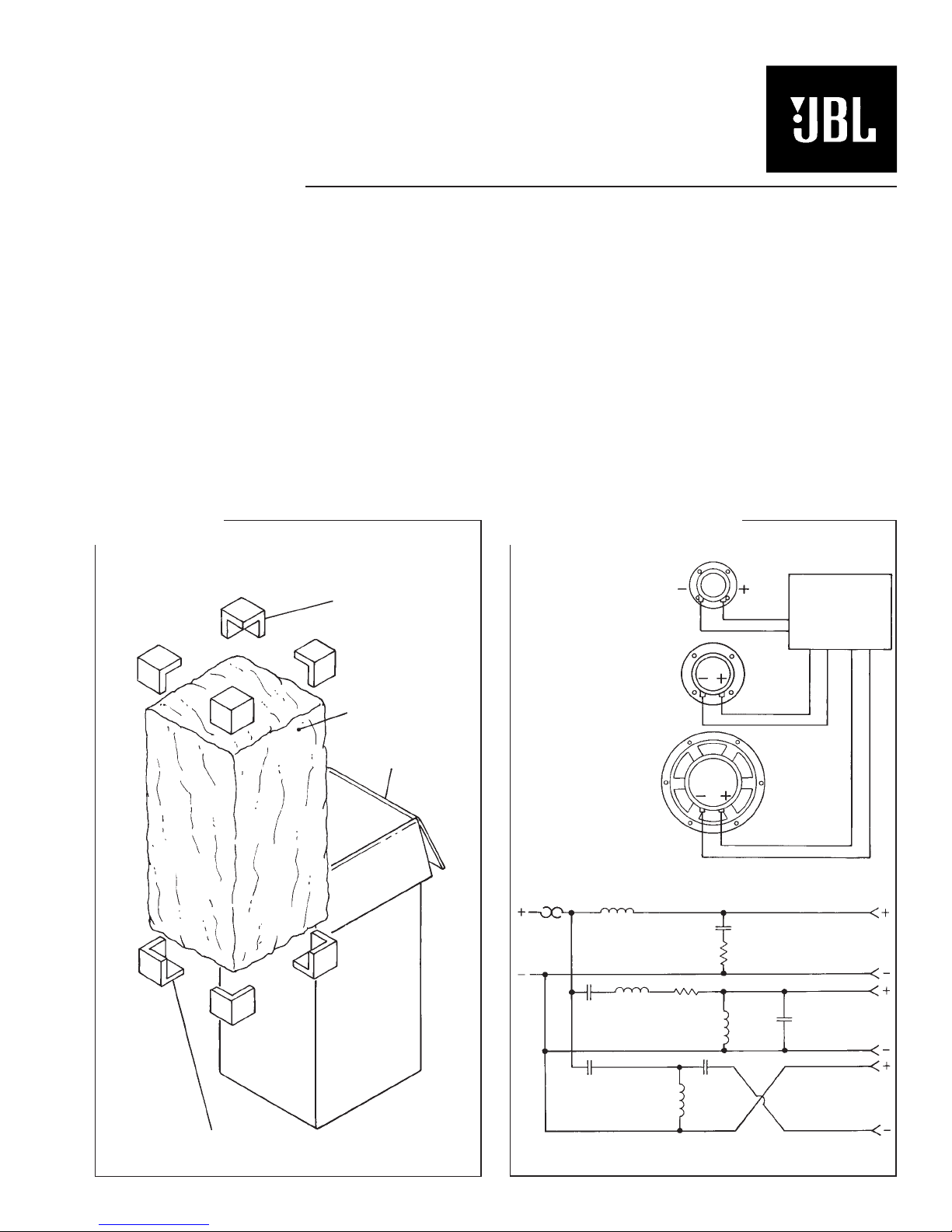

PACKAGE WIRING DIAGRAM
Warranty 15-35-4026-00
Owners Manual 15-30-4142-00
Driver, High Freq
Top Pad Set
15-61-4032-00
Polybag
15-56-4079-00
D025N55J1970
Driver, Mid Range
C160L94J1970
YEL/BLK
WHT
YEL
WHT/BLK
Network/
Terminal Cup
B6034154
Bottom Pad Set
15-61-4032-00
JBL Consumer Products Inc., 80 Crossways Park West, Woodbury, New York 11797
Carton
15-28-4169-00
Driver, Low Freq
C380L15U1070
FUSE
3.0A
250V
INPUT
NOTE: CONE/DIAPHRAGM KIT NOT AVAILABLE. DEFECTIVE DRIVER
SCHEMATIC (B6034154)
2.6mH
0.6mH
15µF
2.5µF
250V
Mylar
SHOULD BE REPLACED.
GRN/BLK
0.2mH
0.6Ω
0.8mH
4.0µF
250V
Mylar
GRN
55µF
3.0Ω
10W
12µF
GRN
L.F.
C380L15U1070
GRN/BLK
WHT/BLK
M.R.
C160L94J1970
WHT
YEL
H.F.
D025N55J1970
YEL/BLK
8-96 REV A
CF150

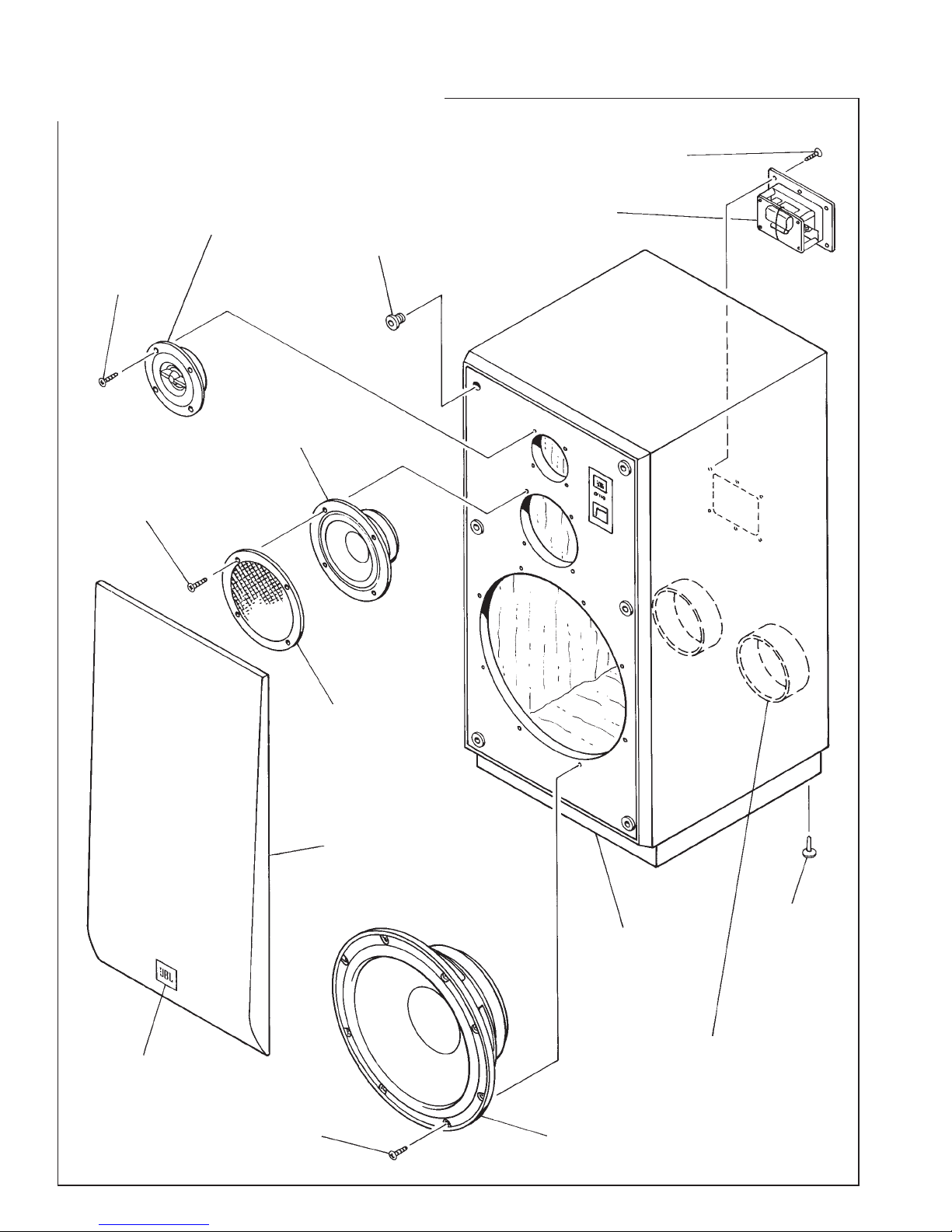

COMPONENT EXPLODED VIEW
Screw (6)
No. 6 x 3/4
PNHD PH BLK
CF150
Screw (4)
No. 8 x 1
PNHD PH BLK
Screw (4)
No. 8 x 1
PNHD PH BLK
Driver, High Freq
D025N55J1970
Grille Retainer (6)
15-11-4001-00
Driver, Mid Range
C160L94J1970
Network/
Terminal Cup
B6034154
CF150
Logo
15-15-4041-00
Trim Ring/Grille
15-62-4076-00
Screw (8)
No. 10 x 3/4
PNHD PH BLK
Grille Assy
GCF150
(B6940134)
Cabinet
CCF150
(B6140659)
(Not For Sale)
Driver, Low Freq
C380L15U1070
Feet, Plastic (4)
15-11-4059-00
Port Tube (2)
15-53-4044-00
(Not For Sale)
