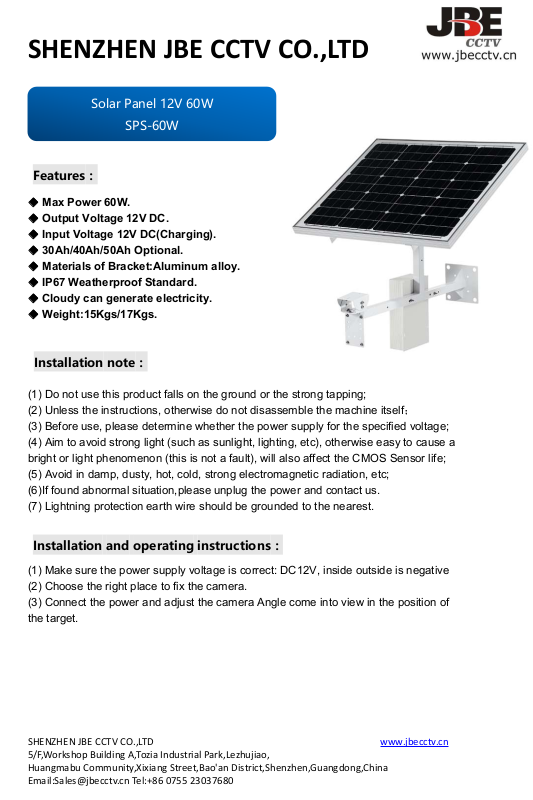

SHENZHEN JBE CCTV CO.,LTD

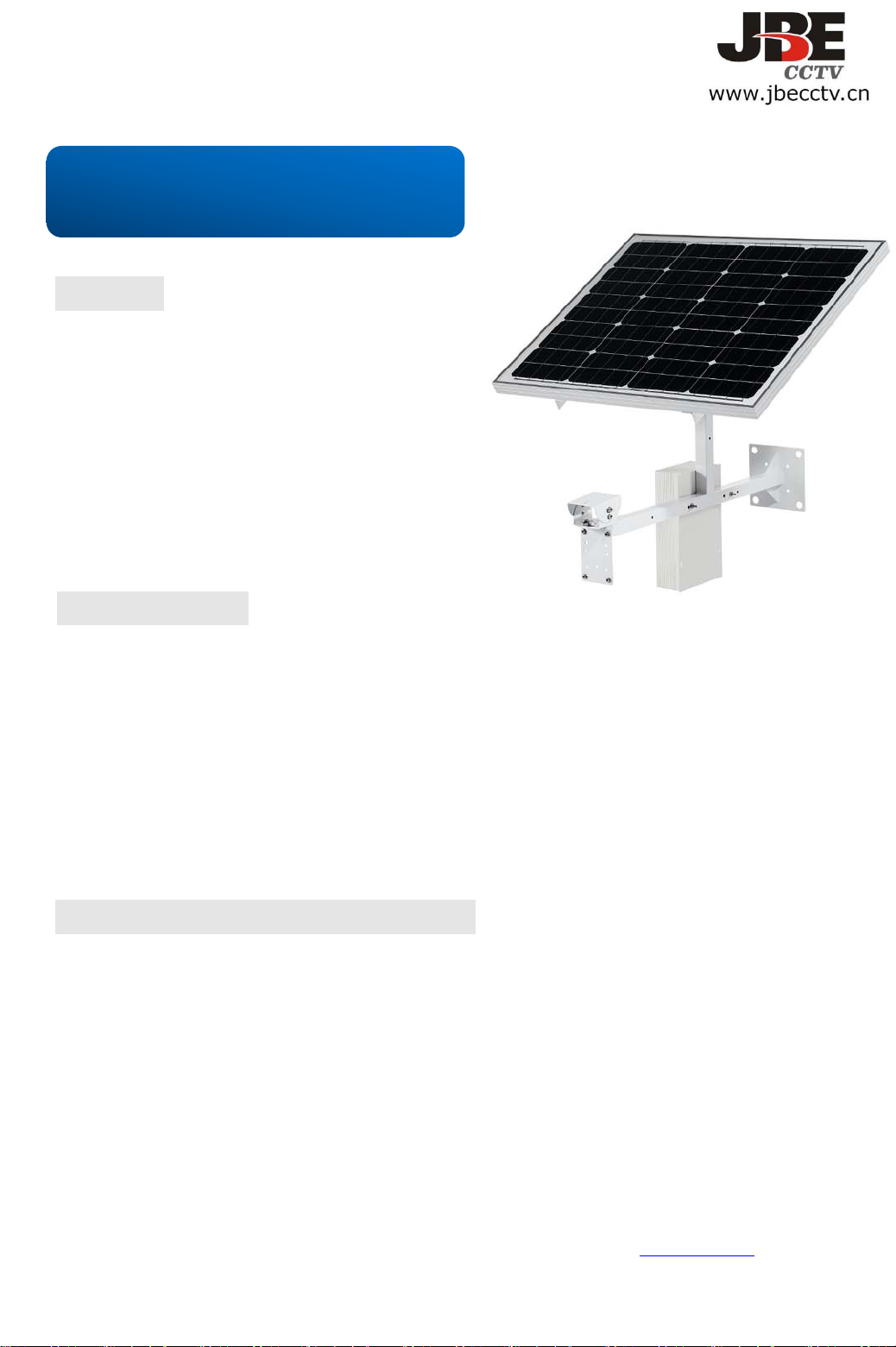

Solar Panel 12V 60W
SPS-60W
Features：
Installation note：
Installation and operating instructions：
◆ Max Power 60W.
◆ Output Voltage 12V DC.
◆ Input Voltage 12V DC(Charging).
◆ 30Ah/40Ah/50Ah Optional.
◆ Materials of Bracket:Aluminum alloy.
◆ IP67 Weatherproof Standard.
◆ Cloudy can generate electricity.
◆ Weight:15Kgs/17Kgs.
(1) Do not use this product falls on the ground or the strong tapping;
(2) Unless the instructions, otherwise do not disassemble the machine itself；
(3) Before use, please determine whether the power supply for the specified voltage;
(4) Aim to avoid strong light (such as sunlight, lighting, etc), otherwise easy to cause a
bright or light phenomenon (this is not a fault), will also affect the CMOS Sensor life;
(5) Avoid in damp, dusty, hot, cold, strong electromagnetic radiation, etc;
(6)If found abnormal situation,please unplug the power and contact us.
(7) Lightning protection earth wire should be grounded to the nearest.
(1) Make sure the power supply voltage is correct: DC12V, inside outside is negative
(2) Choose the right place to fix the camera.
(3) Connect the power and adjust the camera Angle come into view in the position of
the target.
SHENZHEN JBE CCTV CO.,LTD
5/F,Workshop Building A,Tozia Industrial Park,Lezhujiao,
Huangmabu Community,Xixiang Street,Bao'an District,Shenzhen,Guangdong,China
Email:[email protected] Tel:+86 0755 23037680
www.jbecctv.cn
Page 2
SHENZHEN JBE CCTV CO.,LTD
Model No.
SPS-30AH-60W
SPS-40AH-60W
SPS-50AH-60W
Maxi Power(Pmax)
60W
Power Tolerance
+3%
Battery Current
30AH
40AH
50AH
Maxi Power Voltage(Vmp)
17.30
Maxi Power Current(Imp)
3.47
Open Circuit Voltage(Voc)
21.60
Short Circuit Current(Isc)
3.85
Module Efficiency(%)
16.50%
Max System Voltage
1000VDC
No. of Solar Cell
36pcs(4×9)
Junction Box Protection
As per IP67
Temperature Coefficients of
Pmax
-0.47%/℃
Temperature Coefficients of Voc
-0.35%/℃
Temperature Coefficients of Isc
0.05%/℃
Working Temperature
-40℃~85℃
Maximum Load
Snow loads up to 5400Pa and wind loads up to 2400Pa
STC Condition
Irradiance level 1,000W/m²,Spectrum AM 1.5,and Cell
Temperature 25℃
Warranty
Product warranty(material&workmanship)10 years, performance
warranty gurantee power output of 90% for the first 10 years and
80% for remaining 15 years
Frame
Anodized Aluminum Alloy
Construction
Front:High transmission 3.2mm tempered glass
Rear:White polyester; encapsulant:EVA
Output cables
cable with DC connectors.
Cable lengths 900mm
Voltage Input
Power 12V DC(Charging)
Package Size
78*61*26CM
Weight
Appro x 16kgs
