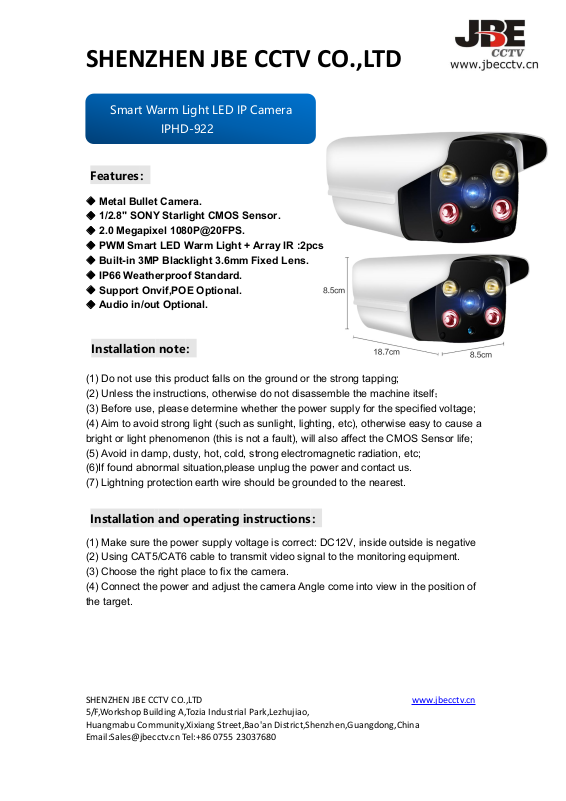

Page 1
SHENZHEN JBE CCTV CO.,LTD
Smart Warm Light LED IP Camera
IPHD-922
Features：
Installation note：
Installation and operating instructions：
◆ Metal Bullet Camera.
◆ 1/2.8" SONY Starlight CMOS Sensor.
◆ 2.0 Megapixel 1080P@20FPS.
◆ PWM Smart LED Warm Light + Array IR :2pcs
◆ Built-in 3MP Blacklight 3.6mm Fixed Lens.
◆ IP66 Weatherproof Standard.
◆ Support Onvif,POE Optional.
◆ Audio in/out Optional.
(1) Do not use this product falls on the ground or the strong tapping;
(2) Unless the instructions, otherwise do not disassemble the machine itself；
(3) Before use, please determine whether the power supply for the specified voltage;
(4) Aim to avoid strong light (such as sunlight, lighting, etc), otherwise easy to cause a
bright or light phenomenon (this is not a fault), will also affect the CMOS Sensor life;
(5) Avoid in damp, dusty, hot, cold, strong electromagnetic radiation, etc;
(6)If found abnormal situation,please unplug the power and contact us.
(7) Lightning protection earth wire should be grounded to the nearest.
(1) Make sure the power supply voltage is correct: DC12V, inside outside is negative
(2) Using CAT5/CAT6 cable to transmit video signal to the monitoring equipment.
(3) Choose the right place to fix the camera.
(4) Connect the power and adjust the camera Angle come into view in the position of
the target.
SHENZHEN JBE CCTV CO.,LTD www.jbecctv.cn
5/F,Workshop Building A,Tozia Industrial Park,Lezhujiao,
Huangmabu Community,Xixiang Street,Bao'an District,Shenzhen,Guangdong,China
Email:[email protected] Tel:+86 0755 23037680
Page 2
SHENZHEN JBE CCTV CO.,LTD
Model No.
IPHD-THS-922
Image Sensor
1/2.8" SONY STARVIS CMOS (Hi3516EV100+SONY IMX307LQD) Starlight
Resolution
2.0 Megapixle(1080P=1920*1080)
Illumination
Color 0.001 [email protected](AGC on), B&W 0.000 [email protected](IR on),
support Advanced ISO AE Mode
System Architecture
Embedded RTOS design, Dual-core 32-bit DSP (Hi3516EV100),
Watchdog,8MB FLASH,64MB built in DDR
Lens Mount
Built-in 3MP Blacklight 3.6mm Fixed Lens
IRLED
Built-in PWM Smart LED Warm Light + Array IR :2pcs
IR Distance
30M ( Night Vision )
System
PAL / NTSC
Resolution
Main stream: 1920*1080, 1280*960, 1280*720;
Sub Stream: 800×448,640×480,640×360,352×288;
Frame
2.0MP and below @ 20fps, support 1 ~ 20 fps/s adjustable
Video Processing
H.265+/H.265/H.264 video coding, support dual stream, AVI format;
code stream 200~8000kpbs adjustable
Support 3DNR,Support Digital WDR,Support JPEG Snapshot
Audio
Built-in Microphone Optional
Network Interface
1*RJ45 Ethernet interface,10/100M self-adaption;
Network Protocol
support RTSP/DHCP/NTP/ONVIF, GB/T28181 and so on network protocols;
IR board
Synchronous
integrate IR-CUT drive, support linkage control between sensor &IR-CUT&
photosensitive& LED fill light, support day/night switch；
Mine-protected
Power supply, network comprehensive lightning protection,
through the ITU-T, K.21-2008, IEC61000-4-2/IEC61000-4-5
POE
PoE (IEEE802.3af) Optional
Function
Configure by WEB, OSD(on screen display),real-time video transmission,
motion detection and IO alarm linkage ,center prompt and picture pop-up after
IO alarm; support remote surveillance client software(Seetong);support mobile
monitoring(iPhone, Android), support "Seetong" cloud service.
S/N Ratio
>=50dB
ES
1/50 - 1/10,0000S
White Balance
Auto Tracking White Balance
Gamma Ratio
>=0.45
Working Temp.
Outdoor: -20C to +55C
Humidity
0 to 95% RH (non-condensing)
Sync System
2:1 interlace internal Sync.
Voltage Input
Power 12V DC 2A
Package Size
20CM*10CM*10CM
Weight
Appro x 1.0kgs
SHENZHEN JBE CCTV CO.,LTD www.jbecctv.cn
5/F,Workshop Building A,Tozia Industrial Park,Lezhujiao,
Huangmabu Community,Xixiang Street,Bao'an District,Shenzhen,Guangdong,China
Email:[email protected] Tel:+86 0755 23037680
