INSTRUCTION MANUAL
WSBT
Stand for WS440
This manual corresponds to the following reference:
WS BT- B

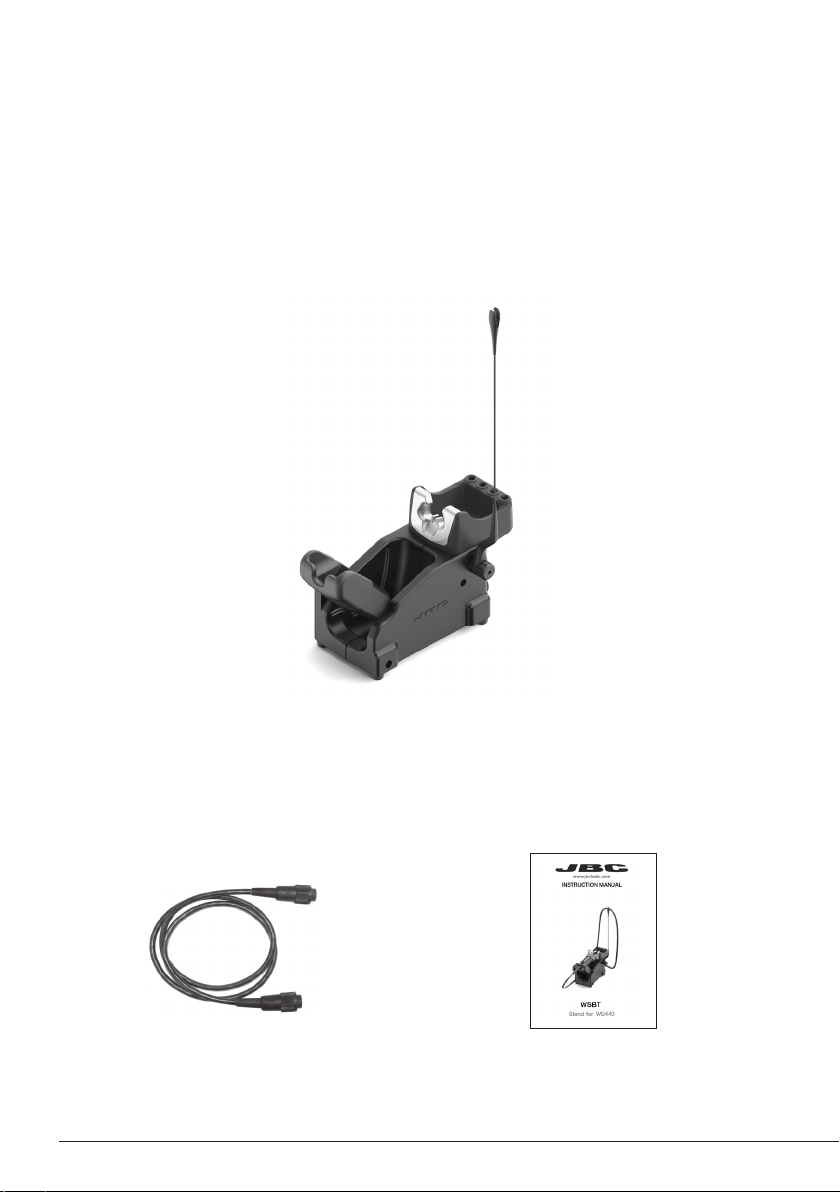

Packing List
The following items are included:
Stand for WS440 ................................................................................................................................... 1 u ni t
Stand Cable (length 1m) ........................1 unit
Ref. 0 024227
Manual ....................................................... 1 unit
Re f. 0 028125
2

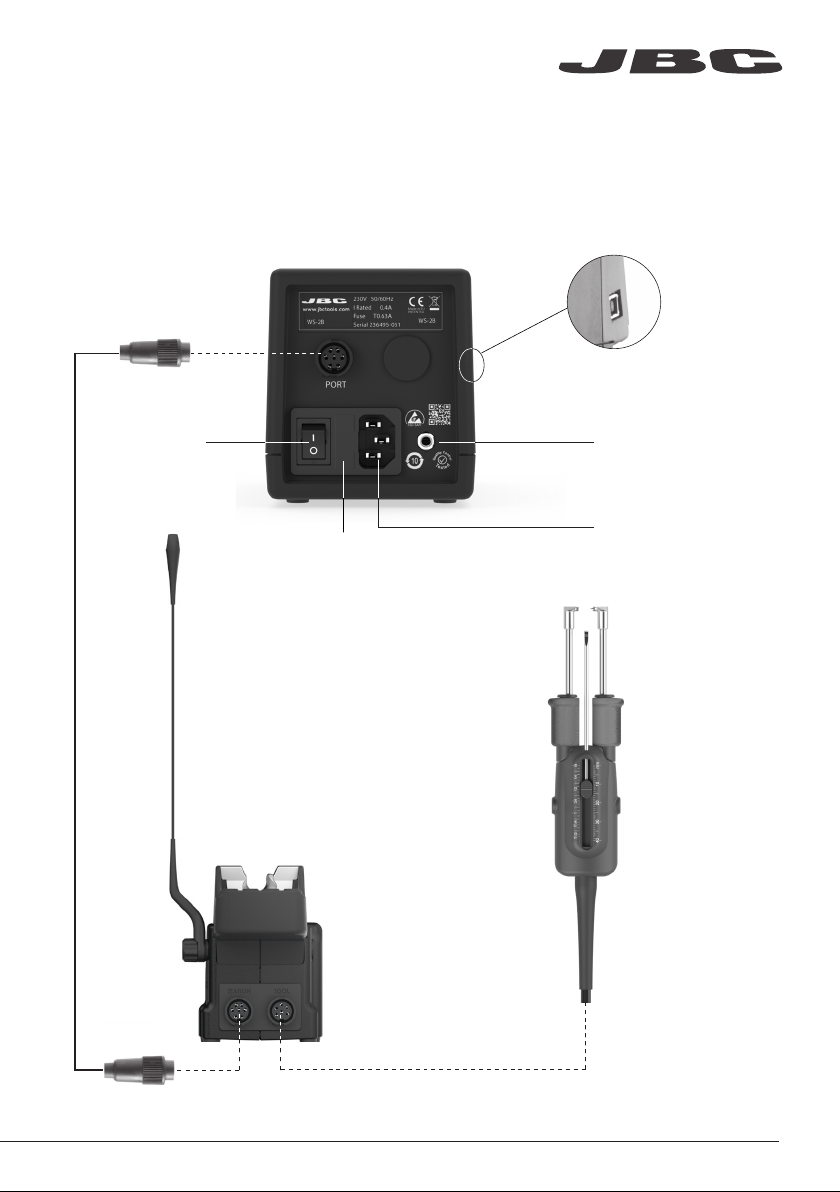

Features and Connections
www.jbctools.com
Stand cable
Ref. 0024227
Main Switch
Stand
Ref. WSBT-B
Control Unit*
Fuse
USB Connector
Equipotential connector
Power Socket
W440 Cartridges*
High-Temperature
Wire Strippers
Twe e zers*
Ref. WS440-B
* not included
3
WSBT-B
Features and Assembly
Cable Collector
Cartridge Storage
Cable Fastening
Flexible Cable Holder
4
Changing Cartridges
Changing W440 Cartridges
1. Removing 2. Inserting
www.jbctools.com
Mark
Loosen the screws and remove the cartridges.
Insert the cartridge until the reference mark.
Take the mark as reference and check that both
tips match.
Important: It is esential to insert the cartridge
till the mark for a good connection.
3. Positioning 4. Fixing
Cartridge Electric
Connection Screw
Cartridge aligner
Align the cartridges in working position using
a fl at pliers (JBC Ref. PLR-195).
The conical cartridge aligner helps centering
both cartridges and ensure a good
functionality.
Fix the cartridges in its working position. by
tightening the screw.
Important: It is essential to tighten the screws
for the tool to function.
5
Power 75%
Power 35%
Power 0%
WSBT-B
WSBT-B
Operation
Depending on where the tool is located, the soldering station switches between three dif ferent
statuses: Work, Sleep and Hibernation.
1. Wo rk 2. Sleep 3. Hibernation
When the wire stripper is lifted
from the stand, the cartridges
will heat up according to the
selected configuration.
®
Kapton
90%
PI
Power 75%
Troubleshooting
Station troubleshooting available on the product page at www.jbctools.com
When the wire stripper is in the
stand, the power falls af ter a
specified time.
®
Kapton
90%
PI
Power 35%
Sleep
After longer periods of
inactivity, the power is cut off
and the cartridges cool down
to room temperature.
Kapton
PI
Hibernation
Power 0%
®
90%
6
www.jbctools.com
Cartridge Range
Cartridge Range W440
WS440 is compatible with W440 Blade Cartridge Range. Find the model that best suits your
soldering needs on www.jbctools.com.
If an application requires a special tip design, contact JBC by mail customtips@jbctools.com.
Cartridge
Ref.
W440021
Cartridge
Ref.
W440023
Tip Hole ø
mm / in
0,16 / 0,0063
0,25 / 0,0098
0,32 / 0,0126
0,40 / 0,0157
0,51 / 0,0201
0,64 / 0,0252
Tip Hole ø
mm / in
0,40 / 0,0157
0,51 / 0,0201
0,64 / 0,0252
0,81 / 0,0319
1,02 / 0,0402
1,29 / 0,0508
AWG
Stranded
36 (7x44)
32 (19x44)
30 (7x38)
30 (19x42)
28 (19x40
27 (7x35)
26 (19x38)
26 (10x36)
24 (19x36)
24 (7x32)
AWG
Stranded
28 (19x40)
27 (7x35)
26 (19x38)
26 (10x36)
24 (19x36)
24 (7x32)
22 (19x34)
20 (42x36)
20 (19x32)
20 (7x28)
18 (19x30)
AWG
Solid
34
30
28
26
24
22
AWG
Solid
26
24
22
20
18
16
Cartridge
Ref.
W440025
Tip
mm / in
Flat Blade
12,5 / 0.4921
7
Accessories
Stand Cable
Maintenance
Before carrying out maintenance or storage,
always unplug the stand from the station
and the tool.
Stand extension cable
Ref. A1286
Length: 1.5m
Clean periodically
- Use a damp cloth to clean the stand. Alcohol
can be used only when cleaning the metal
parts.
- Check periodically that the metal par ts of
the tool/stand are clean so that the station
can check the tool’s status.
- Periodically check all cables and tube connections.
- Replace any defective or damaged parts.
Use original JBC spare parts only.
- Repairs should only be performed by a
JBC authorized technical service.
8
www.jbctools.com
Safety
It is imperative to follow safety guidelines to prevent electric
shock, injury, fire or explosion.
Warning
- Do not touch the blade or the metal parts around.
- Do not allow the blade be close to flammable materials.
- Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when working
to avoid personal harm.
- This appliance can be used by children over the age of eight and also persons with reduced physical,
sensor y or mental capabilities or lack of experience provided that they have been given adequate
supervision or instruction concerning use of the appliance and understand the hazards involved.
- Maintenance must not be carried out by children unless supervised.
- Place the tool on the stand when is not in use.
- Turn off the power when not in use, changing parts or storing.
Caution
-
Do not use the Wire Stripper for other applications than wire stripping.
- Do not modify or customize the Wire Stripper.
- Do not hit the blade against workbench to eliminate stripped insulation debris. This behavior would
damage the blade.
- Remove power from the tool by holding the plug, not the wires.
- Be careful with the fumes produced when stripping. We recomend to use our fume extractor.
9
Notes
Notes
10
Notes
www.jbctools.com
11
para manuales - color gris
Specifications
WSBT
Stand for WS440
Ref.: WSB T-B
- Total Net Weight: 1285 g / 2.83 lb
- Package Dimension/Weight: 342 x 155 x 120 mm / 1846 g
(L x W x H) 13.46 x 6.10 x 4.72 in / 3.07 lb
Complies with CE standards
ESD Safe
Warranty
JBC’s 2 year warranty covers this equipment against
all manufacturing defects, including the replacement
of defective parts and labour.
Warrant y does not cover product wear or misuse.
In order for the warranty to be valid, equipment must
be returned, postage paid, to the dealer where it was
purchased.
Get 1 extra year JBC warranty by registering here:
https://www.jbctools.com/productregistration/
within 3 0 days of purchase.
This product should not be thrown in the garbage.
In accordance with the European directive 2012/19/EU, electronic equipment at the end of its life must
be collected and returned to an authorized recycling facility.
00 28 125 -122 1
