www.jbctools.com

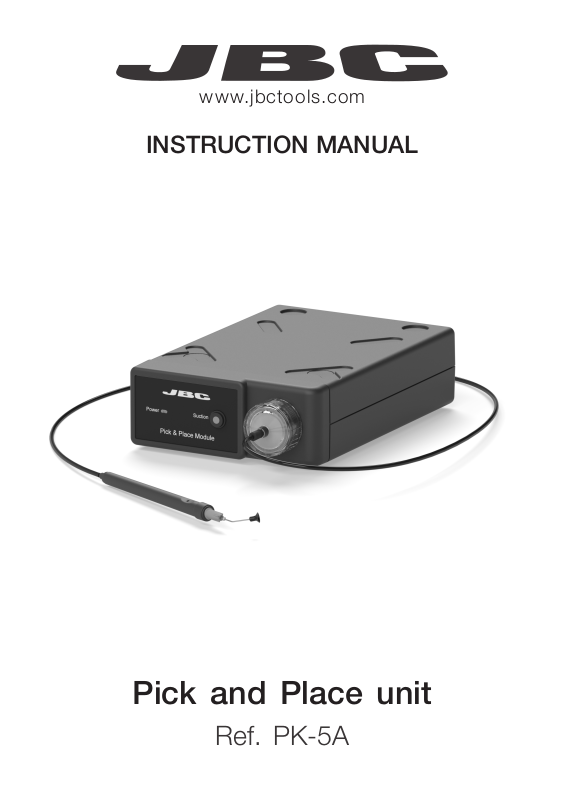

INSTRUCTION MANUAL
Pick and Place unit
Ref. PK-5A
Packing List
The following items are included:
Pick and Place
module............................ 1 un it
Ref. PK-5A
Cups Set ......................... 1 unit
Ref. 0940163
Pick and Place
tool......................................1 unit
Ref. T260-A
Bent Needles Set .........1 unit
Ref. 0861660
Pedal.................................. 1 unit
Ref. P-405
Straight Needles
Set ............................. 1 unit
Re f. 090154 6
Filter Box ........................ 1 unit
Ref. 0005966
It contains 50 filters Ref. 0004716
2
Power Cord.....................1 un it
Ref. 0022529
Manual ............................. 1 un it
Ref. 0024027
Features
www.jbctools.com
Pick and Place Module
Ref. PK-5A
to Power
Supply
Power LED
to Pedal
to Ground
T260-A
Star t/S top Button
3
Tool assembly
Choose the needle and the suction cup that best fits the component and start as follows:
Suction cups
Needles
Insert a needle and attach the
appropriate cup for a correct suction
process.
Make sure the needle does not protrude
from the cup.
Maximum working temp: 250º C (482ºF)
4
Operation modes
a) Hand control
www.jbctools.com
Press the button to activate or stop the
suction.
Suction Release
Cover the pen hole with your finger and lift off
the component.
Hold the pen so the hole is accessible to your
finger tip.
Lift your finger to release the component.
5
b) Pedal control
Keep suction button of f to allow pedal
function.
Keep your finger on the pen hole.
Release Suction
Press the pedal to start the suction Lift your foot to release the component
6
www.jbctools.com
Maintenance
Before carrying out maintenance or storage, always unplug the equipment.
- Keep the casing clean by using a damp cloth. Specially use a soft cloth for the front side.
- Periodically check all cable and tube connections.
- Keep filters clean to ensure proper suction and replace them when necessary.
O Ring
Ref. 0007717
Filter cover
Ref. 0004710
- Use original JBC spare parts only.
- Do not work with defective or damaged pieces.
- Repairs should only be performed by a JBC authorized technical service.
- Maintenance must not be carried out by children unless supervised.
Spare filter
Ref. 0005966
7
Safety
Notes
It is imperative to follow safety guidelines to prevent electric
shock, injury, fire or explosion.
- Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire.
- The power cord must be plugged into approved bases. Be sure that it is properly grounded
before use. When unplugging it, hold the plug, not the wire.
- Do not work on electrically live parts.
- Do not leave the appliance unattended when it is on.
- Do not cover the ventilation grills. Heat can cause inflamable products to ignite.
- Avoid flux coming into contact with skin or eyes to prevent irritation.
- Be careful with the fumes produced when soldering.
- Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when
working to avoid personal harm.
- Utmost care must be taken with liquid tin waste which can cause burns.
- This appliance can be used by children over the age of eight and also persons with reduced
physical, sensory or mental capabilities or lack of experience provided that they have been given
adequate supervision or instruction concerning use of the appliance and understand the hazards
involved. Children must not play with the appliance.
8
Notes
www.jbctools.com
9
Notes
10
www.jbctools.com
有害物质含量表
产品中有害物质的名称及含量
有害物质
部件名称
铅(Pb) 汞(Hg) 镉(Cd)
手柄 O O O O O O
电源线 O O O O O O
主机 O O O O O O
电源插座 O O O O O O
电位连接 X O O O O O
线路板 O O O O O O
O 表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572 规定的限量要求以下。
X 表示该有害物质至少在该部件的某一均质材料中的含量超出GB/T 26572 规定的限量要求。
六价铬
(Cr(VI))
多溴联苯
(PBB)
多溴二苯醚
(PBDE)
11
Specifications
- Weight: 1,7 kg (3,8lb)
- Size: 145 x 55 x 225 mm (5.71 x 2.17 x 8.86 in)
- Vacuum: 55% / 418mm Hg / 16,4 in Hg
- Ambient operating temperature: 10 - 50 ºC (50 - 104 ºF)
- Pedal connection
Complies with CE standards.
ESD protected.
Warranty
JBC’s 2 year warranty covers this equipment against
all manufacturing defects, including the replacement
of defective parts and labour.
Warrant y does not cover product wear or misuse.
In order for the warranty to be valid, equipment must
be returned, postage paid, to the dealer where it was
purchased.
Get 1 extra year JBC warranty by registering here:
https://www.jbctools.com/productregistration/
within 3 0 days of purchase.
This product should not be thrown in the garbage.
In accordance with the European directive 2012/19/EU, electronic equipment at the end of its life must
be collected and returned to an authorized recycling facility.
www.jbctools.com
0024027-0120
