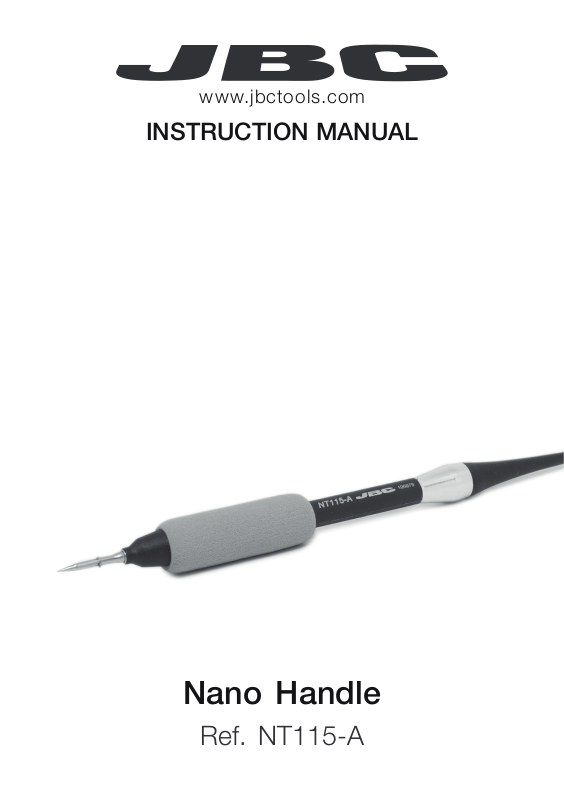

INSTRUCTION MANUAL
Nano Handle
Ref. NT115-A
Packing List
The following items should be included:
Nano handle ................. 1 unit
Re f. NT115 - A
Nano handle
Features
Control unit
Ref . N AE-1C
NAE-2C
NAE-9C
Grip for NT115-A .......... 1 un it
Re f. 00186 62
Grip for NT115-A
Manual ............................ 1 unit
Ref. 0020838 (Nano handle)
00186 65 (Gr ip for NT115-A)
www.jbctools.com
INSTRUCTION MANUAL
Nano Handle
Ref. N T115 -A
Nano handle
Re f. NT115 - A
Main switch
Power socket
2
1
2,5
Changing grips
www.jbctools.com
1. Push the grip with
the tabs onto the
handle.
Grip for NT115-A
Nano handle
2. To remove the tabs,
hold the grip and
pull them out.
Use a pliers if
necessary.
Changing cartridges
Save time and change cartridges safely without having to switch the station off.
Removing
Inserting Aligning
1
2
Place the cartridge in the slot
as shown and pull the handle
to remove it.
Push the cartridge into the
handle to the mark*.
Use the holes to rotate
the cartridges for a proper
alignment.
*Important
It is essential to insert the
cartridges as far as the mark
for a proper connection.
Compatible cartridges
The NT115-A works with C115 cartridges. Find the model that
best suits your soldering needs in www.jbctools.com
Mark
Round Chisel Bevel KnifeRound
bent
Stainless
steel chisel
High thermal
performance
3
Specifications
- Weight: 28 gr (0.06 lb)
- Cable length: 120 cm (47.24 in)
Complies with CE standards.
ESD protected.
Warranty
JBC’s two year warranty covers this equipment
against all manufacturing defects, including the
replacement of defective parts and labour. Warranty
does not cover product wear or misuse. In order for
the warranty to be valid, equipment must be returned,
postage paid, to the dealer where it was purchased.
Register your warranty within 30 days of purchase
in www.jbctools.com/productregistration
This product should not be thrown in the garbage.
In accordance with the European directive 2002/96/EC, electronic equipment at the end of their life
must be collected and returned to an authorized recycling facilit y.
Manual in other languages available on our website
