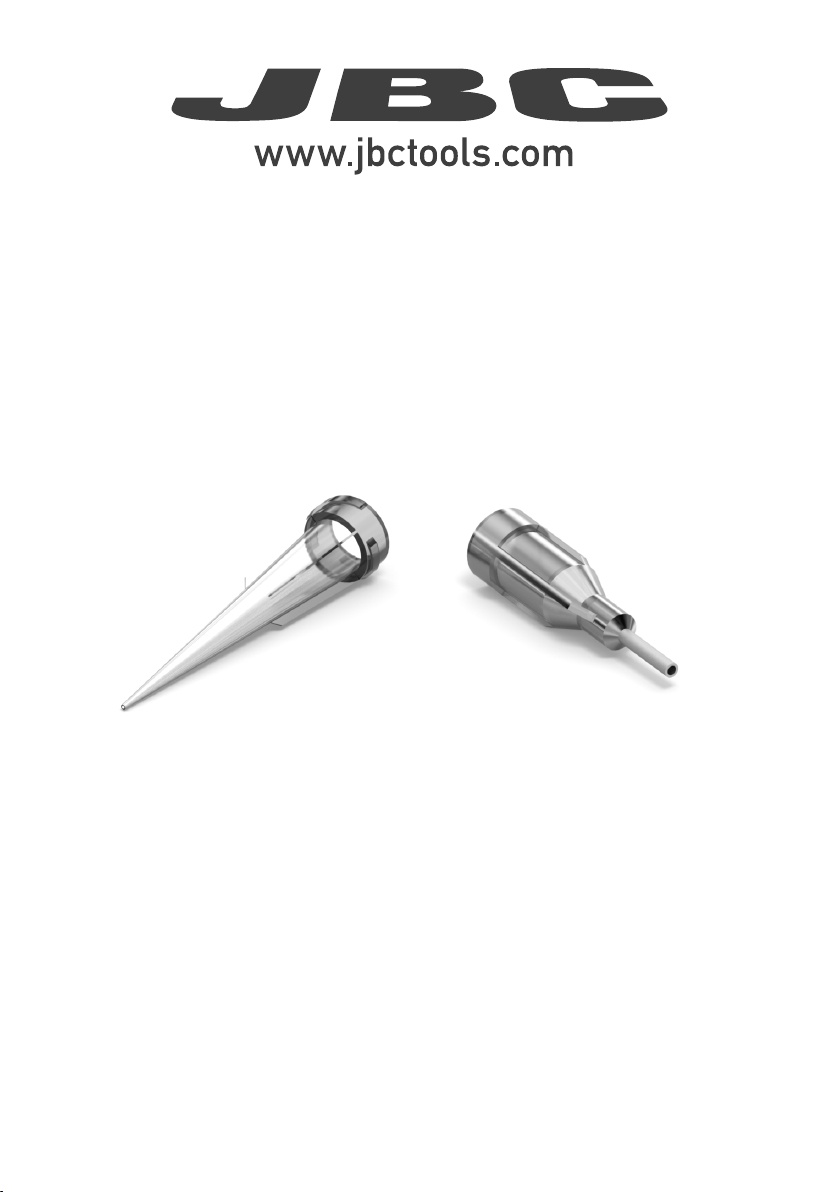

INSTRUCTION MANUAL
DISPENSER NEEDLES /
TAPERED TIPS
SAMPLE KIT
Ref. ND-KS / ND-KP
Packing List
ND-KS
The following items are included:
Stainless
Needles............10 pcs. (2 of each referen ce)
ND-KP
The following items are included:
Tap e r e d
Tips....................10 pc s. (2 of each referenc e)
How to use
Manual ................................................. 1 unit
Ref. 0023946
www.jbctools.com
INSTRUCTION MANUAL
Dispenser Needles /
Tapered Tips
Manual ................................................. 1 unit
Ref. 0023946
www.jbctools.com
INSTRUCTION MANUAL
Dispenser Needles /
Tapered Tips
1. Replace the cap with the needle in the
plunger housing.
2
Stainless Steel Needles Range
6.5
STYLE Ref.* COLOR
ND18 S6 Green Typ e 2 18 0.84 0.050 1.27 0.033 6.5 0.25 24 0.25
ND20S6 Pink Type 3 20 0.61 0.036 0.90 0.024 6.5 0.25 24 0.25
ND21S6 Purple Typ e 3 21 0 .51 0.0 32 0.82 0.020 6.5 0.25 24 0.25
Stainless
ND22S6 Blue Typ e 3 22 0.41 0.028 0.72 0.016 6.5 0.25 24 0.25
Steel
ND23S6 Orange Typ e 3 23 0.31 0.025 0.63 0.0 13 6.5 0.25 24 0.25
Needles
ND25S6 Plan Red Ty pe 4 25 0.25 0.020 0.50 0.010 6.5 0.25 24 0.25
ND27S6 Clear Typ e 5 27 0.2 0.0 16 0.40 0.008 6.5 0. 25 24 0.25
ND30S6 Lavender Ty pe 6 30 0.1 5 0. 012 0. 31 0.00 6 6.5 0. 25 24 0.25
SOLDER
PAST E
GAUGE
* These references are supplied in packages of 10 units.
ØID
(mm)
ØID (in)
ØOD
(mm)
ØOD (in)
www.jbctools.com
LENGTH
LENGTH
(mm)
(in)
TOTAL
LENGTH
(mm)
TOTAL
LENGTH
(in)
Tapered Tips Range
32
STYLE Ref.* COLOR
ND18 P Green Ty pe 2 18 0.84 0.033 1. 27 0.050 - - 32 1.26
ND20P Pink Ty pe 3 20 0.6 4 0. 024 1. 20 0.04 8 - - 32 1.26
Tapered
ND22P Blue Typ e 3 22 0.41 0. 016 0.7 2 0.028 - - 32 1.2 6
Tips
ND25P Red Type 4 25 0.25 0.010 0.50 0.020 - - 32 1.2 6
ND27P Clear Typ e 5 27 0.2 0.008 0.4 0 0 .016 - - 32 1.26
SOLDER
PAST E
GAUGE
* These references are supplied in packages of 10 units.
More Info at www.jbctools.com
ØID
(mm)
ØID (in)
ØOD
(mm)
ØOD (in)
LENGTH
(mm)
LENGTH
(in)
TOTAL
LENGTH
(mm)
TOTAL
LENGTH
(in)
3
para manuales - color gris
Specifications
- Weight: 2g (0,004 lb)
- Dimensions: 95x55x40mm (3.74x2.16x1.57 in)
Complies with CE standards
Warranty
JBC’s 2 year warranty covers this equipment against
all manufacturing defects, including the replacement
of defective parts and labour.
Warrant y does not cover product wear or misuse.
In order for the warranty to be valid, equipment must
be returned, postage paid, to the dealer where it was
purchased.
This product should not be thrown in the garbage.
In accordance with the European directive 2012/19/EU, electronic equipment at the end of its life must
be collected and returned to an authorized recycling facility.
0023946-0521
