JBC Tools NASE-2C User Manual

INSTRUCTION MANUAL

NAS

2-Tool Nano Rework Station

This manual corresponds to the following references:

- NASE-9C (10 0V)

- NASE-1C (120 V)

- NASE-2C (230V)

Packing List

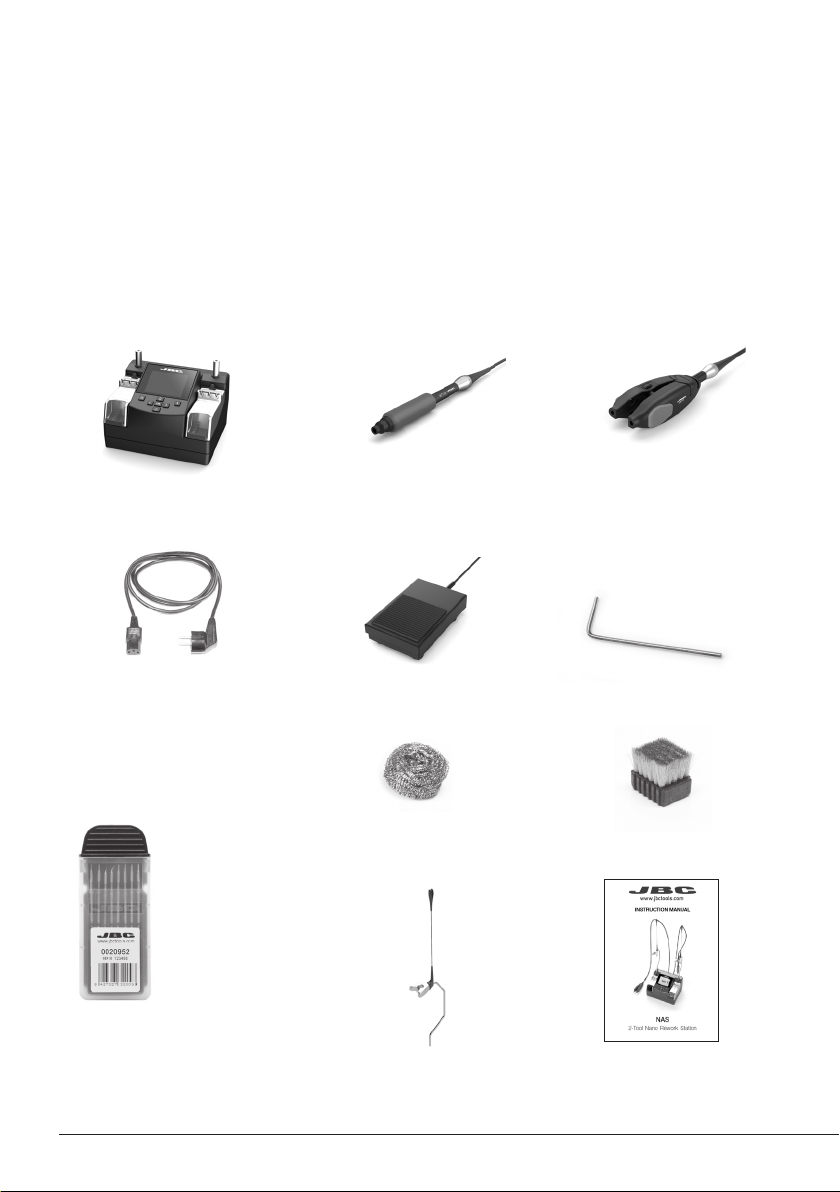

The following items are included:

2-Tool Nano

Control Unit ................... 1 un it

Power Cable .................. 1 uni t

Ref. 0024092 (100V)
0023715 (120V)
0023714 (230V)

Ref. 0020952
includes:
Ref. C115-101 x1
C115-103 x1
C11 5-107 x1
C11 5-112 x1

Ref. 0020953
includes:
Ref. C115-105 x2
C11 5-113 x2

Cartridge

dispenser Case .......... 2

Ref. 0020952 / Ref. 0020953

units

Nano Handle ................. 1 unit

Ref . N T115-A

Pedal................................ 1 unit

Ref. P-405

Brass Wool .................... 1 un it

Ref. CL 6210

Cabel Collector

and Stand .................... 2 units

Ref. CC2002

Adjustable Nano

Twe ez er s ........................ 1 unit

Ref . A N115-A

Allen Key 1.5 mm ......... 1 unit

Ref. 0009848

Metal Brush ................... 1 unit

Ref. CL 2466

Manual ............................ 1 unit

Ref. 0029452

2

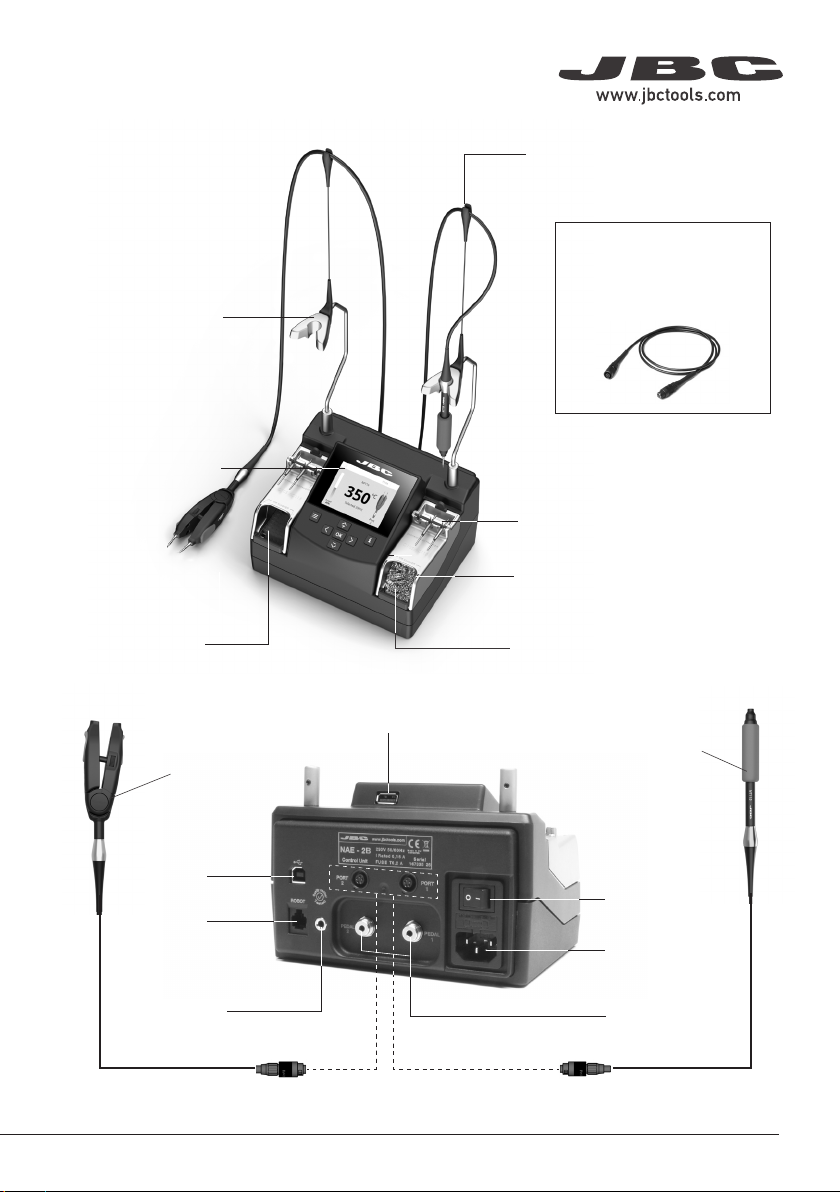

Features and Connections

para manuales - color gris

Cable Collector

Accessorie not included:

Stand:
Intelligent Heat
Management

Process
Screen:

2.8 Color TF T

Metal Brush

AN115
Adjustable Nano
Twe ez er s

USB-A Connector

Tool extension cord (1m)

Ref. A1205

Cartridge
Extractor
and Tip Aligner

Tip Aligner

Brass Wool

NT115

Nano Handle

USB-B
Connector

RJ12
Connector
for Robot

Equipotential
Connector

Main Switch

Power Socket

Pedal Connectors

3

ROBOT

NAU

Control Unit

PORT

2

ROBOT

PEDAL

2

ROBOT

ROBOT

ROBOT

ROBOT

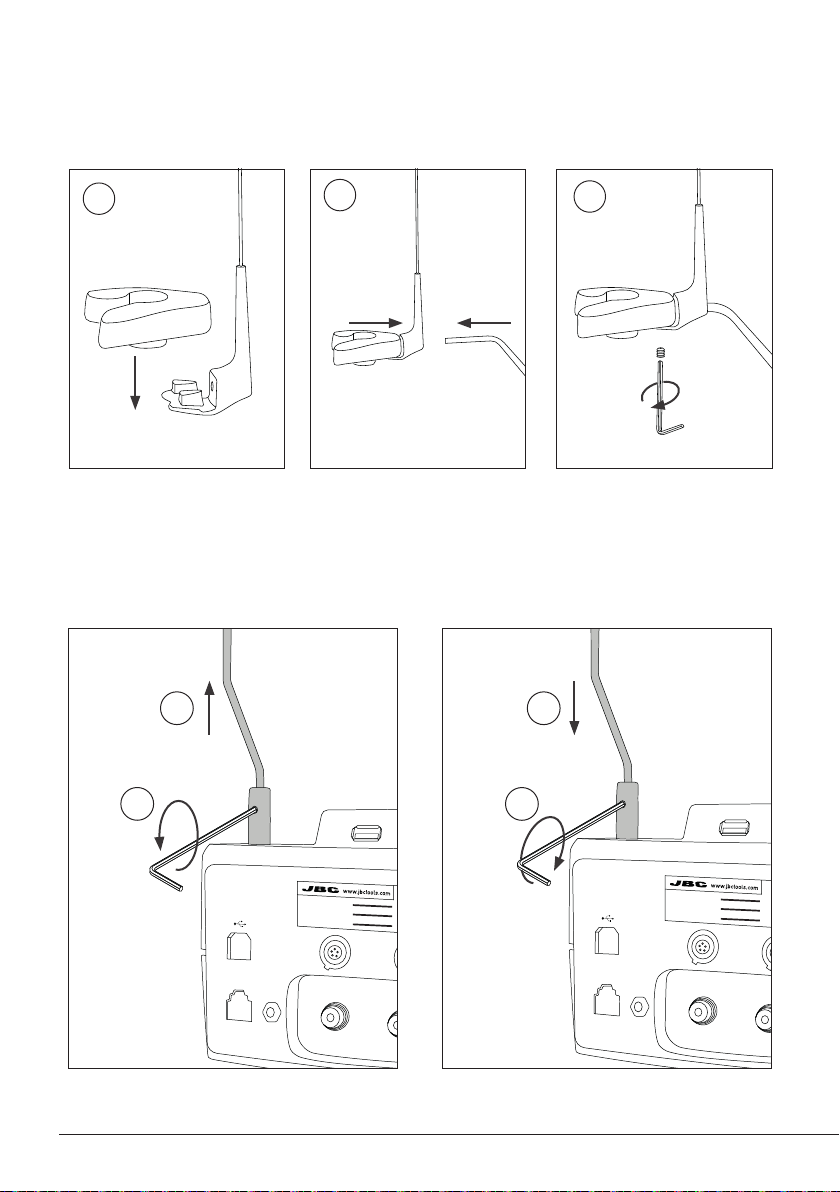

Tool Stand Assembly

1

2

Tool Stand Replacement

Loosen the screw (1) and withdraw the tool
stand (2) .

2

3

Insert the new tool stand (3) and tighten the
screw (4).

3

4

NAU

Control Unit

PORT

2

ROBOT

PEDAL

2

1

NAU

Control Unit

ROBOT

PORT

PEDAL

2

2

4

ROBOT

ROBOT

ROBOT

ROBOT

ROBOT

380

ºC

Port

1

Power

45%

Temp. Levels

T470

250 380 400

17:14

350

ºC

Port

1

Power

45%

Temp. Levels

250 350

17:14

T245

380

Station
Information

Power
Indicator

Tool
in use

DDE Work Screen

Status Bar

The DDE offers an intuitive user interface which provides quick access to station parameters.

Default PIN: 0105

Change
Port

Displayed if
Temperature
Levels are
Activated

350

ºC

Port

2

Power

45%

Temp. Levels

250 350 380

17:14

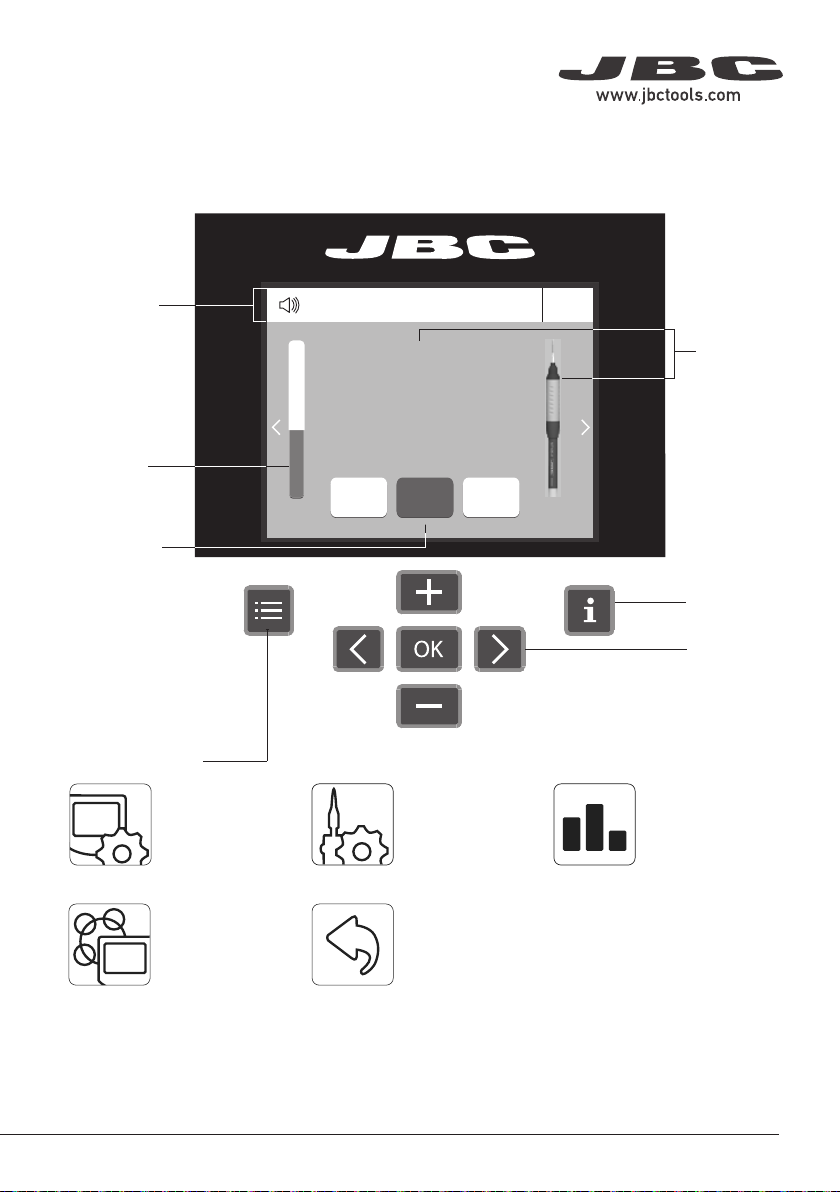

Work Screen

para manuales - color gris

The work screen offers an intuitive user interface which provides quick access to station
parameters. Default PIN: 0105

Status Bar

NT115

Tool
in use

Power
indicator

Displayed if
temperature
levels are
activated

Menu Options

Station Tools Counters

Set the station
parameters

Set the per ipheral
links with the station
ports

Set the tool
parameters

Restore station
parameters to default
values

Station
Information

Change
port

Display the hours
worked in each cycle

ResetPeripherals

Troubleshooting

Station troubleshooting available on the product page at www.jbctools.com

5

Advanced Functionalities

It provides detailed graphics of tip temperature and power delivery in real time during
solder joint formation for analysis purposes. This helps you decide how to adjust your
process or which tip to use to obtain the best quality soldering.

Graphics

Get greater quality and control in your production.

JBC Net

Files

Update

Manage your whole soldering process remotely in real time.
For more information see www.jbctools.com/webmanager.html.

Export graphics

Insert a USB flash drive into the
USB-A connector to save your
soldering process in csv format.

Station update

Download the JBC Update File from

www.jbctools.com/software.html

Insert the USB flash drive with the
file downloaded to the station.

NAU

Control Unit

PORT

2

ROBOT

PEDAL

2

PORT

1

PEDAL

2

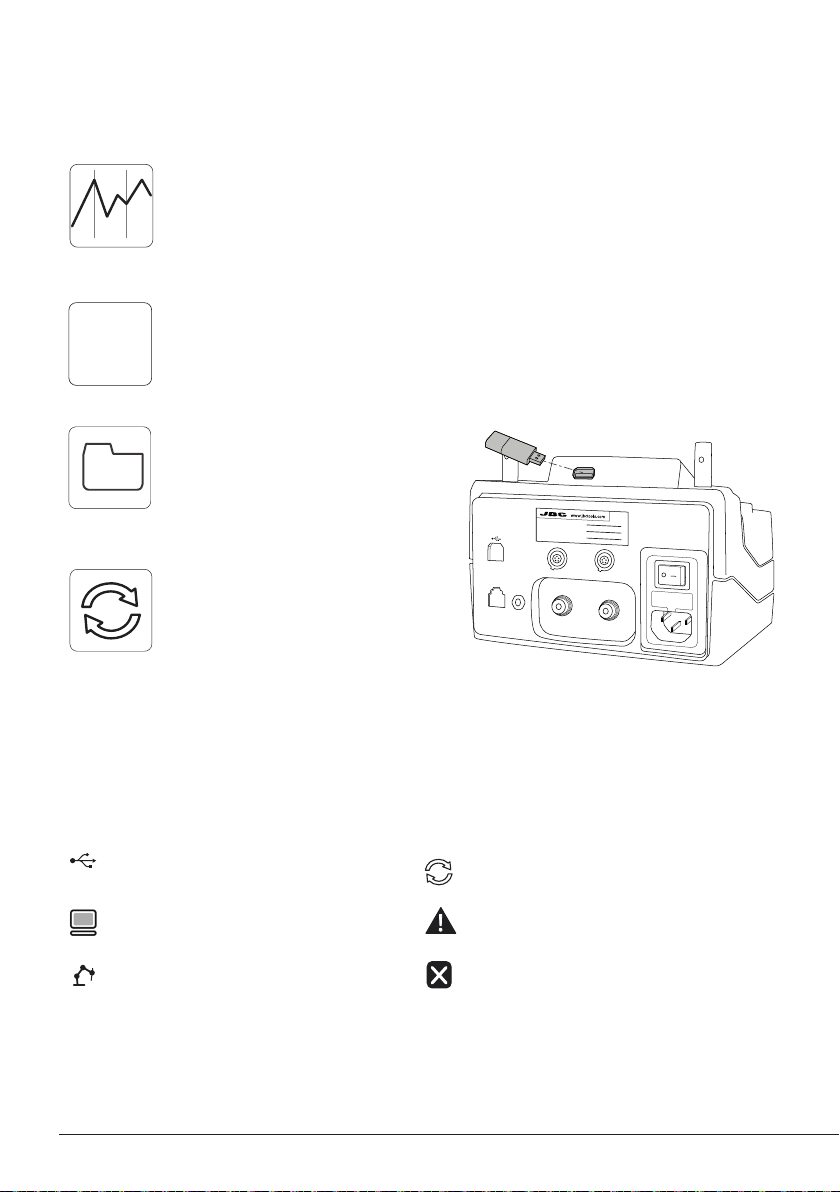

System Notifications

The following icons will be displayed on the screen’s status bar.

USB fl ash drive is connected.

Station is controlled by a PC.

Station is controlled by a robot. down­loaded to the station.

6

Station sof tware update. Press INFO to
start the process.

Warning. Press INFO for failure description.

Error. Press INFO for failure description,
the type of error and how to proceed.

ROBOT
ROBOT

Operation

para manuales - color gris

JBC’s Exclusive Heating System

This revolutionary technology is able to recover tip temperature extremely quickly.
This allows the user to work at a lower temperature.
As a result, tip life increases by 5.

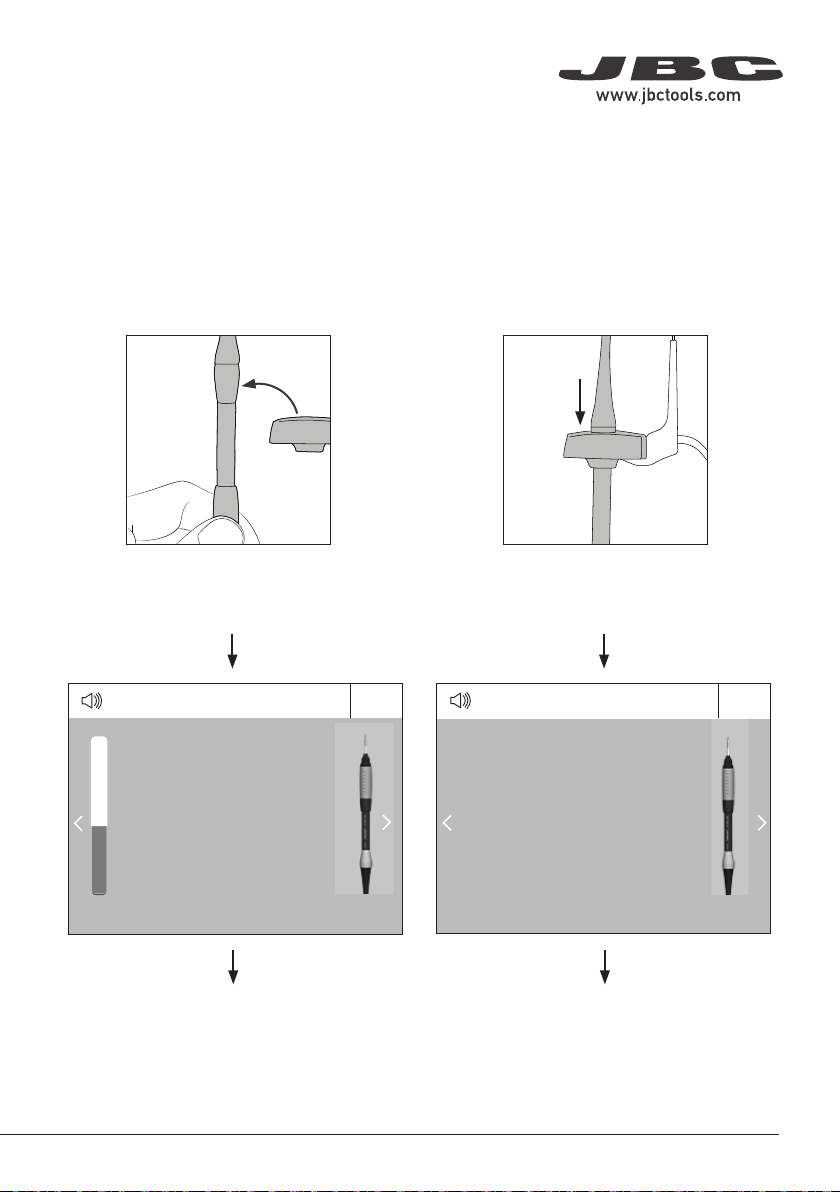

2. Hibernation1. Work

When the tool is lifted from the holder the tip
will heat up to the selected temperature.

17:14

NT115

ºC

350

Selected 350ºC

Power

45%

Tools Men u:

· Set temperature limits

· Set temperature levels

Port

2

When the tool is in the holder, the power
is cut off and the tool cools down to room
temperature.

17:14

NT115

Hibernatio

Actual Temp. 25ºC

Tools Men u:

· Set Hibernation delay (from 0
to 60 min or no Hibernation)

n

Port

2

2

7

Example:
Chip Compoments Rework Process using Tweezers and Pedal

The Pedal is frequently used to rework components with tweezers.

AN115 JBCs adjustable nano tweezers is the most effective tool for desoldering chip components
but also it facilitates its rapid placement and soldering by using P405 pedal connected to JBC´s NAS
station.

1

ROBOT

NAS

2-Tool Nano Rework Station

connect to
the same port

AN115

Ajustable Nano Tweezers

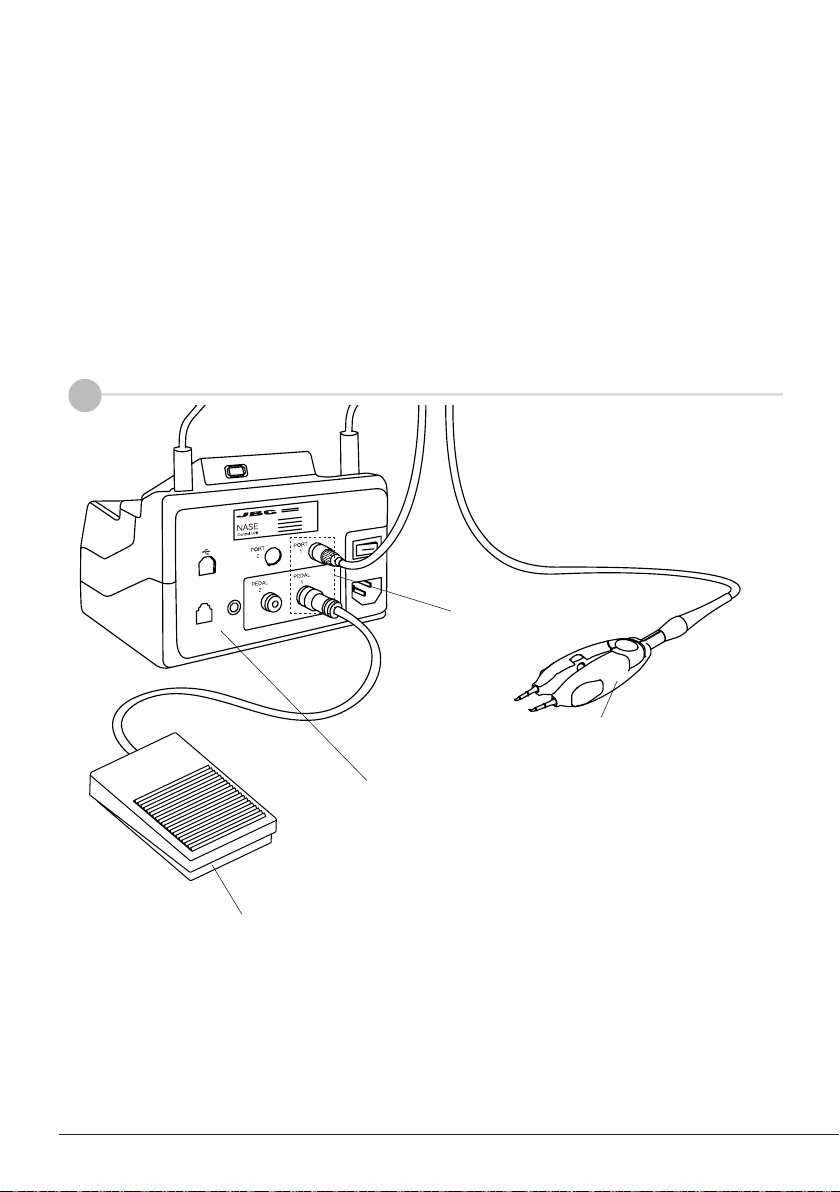

Connections

P405

Pedal

Connect pedal P405 to the same port where
AN115 nano tweezers are connected.

In the peripherals menu for the “Pedal
Activation Mode” choose between “pressed”
and “released”.

8

C115

C11

C105 /

C105 / C115

19:29

ºC

NT105

No

Yes

2

para manuales - color gris

* “Press Mode” previously selected

3

4

DPM

Manual

Solder Paste

Dispenser

AN115

Ajustable Nano
Twe ezers

DS360

Micro
Desoldering Iron

Desoldering*

Lift the tool from the holder, press and hold
the pedal to activate the tool and desolder the
component.

Once the pedal is released the tool enters in
hibernation mode and cools down.

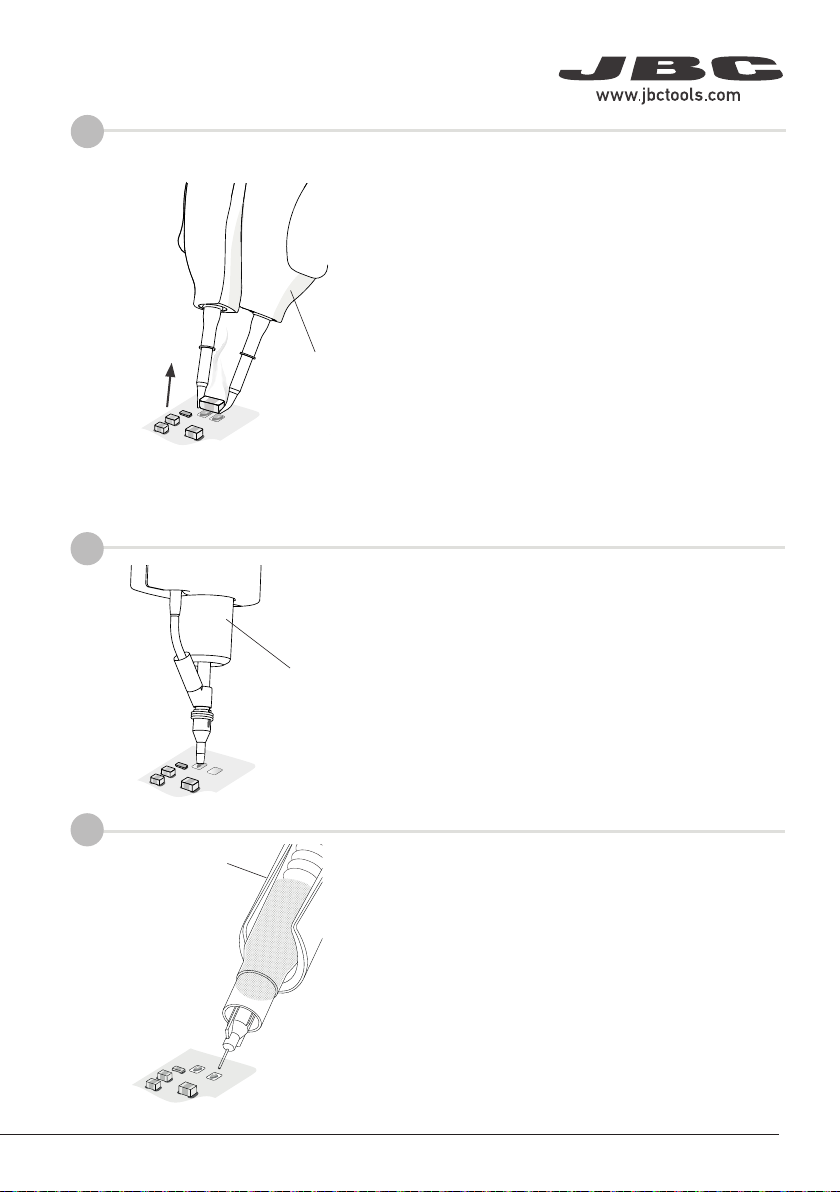

Pad Cleaning

Clean the pads with JBC´s desoldering tool
DS360.

For this operation JBC´s desoldering station
DSS is needed.

Solder Paste Dispensing

Apply the solder paste amount needed to
solder the new chip component.

The use of JBC´s DPM solder paste dispenser
is recommended.

9

5

AN115

Ajustable Nano
Twe ezers

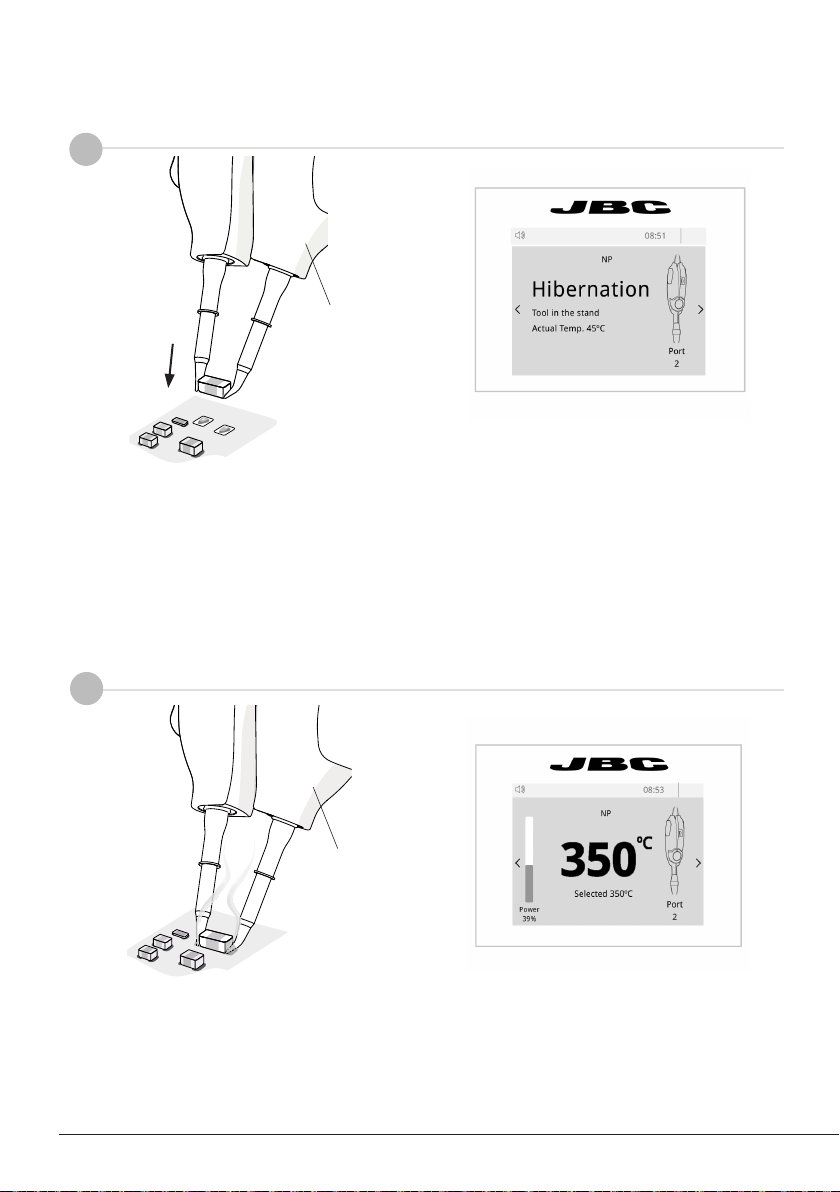

Placing

Do not press the pedal.

Use the tool to position the component on the
previously tinned pad.

Note:

The inactive tool prevents the component from
heating up prematurely.

6

10

AN115

Ajustable Nano
Twe ezers

Soldering

Once in position press and hold the pedal to
activate the tool and perform the soldering.

C11

C105 /

C105 / C115

C105 / C115

C105 / C115

C115

C11

C105 /

C105 / C115

Yes

C11

C105 /

C105 / C115

2,5

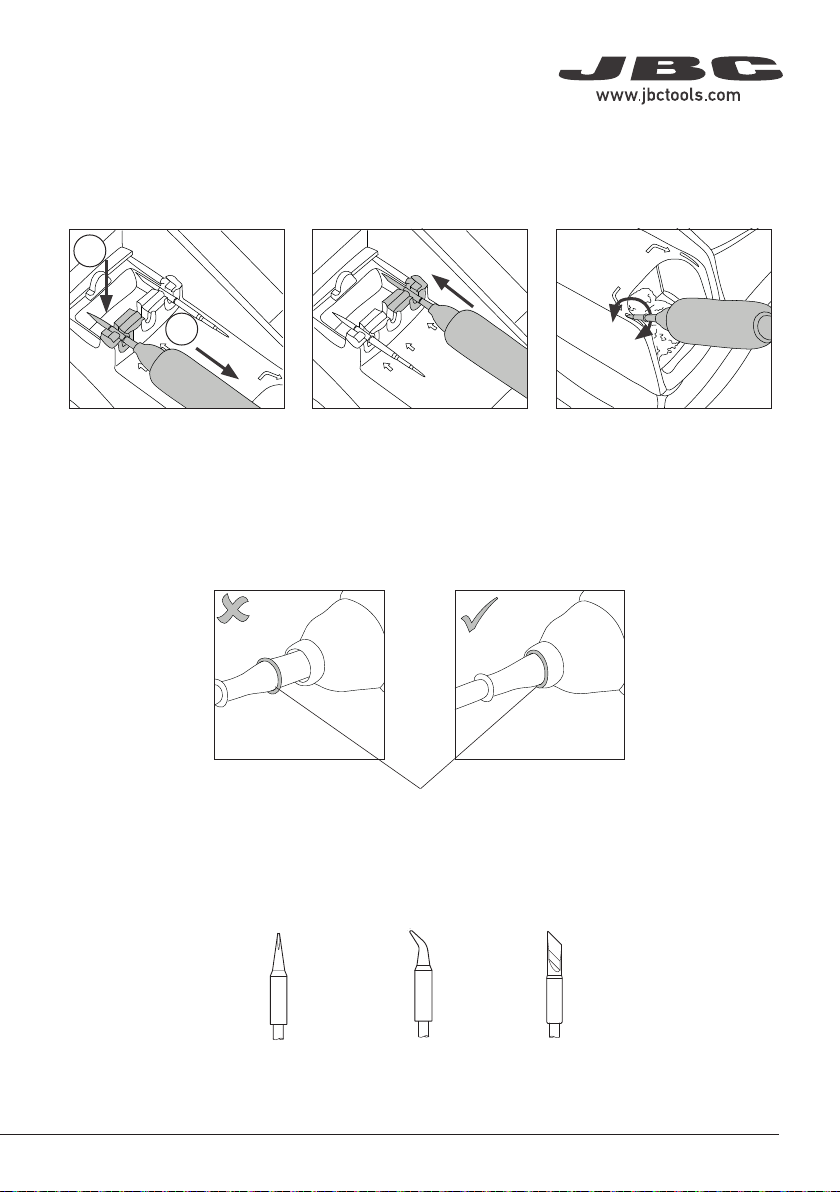

Changing Cartridges

para manuales - color gris

Save time and change cartridges safely without having to switch the station off.

1. Removing 2. Inserting 3. Aligning

1

2

C115

Place the cartridge into the
extractor slot (1) and pull the
handle to remove them (2).

Push the cartridge into the
handle until the mark*.

C11

C105 /

Use the holes to rotate
the cartridges for a proper
alignment.

*Important

It is essential to insert the cartridges as far as the reference ring for a proper connection.

No

Reference

Ring

Yes

Compatible Cartridges

The Nano Handle NT115 and the Ajustable Nano Tweezers AN115 work with C115 cartridges. Find the
model that best suits your soldering needs on www.jbctools.com

Tweezer Chisel BladeTwe ez er

Conical Bent

11

C105 / C115

Maintenance

Before carrying out maintenance, always switch the device off and disconnect it from the mains.
Allow the equipment to cool down.

- Clean the station screen with a glass
cleaner or a damp cloth.

- Use a damp cloth to clean the casing and
the tool. Alcohol can only be used to clean
the metal parts.

- Periodically check that the metal parts of
the tool and stand are clean so that the
station can detect the tool status.

- Maintain tip surface clean and tinned prior
to storage in order to avoid tip oxidation.
Rusty and dirty sur faces reduce heat
transfer to the solder joint.

- Periodically check all cables and tubes.

- Replace any defective or damaged pieces.

Use original JBC spare par ts only.

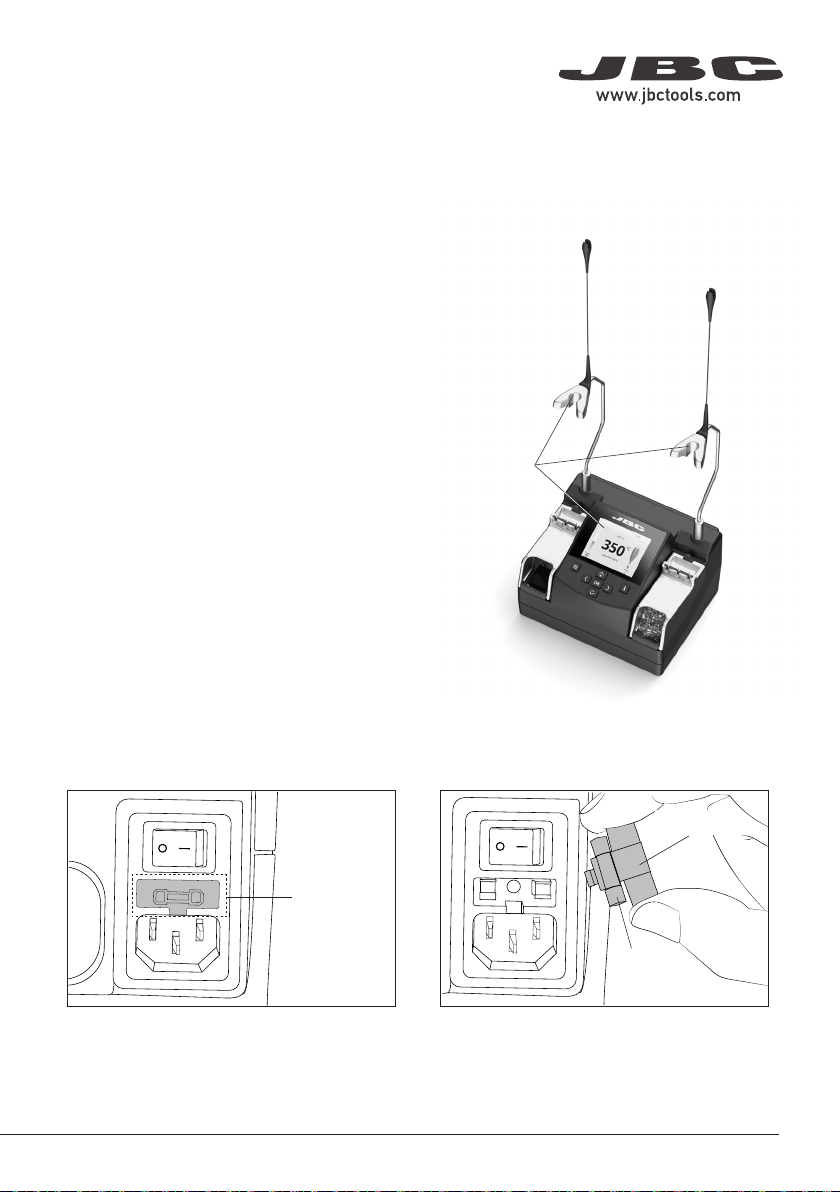

- Replace a blown fuse as follows:

1. Pull of f the fuse holder and remove the

fuse. If necessary use a tool to lever it off.

- Repairs should only be performed by a JBC authorized technical service.

Clean periodically

Fuse holder

Fuse holder

Fuse

2. Press the new fuse into the fuse holder
and replace it in the station.

Changing Grips

1. Inserting

First put the slide-on
tabs into the new grip,
then push the grip
with the tabs onto the
handle.

Grip for NT115
Ref. N8662

Nano Handle

2. Removing Tabs

Hold the grip and pull
the tab. Use a pliers if
necessary

Tabs

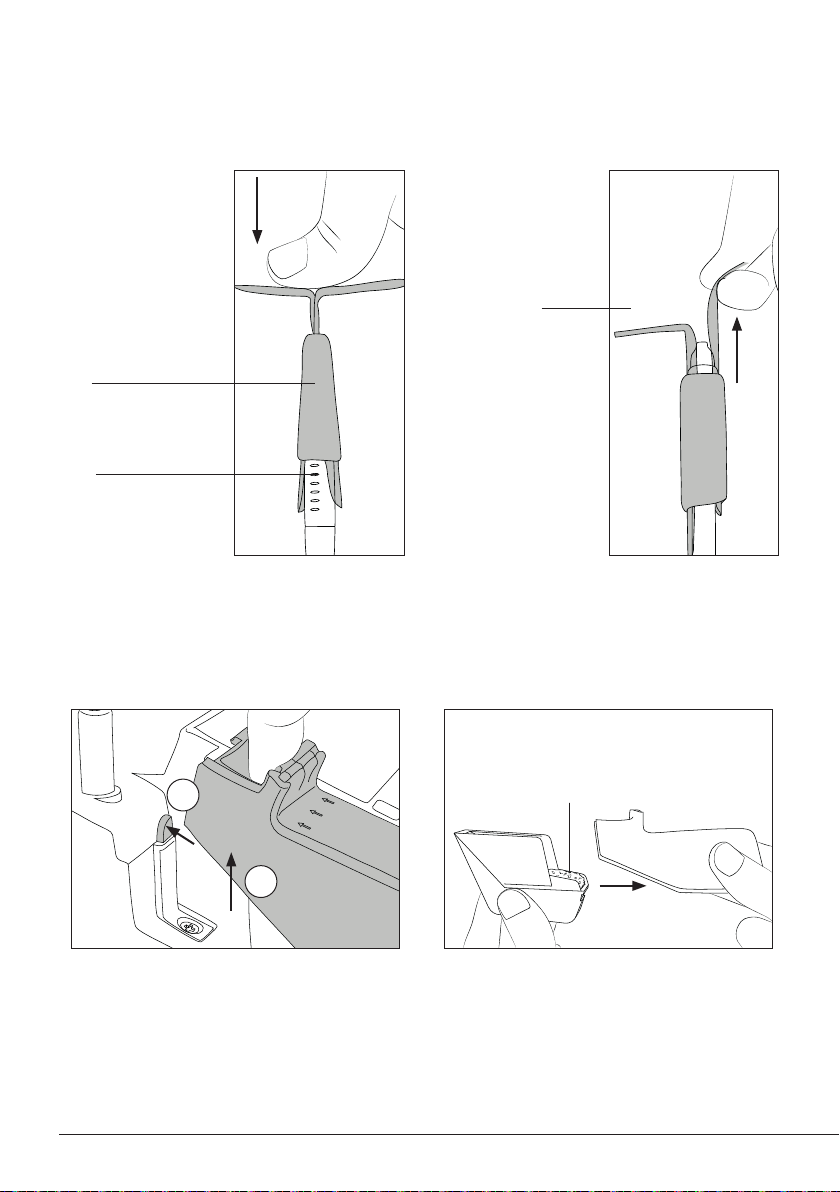

Changing the Tip Cleaning System

1

Replace the tip cleaning system:

- Brass wool

- Metal brush

2

Press back the tap (1) to remove the cleaning
system (2).

Remove the drawer from the splashguard.

12

Maintenance

para manuales - color gris

Before carrying out maintenance, always switch the device off and disconnect it from the mains.
Allow the equipment to cool down.

- Clean the station screen with a glass
cleaner or a damp cloth.

- Use a damp cloth to clean the casing and
the tool. Alcohol can only be used to clean
the metal parts.

- Periodically check that the metal parts of
the tool and stand are clean so that the
station can detect the tool status.

- Maintain tip surface clean and tinned prior
to storage in order to avoid tip oxidation.
Rusty and dirty sur faces reduce heat
transfer to the solder joint.

- Periodically check all cables and tubes.

- Replace any defective or damaged pieces.

Use original JBC spare par ts only.

- Replace a blown fuse as follows:

Clean periodically

1. Pull of f the fuse holder and remove the

fuse. If necessary use a tool to lever it off.

Fuse holder

2. Press the new fuse into the fuse holder
and replace it in the station.

- Repairs should only be performed by a JBC authorized technical service.

Fuse holder

Fuse

13

Safety

It is imperative to follow safety guidelines to prevent electric
shock, injury, fire or explosion.

- Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire.

- The power cord must be plugged into approved bases. Be sure that it is properly grounded before
use. When unplugging it, hold the plug, not the wire.

- Do not work on electrically live parts.

- The tool should be placed in the stand when not in use in order to activate the sleep mode. The
soldering tip or nozzle, the metal part of the tool and the stand may still be hot even when the station
is turned off. Handle with care, including when adjusting the stand position.

- Do not leave the appliance unattended when it is on.

- Do not cover the ventilation grills. Heat can cause inflamable products to ignite.

- Avoid flux coming into contact with skin or eyes to prevent irritation.

- Be careful with the fumes produced when soldering.

- Keep your workplace clean and tidy. Wear appropriate protection glasses and gloves when working
to avoid personal harm.

- Utmost care must be taken with liquid tin waste which can cause burns.

- This appliance can be used by children over the age of eight and also persons with reduced physical,
sensor y or mental capabilities or lack of experience provided that they have been given adequate
supervision or instruction concerning use of the appliance and understand the hazards involved.
Children must not play with the appliance.

- Maintenance must not be carried out by children unless supervised.

14

Specifications

para manuales - color gris

NAS
2-Tool Nano Rework Station

Ref.: NASE-9C 100V 50/60Hz. Input fuse: 0.5A. Output: 8.5V
Ref.: NASE-1C 120V 50/60Hz. Input fuse: 0.5A. Output: 8.5V
Ref.: NASE-2C 230V 50/60Hz. Input fuse: 0.2A. Output: 8.5V

- Output Peak Power: 14W per tool

- Temperature Range: 90 - 450 °C /190 - 840 ºF

- Idle Temp. Stability (still air): ±1.5ºC /±3ºF (meets and exceed IPC J-STD-001)

- Temp Accuracy: ±3% (using reference cartridge)

- Temp Adjustment: ±50ºC / ±90ºF (through station menu setting)

- Tip to Ground Voltage/Resistance: Meets and exceed
ANSI/ESD S20.20-2014 IPC J-STD-001F

- Connections: USB-A / USB-B / pedal connectors
RJ12 connector for robot

- Ambient Operating Temp: 10 - 50 ºC / 50 - 122 ºF

- Control Unit Dimensions: 140 x 170 x 125 mm
(L x W x H) 5.51 x 6.69 x 4.92 in

- Total Net Weight: 2.49 kg / 5.49 lb

- Total Package Dimensions/Weight: 280 x 280 x 164 mm / 2.99 kg
(L x W x H) 11.02 x 11.02 x 6.46 in / 6.59 lb

Complies with CE standards
ESD Safe

15

Warranty

para manuales - color gris

JBC’s 2 year warranty covers this equipment against
all manufacturing defects, including the replacement
of defective parts and labour.
Warrant y does not cover product wear or misuse.
In order for the warranty to be valid, equipment must
be returned, postage paid, to the dealer where it was
purchased.

Get 1 extra year JBC war ranty by registering here:
https://www.jbctools.com/productregistration/
within 3 0 days of purchase.

This product should not be thrown in the garbage.
In accordance with the European directive 2012/19/EU, electronic equipment at the end of its life must
be collected and returned to an authorized recycling facility.

0029452-070722
