JBC Tools NASE-1C User Manual

INSTRUCTION MANUAL

NAS

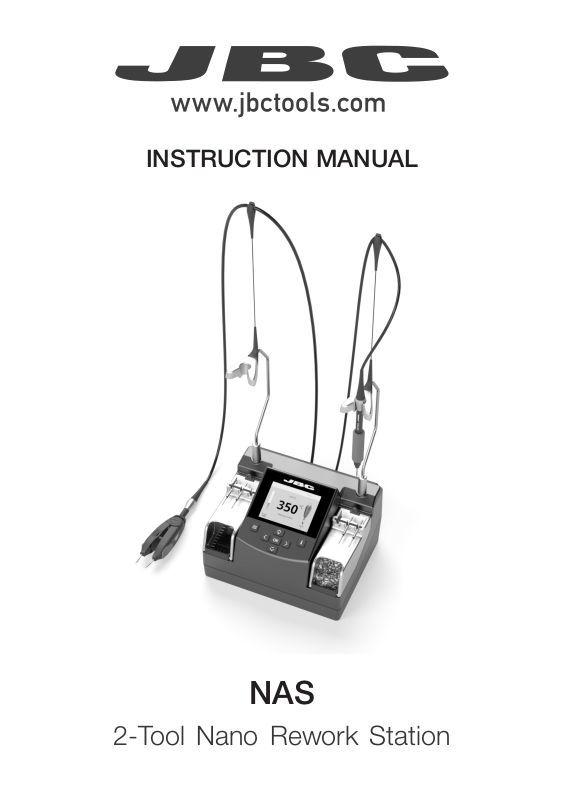

2-Tool Nano Rework Station

This manual corresponds to the following references:

- NASE-9C (10 0V)

- NASE-1C (120 V)

- NASE-2C (230V)

Packing List

The following items are included:

Control Unit ................... 1 un it Nano Handle ................. 1 unit

Ref . N T115-A

Power Cable .................. 1 uni t

Ref. 0024092 (100V)
0023715 (120V)
0023714 (230V)

Ref. 0020952
includes:
Ref. C115-101 x1
C115-103 x1
C11 5-107 x1
C11 5-112 x1

Ref. 0020953
includes:
Ref. C115-105 x2
C11 5-113 x2

Cartridge

dispenser Case .......... 2

Ref. 0020952 / Ref. 0020953

units

Pedal................................ 1 unit

Ref. P-405

Brass Wool .................... 1 un it

Ref. CL 6210

Cabel Collector .......... 2 un its

Ref. CC2002

Adjustable Nano

Twe ez er s ........................ 1 unit

Ref . A N115-A

Allen key ........................ 1 unit

Ref. 0009848

Metal Brush ................... 1 unit

Ref. CL 2466

Manual ............................ 1 unit

Re f. 0 02713 9

2

Features and Connections

para manuales - color gris

Stand:
Intelligent Heat
Management

Process
Screen:

2.8 Color TF T

Metal Brush

Cable Collector

Accessories not included:

Tool extension cord (1m)

Ref. A1205

Cartridge Extractor
and Tip Aligner

Brass Wool

Adjustable Nano
Twe ez er s

Ref . A N115-A

USB-B
Connector

RJ12
Connector
for Robot

Equipotential
Connector

USB-A Connector

Nano Handle

Ref . N T115-A

Main Switch

Power Socket

Pedal Connectors

3

Control Unit

PORT

2

ROBOT

PEDAL

2

NAU

Control Unit

PORT

2

ROBOT

PEDAL

2

NAU

Control Unit

PORT

2

ROBOT

PEDAL

2

PORT

1

PEDAL

2

NAU

Control Unit

PORT

2

ROBOT

PEDAL

2

PORT

1

PEDAL

2

NAU

Control Unit

PORT

2

ROBOT

PEDAL

2

Assembly the Tool Holder

1

2

Replacing the Tool Holder

Loosen the screw and withdraw the Tool
Holder.

2

3

Insert the new Tool Holder and tighten the
screw.

3

1

NAU

Control Unit

PORT

2

ROBOT

PEDAL

2

4

4

NAU

Control Unit

PORT

2

ROBOT

PEDAL

2

380

ºC

Port

1

Power

45%

Temp. Levels

T470

250 380 400

17:14

350

ºC

Port

1

Power

45%

Temp. Levels

250 350

17:14

T245

380

Power
Indicator

Tool
in use

DDE Work Screen

Status Bar

The DDE offers an intuitive user interface which provides quick access to station parameters.

Default PIN: 0105

Displayed if
Temperature
Levels are
Activated

para manuales - color gris

Work Screen

The NASE-C offers an intuitive user interface which provides quick access to station parameters.
Default PIN: 0105

Status Bar

Power
indicator

Displayed if
temperature
levels are
activated

Power

Power

45%

45%

NT115

T470

380

350

Temp. Levels

Temp. Levels

250 380 400

250 350 380

ºC

ºC

17:14

17:14

Port

Port

1

2

Tool
in use

Station
Information

Change
Port

Menu Options

Set the station
parameters

Station Tools Counters

Consult / modify the
links of the peripherals
connected to the
station with the port
they are connected to.

Troubleshooting

Station troubleshooting available on the product page at www.jbctools.com

Set the tool
parameters

It is possible to
choose the language
from a list.

ResetLanguagePeripherals

Display the hours
worked in each cycle

Allows you to carry
out an overall station
reset restoring all the
parameters to their
default values.

5

Advanced Functionalities

It provides detailed graphics of tip temperature and power delivery in real time during
solder joint formation for analysis purposes. This helps you decide how to adjust your
process or which tip to use to obtain the best quality soldering.

Graphics

Designed to avoid thermal shock when soldering Ceramic Chip components like
MLCC, this new and unique feature allows controlling the heating ramp up rate of the
tool to gradually increase the temperature of the component through all the phases of
the soldering process. Up to 25 fully confi gurable soldering profi les can be stored.

Profi les

Get greater quality and control in your production.

JBC Net

Files

Update

Manage your whole soldering process remotely in real time.
For more information see www.jbctools.com/webmanager.html.

Export graphics

Insert a USB flash drive into the
USB-A connector to save your
soldering process in csv format.

Station update

Download the JBC Update File from

www.jbctools.com/software.html

Insert the USB flash drive with the
file downloaded to the station.

System notifications

The following icons will be displayed on the screen’s status bar.

USB fl ash drive is connected.

Station is controlled by a PC.

Station is controlled by a robot.

6

Station sof tware update.
Press INFO to start the process.

Warning.
Press INFO for failure description.

Er ro r.
Press INFO for failure description,
the type of error and how to proceed.

NAU

Control Unit

PORT

2

ROBOT

PEDAL

2

NAU

Control Unit

PORT

2

ROBOT

PEDAL

2

NAU

Control Unit

PORT

2

ROBOT

PEDAL

2

NAU

Control Unit

PORT

2

ROBOT

PEDAL

2

PORT

1

PEDAL

2

C115

C11

C105 /

NAU

Control Unit

PORT

2

ROBOT

PEDAL

2

Operation

para manuales - color gris

The JBC Most Efficient Soldering System

This revolutionary technology is able to recover tip temperature extremely quickly.
This allows the user to work at a lower temperature.
As a result, tip life increases by 5.

1. Work

When the tool is lifted from the holder the tip
will heat up to the selected temperature.

17:14

NT115

ºC

Port

2

Power

45%

350

Selected 350ºC

2. Hibernation

When the tool is in the holder, the power
is cut off and the tool cools down to room
temperature.

NT115

Hibernatio

Actual Temp. 25ºC

17:14

n

Port

2

2

Tool Menu:

· Set temperature limits

· Set temperature levels

Tool Menu:

· Set Hibernation delay
(from 0 to 60 min or no Hibernation)

7

Chip Compoments Rework Process using Tweezers and Pedal

The Adjustable Nano Tweezers is the most effective tool for desoldering chip components but also it
facilitates its rapid placement and soldering by using the P-405 pedal connected to the station.

1

ROBOT

Pedal

Ref. P-405

Connections

Connect pedal P-405 to the same port where the Nano
Tweezers are connected.

In the peripherals menu for the Pedal Activation Mode
choose between “pressed” and “released”.

2

Desoldering*

Lift the tool from the holder, press and hold the pedal to
activate the tool and desolder the component.

Once the pedal is released the tool enters en Hibernation
Mode and cools down.

* Previously Press Mode selected

8

3

para manuales - color gris

Pad Cleaning

Clean the pads with the desoldering tool
DS360-A.

For this operation JBCs Desoldering Station* is
needed.

4

Solder Paste Dispensing

Apply the solder paste amount needed to
solder the new chip component.

The use of JBC´s DPM Solder Paste Dispenser*
is recommended.

* Avialable at www.jbctools.com

9

5

Placing*

Do not press the pedal.

Use the tool to position the component on the previously
tinned pad.

Note: The inactive tool prevents the component from
heating up prematurely.

6

* Previously Press Mode selected

10

Soldering*

Once in position press and hold the pedal to activate the
tool and perform the soldering.

1

2,5

NAU

Control Unit

PORT

2

ROBOT

PEDAL

2

PORT

1

PEDAL

2

C11

C105 /

C105 / C115

NAU

Control Unit

PORT

2

ROBOT

PEDAL

2

PORT

1

PEDAL

2

C115

C11

C105 /

C105 / C115

C105 / C115

C105 / C115

C11

C105 /

C105 / C115

Changing Cartridges

para manuales - color gris

Save time and change cartridges safely without having to switch the station off.

1. Removing

2. Inserting

3. Aligning

1

2

C115

Place the cartridge into the
extractor slot (1) and pull the

Push the cartridge into the
handle until the mark*.

handle to remove them (2).

*Important

It is essential to insert the cartridges as far as the reference ring for a proper connection.

C11

C105 /

Use the holes to rotate
the cartridges for a proper
alignment.

Reference

Ring

Knife

Stainless Steel

Chisel

High Thermal
Performance

Compatible Cartridges

The Nano Handle NT115 and the Adjustable Nano Tweezers AN115 work with C115 cartridges. Find
the model that best suits your soldering needs on www.jbctools.com

Conical

Chisel

Bevel

Conical

Bent

11

Changing Grips

1. Inserting

First put the slide-on
tabs into the new grip,
then push the grip
with the tabs onto the
handle.

Grip for NT115
Ref. N8662

Nano handle

Changing the Tip Cleaning System

1

2. Removing Tabs

Hold the grip and pull
the tab. Use a pliers if
necessary

Tabs

Replace the tip cleaning system:

- Brass wool

- Metal brush

2

Press back the tap (1) to remove the Cleaning
Sys tem (2).

12

Remove the drawer from the Splashguard.

Maintenance

para manuales - color gris

Before carrying out maintenance, always switch the device off and disconnect it from the mains.
Allow the equipment to cool down.

- Clean the station screen with a glass
cleaner or a damp cloth.

- Use a damp cloth to clean the casing and
the tool. Alcohol can only be used to clean
the metal parts.

- Periodically check that the metal parts of
the tool and stand are clean so that the
station can detect the tool status.

- Maintain tip surface clean and tinned prior
to storage in order to avoid tip oxidation.
Rusty and dirty sur faces reduce heat
transfer to the solder joint.

- Periodically check all cables and tubes.

- Replace any defective or damaged pieces.

Use original JBC spare par ts only.

- Replace a blown fuse as follows:

1. Pull of f the fuse holder and remove the

fuse. If necessary use a tool to lever it off.

2. Press the new fuse into the fuse holder

and replace it in the station.

- Repairs should only be performed by a JBC authorized technical service.

Fuse holder

Fuse holder

Fuse

13

Safety

It is imperative to follow safety guidelines to prevent electric
shock, injury, fire or explosion.

- Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire.

- The power cord must be plugged into approved bases. Be sure that it is properly grounded

before use. When unplugging it, hold the plug, not the wire.

- Do not work on electrically live parts.

- The tool should be placed in the stand when not in use in order to activate the sleep mode.

The soldering tip, the metal part of the tool and the stand may still be hot even when the station is
turned off. Handle with care.

- Do not leave the appliance unattended when it is on.

- Do not cover the ventilation grills. Heat can cause inflamable products to ignite.

- Avoid the contact of flux with skin or eyes to prevent irritation.

- Be careful with the fumes produced when soldering.

- Keep your workplace clean and tidy. Wear appropriate protective glasses and gloves when

working to avoid personal harm.

- Utmost care must be taken with liquid tin waste which can cause burns.

- This appliance can be used by children over the age of eight and also persons with reduced

physical, sensor y or mental capabilities or lack of experience provided that they have been given
adequate supervision or instruction concerning use of the appliance and understand the hazards
involved. Children must not play with the appliance.

- Maintenance must not be carried out by children unless supervised.

14

Specifications

para manuales - color gris

NAS
2-Tool Nano Rework Station

Ref.: NASE-9C 100V 50/60Hz. Input fuse: 0.5A. Output: 8.5V
Ref.: NASE-1C 120V 50/60Hz. Input fuse: 0.5A. Output: 8.5V
Ref.: NASE-2C 230V 50/60Hz. Input fuse: 0.2A. Output: 8.5V

- Output Peak Power: 14W per tool

- Temperature Range: 90 - 450 °C /190 - 840 ºF

- Idle Temp. Stability (still air): ±1.5ºC /±3ºF (meets and exceed IPC J-STD-001)

- Temp Accuracy: ±3% (using reference cartridge)

- Temp Adjustment: ±50ºC / ±90ºF (through station menu setting)

- Tip to Ground Voltage/Resistance: Meets and exceed
ANSI/ESD S20.20-2014 IPC J-STD-001F

- Connections: USB-A / USB-B / Pedal connectors
RJ12 connector for Robot

- Ambient Operating Temp: 10 - 50 ºC / 50 - 122 ºF

- Control Unit Dimensions/ Weight: 170 x 90 x 135 mm / 6.70 x 3.54 x 5.31 in
(L x W x H) 2.5 kg / 5.40 lbw

- Total Package Dimensions/ Weight: 280 x 280 x 164 mm/ 11.02 x 11.02 x 6.46 in
(L x W x H) 2.99 kg / 6.59 lb

Complies with CE standards
ESD Safe

15

Warranty

para manuales - color gris

JBC’s 2 year warranty covers this equipment against
all manufacturing defects, including the replacement
of defective parts and labour.
Warrant y does not cover product wear or misuse.
In order for the warranty to be valid, equipment must
be returned, postage paid, to the dealer where it was
purchased.

Get 1 extra year JBC war ranty by registering here:
https://www.jbctools.com/productregistration/
within 3 0 days of purchase.

This product should not be thrown in the garbage.
In accordance with the European directive 2012/19/EU, electronic equipment at the end of its life must
be collected and returned to an authorized recycling facility.

0027139-0621
